INFINITI QX56 2007 Factory Service Manual LT-82
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
PARKING, LICENSE PLATE AND TAIL LAMPS
Component Parts and Harness Connector LocationINFOID:0000000003533434
System DescriptionINFOID

LT-82
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
PARKING, LICENSE PLATE AND TAIL LAMPS
Component Parts and Harness Connector LocationINFOID:0000000003533434
System DescriptionINFOID:0000000003533435
Control of the parking, license plate, and tail lamp operation is dependent upon the position of the lighting
switch (combination switch). When the lighting switch is placed in the 1ST position, the BCM (body control
module) receives input signal requesting the parking, license plate, side marker and tail lamps to illuminate.
This input signal is communicated to the IPDM E/R (intelligent power distribution module engine room) across
the CAN communication lines. The CPU (central processing unit) of the IPDM E/R controls the tail lamp relay
coil. This relay, when energized, directs power to the parking, license plate and tail lamps, which then illumi-
nate.
Power is supplied at all times
• to ignition relay, located in the IPDM E/R,
• to tail lamp relay, located in the IPDM E/R,
• through 20A fuse (No. 53, located in the IPDM E/R)
• to CPU of the IPDM E/R, and
• through 50A fusible link (letter f , located in the fuse and fusible link box)
• to BCM terminal 70.
With the ignition switch in the ON or START position, power is supplied
• through 10A fuse (No. 59, located in the fuse and relay box)
• to BCM terminal 38
• to ignition relay, located in the IPDM E/R, and
Ground is supplied
• to BCM terminal 67
• through grounds M57, M61 and M79, and
• to IPDM E/R terminals 38 and 59
• through grounds E9, E15 and E24.
OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position (or if the auto light system is activated), the BCM receives
input signal requesting the parking, license plate, side marker and tail lamps to illuminate. This input signal is
communicated to the IPDM E/R across the CAN communication lines. The CPU of the IPDM E/R controls the
tail lamp relay coil, which when energized, directs power
WKIA3468E

Page 2290 of 3061

INFINITI QX56 2007 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-83
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
LT
N
O
P
• through 10 A fuse (No. 37, located in the IPDM E/R)
• through IPDM E/R terminal 57
• to fron

Page 2291 of 3061

INFINITI QX56 2007 Factory Service Manual LT-84
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS

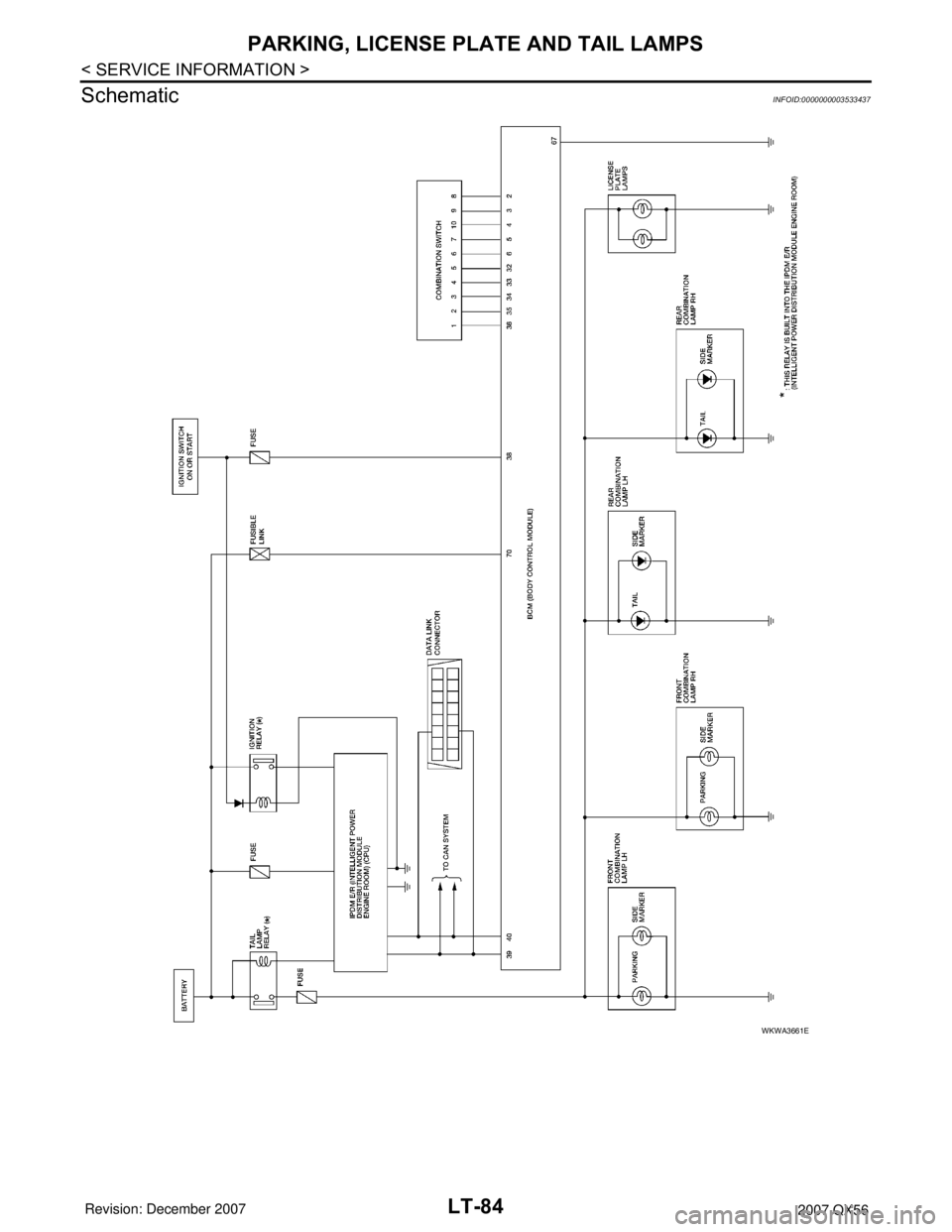

Schematic
INFOID:0000000003533437
WKWA3661E

Page 2292 of 3061

INFINITI QX56 2007 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-85
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
LT
N
O
P

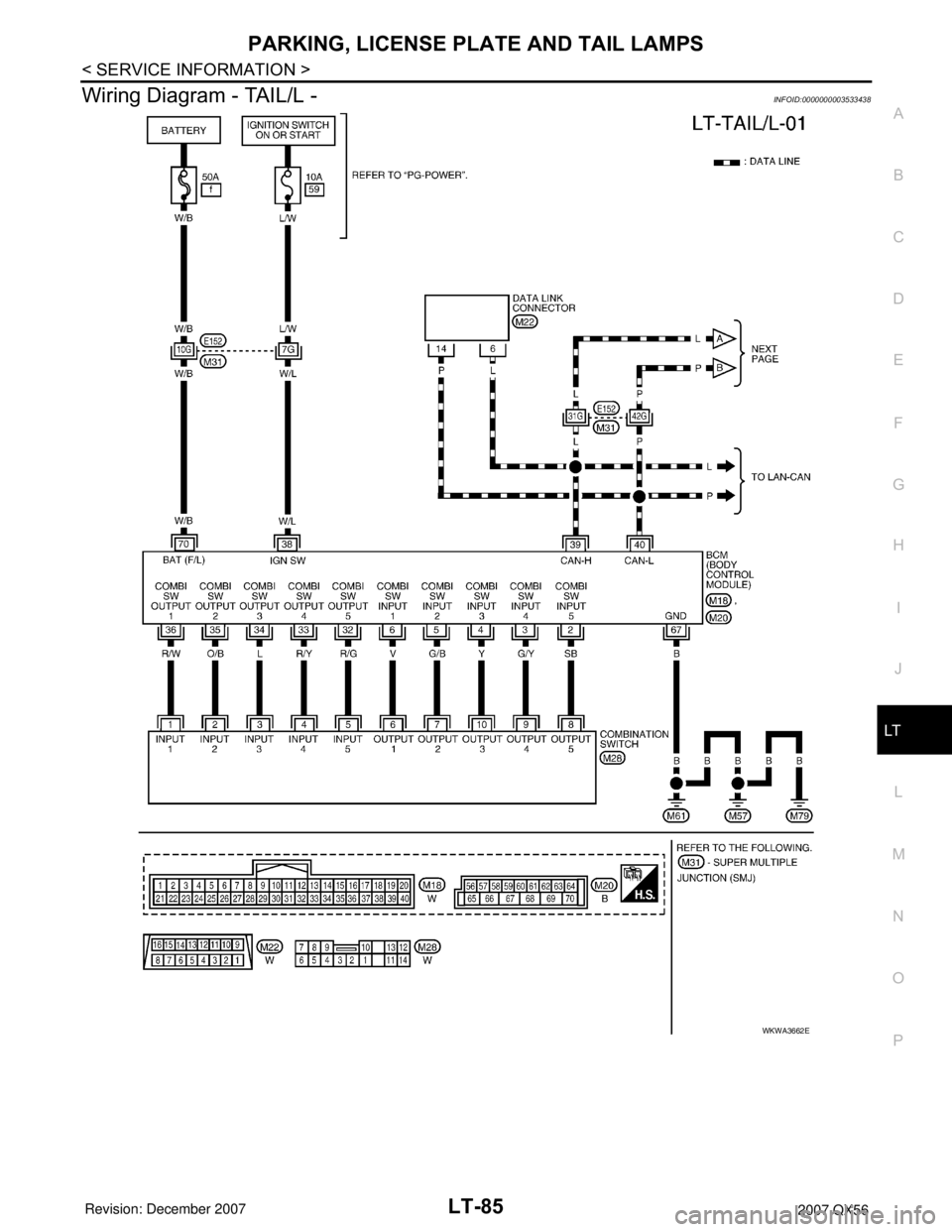

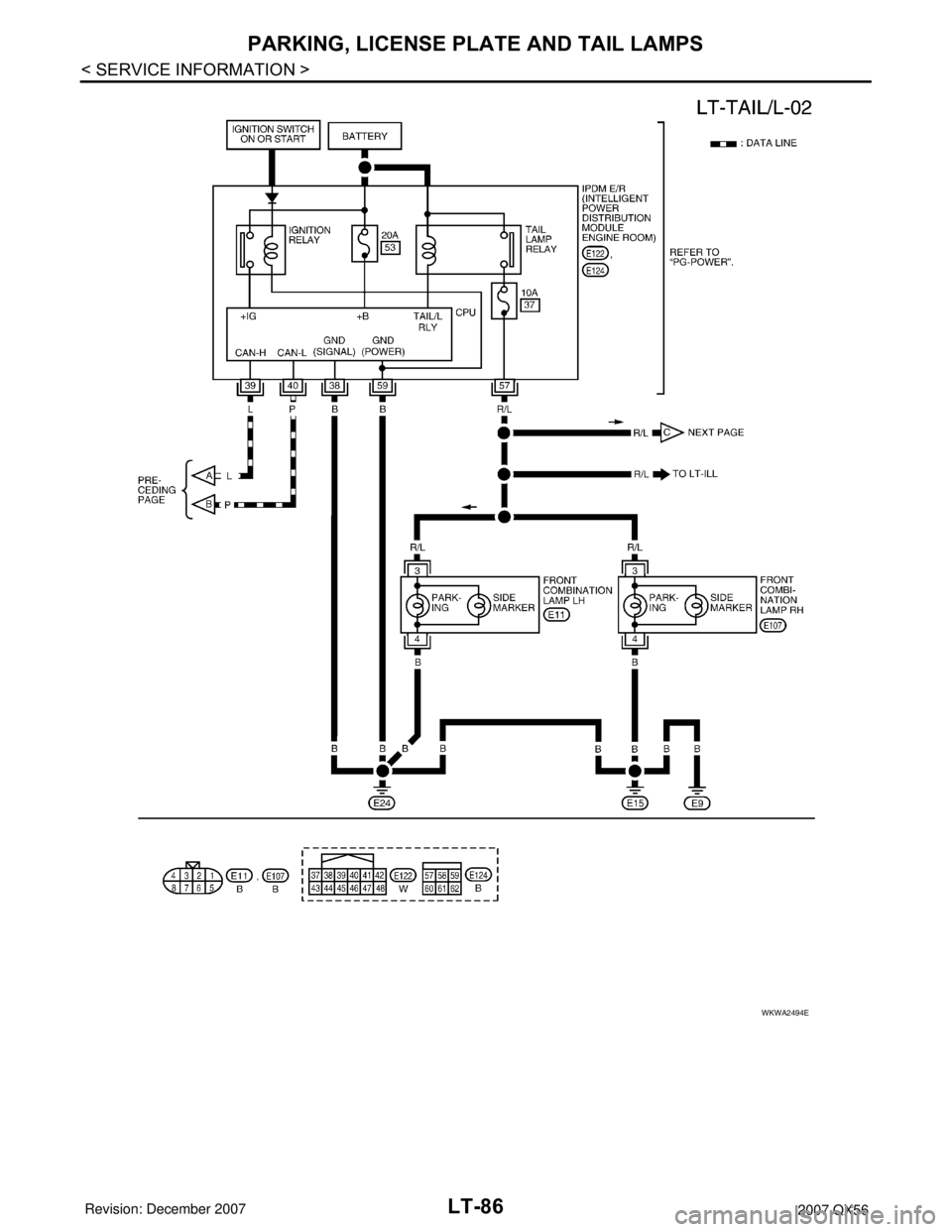

Wiring Diagram - TAIL/L -INFOID:0000000003533438
WKWA3662E

Page 2293 of 3061

INFINITI QX56 2007 Factory Service Manual LT-86
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS

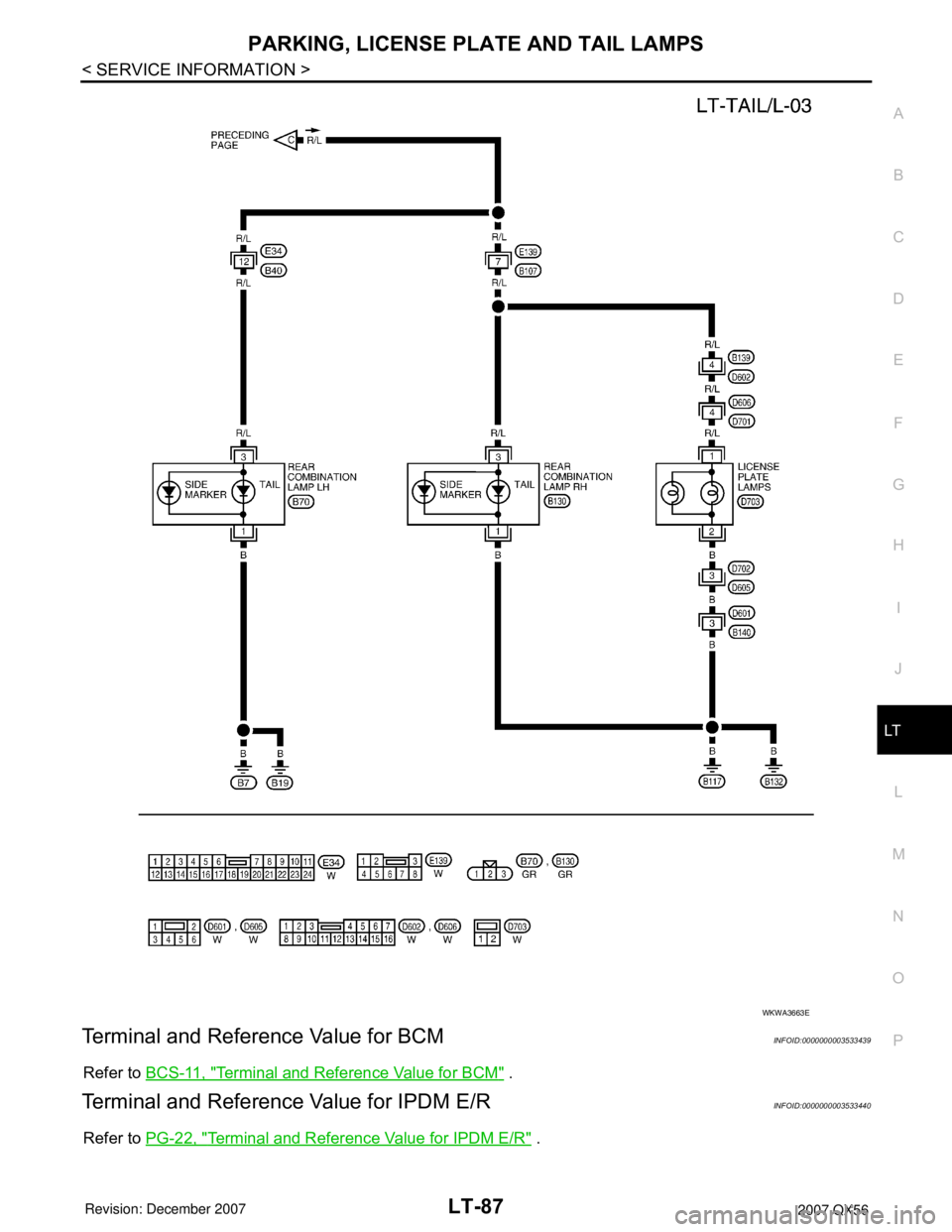

WKWA2494E

Page 2294 of 3061

INFINITI QX56 2007 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-87
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
LT
N
O
P
Terminal and Reference Value for BCMINFOID:0000000003533439
Refer to BCS-11, "Terminal and Reference

Page 2295 of 3061

INFINITI QX56 2007 Factory Service Manual LT-88
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
How to Proceed with Trouble Diagnosis
INFOID:0000000003533441
1. Confirm the symptom or customer complaint.
2. Understand operation

LT-88
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
How to Proceed with Trouble Diagnosis
INFOID:0000000003533441
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT-82, "
System Description" .
3. Carry out the Preliminary Check. Refer to LT-88, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Do the parking, license and tail lamps operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. Inspection End.
Preliminary CheckINFOID:0000000003533442
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-15, "BCM Power Supply and Ground Circuit Inspection" .
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR IPDM E/R
Refer to PG-26, "IPDM E/R Power/Ground Circuit Inspection" .
CONSULT-II Function for BCMINFOID:0000000003533443
Refer to BCS-16, "CONSULT-II Function (BCM)" .
CONSULT-II Function for IPDM E/RINFOID:0000000003533444
Refer to PG-18, "CONSULT-II Function (IPDM E/R)" .
Parking, License Plate and/or Tail Lamps Do Not IlluminateINFOID:0000000003533445
1.CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor,
make sure "LIGHT SW 1ST" turns ON-OFF linked with operation of
lighting switch.
Without CONSULT-II
Refer toLT-73, "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check lighting switch. Refer to LT-73, "
Combination
Switch Inspection" .
2.ACTIVE TEST
With CONSULT-II
1. Select "IPDM E/R" on CONSULT-II, and select "ACTIVE TEST"
on "SELECT DIAG MODE" screen.
2. Select "EXTERNAL LAMPS" on "SELECT TEST ITEM" screen.
3. Touch "TAIL" on "ACTIVE TEST" screen.
4. Make sure parking, license plate and tail lamp operation.
Without CONSULT-II
1. Start auto active test. Refer to PG-20, "
Auto Active Test" .
2. Make sure parking, license plate and tail lamp operation.
OK or NG
When lighting switch is in
1ST position: LIGHT SW 1ST ON
SKIA5956E
Parking, license plate and tail lamp should operate
Parking, license plate and tail lamp should operate
WKIA1438E

Page 2296 of 3061

INFINITI QX56 2007 Factory Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS
LT-89
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
LT
N
O
P
OK >> GO TO 3.
NG >> GO TO 4.
3.CHECK IPDM E/R
1. Select "IPDM E/R" on CONSULT-II, and select "DATA
