IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
OK or NG
OK >> GO TO 5.
NG >> Repair or replace fuse or harness. Ref. part No. E3
5.CHECK NATS ANTENNA AMP. SIGNAL LINE- 1
Check voltage between NATS antenna amp. connector M21 terminal
2 and ground with analog tester.
OK or NG
OK >> GO TO 6.
NG >> • Repair or replace harness.
NOTE:
If harness is OK, replace BCM, perform initialization with CONSULT-II. For initialization, refer to
“CONSULT-II Operation Manual NATS-IVIS/NVIS”.
6.CHECK NATS ANTENNA AMP. SIGNAL LINE- 2
Check voltage between NATS antenna amp. connector M21 terminal
4 and ground with analog tester.1 - Ground :Battery voltage
LIIA1498E
LIIA1642E
Connector terminals
(wire colors)
Position of ignition key cylinderVoltage (V)
(Approx.)
( + ) ( - )
2GroundBefore inserting ignition key Battery voltage
After inserting ignition keyPointer of tester should move for approx. 30 seconds,
then return to battery voltage
Just after turning ignition switch
ONPointer of tester should move for approx. 1 second, then
return to battery voltage
LIIA1643E
Page 842 of 3061

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
BL-131
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
OK or NG
OK >> GO TO 7.
NG >> • Repair or replace harness.
NOTE:
If harness is OK, replace BCM, perform initialization with CONSULT-II. For initialization, refer to
“CONSULT-II Operation Manual NATS-IVIS/NVIS”.

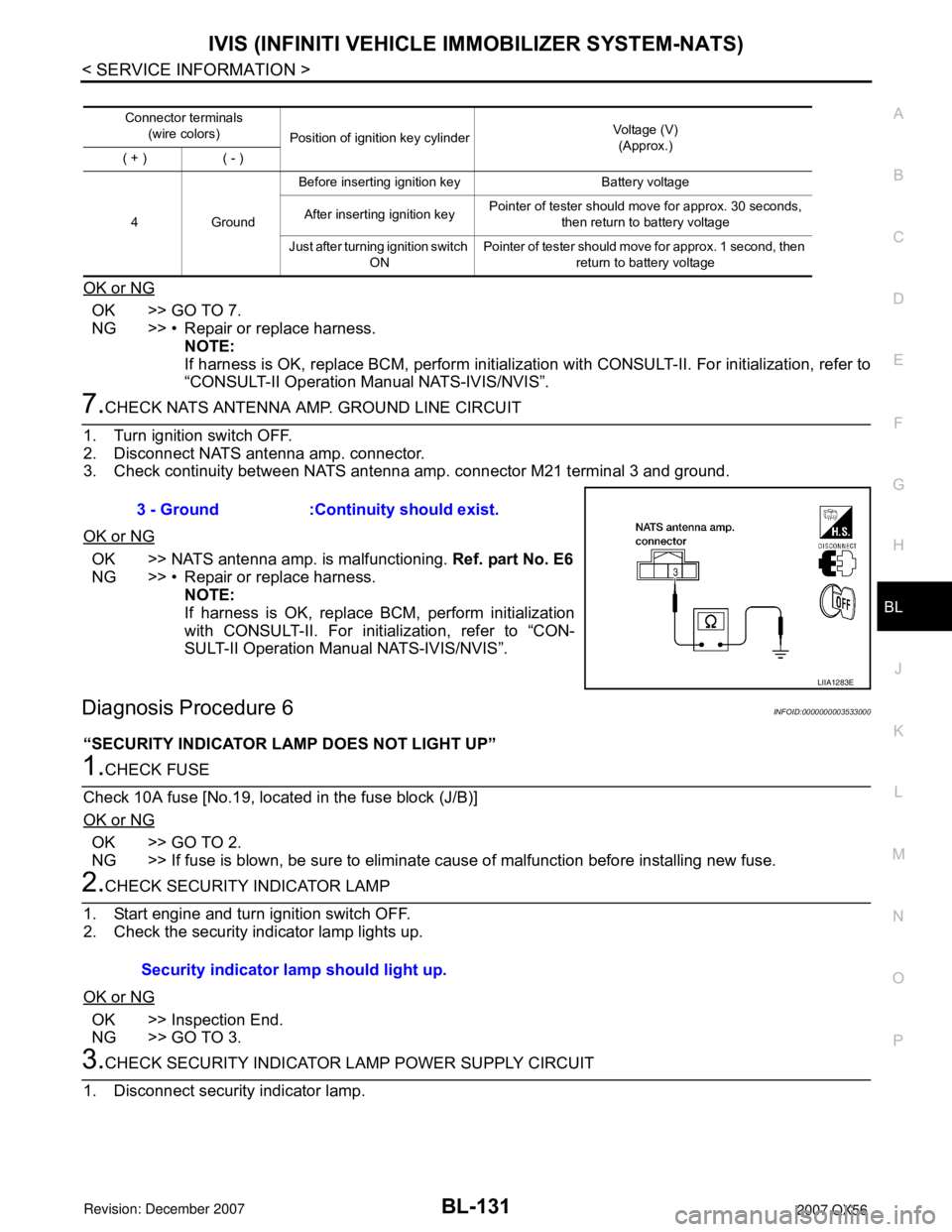

7.CHECK NATS ANTENNA AMP. GROUND LINE CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect NATS antenna amp. connector.
3. Check continuity between NATS antenna amp. connector M21 terminal 3 and ground.
OK or NG
OK >> NATS antenna amp. is malfunctioning. Ref. part No. E6
NG >> • Repair or replace harness.
NOTE:
If harness is OK, replace BCM, perform initialization
with CONSULT-II. For initialization, refer to “CON-
SULT-II Operation Manual NATS-IVIS/NVIS”.
Diagnosis Procedure 6INFOID:0000000003533000
“SECURITY INDICATOR LAMP DOES NOT LIGHT UP”
1.CHECK FUSE
Check 10A fuse [No.19, located in the fuse block (J/B)]
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.
2.CHECK SECURITY INDICATOR LAMP
1. Start engine and turn ignition switch OFF.
2. Check the security indicator lamp lights up.
OK or NG
OK >> Inspection End.
NG >> GO TO 3.
3.CHECK SECURITY INDICATOR LAMP POWER SUPPLY CIRCUIT
1. Disconnect security indicator lamp.
Connector terminals
(wire colors)
Position of ignition key cylinderVoltage (V)
(Approx.)
( + ) ( - )
4GroundBefore inserting ignition key Battery voltage
After inserting ignition keyPointer of tester should move for approx. 30 seconds,
then return to battery voltage
Just after turning ignition switch
ONPointer of tester should move for approx. 1 second, then
return to battery voltage
3 - Ground :Continuity should exist.
LIIA1283E
Security indicator lamp should light up.
Page 843 of 3061

BL-132
< SERVICE INFORMATION >
IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)
2. Check voltage between security indicator lamp connector M24
terminal 8 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4.CHECK BCM (NATS CONTROL UNIT) FUNCTION
1. Connect security indicator lamp.
2. Disconnect BCM.
3. Check voltage between BCM connector M18 terminal 23 and
ground.
OK or NG
OK >> BCM is malfunctioning.
• Replace BCM. Ref. part No. A
• Perform initialization with CONSULT-II.
• For initialization, refer to “CONSULT-II Operation Man-
ual NATS-IVIS/NVIS”.
NG >> Check the following:
• Harness for open or short between security indicator lamp and BCM (NATS control unit).
• Indicator lamp condition
How to Replace NATS Antenna AmpINFOID:0000000003533001
NOTE:
•If NATS antenna amp. is not installed correctly, IVIS (NATS)
system will not operate properly and SELF-DIAG RESULTS on
CONSULT-II screen will show “LOCK MODE” or “CHAIN OF
IMMU-KEY”.
•Initialization is not necessary when only NATS antenna amp.
is replaced with a new one.8 - Ground :Battery voltage
LIIA1072E
23 - Ground :Battery voltage
LIIA0523E
SIIA1683E
Page 844 of 3061
HOMELINK UNIVERSAL TRANSCEIVER
BL-133
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
HOMELINK UNIVERSAL TRANSCEIVER
Wiring Diagram - TRNSCV -INFOID:0000000003533002
Trouble DiagnosisINFOID:0000000003533003
DIAGNOSTIC PROCEDURE
SYMPTOM: Transmitter does not activate receiver.
WIWA0759E
Page 845 of 3061

BL-134
< SERVICE INFORMATION >
HOMELINK UNIVERSAL TRANSCEIVER
Before conducting the procedure given below, make sure that system receiver (garage door opener, etc.)
operates with original, hand-held transmitter. If NG, receiver or hand-held transmitter is malfunctioning, not
vehicle related.
1.ILLUMINATE CHECK
• Turn ignition switch OFF.
• Does amber light (LED) of transmitter illuminate when any button
is pressed?
YES or NO
YES >> GO TO 2.
NO >> GO TO 3.
2.TRANSMITTER CHECK
Check transmitter with Tool.*
*For details, refer to Technical Service Bulletin.
OK or NG
OK >> Receiver or hand-held transmitter malfunction, not vehicle related.
NG >> Replace transmitter.
3.POWER SUPPLY CHECK
1. Disconnect transmitter.
2. Check voltage between Homelink® universal transceiver connector R106 terminal 1 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace fuse or harness.
4.GROUND CIRCUIT CHECK
Check continuity between Homelink® universal transceiver connector R106 terminal 2 and body ground.
OK or NG
OK >> Replace compass and thermometer assembly.
NG >> Repair or replace harness.
LIIA1466E
1 - Ground : Battery voltage
LIIA1467E
2 - Ground : Continuity should exist.
LIIA2039E
Page 846 of 3061
CAB AND REAR BODY
BL-135
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
BL
N
O
P
CAB AND REAR BODY

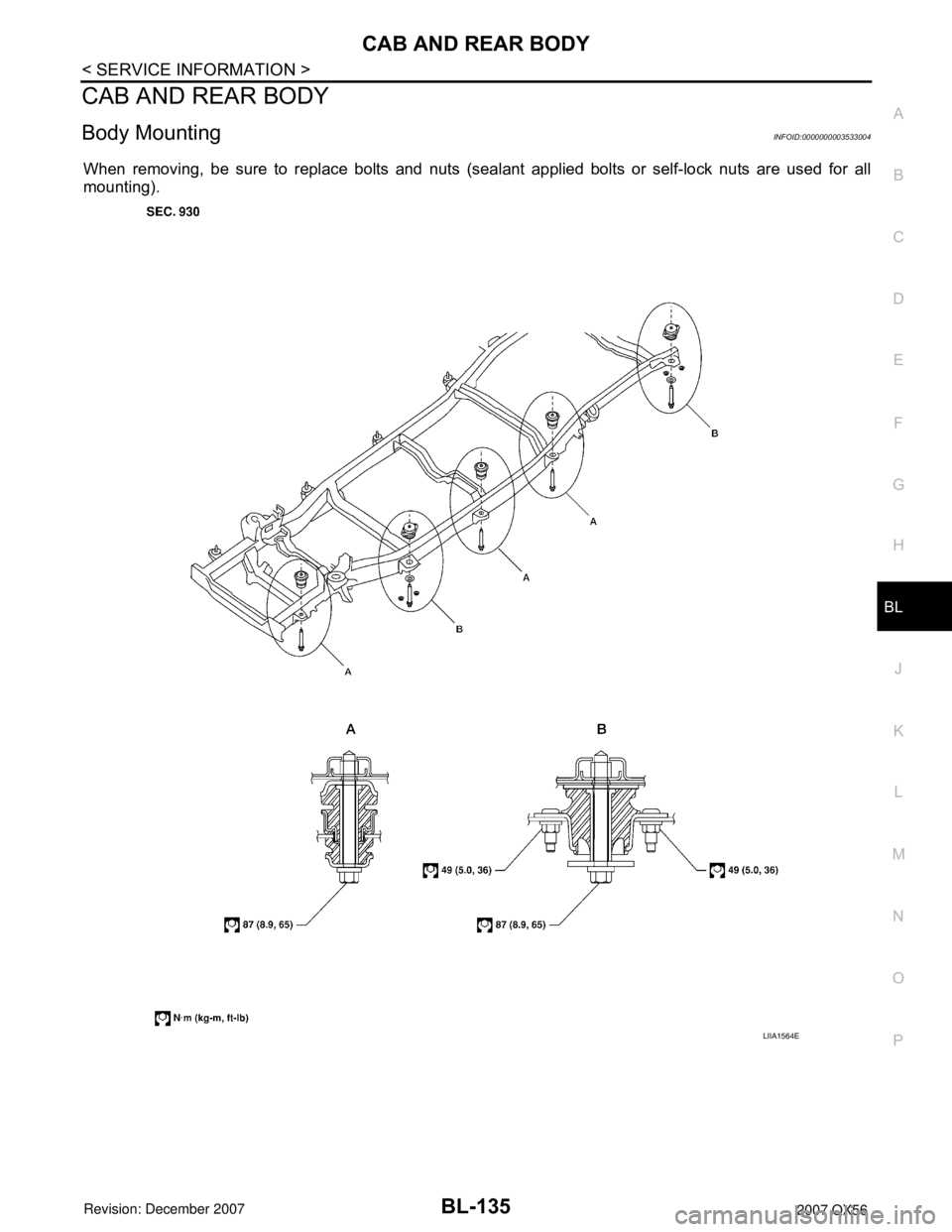

Body MountingINFOID:0000000003533004
