Page 2897 of 3061

TROUBLE DIAGNOSIS FOR SYSTEM
TF-75
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P

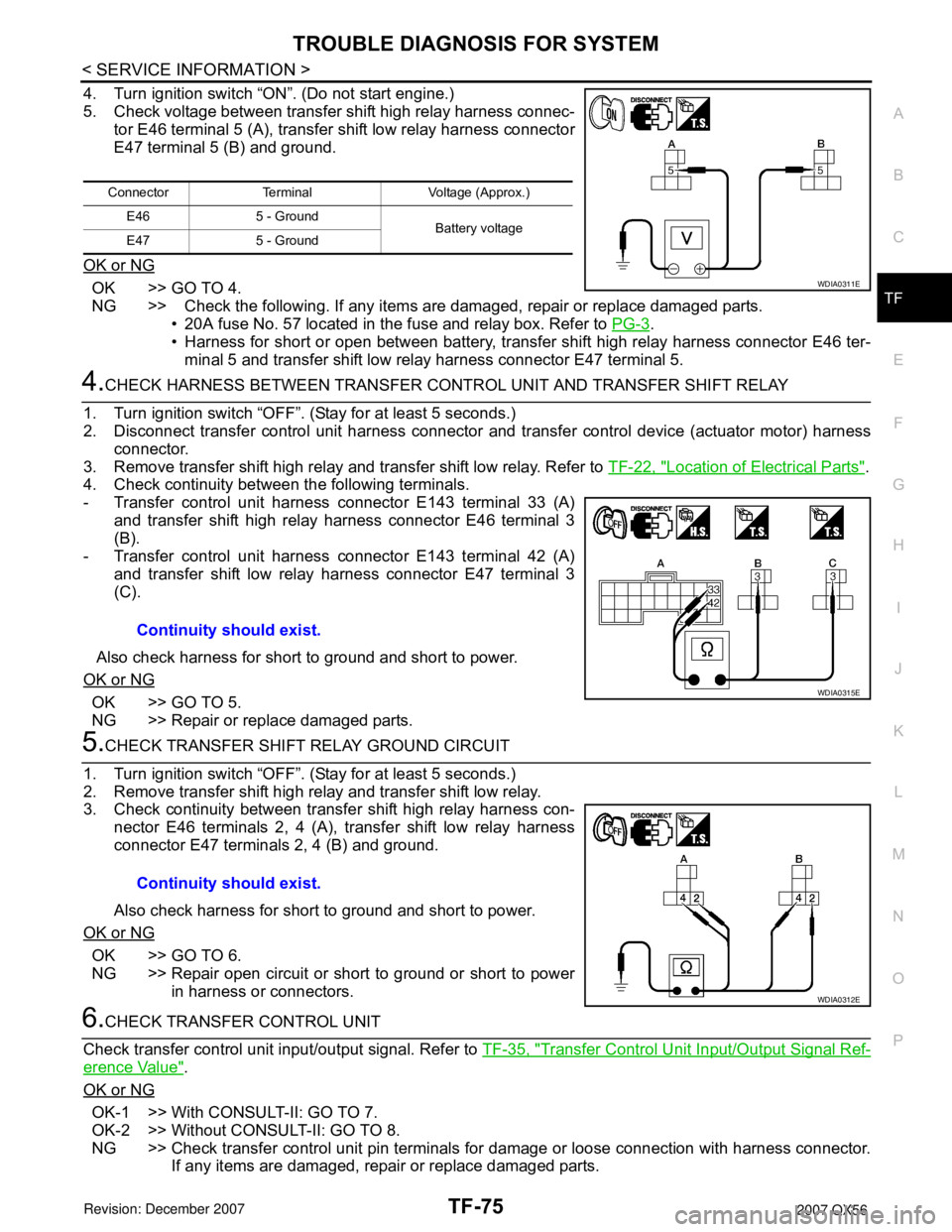

4. Turn ignition switch “ON”. (Do not start engine.)
5. Check voltage between transfer shift high relay harness connec-
tor E46 terminal 5 (A), transfer shift low relay harness connector
E47 terminal 5 (B) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following. If any items are damaged, repair or replace damaged parts.
• 20A fuse No. 57 located in the fuse and relay box. Refer to PG-3
.
• Harness for short or open between battery, transfer shift high relay harness connector E46 ter-
minal 5 and transfer shift low relay harness connector E47 terminal 5.
4.CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND TRANSFER SHIFT RELAY
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and transfer control device (actuator motor) harness
connector.
3. Remove transfer shift high relay and transfer shift low relay. Refer to TF-22, "
Location of Electrical Parts".
4. Check continuity between the following terminals.
- Transfer control unit harness connector E143 terminal 33 (A)
and transfer shift high relay harness connector E46 terminal 3
(B).
- Transfer control unit harness connector E143 terminal 42 (A)
and transfer shift low relay harness connector E47 terminal 3
(C).
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.CHECK TRANSFER SHIFT RELAY GROUND CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Remove transfer shift high relay and transfer shift low relay.
3. Check continuity between transfer shift high relay harness con-
nector E46 terminals 2, 4 (A), transfer shift low relay harness
connector E47 terminals 2, 4 (B) and ground.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
6.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to TF-35, "
Transfer Control Unit Input/Output Signal Ref-
erence Value".
OK or NG
OK-1 >> With CONSULT-II: GO TO 7.
OK-2 >> Without CONSULT-II: GO TO 8.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
Connector Terminal Voltage (Approx.)
E46 5 - Ground
Battery voltage
E47 5 - Ground
WDIA0311E
Continuity should exist.
WDIA0315E
Continuity should exist.
WDIA0312E
Page 2898 of 3061

TF-76
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS FOR SYSTEM
7.PERFORM SELF-DIAGNOSIS (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “ALL MODE AWD/4WD” with CONSULT-II.
3. Touch “ERASE”.
4. Turn ignition switch “OFF” and wait at least 10 seconds.
5. Perform the self-diagnosis again.
Is the
“SHIFT ACT CIR [P1819]” displayed?
YES >> Replace transfer control unit. Refer to TF-115, "Removal and Installation".
NO >> Inspection End.
8.PERFORM SELF-DIAGNOSIS (WITHOUT CONSULT-II)
Without CONSULT-II1. Perform the self-diagnosis and then erase self-diagnostic results. Refer to TF-48, "Self-Diagnosis Proce-
dure" and TF-48, "Self-Diagnosis Procedure".
2. Perform the self-diagnosis again.
Do the self-diagnostic results indicate transfer control device?
YES >> Replace transfer control unit. Refer to TF-121, "Removal and Installation".
NO >> Inspection End.
Engine Speed Signal (ECM)INFOID:0000000003532540
DIAGNOSTIC PROCEDURE
1.CHECK DTC WITH ECM
Perform self-diagnosis with ECM. Refer to E C - 111 , "
CONSULT-II Function (ENGINE)" .
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system.
NO >> GO TO 2.
2.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to TF-35, "
Transfer Control Unit Input/Output Signal Ref-
erence Value".
OK or NG
OK >> GO TO 3.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
3.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK >> Inspection End.
NG >> Perform self-diagnosis with ECM again. Refer to E C - 111 , "
CONSULT-II Function (ENGINE)" .
Clutch Pressure SolenoidINFOID:0000000003532541
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference value.
TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE
Monitored item Content Condition Display value
DUTY SOLENOID [%]Condition of clutch pres-
sure solenoid• Vehicle stopped
• Engine running
• A/T selector lever “N”
position
• Brake pedal depressed4WD shift switch: 2WD 4%
4WD shift switch: AUTO 96 - 4%
4WD shift switch: 4H or
4LO4%
Page 2899 of 3061

TROUBLE DIAGNOSIS FOR SYSTEM
TF-77
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P

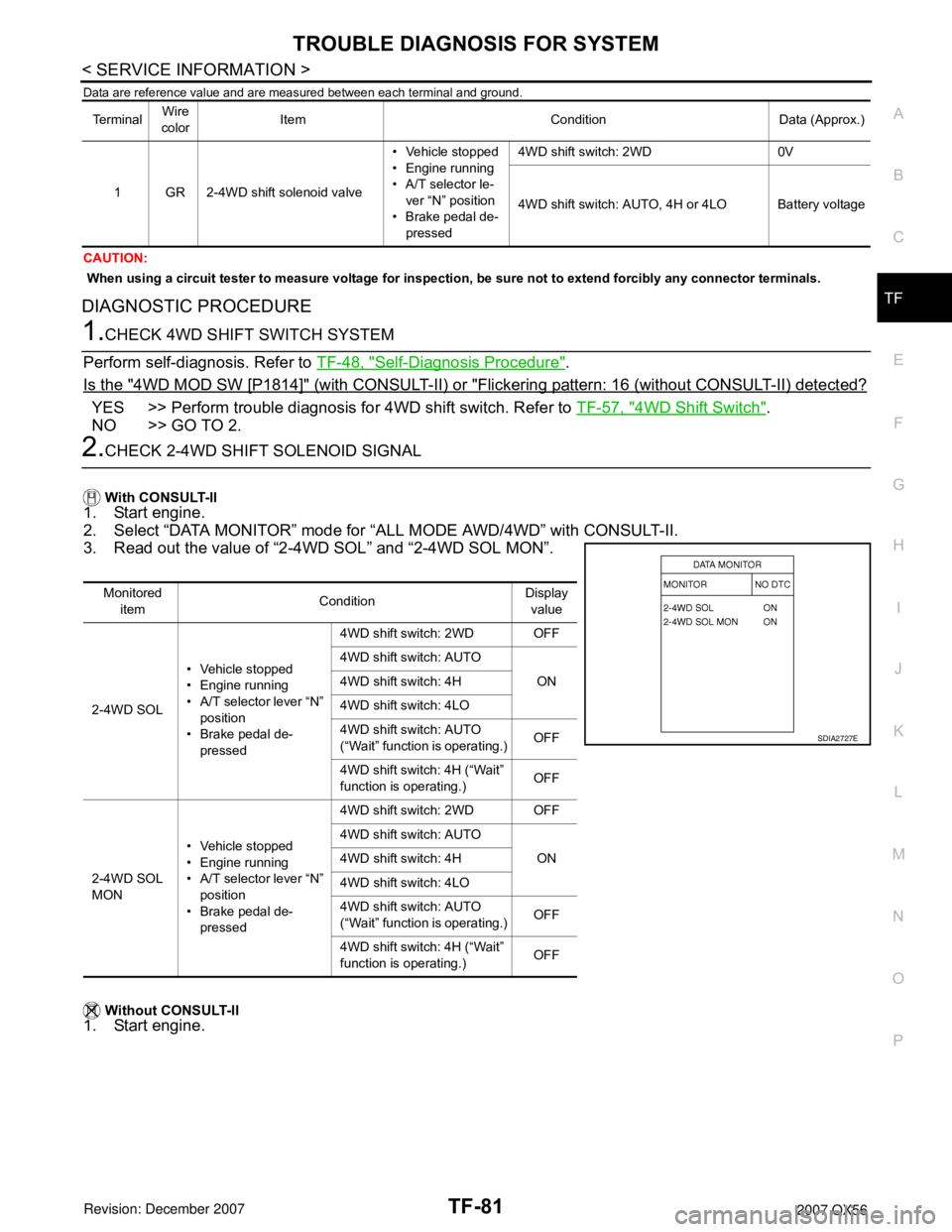

Data are reference value and are measured between each terminal and ground.
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
DIAGNOSTIC PROCEDURE
1.CHECK CLUTCH PRESSURE SIGNAL
With CONSULT-II1. Start engine.
2. Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.
3. Read out the value of “DUTY SOLENOID”.
Without CONSULT-II
1. Start engine.

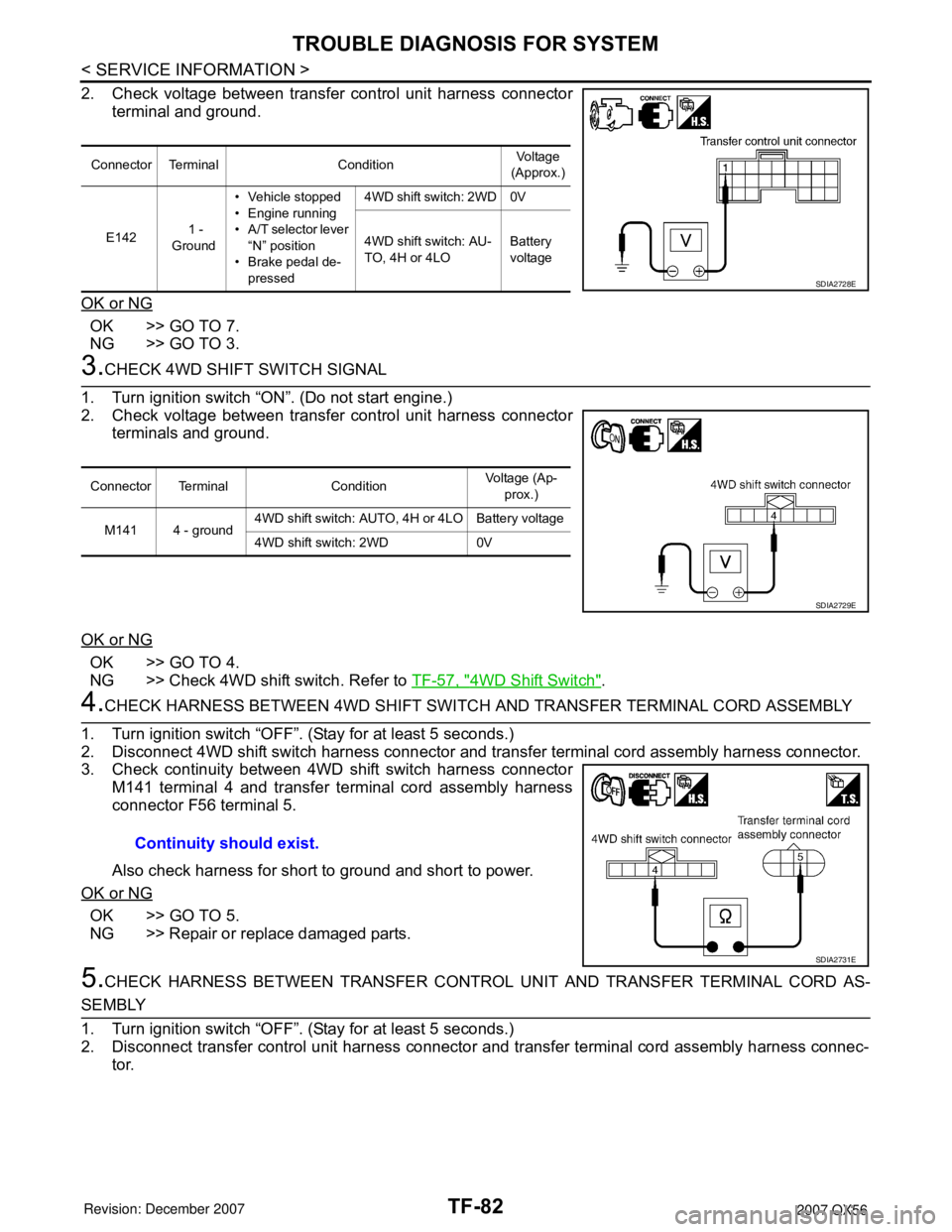

2. Check voltage between transfer control unit harness connector
terminal and ground.
OK or NG
OK >> GO TO 7.
NG >> GO TO 2.
Te r m i n a lWire
colorItem Condition Data (Approx.)
10 L/W Transfer dropping resistor• Vehicle stopped
• Engine running
• A/T selector le-
ver “N” position
• Brake pedal de-
pressed4WD shift switch: AUTO 4 - 14V
4WD shift switch: 2WD, 4H or 4LO Less than 1V
19 LClutch pressure solenoid
valve• Vehicle stopped
• Engine running
• A/T selector le-
ver “N” position
• Brake pedal de-
pressed4WD shift switch: AUTO 1.5 - 3V
4WD shift switch: 2WD, 4H or 4LO Less than 1V
Condition Display value
• Vehicle stopped
• Engine running
• A/T selector lever “N” position
• Brake pedal depressed4WD shift switch: 2WD 4%
4WD shift switch: AUTO 96 - 4%
4WD shift switch: 4H or
4LO4%
SDIA2718E
Connector Terminal ConditionVoltage
(Approx.)
E142 10 -
Ground• Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de-
pressed4WD shift switch:
AUTO4 - 14V
4WD shift switch:
2WD, 4H or 4LOLess than
1V
19 -
Ground• Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de-
pressed4WD shift switch:
AUTO1.5 - 3V
4WD shift switch:
2WD, 4H or 4LOLess than
1V
SDIA2719E
Page 2900 of 3061

TF-78
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS FOR SYSTEM

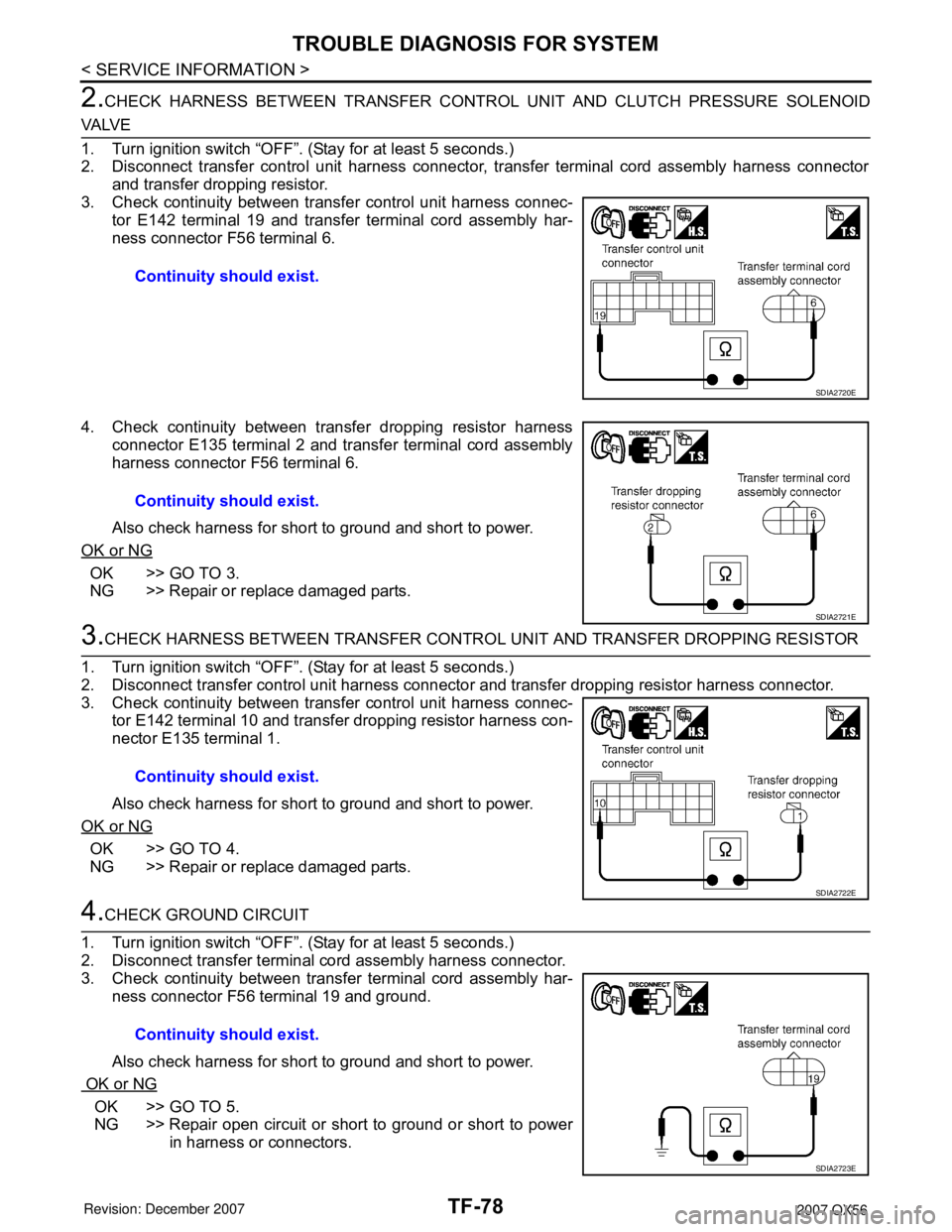

2.CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND CLUTCH PRESSURE SOLENOID
VA LV E
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector, transfer terminal cord assembly harness connector
and transfer dropping resistor.
3. Check continuity between transfer control unit harness connec-
tor E142 terminal 19 and transfer terminal cord assembly har-
ness connector F56 terminal 6.
4. Check continuity between transfer dropping resistor harness
connector E135 terminal 2 and transfer terminal cord assembly
harness connector F56 terminal 6.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3.CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND TRANSFER DROPPING RESISTOR
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and transfer dropping resistor harness connector.
3. Check continuity between transfer control unit harness connec-
tor E142 terminal 10 and transfer dropping resistor harness con-
nector E135 terminal 1.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4.CHECK GROUND CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer terminal cord assembly harness connector.
3. Check continuity between transfer terminal cord assembly har-
ness connector F56 terminal 19 and ground.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Continuity should exist.
SDIA2720E
Continuity should exist.
SDIA2721E
Continuity should exist.
SDIA2722E
Continuity should exist.
SDIA2723E
Page 2901 of 3061

TROUBLE DIAGNOSIS FOR SYSTEM
TF-79
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P
5.CHECK CLUTCH PRESSURE SOLENOID
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer terminal cord assembly harness connector.

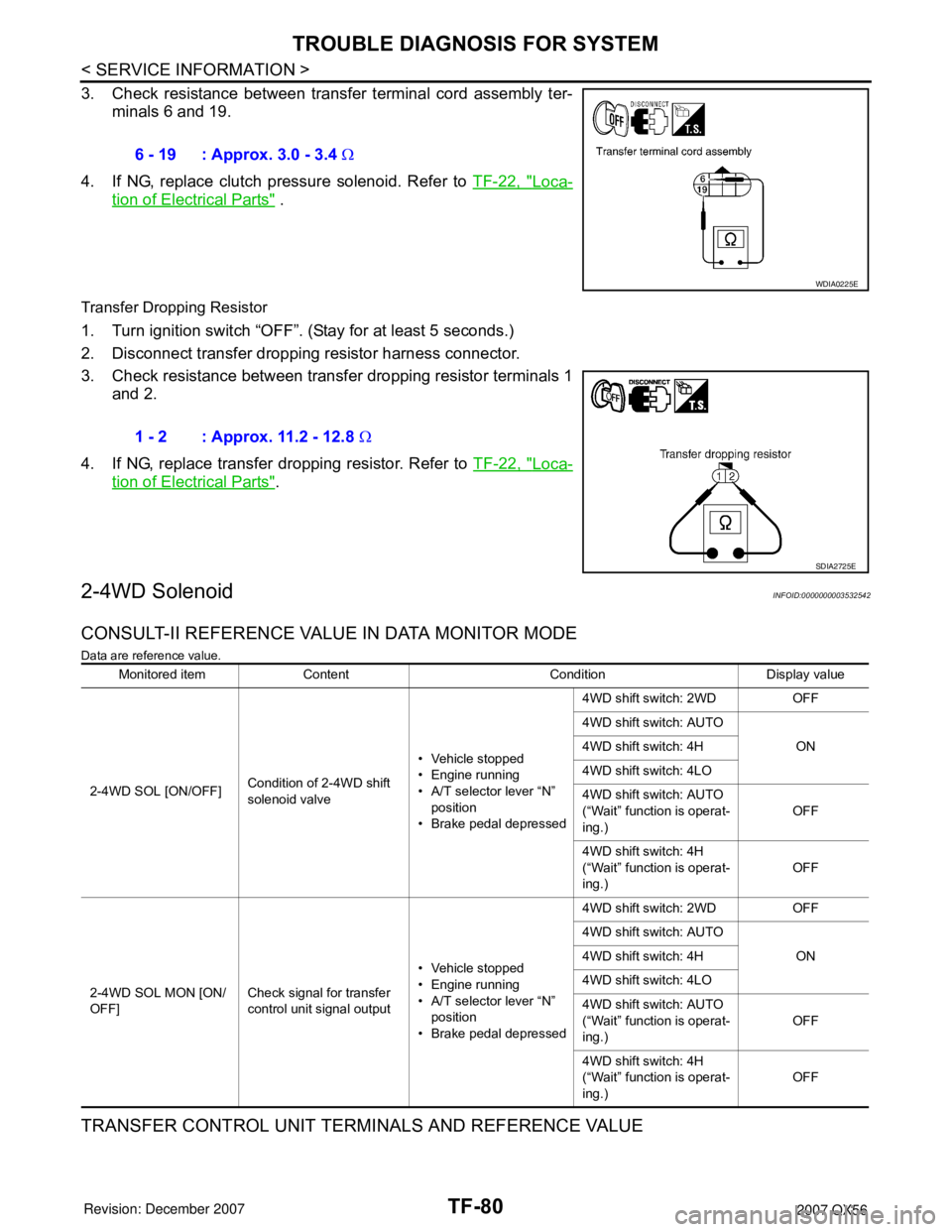

3. Check resistance between transfer terminal cord assembly ter-
minals 6 and 19.
OK or NG
OK >> GO TO 6.
NG >> Replace clutch pressure solenoid. Refer to TF-22,
"Location of Electrical Parts".
6.CHECK TRANSFER DROPPING RESISTOR
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer dropping resistor harness connector. Refer to TF-22, "
Location of Electrical Parts".
3. Check resistance between transfer dropping resistor terminals 1
and 2.
OK or NG
OK >> GO TO 7.
NG >> Replace transfer dropping resistor. Refer to TF-22,
"Location of Electrical Parts".
7.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to TF-35, "
Transfer Control Unit Input/Output Signal Ref-
erence Value".
OK or NG
OK >> GO TO 8.
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
8.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK >> Inspection End.
NG >> Replace transfer control unit. Refer to TF-115, "
Removal and Installation".
COMPONENT INSPECTION
Clutch Pressure Solenoid
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer terminal cord assembly harness connector.6 - 19 : Approx. 3.0 - 3.4 Ω
WDIA0225E
1 - 2 : Approx. 11.2 - 12.8 Ω
SDIA2725E
Page 2902 of 3061

TF-80
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS FOR SYSTEM
3. Check resistance between transfer terminal cord assembly ter-
minals 6 and 19.
4. If NG, replace clutch pressure solenoid. Refer to TF-22, "
Loca-
tion of Electrical Parts" .
Transfer Dropping Resistor
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer dropping resistor harness connector.
3. Check resistance between transfer dropping resistor terminals 1
and 2.
4. If NG, replace transfer dropping resistor. Refer to TF-22, "
Loca-
tion of Electrical Parts".
2-4WD SolenoidINFOID:0000000003532542
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference value.
TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE
6 - 19 : Approx. 3.0 - 3.4 Ω
WDIA0225E
1 - 2 : Approx. 11.2 - 12.8 Ω
SDIA2725E
Monitored item Content Condition Display value
2-4WD SOL [ON/OFF]Condition of 2-4WD shift
solenoid valve• Vehicle stopped
• Engine running
• A/T selector lever “N”
position
• Brake pedal depressed4WD shift switch: 2WD OFF
4WD shift switch: AUTO
ON 4WD shift switch: 4H
4WD shift switch: 4LO
4WD shift switch: AUTO
(“Wait” function is operat-
ing.)OFF
4WD shift switch: 4H
(“Wait” function is operat-
ing.)OFF
2-4WD SOL MON [ON/
OFF]Check signal for transfer
control unit signal output• Vehicle stopped
• Engine running
• A/T selector lever “N”
position
• Brake pedal depressed4WD shift switch: 2WD OFF
4WD shift switch: AUTO
ON 4WD shift switch: 4H
4WD shift switch: 4LO
4WD shift switch: AUTO
(“Wait” function is operat-
ing.)OFF
4WD shift switch: 4H
(“Wait” function is operat-
ing.)OFF
Page 2903 of 3061

TROUBLE DIAGNOSIS FOR SYSTEM
TF-81
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P
Data are reference value and are measured between each terminal and ground.
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
DIAGNOSTIC PROCEDURE
1.CHECK 4WD SHIFT SWITCH SYSTEM
Perform self-diagnosis. Refer to TF-48, "
Self-Diagnosis Procedure".
Is the "4WD MOD SW [P1814]" (with CONSULT-II) or "Flickering pattern: 16 (without CONSULT-II) detected?
YES >> Perform trouble diagnosis for 4WD shift switch. Refer to TF-57, "4WD Shift Switch".
NO >> GO TO 2.
2.CHECK 2-4WD SHIFT SOLENOID SIGNAL
With CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-II.
3. Read out the value of “2-4WD SOL” and “2-4WD SOL MON”.
Without CONSULT-II
1. Start engine.
Te r m i n a lWire
colorItem Condition Data (Approx.)
1 GR 2-4WD shift solenoid valve• Vehicle stopped
• Engine running
• A/T selector le-
ver “N” position
• Brake pedal de-
pressed4WD shift switch: 2WD 0V
4WD shift switch: AUTO, 4H or 4LO Battery voltage
Monitored
itemConditionDisplay
value
2-4WD SOL• Vehicle stopped
• Engine running
• A/T selector lever “N”
position
• Brake pedal de-
pressed4WD shift switch: 2WD OFF
4WD shift switch: AUTO
ON 4WD shift switch: 4H
4WD shift switch: 4LO
4WD shift switch: AUTO
(“Wait” function is operating.)OFF
4WD shift switch: 4H (“Wait”
function is operating.)OFF
2-4WD SOL
MON• Vehicle stopped
• Engine running
• A/T selector lever “N”
position
• Brake pedal de-
pressed4WD shift switch: 2WD OFF
4WD shift switch: AUTO
ON 4WD shift switch: 4H
4WD shift switch: 4LO
4WD shift switch: AUTO
(“Wait” function is operating.)OFF
4WD shift switch: 4H (“Wait”
function is operating.)OFF
SDIA2727E
Page 2904 of 3061

TF-82
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS FOR SYSTEM
2. Check voltage between transfer control unit harness connector
terminal and ground.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3.CHECK 4WD SHIFT SWITCH SIGNAL
1. Turn ignition switch “ON”. (Do not start engine.)
2. Check voltage between transfer control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 4.
NG >> Check 4WD shift switch. Refer to TF-57, "
4WD Shift Switch".
4.CHECK HARNESS BETWEEN 4WD SHIFT SWITCH AND TRANSFER TERMINAL CORD ASSEMBLY
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect 4WD shift switch harness connector and transfer terminal cord assembly harness connector.
3. Check continuity between 4WD shift switch harness connector
M141 terminal 4 and transfer terminal cord assembly harness
connector F56 terminal 5.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND TRANSFER TERMINAL CORD AS-
SEMBLY
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and transfer terminal cord assembly harness connec-
tor.
Connector Terminal ConditionVoltage
(Approx.)
E142 1 -
Ground• Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de-
pressed4WD shift switch: 2WD 0V
4WD shift switch: AU-
TO, 4H or 4LOBattery
voltage
SDIA2728E
Connector Terminal ConditionVoltage (Ap-
prox.)
M141 4 - ground4WD shift switch: AUTO, 4H or 4LO Battery voltage
4WD shift switch: 2WD 0V
SDIA2729E
Continuity should exist.
SDIA2731E
