DTC P0605 ECM
2. Perform initialization of IVIS(NATS) system and registration of all IVIS(NATS) ignition key IDs. Refer to
BL-117, "
ECM Re-communicating Function".
3. Perform EC-77, "
VIN Registration" .
4. Perform EC-77, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-77, "
Throttle Valve Closed Position Learning" .
6. Perform EC-78, "
Idle Air Volume Learning" .
>>INSPECTION END
Page 1530 of 3061

DTC P0643 SENSOR POWER SUPPLY
EC-447
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
DTC P0643 SENSOR POWER SUPPLY
On Board Diagnosis LogicINFOID:0000000003531961
This self-diagnosis has the one trip detection logic.
FA I L - S A F E M O D E
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000003531962
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-449, "
Diagnosis Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0643
0643Sensor power supply circuit
shortECM detects a voltage of power source
for sensor is excessively low or high.• Harness or connectors
(APP sensor 1 circuit is shorted.)
(PSP sensor circuit is shorted.)
(Battery current sensor circuit is shorted.)
(Refrigerant pressure sensor circuit is short-
ed.)
(EVAP control system pressure sensor circuit
is shorted.)
• Accelerator pedal position sensor
• Power steering pressure sensor
• Refrigerant pressure sensor
• EVAP control system pressure sensor
Engine operation condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF058Y
Page 1531 of 3061
EC-448
< SERVICE INFORMATION >
DTC P0643 SENSOR POWER SUPPLY

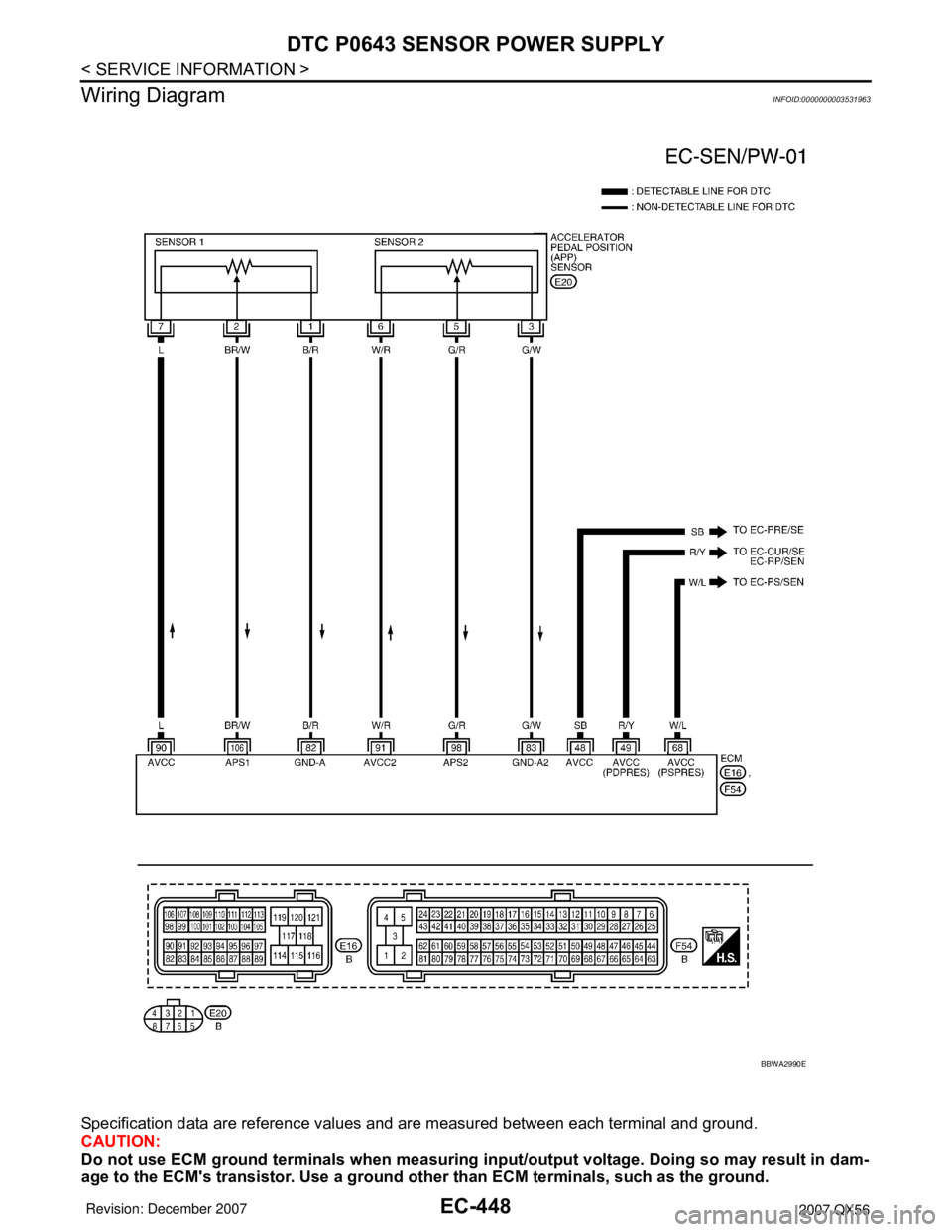

Wiring Diagram
INFOID:0000000003531963
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
BBWA2990E
Page 1532 of 3061

DTC P0643 SENSOR POWER SUPPLY
EC-449
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Diagnosis ProcedureINFOID:0000000003531964
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-143, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
TER-
MI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
48 SBSensor power supply
(EVAP control system
pressure sensor)[Ignition switch: ON]Approximately 5V
49 R/YSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]Approximately 5V
68 W/LSensor power supply
(Power steering pressure
sensor)[Ignition switch: ON]Approximately 5V
82 B/RSensor ground
(APP sensor 1)[Engine is running]
•Warm-up condition
• Idle speedApproximately 0V
83 G/WSensor ground
(APP sensor 2)[Engine is running]
•Warm-up condition
• Idle speedApproximately 0V
90 LSensor power supply
(APP sensor 1)[Ignition switch: ON]Approximately 5V
91 W/RSensor power supply
(APP sensor 2)[Ignition switch: ON]Approximately 5V
98 G/RAccelerator pedal position
sensor 2[Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully released0.25 - 0.50V
[Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully depressed2.0 - 2.5V
106 BR/WAccelerator pedal position
sensor 1[Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch: ON]
• Engine: Stopped
• Accelerator pedal: Fully depressed4.2 - 4.8V
BBIA0354E
Page 1533 of 3061

EC-450
< SERVICE INFORMATION >
DTC P0643 SENSOR POWER SUPPLY
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 7 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3.CHECK SENSOR POWER SUPPLY CIRCUITS
Check harness for short to power and short to ground, between the following terminals
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4.CHECK COMPONENTS
Check the following.
• EVAP control system pressure sensor (Refer to EC-400, "
Component Inspection".)
• Power steering pressure sensor (Refer to EC-438, "
Component Inspection".)
• Battery current sensor (Refer to EC-488, "
Component Inspection".)
• Refrigerant pressure sensor (Refer to EC-638
.)
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning components.
5.CHECK ACCELERATOR PEDAL POSITION SENSOR
Refer to EC-587, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal position assembly.
2. Perform EC-77, "
Accelerator Pedal Released Position Learning" .
BBIA0361E
Voltage: Approximately 5V
PBIB2070E
ECM terminal Sensor terminal Reference Wiring Diagram
48 EVAP control system pressure sensor terminal 3EC-397
49Refrigerant pressure sensor terminal 1EC-639Battery current sensor terminarl 1EC-485
68 Power steering pressure sensor terminal 1EC-436
90 APP sensor terminal 7EC-448
Page 1534 of 3061
DTC P0643 SENSOR POWER SUPPLY
EC-451
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Perform EC-77, "Throttle Valve Closed Position Learning" .
4. Perform EC-78, "
Idle Air Volume Learning" .
>>INSPECTION END
7.CHECK INTERMITTENT INCIDENT
Refer to EC-138
.
>>INSPECTION END
Page 1535 of 3061

EC-452
< SERVICE INFORMATION >
DTC P0850 PNP SWITCH
DTC P0850 PNP SWITCH
Component DescriptionINFOID:0000000003531965
When the gear position is P or N, park/neutral position (PNP) switch is ON.
TCM detects the position because the continuity of the line (the ON signal) exists.
Then the TCM sends the PNP switch signal to the ECM via combination meter.
CONSULT-II Reference Value in Data Monitor ModeINFOID:0000000003531966
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000003531967
DTC Confirmation ProcedureINFOID:0000000003531968
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-455, "
Diagnosis Procedure".
If OK, go to following step.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW • Ignition switch: ONSelector lever: P or N ON
Selector lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0850
0850Park/neutral position
switchThe signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.• Harness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]
• Park/neutral position (PNP) switch
• Combination meter
•TCM
Position (Selector lever) Known-good signal
N or P position ON
Except the above position OFF
SEF212Y
Page 1536 of 3061

DTC P0850 PNP SWITCH
EC-453
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go to EC-455, "
Diagnosis Procedure".
Overall Function CheckINFOID:0000000003531969
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
WITH GST
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal)
and ground under the following conditions.
3. If NG, go to EC-455, "
Diagnosis Procedure".
ENG SPEED 1,000 - 6,375 rpm
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL 2.0 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 MPH)
Selector lever Suitable position
SEF213Y
Condition (Gear position) Voltage V (Known-good data)
P or N position Approx. 0
Except the above positionBATTERY VOLTAGE
(11 - 14V)
MBIB0043E
