Page 2761 of 3061

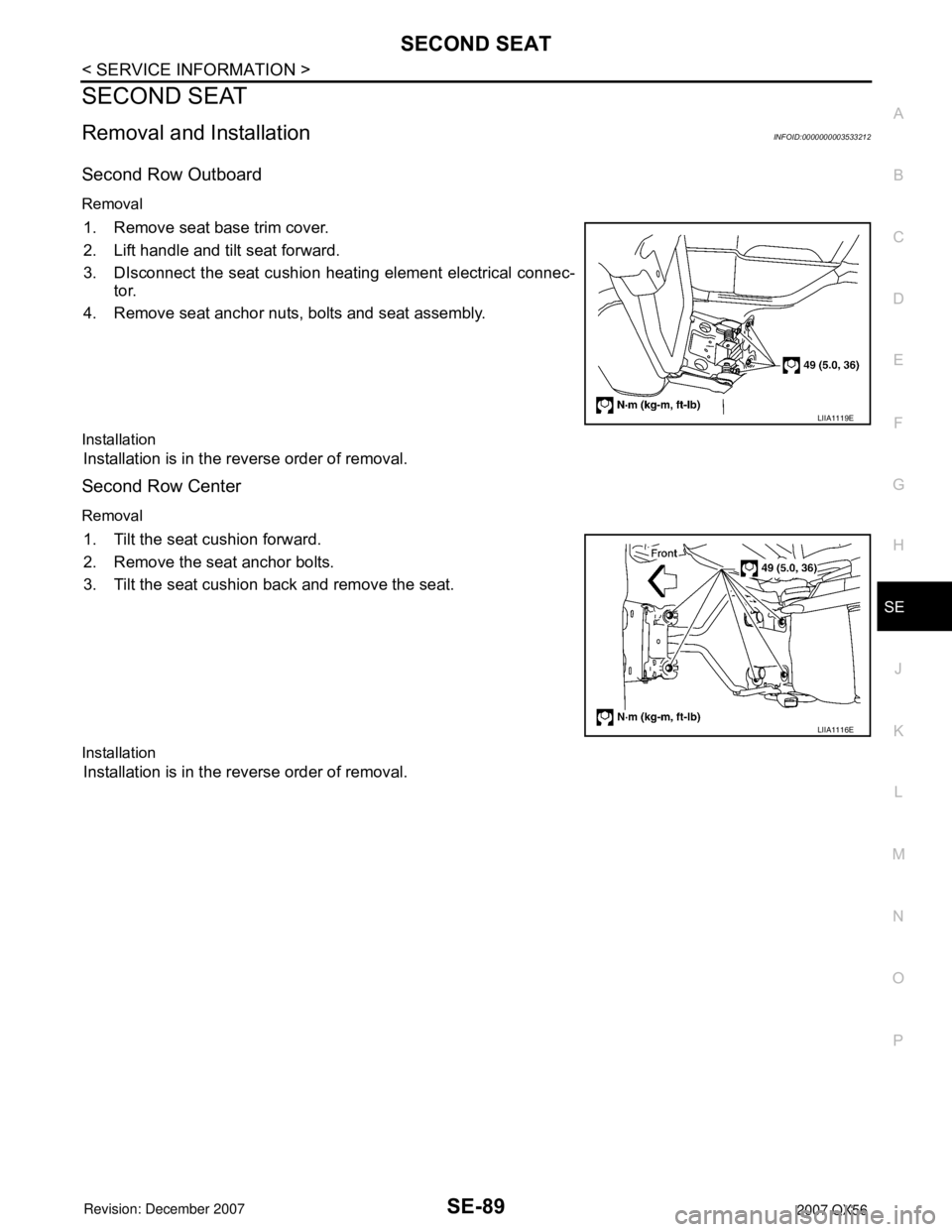

INFINITI QX56 2007 Factory Service Manual SECOND SEAT SE-89 < SERVICE INFORMATION > C D E F G H J K L MA B SE N O P SECOND SEAT Removal and InstallationINFOID:0000000003533212 Second Row Outboard Removal 1. Remove seat base trim cover. 2. Lif

Page 2762 of 3061

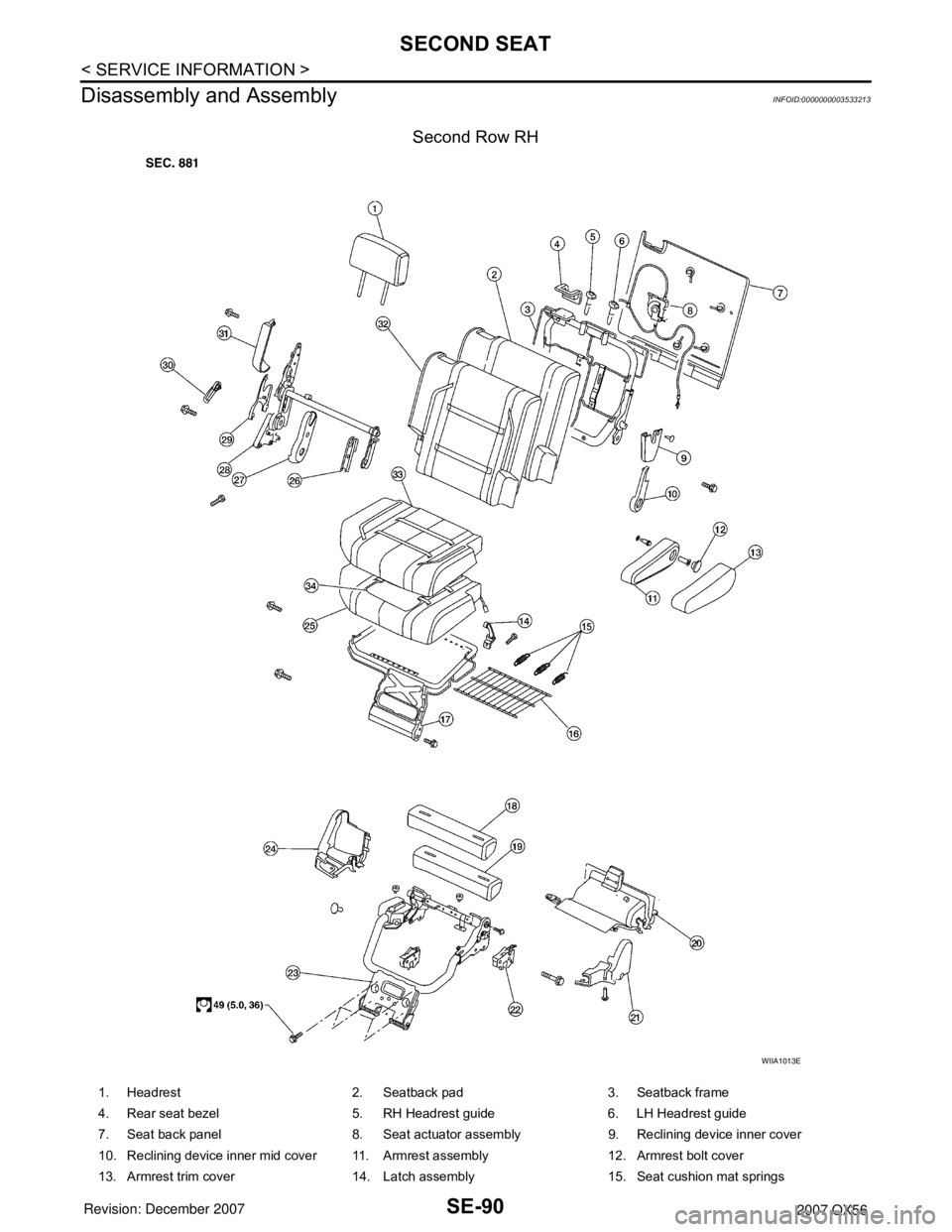

INFINITI QX56 2007 Factory Service Manual SE-90 < SERVICE INFORMATION > SECOND SEAT Disassembly and Assembly INFOID:0000000003533213 Second Row RH WIIA1013E 1. Headrest 2. Seatback pad 3. Seatback frame 4. Rear seat bezel 5. RH Headrest guid

Page 2763 of 3061

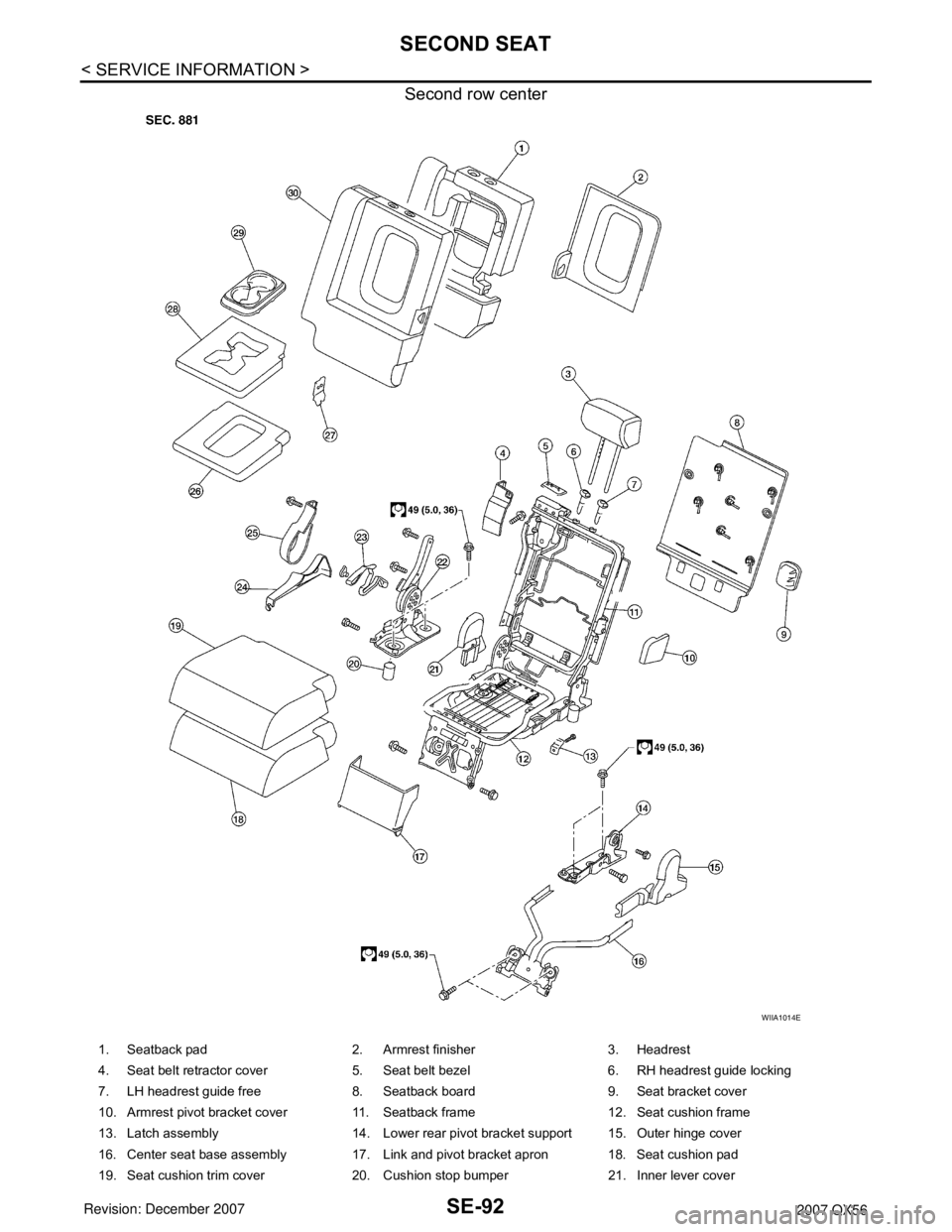

INFINITI QX56 2007 Factory Service Manual SECOND SEAT SE-91 < SERVICE INFORMATION > C D E F G H J K L MA B SE N O P 16. Seat cushion mat 17. Seat cushion frame assembly 18. Seat support trim cover 19. Seat support pad assembly 20. Lower rear

Page 2764 of 3061

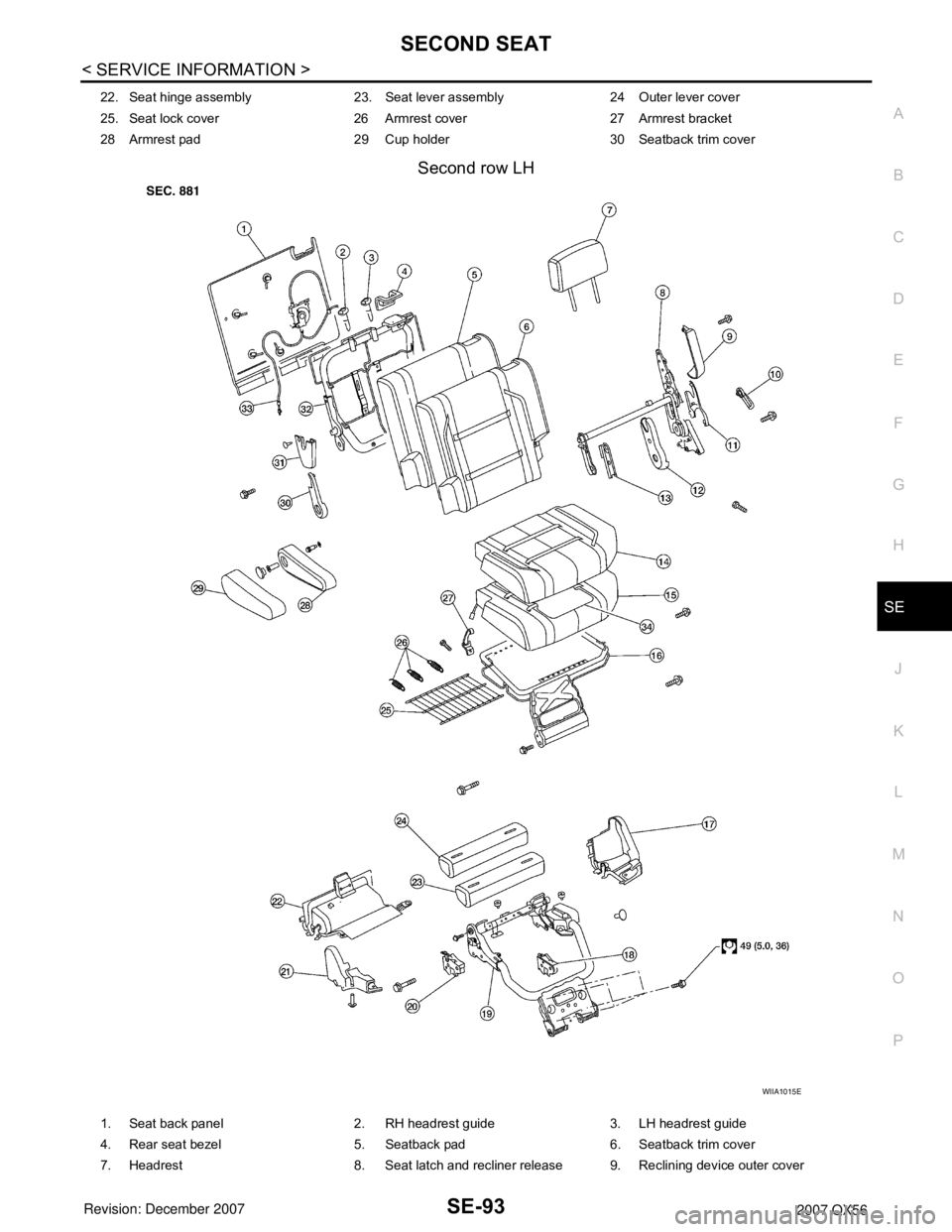

INFINITI QX56 2007 Factory Service Manual SE-92 < SERVICE INFORMATION > SECOND SEAT Second row center WIIA1014E 1. Seatback pad 2. Armrest finisher 3. Headrest 4. Seat belt retractor cover 5. Seat belt bezel 6. RH headrest guide locking 7. L

Page 2765 of 3061

INFINITI QX56 2007 Factory Service Manual SECOND SEAT SE-93 < SERVICE INFORMATION > C D E F G H J K L MA B SE N O P Second row LH 22. Seat hinge assembly 23. Seat lever assembly 24 Outer lever cover 25. Seat lock cover 26 Armrest cover 27 Ar

Page 2766 of 3061

INFINITI QX56 2007 Factory Service Manual SE-94 < SERVICE INFORMATION > SECOND SEAT 10. Reclining device lever 11. Reclining device outer mid cover 12. Outer inboard reclining device cover 13. Inner inboard reclining device cover 14. Seat cus

Page 2767 of 3061

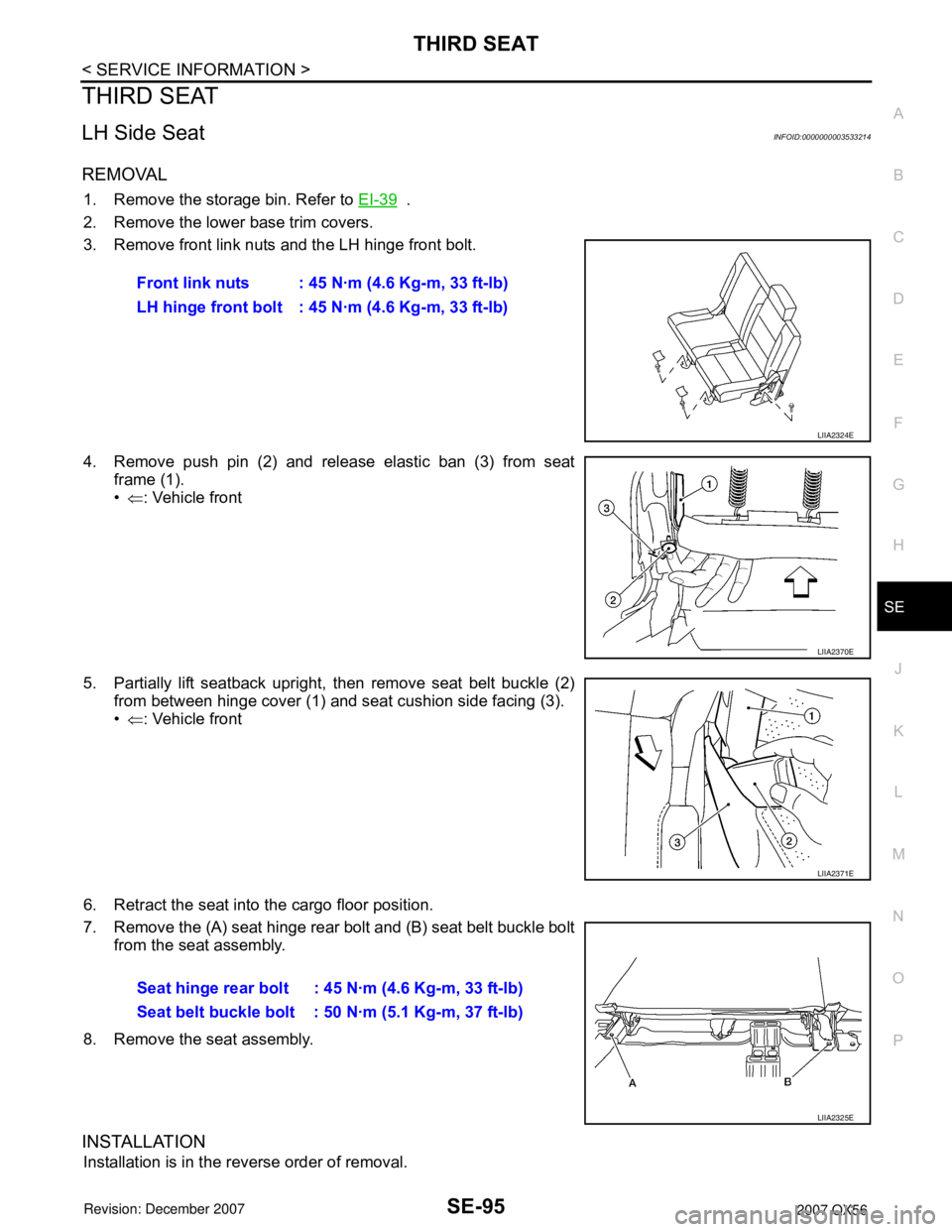

INFINITI QX56 2007 Factory Service Manual THIRD SEAT SE-95 < SERVICE INFORMATION > C D E F G H J K L MA B SE N O P THIRD SEAT LH Side SeatINFOID:0000000003533214 REMOVAL 1. Remove the storage bin. Refer to EI-39 . 2. Remove the lower base tr

Page 2768 of 3061

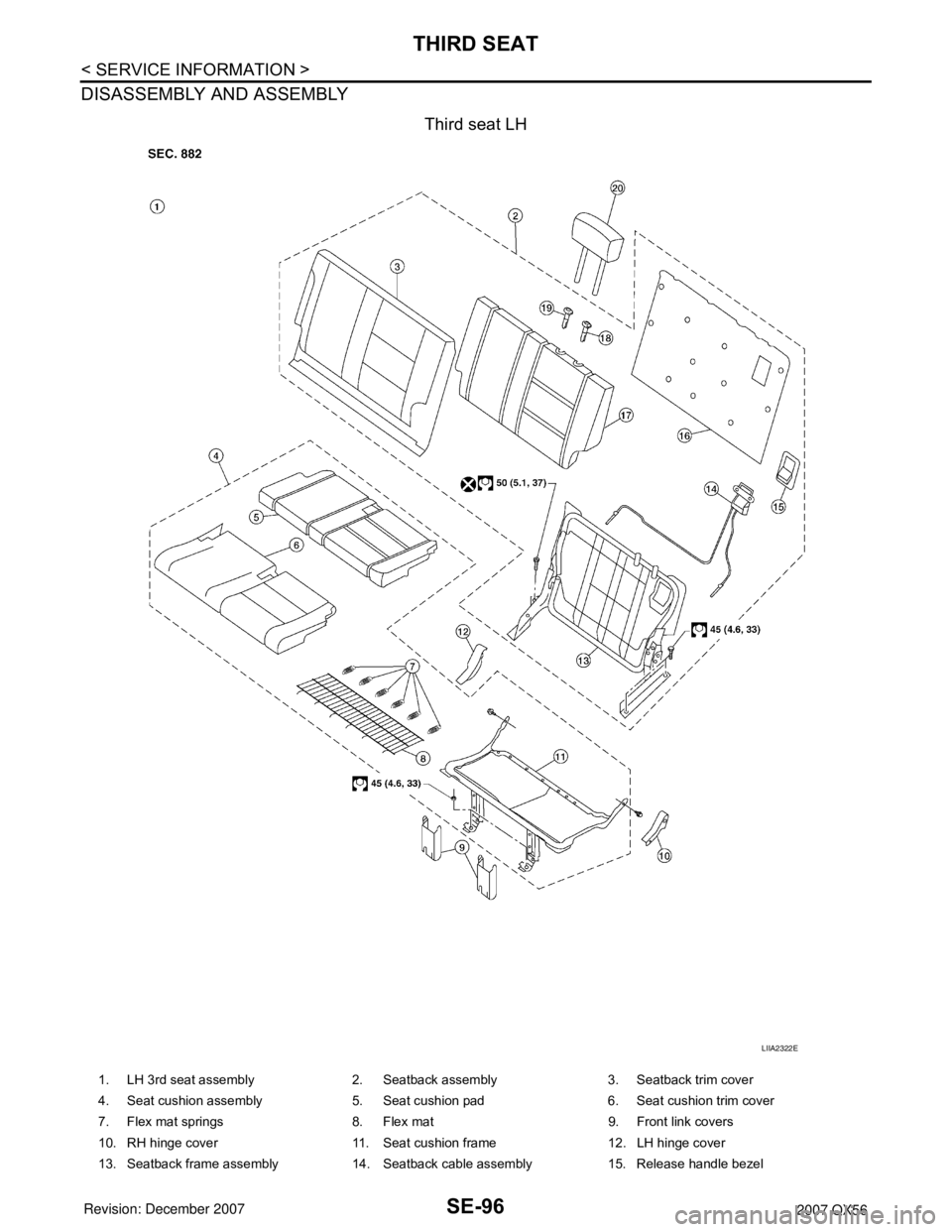

INFINITI QX56 2007 Factory Service Manual SE-96 < SERVICE INFORMATION > THIRD SEAT DISASSEMBLY AND ASSEMBLY Third seat LH LIIA2322E 1. LH 3rd seat assembly 2. Seatback assembly 3. Seatback trim cover 4. Seat cushion assembly 5. Seat cushion p
