1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mir-
ror remote control switch.

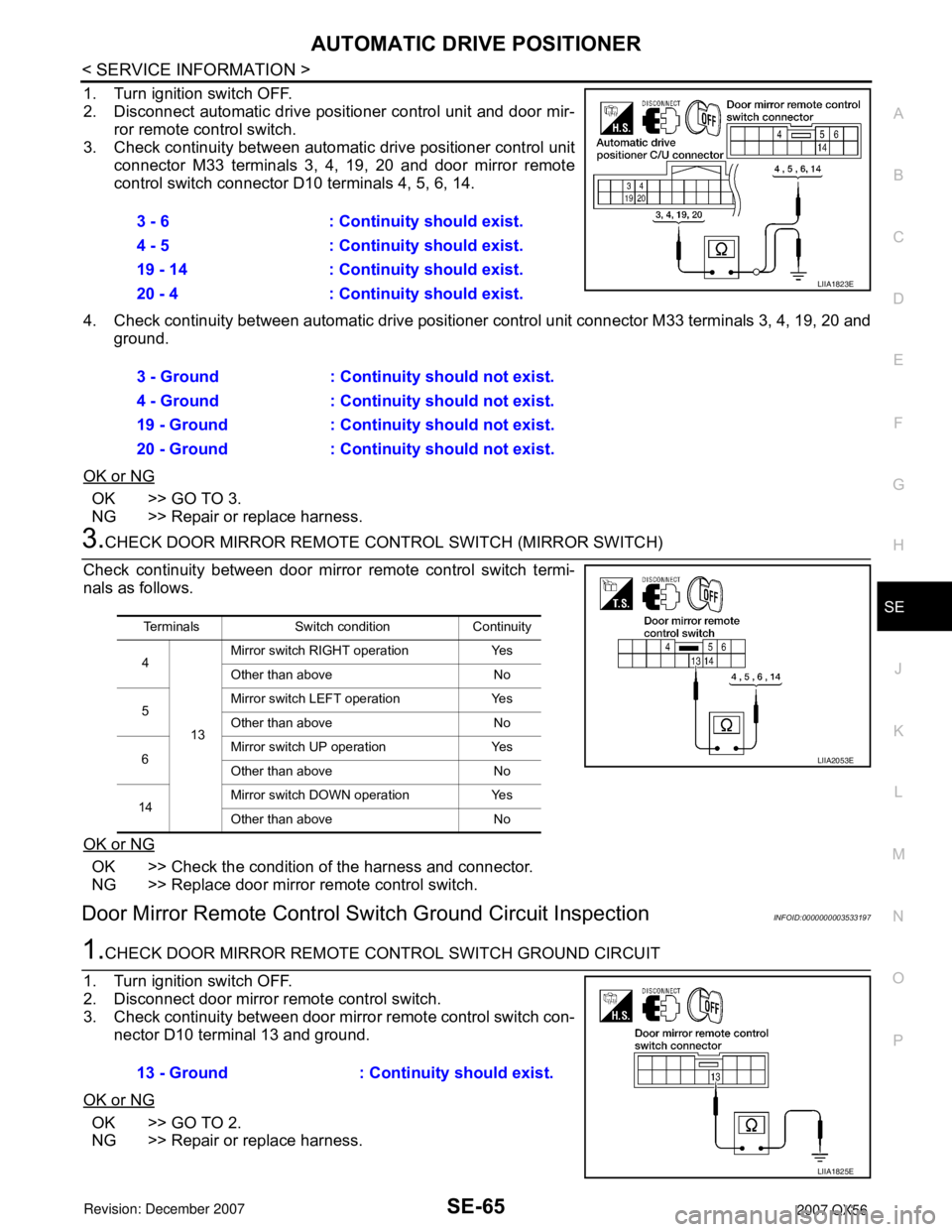

3. Check continuity between automatic drive positioner control unit
connector M33 terminals 3, 4, 19, 20 and door mirror remote
control switch connector D10 terminals 4, 5, 6, 14.
4. Check continuity between automatic drive positioner control unit connector M33 terminals 3, 4, 19, 20 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH)

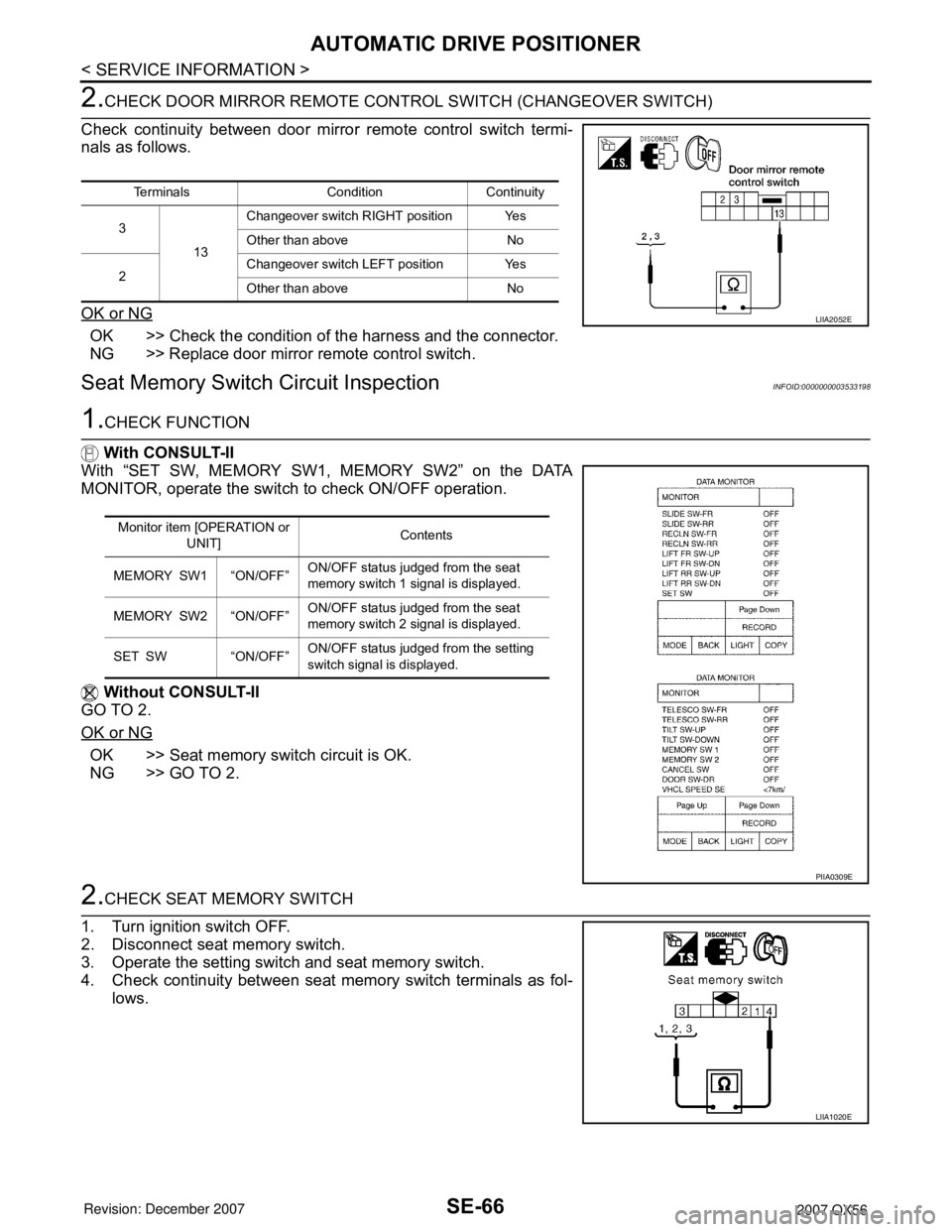

Check continuity between door mirror remote control switch termi-
nals as follows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace door mirror remote control switch.
Door Mirror Remote Control Switch Ground Circuit InspectionINFOID:0000000003533197
1.CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door mirror remote control switch.
3. Check continuity between door mirror remote control switch con-
nector D10 terminal 13 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.3 - 6 : Continuity should exist.
4 - 5 : Continuity should exist.
19 - 14 : Continuity should exist.
20 - 4 : Continuity should exist.
3 - Ground : Continuity should not exist.
4 - Ground : Continuity should not exist.
19 - Ground : Continuity should not exist.
20 - Ground : Continuity should not exist.
LIIA1823E
Terminals Switch condition Continuity
4
13Mirror switch RIGHT operation Yes
Other than above No
5Mirror switch LEFT operation Yes
Other than above No
6Mirror switch UP operation Yes
Other than above No
14Mirror switch DOWN operation Yes
Other than above No
LIIA2053E
13 - Ground : Continuity should exist.
LIIA1825E
Page 2738 of 3061

SE-66
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER
2.CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)
Check continuity between door mirror remote control switch termi-
nals as follows.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace door mirror remote control switch.
Seat Memory Switch Circuit InspectionINFOID:0000000003533198
1.CHECK FUNCTION
With CONSULT-II
With “SET SW, MEMORY SW1, MEMORY SW2” on the DATA
MONITOR, operate the switch to check ON/OFF operation.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Seat memory switch circuit is OK.
NG >> GO TO 2.
2.CHECK SEAT MEMORY SWITCH
1. Turn ignition switch OFF.
2. Disconnect seat memory switch.
3. Operate the setting switch and seat memory switch.
4. Check continuity between seat memory switch terminals as fol-
lows.
Terminals Condition Continuity
3
13Changeover switch RIGHT position Yes
Other than above No
2Changeover switch LEFT position Yes
Other than above No
LIIA2052E
Monitor item [OPERATION or
UNIT]Contents
MEMORY SW1 “ON/OFF”ON/OFF status judged from the seat
memory switch 1 signal is displayed.
MEMORY SW2 “ON/OFF”ON/OFF status judged from the seat
memory switch 2 signal is displayed.
SET SW “ON/OFF”ON/OFF status judged from the setting
switch signal is displayed.
PIIA0309E
LIIA1020E
Page 2739 of 3061

AUTOMATIC DRIVE POSITIONER
SE-67
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
OK or NG
OK >> GO TO 3.
NG >> Replace seat memory switch.
3.CHECK HARNESS CONTINUITY

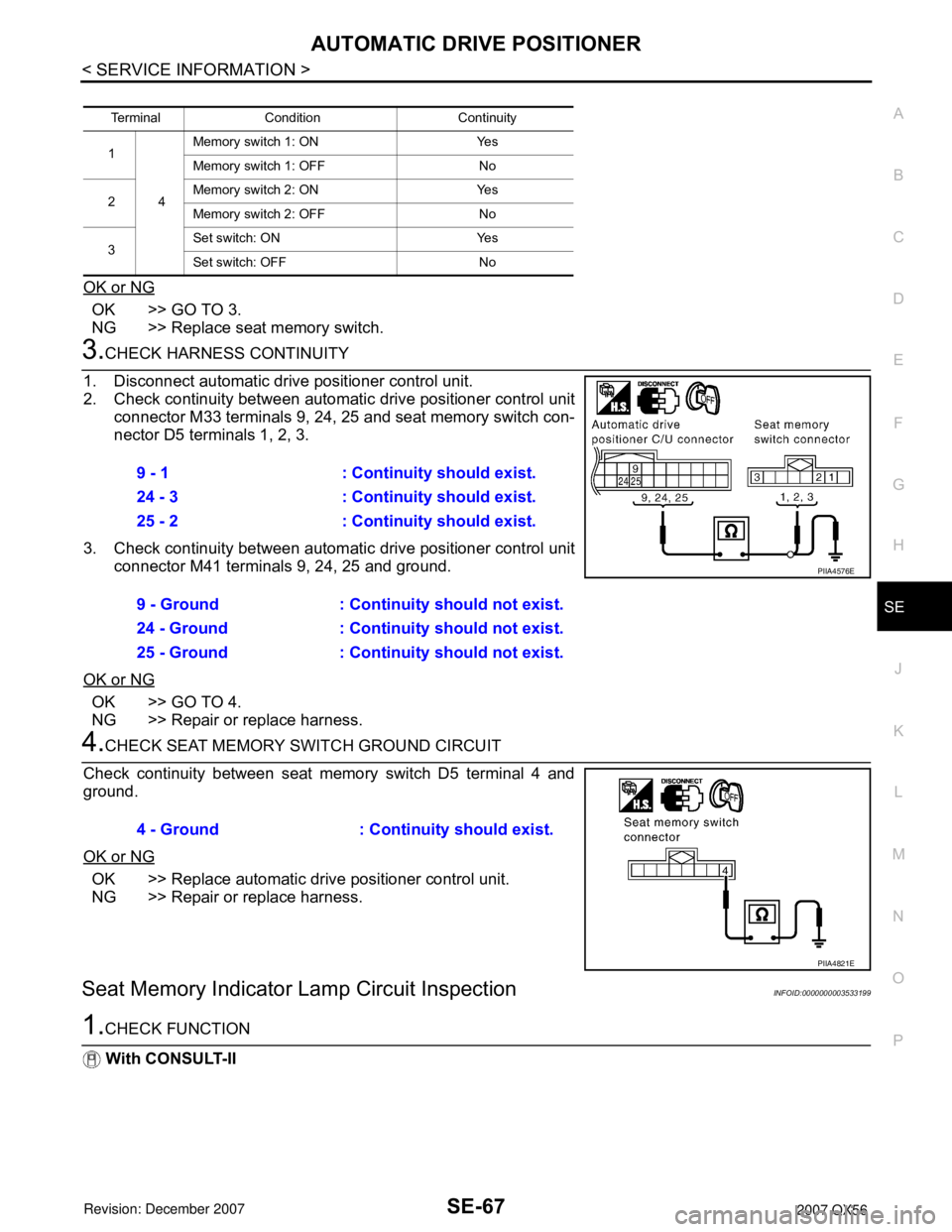

1. Disconnect automatic drive positioner control unit.
2. Check continuity between automatic drive positioner control unit
connector M33 terminals 9, 24, 25 and seat memory switch con-
nector D5 terminals 1, 2, 3.
3. Check continuity between automatic drive positioner control unit
connector M41 terminals 9, 24, 25 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4.CHECK SEAT MEMORY SWITCH GROUND CIRCUIT
Check continuity between seat memory switch D5 terminal 4 and
ground.
OK or NG
OK >> Replace automatic drive positioner control unit.
NG >> Repair or replace harness.
Seat Memory Indicator Lamp Circuit InspectionINFOID:0000000003533199
1.CHECK FUNCTION
With CONSULT-II
Terminal Condition Continuity
1
4Memory switch 1: ON Yes
Memory switch 1: OFF No
2Memory switch 2: ON Yes
Memory switch 2: OFF No
3Set switch: ON Yes
Set switch: OFF No
9 - 1 : Continuity should exist.
24 - 3 : Continuity should exist.
25 - 2 : Continuity should exist.
9 - Ground : Continuity should not exist.
24 - Ground : Continuity should not exist.
25 - Ground : Continuity should not exist.
PIIA4576E
4 - Ground : Continuity should exist.
PIIA4821E
Page 2740 of 3061

SE-68
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER
With “MEMORY SW INDCTR” in ACTIVE TEST, check operation.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Seat memory switch indicator lamp circuit is OK.
NG >> GO TO 2.
2.CHECK SEAT MEMORY SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect seat memory switch.
3. Check voltage between seat memory switch connector D5 ter-
minal 5 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK SEAT MEMORY INDICATOR CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit.
3. Check continuity between automatic drive positioner control unit
connector M33 terminals 12, 13 and seat memory switch con-
nector D5 terminals 6, 7.
4. Check continuity between automatic drive positioner control unit
connector M33 terminals 12, 13 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4.CHECK SEAT MEMORY SWITCH INDICATOR SIGNAL
1. Connect seat memory switch.
2. Turn ignition switch ON.
3. Check voltage between automatic drive positioner control unit
connector M33 terminals 12, 13 and ground.
OK or NG
OK >> Replace automatic drive positioner control unit.
NG >> Replace seat memory switch.
Te s t i t e m D e s c r i p t i o n
MEMORY SW INDCTRThe memory switch indicator is lit by receiving the
drive signal.
PIIA0319E
5 - Ground : Battery voltage
PIIA4595E
12 - 6 : Continuity should exist.
13 - 7 : Continuity should exist.
12 - Ground : Continuity should not exist.
13 - Ground : Continuity should not exist.
LIIA1022E
12 - Ground : Battery voltage
13 - Ground : Battery voltage
LIIA1134E
Page 2741 of 3061

AUTOMATIC DRIVE POSITIONER
SE-69
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
Door Mirror Sensor Power Supply and Ground Circuit inspectionINFOID:0000000003533200
1.CHECK DOOR MIRROR SENSOR CIRCUIT HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit and door mir-
ror (LH and RH).
2. Check continuity between automatic drive positioner control unit
connector M34 terminals 33, 41 and door mirror connector D4
(LH), D107 (RH) terminals 5, 6.
3. Check continuity between automatic drive positioner control unit
connector M34 terminals 33, 41 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
2.CHECK MIRROR SENSOR POWER SUPPLY
1. Connect automatic drive positioner control unit and door mirror
LH.
2. Turn ignition switch to ACC.
3. Check voltage between automatic drive positioner control unit
connector M34 terminal 33 and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace automatic drive positioner control unit.
3.CHECK MIRROR SENSOR GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between automatic drive positioner control unit
connector M34 terminal 41 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace automatic drive positioner control unit.
A/T Device (Park Position Switch) Circuit InspectionINFOID:0000000003533201
1.CHECK FUNCTION
With CONSULT-II33 - 5 : Continuity should exist.
41 - 6 : Continuity should exist.
33 - Ground : Continuity should not exist.
41 - Ground : Continuity should not exist.
LIIA1023E
33 - Ground : Approx. 5V
LIIA1136E
41 - Ground : Continuity should exist.
LIIA1135E
Page 2742 of 3061

SE-70
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER

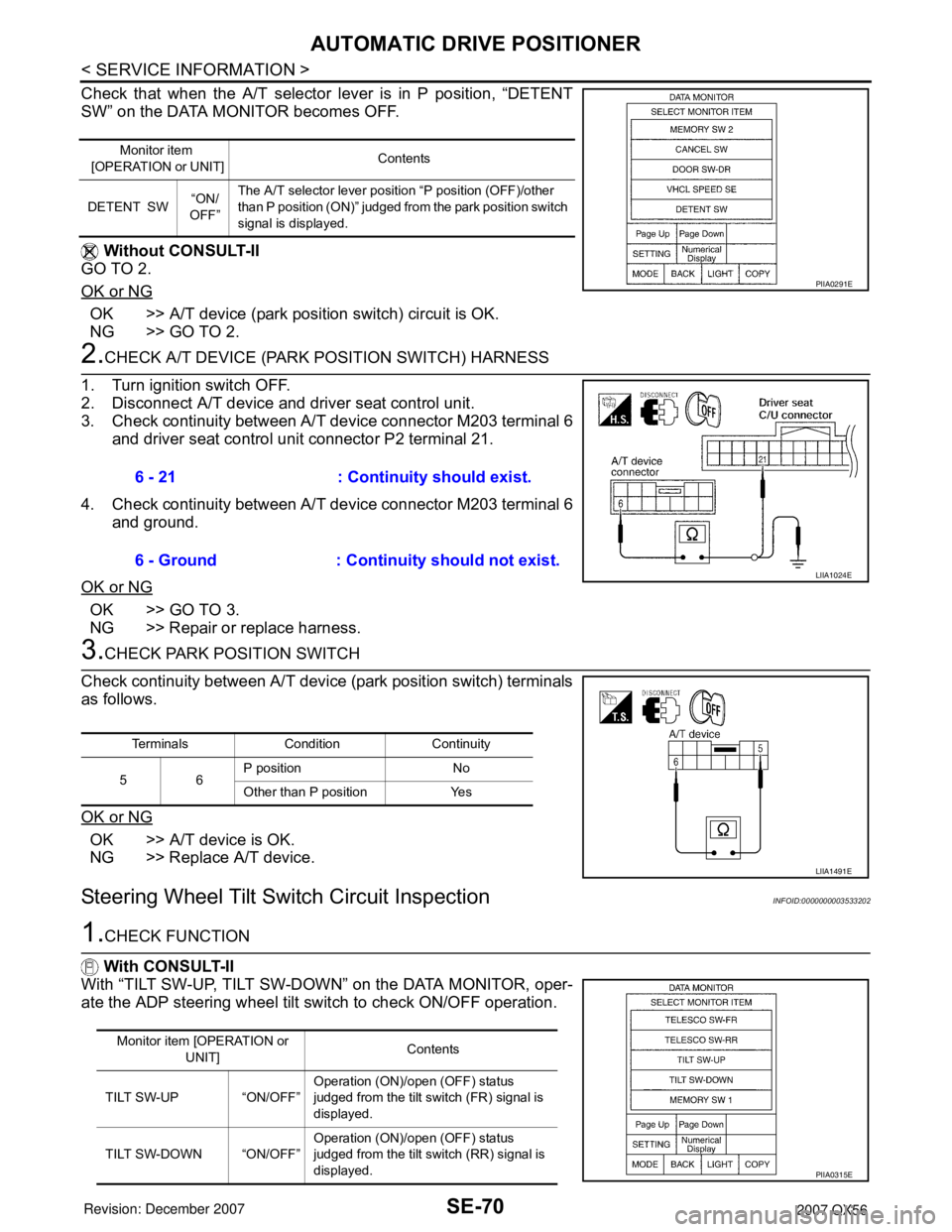

Check that when the A/T selector lever is in P position, “DETENT
SW” on the DATA MONITOR becomes OFF.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> A/T device (park position switch) circuit is OK.
NG >> GO TO 2.
2.CHECK A/T DEVICE (PARK POSITION SWITCH) HARNESS
1. Turn ignition switch OFF.
2. Disconnect A/T device and driver seat control unit.
3. Check continuity between A/T device connector M203 terminal 6
and driver seat control unit connector P2 terminal 21.
4. Check continuity between A/T device connector M203 terminal 6
and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK PARK POSITION SWITCH
Check continuity between A/T device (park position switch) terminals
as follows.
OK or NG
OK >> A/T device is OK.
NG >> Replace A/T device.
Steering Wheel Tilt Switch Circuit InspectionINFOID:0000000003533202
1.CHECK FUNCTION
With CONSULT-II
With “TILT SW-UP, TILT SW-DOWN” on the DATA MONITOR, oper-
ate the ADP steering wheel tilt switch to check ON/OFF operation.
Monitor item
[OPERATION or UNIT]Contents
DETENT SW“ON/
OFF”The A/T selector lever position “P position (OFF)/other
than P position (ON)” judged from the park position switch
signal is displayed.
PIIA0291E
6 - 21 : Continuity should exist.
6 - Ground : Continuity should not exist.
LIIA1024E
Terminals Condition Continuity
56P position No
Other than P position Yes
LIIA1491E
Monitor item [OPERATION or
UNIT]Contents
TILT SW-UP “ON/OFF”Operation (ON)/open (OFF) status
judged from the tilt switch (FR) signal is
displayed.
TILT SW-DOWN “ON/OFF”Operation (ON)/open (OFF) status
judged from the tilt switch (RR) signal is
displayed.
PIIA0315E
Page 2743 of 3061

AUTOMATIC DRIVE POSITIONER
SE-71
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
Without CONSULT-II
1. Turn ignition switch OFF.

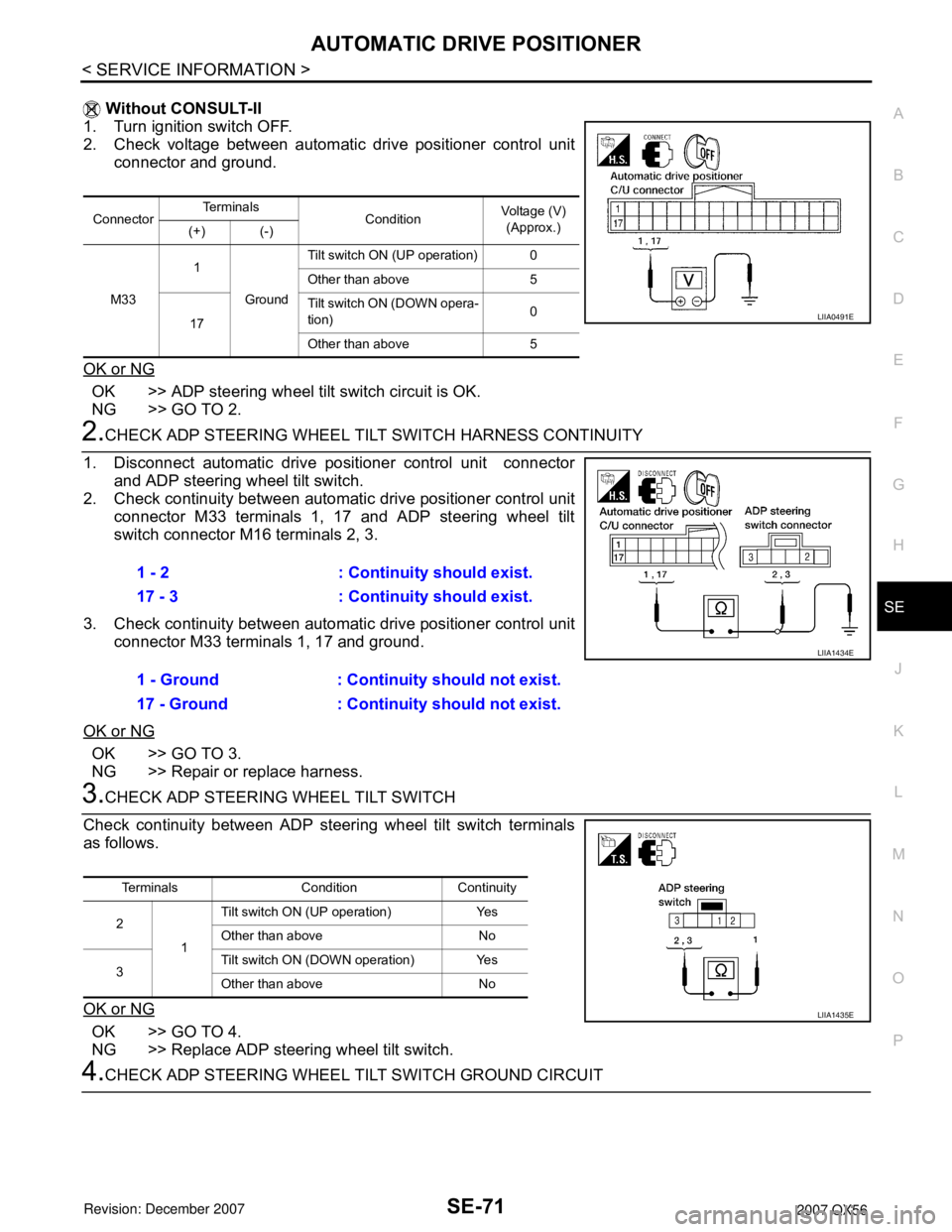

2. Check voltage between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> ADP steering wheel tilt switch circuit is OK.
NG >> GO TO 2.
2.CHECK ADP STEERING WHEEL TILT SWITCH HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit connector
and ADP steering wheel tilt switch.
2. Check continuity between automatic drive positioner control unit
connector M33 terminals 1, 17 and ADP steering wheel tilt
switch connector M16 terminals 2, 3.
3. Check continuity between automatic drive positioner control unit
connector M33 terminals 1, 17 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK ADP STEERING WHEEL TILT SWITCH
Check continuity between ADP steering wheel tilt switch terminals
as follows.
OK or NG
OK >> GO TO 4.
NG >> Replace ADP steering wheel tilt switch.
4.CHECK ADP STEERING WHEEL TILT SWITCH GROUND CIRCUIT

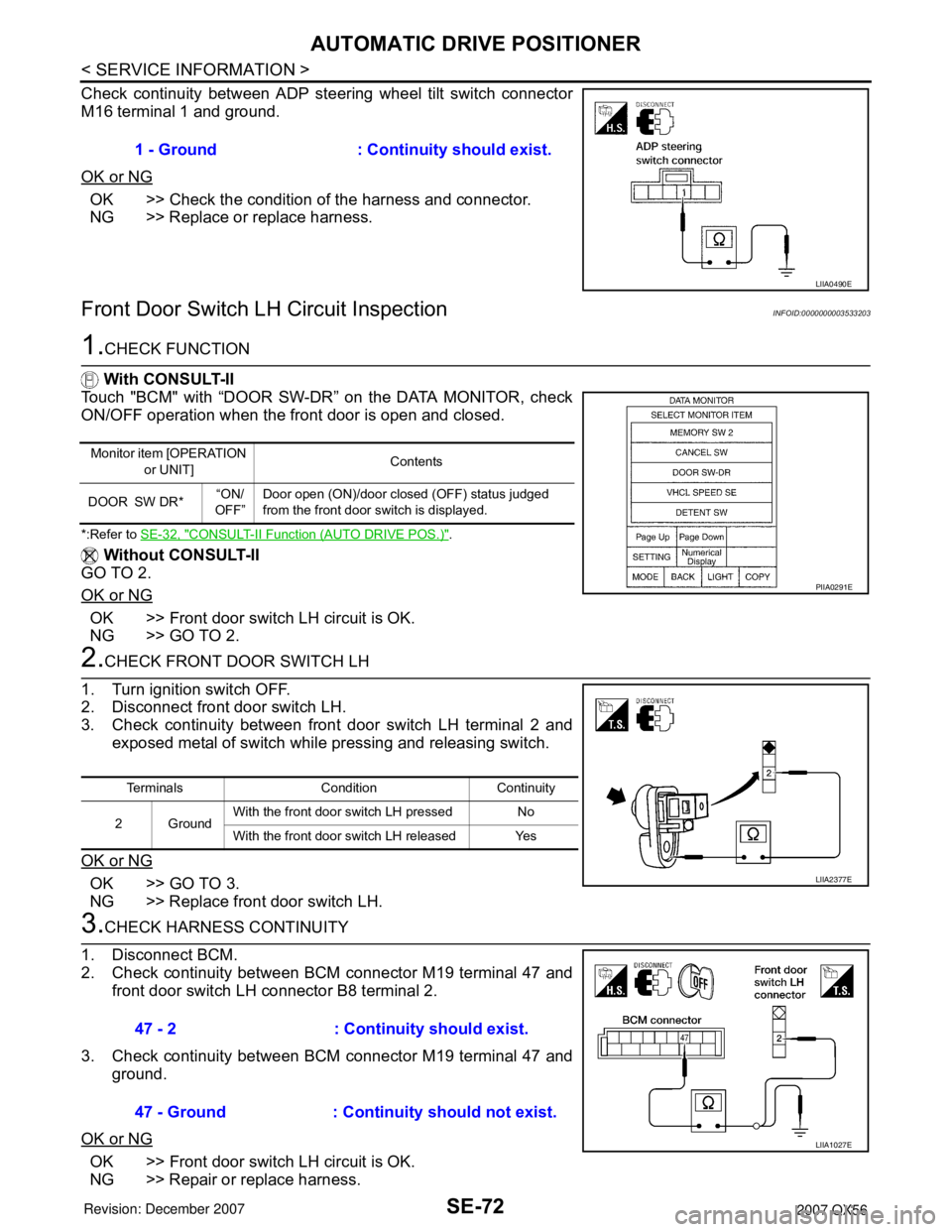

ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M331
GroundTilt switch ON (UP operation) 0
Other than above 5
17Tilt switch ON (DOWN opera-
tion)0
Other than above 5
LIIA0491E
1 - 2 : Continuity should exist.
17 - 3 : Continuity should exist.
1 - Ground : Continuity should not exist.
17 - Ground : Continuity should not exist.
LIIA1434E
Terminals Condition Continuity
2
1Tilt switch ON (UP operation) Yes
Other than above No
3Tilt switch ON (DOWN operation) Yes
Other than above No
LIIA1435E
Page 2744 of 3061

SE-72
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER
Check continuity between ADP steering wheel tilt switch connector
M16 terminal 1 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace or replace harness.
Front Door Switch LH Circuit InspectionINFOID:0000000003533203
1.CHECK FUNCTION
With CONSULT-II
Touch "BCM" with “DOOR SW-DR” on the DATA MONITOR, check
ON/OFF operation when the front door is open and closed.
*:Refer to SE-32, "CONSULT-II Function (AUTO DRIVE POS.)".
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Front door switch LH circuit is OK.
NG >> GO TO 2.
2.CHECK FRONT DOOR SWITCH LH
1. Turn ignition switch OFF.
2. Disconnect front door switch LH.
3. Check continuity between front door switch LH terminal 2 and
exposed metal of switch while pressing and releasing switch.
OK or NG
OK >> GO TO 3.
NG >> Replace front door switch LH.
3.CHECK HARNESS CONTINUITY
1. Disconnect BCM.
2. Check continuity between BCM connector M19 terminal 47 and
front door switch LH connector B8 terminal 2.
3. Check continuity between BCM connector M19 terminal 47 and
ground.
OK or NG
OK >> Front door switch LH circuit is OK.
NG >> Repair or replace harness.1 - Ground : Continuity should exist.
LIIA0490E
Monitor item [OPERATION
or UNIT]Contents
DOOR SW DR*“ON/
OFF”Door open (ON)/door closed (OFF) status judged
from the front door switch is displayed.
PIIA0291E
Terminals Condition Continuity
2GroundWith the front door switch LH pressed No
With the front door switch LH released Yes
LIIA2377E
47 - 2 : Continuity should exist.
47 - Ground : Continuity should not exist.
LIIA1027E
