2007 INFINITI QX56 Factory Service Manual

oil additivesair conditioningchange key batteryfuel capchild seathigh beam
Popular search:
OBD portchange wheelkey fob batterytire sizewarning lightsinstrument panelpower steering fluid
Previous
Next
Load previous 8 pages

Page 2409 of 3061

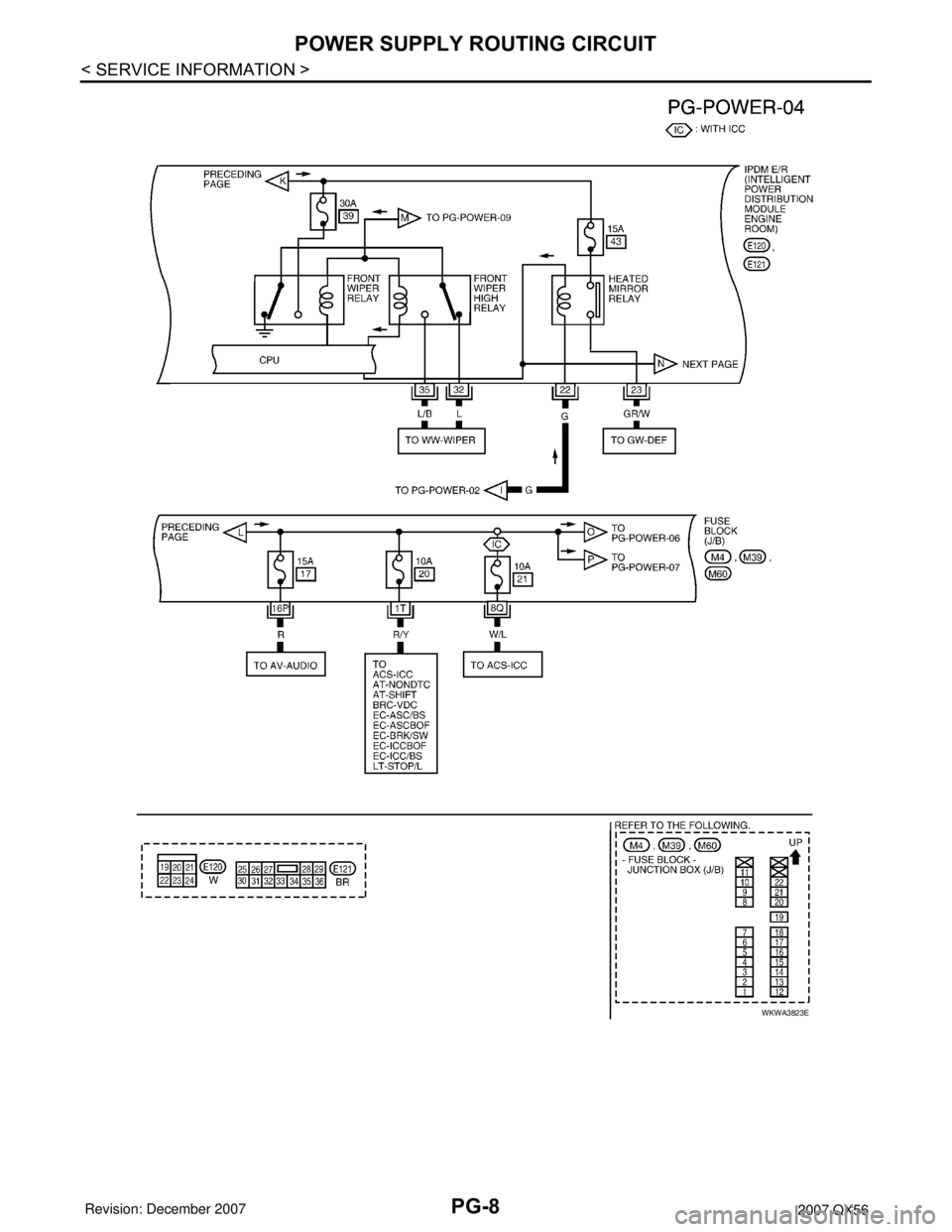

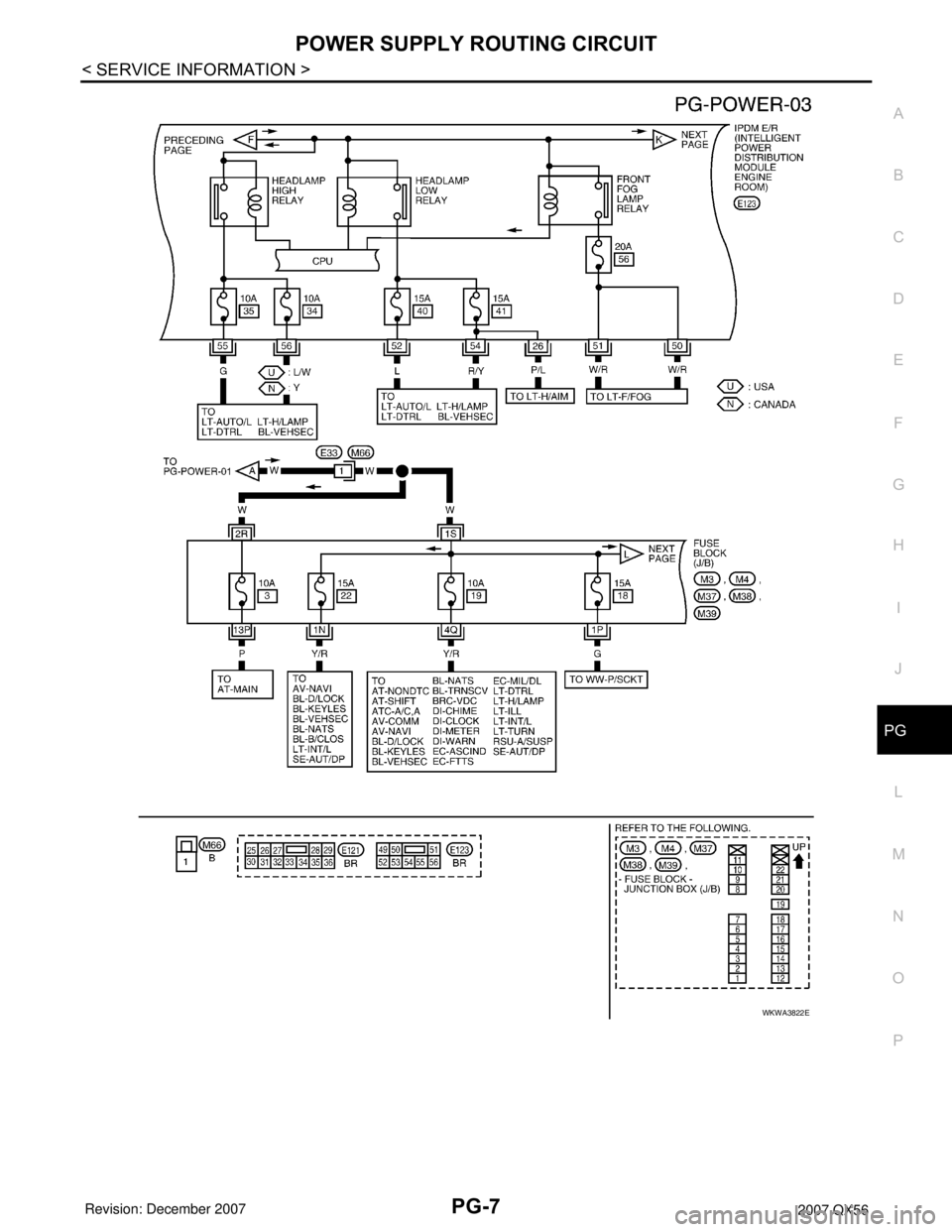

INFINITI QX56 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-7 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P WKWA3822E

Page 2410 of 3061

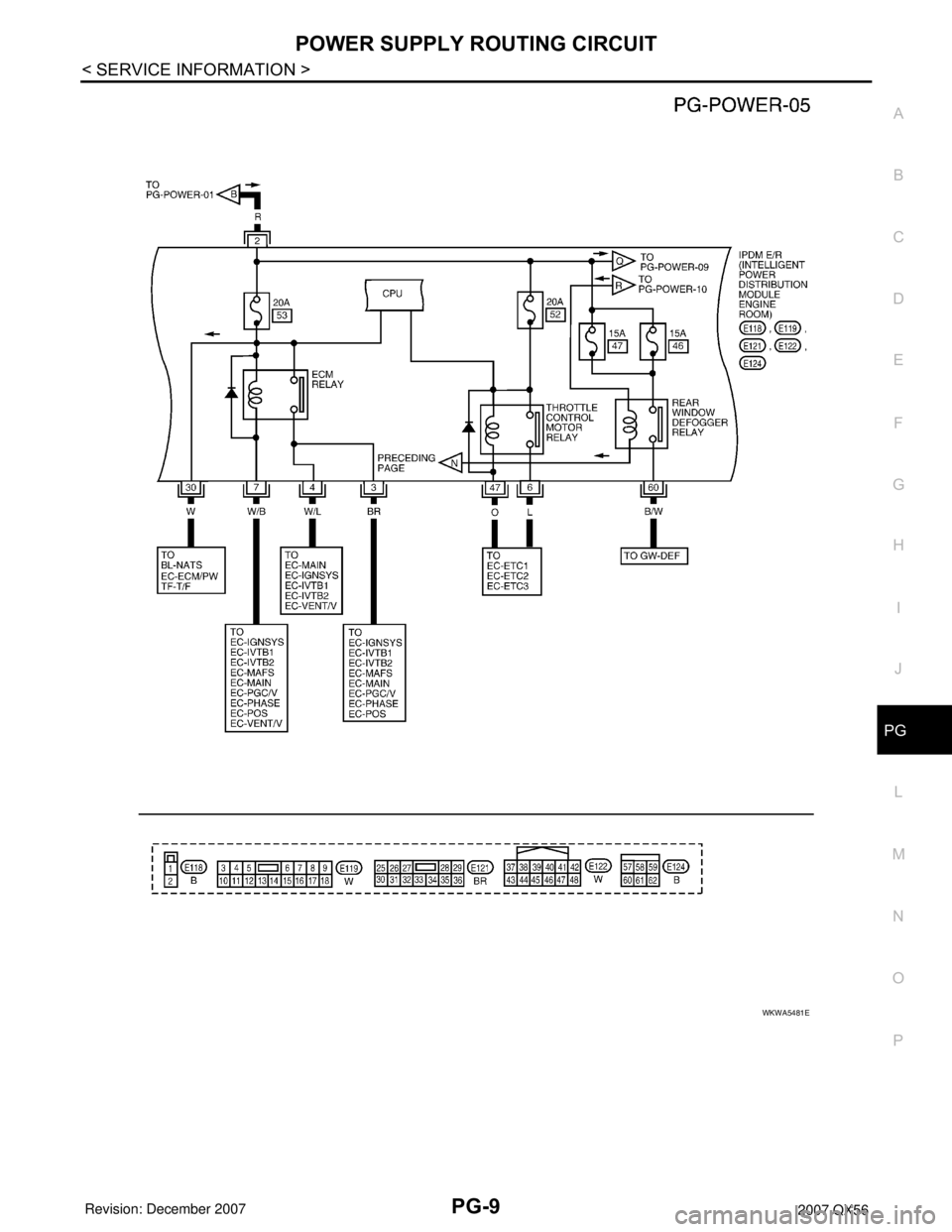

INFINITI QX56 2007 Factory Service Manual PG-8 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT WKWA3823E

Page 2411 of 3061

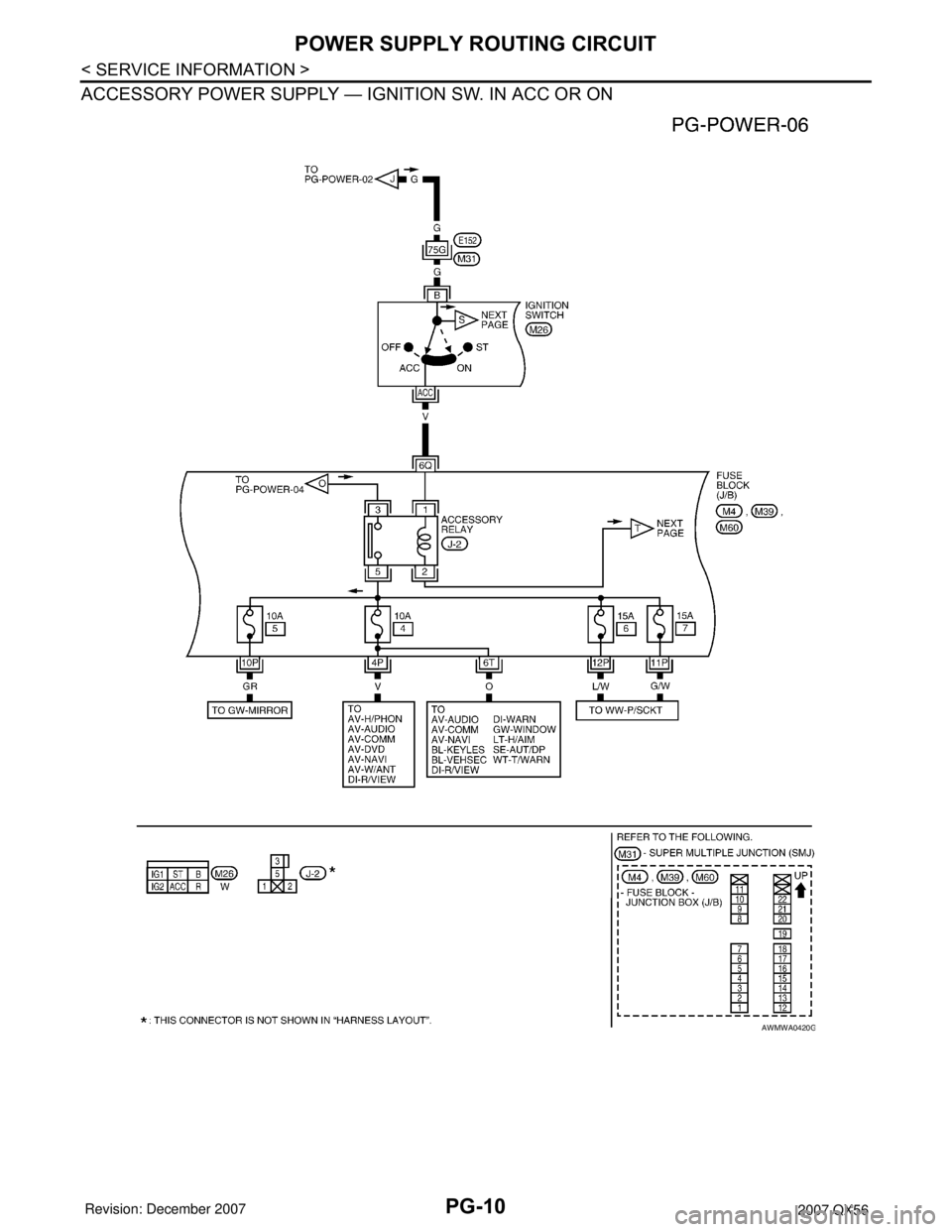

INFINITI QX56 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-9 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P WKWA5481E

Page 2412 of 3061

INFINITI QX56 2007 Factory Service Manual PG-10 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT ACCESSORY POWER SUPPLY — IGNITION SW. IN ACC OR ON AWMWA0420G

Page 2413 of 3061

INFINITI QX56 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-11 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P IGNITION POWER SUPPLY — IGNITION SW. IN ON WKWA3826E

Page 2414 of 3061

INFINITI QX56 2007 Factory Service Manual PG-12 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT IGNITION POWER SUPPLY — IGNITION SW. IN ON AND/OR START WKWA3827E

Page 2415 of 3061

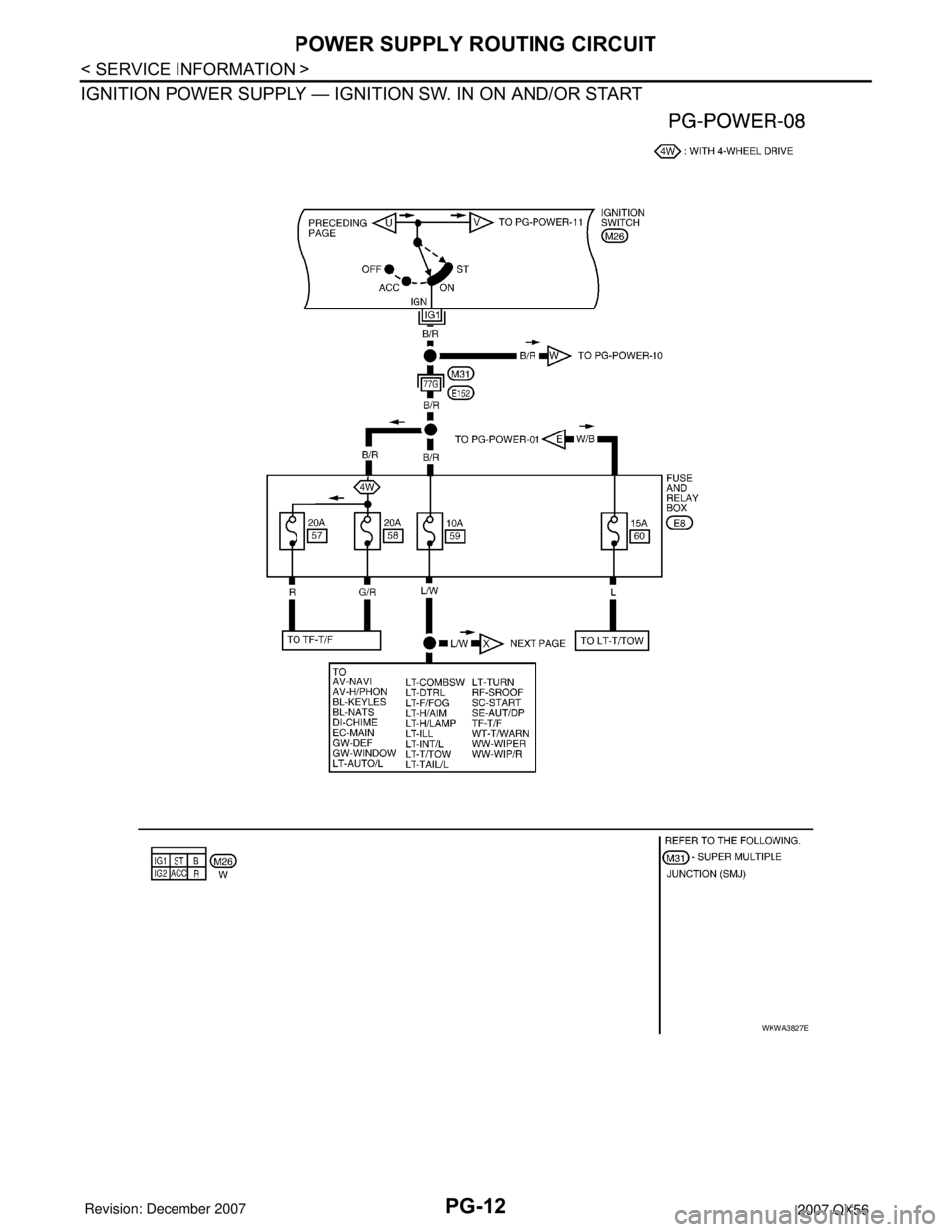

INFINITI QX56 2007 Factory Service Manual POWER SUPPLY ROUTING CIRCUIT PG-13 < SERVICE INFORMATION > C D E F G H I J L MA B PG N O P WKWA3828E

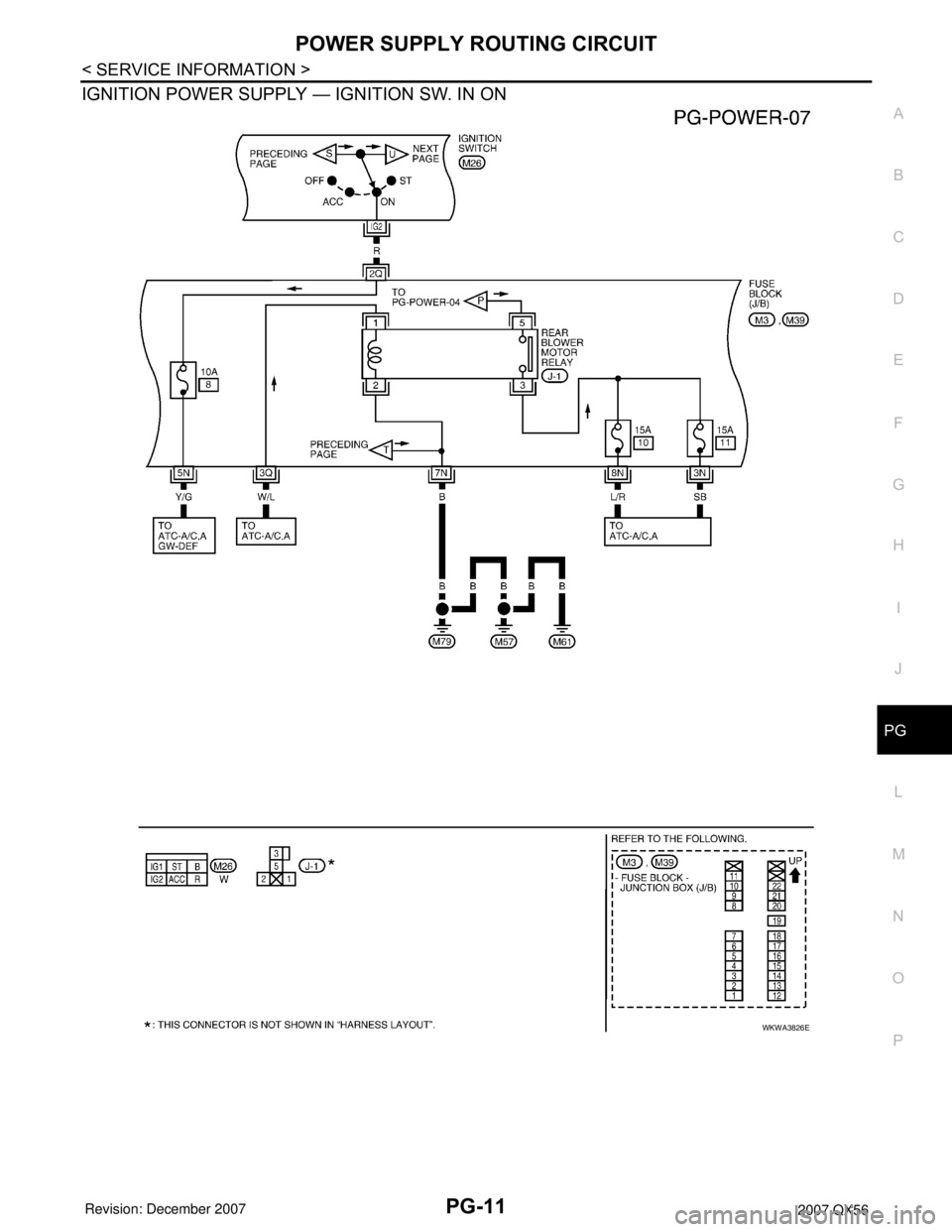

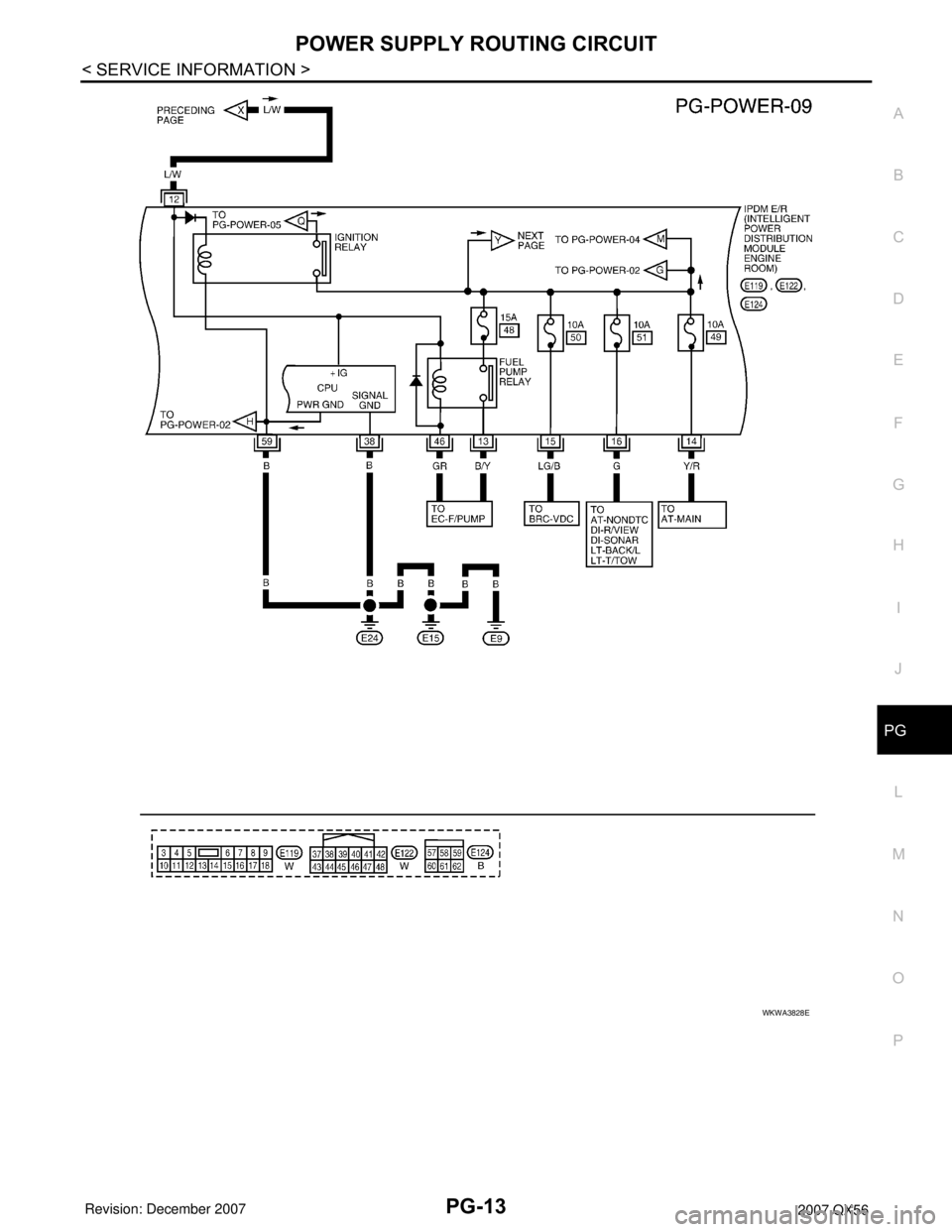

Page 2416 of 3061

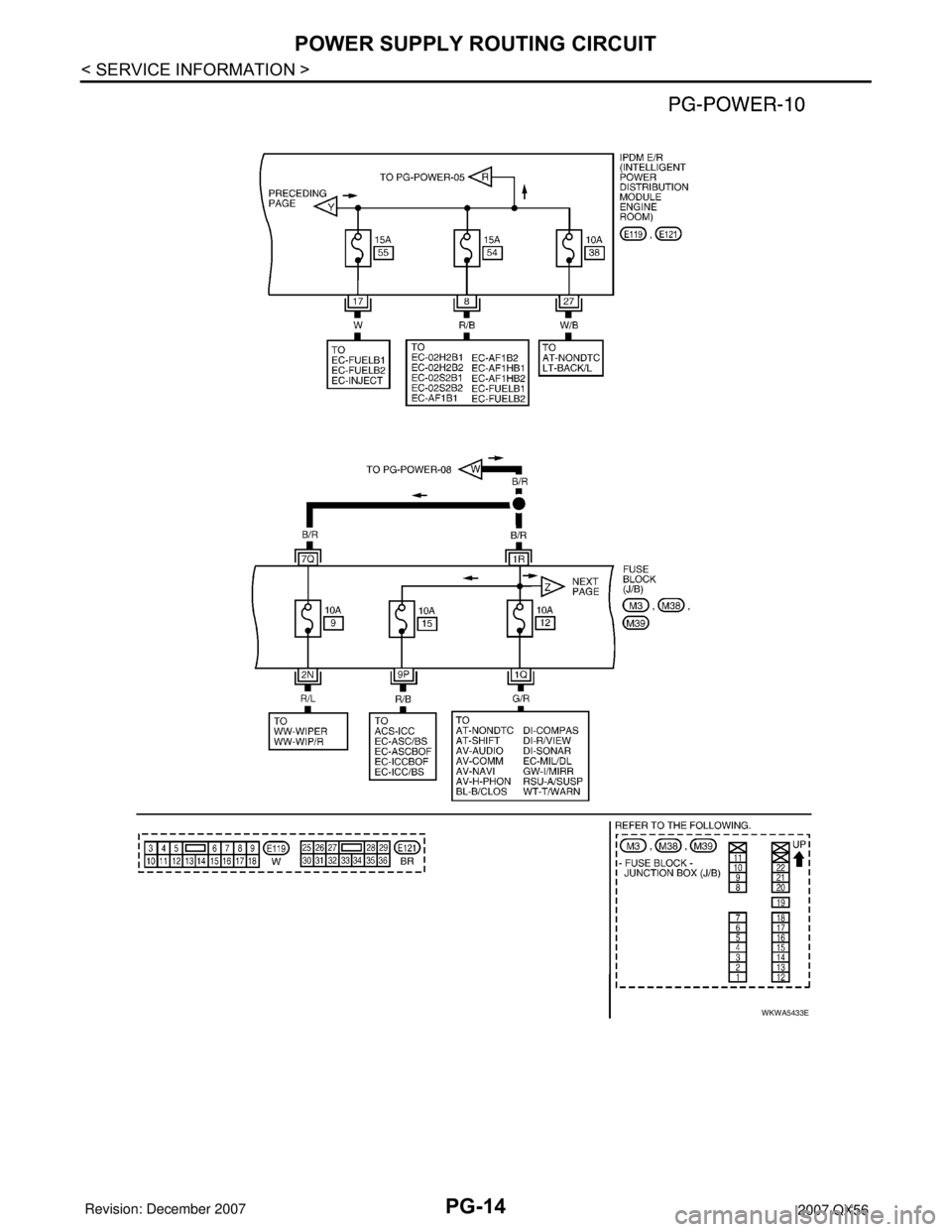

INFINITI QX56 2007 Factory Service Manual PG-14 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT WKWA5433E
