Page 2057 of 3061

GW-38
< SERVICE INFORMATION >
POWER WINDOW SYSTEM
2.CHECK FRONT POWER WINDOW MOTOR LH LIMIT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front power window motor LH.
3. Turn ignition switch ON.
4. Check voltage between front power window motor LH connector
D9 terminal 5 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3.CHECK LIMIT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between front power window motor LH connec-
tor D9 terminal 6 and ground.
OK or NG
OK >> Replace front power window motor LH. Refer to GW-59.
NG >> GO TO 4.
4.CHECK HARNESS CONTINUITY

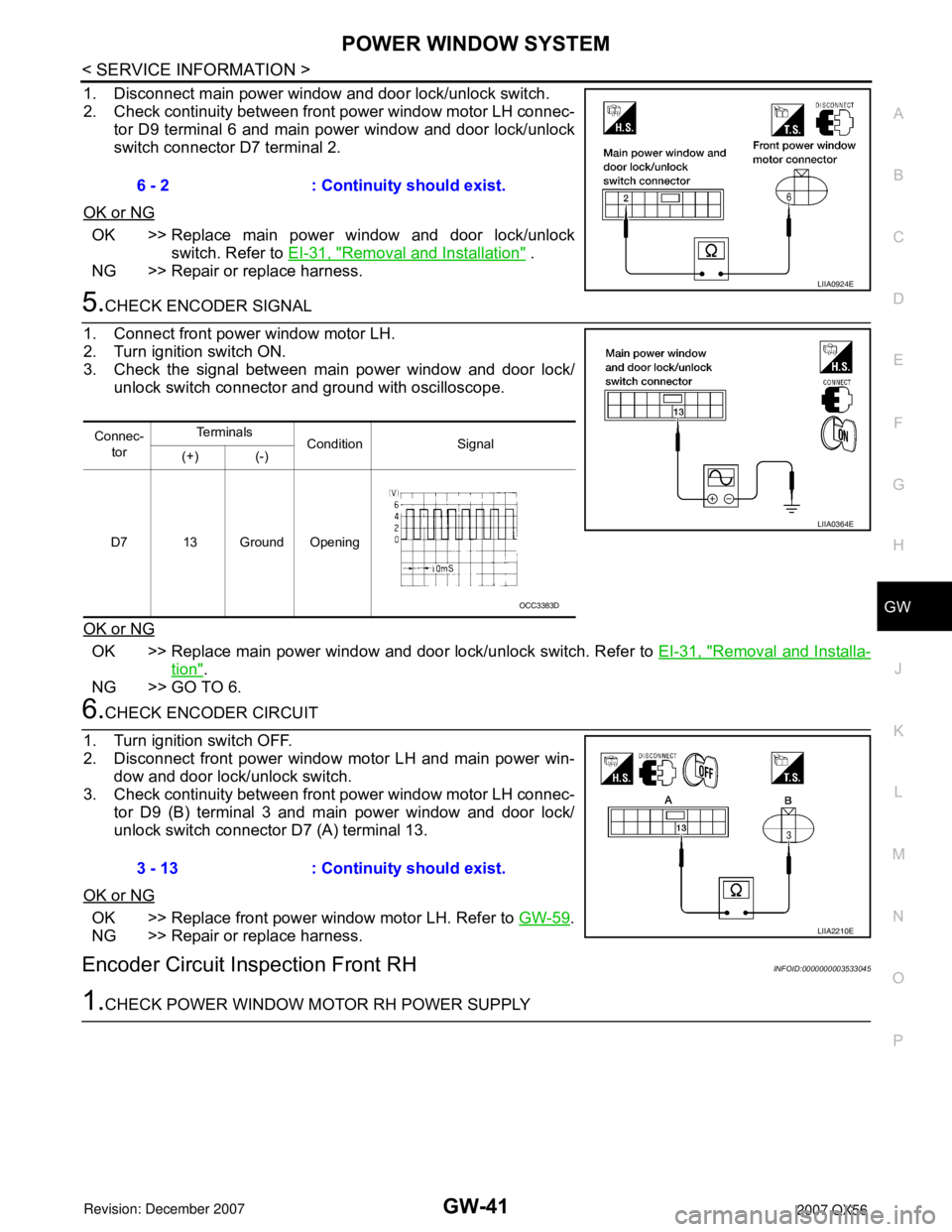

1. Disconnect main power window and door lock/unlock switch.
2. Check continuity between front power window motor LH connec-
tor D9 terminal 6 and main power window and door lock/unlock
switch connector D7 terminal 2.
OK or NG
OK >> Replace main power window and door lock/unlock
switch. Refer to EI-31, "
Removal and Installation".
NG >> Repair or replace harness.
5.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch.
3. Check continuity between front power window motor LH connec-
tor D9 terminal 5 and main power window and door lock/unlock
switch connector D7 terminal 9.
OK or NG
OK >> Replace main power window and door lock/unlock
switch. Refer to EI-31, "
Removal and Installation".
NG >> Repair or replace harness.
Limit Switch Circuit Inspection Front RHINFOID:0000000003533043
1.CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH LIMIT SIGNAL 5 - Ground : Approx. 5V
LIIA0922E
6 - Ground : Continuity should exist.
LIIA0923E
6 - 2 : Continuity should exist.
LIIA0924E
5 - 9 : Continuity should exist.
LIIA0925E
Page 2058 of 3061

POWER WINDOW SYSTEM
GW-39
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P
1. Turn ignition switch ON.
2. Check voltage between power window motor RH connector
D105 terminal 15 and ground.
OK or NG
OK >> Limit switch circuit is OK.
NG >> GO TO 2.
2.CHECK FRONT POWER WINDOW MOTOR RH LIMIT SIGNAL

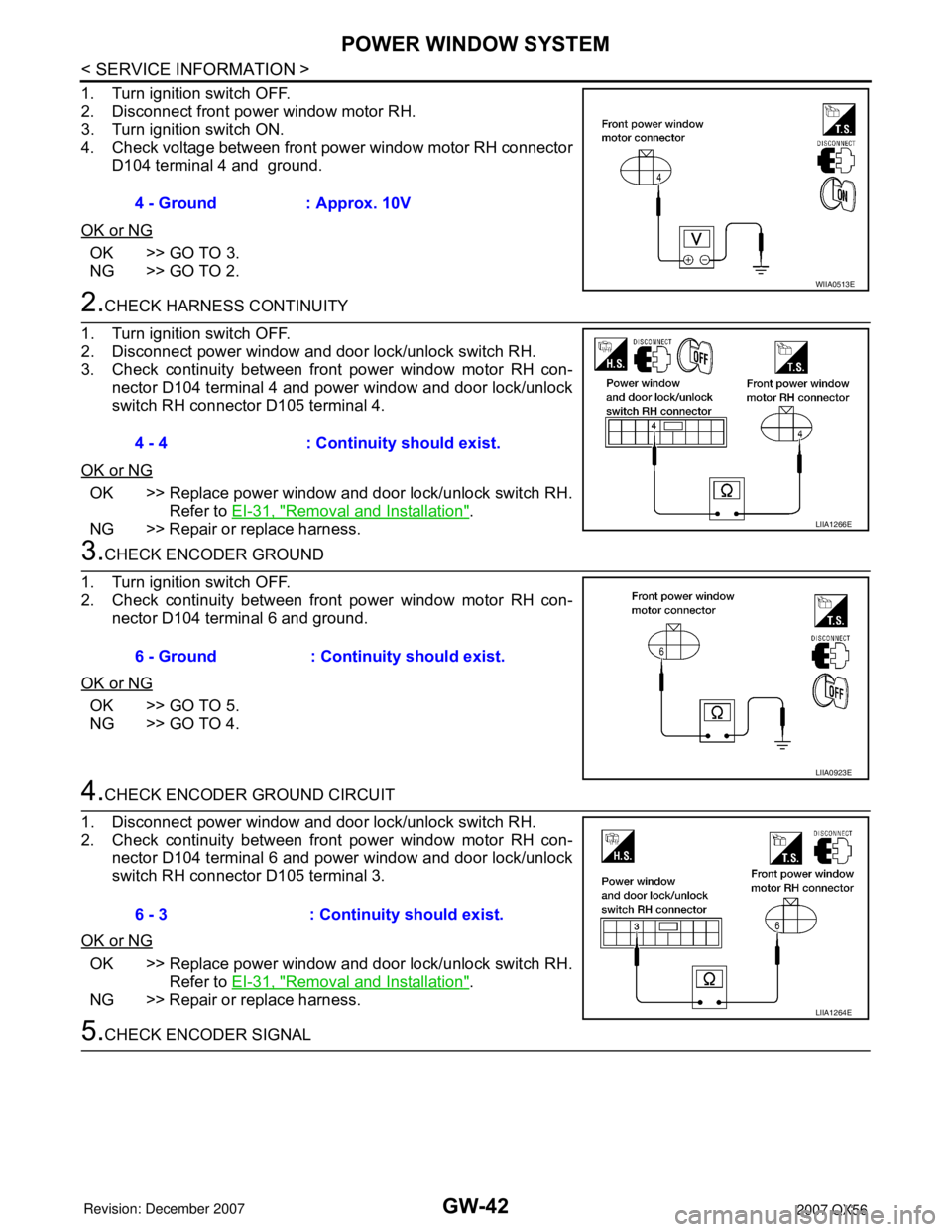

1. Turn ignition switch OFF.
2. Disconnect front power window motor RH.
3. Turn ignition switch ON.
4. Check voltage between front power window motor RH connector
D104 terminal 5 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3.CHECK LIMIT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between front power window motor RH con-
nector D104 terminal 6 and ground.
OK or NG
OK >> Replace front power window motor RH. Refer to GW-59.
NG >> GO TO 4.
4.CHECK HARNESS CONTINUITY
1. Disconnect power window and door lock/unlock switch RH.
2. Check continuity between front power window motor RH con-
nector D104 terminal 6 and power window and door lock/unlock
switch RH connector D105 terminal 3.
OK or NG
OK >> Replace power window and door lock/unlock switch RH.
Refer to EI-31, "
Removal and Installation".
NG >> Repair or replace harness.
5.CHECK HARNESS CONTINUITY
ConnectorTe r m i n a l s
Condition Voltage (V)
(Approx.)
(+) (-)
D105 15 GroundFront power window RH is
between fully-open and just
before fully-closed position
(ON)0
Front power window RH is
between just before fully-
closed position and fully-
closed position (OFF)5
LIIA1263E
5 - Ground : Approx. 5V
LIIA0922E
6 - Ground : Continuity should exist.
LIIA0923E
6 - 3 : Continuity should exist.
LIIA1264E
Page 2059 of 3061

GW-40
< SERVICE INFORMATION >
POWER WINDOW SYSTEM
1. Turn ignition switch OFF.
2. Disconnect power window and door lock/unlock switch RH.
3. Check continuity between power window and door lock/unlock
switch RH connector D105 terminal 15 and front power window
motor RH connector D104 terminal 5.
OK or NG
OK >> Replace power window and door lock/unlock switch RH.
Refer to EI-31, "
Removal and Installation".
NG >> Repair or replace harness.
Encoder Circuit Inspection Front LHINFOID:0000000003533044
1.CHECK FRONT POWER WINDOW MOTOR LH POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect front power window motor LH.
3. Turn ignition switch ON.
4. Check voltage between front power window motor LH connector
D9 terminal 4 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch.
3. Check continuity between front power window motor LH connec-
tor D9 terminal 4 and main power window and door lock/unlock
switch connector D7 terminal 15.
OK or NG
OK >> Replace main power window and door lock/unlock
switch. Refer to EI-31, "
Removal and Installation".
NG >> Repair or replace harness.
3.CHECK ENCODER GROUND
1. Turn ignition switch OFF.
2. Check continuity between front power window motor LH connec-
tor D9 terminal 6 and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.CHECK ENCODER GROUND CIRCUIT15 - 5 : Continuity should exist.
LIIA1265E
4 - Ground : Approx. 10V
WIIA0513E
4 - 15 : Continuity should exist.
LIIA0936E
6 - Ground : Continuity should exist.
LIIA0923E
Page 2060 of 3061

POWER WINDOW SYSTEM
GW-41
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P
1. Disconnect main power window and door lock/unlock switch.
2. Check continuity between front power window motor LH connec-
tor D9 terminal 6 and main power window and door lock/unlock
switch connector D7 terminal 2.
OK or NG
OK >> Replace main power window and door lock/unlock
switch. Refer to EI-31, "
Removal and Installation" .
NG >> Repair or replace harness.
5.CHECK ENCODER SIGNAL
1. Connect front power window motor LH.
2. Turn ignition switch ON.
3. Check the signal between main power window and door lock/
unlock switch connector and ground with oscilloscope.
OK or NG
OK >> Replace main power window and door lock/unlock switch. Refer to EI-31, "Removal and Installa-
tion".
NG >> GO TO 6.
6.CHECK ENCODER CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor LH and main power win-
dow and door lock/unlock switch.
3. Check continuity between front power window motor LH connec-
tor D9 (B) terminal 3 and main power window and door lock/
unlock switch connector D7 (A) terminal 13.
OK or NG
OK >> Replace front power window motor LH. Refer to GW-59.
NG >> Repair or replace harness.
Encoder Circuit Inspection Front RHINFOID:0000000003533045
1.CHECK POWER WINDOW MOTOR RH POWER SUPPLY6 - 2 : Continuity should exist.
LIIA0924E
Connec-
torTe r m i n a l s
Condition Signal
(+) (-)
D7 13 Ground Opening
LIIA0364E
OCC3383D
3 - 13 : Continuity should exist.
LIIA2210E
Page 2061 of 3061

GW-42
< SERVICE INFORMATION >
POWER WINDOW SYSTEM
1. Turn ignition switch OFF.
2. Disconnect front power window motor RH.
3. Turn ignition switch ON.
4. Check voltage between front power window motor RH connector
D104 terminal 4 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect power window and door lock/unlock switch RH.
3. Check continuity between front power window motor RH con-
nector D104 terminal 4 and power window and door lock/unlock
switch RH connector D105 terminal 4.
OK or NG
OK >> Replace power window and door lock/unlock switch RH.
Refer to EI-31, "
Removal and Installation".
NG >> Repair or replace harness.
3.CHECK ENCODER GROUND
1. Turn ignition switch OFF.
2. Check continuity between front power window motor RH con-
nector D104 terminal 6 and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.CHECK ENCODER GROUND CIRCUIT
1. Disconnect power window and door lock/unlock switch RH.
2. Check continuity between front power window motor RH con-
nector D104 terminal 6 and power window and door lock/unlock
switch RH connector D105 terminal 3.
OK or NG
OK >> Replace power window and door lock/unlock switch RH.
Refer to EI-31, "
Removal and Installation".
NG >> Repair or replace harness.
5.CHECK ENCODER SIGNAL4 - Ground : Approx. 10V
WIIA0513E
4 - 4 : Continuity should exist.
LIIA1266E
6 - Ground : Continuity should exist.
LIIA0923E
6 - 3 : Continuity should exist.
LIIA1264E
Page 2062 of 3061

POWER WINDOW SYSTEM
GW-43
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P

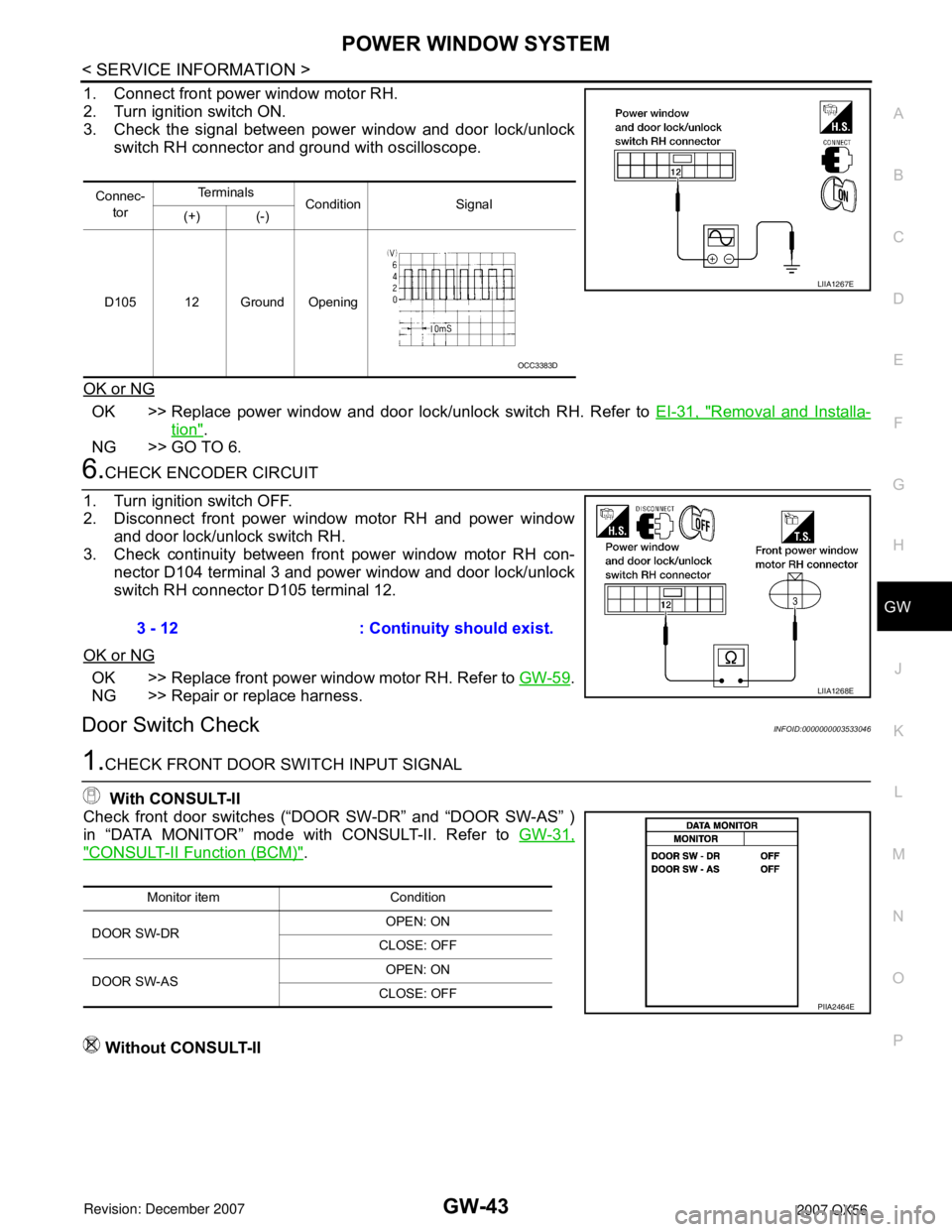

1. Connect front power window motor RH.
2. Turn ignition switch ON.
3. Check the signal between power window and door lock/unlock
switch RH connector and ground with oscilloscope.
OK or NG
OK >> Replace power window and door lock/unlock switch RH. Refer to EI-31, "Removal and Installa-
tion".
NG >> GO TO 6.
6.CHECK ENCODER CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor RH and power window
and door lock/unlock switch RH.
3. Check continuity between front power window motor RH con-
nector D104 terminal 3 and power window and door lock/unlock
switch RH connector D105 terminal 12.
OK or NG
OK >> Replace front power window motor RH. Refer to GW-59.
NG >> Repair or replace harness.
Door Switch CheckINFOID:0000000003533046
1.CHECK FRONT DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check front door switches (“DOOR SW-DR” and “DOOR SW-AS” )
in “DATA MONITOR” mode with CONSULT-II. Refer to GW-31,
"CONSULT-II Function (BCM)".
Without CONSULT-II
Connec-
torTe r m i n a l s
Condition Signal
(+) (-)
D105 12 Ground Opening
LIIA1267E
OCC3383D
3 - 12 : Continuity should exist.
LIIA1268E
Monitor item Condition
DOOR SW-DROPEN: ON
CLOSE: OFF
DOOR SW-ASOPEN: ON
CLOSE: OFF
PIIA2464E
Page 2063 of 3061

GW-44
< SERVICE INFORMATION >
POWER WINDOW SYSTEM

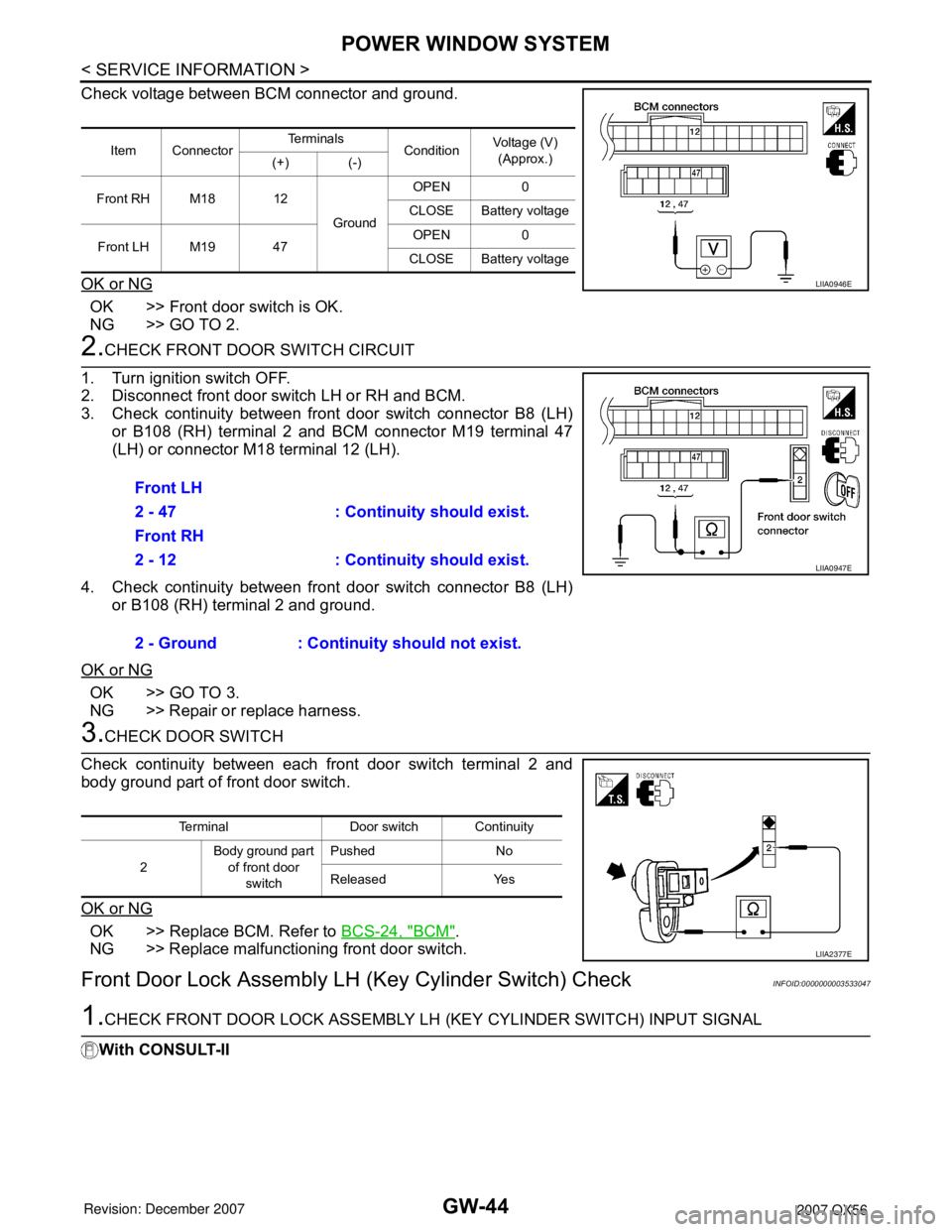

Check voltage between BCM connector and ground.
OK or NG
OK >> Front door switch is OK.
NG >> GO TO 2.
2.CHECK FRONT DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front door switch LH or RH and BCM.
3. Check continuity between front door switch connector B8 (LH)
or B108 (RH) terminal 2 and BCM connector M19 terminal 47
(LH) or connector M18 terminal 12 (LH).
4. Check continuity between front door switch connector B8 (LH)
or B108 (RH) terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK DOOR SWITCH
Check continuity between each front door switch terminal 2 and
body ground part of front door switch.
OK or NG
OK >> Replace BCM. Refer to BCS-24, "BCM".
NG >> Replace malfunctioning front door switch.

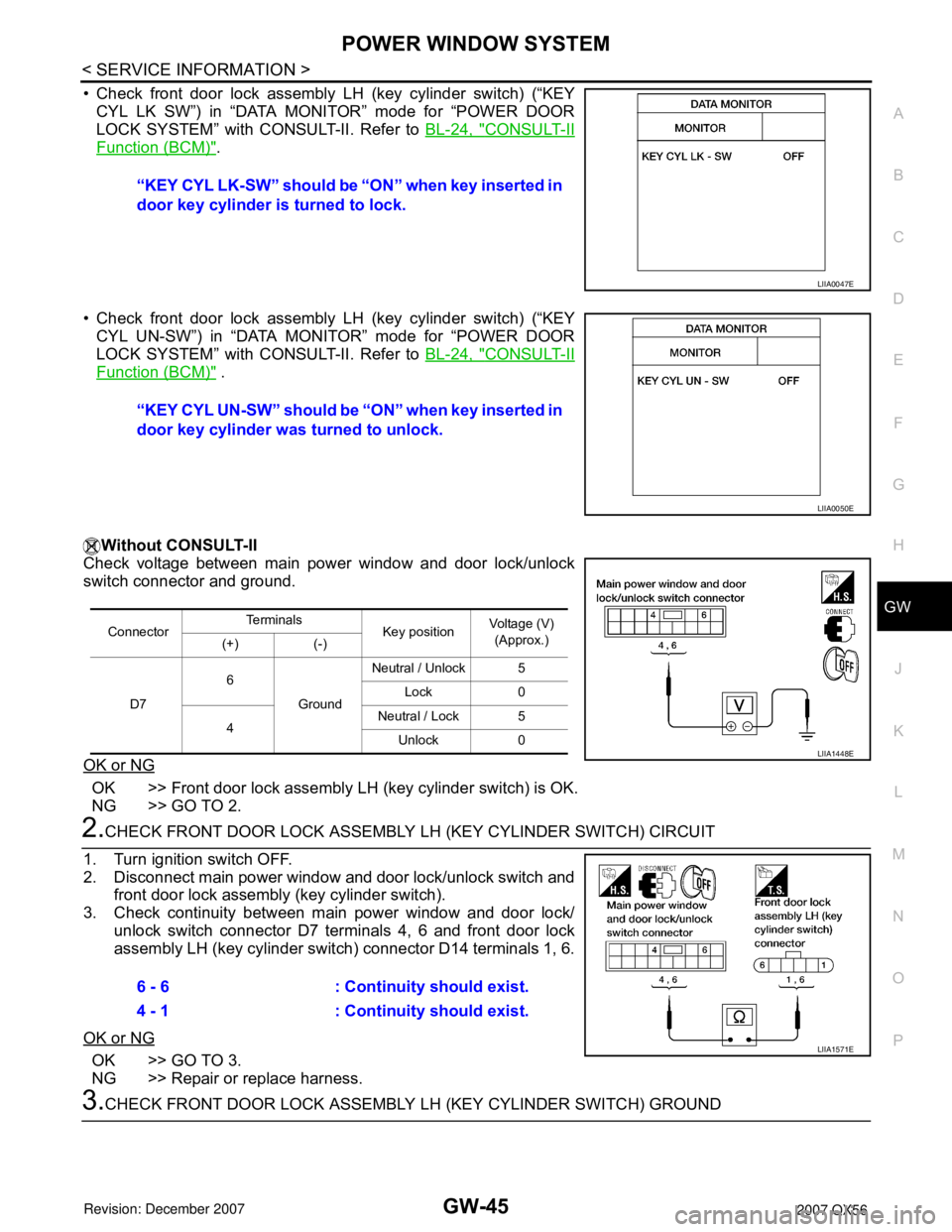

Front Door Lock Assembly LH (Key Cylinder Switch) CheckINFOID:0000000003533047
1.CHECK FRONT DOOR LOCK ASSEMBLY LH (KEY CYLINDER SWITCH) INPUT SIGNAL
With CONSULT-II
Item ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
Front RH M18 12
GroundOPEN 0
CLOSE Battery voltage
Front LH M19 47OPEN 0
CLOSE Battery voltage
LIIA0946E
Front LH
2 - 47 : Continuity should exist.
Front RH
2 - 12 : Continuity should exist.
2 - Ground : Continuity should not exist.
LIIA0947E
Terminal Door switch Continuity
2Body ground part
of front door
switchPushed No
Released Yes
LIIA2377E
Page 2064 of 3061

POWER WINDOW SYSTEM
GW-45
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
GW
N
O
P
• Check front door lock assembly LH (key cylinder switch) (“KEY
CYL LK SW”) in “DATA MONITOR” mode for “POWER DOOR
LOCK SYSTEM” with CONSULT-II. Refer to BL-24, "
CONSULT-II
Function (BCM)".
• Check front door lock assembly LH (key cylinder switch) (“KEY
CYL UN-SW”) in “DATA MONITOR” mode for “POWER DOOR
LOCK SYSTEM” with CONSULT-II. Refer to BL-24, "
CONSULT-II
Function (BCM)" .
Without CONSULT-II
Check voltage between main power window and door lock/unlock
switch connector and ground.
OK or NG
OK >> Front door lock assembly LH (key cylinder switch) is OK.
NG >> GO TO 2.
2.CHECK FRONT DOOR LOCK ASSEMBLY LH (KEY CYLINDER SWITCH) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch and
front door lock assembly (key cylinder switch).
3. Check continuity between main power window and door lock/
unlock switch connector D7 terminals 4, 6 and front door lock
assembly LH (key cylinder switch) connector D14 terminals 1, 6.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK FRONT DOOR LOCK ASSEMBLY LH (KEY CYLINDER SWITCH) GROUND “KEY CYL LK-SW” should be “ON” when key inserted in
door key cylinder is turned to lock.
LIIA0047E
“KEY CYL UN-SW” should be “ON” when key inserted in
door key cylinder was turned to unlock.
LIIA0050E
ConnectorTe r m i n a l s
Key position Voltage (V)
(Approx.)
(+) (-)
D76
GroundNeutral / Unlock 5
Lock 0
4Neutral / Lock 5
Unlock 0
LIIA1448E
6 - 6 : Continuity should exist.
4 - 1 : Continuity should exist.
LIIA1571E
