INFINITI QX56 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-59
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P

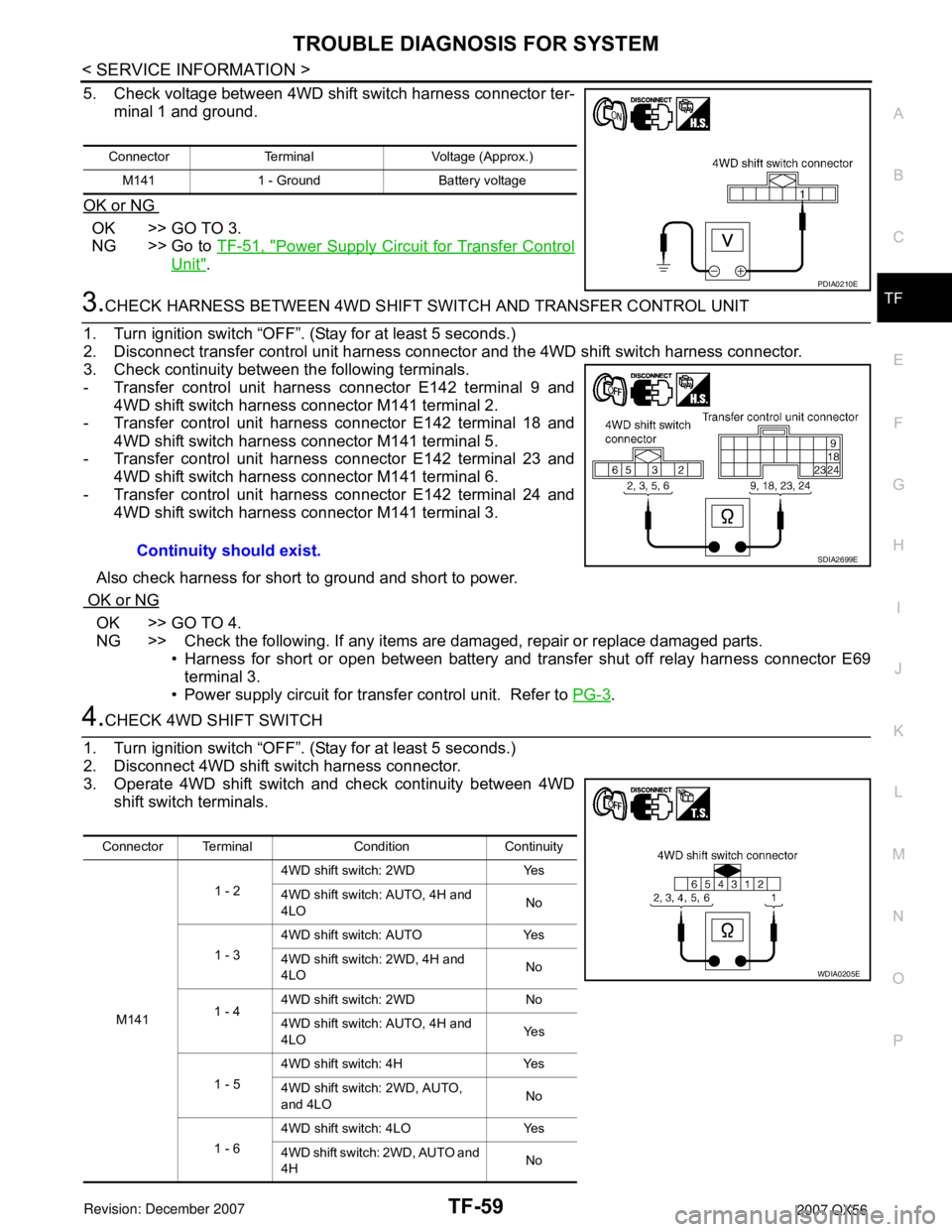

5. Check voltage between 4WD shift switch harness connector ter-
minal 1 and ground.
OK or NG
OK >> GO TO 3.

TROUBLE DIAGNOSIS FOR SYSTEM
TF-59
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P
5. Check voltage between 4WD shift switch harness connector ter-
minal 1 and ground.
OK or NG
OK >> GO TO 3.
NG >> Go to TF-51, "
Power Supply Circuit for Transfer Control
Unit".
3.CHECK HARNESS BETWEEN 4WD SHIFT SWITCH AND TRANSFER CONTROL UNIT
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and the 4WD shift switch harness connector.
3. Check continuity between the following terminals.
- Transfer control unit harness connector E142 terminal 9 and
4WD shift switch harness connector M141 terminal 2.
- Transfer control unit harness connector E142 terminal 18 and
4WD shift switch harness connector M141 terminal 5.
- Transfer control unit harness connector E142 terminal 23 and
4WD shift switch harness connector M141 terminal 6.
- Transfer control unit harness connector E142 terminal 24 and
4WD shift switch harness connector M141 terminal 3.
Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Check the following. If any items are damaged, repair or replace damaged parts.
• Harness for short or open between battery and transfer shut off relay harness connector E69
terminal 3.
• Power supply circuit for transfer control unit. Refer to PG-3
.
4.CHECK 4WD SHIFT SWITCH
1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Disconnect 4WD shift switch harness connector.
3. Operate 4WD shift switch and check continuity between 4WD
shift switch terminals.
Connector Terminal Voltage (Approx.)
M141 1 - Ground Battery voltage
PDIA0210E
Continuity should exist.SDIA2699E
Connector Terminal Condition Continuity
M1411 - 24WD shift switch: 2WD Yes
4WD shift switch: AUTO, 4H and
4LONo
1 - 34WD shift switch: AUTO Yes
4WD shift switch: 2WD, 4H and
4LONo
1 - 44WD shift switch: 2WD No
4WD shift switch: AUTO, 4H and
4LOYe s
1 - 54WD shift switch: 4H Yes
4WD shift switch: 2WD, AUTO,
and 4LONo
1 - 64WD shift switch: 4LO Yes
4WD shift switch: 2WD, AUTO and
4HNo
WDIA0205E

Page 2882 of 3061

INFINITI QX56 2007 Factory Service Manual TF-60
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS FOR SYSTEM
OK or NG
OK >> GO TO 5.
NG >> Replace 4WD shift switch.
5.CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer

Page 2883 of 3061

INFINITI QX56 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-61
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P
Data are reference value.
TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE
Data are reference value and ar

Page 2884 of 3061

INFINITI QX56 2007 Factory Service Manual TF-62
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS FOR SYSTEM

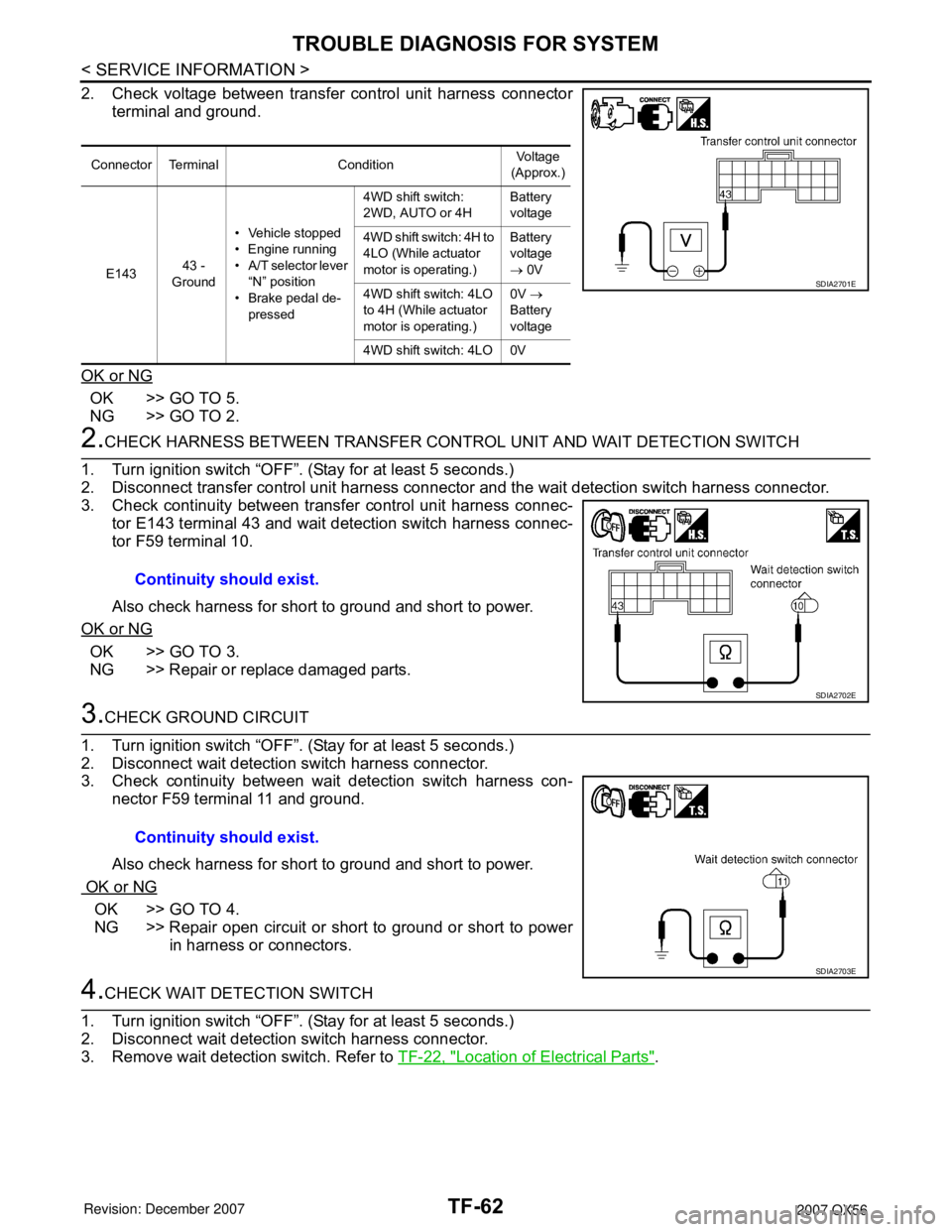

2. Check voltage between transfer control unit harness connector
terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK HARNESS

Page 2885 of 3061

INFINITI QX56 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-63
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P

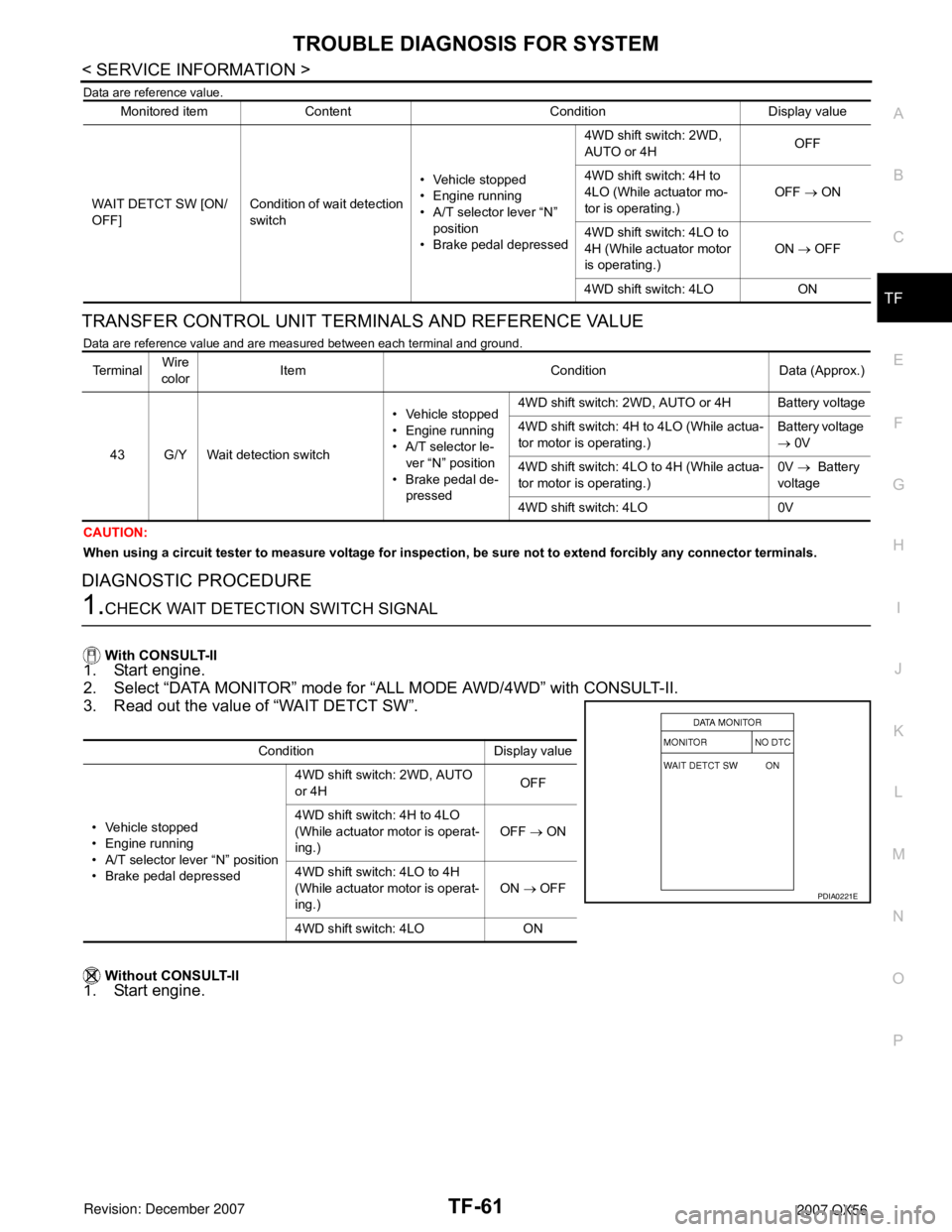

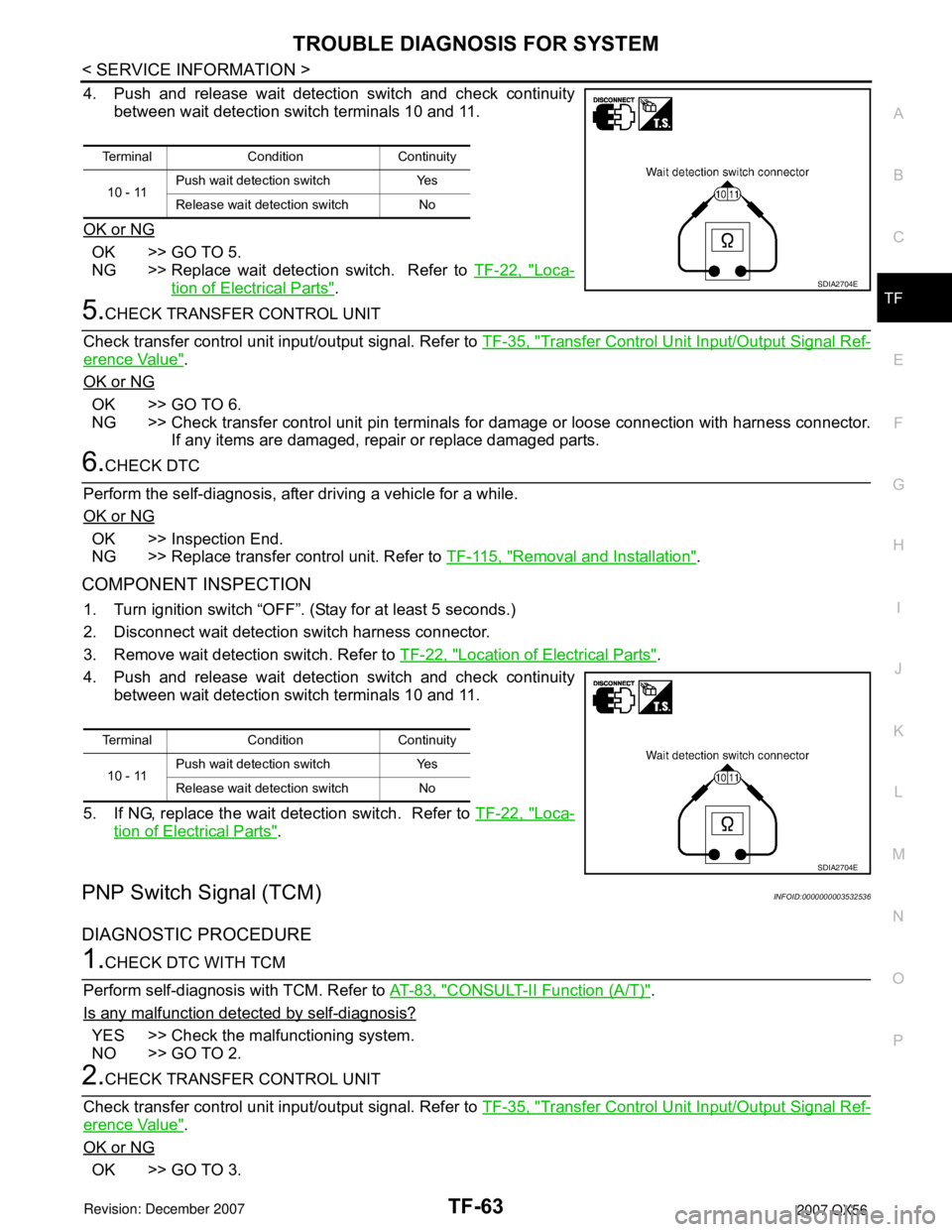

4. Push and release wait detection switch and check continuity
between wait detection switch terminals 10 and

Page 2886 of 3061

INFINITI QX56 2007 Factory Service Manual TF-64
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS FOR SYSTEM
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or re

TF-64
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS FOR SYSTEM
NG >> Check transfer control unit pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace damaged parts.
3.CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK >> Inspection End.
NG >> Perform self-diagnosis with TCM again. Refer to AT-83, "
CONSULT-II Function (A/T)".

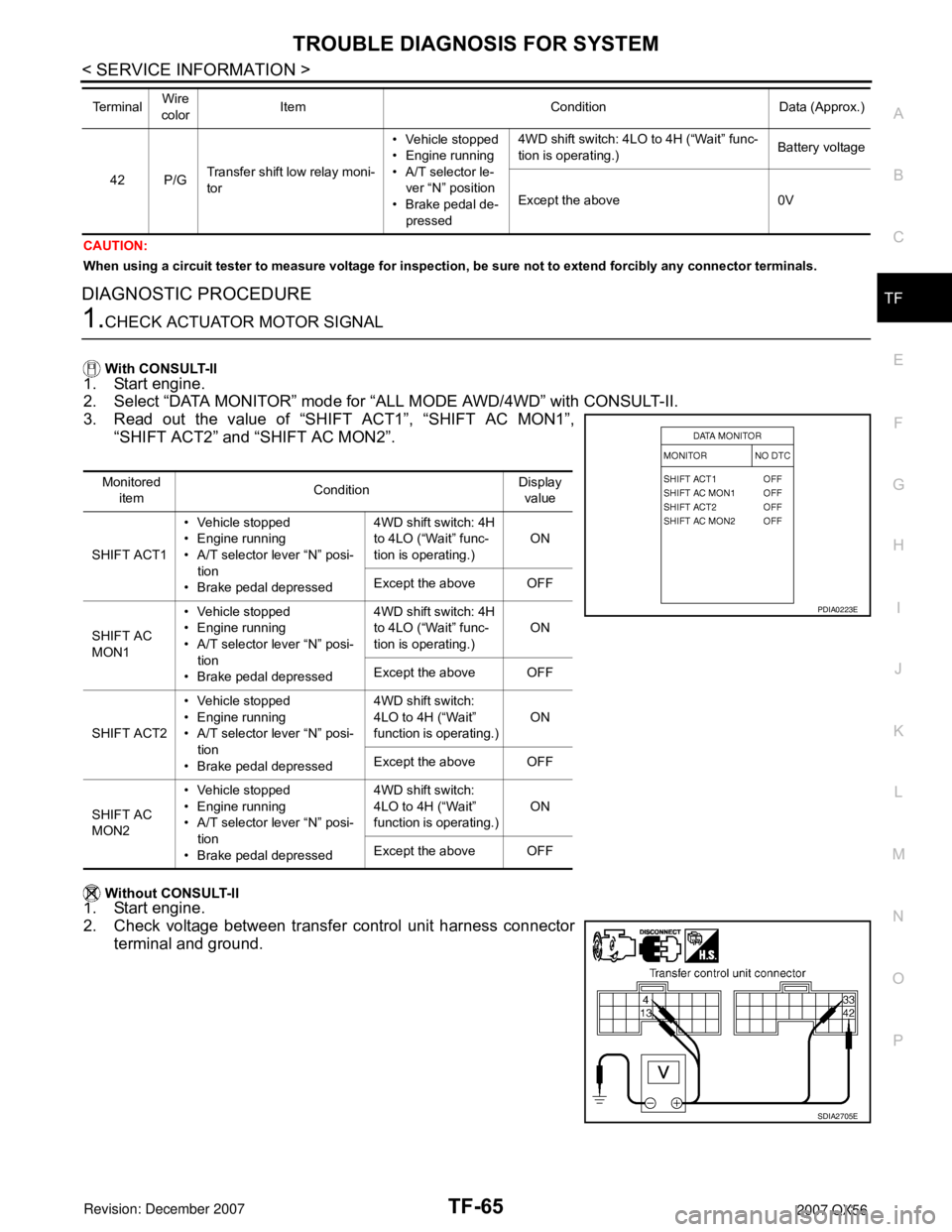

Actuator MotorINFOID:0000000003532537
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference value.
TRANSFER CONTROL UNIT TERMINALS AND REFERENCE VALUE
Data are reference value and are measured between each terminal and ground.
Monitored item Content Condition Display value
SHIFT ACT1 [ON/OFF]Output condition to ac-
tuator motor (High)• Vehicle stopped
• Engine running
• A/T selector lever “N”
position
• Brake pedal depressed4WD shift switch: 4H to
4LO (“Wait” function is op-
erating.)ON
Except the above OFF
SHIFT AC MON1 [ON/OFF]Check signal for trans-
fer control unit signal
output• Vehicle stopped
• Engine running
• A/T selector lever “N”
position
• Brake pedal depressed4WD shift switch: 4H to
4LO (“Wait” function is op-
erating.)ON
Except the above OFF
SHIFT ACT2 [ON/OFF]Output condition to ac-
tuator motor (Low)• Vehicle stopped
• Engine running
• A/T selector lever “N”
position
• Brake pedal depressed4WD shift switch: 4LO to
4H (“Wait” function is op-
erating.)ON
Except the above OFF
SHIFT AC MON2 [ON/OFF]Check signal for trans-
fer control unit signal
output• Vehicle stopped
• Engine running
• A/T selector lever “N”
position
• Brake pedal depressed4WD shift switch: 4LO to
4H (“Wait” function is op-
erating.)ON
Except the above OFF
Te r m i n a lWire
colorItem Condition Data (Approx.)
4 Y/L Transfer shift high relay• Vehicle stopped
• Engine running
• A/T selector le-
ver “N” position
• Brake pedal de-
pressed4WD shift switch: 4H to 4LO (“Wait” func-
tion is operating.)Battery voltage
Except the above 0V
13 G/B Transfer shift low relay• Vehicle stopped
• Engine running
• A/T selector le-
ver “N” position
• Brake pedal de-
pressed4WD shift switch: 4LO to 4H (“Wait” func-
tion is operating.)Battery voltage
Except the above 0V
33 R/LTransfer shift high relay moni-
tor• Vehicle stopped
• Engine running
• A/T selector le-
ver “N” position
• Brake pedal de-
pressed4WD shift switch: 4H to 4LO (“Wait” func-
tion is operating.)Battery voltage
Except the above 0V

Page 2887 of 3061

INFINITI QX56 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-65
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P
CAUTION:
When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any co

Page 2888 of 3061

INFINITI QX56 2007 Factory Service Manual TF-66
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS FOR SYSTEM
OK or NG
OK >> GO TO 7.
NG >> GO TO 2.
2.CHECK ACTUATOR MOTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”. (Stay for at least 5 s
