• Check if the oil passage of the sun gear assembly is clogged. For
this, try to pass a 3.6 mm (0.142 in) dia. pin through the oil pas-
sage as shown.
• Check the sliding and contact surface of each gear and bearing for
damage, burrs, partial wear, dents, and other abnormality. If any is
found, replace the sun gear assembly with a new one.
Internal Gear
• Check the internal gear teeth for damage, partial wear, dents and
other abnormality. If any is found, replace the internal gear with a
new one.
Gears and Drive Chain
• Check the gear faces and shaft for wear, cracks, damage, and sei-
zure.
• Check the surfaces which contact the sun gear, clutch drum, clutch
hub, press flange, clutch piston and each bearing for damage,
peel, partial wear, dents, bending, or other abnormal damage. If
any is found, replace with a new one.
Bearing
• Make sure the bearings roll freely and are free from noise, pitting
and cracks.
Main Oil Pump
PDIA0186E
SMT008D
SMT944C
SDIA2175E
Page 2970 of 3061

TF-148
< SERVICE INFORMATION >
TRANSFER ASSEMBLY
1. Check the inner and outer circumference, tooth face, and side-
face of the inner and outer gears for damage or abnormal wear.
2. Measure the side clearance between the main oil pump housing
edge and the inner and outer gears.
3. Make sure the side clearance is within specification. If the mea-
surement is out of specification, replace the inner and outer
gears with new ones as a set. Refer to TF-166, "
Inspection and
Adjustment".
Sub-oil Pump
1. Check the inner and outer circumference, tooth face, and side-
face of the inner and outer gears for damage or abnormal wear.
2. Measure the side clearance between the sub oil pump housing
edge and the inner and outer gears.
3. Make sure the side clearance is within specification. If the mea-
surement is out of specification, replace the inner and outer
gears with new ones as a set. Refer to TF-166, "
Inspection and
Adjustment".
Control Valve
• Check resistance between the terminals of the clutch pressure
solenoid valve, 2-4WD shift solenoid valve, clutch pressure switch,
line pressure switch and the transfer fluid temperature sensor.
Refer to TF-76, "
Clutch Pressure Solenoid" (clutch pressure sole-
noid valve), TF-80, "
2-4WD Solenoid" (2-4WD solenoid valve), TF-
76, "Clutch Pressure Solenoid" (clutch pressure switch), TF-94,
"Line Pressure Switch" (line pressure switch) and TF-90, "Transfer
Fluid Temperature" (transfer fluid temperature sensor).
• Check the sliding faces of the control valves and plugs for abnor-
mality. If any is found, replace the control valve assembly with a
new one. Refer to TF-166, "
Inspection and Adjustment".
CAUTION:
Replace control valve body together with clutch return spring
as a set.Specification : 0.015 - 0.035 mm (0.0006 - 0.0014 in)
SDIA2174E
Specification : 0.015 - 0.035 mm (0.0006 - 0.0014 in)SDIA2173E
WDIA0199E
SMT947C
Page 2971 of 3061

TRANSFER ASSEMBLY
TF-149
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P
• Check each control valve spring for damage or distortion. Also
check its free length, outer diameter and wire diameter. If any dam-
age or fatigue is found, replace the control valve body with a new
one. Refer to TF-166, "
Inspection and Adjustment".
CAUTION:
Replace control valve body together with clutch return spring
as a set.
Clutch
• Check the drive plate facings and driven plate for damage, cracks
or other abnormality. If any abnormalities are found, replace with a
new one.
• Check the thickness of the drive plate facings and driven plate.
Refer to TF-166, "
Inspection and Adjustment".
CAUTION:
• Measure facing thickness at 3 points to take an average.
• Check all drive and driven plates.
• Check return spring for damage or deformation.
• Do not remove spring from plate.
Return Spring
• Check the stamped mark shown. Then, check that the free lengths,
(include thickness of plate) are within specifications. If any abnor-
mality is found, replace with a new return spring assembly of the
same stamped number. Refer to TF-166, "
Inspection and Adjust-
ment".
ASSEMBLY
Center Case
1. Apply ATF to the new O-ring, and install it on the oil filter stud.
CAUTION:
Do not reuse O-ring.
2. Install the oil filter stud to the oil filter.
SMT948C
SMT949C
SDIA2176E
SDIA3180E
Page 2972 of 3061

TF-150
< SERVICE INFORMATION >
TRANSFER ASSEMBLY
3. Apply ATF to the two new O-rings (1), and install them on the oil
filter (2).
CAUTION:
Do not reuse O-rings.
4. Install the oil filter to the center case. Tighten the bolts to the
specified torque. Refer to TF-128, "
Disassembly and Assembly".
CAUTION:
• Do not damage oil filter.
• Attach oil filter and tighten bolts evenly.
5. Install the outer gear and inner gear into the sub oil pump hous-
ing, and measure the side clearance. Refer to TF-166, "
Inspec-
tion and Adjustment".
6. Align the dowel pin hole and bolt hole of the sub oil pump
assembly with the center case. Install the sub oil pump cover.
Then tighten to the specified torque. Refer to TF-128, "
Disas-
sembly and Assembly".
7. Apply ATF to the new O-ring and install it to the transfer motor.
CAUTION:
Do not reuse O-ring.
8. Fit the double-flat end of the transfer motor shaft into the slot of
the sub-oil pump assembly. Then tighten to the specified torque.
Refer to "COMPONENTS".
CAUTION:
Be sure to install connector bracket.
WDIA0285E
SDIA2136E
SDIA2135E
SDIA2328E
SDIA2787E
Page 2973 of 3061

TRANSFER ASSEMBLY
TF-151
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P
9. Assemble the control valve assembly with the following procedure.
CAUTION:
• Do not reuse any part that has been dropped or damaged.
• Make sure valve is assembled in the proper direction.
• Do not use a magnet because residual magnetism stays during assembly.

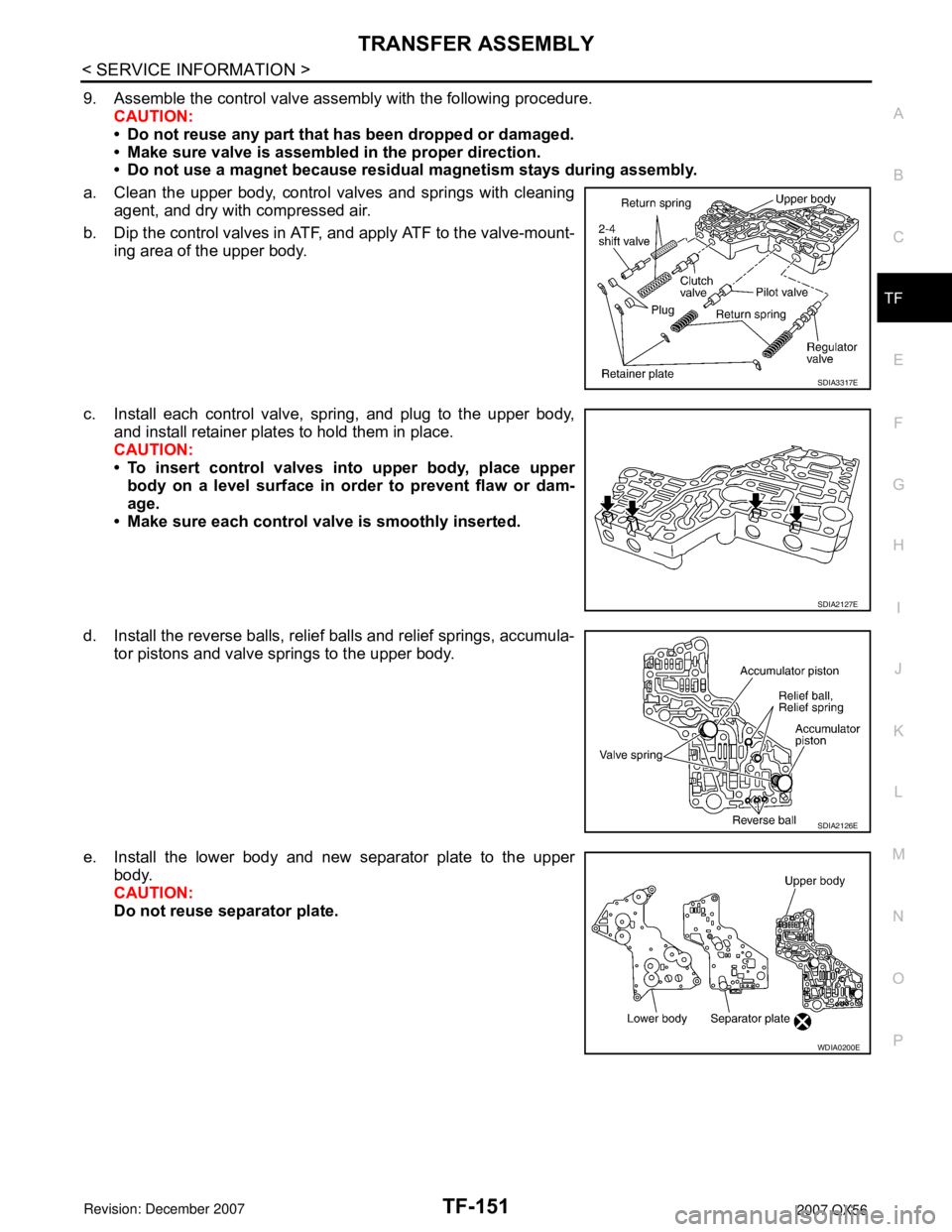

a. Clean the upper body, control valves and springs with cleaning
agent, and dry with compressed air.
b. Dip the control valves in ATF, and apply ATF to the valve-mount-
ing area of the upper body.
c. Install each control valve, spring, and plug to the upper body,
and install retainer plates to hold them in place.
CAUTION:
• To insert control valves into upper body, place upper
body on a level surface in order to prevent flaw or dam-
age.
• Make sure each control valve is smoothly inserted.
d. Install the reverse balls, relief balls and relief springs, accumula-
tor pistons and valve springs to the upper body.
e. Install the lower body and new separator plate to the upper
body.
CAUTION:
Do not reuse separator plate.
SDIA3317E
SDIA2127E
SDIA2126E
WDIA0200E
Page 2974 of 3061

TF-152
< SERVICE INFORMATION >
TRANSFER ASSEMBLY
f. With the lower body down, tighten the two bolts shown.
g. Apply ATF to the new O-rings, and install them to each solenoid
valve, switch and terminal body.
CAUTION:
Do not reuse O-rings.
h. Install the following to the control valve assembly:
• Clutch pressure solenoid valve
• 2-4WD shift solenoid valve
• Clutch pressure switch
• Line pressure switch
• Transfer fluid temperature sensor

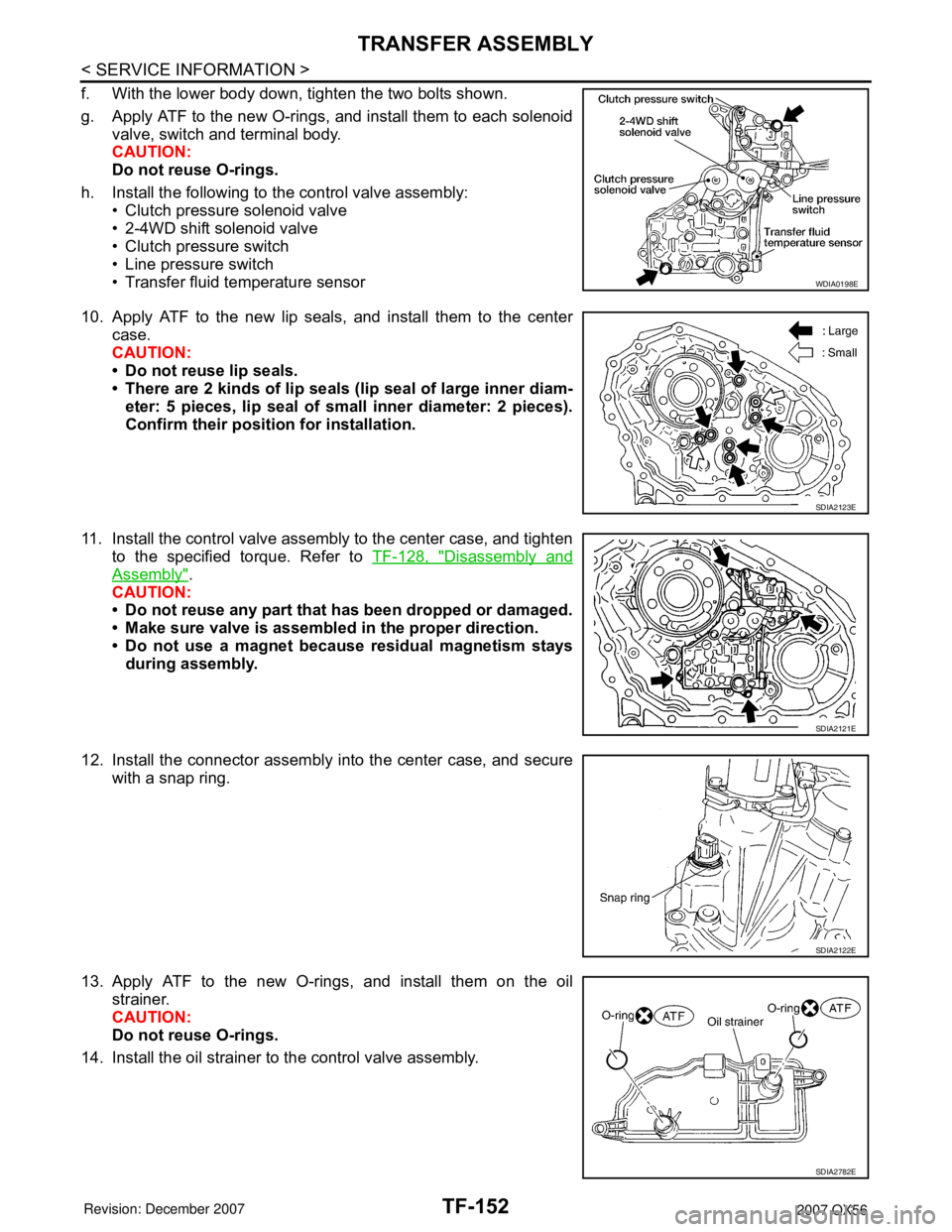

10. Apply ATF to the new lip seals, and install them to the center
case.
CAUTION:
• Do not reuse lip seals.
• There are 2 kinds of lip seals (lip seal of large inner diam-
eter: 5 pieces, lip seal of small inner diameter: 2 pieces).
Confirm their position for installation.
11. Install the control valve assembly to the center case, and tighten
to the specified torque. Refer to TF-128, "
Disassembly and
Assembly".
CAUTION:
• Do not reuse any part that has been dropped or damaged.
• Make sure valve is assembled in the proper direction.
• Do not use a magnet because residual magnetism stays
during assembly.
12. Install the connector assembly into the center case, and secure
with a snap ring.
13. Apply ATF to the new O-rings, and install them on the oil
strainer.
CAUTION:
Do not reuse O-rings.
14. Install the oil strainer to the control valve assembly.
WDIA0198E
SDIA2123E
SDIA2121E
SDIA2122E
SDIA2782E
Page 2975 of 3061

TRANSFER ASSEMBLY
TF-153
< SERVICE INFORMATION >
C
E
F
G
H
I
J
K
L
MA
B
TF
N
O
P
15. Tighten the bolts to the specified torque. Refer to TF-128, "Dis-
assembly and Assembly".
16. Apply ATF to the new D-rings, and install them to the clutch pis-
ton.
CAUTION:
Do not reuse D-rings.
17. Install the thrust needle bearing race to the clutch piston.

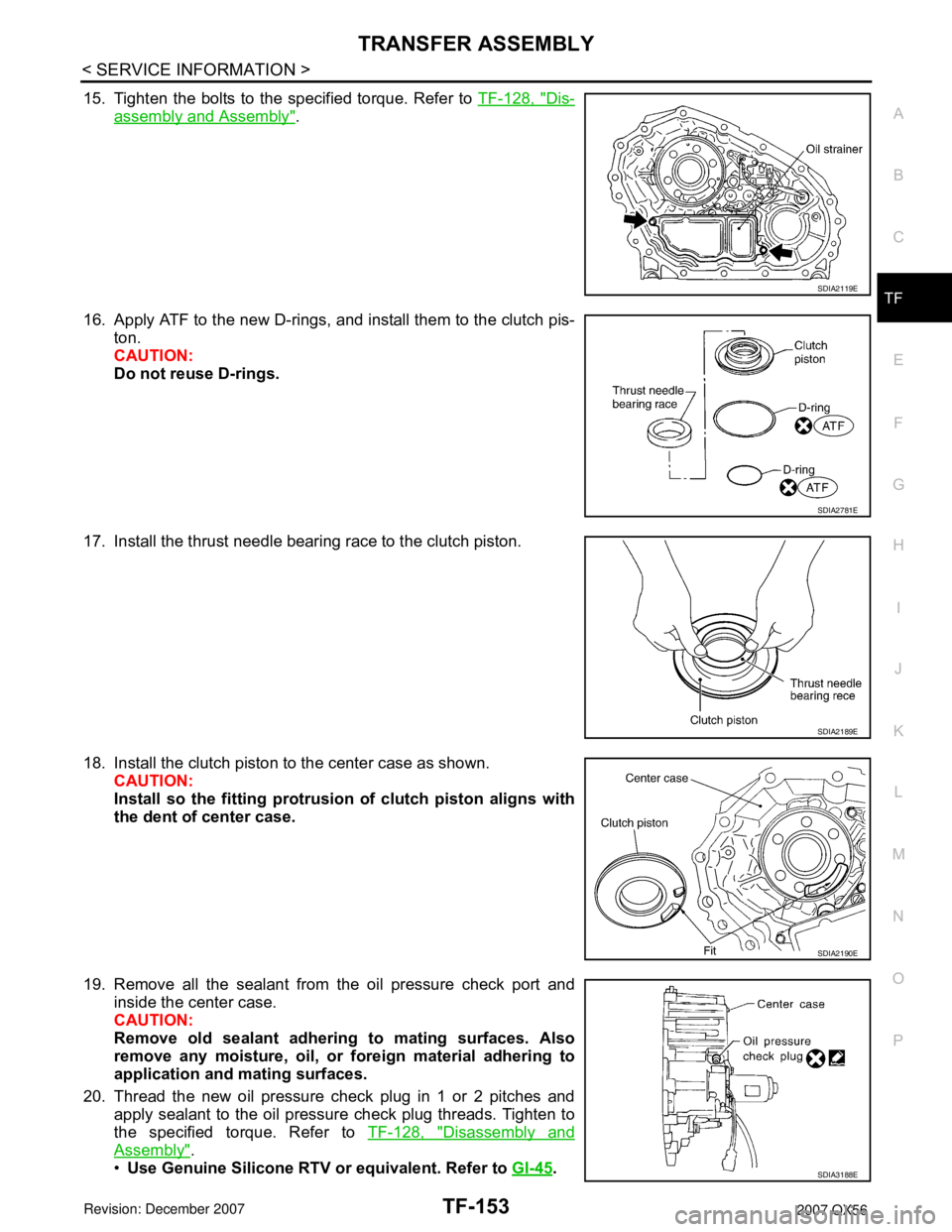

18. Install the clutch piston to the center case as shown.
CAUTION:
Install so the fitting protrusion of clutch piston aligns with
the dent of center case.
19. Remove all the sealant from the oil pressure check port and
inside the center case.
CAUTION:
Remove old sealant adhering to mating surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mating surfaces.
20. Thread the new oil pressure check plug in 1 or 2 pitches and
apply sealant to the oil pressure check plug threads. Tighten to
the specified torque. Refer to TF-128, "
Disassembly and
Assembly".
•Use Genuine Silicone RTV or equivalent. Refer to GI-45
.
SDIA2119E
SDIA2781E
SDIA2189E
SDIA2190E
SDIA3188E
Page 2976 of 3061
TF-154
< SERVICE INFORMATION >
TRANSFER ASSEMBLY
CAUTION:
Do not reuse oil pressure check plug.
21. Install the new snap ring to the clutch hub using suitable tool.
CAUTION:
Do not reuse snap ring.

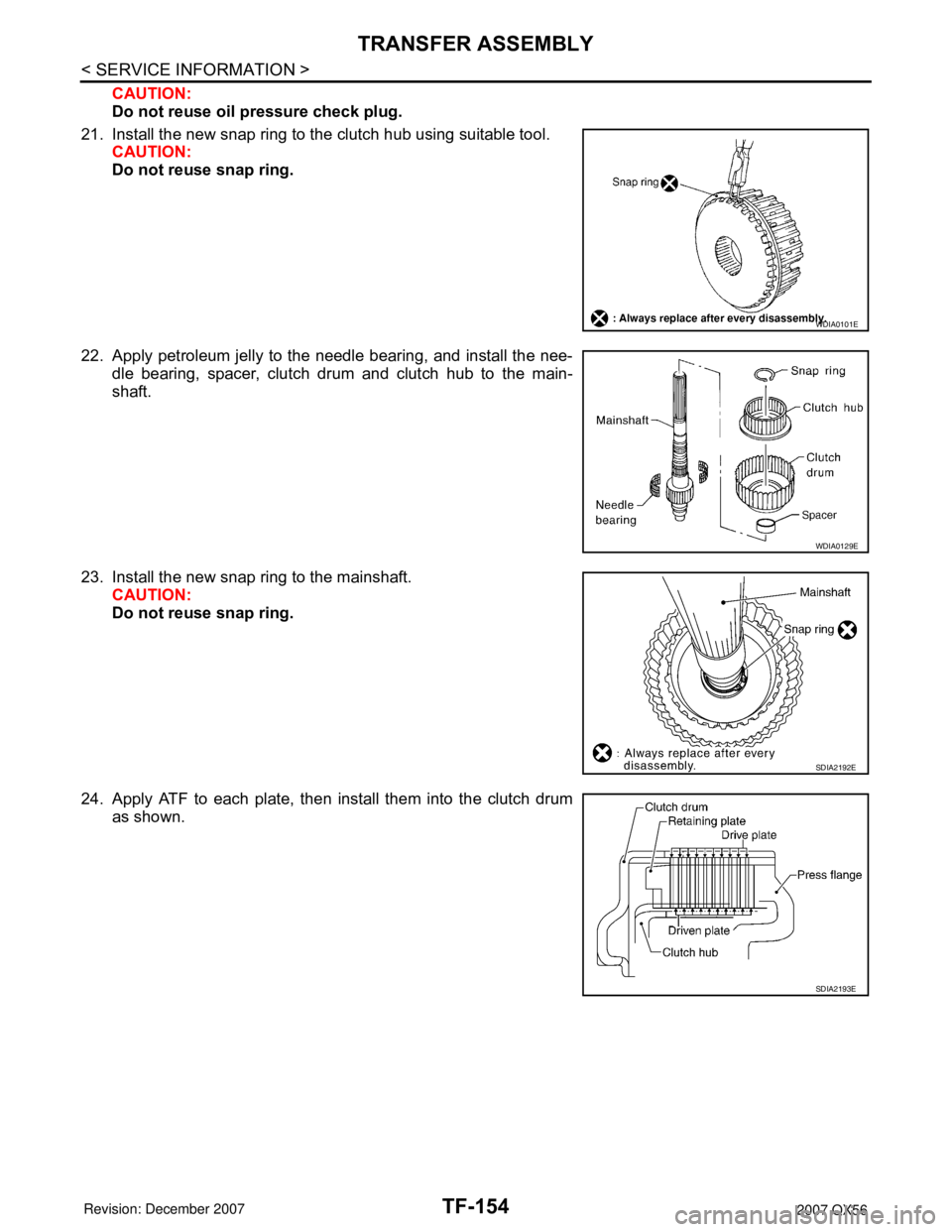

22. Apply petroleum jelly to the needle bearing, and install the nee-
dle bearing, spacer, clutch drum and clutch hub to the main-
shaft.
23. Install the new snap ring to the mainshaft.
CAUTION:
Do not reuse snap ring.
24. Apply ATF to each plate, then install them into the clutch drum
as shown.
WDIA0101E
WDIA0129E
SDIA2192E
SDIA2193E
