Page 2337 of 3061

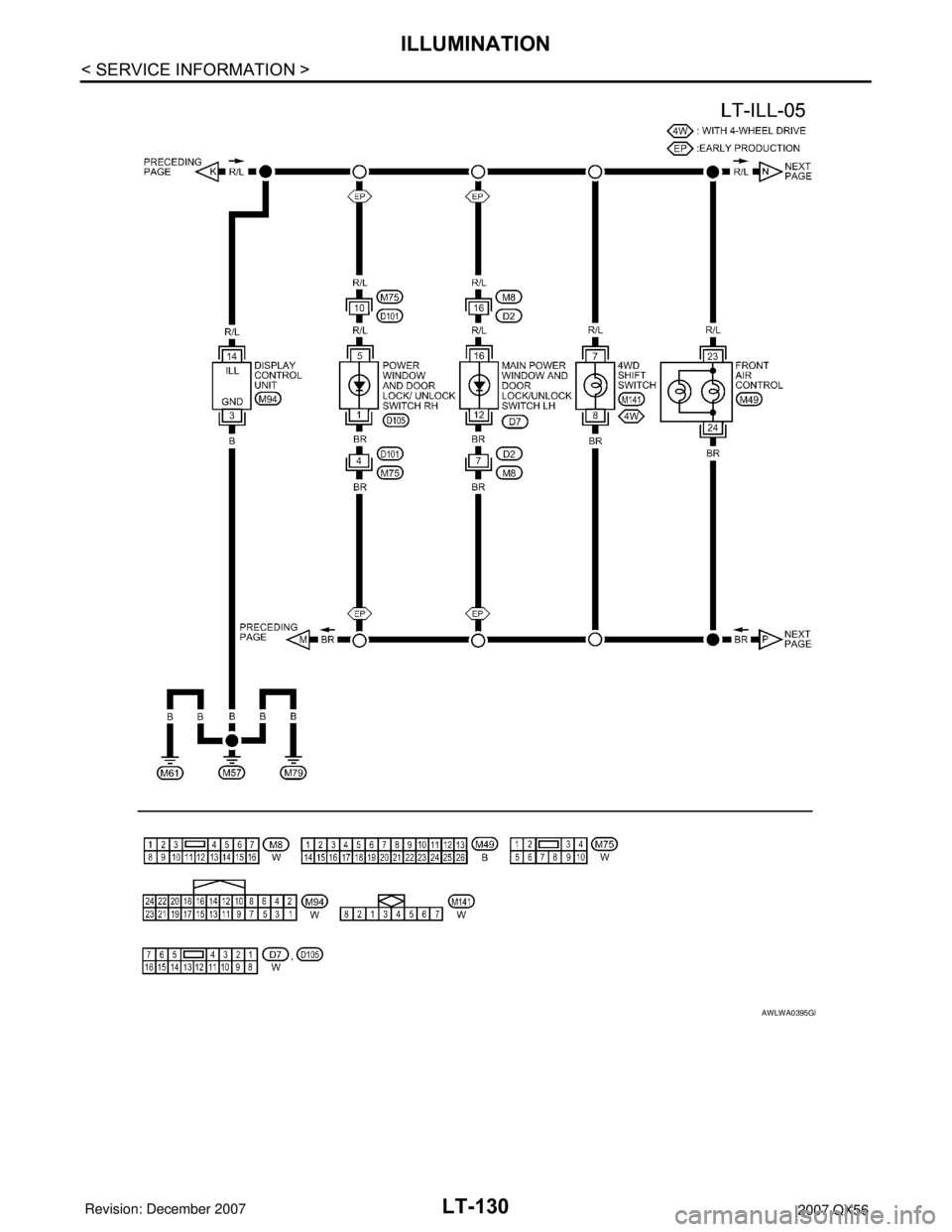

INFINITI QX56 2007 Factory Service Manual LT-130 < SERVICE INFORMATION > ILLUMINATION AWLWA0395GB

Page 2338 of 3061

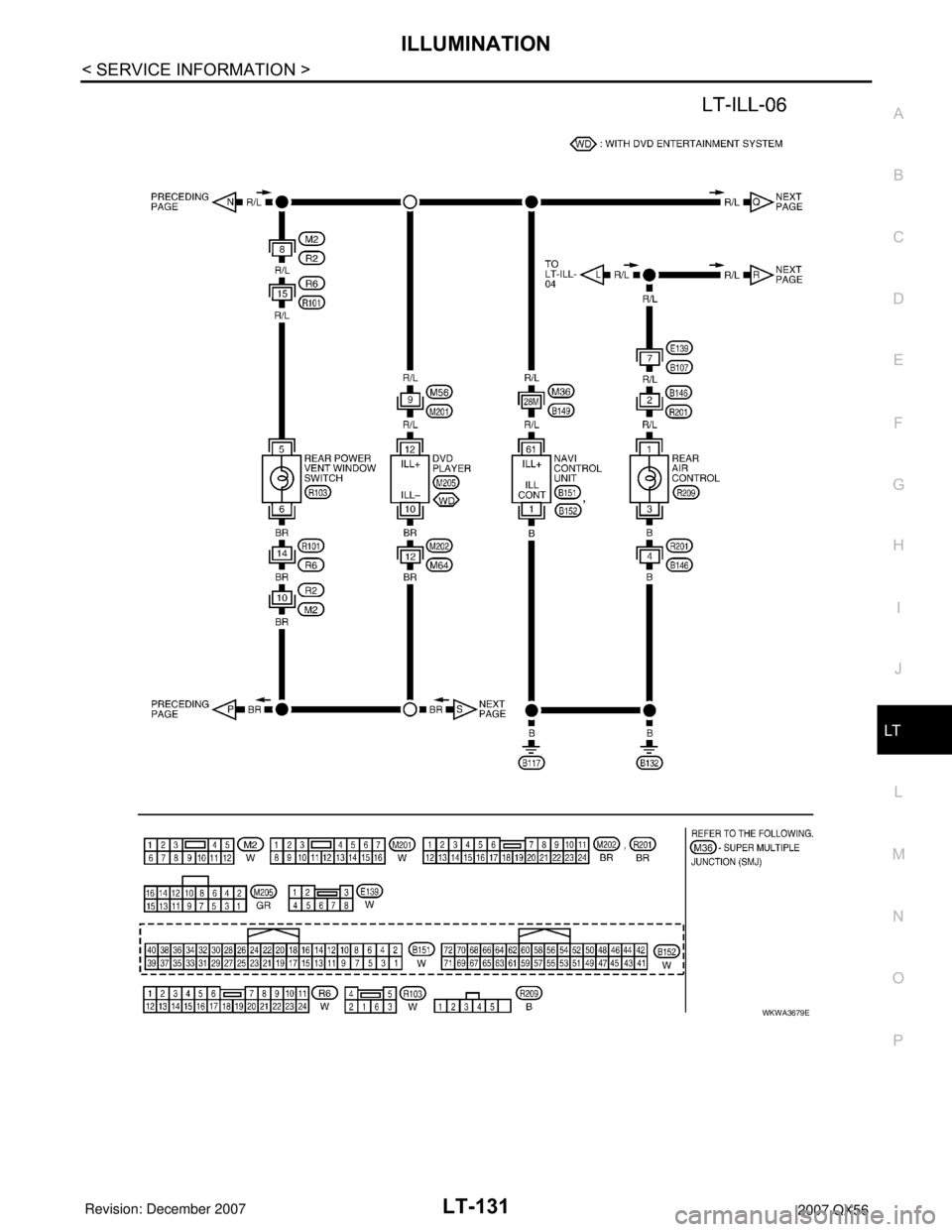

INFINITI QX56 2007 Factory Service Manual ILLUMINATION LT-131 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P WKWA3679E

Page 2339 of 3061

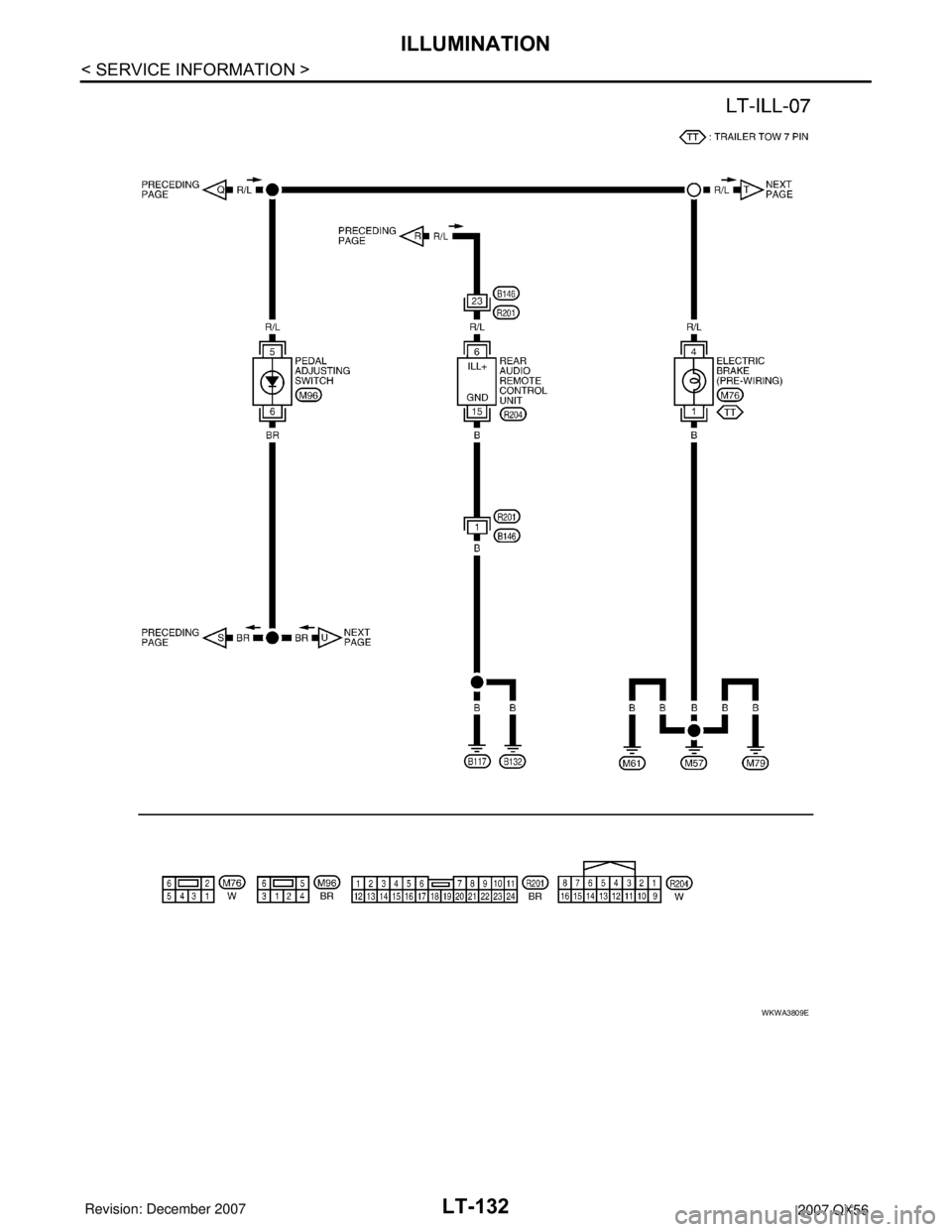

INFINITI QX56 2007 Factory Service Manual LT-132 < SERVICE INFORMATION > ILLUMINATION WKWA3809E

Page 2340 of 3061

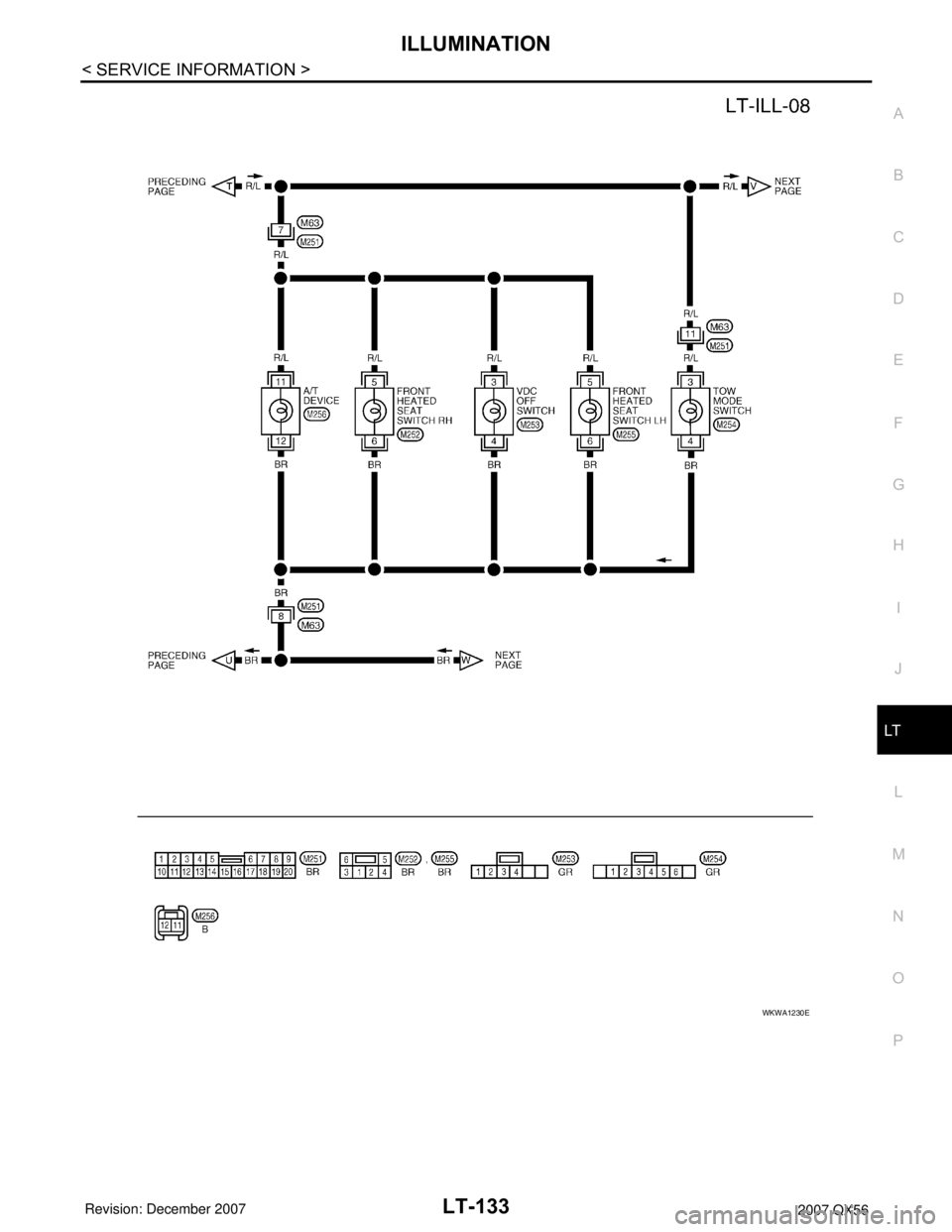

INFINITI QX56 2007 Factory Service Manual ILLUMINATION LT-133 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P WKWA1230E

Page 2341 of 3061

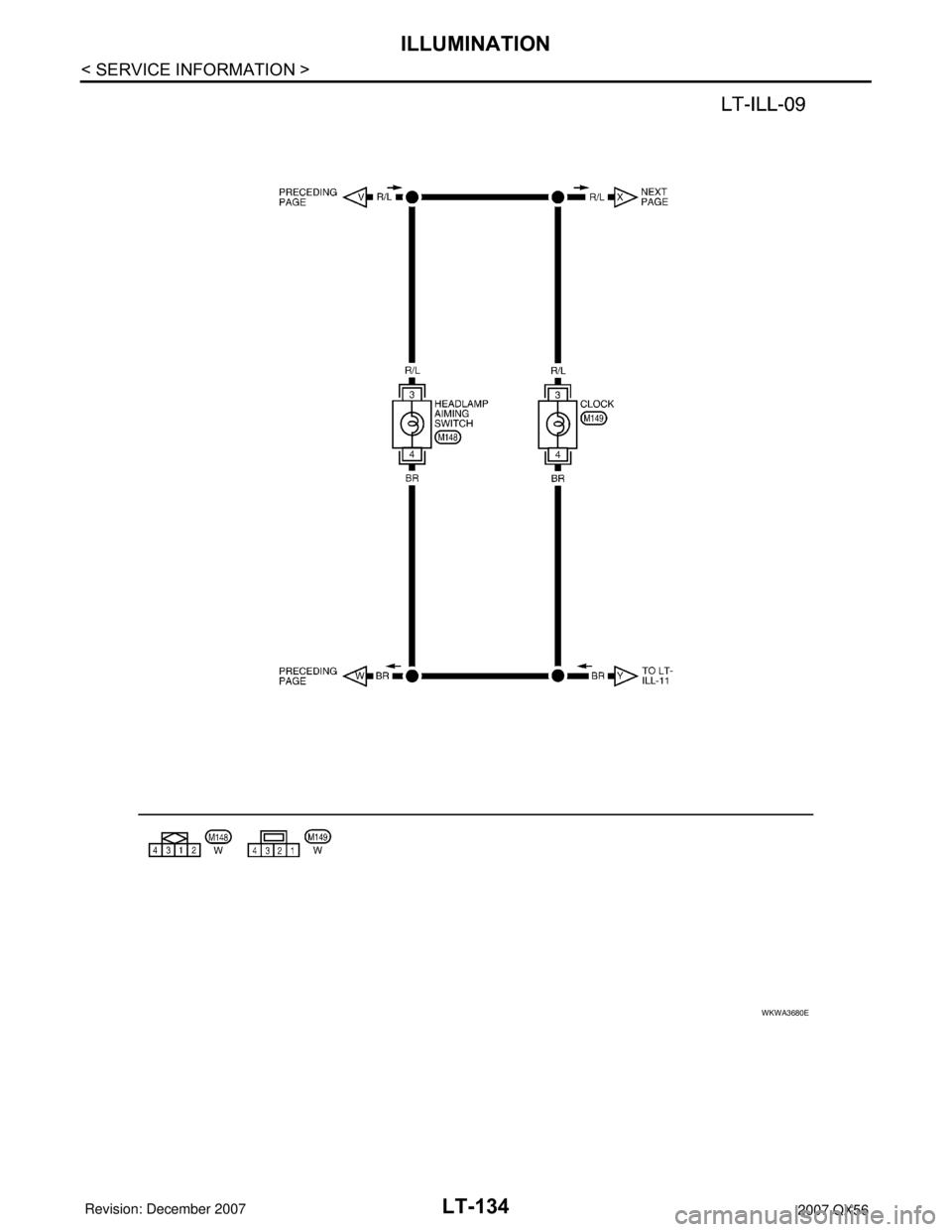

INFINITI QX56 2007 Factory Service Manual LT-134 < SERVICE INFORMATION > ILLUMINATION WKWA3680E

Page 2342 of 3061

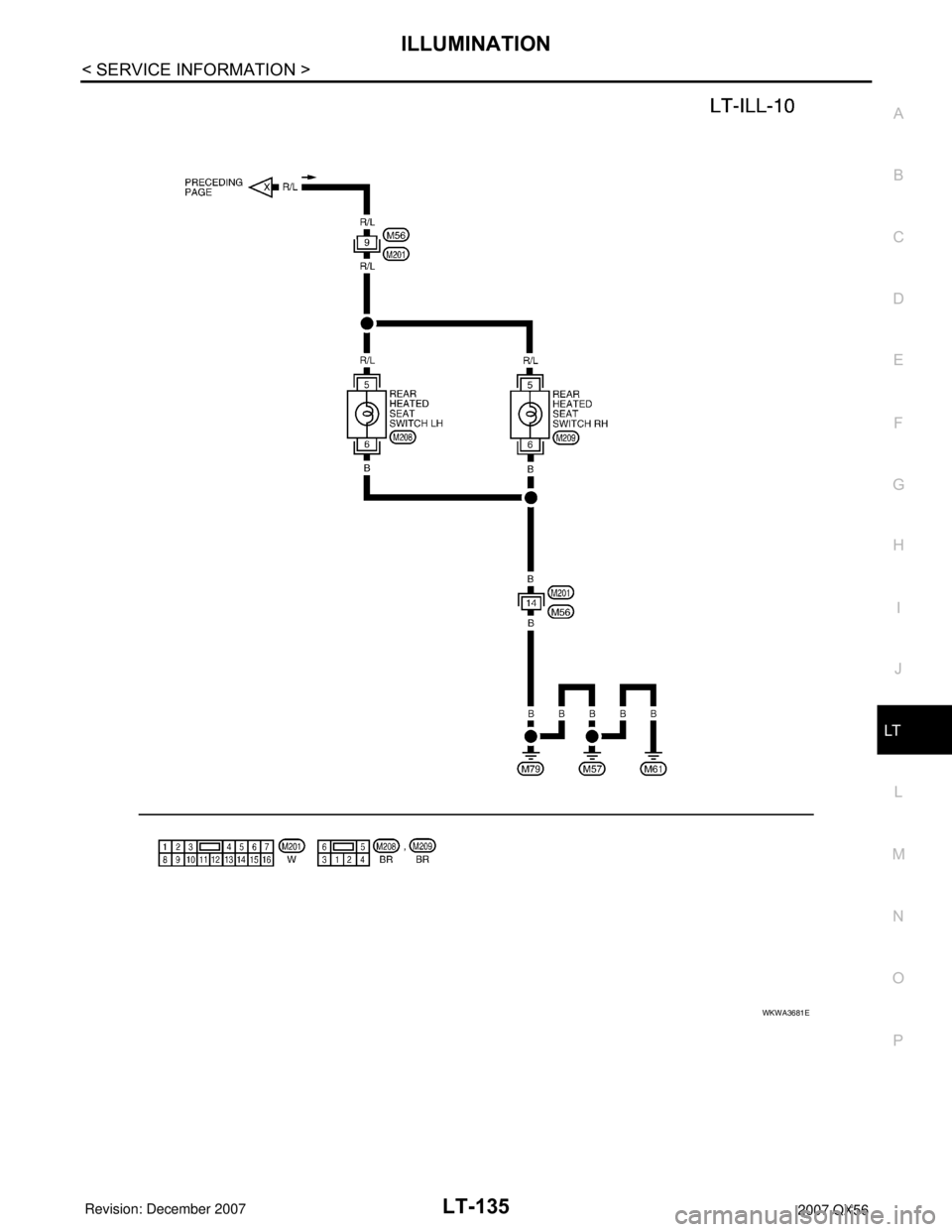

INFINITI QX56 2007 Factory Service Manual ILLUMINATION LT-135 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P WKWA3681E

Page 2343 of 3061

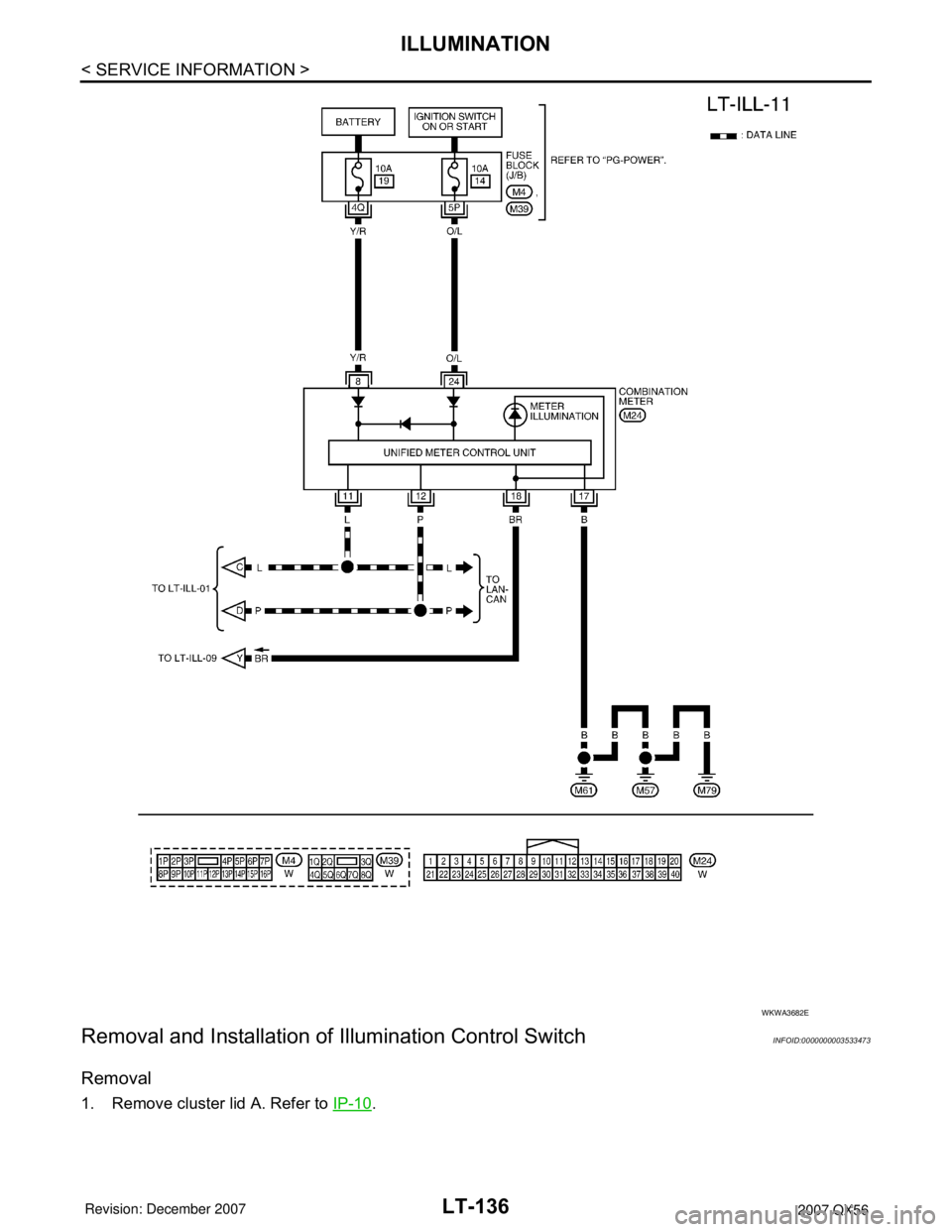

INFINITI QX56 2007 Factory Service Manual LT-136 < SERVICE INFORMATION > ILLUMINATION Removal and Installation of Illumination Control Switch INFOID:0000000003533473 Removal 1. Remove cluster lid A. Refer to IP-10. WKWA3682E

Page 2344 of 3061

INFINITI QX56 2007 Factory Service Manual ILLUMINATION LT-137 < SERVICE INFORMATION > C D E F G H I J L MA B LT N O P 2. Carefully pry tabs and remove illumination control switch from cluster lid A. Installation Installation is in the reverse
