With “RECLN SW-FR, RECLN SW-RR” on the DATA MONITOR,
operate the reclining switch to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and
ground.
OK or NG
OK >> Reclining switch circuit is OK.
NG >> GO TO 2.
2.CHECK RECLINING SWITCH CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit and power seat switch LH.
2. Check continuity between driver seat control unit connector P2
terminals 12, 27 and power seat switch LH connector P8 termi-
nals 9, 10.
3. Check continuity between driver seat control unit connector P2
terminals 12, 27 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.RECLINING SWITCH INSPECTION
Monitor item [OPERATION or
UNIT]Contents
RECLN SW-FR“ON/
OFF”ON/OFF status judged from the reclining switch
(FR) signal is displayed.
RECLN SW-RR“ON/
OFF”ON/OFF status judged from the reclining switch
(RR) signal is displayed.
PIIA0313E
ConnectorTe r m i n a l s
ConditionVoltage (V) (Ap-
prox.)
(+) (-)
P212
GroundReclining switch ON
(BACKWARD operation)0
Other than above Battery voltage
27Reclining switch ON
(FORWARD operation)0
Other than above Battery voltage
PIIA4580E
12 - 9 : Continuity should exist.
27 - 10 : Continuity should exist.
12 - Ground : Continuity should not exist.
27 - Ground : Continuity should not exist.
LIIA1127E
Page 2730 of 3061

SE-58
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER
Check continuity between power seat switch LH terminals as fol-
lows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch LH. Refer to SE-83
.
Lifting Switch (Front) Circuit InspectionINFOID:0000000003533191

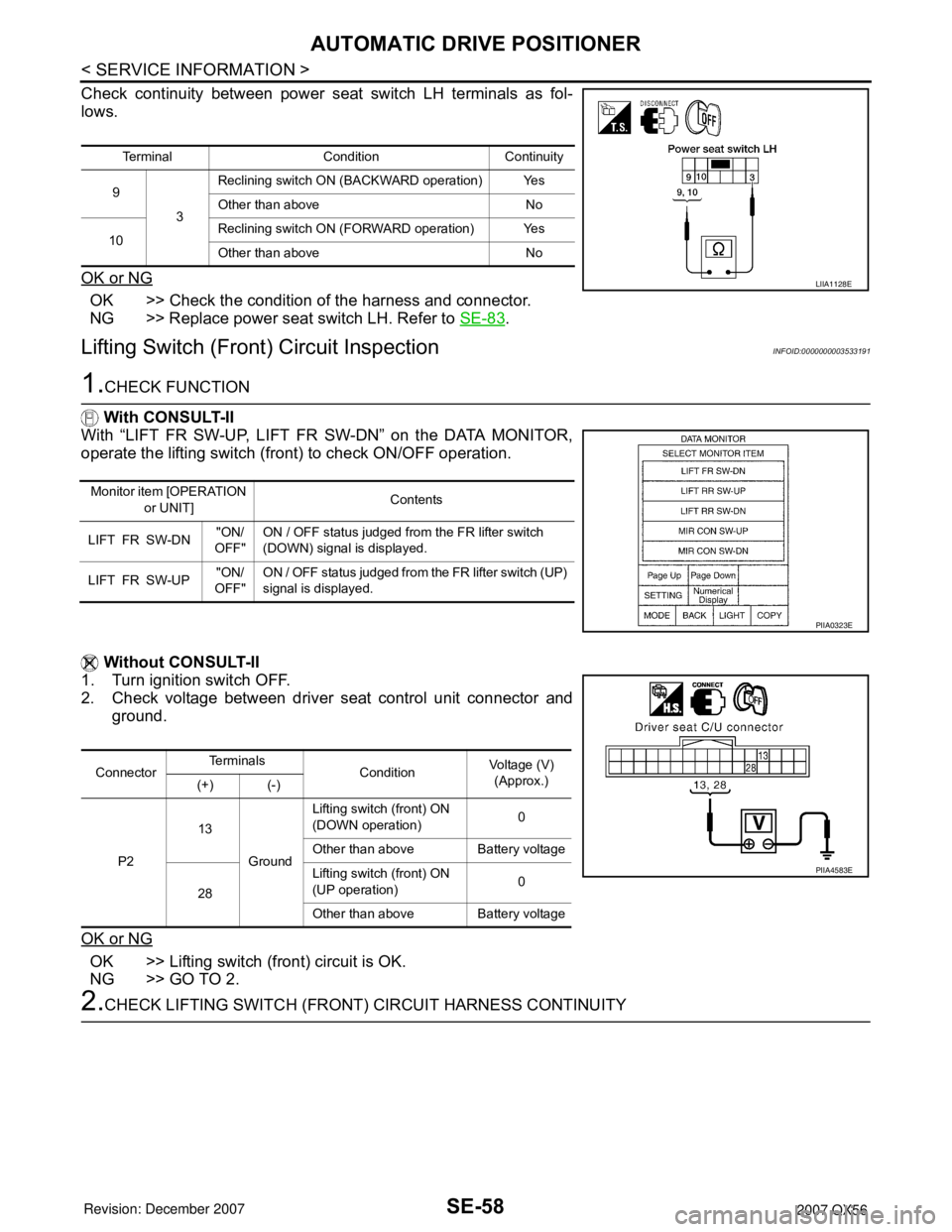

1.CHECK FUNCTION
With CONSULT-II
With “LIFT FR SW-UP, LIFT FR SW-DN” on the DATA MONITOR,
operate the lifting switch (front) to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and
ground.
OK or NG
OK >> Lifting switch (front) circuit is OK.
NG >> GO TO 2.
2.CHECK LIFTING SWITCH (FRONT) CIRCUIT HARNESS CONTINUITY
Terminal Condition Continuity
9
3Reclining switch ON (BACKWARD operation) Yes
Other than above No
10Reclining switch ON (FORWARD operation) Yes
Other than above No
LIIA1128E
Monitor item [OPERATION
or UNIT]Contents
LIFT FR SW-DN"ON/
OFF"ON / OFF status judged from the FR lifter switch
(DOWN) signal is displayed.
LIFT FR SW-UP"ON/
OFF"ON / OFF status judged from the FR lifter switch (UP)
signal is displayed.
PIIA0323E
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
P213
GroundLifting switch (front) ON
(DOWN operation)0
Other than above Battery voltage
28Lifting switch (front) ON
(UP operation)0
Other than above Battery voltage
PIIA4583E
Page 2731 of 3061

AUTOMATIC DRIVE POSITIONER
SE-59
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
1. Disconnect driver seat control unit and power seat switch LH.
2. Check continuity between driver seat control unit connector P2
terminals 13, 28 and power seat switch LH connector P2 termi-
nals 5, 6.
3. Check continuity between driver seat control unit connector P2
terminals 13, 28 and ground
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK LIFTING SWITCH (FRONT)
Check continuity between power seat switch LH terminals as fol-
lows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch LH. Refer to SE-83
.
Lifting Switch (Rear) Circuit InspectionINFOID:0000000003533192
1.CHECK FUNCTION
With CONSULT-II
With “LIFT RR SW-UP, LIFT RR SW-DN” on the DATA MONITOR,
operate the rear lifting switch to check ON/OFF operation.
Without CONSULT-II13 - 5 : Continuity should exist.
28 - 6 : Continuity should exist.
13 - Ground : Continuity should not exist.
28 - Ground : Continuity should not exist.
LIIA1129E
Terminals Condition Continuity
5
3Lifting switch (front) ON (DOWN operation) Yes
Other than above No
6Lifting switch (front) ON (UP operation) Yes
Other than above No
LIIA1130E
Monitor item [OPERATION or
UNIT]Contents
LIFT RR SW-UP “ON/OFF”Operation (ON)/open (OFF) status judged from
the RR lifter switch (UP) signal is displayed.
LIFT RR SW-
DN“ON/OFF”Operation (ON)/open (OFF) status judged from
the RR lifter switch (DOWN) signal is displayed.
PIIA0323E
Page 2732 of 3061

SE-60
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and
ground.
OK or NG
OK >> Rear lifting switch circuit is OK.
NG >> GO TO 2.

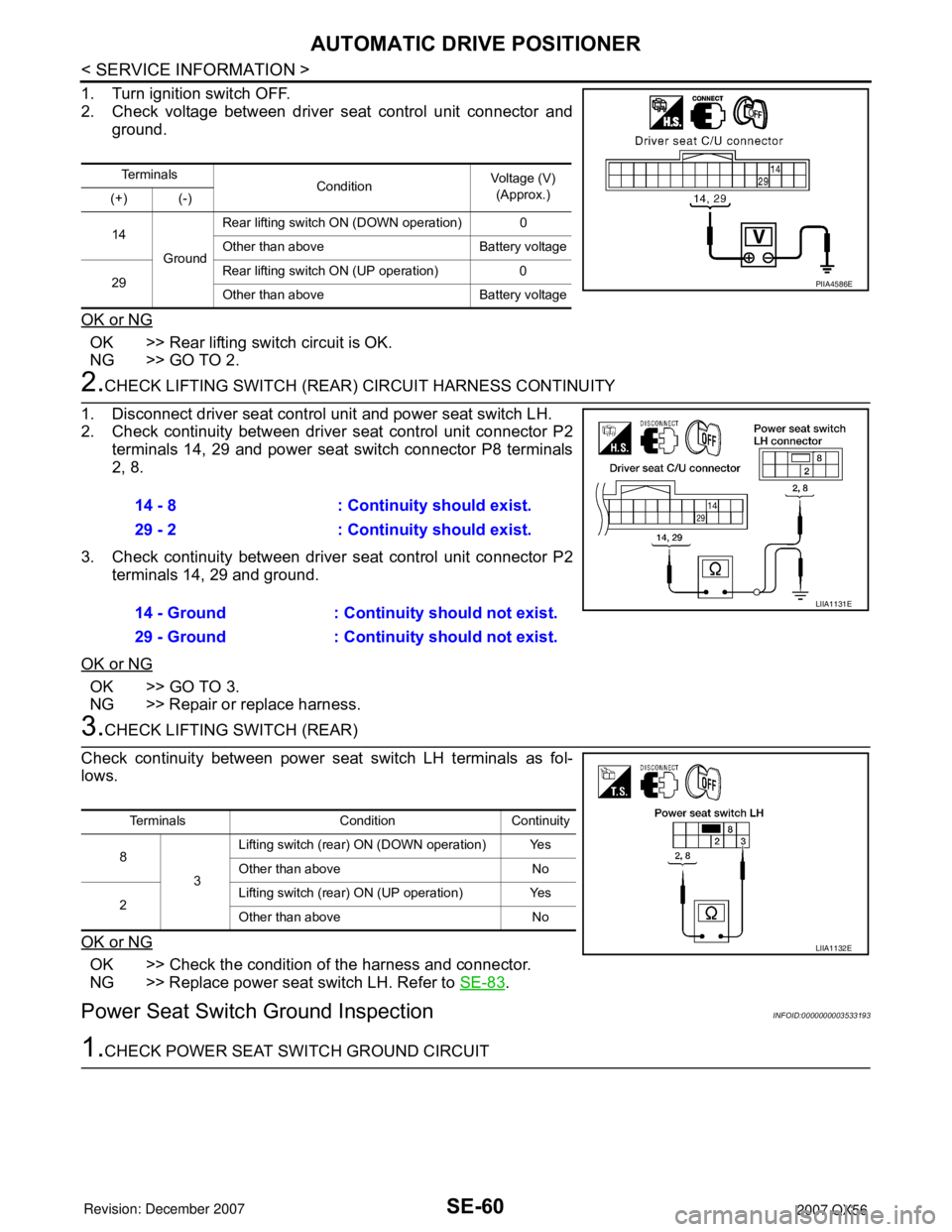

2.CHECK LIFTING SWITCH (REAR) CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit and power seat switch LH.
2. Check continuity between driver seat control unit connector P2
terminals 14, 29 and power seat switch connector P8 terminals
2, 8.
3. Check continuity between driver seat control unit connector P2
terminals 14, 29 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK LIFTING SWITCH (REAR)
Check continuity between power seat switch LH terminals as fol-
lows.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace power seat switch LH. Refer to SE-83
.
Power Seat Switch Ground InspectionINFOID:0000000003533193
1.CHECK POWER SEAT SWITCH GROUND CIRCUIT
Te r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
14
GroundRear lifting switch ON (DOWN operation) 0
Other than above Battery voltage
29Rear lifting switch ON (UP operation) 0
Other than above Battery voltage
PIIA4586E
14 - 8 : Continuity should exist.
29 - 2 : Continuity should exist.
14 - Ground : Continuity should not exist.
29 - Ground : Continuity should not exist.
LIIA1131E
Terminals Condition Continuity
8
3Lifting switch (rear) ON (DOWN operation) Yes
Other than above No
2Lifting switch (rear) ON (UP operation) Yes
Other than above No
LIIA1132E
Page 2733 of 3061

AUTOMATIC DRIVE POSITIONER
SE-61
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
Check continuity between power seat switch LH connector P8 termi-
nal 3 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness.
Pedal Adjusting Switch Circuit InspectionINFOID:0000000003533194
1.CHECK FUNCTION
With CONSULT-II
With “PEDAL SW-FR, PEDAL SW-RR” on the DATA MONITOR,
operate the pedal adjusting switch to check ON/OFF operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and
ground.
OK or NG
OK >> Pedal adjusting switch circuit is OK.
NG >> GO TO 2.

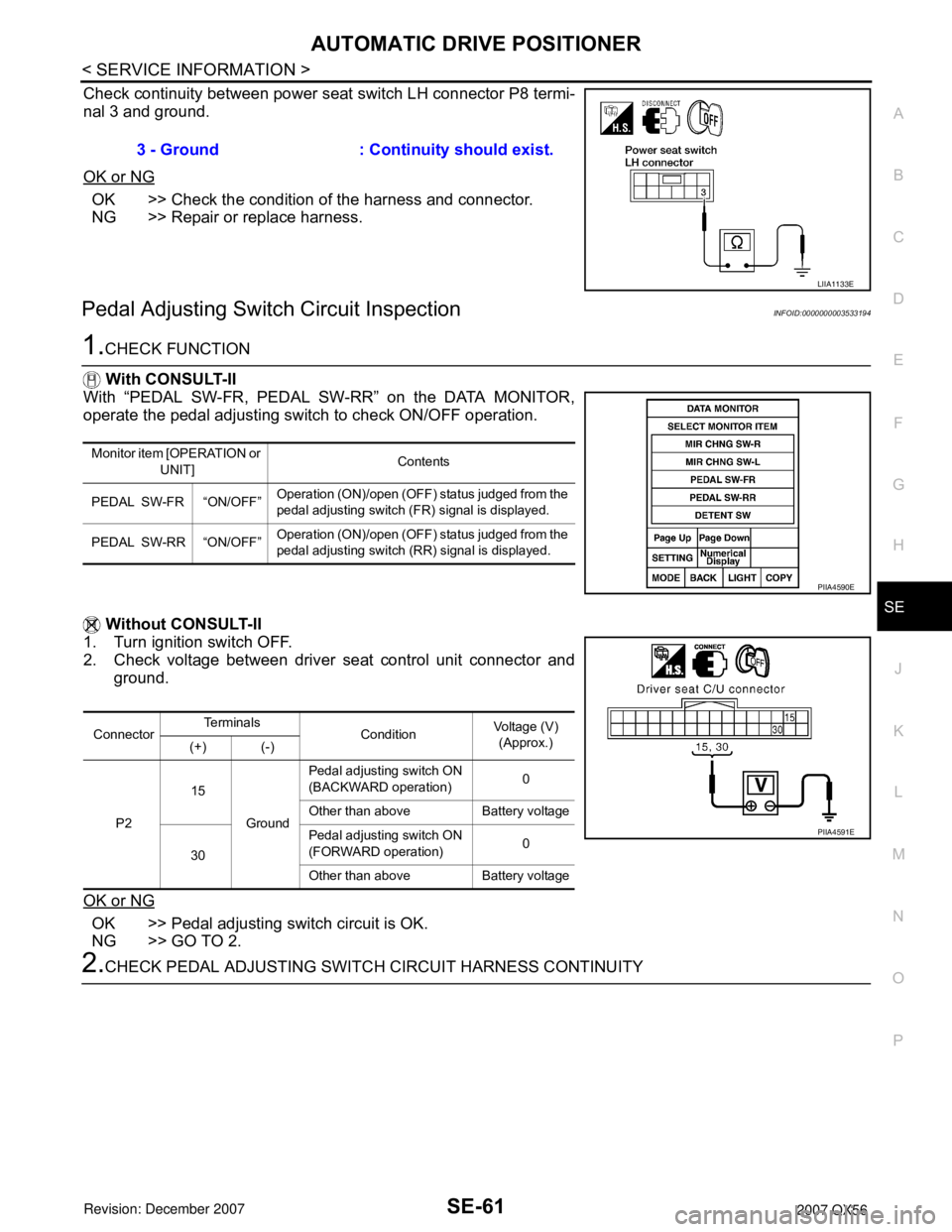

2.CHECK PEDAL ADJUSTING SWITCH CIRCUIT HARNESS CONTINUITY 3 - Ground : Continuity should exist.
LIIA1133E
Monitor item [OPERATION or
UNIT]Contents
PEDAL SW-FR “ON/OFF”Operation (ON)/open (OFF) status judged from the
pedal adjusting switch (FR) signal is displayed.
PEDAL SW-RR “ON/OFF”Operation (ON)/open (OFF) status judged from the
pedal adjusting switch (RR) signal is displayed.
PIIA4590E
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
P215
GroundPedal adjusting switch ON
(BACKWARD operation)0
Other than above Battery voltage
30Pedal adjusting switch ON
(FORWARD operation)0
Other than above Battery voltage
PIIA4591E
Page 2734 of 3061

SE-62
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER
1. Disconnect driver seat control unit and pedal adjusting switch.
2. Check continuity between driver seat control unit connector P2
terminals 15, 30 and pedal adjusting switch connector M96 ter-
minals 2, 3.
3. Check continuity between driver seat control unit connector P2
terminals 15, 30 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK PEDAL ADJUSTING SWITCH
Check continuity between pedal adjusting switch terminals as fol-
lows.
OK or NG
OK >> GO TO 4.
NG >> Replace pedal adjusting switch.
4.CHECK PEDAL ADJUSTING SWITCH GROUND CIRCUIT
Check continuity between pedal adjusting switch connector M96 ter-
minal 1 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace or replace harness.
Door Mirror Remote Control Switch (Changeover Switch) Circuit Inspection
INFOID:0000000003533195
1.CHECK FUNCTION
With CONSULT-II15 - 2 : Continuity should exist.
30 - 3 : Continuity should exist.
15 - Ground : Continuity should not exist.
30 - Ground : Continuity should not exist.
LIIA0726E
Terminals Condition Continuity
2
1Pedal adjusting switch ON (BACKWARD operation) Yes
Other than above No
3Pedal adjusting switch ON (FORWARD operation) Yes
Other than above No
LIIA1014E
1 - Ground : Continuity should exist.
LIIA1015E
Page 2735 of 3061

AUTOMATIC DRIVE POSITIONER
SE-63
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
MA
B
SE
N
O
P
Check the operation on “MIR CHNG SW-R” or “MIR CHNG SW-L"
in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ACC.
2. Check voltage between automatic drive positioner control unit
connector and ground.
OK
orNG
OK >> Door mirror remote control switch (changeover switch) is OK.
NG >> GO TO 2.

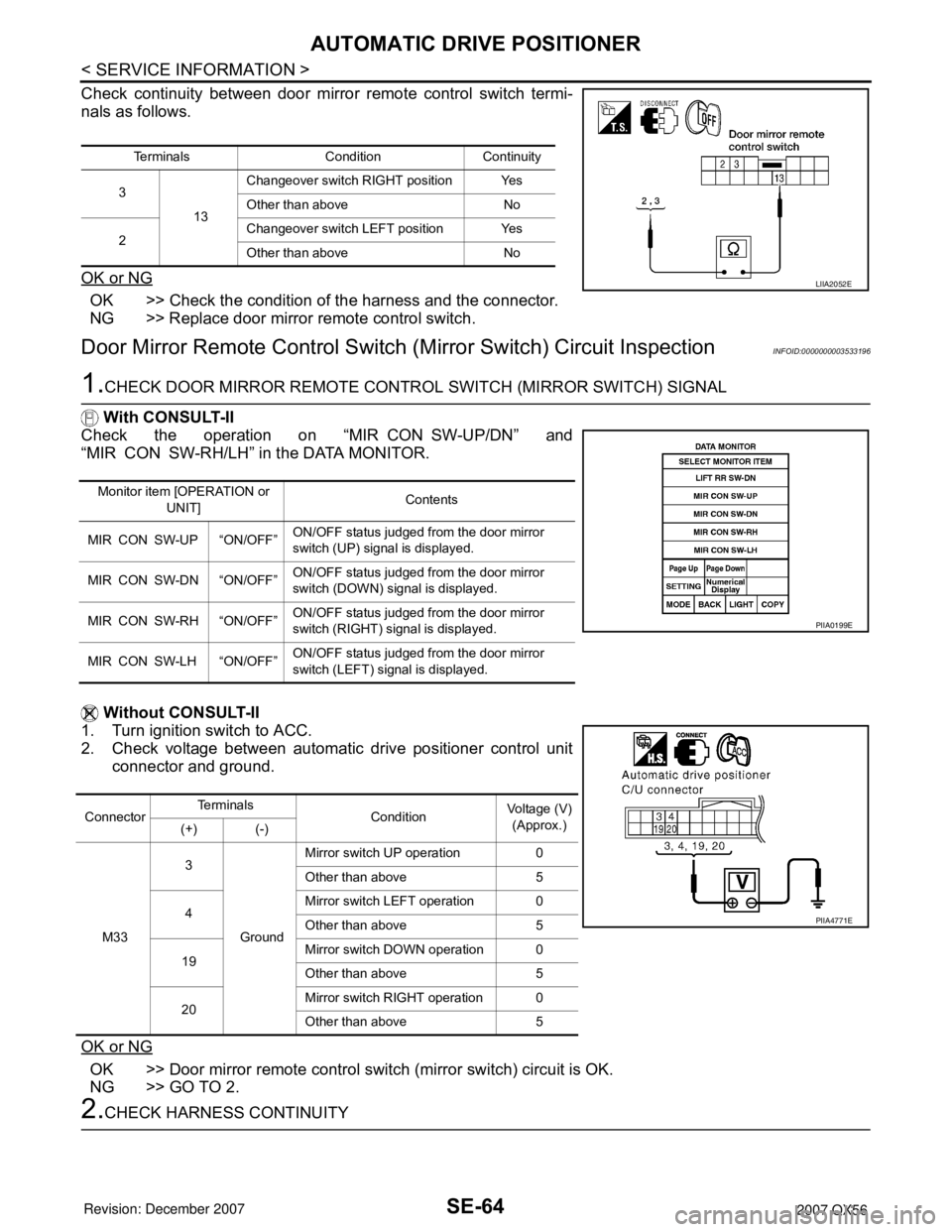

2.CHECK DOOR MIRROR REMOTE CONTROL SWITCH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mir-
ror remote control switch.
3. Check continuity between automatic drive positioner control unit
connector M33 terminals 2, 18 and door mirror remote control
switch connector D10 terminals 2, 3.
4. Check continuity between automatic drive positioner control unit
connector M33 terminals 2, 18 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3.CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CHANGEOVER SWITCH)
Monitor item [OPERATION or
UNIT]Contents
MIR CHNG SW-R “ON/OFF”ON/OFF status judged from the door mirror
switch (switching to RIGHT) signal is displayed.
MIR CHNG SW-L “ON/OFF”ON/OFF status judged from the door mirror
switch (switching to LEFT) signal is displayed.
PIIA0191E
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M332
GroundChangeover switch
RIGHT position0
Other than above 5
18Changeover switch
LEFT position0
Other than above 5
PIIA4767E
2 - 2 : Continuity should exist.
18 - 3 : Continuity should exist.
2 - Ground : Continuity should not exist.
18 - Ground : Continuity should not exist.
LIIA1821E
Page 2736 of 3061

SE-64
< SERVICE INFORMATION >
AUTOMATIC DRIVE POSITIONER
Check continuity between door mirror remote control switch termi-
nals as follows.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace door mirror remote control switch.
Door Mirror Remote Control Switch (Mirror Switch) Circuit InspectionINFOID:0000000003533196
1.CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH) SIGNAL
With CONSULT-II
Check the operation on “MIR CON SW-UP/DN” and
“MIR CON SW-RH/LH” in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ACC.
2. Check voltage between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> Door mirror remote control switch (mirror switch) circuit is OK.
NG >> GO TO 2.
2.CHECK HARNESS CONTINUITY
Terminals Condition Continuity
3
13Changeover switch RIGHT position Yes
Other than above No
2Changeover switch LEFT position Yes
Other than above No
LIIA2052E
Monitor item [OPERATION or
UNIT]Contents
MIR CON SW-UP “ON/OFF”ON/OFF status judged from the door mirror
switch (UP) signal is displayed.
MIR CON SW-DN “ON/OFF”ON/OFF status judged from the door mirror
switch (DOWN) signal is displayed.
MIR CON SW-RH “ON/OFF”ON/OFF status judged from the door mirror
switch (RIGHT) signal is displayed.
MIR CON SW-LH “ON/OFF”ON/OFF status judged from the door mirror
switch (LEFT) signal is displayed.
PIIA0199E
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M333
GroundMirror switch UP operation 0
Other than above 5
4Mirror switch LEFT operation 0
Other than above 5
19Mirror switch DOWN operation 0
Other than above 5
20Mirror switch RIGHT operation 0
Other than above 5
PIIA4771E
