INFINITI QX56 2007 Factory Service Manual WW-24
< SERVICE INFORMATION >
FRONT WIPER AND WASHER SYSTEM
Washer Fluid Reservoir
INFOID:0000000003533568
REMOVAL AND INSTALLATION
Removal
1. Remove side washer fluid reservoir screw.
2. Remove front

Page 3042 of 3061

INFINITI QX56 2007 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-25
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
WW
N
O
P
2. Remove washer motor (1) in the direction of the arrow as
shown, and remove from washer fluid reservoir (2

Page 3043 of 3061

INFINITI QX56 2007 Factory Service Manual WW-26
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
REAR WIPER AND WASHER SYSTEM
Component Parts and Harness Connector LocationINFOID:0000000003533570
System DescriptionINFOID:0000000003533571

Page 3044 of 3061

INFINITI QX56 2007 Factory Service Manual REAR WIPER AND WASHER SYSTEM
WW-27
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
WW
N
O
P
• through BCM terminal 54
• through BCM terminal 67
• through grounds M57, M61 and M79.
With output cir

REAR WIPER AND WASHER SYSTEM
WW-27
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
WW
N
O
P
• through BCM terminal 54
• through BCM terminal 67
• through grounds M57, M61 and M79.
With output circuit 1 power and ground supplied, the rear wiper motor operates in a counterclockwise sweep
direction until auto stop switch 1 closes (full sweep position). Auto stop switch 1 supplies ground
• to BCM terminal 44
• through rear wiper motor terminal 2
• through rear wiper motor terminal 5
• through grounds B117 and B132.
When the BCM receives this ground signal it turns off output circuit 1 and turns on output circuit 2.
Power is supplied to output circuit 2 for reverse operation (clockwise sweep),
• through BCM terminal 54
• to rear wiper motor terminal 6.
Ground is supplied
• to rear wiper motor terminal 4
• through BCM terminal 55
• through BCM terminal 67
• through grounds M57, M61 and M79.
With output circuit 2 power and ground supplied the rear wiper motor operates in a clockwise sweep direction
until auto stop switch 2 closes (full sweep position). Auto stop switch 2 supplies ground
• to BCM terminal 26
• through rear wiper motor terminal 1
• through rear wiper motor terminal 3
• through grounds B117 and B132.
When the BCM receives this ground signal it turns off output circuit 2 and turns on output circuit 1. This pro-
cess repeats until the rear wiper switch or ignition switch is turned off.
If the ignition switch is turned to OFF during operation, the rear wiper motor will immediately stop. If the igni-
tion switch is turned ON after this condition, and the BCM does not receive a rear wiper switch ON or INT sig-
nal, the BCM will operate the rear wiper to the auto stop position.
If the BCM does not receive a change in status in either auto stop switch 1 or auto stop switch 2 within a 5 sec-
ond period of output circuit 1 or output circuit 2 operation, the BCM will turn off output circuit 1 and output cir-
cuit 2.
If the BCM detects the rear door glass ajar signal during rear wiper motor operation, the BCM will operate the
rear wiper motor to the auto stop position. Once the rear door glass ajar signal returns to open (not grounded)
for 5 or more seconds, the BCM will resume rear wiper motor operation.
INTERMITTENT OPERATION
The rear wiper motor operates the wiper arm at low speed approximately every 7 seconds.
When the wiper switch is in the rear wiper INT position, the BCM detects a rear wiper INT request through the
combination switch (wiper switch) reading function.
The BCM controls rear wiper motor operation by switching direction of current flow between the two rear wiper
motor output circuits.
Power is supplied to output circuit 1 for forward operation (counterclockwise sweep),
• through BCM terminal 55
• to rear wiper motor terminal 4.
Ground is supplied
• to rear wiper motor terminal 6
• through BCM terminal 54
• through BCM terminal 67
• through grounds M57, M61 and M79.
With output circuit 1 power and ground supplied, the rear wiper motor operates in a counterclockwise sweep
direction until auto stop switch 1 closes (full sweep position). Auto stop switch 1 supplies ground
• to BCM terminal 44
• through rear wiper motor terminal 2
• through rear wiper motor terminal 5
• through grounds B117 and B132.
When the BCM receives this ground signal it turns off output circuit 1 and turns on output circuit 2.
Power is supplied to output circuit 2 for reverse operation (clockwise sweep),
• through BCM terminal 54
• to rear wiper motor terminal 6.
Ground is supplied
• to rear wiper motor terminal 4

Page 3045 of 3061

INFINITI QX56 2007 Factory Service Manual WW-28
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
• through BCM terminal 55
• through BCM terminal 67
• through grounds M57, M61 and M79.
With output circuit 2 power and ground supplied

WW-28
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
• through BCM terminal 55
• through BCM terminal 67
• through grounds M57, M61 and M79.
With output circuit 2 power and ground supplied the rear wiper motor operates in a clockwise sweep direction
until auto stop switch 2 closes (full sweep position). Auto stop switch 2 supplies ground
• to BCM terminal 26
• through rear wiper motor terminal 1
• through rear wiper motor terminal 3
• through grounds B117 and B132.
When the BCM receives this ground signal it turns off output circuit 2 and starts the timing function of 7 sec-
onds. After approximately 7 seconds the BCM turns on output circuit 1. This process repeats until the rear
wiper switch or ignition switch is turned off.
AUTO STOP OPERATION
When the rear wiper switch is turned off, the BCM will continue the cycle of output circuit 1 or output circuit 2
until auto stop switch 1 and auto stop switch 2 are both in the closed position. When the BCM receives ground
signals from auto stop switch 1 and auto stop switch 2 simultaneously, output circuit 1 and output circuit 2 are
both turned off.

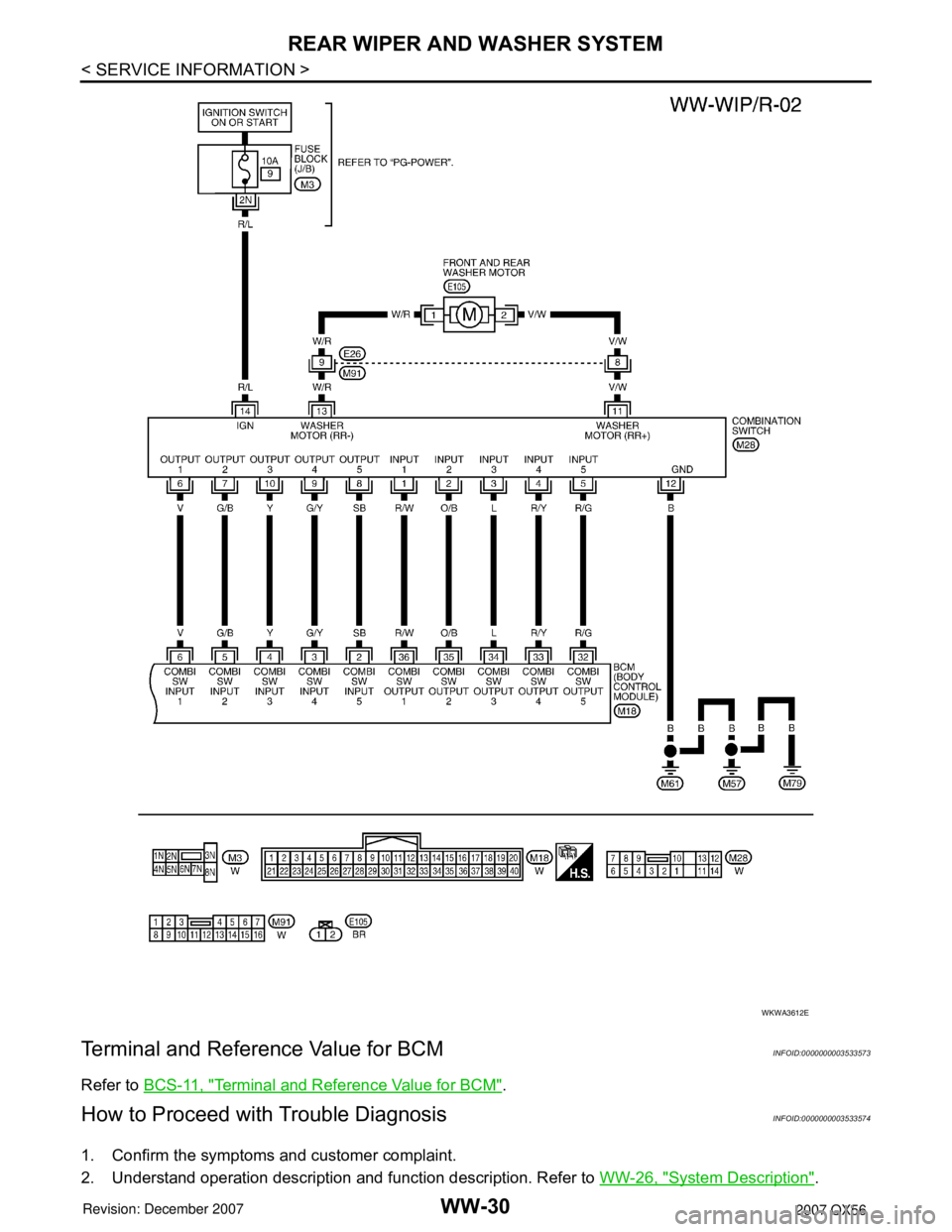

REAR WASHER OPERATION
When the ignition switch is in the ON or START position, and the front and rear washer switches are OFF, the
front and rear washer motor is supplied power
• through 10A fuse (No. 9, located in the fuse block J/B)
• through combination switch (wiper switch) terminal 14
• through combination switch (wiper switch) terminal 11
• to front and rear washer motor terminal 2, and
• through combination switch (wiper switch) terminal 13
• to front and rear washer motor terminal 1.
When the rear wiper switch is in rear washer position, the BCM detects a rear washer signal by BCM wiper
switch reading function. Combination switch ground is supplied
• to front and rear washer motor terminal 1
• through combination switch (wiper switch) terminal 13
• through combination switch (wiper switch) terminal 12
• through grounds M57, M61 and M79.
With ground supplied, the front and rear washer motor is operated in the rear direction.
When the BCM detects that the rear washer motor has operated for 0.4 seconds or longer, BCM operates the
rear wiper motor.
When the BCM detects that the rear washer switch is in OFF, the rear wiper motor cycles approximately 3
times and then stops.
If the rear washer is operated with the rear wiper switch in the INT position, normal rear wiper operation will
take over. Once the rear washer switch is released the rear wiper will return to INT operation.
BCM Wiper Switch Reading Function
Refer to BCS-3, "System Description".

Page 3046 of 3061

INFINITI QX56 2007 Factory Service Manual REAR WIPER AND WASHER SYSTEM
WW-29
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
WW
N
O
P

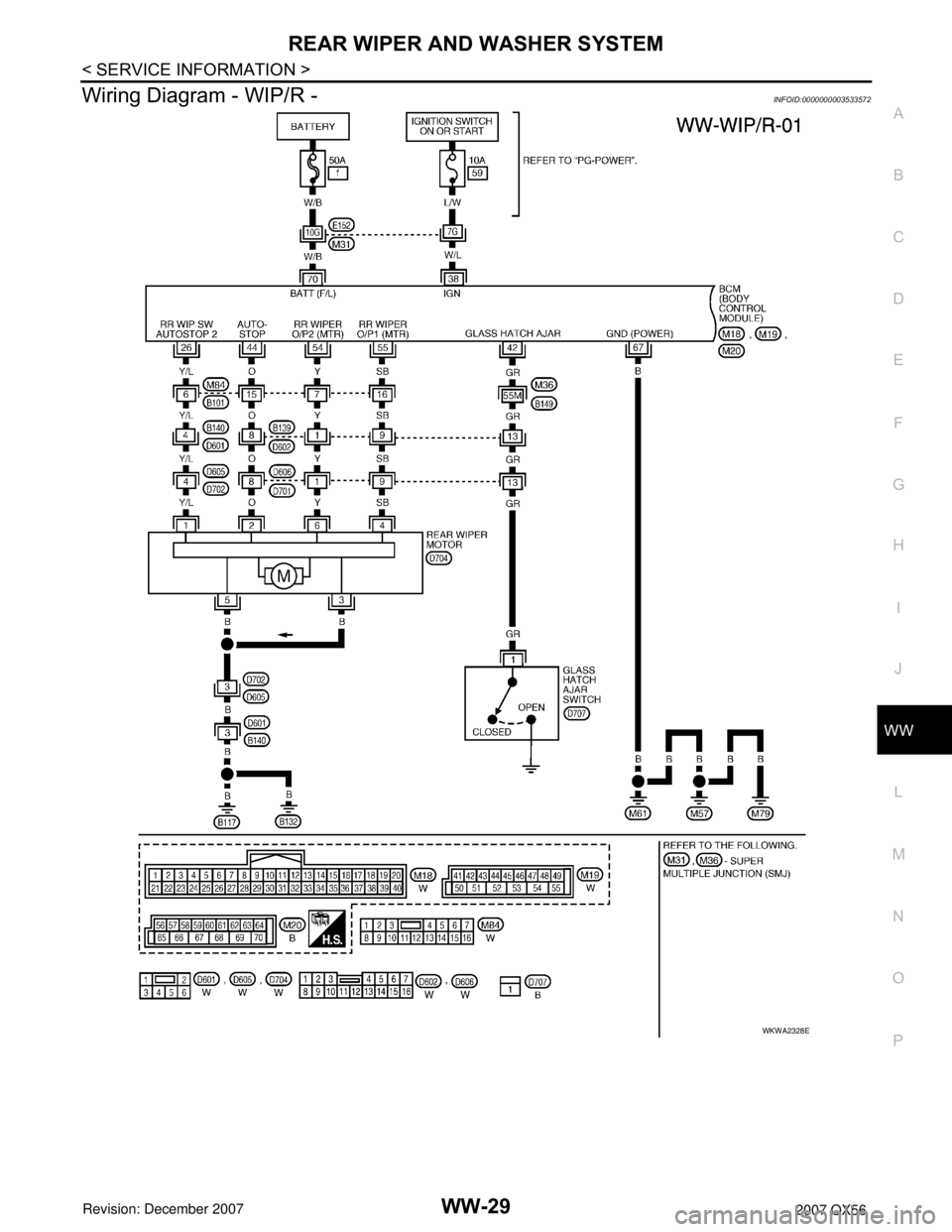

Wiring Diagram - WIP/R -INFOID:0000000003533572
WKWA2328E

Page 3047 of 3061

INFINITI QX56 2007 Factory Service Manual WW-30
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
Terminal and Reference Value for BCM
INFOID:0000000003533573
Refer to BCS-11, "Terminal and Reference Value for BCM".
How to Proceed with Tro

Page 3048 of 3061

INFINITI QX56 2007 Factory Service Manual REAR WIPER AND WASHER SYSTEM
WW-31
< SERVICE INFORMATION >
C
D
E
F
G
H
I
J
L
MA
B
WW
N
O
P
3. Perform the Preliminary Check. Refer to WW-31, "Preliminary Check".
4. Check symptom and repair or replace
