Page 1761 of 3061

INFINITI QX56 2007 Factory Service Manual EI-32 < SERVICE INFORMATION > DOOR FINISHER 8. Remove step lamp. • Disconnect harness connector. 9. Remove door finisher and disconnect lock cable and handle cable from door handle assembly. Refer t

Page 1762 of 3061

INFINITI QX56 2007 Factory Service Manual DOOR FINISHER EI-33 < SERVICE INFORMATION > C D E F G H J K L MA B EI N O P 6. Remove armrest. • Remove screws behind armrest. 7. Remove step lamp. • Disconnect harness connector. 8. Remove door f

Page 1763 of 3061

INFINITI QX56 2007 Factory Service Manual EI-34 < SERVICE INFORMATION > BODY SIDE TRIM BODY SIDE TRIM Removal and InstallationINFOID:0000000003533136 CAUTION: • Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips

Page 1764 of 3061

INFINITI QX56 2007 Factory Service Manual BODY SIDE TRIM EI-35 < SERVICE INFORMATION > C D E F G H J K L MA B EI N O P Removal 1. Remove front and rear door welts. 2. Remove seat belt anchor. Refer to SB-3, " Removal and Installation of Front

Page 1765 of 3061

INFINITI QX56 2007 Factory Service Manual EI-36 < SERVICE INFORMATION > FLOOR TRIM FLOOR TRIM Removal and InstallationINFOID:0000000003533137 REMOVAL 1. Remove front seats. Refer to SE-83 . • Remove subwoofer. Refer to AV-46, " Removal and

Page 1766 of 3061

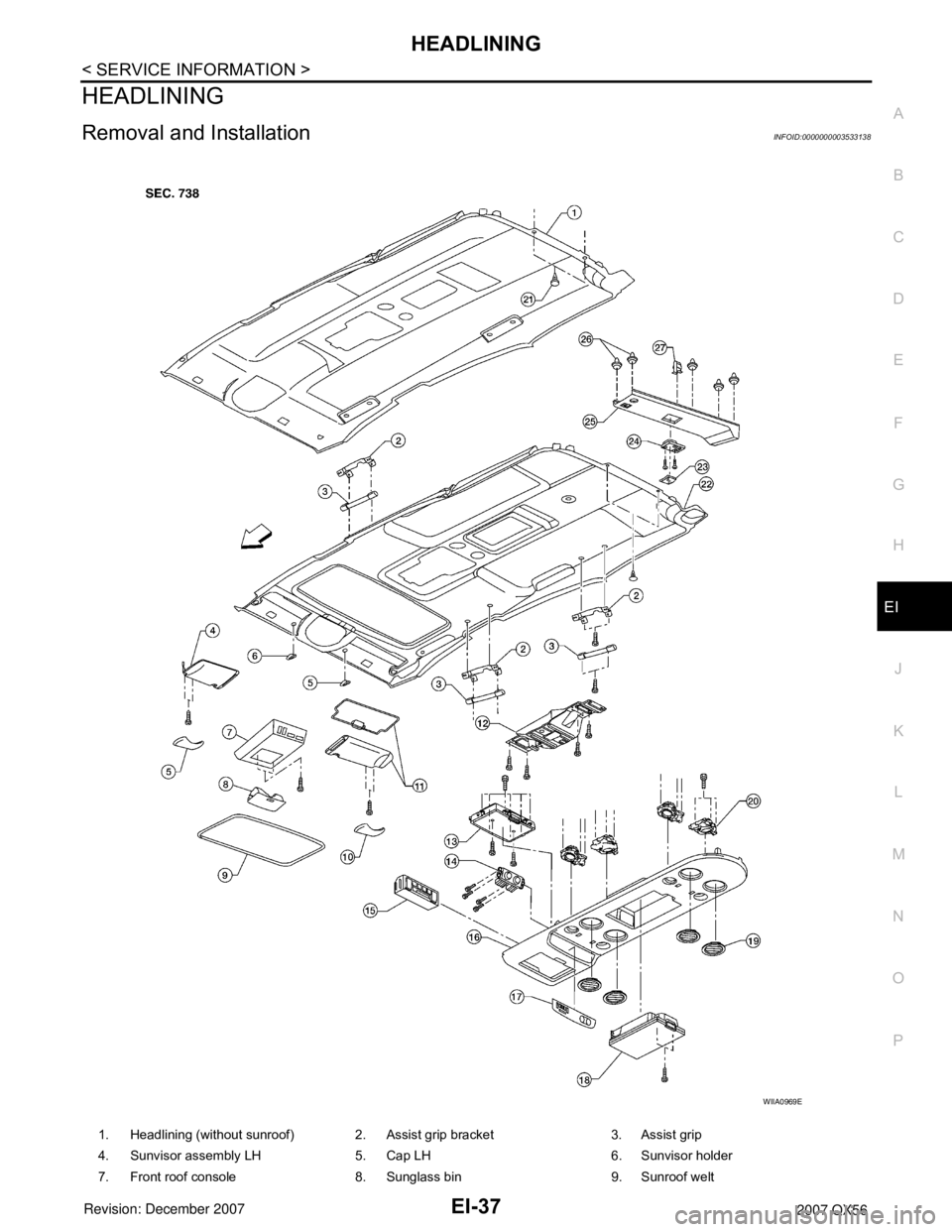

INFINITI QX56 2007 Factory Service Manual HEADLINING EI-37 < SERVICE INFORMATION > C D E F G H J K L MA B EI N O P HEADLINING Removal and InstallationINFOID:0000000003533138 1. Headlining (without sunroof) 2. Assist grip bracket 3. Assist gri

Page 1767 of 3061

INFINITI QX56 2007 Factory Service Manual EI-38 < SERVICE INFORMATION > HEADLINING CAUTION: Disconnect both terminals from battery in advance. REMOVAL 1. Disconnect the battery negative and positive cables, then wait at least 3 minutes. 2. Re

Page 1768 of 3061

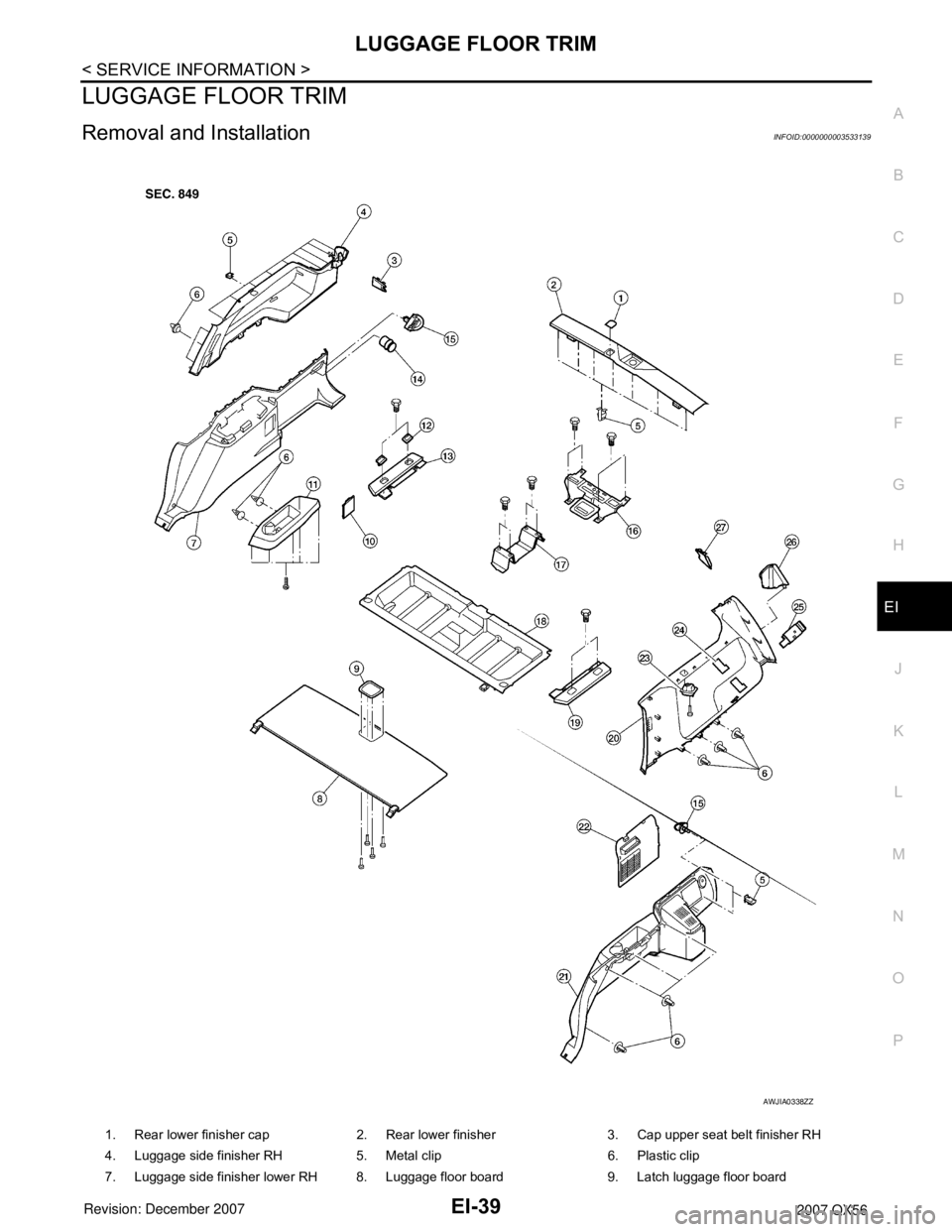

INFINITI QX56 2007 Factory Service Manual LUGGAGE FLOOR TRIM EI-39 < SERVICE INFORMATION > C D E F G H J K L MA B EI N O P LUGGAGE FLOOR TRIM Removal and InstallationINFOID:0000000003533139 1. Rear lower finisher cap 2. Rear lower finisher 3.
