Page 1521 of 3061

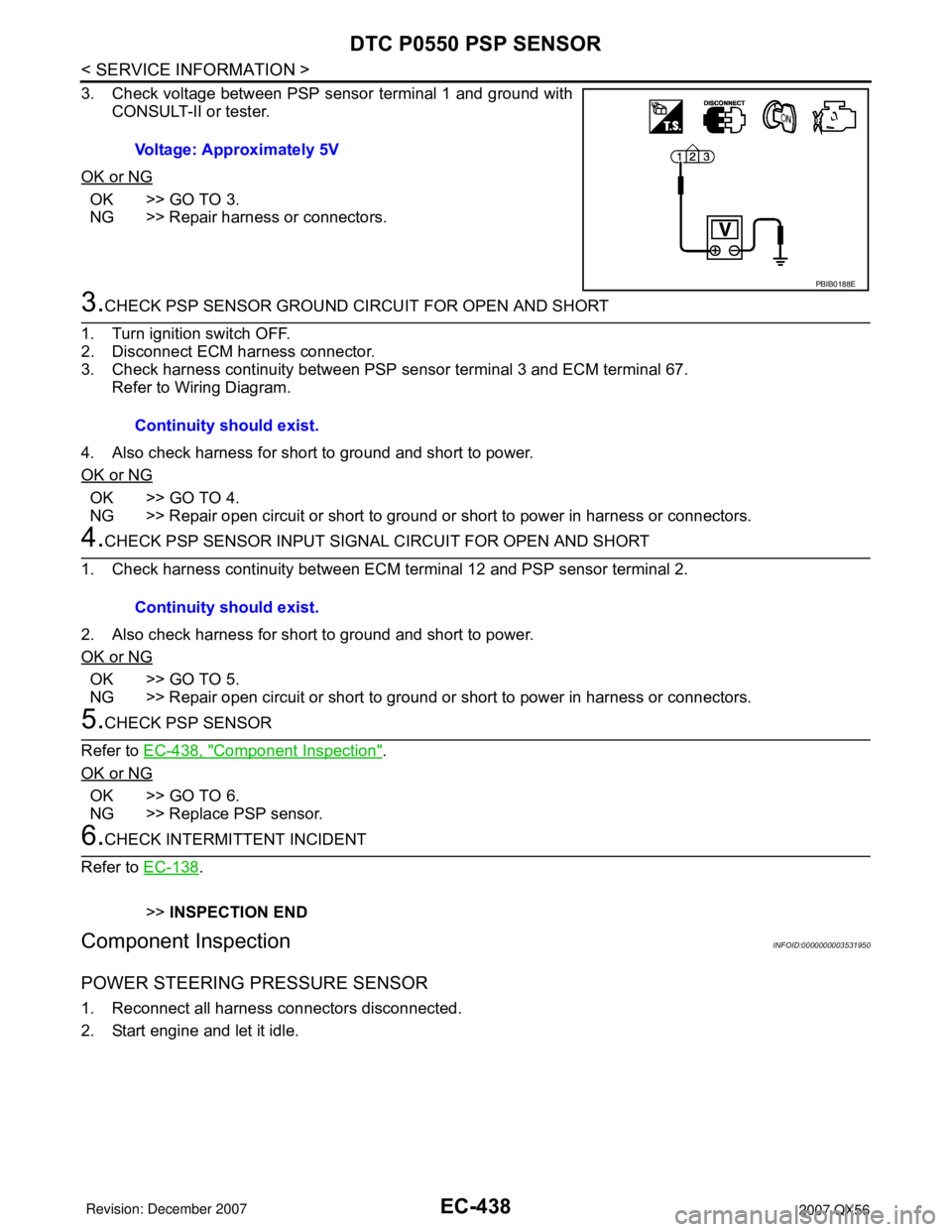

INFINITI QX56 2007 Factory Service Manual EC-438 < SERVICE INFORMATION > DTC P0550 PSP SENSOR 3. Check voltage between PSP sensor terminal 1 and ground with CONSULT-II or tester. OK or NG OK >> GO TO 3. NG >> Repair harness or connectors. 3.C

Page 1522 of 3061

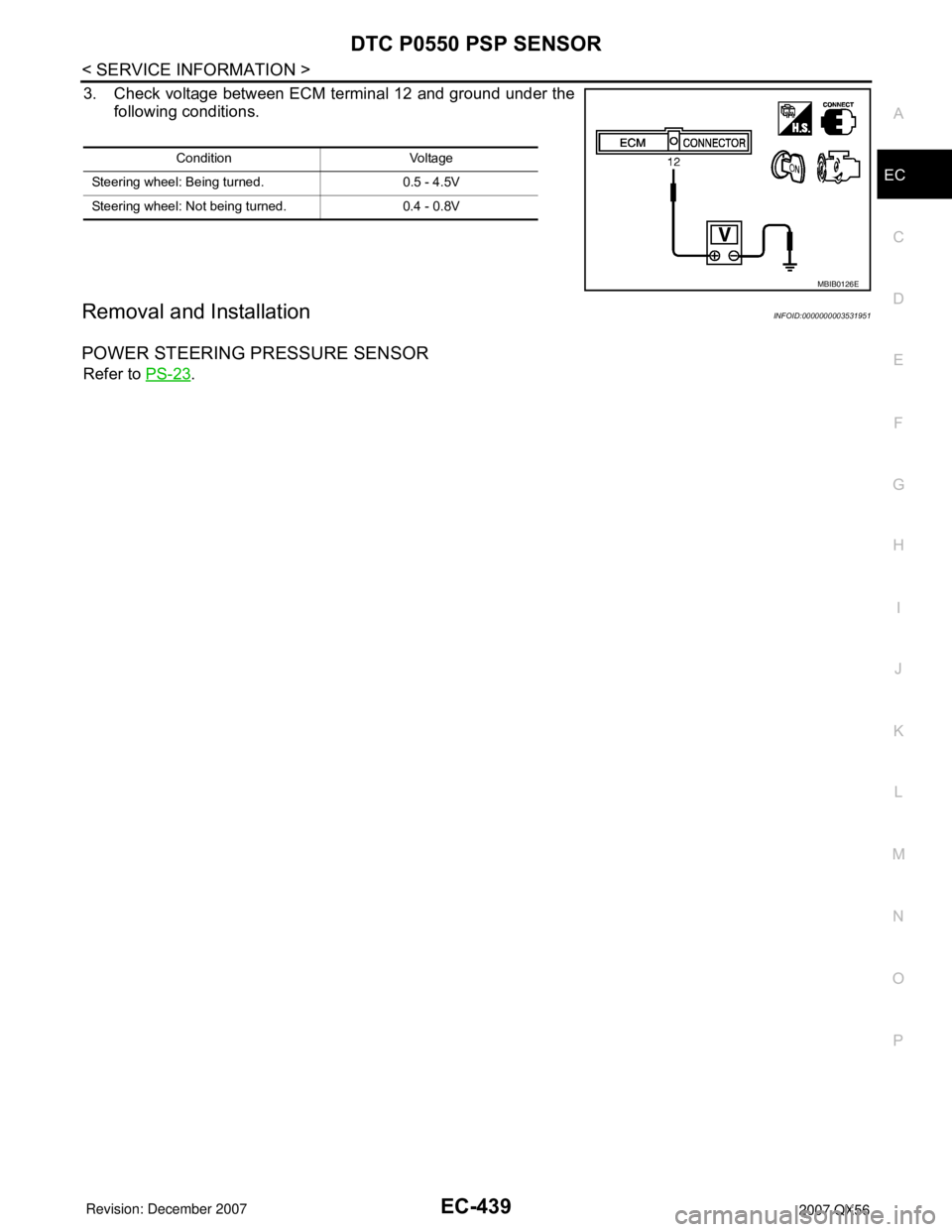

INFINITI QX56 2007 Factory Service Manual DTC P0550 PSP SENSOR EC-439 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O 3. Check voltage between ECM terminal 12 and ground under the following conditions. Removal and InstallationINFOID:0

Page 1523 of 3061

INFINITI QX56 2007 Factory Service Manual EC-440 < SERVICE INFORMATION > DTC P0603 ECM POWER SUPPLY DTC P0603 ECM POWER SUPPLY Component DescriptionINFOID:0000000003531952 Battery voltage is supplied to the ECM even when the ignition switch i

Page 1524 of 3061

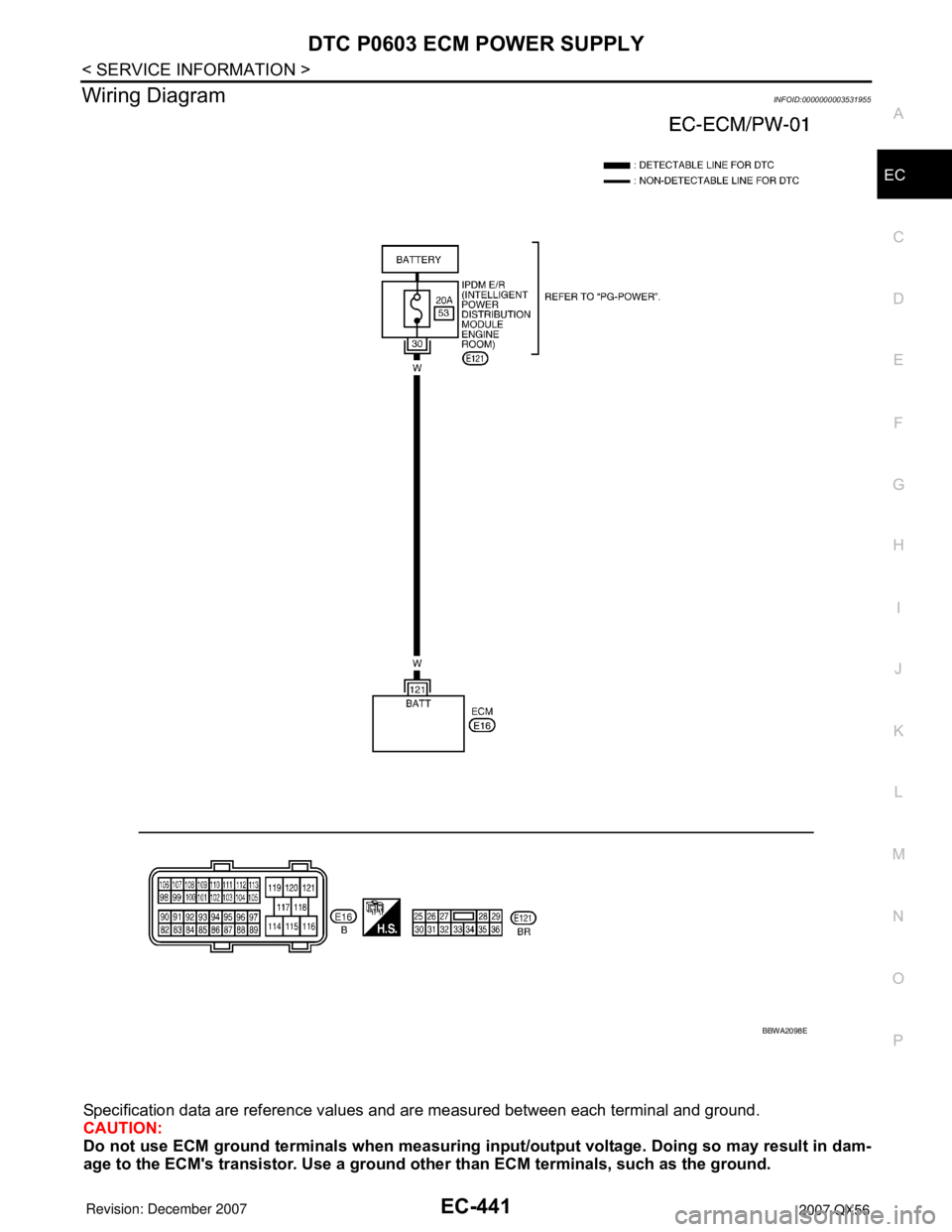

INFINITI QX56 2007 Factory Service Manual DTC P0603 ECM POWER SUPPLY EC-441 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O Wiring DiagramINFOID:0000000003531955 Specification data are reference values and are measured between each te

Page 1525 of 3061

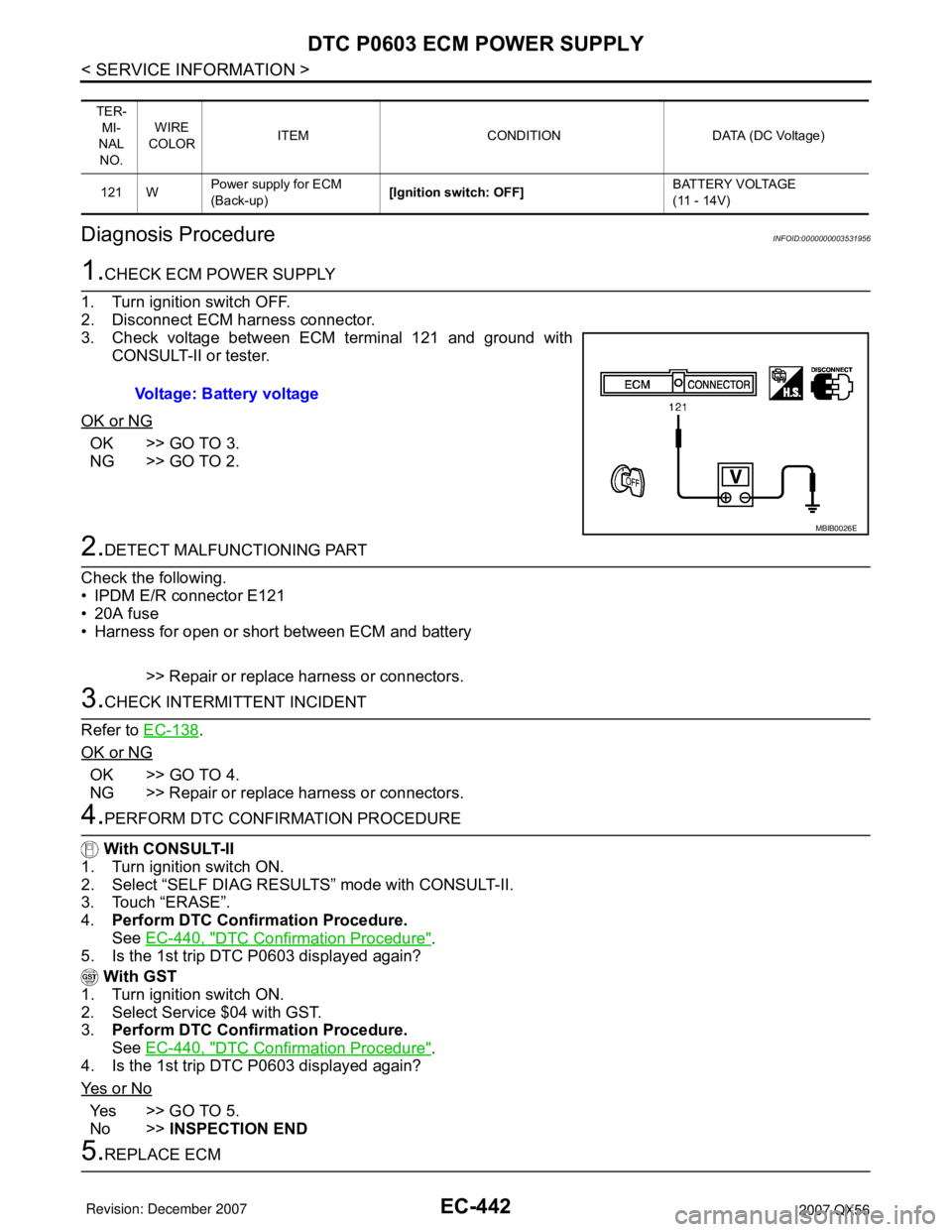

INFINITI QX56 2007 Factory Service Manual EC-442 < SERVICE INFORMATION > DTC P0603 ECM POWER SUPPLY Diagnosis Procedure INFOID:0000000003531956 1.CHECK ECM POWER SUPPLY 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Chec

Page 1526 of 3061

INFINITI QX56 2007 Factory Service Manual DTC P0603 ECM POWER SUPPLY EC-443 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O 1. Replace ECM. 2. Perform initialization of IVIS(NATS) system and registration of all IVIS(NATS) ignition key

Page 1527 of 3061

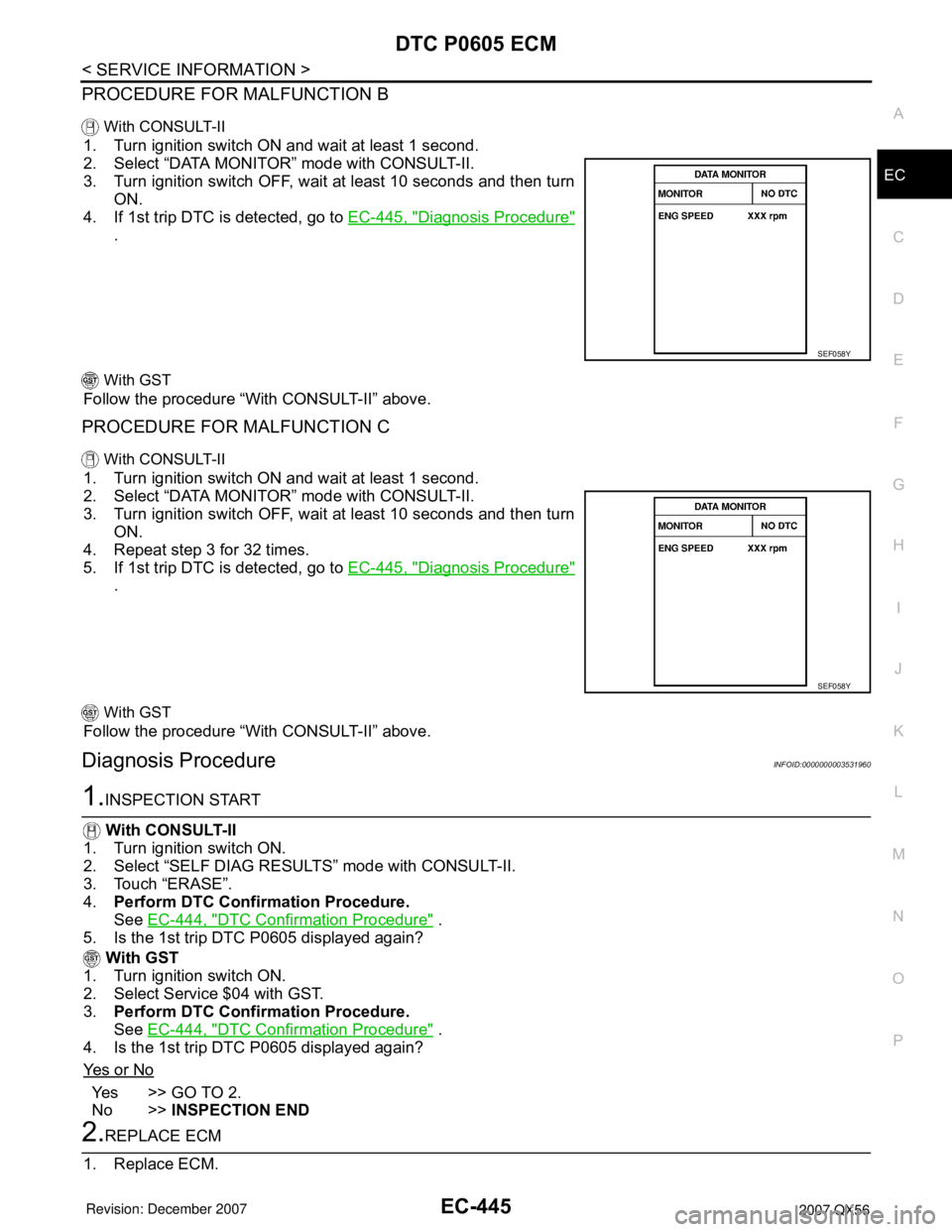

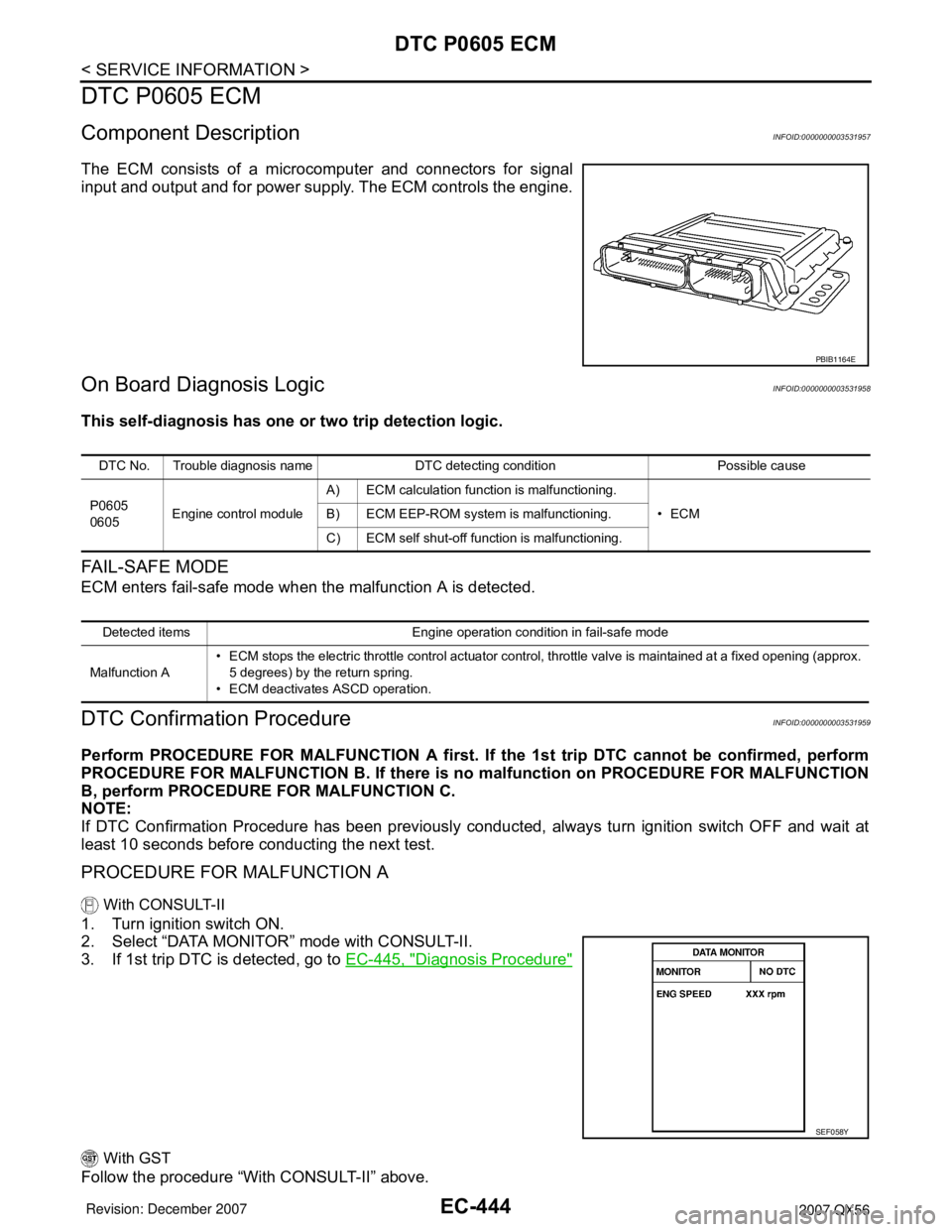

INFINITI QX56 2007 Factory Service Manual EC-444 < SERVICE INFORMATION > DTC P0605 ECM DTC P0605 ECM Component DescriptionINFOID:0000000003531957 The ECM consists of a microcomputer and connectors for signal input and output and for power sup

Page 1528 of 3061

INFINITI QX56 2007 Factory Service Manual DTC P0605 ECM EC-445 < SERVICE INFORMATION > C D E F G H I J K L MA EC N P O PROCEDURE FOR MALFUNCTION B With CONSULT-II 1. Turn ignition switch ON and wait at least 1 second. 2. Select “DATA MONIT
