Page 2017 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual PM-34
A/C Filter
PERIODIC MAINTENANCE SERVICES

Page 2018 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-2
General Description
AUTOMATIC TRANSMISSION
1. General Description
A: SPECIFICATION
1. TORQUE CONVERTER CLUTCH
2. OIL PUMP
3. TRANSMISSION CONTROL ELEMENT
4. TRANSMISSION GEAR RATIO
5. PLANETARY

5AT-2
General Description
AUTOMATIC TRANSMISSION
1. General Description
A: SPECIFICATION
1. TORQUE CONVERTER CLUTCH
2. OIL PUMP
3. TRANSMISSION CONTROL ELEMENT
4. TRANSMISSION GEAR RATIO
5. PLANETARY GEAR AND PLATE
6. SELECTOR POSITION
7. HYDRAULIC CONTROL AND LUBRICA-
TION
Ty p eSymmetric, 3 element, single stage,
2 phase torque converter
Stall torque ratio 1.9
Nominal diameter 250 mm (9.84 in)
Stall speed (at sea
level)2,300 — 2,800 rpm
One–way clutch Sprague type one-way clutch
Ty p e I n t e r n a l g e a r f i x e d d i s p l a c e m e n t p u m p
Driving method Driven by engine
Number of teethInner rotor 9
Outer rotor 10
Ty p e5-forward, 1-reverse,
double-row planetary gears
Multi–plate clutch 3 sets
Multi–plate brake 4 sets
One-way clutch
(sprague type)3 sets
1st 3.841
2nd 2.352
3rd 1.529
4th 1.000
5th 0.839
Rev. 2.764
Number of front internal gear teeth 102
Number of front carrier teeth 24
Number of front sun gear teeth 54
Number of mid internal gear teeth 78
Number of mid carrier teeth 18
Number of mid sun gear teeth 42
Number of rear internal gear teeth 98
Number of rear carrier teeth 18
Number of rear sun gear teeth 62
Number of front brake drive plates 2
Number of input clutch drive plates 5
Number of high & low reverse clutch
drive plates4
Number of direct clutch drive plates 5
Number of reverse brake drive plates 5
Number of forward brake drive plates 4
Number of low coast brake drive plates 3
P (Park)
Tr a n s m i s s i o n i s i n n e u t r a l , o u t p u t m e m -
ber is immovable, engine start is possi-
ble
R (Reverse) Transmission in reverse for backing
N (Neutral)Tr a n s m i s s i o n i s i n n e u t r a l a n d e n g i n e
start is possible
D (Drive)Automatic gear change
1st ←→ 2nd ←→ 3rd ←→ 4th ←→ 5th
Manual mode (+)Manual gear change
1st→ 2nd→ 3rd→ 4th→ 5th
Manual mode (–)Manual gear change
1st← 2nd← 3rd← 4th← 5th
Control method Wire cable type
Ty p e
Electronic/hydraulic control [5 forward
gear changes made by electronic sig-
nals of vehicle speed and accelerator
(throttle) opening]
Fluid
Specified fluid: SUBARU ATF (Part No.
K0140Y0700)
Recommended fluid: IDEMITSU ATF
HP
CASTROL TRANSMAX J
PENNZOIL QUAKERSTATE • PEN-
NZOIL ATF-J
NOTE:
Using of recommended fluid is permit-
ted only on the area where the speci-
fied is not available.
Fluid capacity
2(US qt, Imp qt)9.6 — 10.0 (10.1 — 10.6, 8.4 — 8.8)
Lubrication system Forced feed lubrication with oil pump

Page 2019 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-3
General Description
AUTOMATIC TRANSMISSION
8. COOLING AND HARNESS
9. TRANSFER
10.FINAL REDUCTION GEAR
11.RECOMMENDED GEAR OIL
Cooling systemLiquid-cooler incorporated in
radiator
Tr a n s m i s

Page 2020 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-4
General Description
AUTOMATIC TRANSMISSION
B: COMPONENT
1. TORQUE CONVERTER CLUTCH & TRANSMISSION ASSEMBLY
(1) Torque converter ASSY (15) Oil charge pipe (29) Nipple
(2) Circlip (16) O-ring (30)

Page 2021 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-5
General Description
AUTOMATIC TRANSMISSION
2. OIL PUMP & FRONT BRAKE
(1) O-ring (9) Nipple (16) Snap ring
(2) Washer (10) Needle bearing (17) Driven plate
(3) Oil pump housing (11) D-ring (Inner

Page 2022 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-6
General Description
AUTOMATIC TRANSMISSION

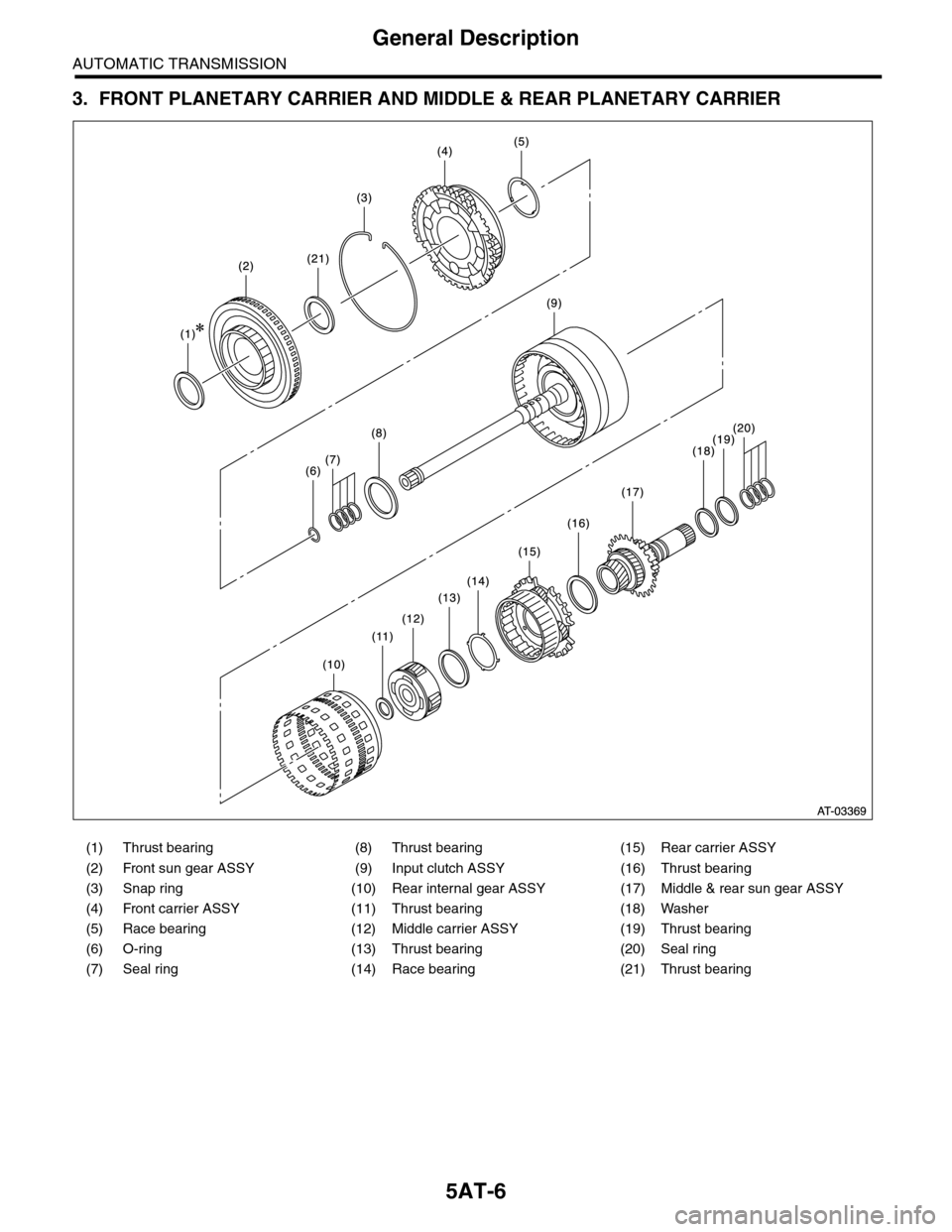

3. FRONT PLANETARY CARRIER AND MIDDLE & REAR PLANETARY CARRIER
(1) Thrust bearing (8) Thrust bearing (15) Rear carrier ASSY
(2) Front sun gear ASSY (9)

Page 2023 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-7
General Description
AUTOMATIC TRANSMISSION

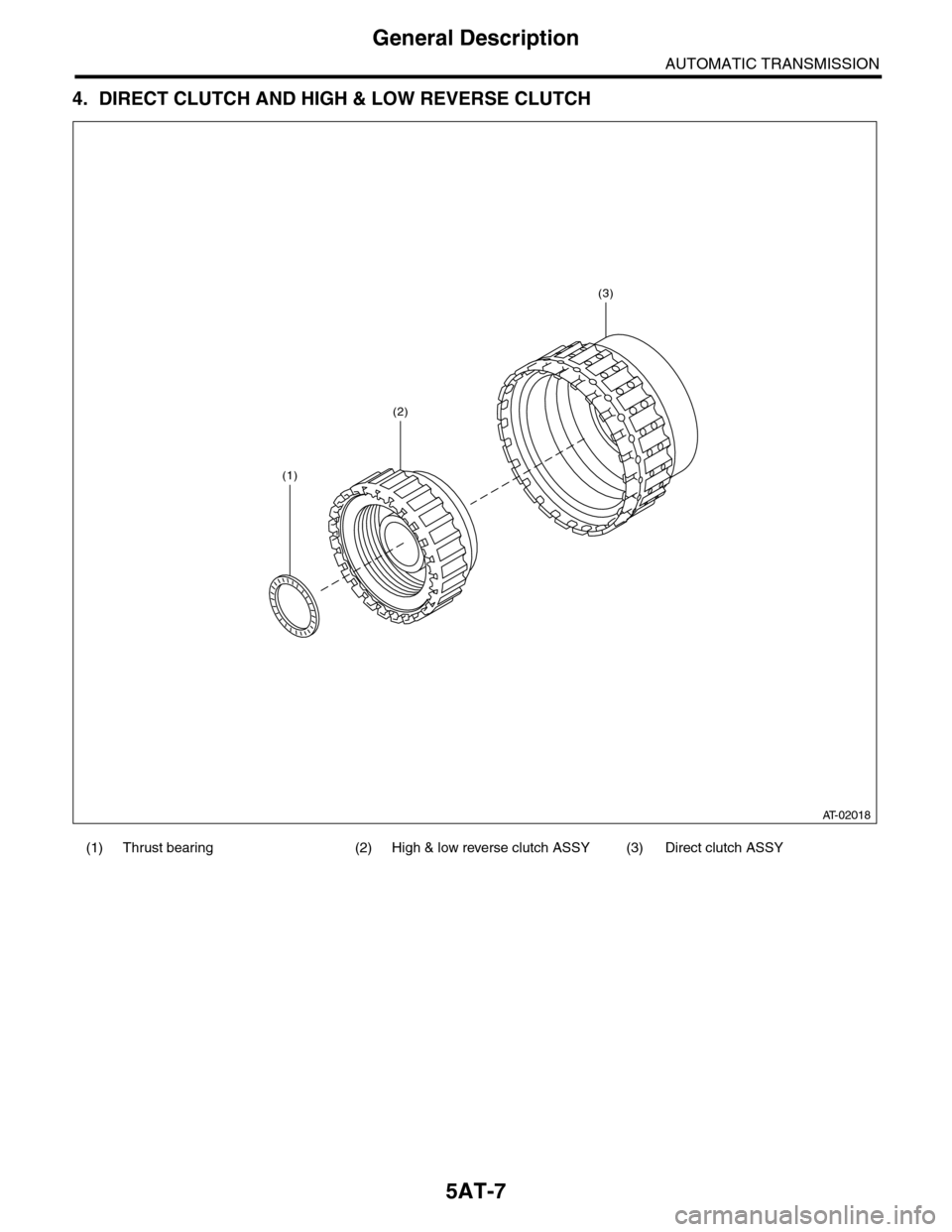

4. DIRECT CLUTCH AND HIGH & LOW REVERSE CLUTCH
(1) Thrust bearing (2) High & low reverse clutch ASSY (3) Direct clutch ASSY
AT-02018
(3)
(2)
(1)

Page 2024 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-8
General Description
AUTOMATIC TRANSMISSION

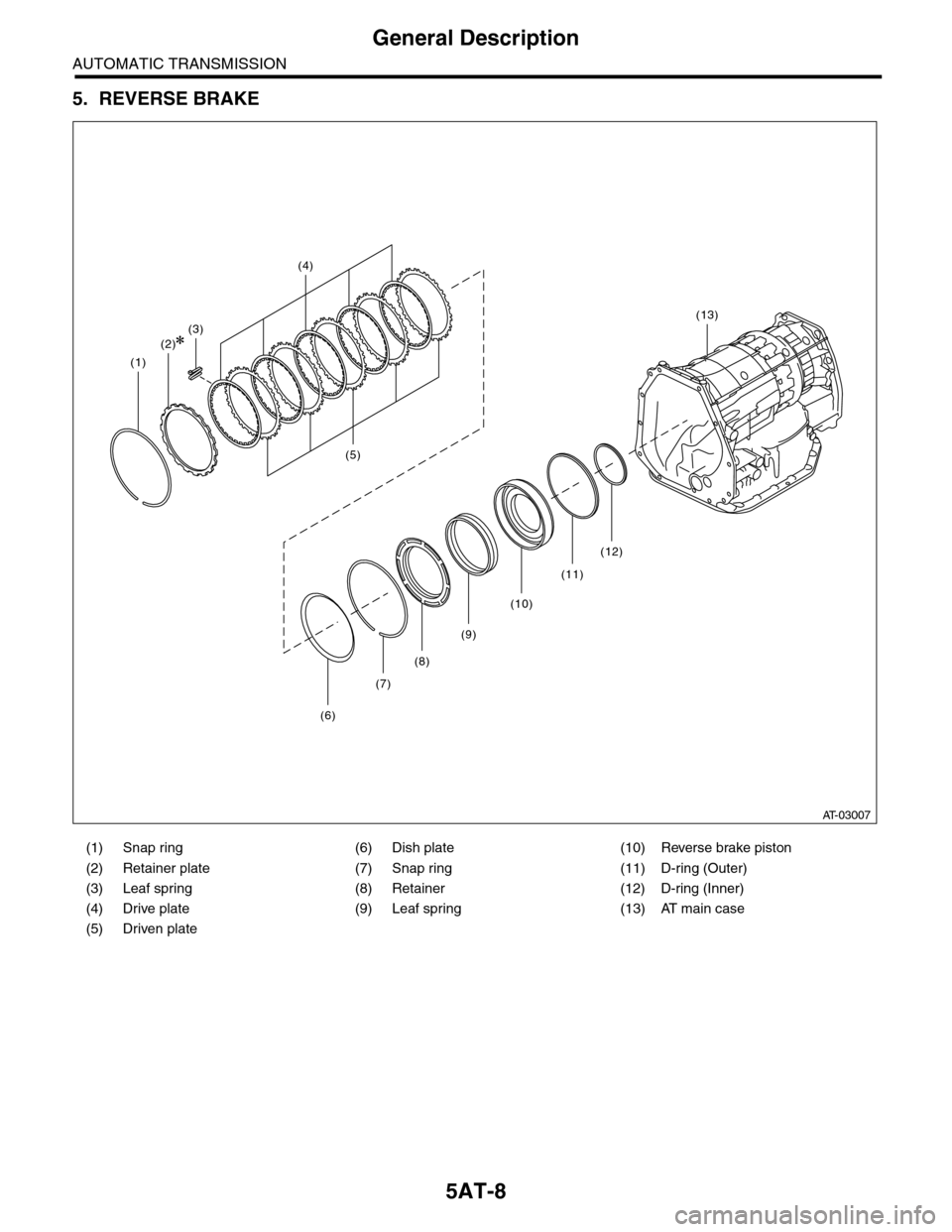

5. REVERSE BRAKE
(1) Snap ring (6) Dish plate (10) Reverse brake piston
(2) Retainer plate (7) Snap ring (11) D-ring (Outer)
(3) Leaf spring (8) Retain
