Page 161 of 2453
COM-4
Horn
COMMUNICATION SYSTEM
3. Horn
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the left and right headlight assemblies.
3) Remove the horn bracket mounting bolt (A).
4) Disconnect the harness connector and remove
the horn assembly (B).
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
With 12 V direct current supplied between horn ter-
minals, check that the horn sounds properly.
COM00041
(A)(A)
(B)(B)
COM00020
Page 162 of 2453

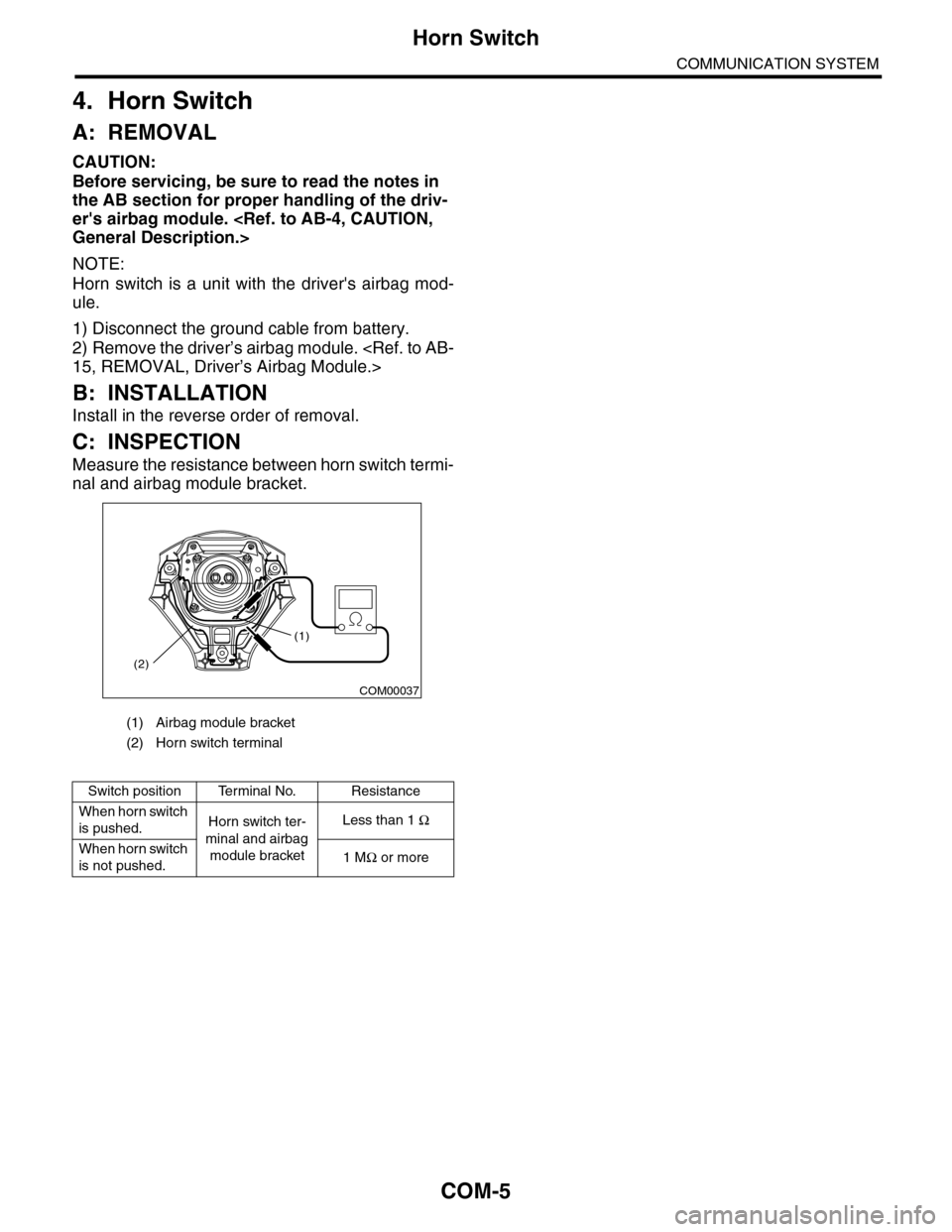

COM-5
Horn Switch
COMMUNICATION SYSTEM
4. Horn Switch
A: REMOVAL
CAUTION:
Before servicing, be sure to read the notes in
the AB section for proper handling of the driv-
er's airbag module.
General Description.>
NOTE:
Horn switch is a unit with the driver's airbag mod-
ule.
1) Disconnect the ground cable from battery.
2) Remove the driver’s airbag module.
15, REMOVAL, Driver’s Airbag Module.>
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the resistance between horn switch termi-
nal and airbag module bracket.
(1) Airbag module bracket
(2) Horn switch terminal
Switch position Terminal No. Resistance
When horn switch
is pushed.Horn switch ter-
minal and airbag
module bracket
Less than 1 Ω
When horn switch
is not pushed.1 MΩ or more
(2)
(1)
COM00037
Page 163 of 2453

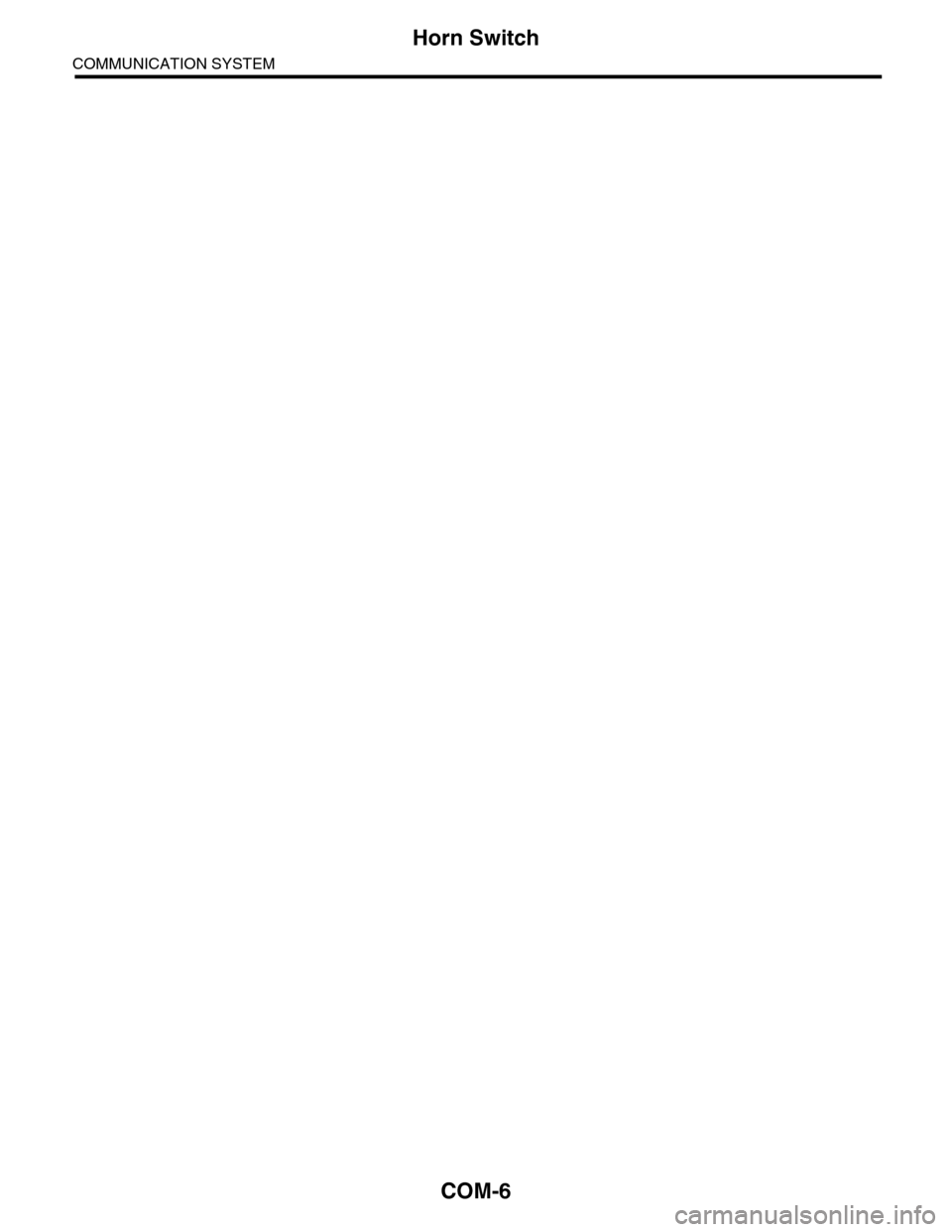

COM-6
Horn Switch
COMMUNICATION SYSTEM
Page 164 of 2453
CC-2
General Description
CRUISE CONTROL SYSTEM
1. General Description
A: COMPONENT
(1) Engine control module (ECM) (4) Cruise indicator light and cruise
set indicator light
(5) Transmission control module
(TCM)(2) Cruise control command switch
(3) Stop light and brake switch
CC-00369
(1)(4)
(2)(3)(5)
Page 165 of 2453

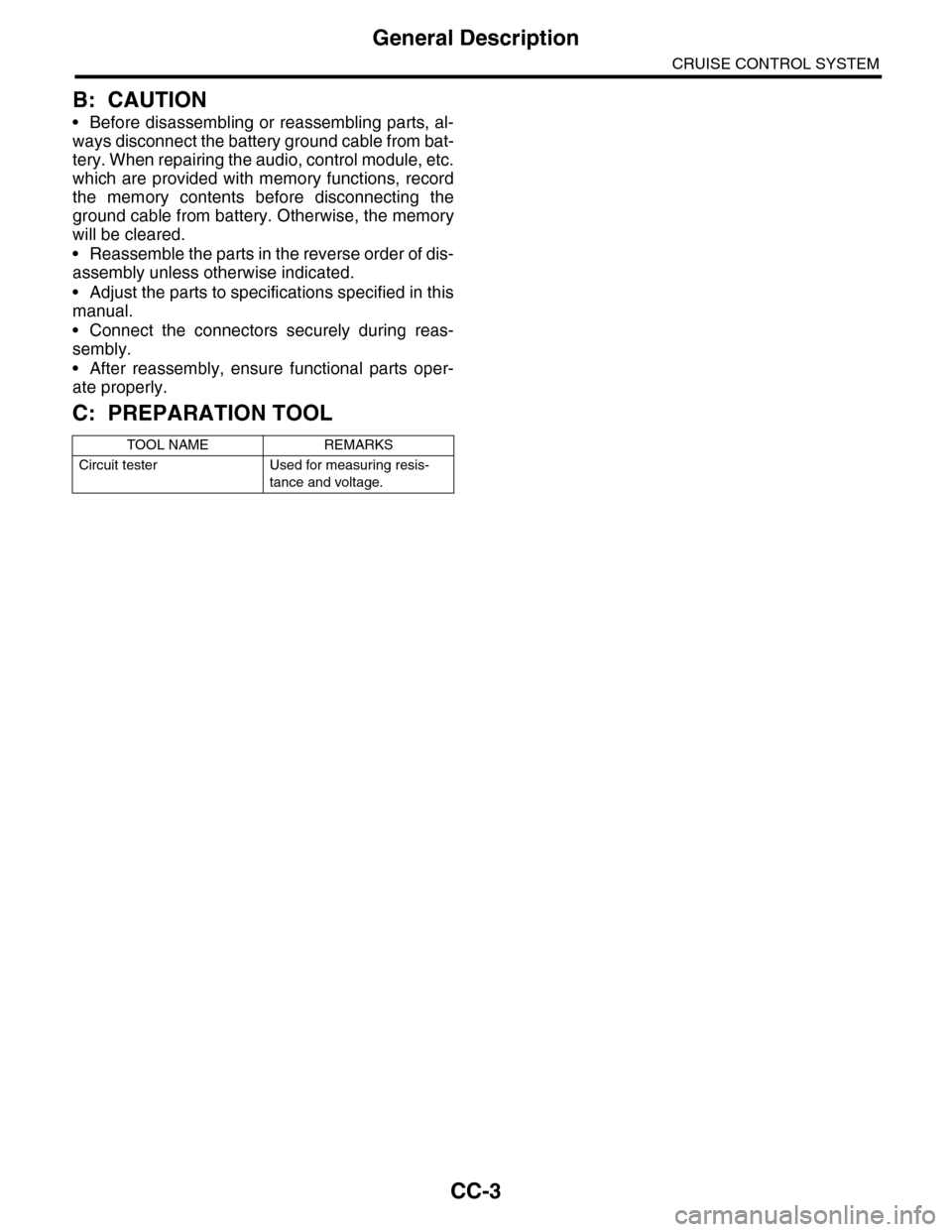

CC-3
General Description
CRUISE CONTROL SYSTEM
B: CAUTION
•Before disassembling or reassembling parts, al-
ways disconnect the battery ground cable from bat-
tery. When repairing the audio, control module, etc.
which are provided with memory functions, record
the memory contents before disconnecting the
ground cable from battery. Otherwise, the memory
will be cleared.
•Reassemble the parts in the reverse order of dis-
assembly unless otherwise indicated.
•Adjust the parts to specifications specified in this
manual.
•Connect the connectors securely during reas-
sembly.
•After reassembly, ensure functional parts oper-
ate properly.
C: PREPARATION TOOL
TOOL NAME REMARKS
Circuit tester Used for measuring resis-
tance and voltage.
Page 166 of 2453
CC-4
Cruise Control Unit
CRUISE CONTROL SYSTEM
2. Cruise Control Unit
A: NOTE
The control of cruise control system is carried out in
Engine control module (ECM).
B: REMOVAL
Module (ECM).>
C: INSTALLATION
Control Module (ECM).>
Page 167 of 2453

CC-5
Cruise Control Command Switch
CRUISE CONTROL SYSTEM
3. Cruise Control Command
Switch
A: REMOVAL
CAUTION:
Before servicing, be sure to read the notes in
the “AB” section for proper handling of the
driver’s airbag module.
TION, General Description.>
1) Set the front wheels in straight ahead position.
2) Turn the ignition switch to OFF.
3) Disconnect the ground cable from battery and
wait for at least 20 seconds before starting work.
4) Using TORX® BIT T30 (1), loosen two TORX®
bolts which secure the driver’s airbag module.
5) Disconnect the airbag module connector on
back of the airbag module.
6) Remove the steering wheel.
MOVAL, Steering Wheel.>
7) Remove the four screws to remove the lower
cover from steering wheel.
8) Remove one screw to remove the cruise control
command switch from lower cover.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the cruise control command switch resis-
tance.
If NG, replace the cruise control command switch.
CC-00018
(1)
CC-00181
Switch Area Terminal No. Standard
CANCEL
SET/COAST
RESUME/
ACCEL
All OFF 2 and 3 Approx. 4 kΩ
CANCEL ON 2 and 3 Less than 1 Ω
SET/COAST ON 2 and 3Approximately
250 Ω
RESUME/
ACCELON 2 and 3Approximately
1500 Ω
MAINOFF 1 and 2 1 MΩ or more
ON 1 and 2 Less than 1 Ω
CC-00182
CC-00252
231
Page 168 of 2453

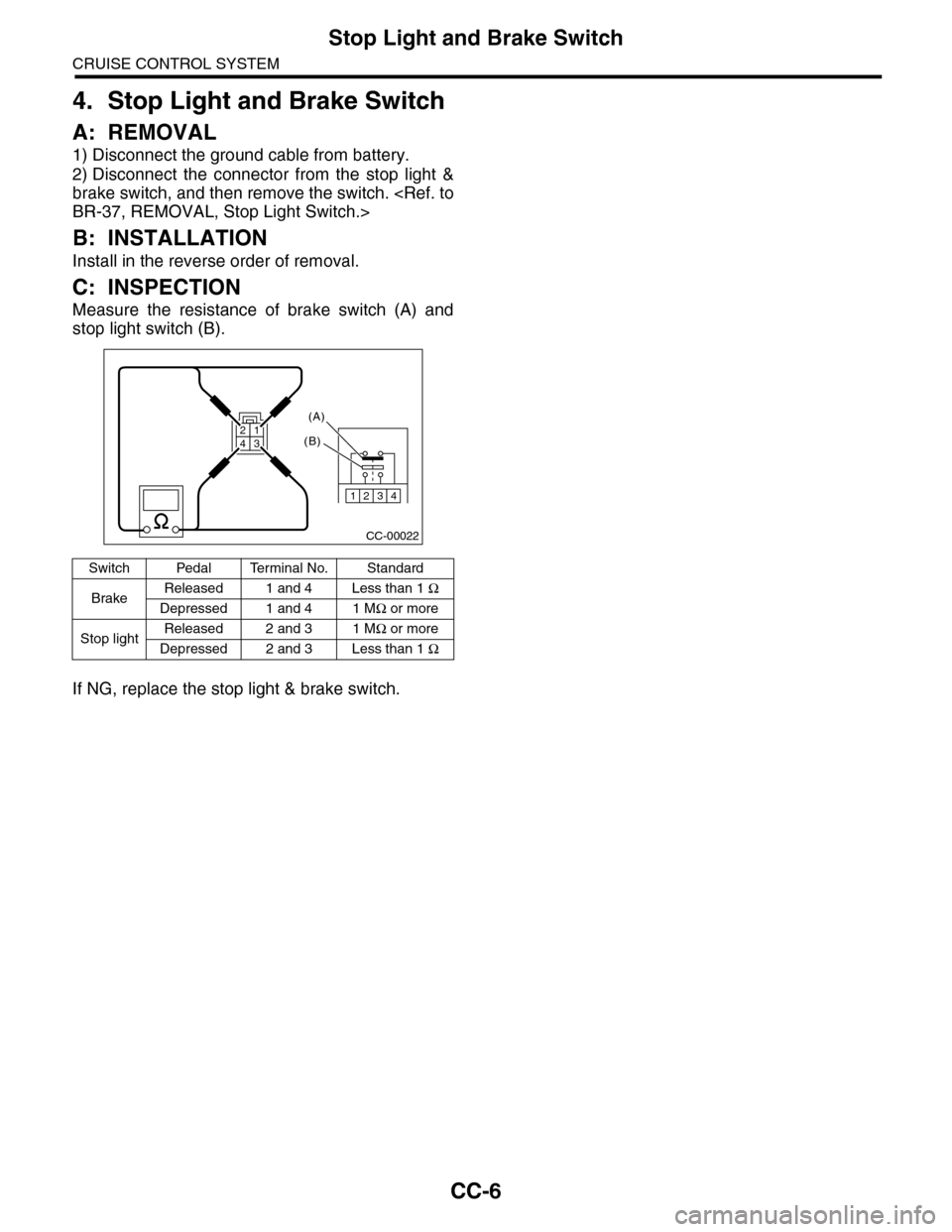

CC-6
Stop Light and Brake Switch
CRUISE CONTROL SYSTEM
4. Stop Light and Brake Switch
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Disconnect the connector from the stop light &
brake switch, and then remove the switch.
BR-37, REMOVAL, Stop Light Switch.>
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the resistance of brake switch (A) and
stop light switch (B).
If NG, replace the stop light & brake switch.
Switch Pedal Terminal No. Standard
BrakeReleased 1 and 4 Less than 1 Ω
Depressed 1 and 4 1 MΩ or more
Stop lightReleased 2 and 3 1 MΩ or more
Depressed 2 and 3 Less than 1 Ω
CC-00022
1234
(A)
(B)
3214
