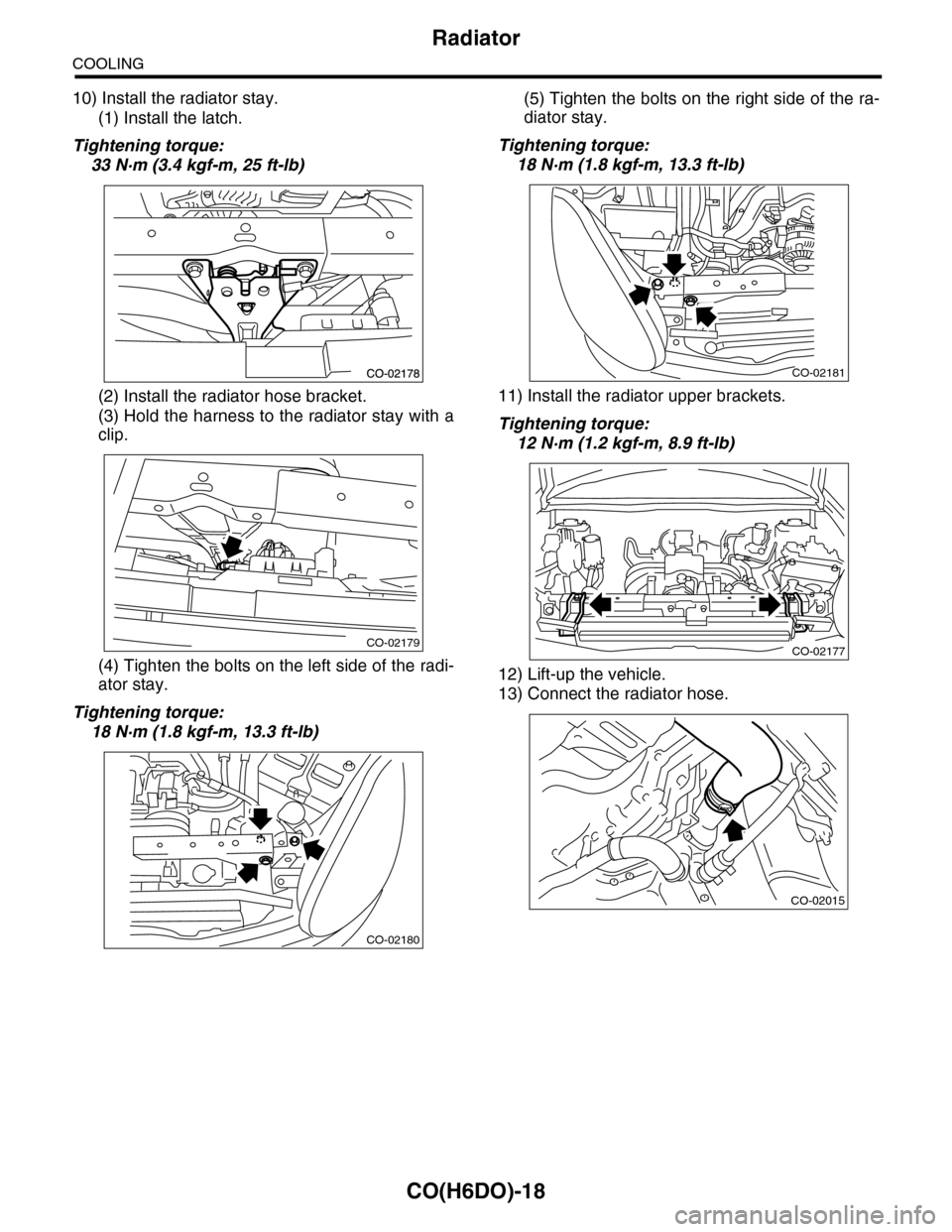

SUBARU TRIBECA 2009 1.G Service Workshop Manual CO(H6DO)-18 Radiator COOLING 10) Install the radiator stay. (1) Install the latch. Tightening torque: 33 N·m (3.4 kgf-m, 25 ft-lb) (2) Install the radiator hose bracket. (3) Hold the harness to the r

Page 1138 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual CO(H6DO)-19 Radiator COOLING 14) Tighten the bolts on the lower side of the radia- tor stay. Tightening torque: 18 N·m (1.8 kgf-m, 13.3 ft-lb) 15) Lower the vehicle. 16) Connect the ground cable to

Page 1139 of 2453

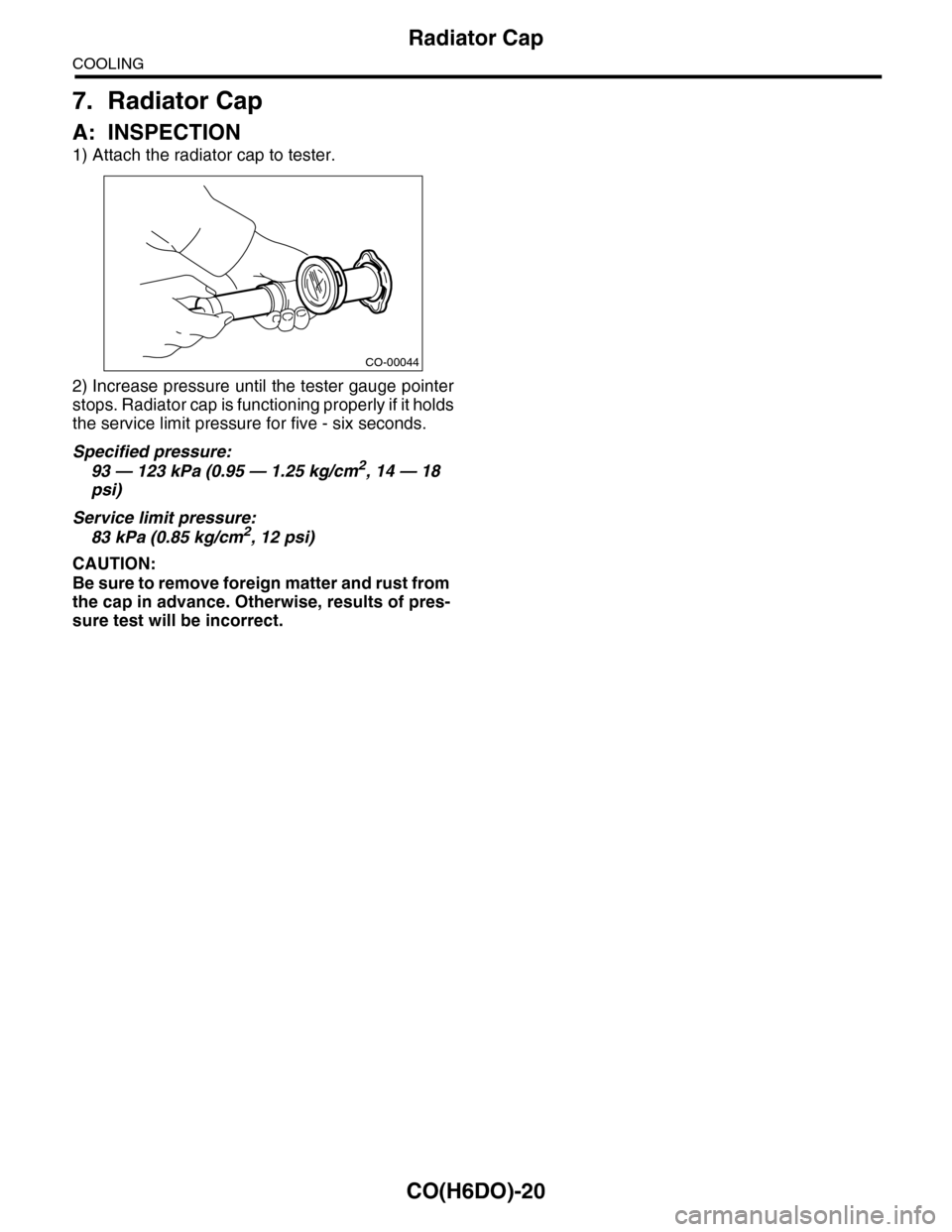

SUBARU TRIBECA 2009 1.G Service Workshop Manual CO(H6DO)-20 Radiator Cap COOLING 7. Radiator Cap A: INSPECTION 1) Attach the radiator cap to tester. 2) Increase pressure until the tester gauge pointer stops. Radiator cap is functioning properly if

Page 1140 of 2453

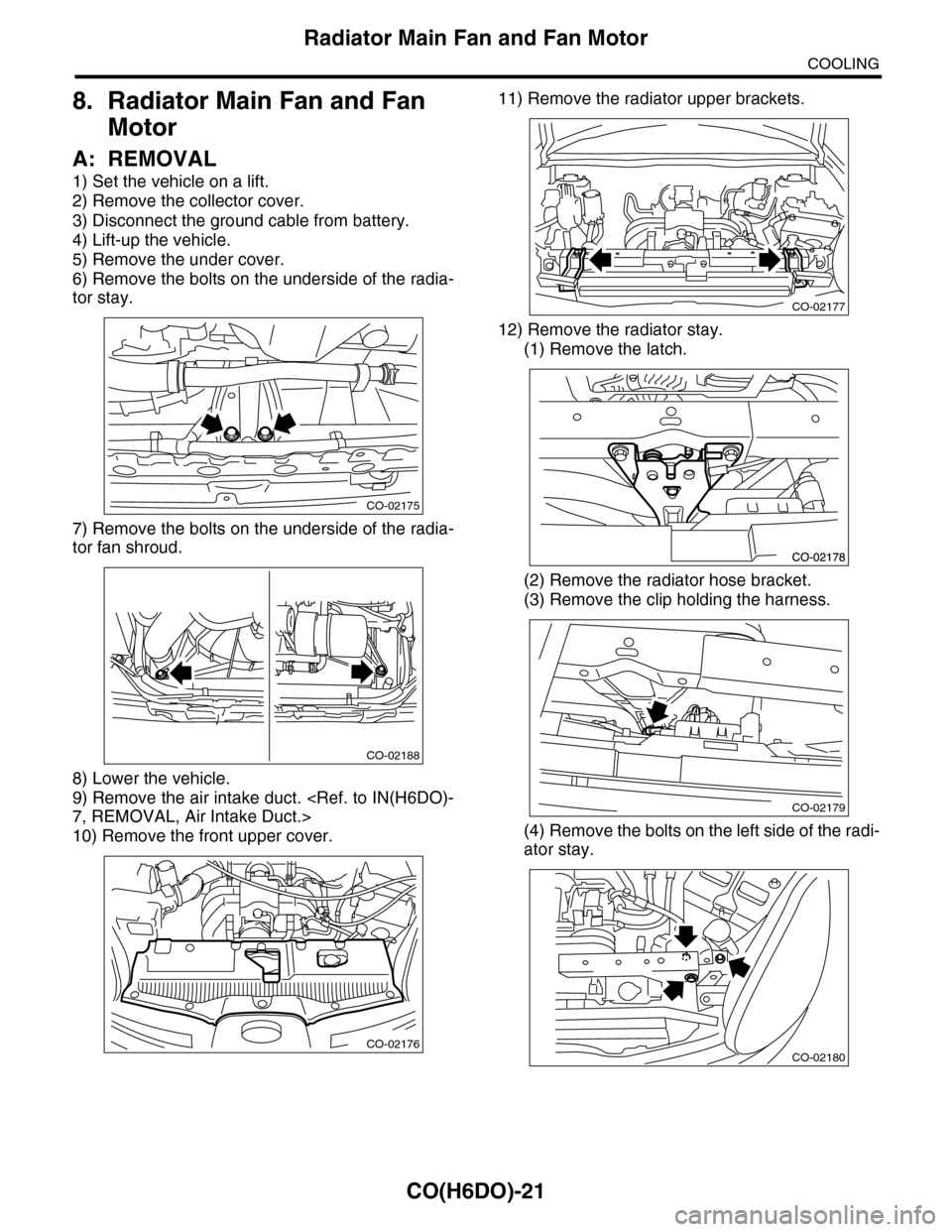

SUBARU TRIBECA 2009 1.G Service Workshop Manual CO(H6DO)-21 Radiator Main Fan and Fan Motor COOLING 8. Radiator Main Fan and Fan Motor A: REMOVAL 1) Set the vehicle on a lift. 2) Remove the collector cover. 3) Disconnect the ground cable from batt

Page 1141 of 2453

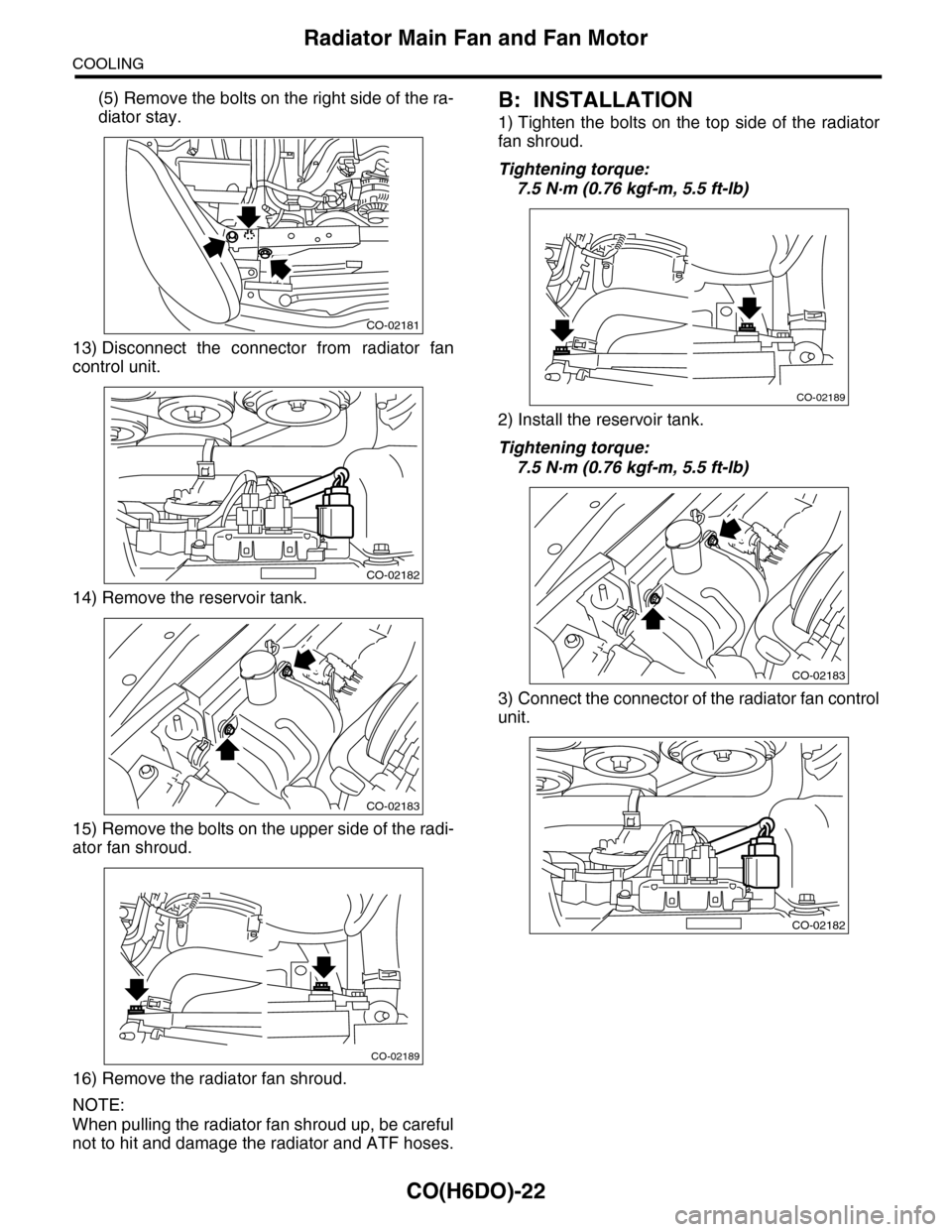

SUBARU TRIBECA 2009 1.G Service Workshop Manual CO(H6DO)-22 Radiator Main Fan and Fan Motor COOLING (5) Remove the bolts on the right side of the ra- diator stay. 13) Disconnect the connector from radiator fan control unit. 14) Remove the rese

Page 1142 of 2453

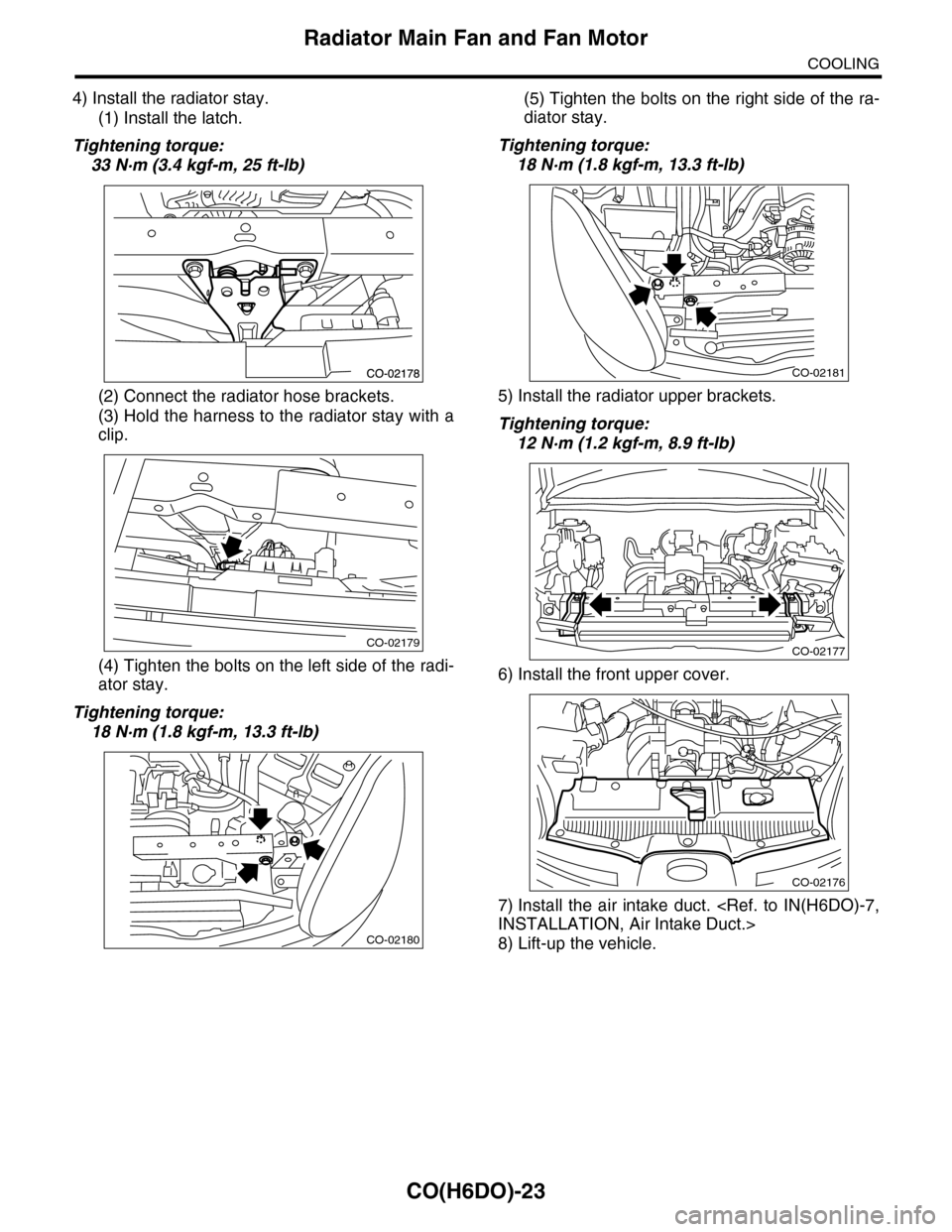

SUBARU TRIBECA 2009 1.G Service Workshop Manual CO(H6DO)-23 Radiator Main Fan and Fan Motor COOLING 4) Install the radiator stay. (1) Install the latch. Tightening torque: 33 N·m (3.4 kgf-m, 25 ft-lb) (2) Connect the radiator hose brackets. (3) H

Page 1143 of 2453

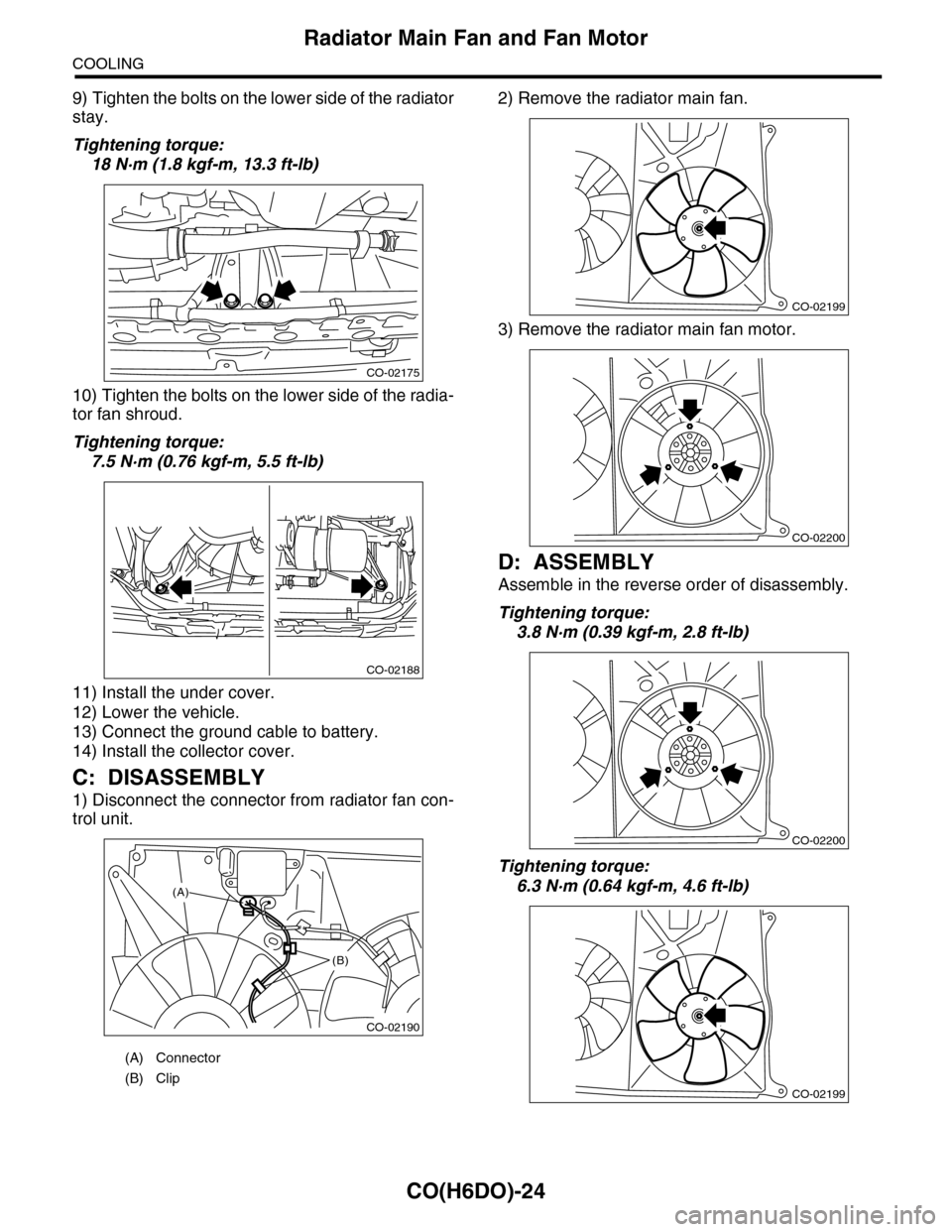

SUBARU TRIBECA 2009 1.G Service Workshop Manual CO(H6DO)-24 Radiator Main Fan and Fan Motor COOLING 9) Tighten the bolts on the lower side of the radiator stay. Tightening torque: 18 N·m (1.8 kgf-m, 13.3 ft-lb) 10) Tighten the bolts on the lower s

Page 1144 of 2453

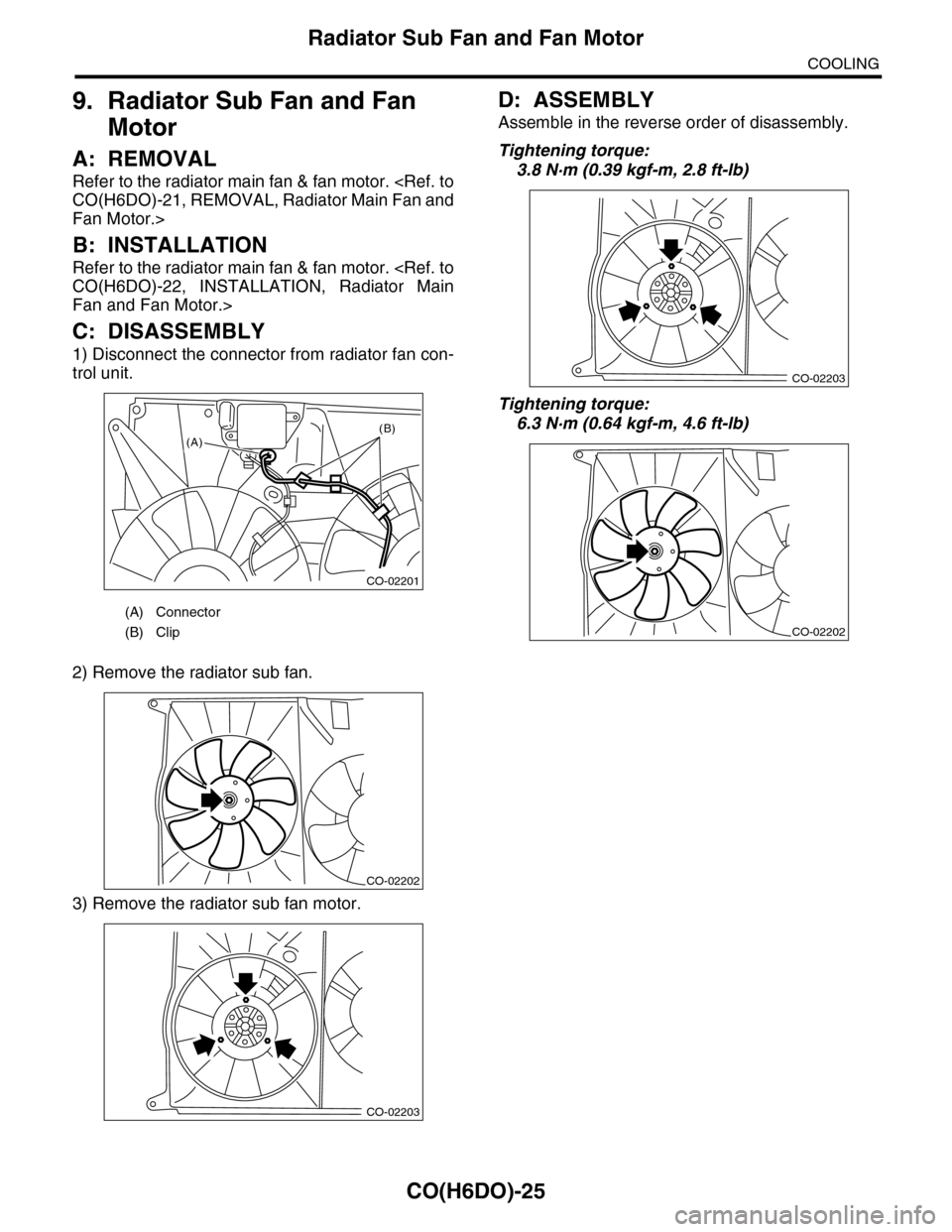

SUBARU TRIBECA 2009 1.G Service Workshop Manual CO(H6DO)-25 Radiator Sub Fan and Fan Motor COOLING 9. Radiator Sub Fan and Fan Motor A: REMOVAL Refer to the radiator main fan & fan motor. <Ref. to CO(H6DO)-21, REMOVAL, Radiator Main Fan and Fan Mo
