Page 289 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-47 Floor Mat EXTERIOR/INTERIOR TRIM 20.Floor Mat A: REMOVAL 1. FRONT FLOOR MAT 1) Remove the front seats. <Ref. to SE-7, REMOV- AL, Front Seat.> 2) Remove the second–row seats. <Ref. to SE-12, RE

Page 290 of 2453

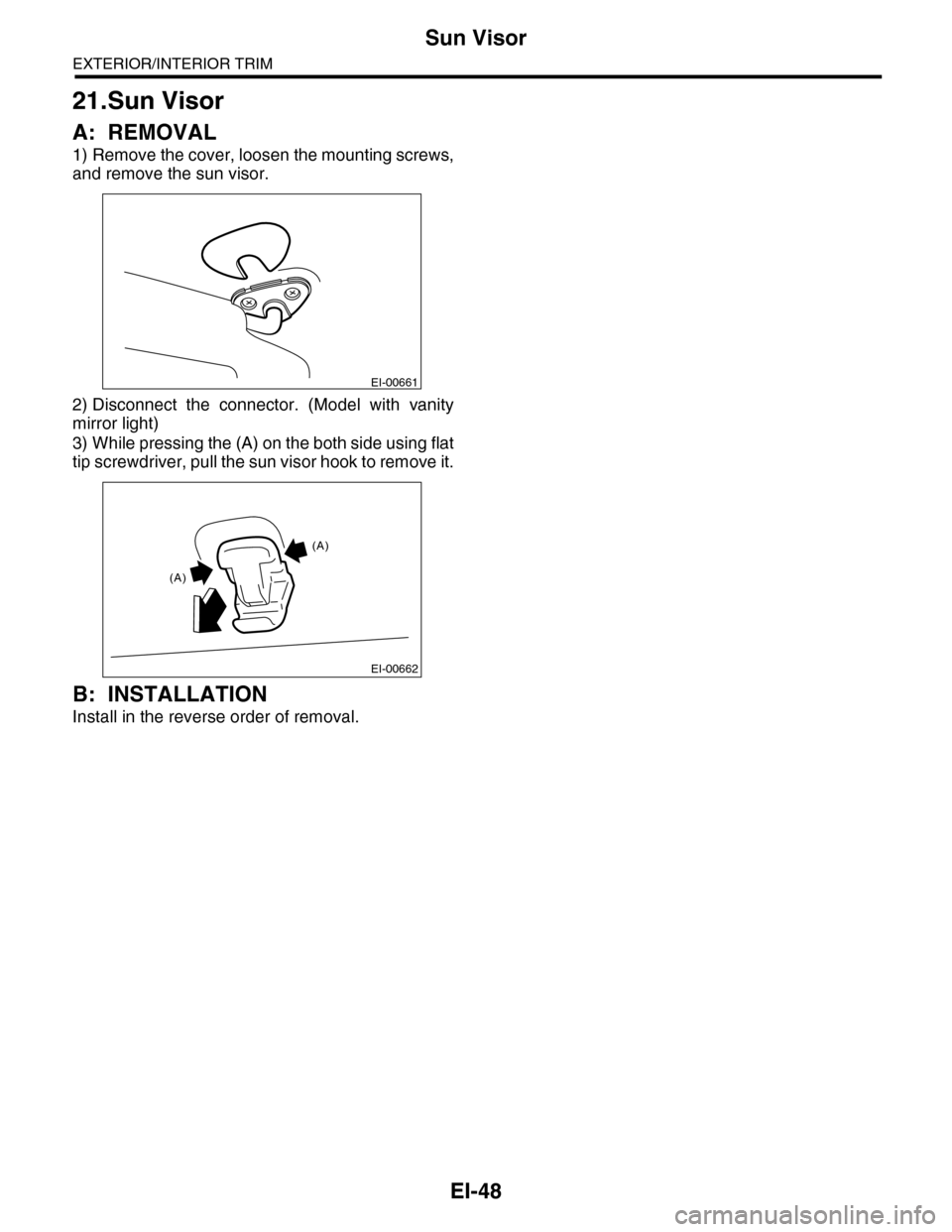

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-48 Sun Visor EXTERIOR/INTERIOR TRIM 21.Sun Visor A: REMOVAL 1) Remove the cover, loosen the mounting screws, and remove the sun visor. 2) Disconnect the connector. (Model with vanity mirror li

Page 291 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-49 Assist Grip EXTERIOR/INTERIOR TRIM 22.Assist Grip A: REMOVAL 1) Remove the screw cover, and remove the screw inside. 2) Pull the left side of assist grip toward you, and ro- tate the right side

Page 292 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-50 Roof Trim EXTERIOR/INTERIOR TRIM 23.Roof Trim A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the spot map light. <Ref. to LI-29, RE- MOVAL, Spot Map Light.> 3) Remove the ro

Page 293 of 2453

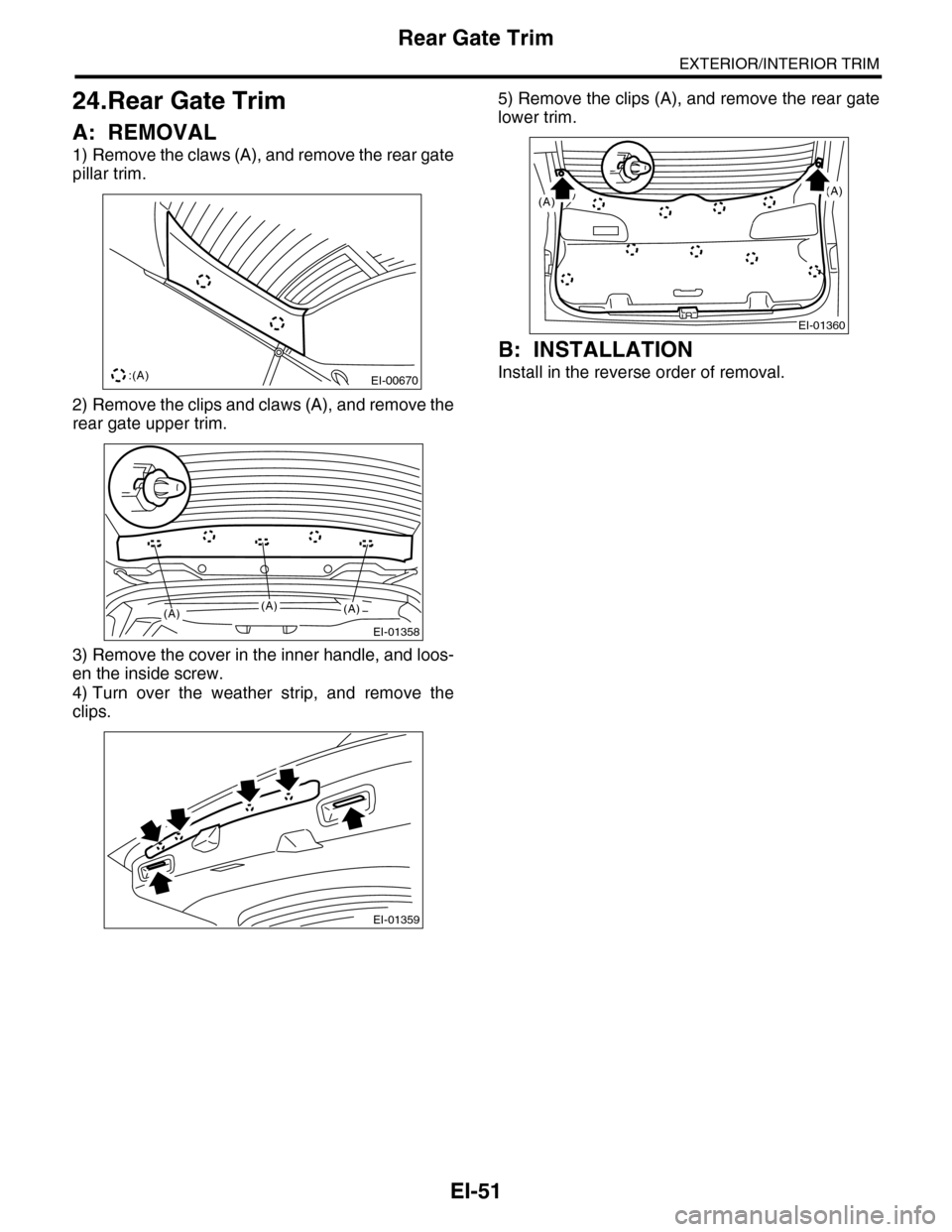

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-51 Rear Gate Trim EXTERIOR/INTERIOR TRIM 24.Rear Gate Trim A: REMOVAL 1) Remove the claws (A), and remove the rear gate pillar trim. 2) Remove the clips and claws (A), and remove the rear gate uppe

Page 294 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-52 Rear Gate Garnish EXTERIOR/INTERIOR TRIM 25.Rear Gate Garnish A: REMOVAL 1) Remove the hexagon cap nut (A). 2) Remove the rear gate garnish. B: INSTALLATION Use new double-sided tapes, and in

Page 295 of 2453

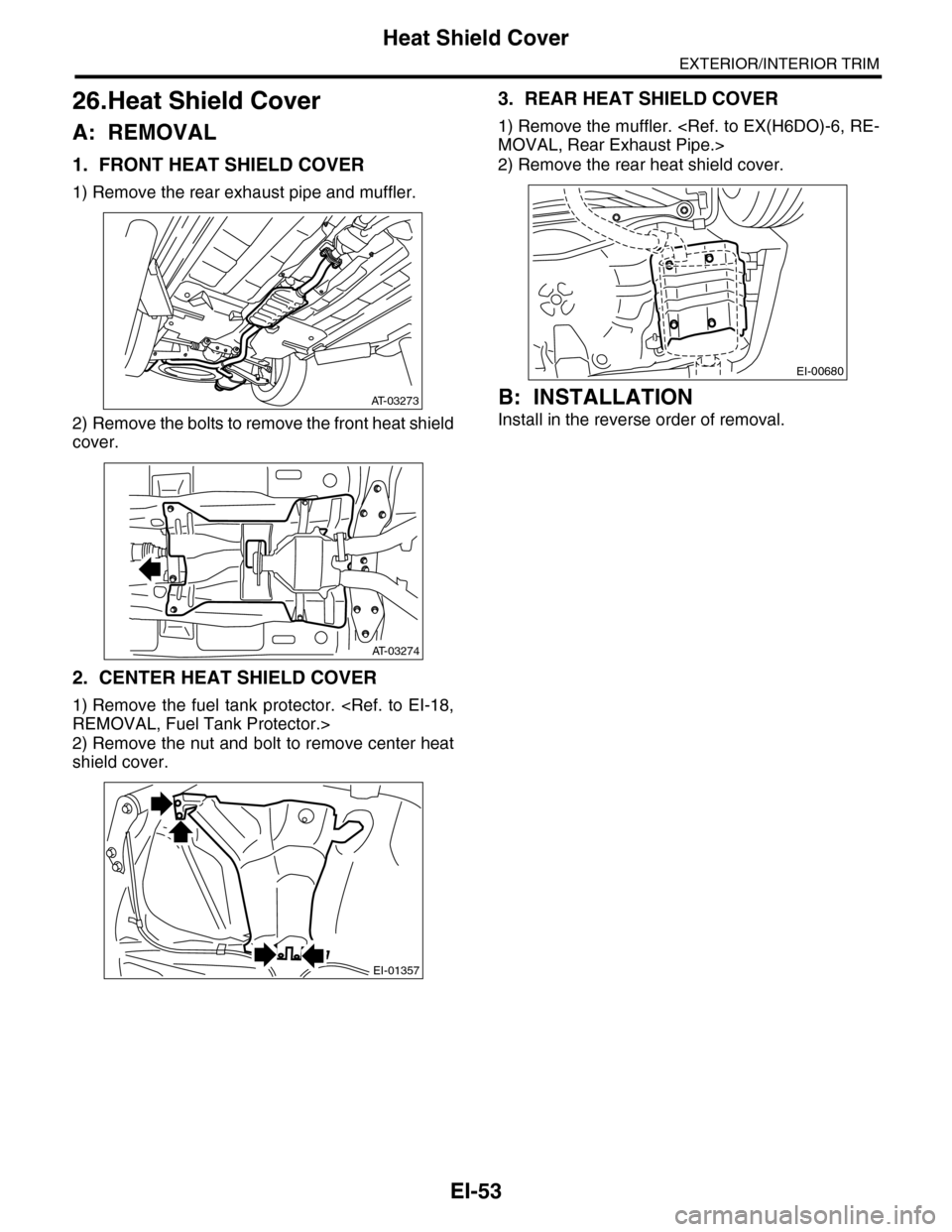

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-53 Heat Shield Cover EXTERIOR/INTERIOR TRIM 26.Heat Shield Cover A: REMOVAL 1. FRONT HEAT SHIELD COVER 1) Remove the rear exhaust pipe and muffler. 2) Remove the bolts to remove the front heat shie

Page 296 of 2453

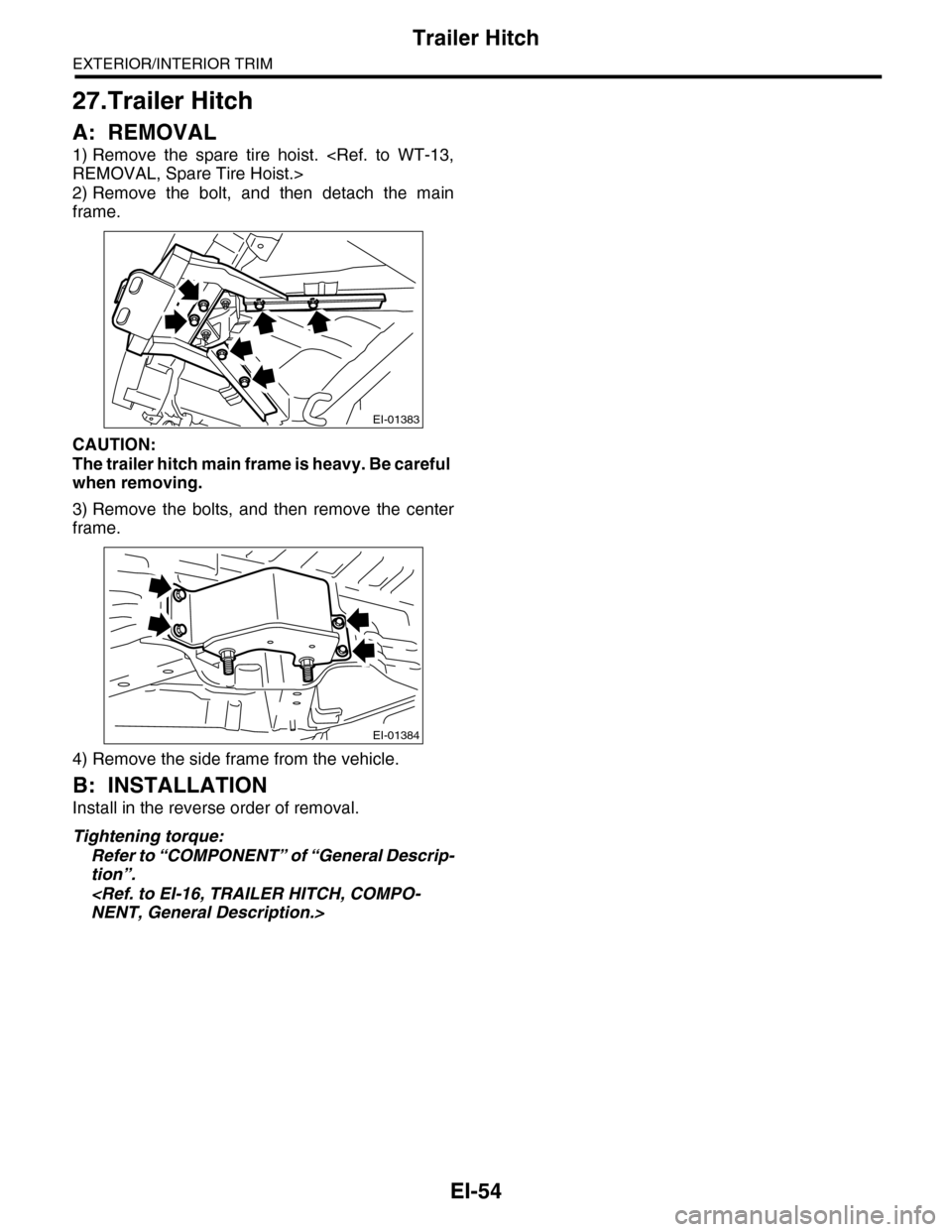

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-54 Trailer Hitch EXTERIOR/INTERIOR TRIM 27.Trailer Hitch A: REMOVAL 1) Remove the spare tire hoist. <Ref. to WT-13, REMOVAL, Spare Tire Hoist.> 2) Remove the bolt, and then detach the
