Page 1553 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EN(H6DO)(diag)-392 General Diagnostic Table ENGINE (DIAGNOSTICS) 19.General Diagnostic Table A: INSPECTION 1. ENGINE NOTE: Malfunction of parts other than those listed is also possible. <Ref. to ME(H6

Page 1554 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EN(H6DO)(diag)-393 General Diagnostic Table ENGINE (DIAGNOSTICS) *1: Check ignition coil & ignitor assembly and spark plug. *2: Indicate the symptom occurring only in cold temperatures. *3: Make sur

Page 1555 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EN(H6DO)(diag)-394 General Diagnostic Table ENGINE (DIAGNOSTICS)

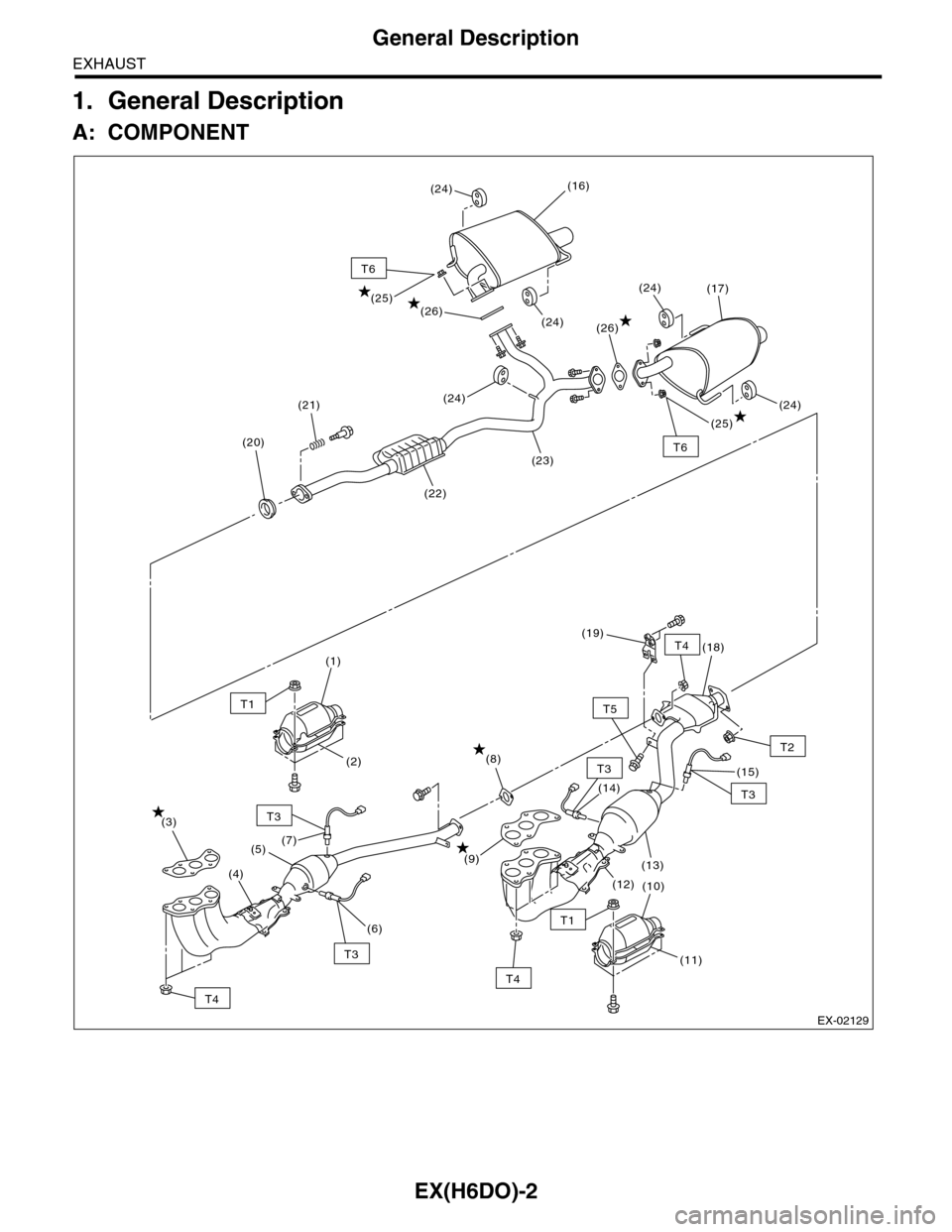

Page 1556 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EX(H6DO)-2 General Description EXHAUST 1. General Description A: COMPONENT EX-02129 T2 T4 T5 T1 T1 T3 T3 T4 T4 (18) (12) (11) (10) (8) T6 T6 (20) (21) (22) (23) (25) (24) (17)(24) (24) (24) (26)(24) (

Page 1557 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EX(H6DO)-3 General Description EXHAUST B: CAUTION •Wear work clothing, including a cap, protective goggles and protective shoes during operation. •Remove contamination including dirt and corro- si

Page 1558 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EX(H6DO)-4 Front Exhaust Pipe EXHAUST 2. Front Exhaust Pipe A: REMOVAL 1) Disconnect the ground cable from battery. 2) Lift-up the vehicle. 3) Remove the under cover. 4) Remove the front oxygen (A

Page 1559 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EX(H6DO)-5 Front Exhaust Pipe EXHAUST B: INSTALLATION 1) Install the front oxygen (A/F) sensor and rear ox- ygen sensor. <Ref. to FU(H6DO)-28, INSTALLA- TION, Front Oxygen (A/F) Sensor.> <Re

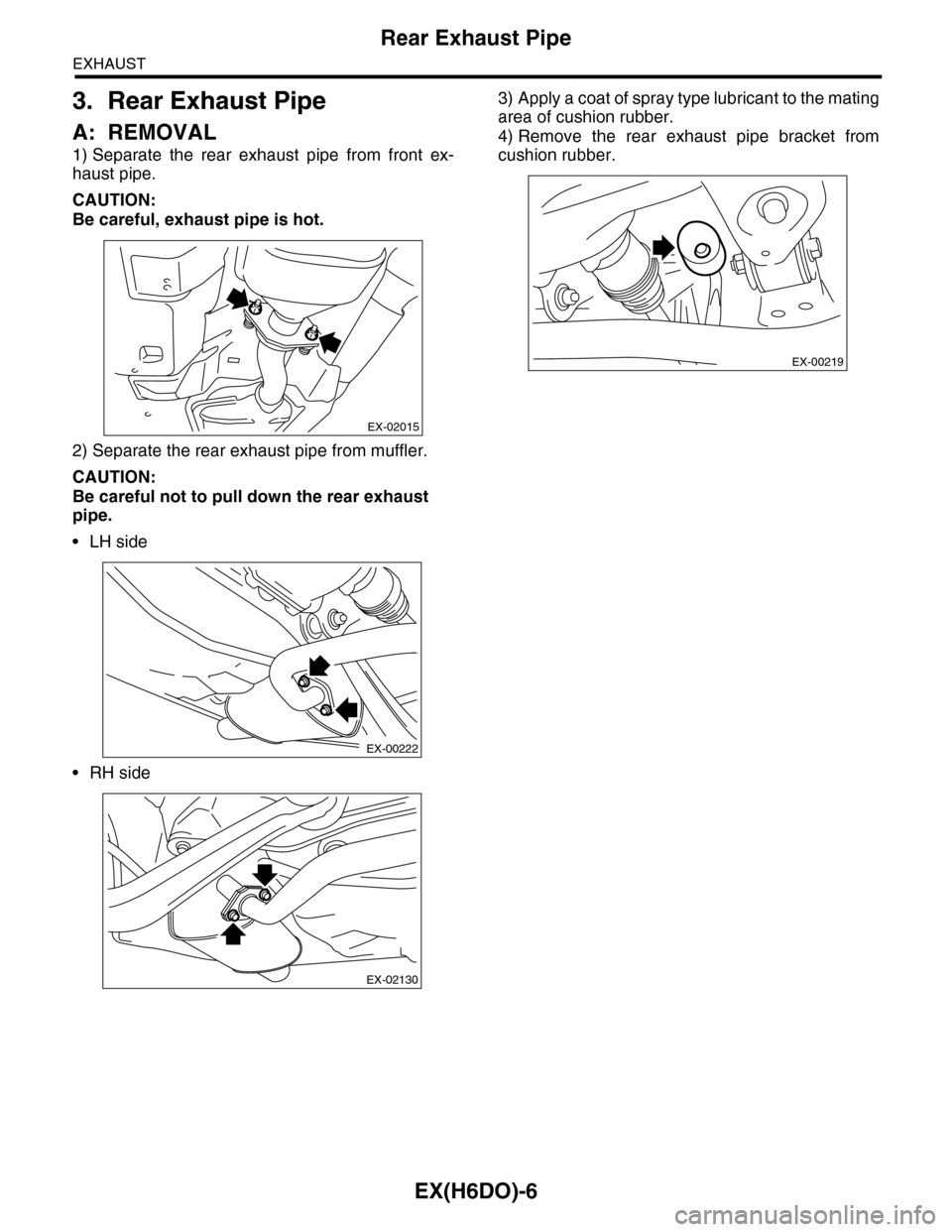

Page 1560 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EX(H6DO)-6 Rear Exhaust Pipe EXHAUST 3. Rear Exhaust Pipe A: REMOVAL 1) Separate the rear exhaust pipe from front ex- haust pipe. CAUTION: Be careful, exhaust pipe is hot. 2) Separate the rear
