Page 1969 of 2453

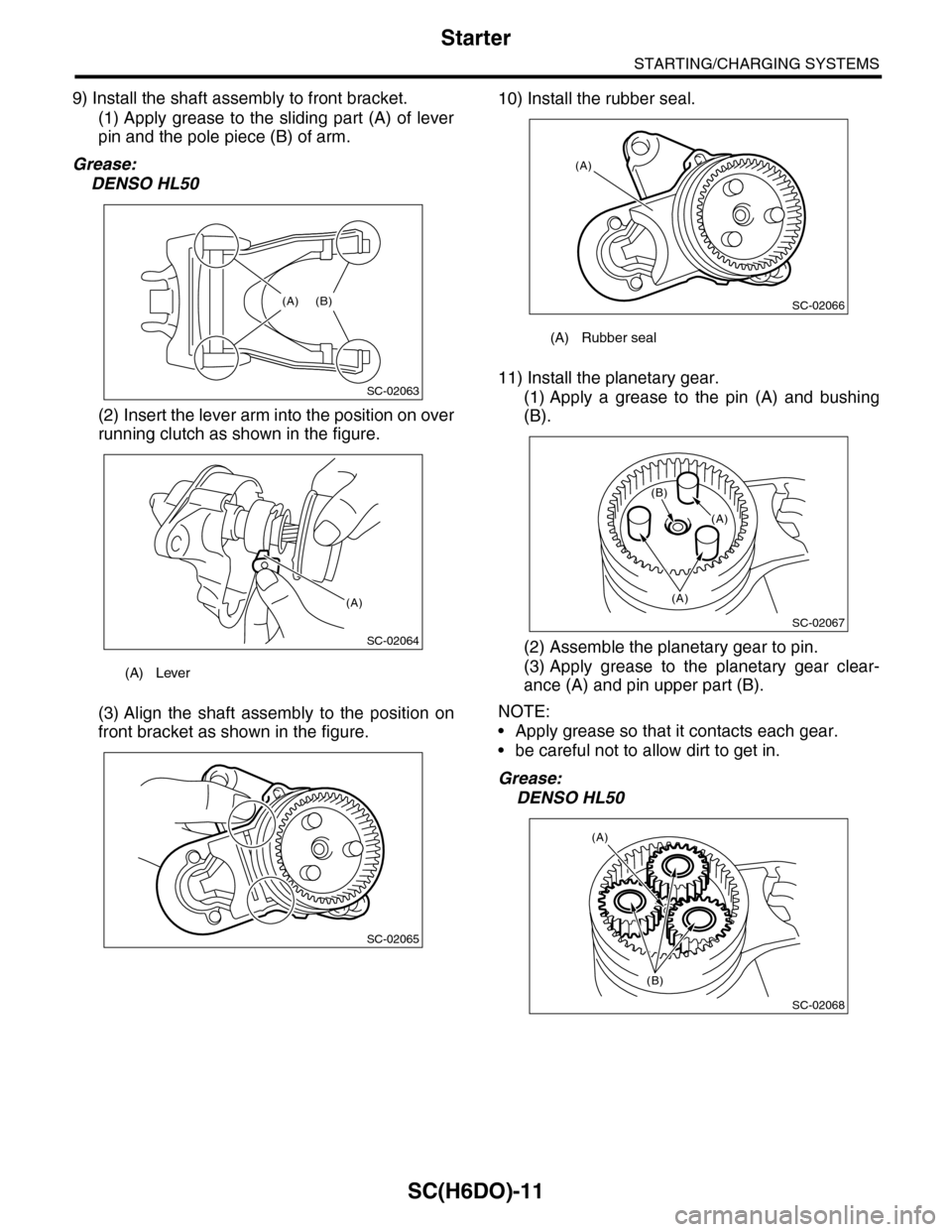

SC(H6DO)-11
Starter
STARTING/CHARGING SYSTEMS
9) Install the shaft assembly to front bracket.
(1) Apply grease to the sliding part (A) of lever
pin and the pole piece (B) of arm.
Grease:
DENSO HL50
(2) Insert the lever arm into the position on over
running clutch as shown in the figure.
(3) Align the shaft assembly to the position on
front bracket as shown in the figure.
10) Install the rubber seal.
11) Install the planetary gear.
(1) Apply a grease to the pin (A) and bushing
(B).
(2) Assemble the planetary gear to pin.
(3) Apply grease to the planetary gear clear-
ance (A) and pin upper part (B).
NOTE:
•Apply grease so that it contacts each gear.
•be careful not to allow dirt to get in.
Grease:
DENSO HL50
(A) Lever
SC-02063
(A) (B)
SC-02064
(A)
SC-02065
(A) Rubber seal
SC-02066
(A)
SC-02067
(B)
(A)
(A)
SC-02068
(B)
(A)(A)
Page 1970 of 2453

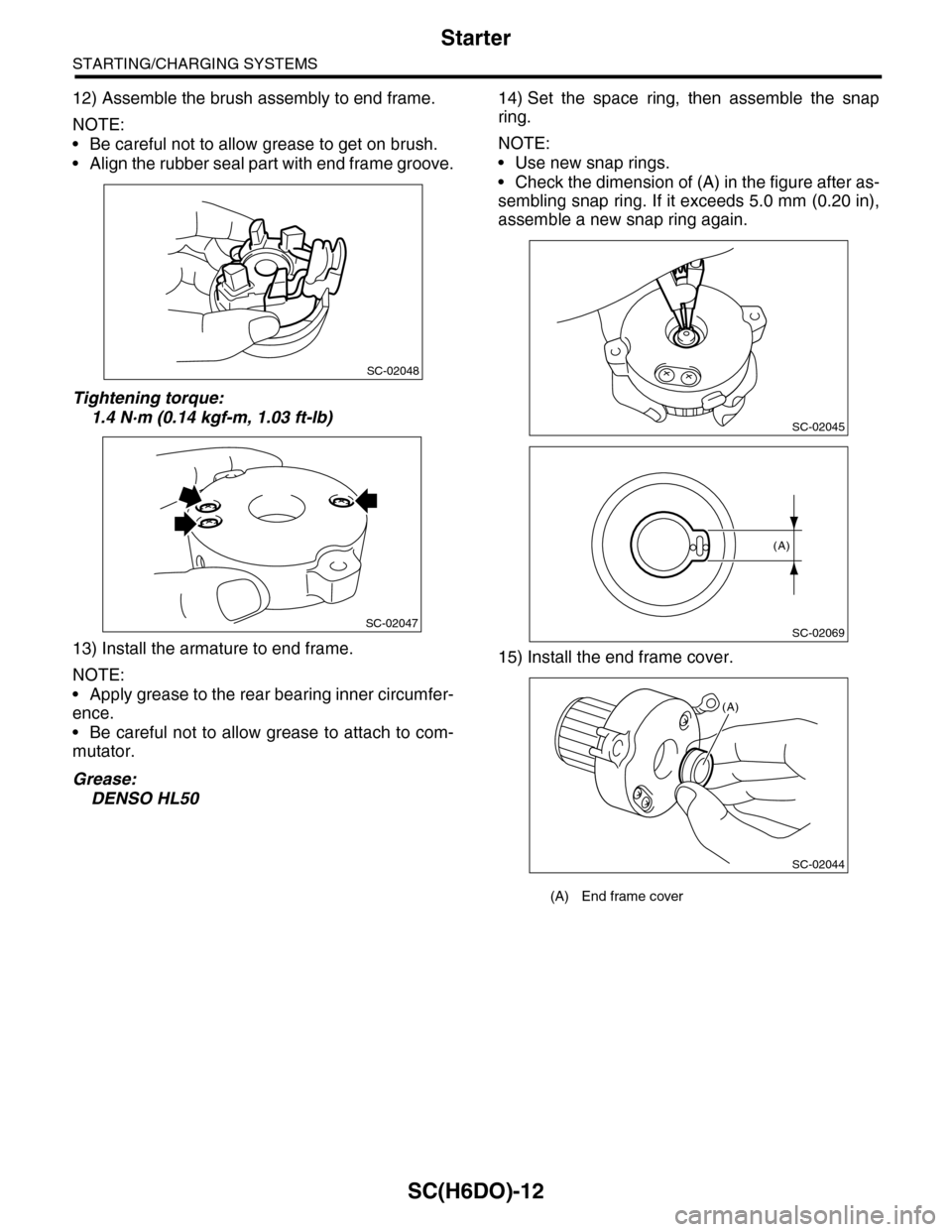

SC(H6DO)-12
Starter
STARTING/CHARGING SYSTEMS
12) Assemble the brush assembly to end frame.
NOTE:
•Be careful not to allow grease to get on brush.
•Align the rubber seal part with end frame groove.
Tightening torque:
1.4 N·m (0.14 kgf-m, 1.03 ft-lb)
13) Install the armature to end frame.
NOTE:
•Apply grease to the rear bearing inner circumfer-
ence.
•Be careful not to allow grease to attach to com-
mutator.
Grease:
DENSO HL50
14) Set the space ring, then assemble the snap
ring.
NOTE:
•Use new snap rings.
•Check the dimension of (A) in the figure after as-
sembling snap ring. If it exceeds 5.0 mm (0.20 in),
assemble a new snap ring again.
15) Install the end frame cover.
SC-02048
SC-02047
(A) End frame cover
SC-02045
SC-02069
(A)
(A)
SC-02044
Page 1971 of 2453

SC(H6DO)-13
Starter
STARTING/CHARGING SYSTEMS
16) Assemble the armature plate to yoke.
NOTE:
•Align the rotation stopper of armature plate with
the drive out part of yoke inner circumference.
•Be careful of the assembly direction of armature
plate.
17) Assemble the armature to yoke.
NOTE:
•Be careful not to allow armature plate to move. It
is recommendable to support with cylindrical pipe
as shown in the figure.
•Align the positions of cutout portion of yoke with
the rubber part of end frame.
•Be careful not to damage the magnet.
18) Assemble the yoke to front bracket.
NOTE:
•Apply grease to the end surface of yoke (mating
surface with front bracket).
•Align the drive out position of yoke outer perime-
ter with the cutout portion of front bracket.
19) Tighten the through bolts on both sides.
Tightening torque:
6 N·m (0.6 kgf-m, 4.4 ft-lb)
(A) Armature plate
(A) End frame
(B) Armature
(C) Yoke
(D) Armature plate
(E) Cloth
(F) Pipe
SC-02070
(A)
SC-02071
(A)
(B)
(C)
(D)
(E)
(F)
(A) Cutout portion of yoke
(B) Rubber part
(A) Drive out
(B) Cutout
SC-02072
(B)
(A)
SC-02073
(A)
(B)
SC-02042
Page 1972 of 2453

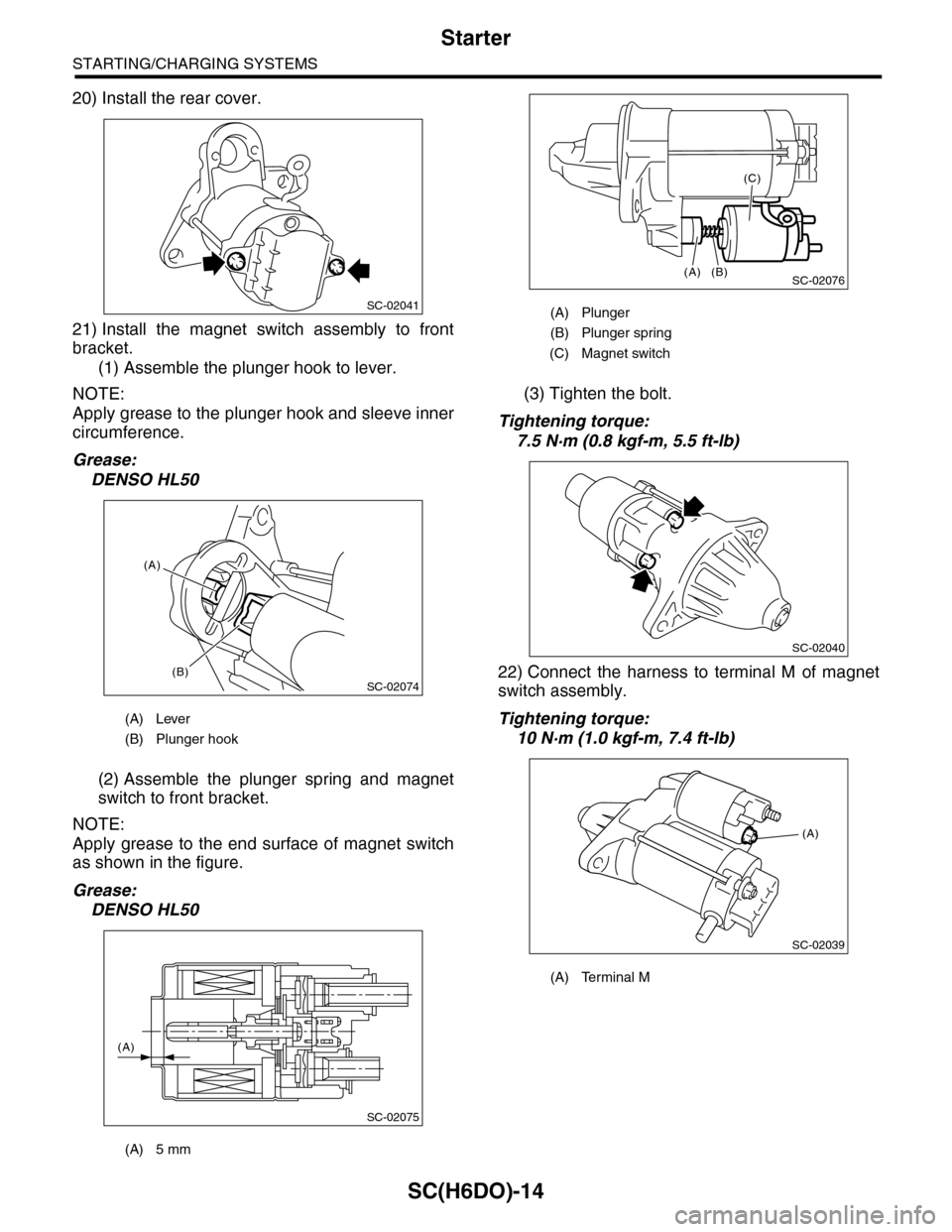

SC(H6DO)-14
Starter
STARTING/CHARGING SYSTEMS
20) Install the rear cover.
21) Install the magnet switch assembly to front
bracket.
(1) Assemble the plunger hook to lever.
NOTE:
Apply grease to the plunger hook and sleeve inner
circumference.
Grease:
DENSO HL50
(2) Assemble the plunger spring and magnet
switch to front bracket.
NOTE:
Apply grease to the end surface of magnet switch
as shown in the figure.
Grease:
DENSO HL50
(3) Tighten the bolt.
Tightening torque:
7.5 N·m (0.8 kgf-m, 5.5 ft-lb)
22) Connect the harness to terminal M of magnet
switch assembly.
Tightening torque:
10 N·m (1.0 kgf-m, 7.4 ft-lb)
(A) Lever
(B) Plunger hook
(A) 5 mm
SC-02041
SC-02074
(A)
(B)
SC-02075
(A)
(A) Plunger
(B) Plunger spring
(C) Magnet switch
(A) Terminal M
SC-02076
(C)
(B)(A)
SC-02040
(A)
SC-02039
Page 1973 of 2453

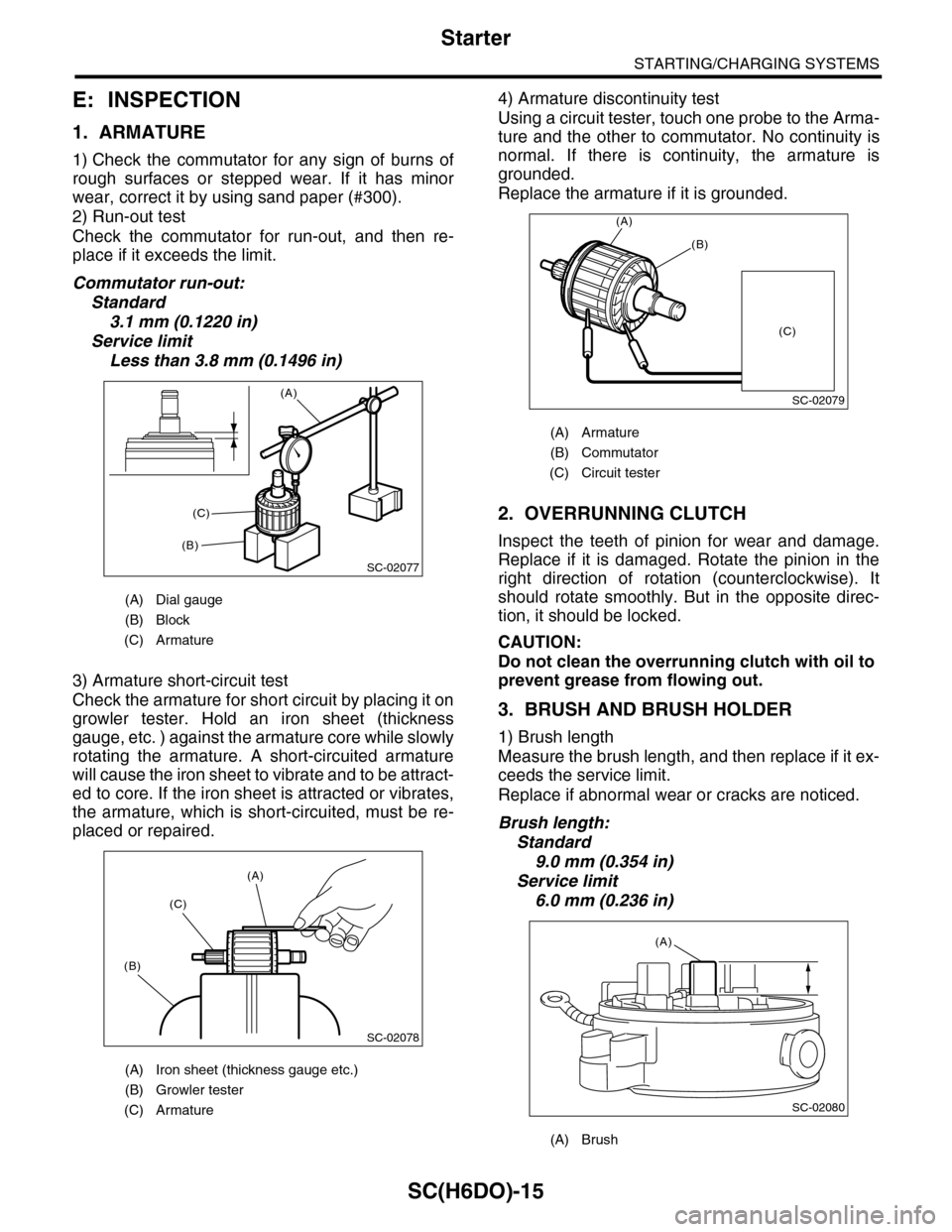

SC(H6DO)-15
Starter
STARTING/CHARGING SYSTEMS
E: INSPECTION
1. ARMATURE
1) Check the commutator for any sign of burns of
rough surfaces or stepped wear. If it has minor
wear, correct it by using sand paper (#300).
2) Run-out test
Check the commutator for run-out, and then re-
place if it exceeds the limit.
Commutator run-out:
Standard
3.1 mm (0.1220 in)
Service limit
Less than 3.8 mm (0.1496 in)
3) Armature short-circuit test
Check the armature for short circuit by placing it on
growler tester. Hold an iron sheet (thickness
gauge, etc. ) against the armature core while slowly
rotating the armature. A short-circuited armature
will cause the iron sheet to vibrate and to be attract-
ed to core. If the iron sheet is attracted or vibrates,
the armature, which is short-circuited, must be re-
placed or repaired.
4) Armature discontinuity test
Using a circuit tester, touch one probe to the Arma-
ture and the other to commutator. No continuity is
normal. If there is continuity, the armature is
grounded.
Replace the armature if it is grounded.
2. OVERRUNNING CLUTCH
Inspect the teeth of pinion for wear and damage.
Replace if it is damaged. Rotate the pinion in the
right direction of rotation (counterclockwise). It
should rotate smoothly. But in the opposite direc-
tion, it should be locked.
CAUTION:
Do not clean the overrunning clutch with oil to
prevent grease from flowing out.
3. BRUSH AND BRUSH HOLDER
1) Brush length
Measure the brush length, and then replace if it ex-
ceeds the service limit.
Replace if abnormal wear or cracks are noticed.
Brush length:
Standard
9.0 mm (0.354 in)
Service limit
6.0 mm (0.236 in)
(A) Dial gauge
(B) Block
(C) Armature
(A) Iron sheet (thickness gauge etc.)
(B) Growler tester
(C) Armature
SC-02077
(A)
(B)
(C)
SC-02078
(A)
(C)
(B)
(A) Armature
(B) Commutator
(C) Circuit tester
(A) Brush
SC-02079
(A)
(B)
(C)
SC-02080
(A)
Page 1974 of 2453

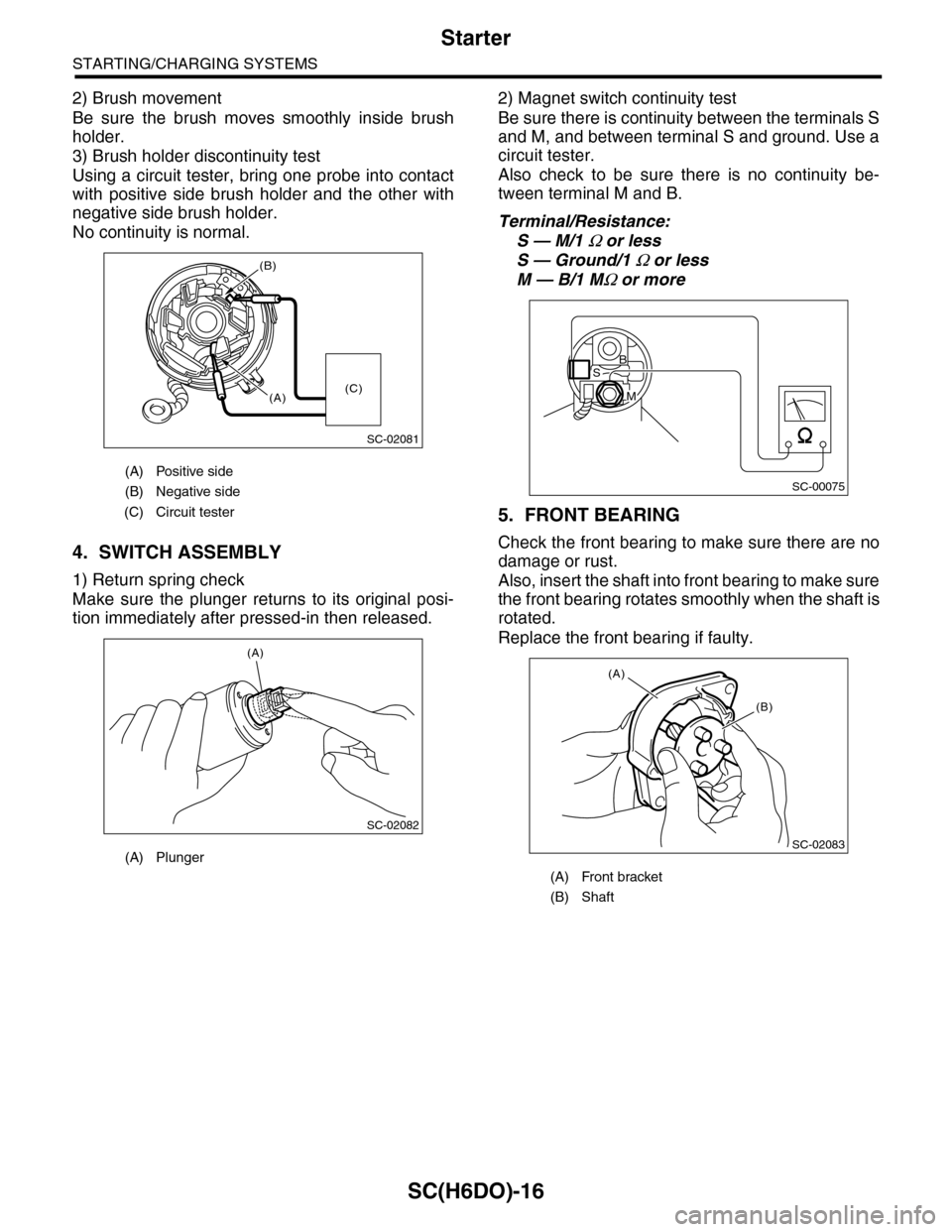

SC(H6DO)-16
Starter
STARTING/CHARGING SYSTEMS
2) Brush movement
Be sure the brush moves smoothly inside brush
holder.
3) Brush holder discontinuity test
Using a circuit tester, bring one probe into contact
with positive side brush holder and the other with
negative side brush holder.
No continuity is normal.
4. SWITCH ASSEMBLY
1) Return spring check
Make sure the plunger returns to its original posi-
tion immediately after pressed-in then released.
2) Magnet switch continuity test
Be sure there is continuity between the terminals S
and M, and between terminal S and ground. Use a
circuit tester.
Also check to be sure there is no continuity be-
tween terminal M and B.
Terminal/Resistance:
S — M/1 Ω or less
S — Ground/1 Ω or less
M — B/1 MΩ or more
5. FRONT BEARING
Check the front bearing to make sure there are no
damage or rust.
Also, insert the shaft into front bearing to make sure
the front bearing rotates smoothly when the shaft is
rotated.
Replace the front bearing if faulty.
(A) Positive side
(B) Negative side
(C) Circuit tester
(A) Plunger
SC-02081
(B)
(A)(C)
SC-02082
(A)
(A) Front bracket
(B) Shaft
SC-00075
B
M
S
SC-02083
(A)
(B)
Page 1975 of 2453

SC(H6DO)-17
Starter
STARTING/CHARGING SYSTEMS
6. SHOCK ABSORBER BEARING CLEAR-
ANCE
Measure the outside (A) diameter of sliding part for
shaft shock absorber bearing.
Then, measure the inside (B) diameter of shock ab-
sorber bearing, and calculate the clearance.
If it exceeds the service limit, replace the oilless
bearing or shaft.
Shock absorber bearing sliding part:
Standard
18 mm (0.709 in)
Clearance:
Standard
0.03 — 0.061 mm (0.001 — 0.0024 in)
Service limit
0.1 mm (0.003 in)
7. REAR BEARING
Check the rear bearing, and replace the rear bear-
ing if there are damage, lock or rust.
8. PLANETARY GEAR BUSHING
Measure the outer diameter (A) of pin which is
press-fitted into shaft.
Then, measure the inner diameter (B) of planetary
gear bushing, and calculate the clearance.
If it exceeds the service limit, replace the planetary
gear or shaft.
Clearance:
Standard
0.035 — 0.065 mm (0.001 — 0.0025 in)
Service limit
0.1 mm (0.003 in)
9. SWITCH ASSEMBLY OPERATION
NOTE:
Test period of each test must be within short time (3
— 5 seconds).
1) Vacuum test
Disconnect the harness from terminal M and con-
nect it as shown in the figure. Make sure the pinion
gear sticks out.
(A) Bearing
(B) End frame
SC-02084
(A)
(B)
SC-02085
(A)
(B)
(A) Terminal S
(B) Terminal M
SC-02097
(A)
(B)
SC-02086
(A)
(B)
Page 1976 of 2453

SC(H6DO)-18
Starter
STARTING/CHARGING SYSTEMS
2) Hold test
Make sure the pinion gear remains stick out even
after disconnecting terminal M in the above condi-
tion.
3) Return test
Connect the positive terminal to terminal S and the
negative terminal to terminal M and starter body to
pull the pinion gear at the main contact point. Make
sure the pinion gear returns to its original position
when the terminal S is disconnected.
10.PERFORMANCE TEST
The starter should be submitted to performance
tests whenever it has been overhauled, to assure
its satisfactory performance when installed on the
engine.
Three performance tests, no-load test, load test,
and lock test, are presented here; however, if the
load test and lock test cannot be performed, carry
out at least the no-load test.
For these performance tests, use the circuit shown
in figure.
1) No-load test
With switch on, adjust the variable resistance until
the voltage is 11 V, read the value of ammeter to
measure rotating speed. Compare these values
with the standard.
No-load test (standard):
Voltage/Current
Max. 11 V/90 A or less
Rotating speed
More than 1,720 rpm
2) Load test
Apply the specified braking torque to starter. The
condition is satisfactory if the current draw and ro-
tating speed are within specifications.
Load test (standard):
Voltage/Load
8 V/12.78 N·m (1.30 kgf-m, 9.4 ft-lb)
Current/Speed
370 A/850 rpm or more
3) Lock test
With the starter stalled, or not rotating, measure the
torque developed and current draw when the volt-
age is adjusted to standard voltage.
Lock test (standard):
Voltage/Current
3 V/900 A or less
Torque
15.42 N·m (1.57 kgf-m, 11.3 ft-lb)
(A) Terminal S
(B) Terminal M
(A) Terminal S
(B) Terminal M
SC-02087
(B)
(A)
SC-02088
(A)
(B)
(A) Variable resistance
(B) Starter body
(C) Magnetic switch
SC-00077
(A)(B)
(C)12V
+
AV
BS
M
