Page 1889 of 2453

ME(H6DO)-23
Ignition Timing
MECHANICAL
4. Ignition Timing
A: INSPECTION
CAUTION:
After warming-up, engine becomes very hot. Be
careful not to burn yourself at measurement.
1) Before checking the ignition timing, check the
following item:
(1) Check the air cleaner element is free from
clogging, spark plugs are in good condition, and
hoses are connected properly.
(2) Check the malfunction indicator light does
not illuminate.
2) Idle the engine.
3) Stop the engine, and turn the ignition switch to
OFF.
4) Insert the cartridge to Subaru Select Monitor.
5) Connect the Subaru Select Monitor to data link
connector.
6) Turn the ignition switch to ON and Subaru Select
Monitor switch to ON.
7) Select {Each System Check} in Main Menu.
8) Select {Engine} in Selection Menu.
9) Select {Current Data Display & Save} in Engine
Control System Diagnosis.
10) Select {Data Display} in Data Display Menu.
11) Start the engine and check the ignition timing at
idle speed.
Ignition timing [BTDC/rpm]:
15°±8°/650
If the timing is not correct, check the ignition control
system. Refer to Engine Control System.
EN(H6DO)(diag)-2, Basic Diagnostic Procedure.>
Page 1890 of 2453

ME(H6DO)-24
Intake Manifold Vacuum
MECHANICAL
5. Intake Manifold Vacuum
A: INSPECTION
1) Idle the engine.
2) Disconnect the brake vacuum hose from intake
manifold, and then install the vacuum gauge.
3) Keep the engine at idle speed and read the vac-
uum gauge indication.
By observing the gauge needle movement, internal
condition of the engine can be diagnosed as de-
scribed below.
Vacuum pressure (at idling, A/C OFF):
–60.0 kPa ( –450 mmHg, –17.72 inHg) or less
ME-02655
Diagnosis of engine condition by measurement of intake manifold vacuum
Va c u u m g a u g e i n d i c a t i o n Po s s i bl e e n g i n e c o n d i t i o n
1. Needle is steady but lower than normal position. This ten-
dency becomes more evident as engine temperature rises.
Air leakage around intake manifold gasket, disconnection or
damage of vacuum hose
2. Needle intermittently drops to position lower than normal
position.
Leakage around cylinder
3. Needle drops suddenly and intermittently from normal posi-
tion.
Sticky valve
4. When engine speed is gradually increased, needle begins to
vibrate rapidly at certain speed, and then vibration increases as
engine speed increases.
Weak or broken valve spr ings
5. Needle vibrates above and below normal position in narrow
range.
Defective ignition system or throttle chamber idle adjustment
Page 1891 of 2453
ME(H6DO)-25
Engine Oil Pressure
MECHANICAL
6. Engine Oil Pressure
A: INSPECTION
1) Remove the oil pressure switch from cylinder
block.
Pressure Switch.>
2) Connect the oil pressure gauge hose to cylinder
block.
3) Connect the ground cable to the battery.
4) Start the engine, and measure the oil pressure.
OIL PRESSURE (at oil temperature of 80°C
(176°F)):
Standard:
135 kPa (1.4 kgf/cm2, 20 psi) or more (at
600 rpm)
500 kPa (5.1 kgf/cm2, 73 psi) or more (at
5,000 rpm)
CAUTION:
•If the oil pressure is out of specification,
check oil pump, oil filter and lubrication line.
Diagnostics Table.>
•If the oil pressure warning light is turned ON
and oil pressure is in specification, replace the
oil pressure switch.
SPECTION, General Diagnostics Table.>
5) After measuring the oil pressure, install the oil
pressure switch.
LATION, Oil Pressure Switch.>
Tightening torque:
25 N·m (2.5 kgf-m, 18 ft-lb)
Page 1892 of 2453
ME(H6DO)-26
Fuel Pressure
MECHANICAL
7. Fuel Pressure
A: INSPECTION
WARNING:
Before removing the fuel pressure gauge, re-
lease the fuel pressure.
1) Release the fuel pressure.
PRESSURE, PROCEDURE, Fuel.>
2) Disconnect the fuel delivery hose and connect
fuel pressure gauge.
(1) Disconnect the fuel delivery hose using the
ST1.
ST1 42099AE000 CONNECTOR REMOVER
(2) Connect the fuel pressure meter using the
ST2 and ST3.
NOTE:
ST2 is a genuine Subaru part.
ST2 42075AG690 FUEL HOSE
ST3 18471AA000 FUEL PIPE ADAPTER
3) Install the fuse of fuel pump to main fuse box.
4) Start the engine.
5) Measure the fuel pressure after warming up the
engine.
Fuel pressure:
Standard: 338 — 348 kPa (3.4 — 3.5 kgf/cm2,
49 — 50.5 psi)
NOTE:
The fuel pressure gauge registers 10 to 20 kPa (0.1
to 0.2 kgf/cm2, 1 to 3 psi) higher than standard val-
ues during high-altitude operations.
(A) ST 2
(B) ST 3
ME-02666
(A)
(B)
FU-01122
Page 1893 of 2453

ME(H6DO)-27
Valve Clearance
MECHANICAL
8. Valve Clearance
A: INSPECTION
Inspection and adjustment of valve clearance
should be performed while engine is cold.
1) Set the vehicle on a lift.
2) Remove the collector cover.
3) Disconnect the ground cable from battery.
4) Lift-up the vehicle.
5) Remove the under cover.
6) Lower the vehicle.
7) When inspecting RH side cylinders:
(1) Remove the air intake duct and air cleaner
case.
take Duct.>
Air Cleaner Case.>
(2) Remove the fuel tank protector (RH).
(3) Disconnect the connector of oil pressure
switch.
(4) Remove the ignition coil.
IG(H6DO)-7, REMOVAL, Ignition Coil & Ignitor
Assembly.>
(5) Remove the rocker cover (RH).
8) When inspecting LH side cylinders:
(1) Disconnect the battery cable, and then re-
move the battery and battery carrier.
(2) Disconnect the PCV hose and blow-by hose
from rocker cover (LH).
(3) Remove the fuel pipe protector (LH).
(4) Remove the ignition coil.
IG(H6DO)-7, REMOVAL, Ignition Coil & Ignitor
Assembly.>
(5) Remove the rocker cover (LH).
9) Turn the crankshaft clockwise until the cam is
set to position shown in the figure.
FU-02119
ME-00460
(1) Valve clearance (Intake side)
(2) Valve clearance (Exhaust side)
(3) High lift cam
(4) Low lift cam
FU-02117
ME-02565
(4)(3)(3)(4)
(1)
(2)
(1)
(2)
(23 )(23 )
Page 1894 of 2453

ME(H6DO)-28
Valve Clearance
MECHANICAL
10) Measure the clearance of intake valve and ex-
haust valve using thickness gauge (A).
NOTE:
•Measure it within the range of ±30° from speci-
fied position shown in the figure.
•Measure it in low lift cam for intake side.
•Insert a thickness gauge in a direction as hori-
zontal as possible with respect to the valve lifter.
Valve clearance
Intake:
0.20 +0.04 –0.06 mm (0.0079 +0.0016 –0.0024 in)
Exhaust:
0.35±0.05 mm (0.0138±0.0020 in)
•If the measured value is not within specification,
take notes of the value in order to adjust the valve
clearance later on.
11) If necessary, adjust the valve clearance.
to ME(H6DO)-28, ADJUSTMENT, Valve Clear-
ance.>
12) Further turn the crank pulley clockwise and
then measure the valve clearances again.
13) After inspection, install the related parts in the
reverse order of removal.
B: ADJUSTMENT
1. INTAKE SIDE
CAUTION:
•Adjustment of valve clearance should be per-
formed while engine is cold.
•Do not wear gloves during removal and in-
stallation of valve lifter.
•Do not use the valve lifter which got high im-
pact due to drop etc.
•When installing the valve lifter, align the anti-
rotation of valve lifter with groove on cylinder
head, and then insert the valve lifter.
1) Measure all the valve clearances.
Clearance.>
NOTE:
Record each valve clearance after measurement.
2) Remove the camshaft.
REMOVAL, Camshaft.>
3) Remove the valve lifter.
4) Remove the shim from valve lifter.
5) Check the thickness of the shim from the mark-
ings on the side of the shim that was removed.
6) Select a shim of suitable thickness from the fol-
lowing table using the measured valve clearance
and shim thickness.
(A)
ME-00464
Unit: (mm)
S = (V + T) – 0.20
S: Required shim thickness
V: Measured valve clearance
T: Shim thickness to be used
Page 1895 of 2453

ME(H6DO)-29
Valve Clearance
MECHANICAL
2. EXHAUST SIDE
CAUTION:
•Adjustment of valve clearance should be per-
formed while engine is cold.
•Do not wear gloves during removal and in-
stallation of valve lifter.
•Do not use the valve lifter which got high im-
pact due to drop etc.
1) Measure all the valve clearances.
Clearance.>
NOTE:
Record each valve clearance after measurement.
2) Remove the camshaft.
REMOVAL, Camshaft.>
3) Remove the valve lifter.
4) Measure the thickness of valve lifter using mi-
crometer.
Par t No. Thickness mm (in)
13218AK890 1.92 (0.0756)
13218AK900 1.94 (0.0764)
13218AK910 1.96 (0.0772)
13218AK920 1.98 (0.0780)
13218AK930 2.00 (0.0787)
13218AK940 2.02 (0.0795)
13218AK950 2.04 (0.0803)
13218AK960 2.06 (0.0811)
13218AK970 2.07 (0.0815)
13218AK980 2.08 (0.0819)
13218AK990 2.09 (0.0823)
13218AL000 2.10 (0.0827)
13218AL010 2.11 (0.0831)
13218AL020 2.12 (0.0835)
13218AL030 2.13 (0.0839)
13218AL040 2.14 (0.0843)
13218AL050 2.15 (0.0846)
13218AL060 2.16 (0.0850)
13218AL070 2.17 (0.0854)
13218AL080 2.18 (0.0858)
13218AL090 2.19 (0.0862)
13218AL100 2.20 (0.0866)
13218AL110 2.21 (0.0870)
13218AL120 2.22 (0.0874)
13218AL130 2.23 (0.0878)
13218AL140 2.24 (0.0882)
13218AL150 2.25 (0.0886)
13218AL160 2.26 (0.0890)
13218AL170 2.27 (0.0894)
13218AL180 2.28 (0.0898)
13218AL190 2.29 (0.0902)
13218AL200 2.30 (0.0906)
13218AL210 2.31 (0.0909)
13218AL220 2.32 (0.0913)
13218AL230 2.33 (0.0917)
13218AL240 2.34 (0.0921)
13218AL250 2.35 (0.0925)
13218AL260 2.36 (0.0929)
13218AL270 2.37 (0.0933)
13218AL280 2.38 (0.0937)
13218AL290 2.39 (0.0941)
13218AL300 2.40 (0.0945)
13218AL310 2.41 (0.0949)
13218AL320 2.42 (0.0953)
13218AL330 2.43 (0.0957)
13218AL340 2.44 (0.0961)
13218AL350 2.45 (0.0965)
13218AL360 2.46 (0.0969)
13218AL370 2.47 (0.0972)
13218AL380 2.48 (0.0976)
13218AL390 2.49 (0.0980)
13218AL400 2.50 (0.0984)
13218AL410 2.51 (0.0988)
13218AL420 2.52 (0.0992)
13218AL430 2.53 (0.0996)
13218AL440 2.54 (0.1000)
13218AL450 2.55 (0.1004)
13218AL460 2.56 (0.1008)
13218AL470 2.57 (0.1012)
13218AL480 2.58 (0.1016)
13218AL490 2.59 (0.1020)
13218AL500 2.60 (0.1024)
13218AL510 2.61 (0.1028)
13218AL520 2.62 (0.1032)
13218AL530 2.64 (0.1039)
13218AL540 2.66 (0.1047)
13218AL550 2.68 (0.1055)
13218AL560 2.70 (0.1063)
13218AL570 2.72 (0.1071)
13218AL580 2.74 (0.1079)
13218AL590 2.76 (0.1087)
Par t No. Thickness mm (in)
ME-00025
Page 1896 of 2453

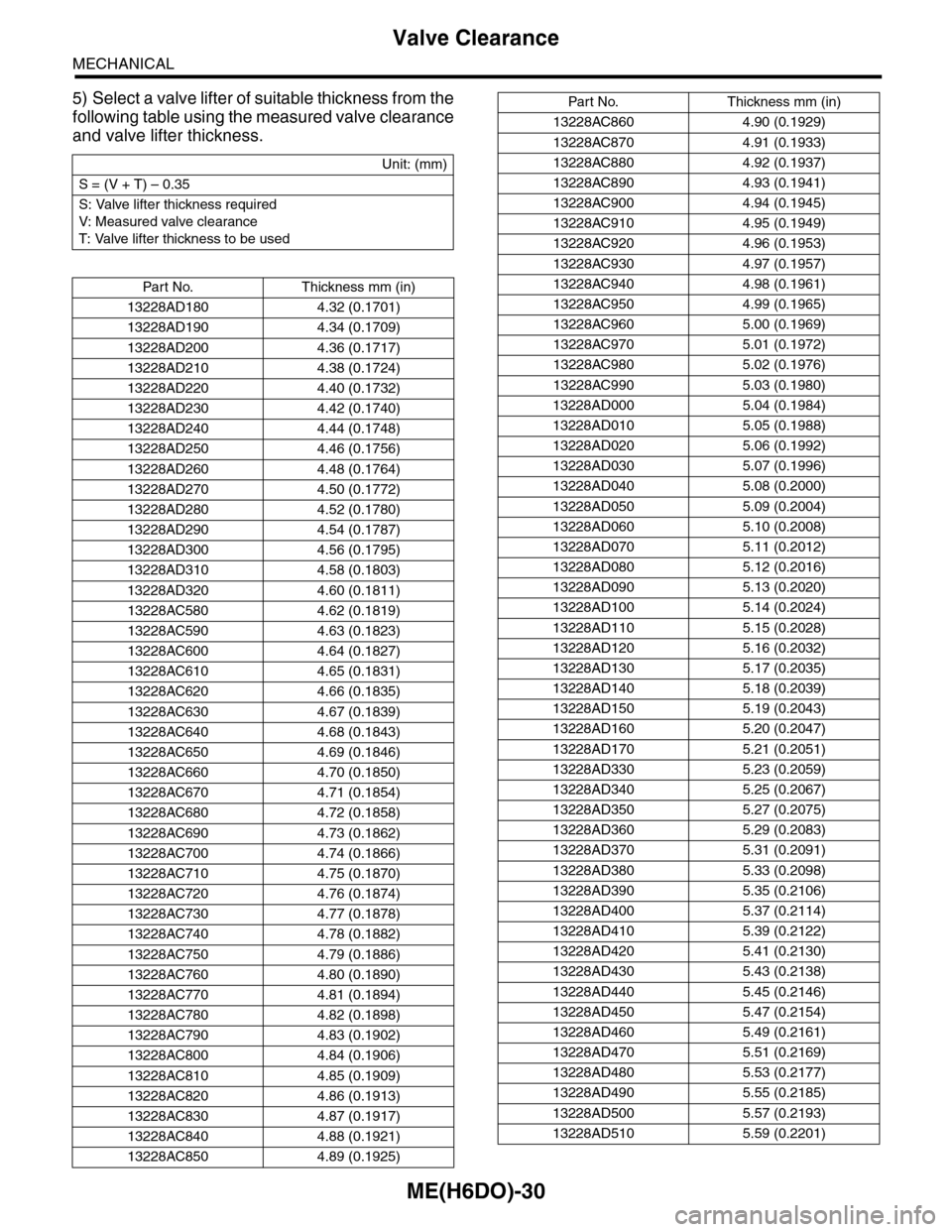

ME(H6DO)-30
Valve Clearance
MECHANICAL
5) Select a valve lifter of suitable thickness from the
following table using the measured valve clearance
and valve lifter thickness.
Unit: (mm)
S = (V + T) – 0.35
S: Valve lifter thickness required
V: Measured valve clearance
T: Valve lifter thickness to be used
Par t No. Thickness mm (in)
13228AD180 4.32 (0.1701)
13228AD190 4.34 (0.1709)
13228AD200 4.36 (0.1717)
13228AD210 4.38 (0.1724)
13228AD220 4.40 (0.1732)
13228AD230 4.42 (0.1740)
13228AD240 4.44 (0.1748)
13228AD250 4.46 (0.1756)
13228AD260 4.48 (0.1764)
13228AD270 4.50 (0.1772)
13228AD280 4.52 (0.1780)
13228AD290 4.54 (0.1787)
13228AD300 4.56 (0.1795)
13228AD310 4.58 (0.1803)
13228AD320 4.60 (0.1811)
13228AC580 4.62 (0.1819)
13228AC590 4.63 (0.1823)
13228AC600 4.64 (0.1827)
13228AC610 4.65 (0.1831)
13228AC620 4.66 (0.1835)
13228AC630 4.67 (0.1839)
13228AC640 4.68 (0.1843)
13228AC650 4.69 (0.1846)
13228AC660 4.70 (0.1850)
13228AC670 4.71 (0.1854)
13228AC680 4.72 (0.1858)
13228AC690 4.73 (0.1862)
13228AC700 4.74 (0.1866)
13228AC710 4.75 (0.1870)
13228AC720 4.76 (0.1874)
13228AC730 4.77 (0.1878)
13228AC740 4.78 (0.1882)
13228AC750 4.79 (0.1886)
13228AC760 4.80 (0.1890)
13228AC770 4.81 (0.1894)
13228AC780 4.82 (0.1898)
13228AC790 4.83 (0.1902)
13228AC800 4.84 (0.1906)
13228AC810 4.85 (0.1909)
13228AC820 4.86 (0.1913)
13228AC830 4.87 (0.1917)
13228AC840 4.88 (0.1921)
13228AC850 4.89 (0.1925)
13228AC860 4.90 (0.1929)
13228AC870 4.91 (0.1933)
13228AC880 4.92 (0.1937)
13228AC890 4.93 (0.1941)
13228AC900 4.94 (0.1945)
13228AC910 4.95 (0.1949)
13228AC920 4.96 (0.1953)
13228AC930 4.97 (0.1957)
13228AC940 4.98 (0.1961)
13228AC950 4.99 (0.1965)
13228AC960 5.00 (0.1969)
13228AC970 5.01 (0.1972)
13228AC980 5.02 (0.1976)
13228AC990 5.03 (0.1980)
13228AD000 5.04 (0.1984)
13228AD010 5.05 (0.1988)
13228AD020 5.06 (0.1992)
13228AD030 5.07 (0.1996)
13228AD040 5.08 (0.2000)
13228AD050 5.09 (0.2004)
13228AD060 5.10 (0.2008)
13228AD070 5.11 (0.2012)
13228AD080 5.12 (0.2016)
13228AD090 5.13 (0.2020)
13228AD100 5.14 (0.2024)
13228AD110 5.15 (0.2028)
13228AD120 5.16 (0.2032)
13228AD130 5.17 (0.2035)
13228AD140 5.18 (0.2039)
13228AD150 5.19 (0.2043)
13228AD160 5.20 (0.2047)
13228AD170 5.21 (0.2051)
13228AD330 5.23 (0.2059)
13228AD340 5.25 (0.2067)
13228AD350 5.27 (0.2075)
13228AD360 5.29 (0.2083)
13228AD370 5.31 (0.2091)
13228AD380 5.33 (0.2098)
13228AD390 5.35 (0.2106)
13228AD400 5.37 (0.2114)
13228AD410 5.39 (0.2122)
13228AD420 5.41 (0.2130)
13228AD430 5.43 (0.2138)
13228AD440 5.45 (0.2146)
13228AD450 5.47 (0.2154)
13228AD460 5.49 (0.2161)
13228AD470 5.51 (0.2169)
13228AD480 5.53 (0.2177)
13228AD490 5.55 (0.2185)
13228AD500 5.57 (0.2193)
13228AD510 5.59 (0.2201)
Par t No. Thickness mm (in)
