Page 249 of 2453

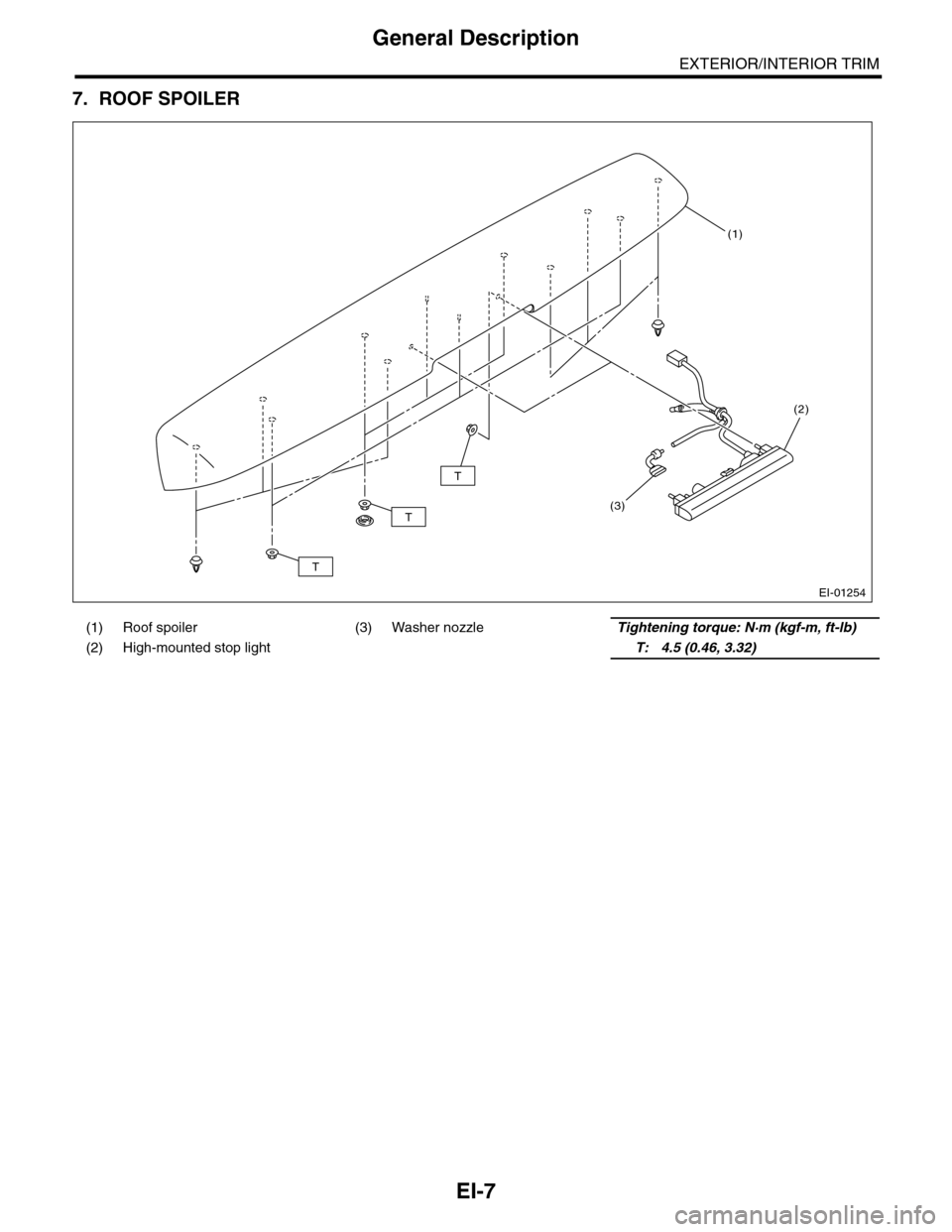

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-7 General Description EXTERIOR/INTERIOR TRIM 7. ROOF SPOILER (1) Roof spoiler (3) Washer nozzleTightening torque: N·m (kgf-m, ft-lb) (2) High-mounted stop light T: 4.5 (0.46, 3.32) EI-01254 T T

Page 250 of 2453

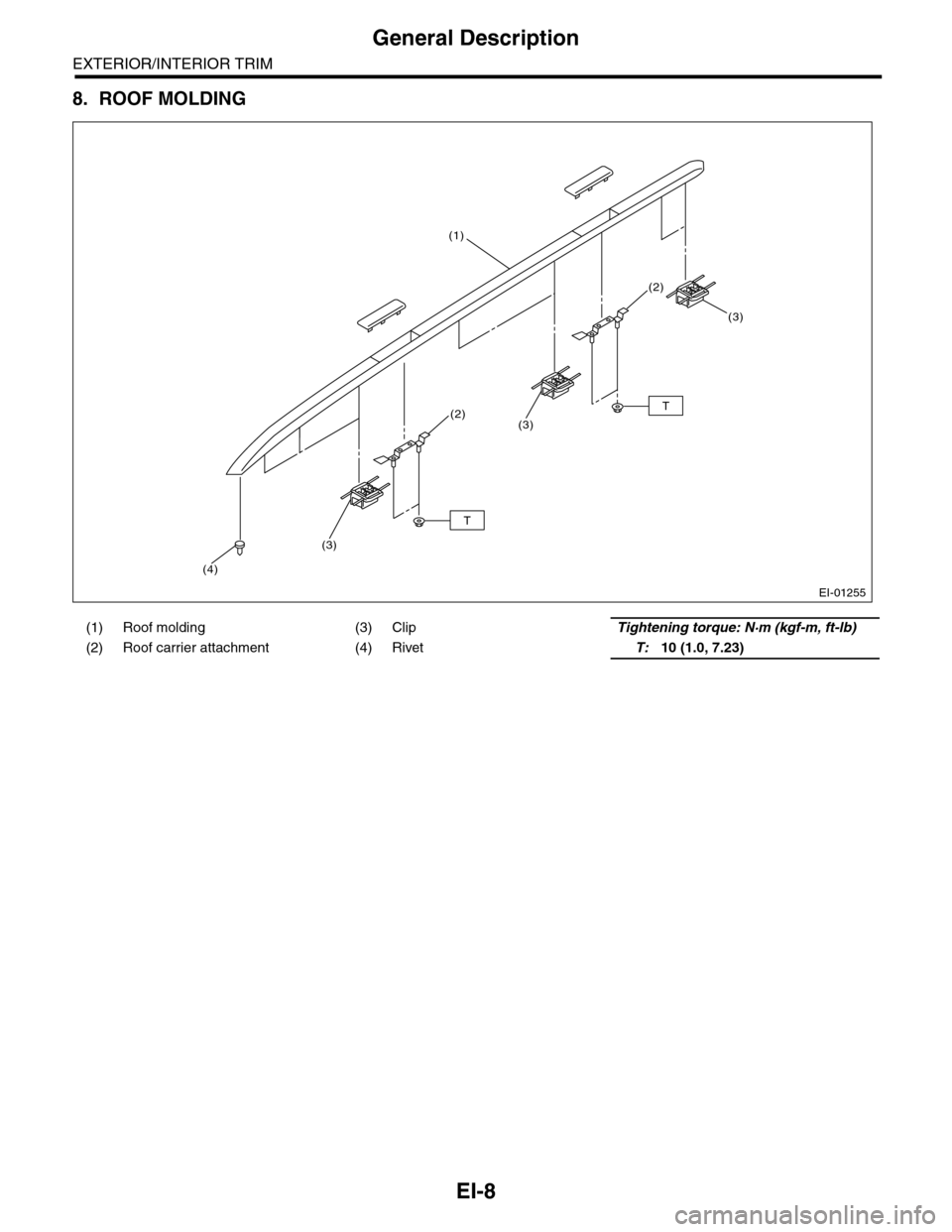

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-8 General Description EXTERIOR/INTERIOR TRIM 8. ROOF MOLDING (1) Roof molding (3) ClipTightening torque: N·m (kgf-m, ft-lb) (2) Roof carrier attachment (4) RivetT:10 (1.0, 7.23) EI-01255 T T(2) (3

Page 251 of 2453

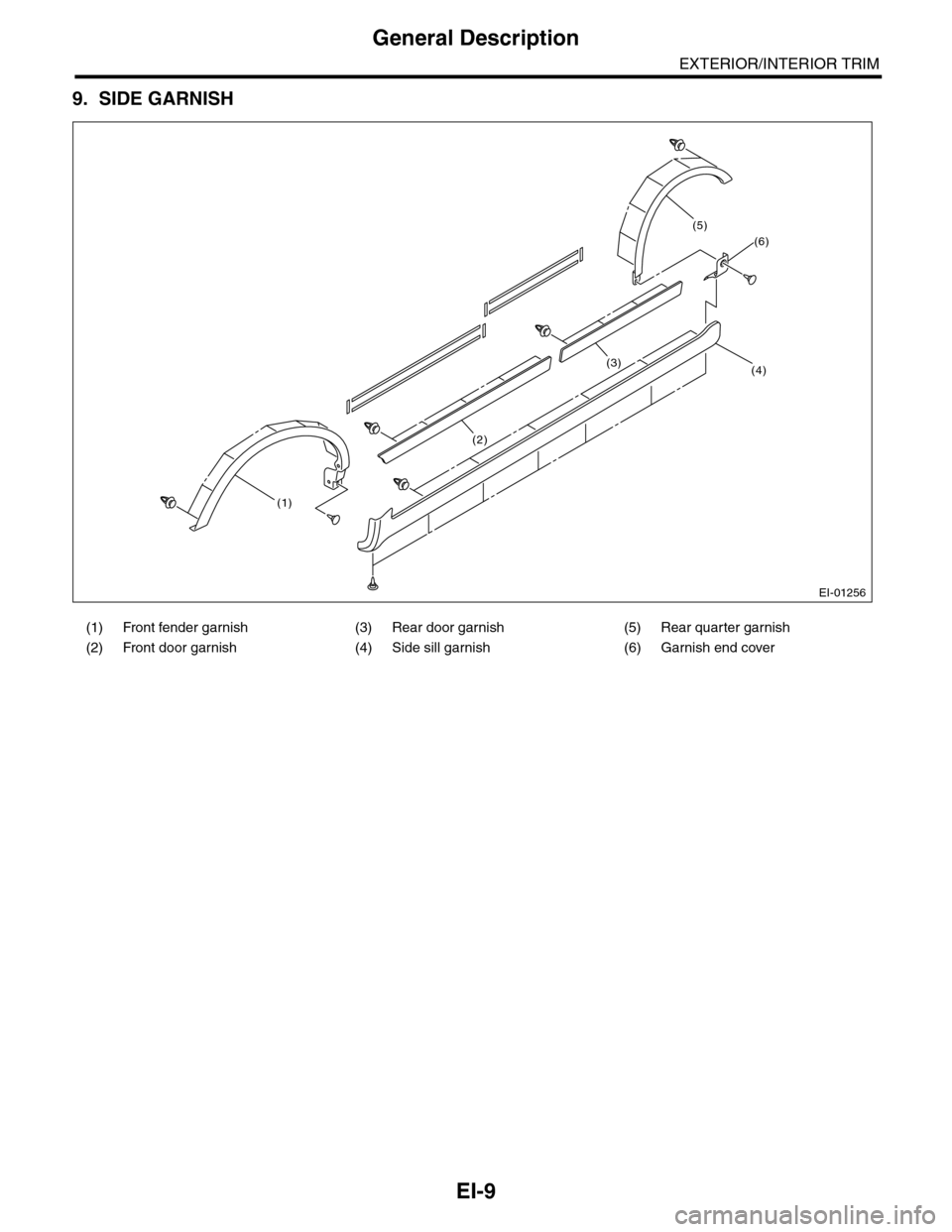

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-9 General Description EXTERIOR/INTERIOR TRIM 9. SIDE GARNISH (1) Front fender garnish (3) Rear door garnish (5) Rear quarter garnish (2) Front door garnish (4) Side sill garnish (6) Garnish end cov

Page 252 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-10 General Description EXTERIOR/INTERIOR TRIM 10.DOOR TRIM (1) Front door trim (3) Power window switch ASSY (4) Gusset cover (2) Rear door trim EI-01257 (1) (2) (4) (3) (3) (4)

Page 253 of 2453

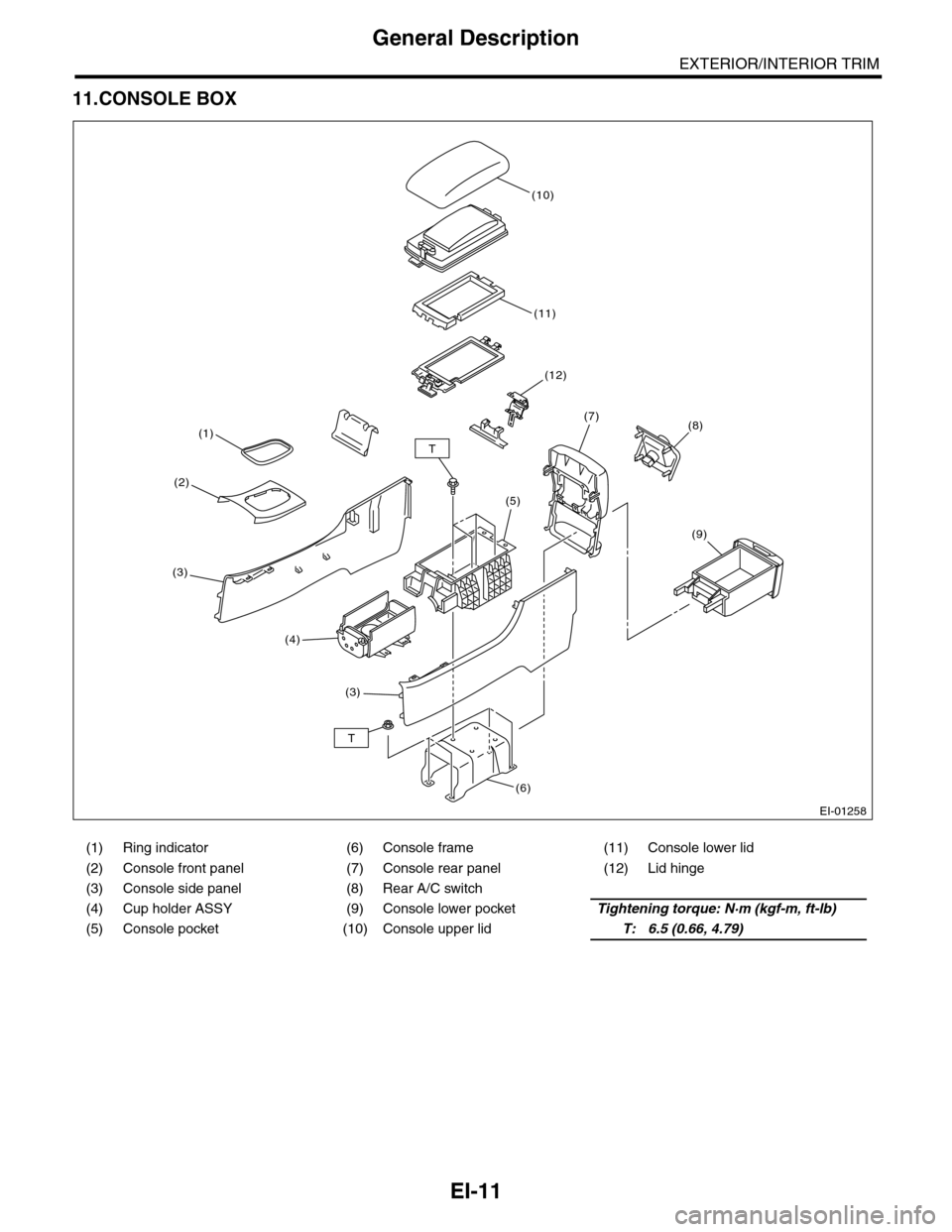

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-11 General Description EXTERIOR/INTERIOR TRIM 11.CONSOLE BOX (1) Ring indicator (6) Console frame (11) Console lower lid (2) Console front panel (7) Console rear panel (12) Lid hinge (3) Console si

Page 254 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-12 General Description EXTERIOR/INTERIOR TRIM 12.INSTRUMENT PANEL (1) Instrument panel upper ASSY (9) Instrument panel lower cover upper (15) Console side panel upper RH (2) Meter visor (16) Con

Page 255 of 2453

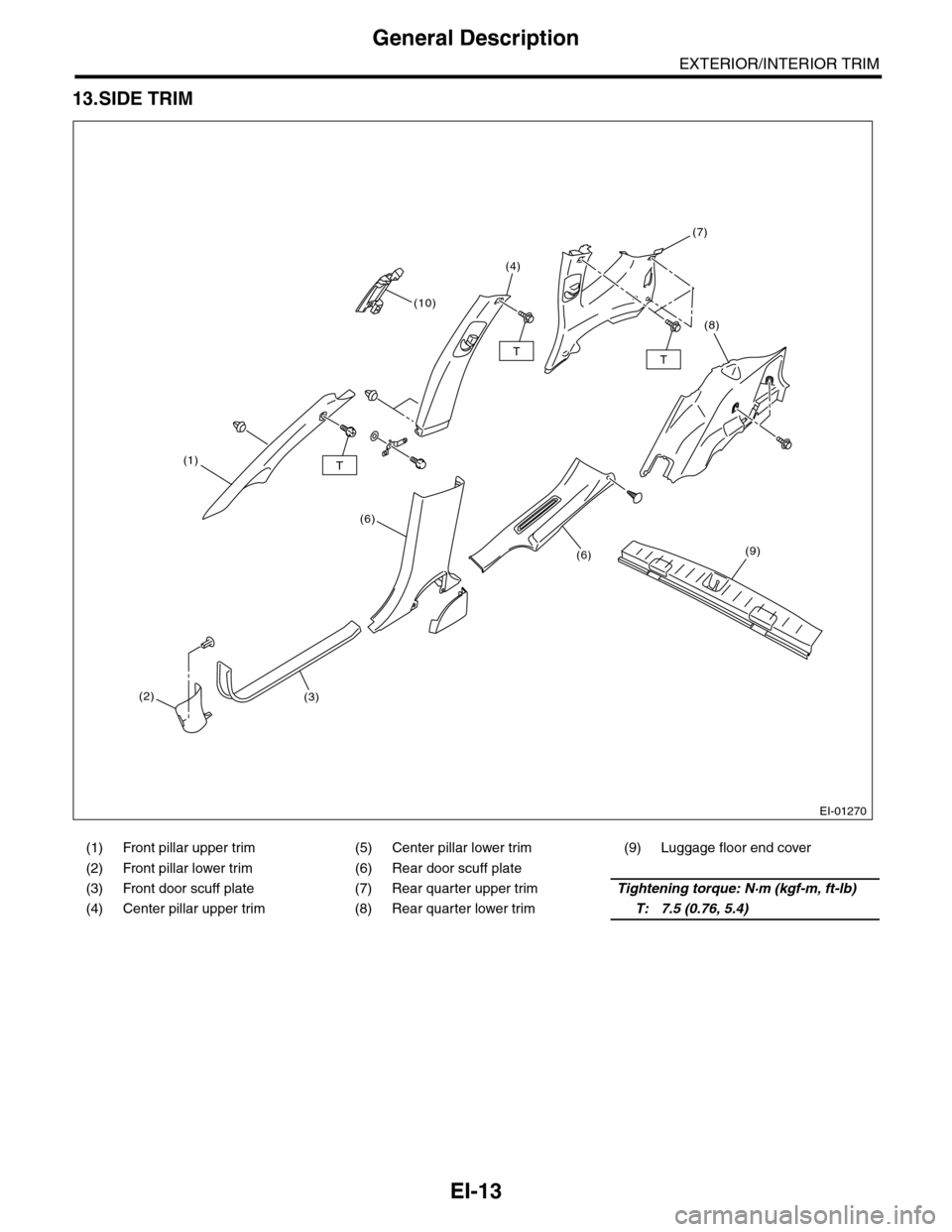

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-13 General Description EXTERIOR/INTERIOR TRIM 13.SIDE TRIM (1) Front pillar upper trim (5) Center pillar lower trim (9) Luggage floor end cover (2) Front pillar lower trim (6) Rear door scuff plate

Page 256 of 2453

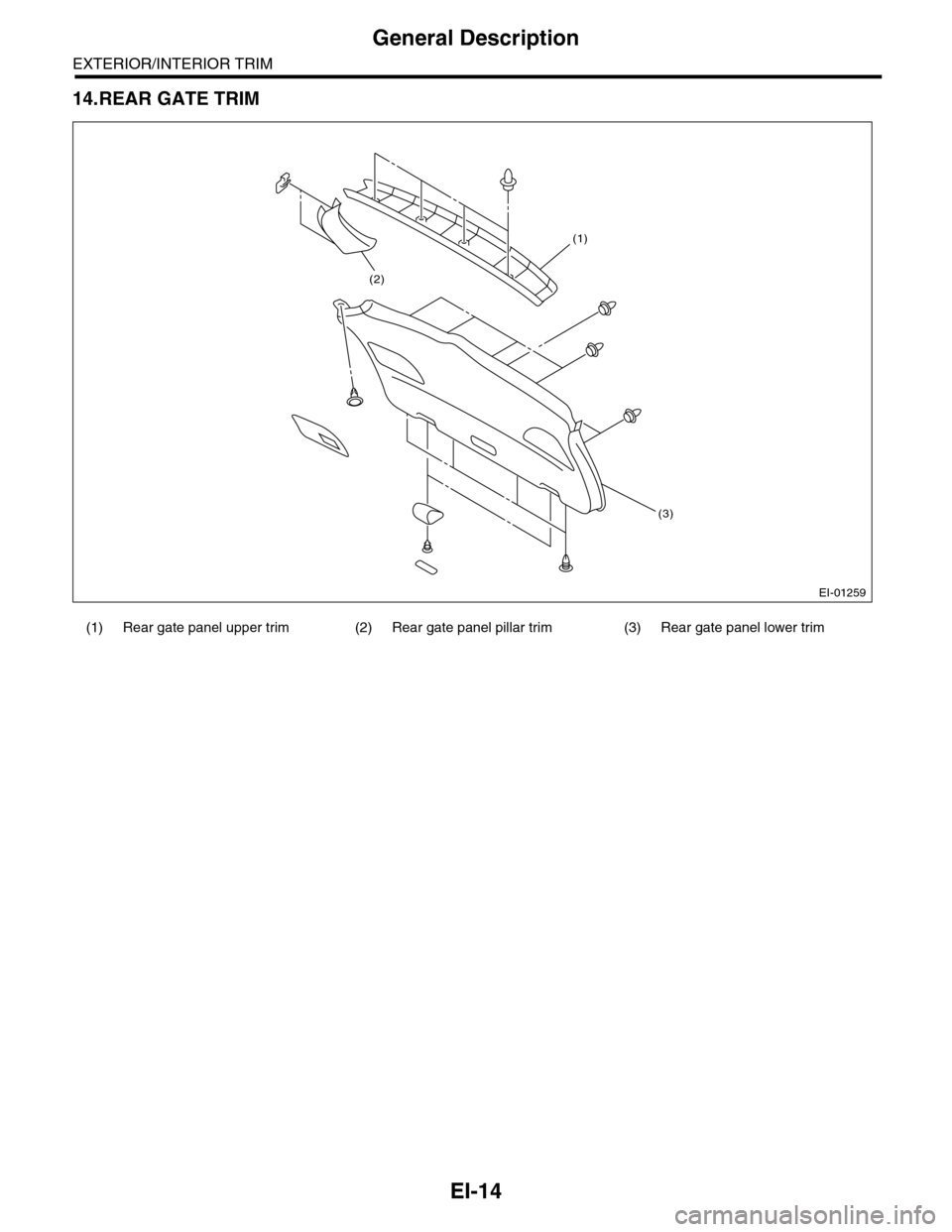

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-14 General Description EXTERIOR/INTERIOR TRIM 14.REAR GATE TRIM (1) Rear gate panel upper trim (2) Rear gate panel pillar trim (3) Rear gate panel lower trim EI-01259 (2) (1) (3)
