Front Hood Lock Assembly
SECURITY AND LOCKS
15.Front Hood Lock Assembly
A: REMOVAL
1) Open the front hood.
2) Remove the engine front cover.
3) Remove the bolts, and then detach the front
hood lock assembly.
4) Remove the cable from lock assembly.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
•Apply grease to the movable part.
•Make sure the cable works correctly after instal-
lation.
C: ADJUSTMENT
Loosen the bolt, and adjust the lock assembly while
moving it up and down.
D: INSPECTION
1) Check the striker for deformation or abnormal
wear.
2) Check the safety lever for improper movement.
3) Check other levers and springs for rust formation
or unsmooth movement.
SL-00450
SL-00451
Page 674 of 2453

SL-45

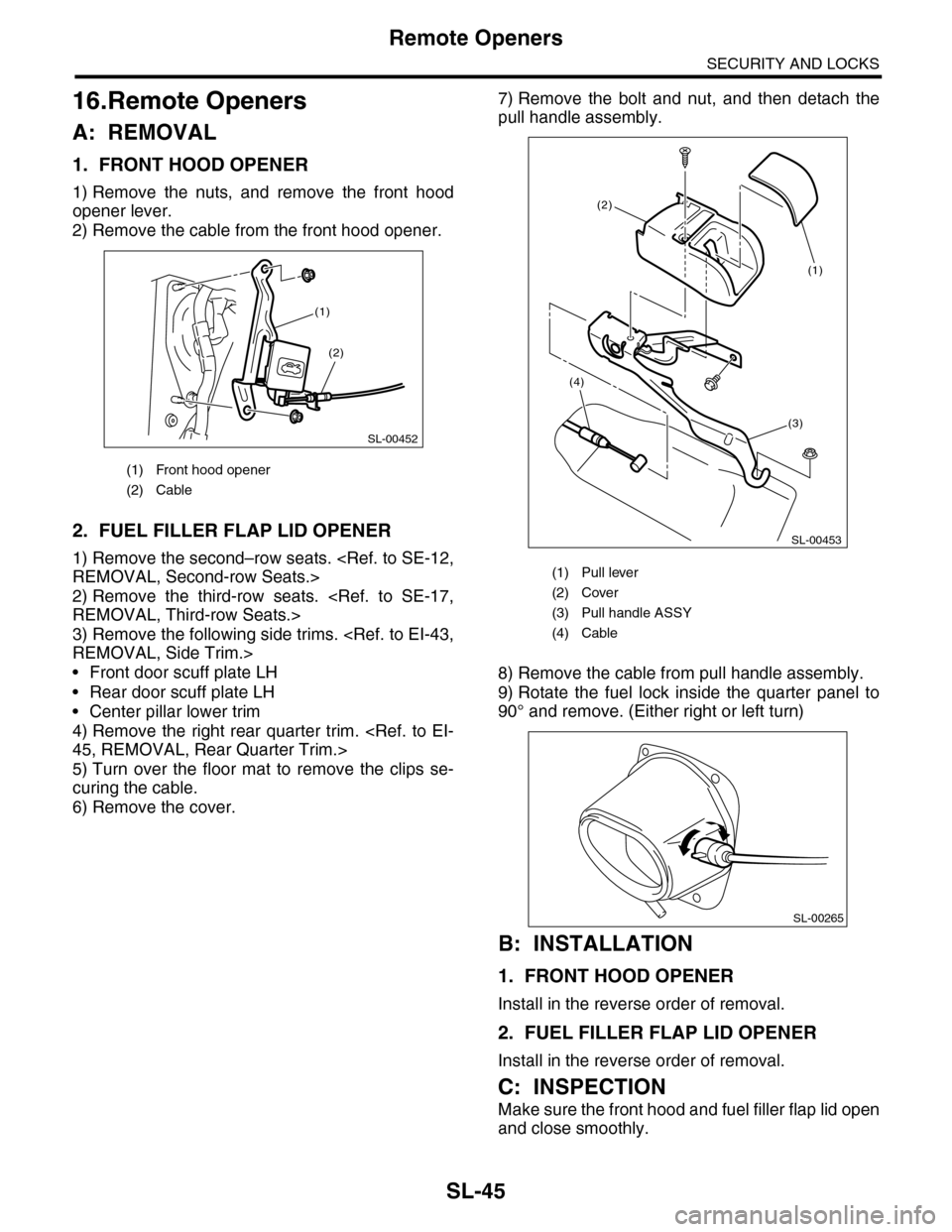

Remote Openers
SECURITY AND LOCKS
16.Remote Openers
A: REMOVAL
1. FRONT HOOD OPENER
1) Remove the nuts, and remove the front hood
opener lever.
2) Remove the cable from the front hood opener.
2. FUEL FILLER FLAP LID OPENER
1) Remove the second–row seats.
REMOVAL, Second-row Seats.>
2) Remove the third-row seats.
REMOVAL, Third-row Seats.>
3) Remove the following side trims.
REMOVAL, Side Trim.>
•Front door scuff plate LH
•Rear door scuff plate LH
•Center pillar lower trim
4) Remove the right rear quarter trim.
45, REMOVAL, Rear Quarter Trim.>
5) Turn over the floor mat to remove the clips se-
curing the cable.
6) Remove the cover.
7) Remove the bolt and nut, and then detach the
pull handle assembly.
8) Remove the cable from pull handle assembly.
9) Rotate the fuel lock inside the quarter panel to
90° and remove. (Either right or left turn)
B: INSTALLATION
1. FRONT HOOD OPENER
Install in the reverse order of removal.
2. FUEL FILLER FLAP LID OPENER
Install in the reverse order of removal.
C: INSPECTION
Make sure the front hood and fuel filler flap lid open
and close smoothly.
(1) Front hood opener
(2) Cable
SL-00452
(2)
(1)
(1) Pull lever
(2) Cover
(3) Pull handle ASSY
(4) Cable
SL-00453
(3)
(2)
(4)
(1)
SL-00265
Page 675 of 2453
SL-46
Ignition Key Lock
SECURITY AND LOCKS
17.Ignition Key Lock
A: REPLACEMENT
1) Disconnect the ground cable from battery.
2) Remove the steering column.
REMOVAL, Tilt Steering Column.>
3) Secure the steering column in a vise. Remove
the bolt with a drill.
4) Remove the ignition key lock.
5) Using a new bolt, tighten the bolts all the way.
B: INSPECTION
1) Remove the instrument panel lower panel.
2) Remove the lower column cover.
3) Unfasten the fixing clip which secures harness,
and then disconnect the connector of the ignition
switch from body harness.
4) Turn the ignition key plate to each position and
check the continuity between terminals of ignition
connector.
If NG, replace the ignition switch.
SL-00024
SL-00025
Switch position Terminal No. Standard
LOCK — —
ACC No. 3 and No. 4 Less than 1 Ω
ON
No. 3, No. 1 and
No. 4
No. 3 and No. 6
Less than 1 Ω
ST
No. 3 and No. 1
No. 3, No. 2 and
No. 6
Less than 1 Ω
SL-00266
13
456
2
Page 676 of 2453
SL-47
Key Lock Cylinders
SECURITY AND LOCKS
18.Key Lock Cylinders
A: REPLACEMENT
1) Raise the front door glass to the top position.
2) Remove the door trim.
AL, Door Trim.>
3) Remove the sealing cover.
4) Remove the plug at the rear end of the panel.
5) Loosen bolt (1) to remove the rod clamp.
6) Remove the key cylinder all together with the
handle cover.
7) Remove the key cylinder from cover, and re-
place the key cylinder.
(1) Latch connection rod
(2) Key cylinder
(3) Door outer handle cover
SL-00454
(1)
(1)
SL-00455
(1)
(2)(3)
Page 677 of 2453
SL-48
Security Control Unit
SECURITY AND LOCKS

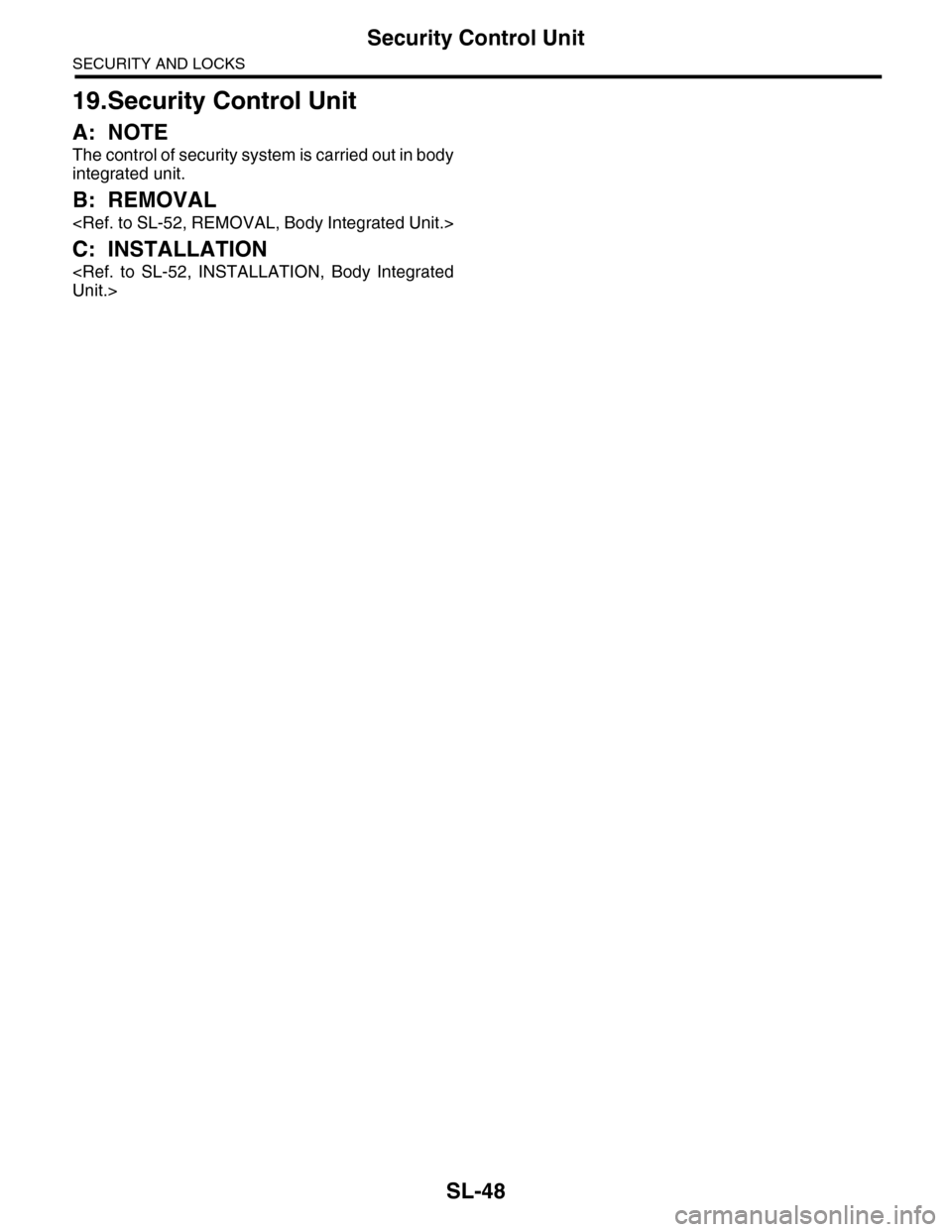

19.Security Control Unit
A: NOTE
The control of security system is carried out in body
integrated unit.
B: REMOVAL
C: INSTALLATION
Unit.>
Page 678 of 2453

SL-49
Impact Sensor
SECURITY AND LOCKS
20.Impact Sensor
A: REMOVAL
1) Remove the key from ignition switch.
2) Close all doors and the rear gate.
3) Press the UNLOCK button of the keyless trans-
mitter.
4) Change the setting of impact sensor using Sub-
aru Select Monitor.
5) Disconnect the ground cable from battery.
6) Remove the impact sensor.
B: INSTALLATION
1) Remove the key from ignition switch.
2) Close all doors and the rear gate.
3) Press the UNLOCK button of the keyless trans-
mitter.
4) Disconnect the ground cable from battery.
5) Install the impact sensor.
6) Connect the ground cable to the battery.
7) Change the setting of impact sensor using Sub-
aru Select Monitor.
C: OPERATION
1. IMPACT SENSOR SETTING USING SUB-
ARU SELECT MONITOR
1) Connect the Subaru Select Monitor to data link
connector.
2) Turn the ignition switch to ON.
3) Select {Integ. unit} from main menu.
4) Select {ECU customizing}.
5) Make a impact monitor setting.
•When installing: ON
•When removing: OFF
6) Make a impact monitor ON/OFF setting.
•When installing: ON
•When removing: OFF
7) Turn the ignition switch to OFF, and then remove
the Subaru Select Monitor.
D: ADJUSTMENT
1. CHECK IMPACT SENSOR
1) Remove the key from ignition switch.
2) Close all windows.
3) Close all doors and the rear gate. Leave open
the front hood.
4) Press the LOCK button of the keyless transmit-
ter from outside of vehicle.
5) Check that the security indicator light blinks
twice within 0.5 seconds in 2 seconds cycle after 30
seconds.
6) Hit the windshield with your palm continuously
and check the security alarm operates. Lift up the
front hood approx. 12 cm (4.7 in) or more, and then
drop it off to check the operation of security alarm.
7) If NG, adjust the impact sensitivity.
2. IMPACT SENSITIVITY ADJUSTMENT
1) Connect the Subaru Select Monitor to data link
connector.
2) Turn the ignition switch to ON.
3) Select {Impact Sensor} from the main menu.
4) Make a {ECU customizing}.
•Sensitivity can be adjusted in 11 levels (0 to 10).
•Initial setting is 5.
•Smaller number means more sensitive.
•Larger number means less sensitive.
5) Turn the ignition switch to OFF, and then remove
the Subaru Select Monitor.
NOTE:
•Set the sensor so as not to let the alarm on nor-
mal vibration (reclining to the door, hit the ball and
etc.).
•Set the sensor to operate the alarm with hitting
the door or window glass, etc. continuously like a
mayhem by robbery.
•Ask the customer about parking situation for set-
ting, because the alarm operate when the vibration
not only the burglar but also the construction etc.
Page 679 of 2453
SL-50
Keyless Entry Control Module
SECURITY AND LOCKS
21.Keyless Entry Control Module
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the glove box.
AL, Glove Box.>
3) Remove the nut, then disconnect the connector
to remove the keyless entry control module.
B: INSTALLATION
Install in the reverse order of removal.
SL-00456
Page 680 of 2453
SL-51
Keyless Buzzer
SECURITY AND LOCKS
22.Keyless Buzzer
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the keyless buzzer installed to the
backside of radiator bracket.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Install the keyless buzzer to another vehicle which
operates keyless buzzer normally, check the buzz-
er sounds. If NG, replace the keyless buzzer.
