Page 601 of 2453

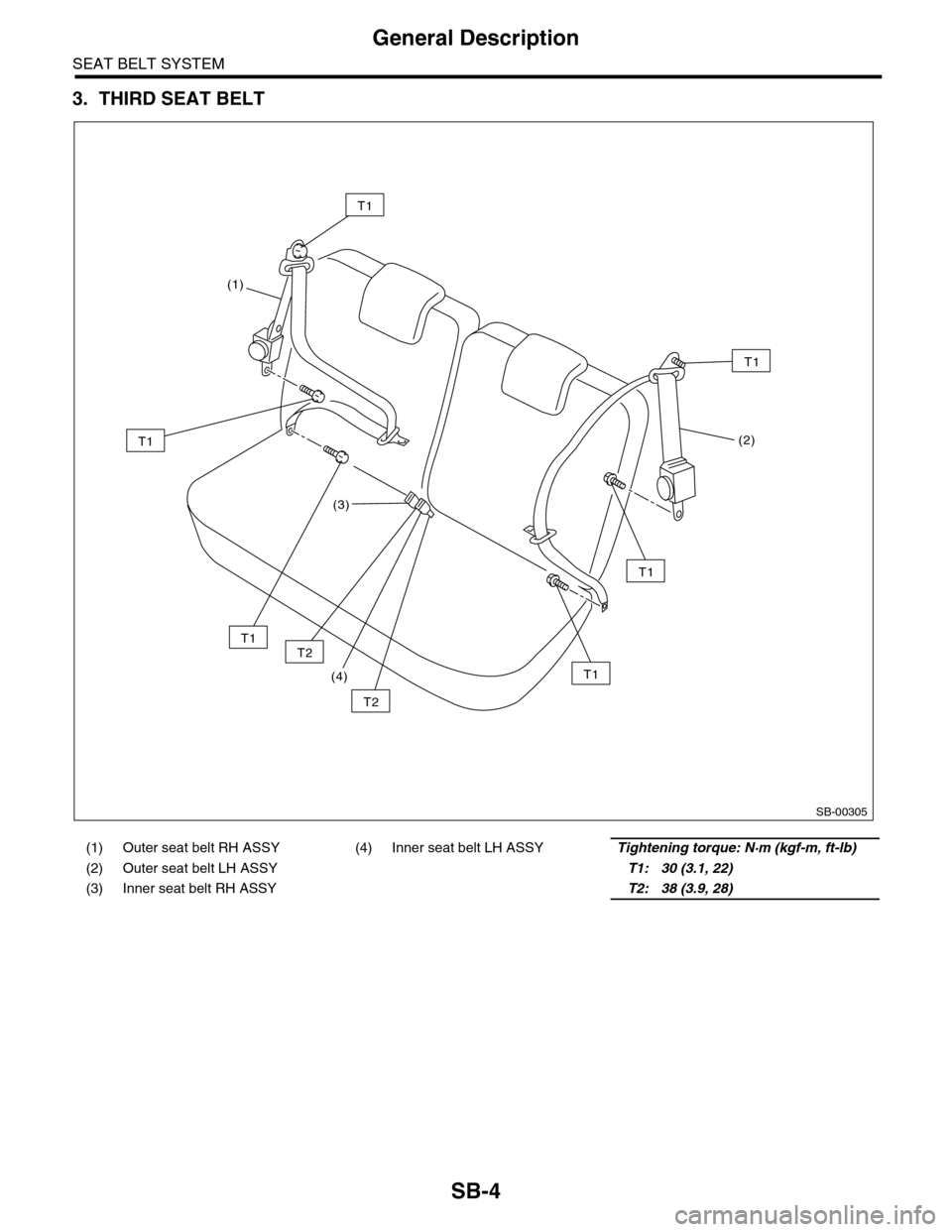

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-4
General Description
SEAT BELT SYSTEM
3. THIRD SEAT BELT
(1) Outer seat belt RH ASSY (4) Inner seat belt LH ASSYTightening torque: N·m (kgf-m, ft-lb)
(2) Outer seat belt LH ASSY T1: 30 (3.1, 2

Page 602 of 2453

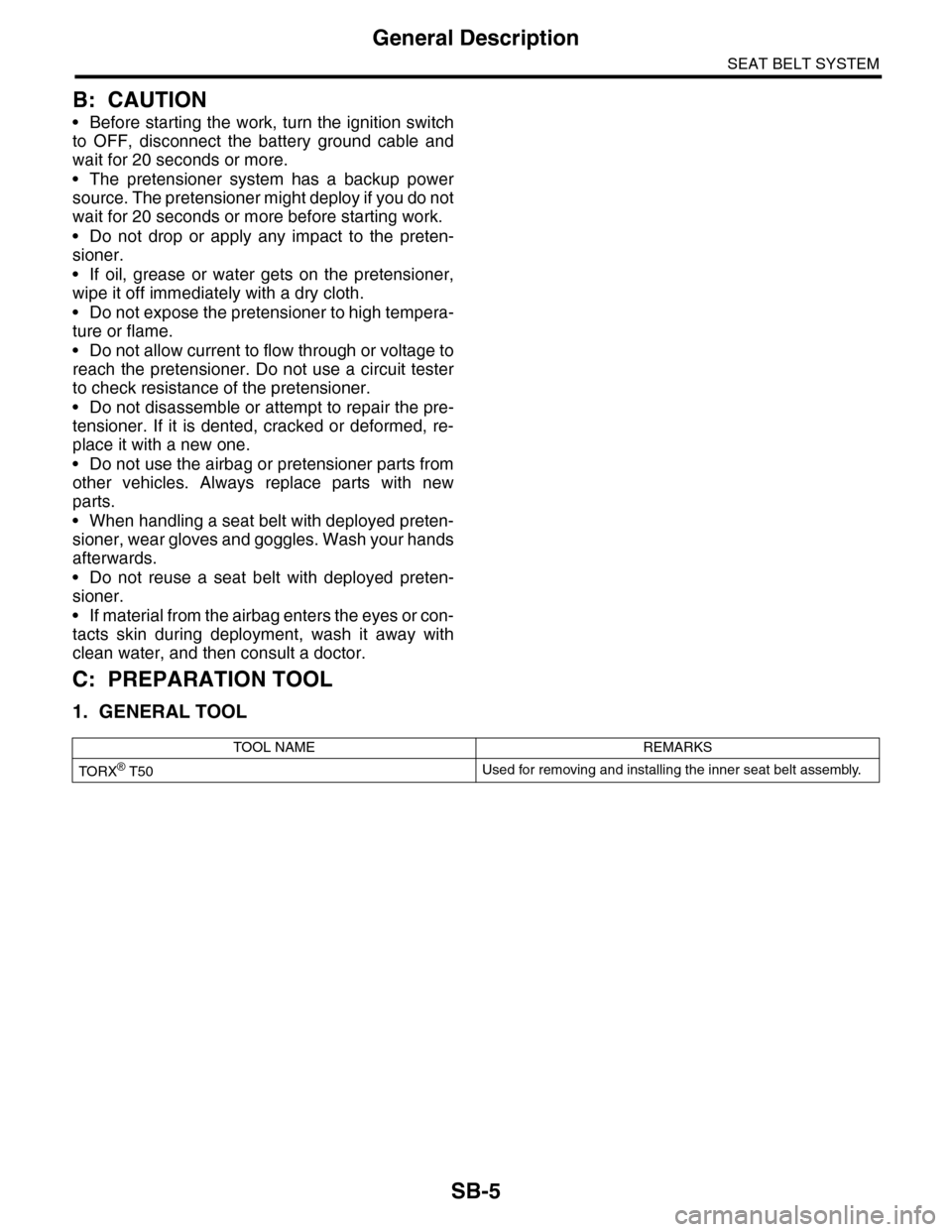

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-5
General Description
SEAT BELT SYSTEM
B: CAUTION
•Before starting the work, turn the ignition switch
to OFF, disconnect the battery ground cable and
wait for 20 seconds or more.
•The pr

Page 603 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-6
Pretensioner Connector
SEAT BELT SYSTEM
2. Pretensioner Connector
A: PROCEDURE
Refer to air bag connectors in the airbag section.
<Ref. to AB-9, PROCEDURE, Airbag Connector.>

Page 604 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-7
Inspection Locations After a Collision
SEAT BELT SYSTEM
3. Inspection Locations After a
Collision
A: INSPECTION
Check for the following, and replace with new parts
if necessary.
•Center pillar

Page 605 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-8
Seat Belt Warning System
SEAT BELT SYSTEM
4. Seat Belt Warning System
A: WIRING DIAGRAM
<Ref. to WI-84, WIRING DIAGRAM, Seat Belt Warning System.>
B: INSPECTION
TROUBLE SYMPTOM:
•Driver’s sid

SB-8
Seat Belt Warning System
SEAT BELT SYSTEM
4. Seat Belt Warning System
A: WIRING DIAGRAM

B: INSPECTION
TROUBLE SYMPTOM:
•Driver’s side seat belt warning light does not turn on or off.
•Warning buzzer does not beep.
Step Check Yes No
1CHECK BODY INTEGRATED MODULE.
1) Connect the Subaru Select Monitor to the
data link connector.
2) Turn the ignition switch to ON. (engine
OFF)
3) Turn the Subaru Select Monitor power to
ON.
4) Read the data of the driver’s seat belt
switch using the Subaru Select Monitor. to LAN(diag)-12, OPERATION, Subaru Select
Monitor.>
Is the seat belt switch display
OFF?
Go to step 2.Go to step 6.
2CHECK SEAT BELT WARNING LIGHT.
Read the data of driver’s seat belt warning light
using the Subaru Select Monitor.
Is the seat belt warning light
display ON?
Go to step 3.Check the harness
between combina-
tion meter and
body integrated
unit.
3CHECK BODY INTEGRATED MODULE.
1) Connect the driver’s seat belt.
2) Read the data of driver’s seat belt switch
using Subaru Select Monitor.
Is the seat belt switch display
ON?
Go to step 4.Go to step 6.
4CHECK SEAT BELT WARNING LIGHT.
Read the data of driver’s seat belt warning light
using the Subaru Select Monitor.
Is the seat belt warning light
display OFF? Also, is the seat
belt warning light in the combi-
nation meter gone off?
Go to step 5.Check the harness
between ignition
switch and body
integrated unit.
5CHECK SEAT BELT WARNING BUZZER.
1) Connect the driver’s seat belt.
2) Turn the ignition switch to ON.
Does the buzzer beep? Go to step 6.Replace the body
integrated unit.
6CHECK DRIVER’S SEAT BELT BUCKLE
SWITCH.
1) Insert the tongue plate to the driver’s seat
belt buckle.
2) Measure the voltage between connector
(R8) and chassis ground.
Connector & terminal
(R8) No. 1 (+) — Chassis ground (–):
Is the voltage more than 10 V? Go to step 7.Repair the har-
ness between
driver’s seat
buckle switch and
chassis ground.
7CHECK DRIVER’S SEAT BELT BUCKLE
SWITCH.
1) Disconnect the connector (R8) from driver’s
seat inner seat belt assembly.
2) Measure the resistance between connector
(R8) terminals and chassis ground.
Connector & terminal
(R8) No. 1 — Chassis ground:
(R8) No. 3 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 8.Replace the
driver’s seat inner
belt. 10, Front Seat
Belt.>
8CHECK BODY HARNESS.
Measure the voltage between connector
(R167) and chassis ground.
Connector & terminal
(R167) No. 11 (+) — Chassis ground (–):
Is the voltage more than 10 V?
Also, does the seat belt warn-
ing light come on?
Go to step 9.Repair or replace
the driver’s seat
inner belt and
body harness.

Page 606 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-9
Seat Belt Warning System
SEAT BELT SYSTEM
9CHECK BODY INTEGRATED MODULE.
Measure the voltage between connector (i84)
and chassis ground.
Connector & terminal
(i84) No. 4 (+) — Chassis ground (

SB-9
Seat Belt Warning System
SEAT BELT SYSTEM
9CHECK BODY INTEGRATED MODULE.
Measure the voltage between connector (i84)
and chassis ground.
Connector & terminal
(i84) No. 4 (+) — Chassis ground (–):
Is the voltage more than 10 V? Go to step 10.Check the body
integrated unit.
10 CHECK COMBINATION METER.
Measure the voltage between connector
(R167) and chassis ground.
Connector & terminal
(R167) No. 20 (+) — Chassis ground (–):
Is the voltage more than 10 V?
Also, does the seat belt warn-
ing light come on?
Go to step 11.Replace the body
integrated unit.
11 CHECK COMBINATION METER.
Measure the voltage between connector (i10)
and chassis ground.
Connector & terminal
(i10) No. 9 (+) — Chassis ground (–):
Is the voltage more than 10 V?
Also, does the seat belt warn-
ing light come on?
Go to step 12.Check the combi-
nation meter.
12 CHECK SEAT BELT WARNING SYSTEM.
1) Disconnect the driver’s seat belt.
2) Turn the ignition switch to ON.
Does the seat belt warning
buzzer beep and warning light
blink for 6 seconds after turn-
ing the ignition switch to ON?
Go to step 13.Replace the body
integrated unit.
13 CHECK SEAT BELT WARNING SYSTEM.
Wait for 6 seconds from the step 12 condition
(seat belt warning buzzer beeps and warning
light blinks).
Does the seat belt warning
light repeat illuminating/blink-
ing every 15-seconds, and the
warning buzzer beep?
Go to step 14.Replace the body
integrated unit.
14 CHECK SEAT BELT WARNING SYSTEM.
Connect the driver’s seat belt buckle in the
step 13 condition (seat belt warning light
repeat illuminating/blinking every 15-seconds,
and warning buzzer beeps).
Does the seat belt warning
light go off and the buzzer
stop?
Go to step 15.Replace the body
integrated unit.
15 CHECK SEAT BELT WARNING SYSTEM.
Disconnect the driver’s seat belt.
Does the seat belt warning
light repeat illuminating/ blink-
ing every 15-seconds?
Go to step 16.Replace the body
integrated unit.
16 CHECK SEAT BELT WARNING SYSTEM.
1) Lift-up the vehicle.
NOTE:
Raise all wheels off floor.
2) Start the engine, and set the vehicle speed
to more than 15 km/h (9 MPH).
NOTE:
When there is a speed difference between front
and rear wheels, the ABS or VDC warning may
light, but this does not indicate a malfunction.
When diagnosis is complete, perform clear
memory for VDC. ERATION, Subaru Select Monitor.>
Does the seat belt warning
light repeat illuminating/ blink-
ing every 15-seconds?
Go to step 17.Replace the body
integrated unit.
17 CHECK SEAT BELT WARNING SYSTEM.
Connect the driver’s seat belt in the step 16
condition.
Does the seat belt warning
light go off and the buzzer
stop?
Go to step 18.Replace the body
integrated unit.
18 Seat Belt Warning System
Disconnect the driver’s seat belt in the step 17
condition.
Does the seat belt warning
light repeat illuminating/ blink-
ing every 15-seconds?
Go to step 19.Replace the body
integrated unit.
19 CHECK SEAT BELT WARNING SYSTEM.
Connect the driver’s seat belt.
Does the seat belt warning
light go off and the buzzer
stop?
A temporary con-
tact failure.
Replace the body
integrated unit.
Step Check Yes No

Page 607 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-10
Front Seat Belt
SEAT BELT SYSTEM
5. Front Seat Belt
A: REMOVAL
1. OUTER SEAT BELT ASSEMBLY
1) Fold the backrest all the way forward, and then
move the front seat all the way forward.
2) Tur

Page 608 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-11
Front Seat Belt
SEAT BELT SYSTEM
B: INSTALLATION
1. OUTER SEAT BELT ASSEMBLY
Install in the reverse order of removal.
CAUTION:
•The parts of driver and passenger sides are
not the same. Bef
