Page 553 of 2453

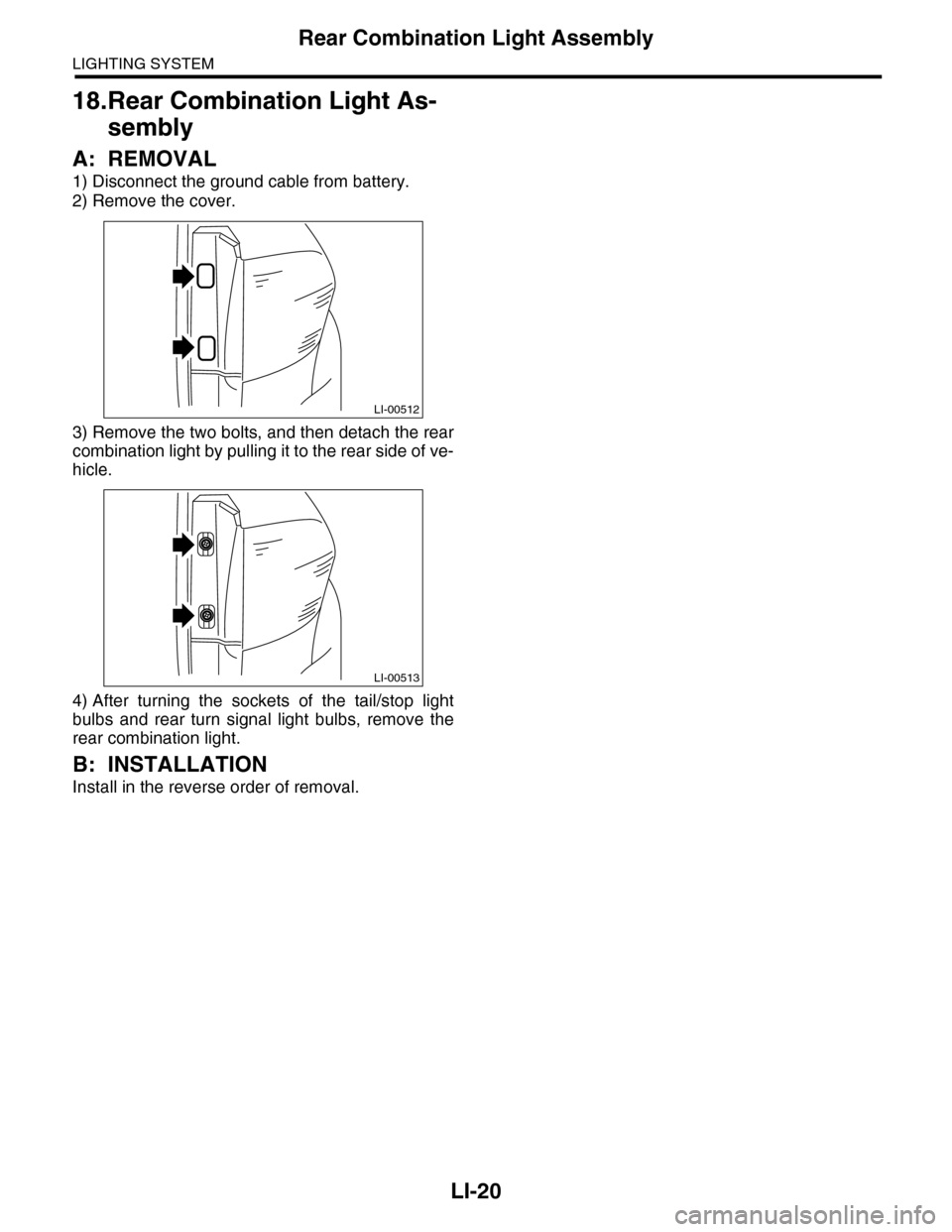

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-20 Rear Combination Light Assembly LIGHTING SYSTEM 18.Rear Combination Light As- sembly A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the cover. 3) Remove the two bolts, and the

Page 554 of 2453

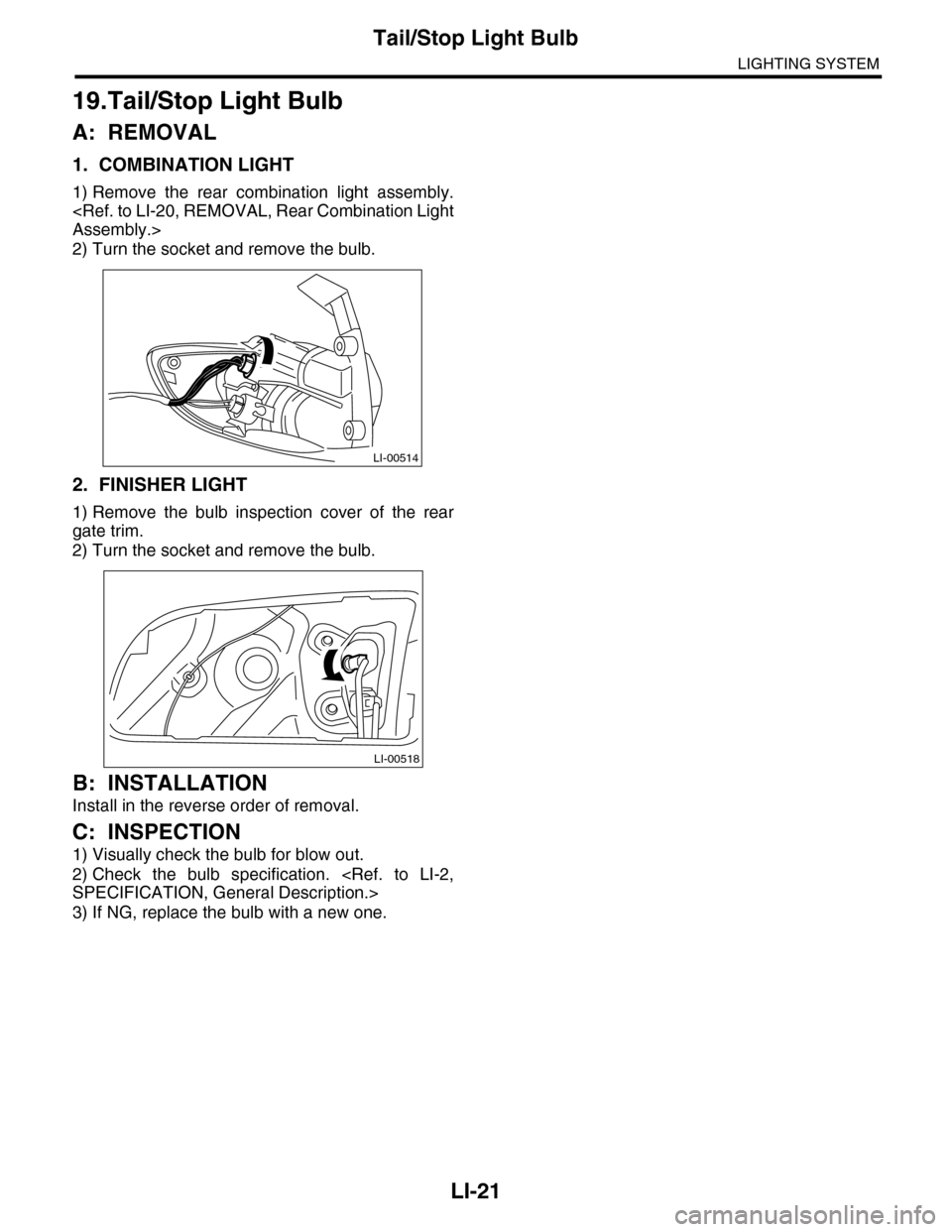

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-21 Tail/Stop Light Bulb LIGHTING SYSTEM 19.Tail/Stop Light Bulb A: REMOVAL 1. COMBINATION LIGHT 1) Remove the rear combination light assembly. <Ref. to LI-20, REMOVAL, Rear Combination Light A

Page 555 of 2453

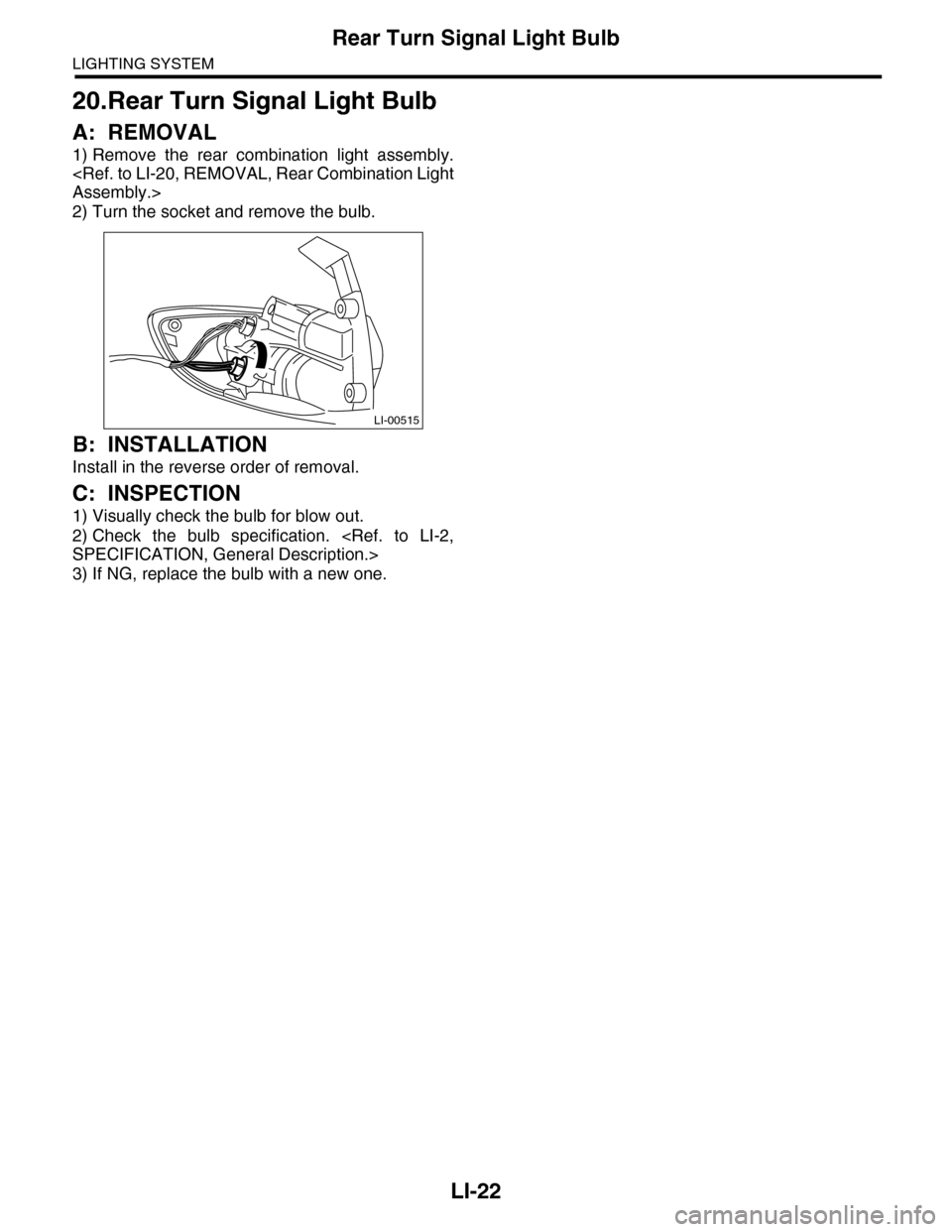

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-22 Rear Turn Signal Light Bulb LIGHTING SYSTEM 20.Rear Turn Signal Light Bulb A: REMOVAL 1) Remove the rear combination light assembly. <Ref. to LI-20, REMOVAL, Rear Combination Light Assembly

Page 556 of 2453

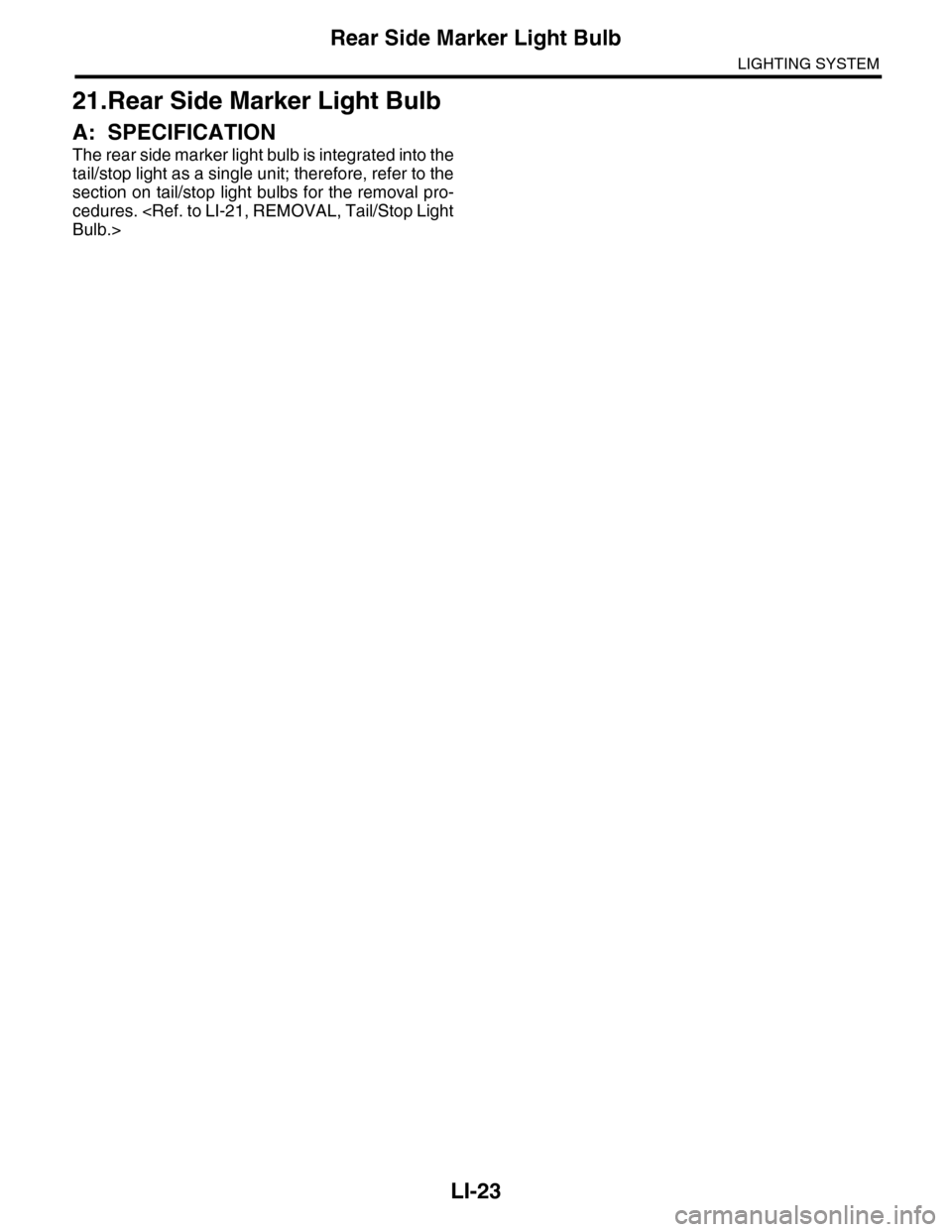

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-23 Rear Side Marker Light Bulb LIGHTING SYSTEM 21.Rear Side Marker Light Bulb A: SPECIFICATION The rear side marker light bulb is integrated into the tail/stop light as a single unit; therefore, re

Page 557 of 2453

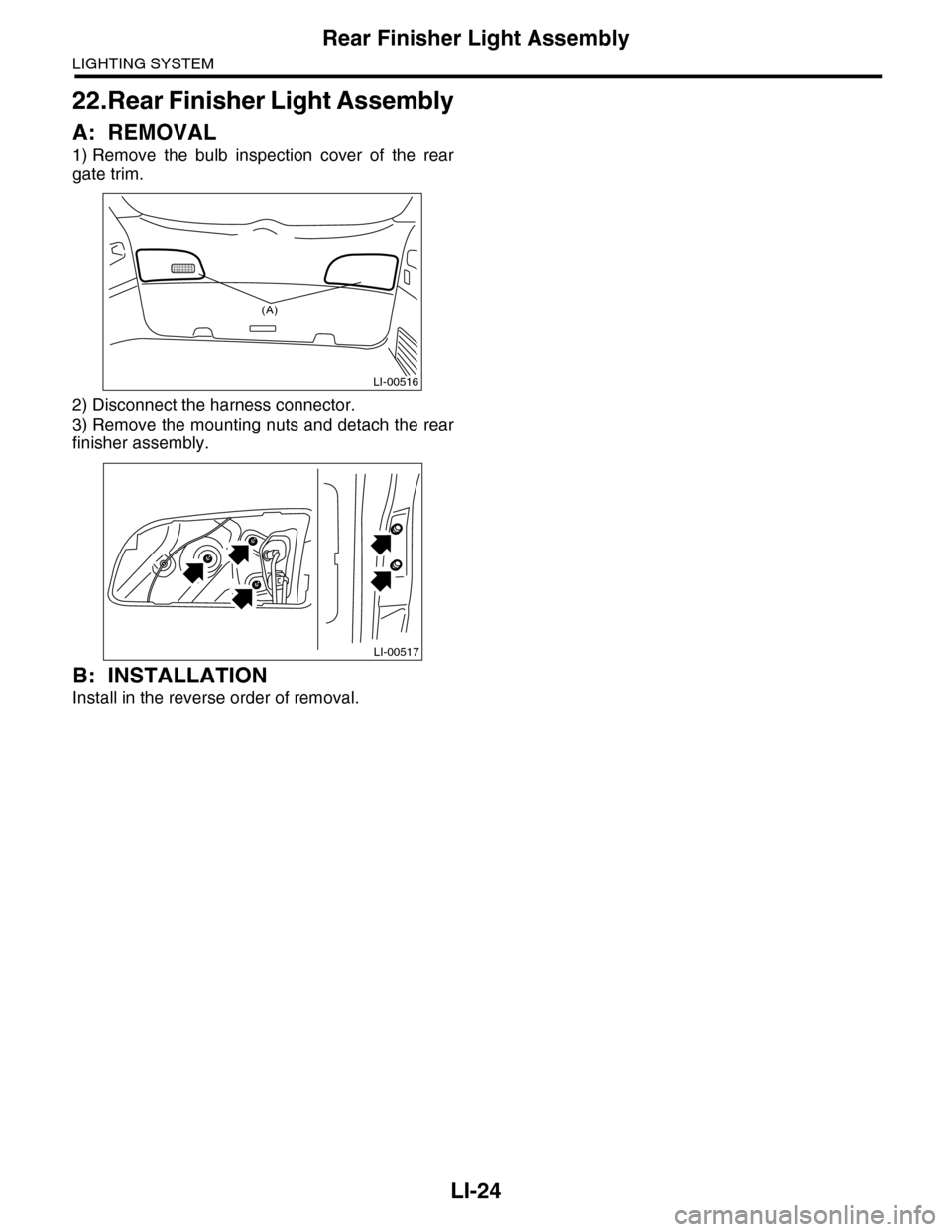

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-24 Rear Finisher Light Assembly LIGHTING SYSTEM 22.Rear Finisher Light Assembly A: REMOVAL 1) Remove the bulb inspection cover of the rear gate trim. 2) Disconnect the harness connector. 3)

Page 558 of 2453

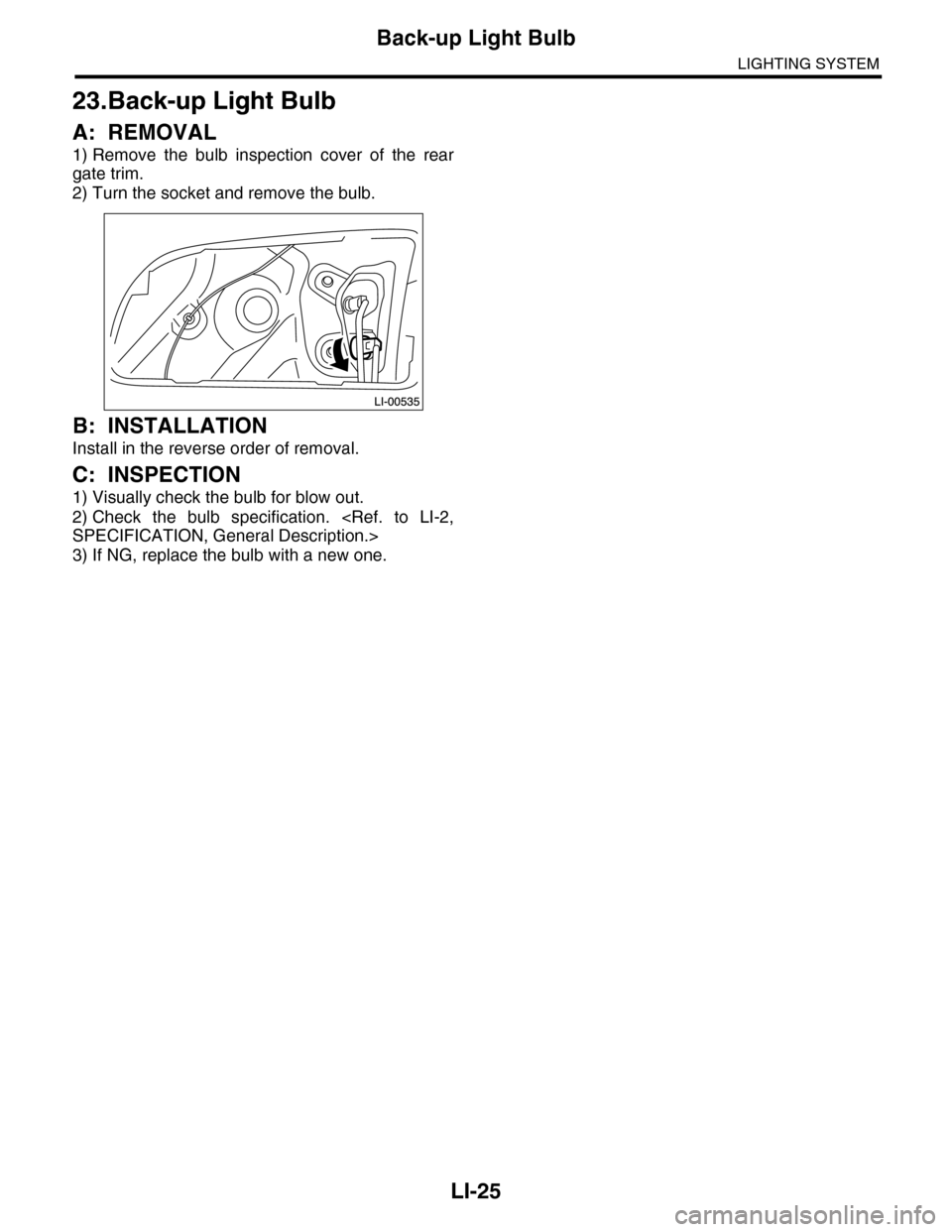

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-25 Back-up Light Bulb LIGHTING SYSTEM 23.Back-up Light Bulb A: REMOVAL 1) Remove the bulb inspection cover of the rear gate trim. 2) Turn the socket and remove the bulb. B: INSTALLATION Inst

Page 559 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-26 License Plate Light Assembly LIGHTING SYSTEM 24.License Plate Light Assembly A: REMOVAL 1) Remove the rear gate garnish. <Ref. to EI-52, REMOVAL, Rear Gate Garnish.> 2) Disengage the clip

Page 560 of 2453

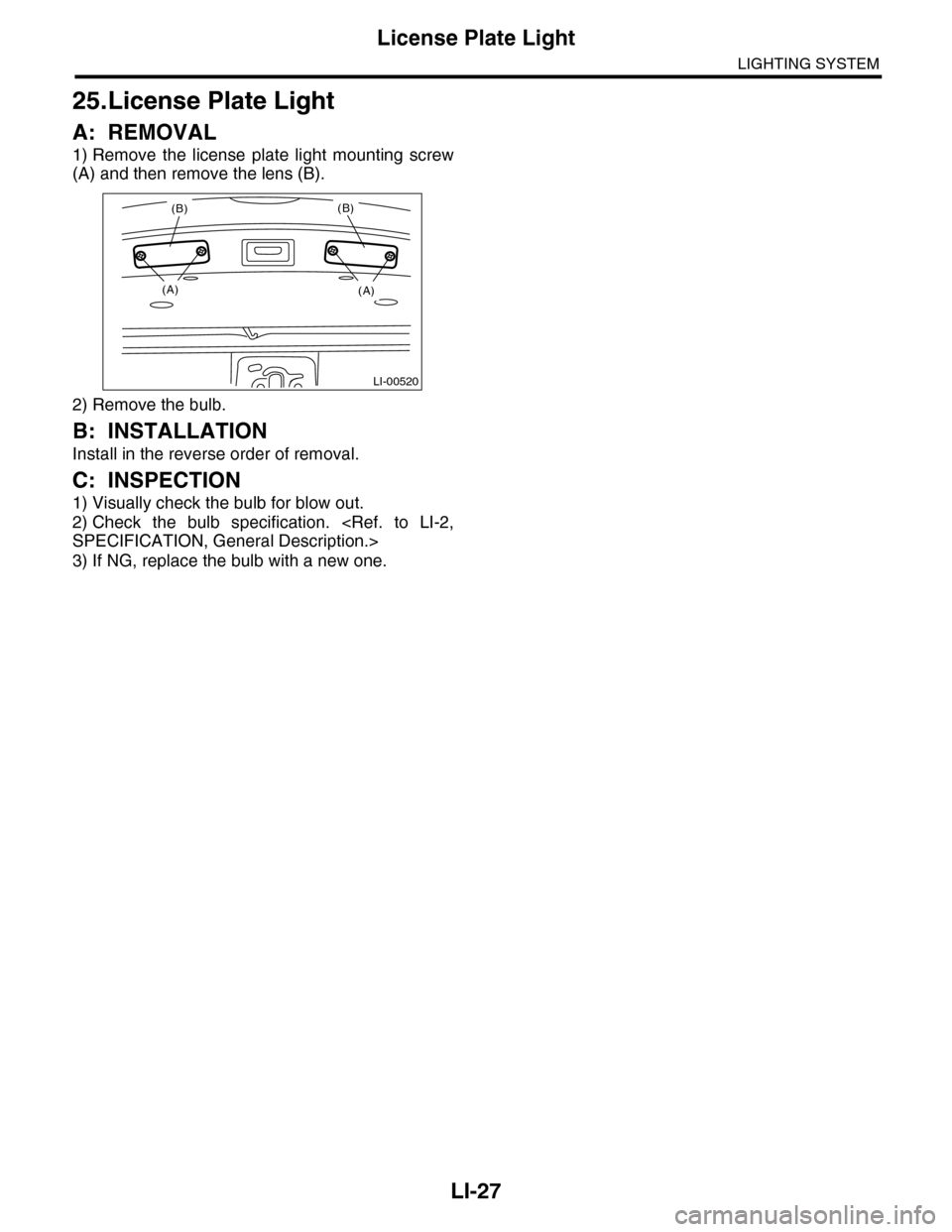

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-27 License Plate Light LIGHTING SYSTEM 25.License Plate Light A: REMOVAL 1) Remove the license plate light mounting screw (A) and then remove the lens (B). 2) Remove the bulb. B: INSTALLATION
