Page 609 of 2453

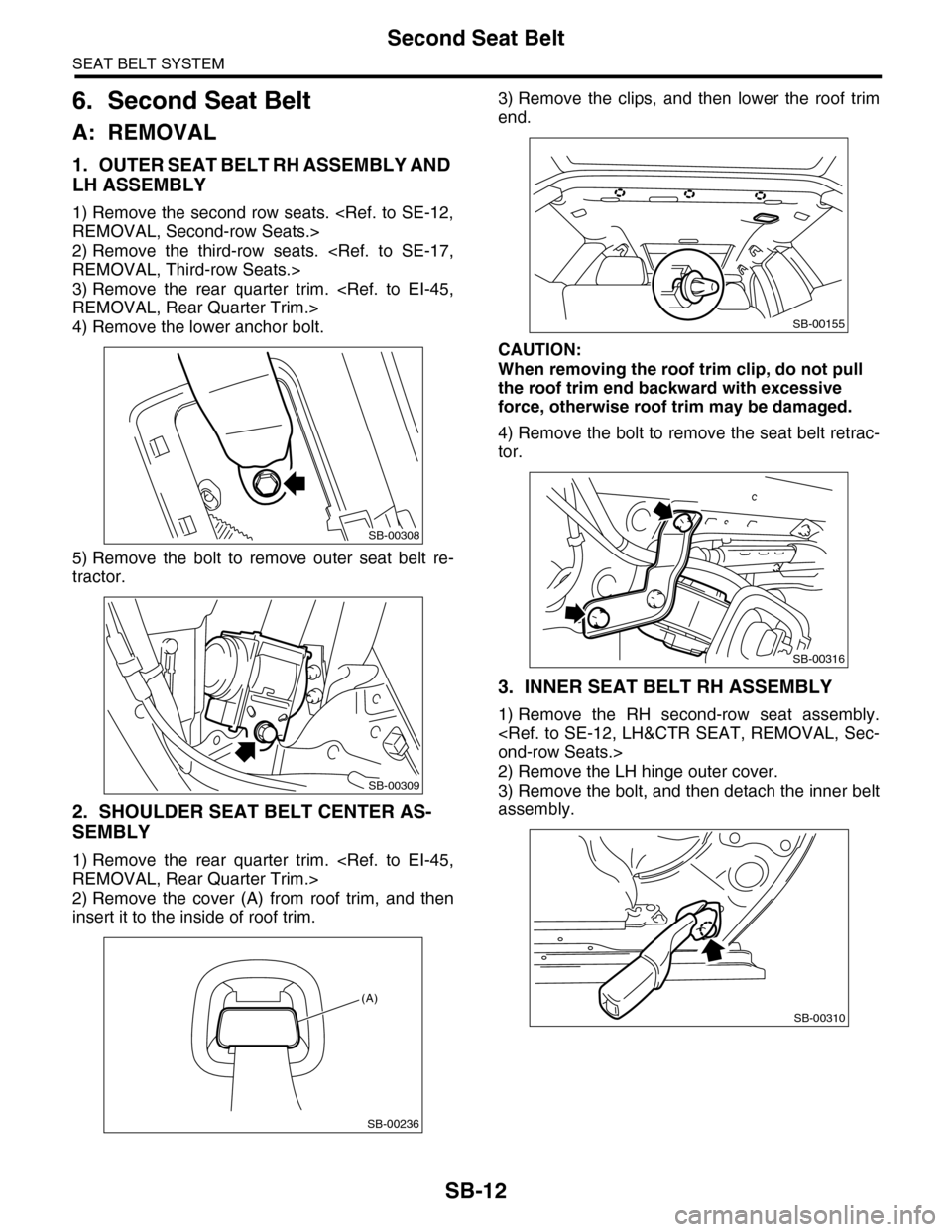

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-12 Second Seat Belt SEAT BELT SYSTEM 6. Second Seat Belt A: REMOVAL 1. OUTER SEAT BELT RH ASSEMBLY AND LH ASSEMBLY 1) Remove the second row seats. <Ref. to SE-12, REMOVAL, Second-row Seats.> 2) Re

Page 610 of 2453

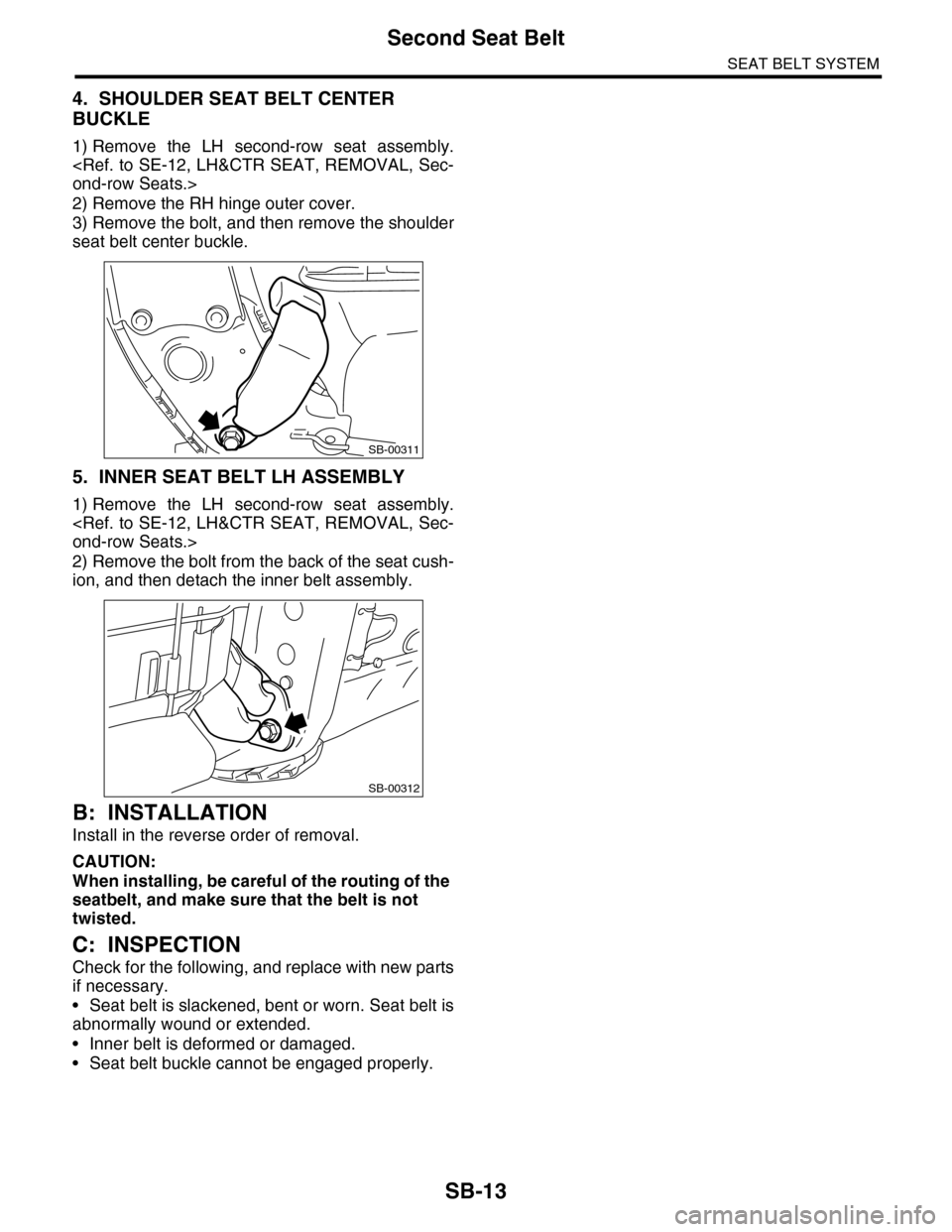

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-13 Second Seat Belt SEAT BELT SYSTEM 4. SHOULDER SEAT BELT CENTER BUCKLE 1) Remove the LH second-row seat assembly. <Ref. to SE-12, LH&CTR SEAT, REMOVAL, Sec- ond-row Seats.> 2) Remove the RH

Page 611 of 2453

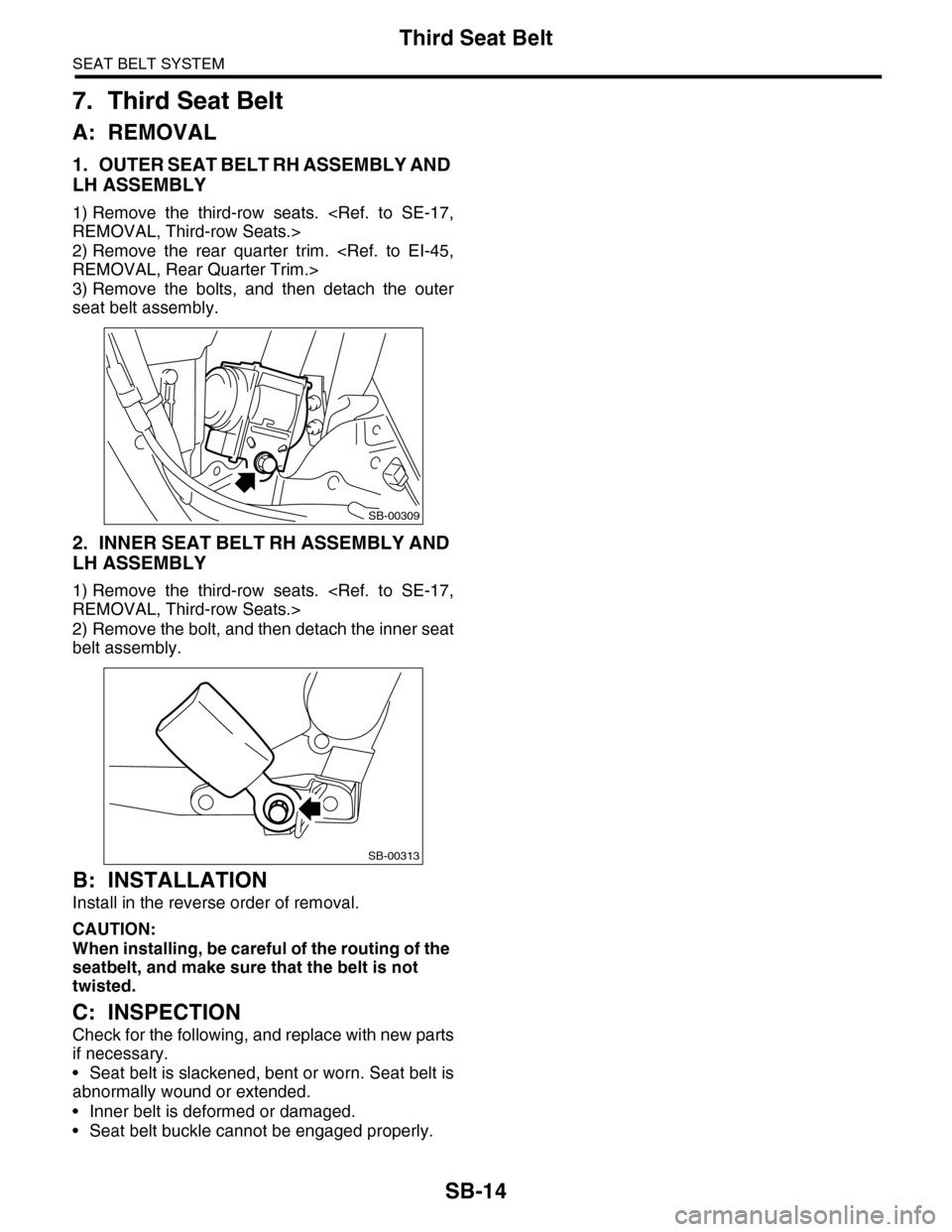

SUBARU TRIBECA 2009 1.G Service Workshop Manual SB-14 Third Seat Belt SEAT BELT SYSTEM 7. Third Seat Belt A: REMOVAL 1. OUTER SEAT BELT RH ASSEMBLY AND LH ASSEMBLY 1) Remove the third-row seats. <Ref. to SE-17, REMOVAL, Third-row Seats.> 2)

Page 612 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-2 General Description SEATS 1. General Description A: COMPONENT 1. FRONT SEAT (DRIVER’S SEAT) (1) Backrest cover (11) Rear leg cover inside (21) Power seat switch unit (2) Backrest pad (12) Seat

Page 613 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-3 General Description SEATS 2. FRONT SEAT (DRIVER’S SEAT) (1) Backrest cover (10) Hinge inner cover LH (19) Power seat switch unit (2) Backrest pad (11) Rear leg cover inside (20) Inner seat belt

Page 614 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-4 General Description SEATS 3. SECOND-ROW SEATS (1) Headrest (8) Backrest back cover (14) Armrest (2) Lock bushing (9) Holder (15) Slide rail cover (3) Backrest cover (10) Seat back latch cover (

Page 615 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-5 General Description SEATS 4. THIRD-ROW SEATS (1) Headrest (7) Backrest padTightening torque: N·m (kgf-m, ft-lb) (2) Headrest lock bushing (8) Seat cushion coverT1: 10 (1.01, 7.23) (3) Hinge leve

Page 616 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SE-6 General Description SEATS B: CAUTION •If the seat cushion cover is removed or replaced, make sure to perform passenger detection system ad- justment after installing the seat to the vehicle. <R
