Page 297 of 2453
GW-2
General Description
GLASS/WINDOWS/MIRRORS
1. General Description
A: COMPONENT
1. FIXED GLASS
(1) Windshield glass (6) Spacer (10) Fastener
(2) Dam rubber (7) Fastener (11) Rear quarter glass
(3) Molding front (8) Seal (12) Rear gate glass
(4) Rearview mirror mount (9) Front quarter glass (13) Glass clip pin
(5) Locating pin

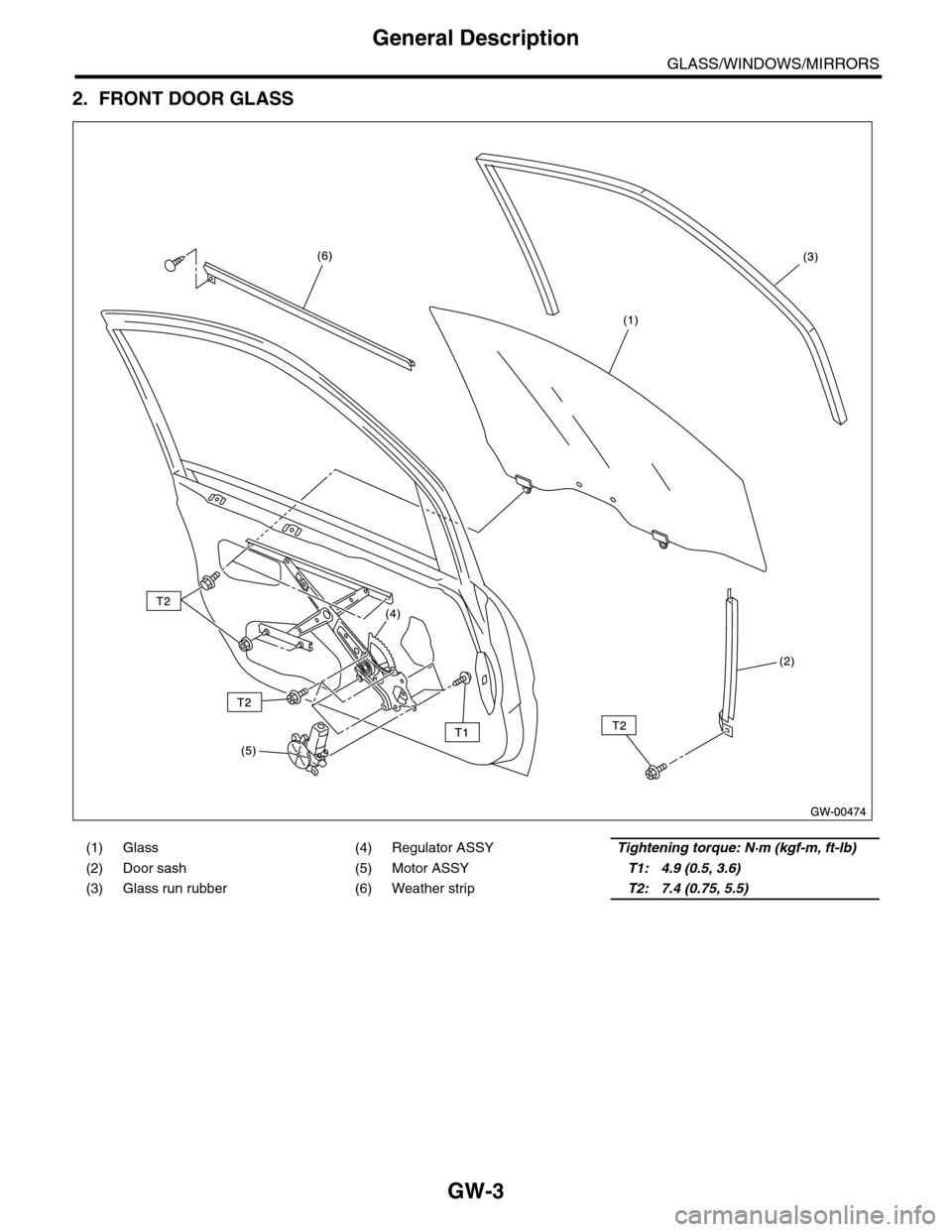

Page 298 of 2453
GW-3
General Description
GLASS/WINDOWS/MIRRORS
2. FRONT DOOR GLASS
(1) Glass (4) Regulator ASSYTightening torque: N·m (kgf-m, ft-lb)
(2) Door sash (5) Motor ASSYT1: 4.9 (0.5, 3.6)
(3) Glass run rubber (6) Weather stripT2: 7.4 (0.75, 5.5)

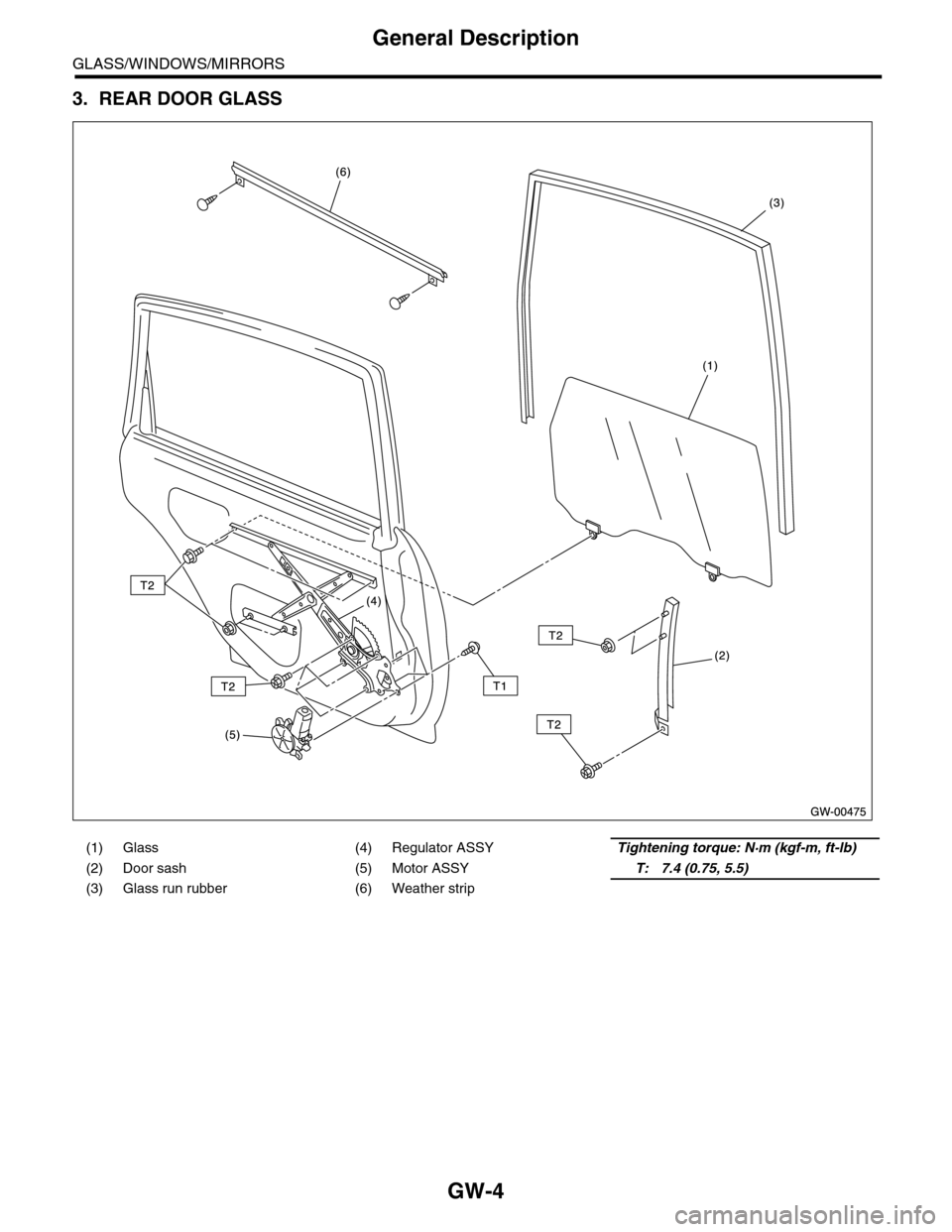

Page 299 of 2453
GW-4
General Description
GLASS/WINDOWS/MIRRORS
3. REAR DOOR GLASS
(1) Glass (4) Regulator ASSYTightening torque: N·m (kgf-m, ft-lb)
(2) Door sash (5) Motor ASSYT: 7.4 (0.75, 5.5)
(3) Glass run rubber (6) Weather strip
Page 300 of 2453
GW-5
General Description
GLASS/WINDOWS/MIRRORS
4. MIRROR
B: CAUTION
•When electrical connectors are disconnected, always conduct an operational check after connecting them
again.
•Avoid impact and damage to the glass.
C: PREPARATION TOOL
1. GENERAL TOOL
(1) Outer mirror (4) Side turn signal lightTightening torque: N·m (kgf-m, ft-lb)
(2) Mirror (5) Rearview mirrorT: 2 (0.2, 1.5)
(3) Scalp cap (6) Mount
TOOL NAME REMARKS
Circuit tester Used for checking voltage and continuity.
Piano wire Used for removing the window glass.
Windshield glass knife Used for removing the window glass.
TO RX® T20Used for removing and installing the rearview mirror.
GW-00476
(5)
(6)
(2)
(3)
(4)
(1)
T
Page 301 of 2453
GW-6
Power Window System
GLASS/WINDOWS/MIRRORS
2. Power Window System
A: WIRING DIAGRAM
B: INSPECTION
Symptom Repair order
All power windows do not operate.
1. Fuse (SBF-4)
2. Power window circuit breaker
3. Power window relay
4. Wiring Harness
5. Body integrated unit
Par ticular window does not operate.
1. Power window main switch
2. Power window sub switch
3. Power window motor
4. Wiring Harness
“Window Lock” does not operate. Power window main switch
Page 302 of 2453

GW-7
Power Window Control Switch
GLASS/WINDOWS/MIRRORS
3. Power Window Control
Switch
A: REMOVAL
1. MAIN SWITCH
1) Disconnect the ground cable from battery.
2) Peel the cover inside the hand grip, and remove
the screw.
3) Remove the power window switch cover assem-
bly.
4) Disconnect the harness connector.
5) Remove the clip, and remove the power window
main switch assembly.
2. SUB SWITCH
1) Disconnect the ground cable from battery.
2) Peel the cover inside the hand grip, and remove
the screw.
3) Remove the power window switch cover assem-
bly.
4) Disconnect the connector.
5) Detach the claw and remove the power window
sub switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1. MAIN SWITCH
Measure the switch resistance.
NOTE:
•Make sure the battery voltage is applied to the
terminal No. 13(+) and 5(–), when measuring resis-
tance, because the main switch is controlled by mi-
crocomputer.
•Make sure that the window lock switch is mea-
sured in the UNLOCK position.EI-01286
EI-01287

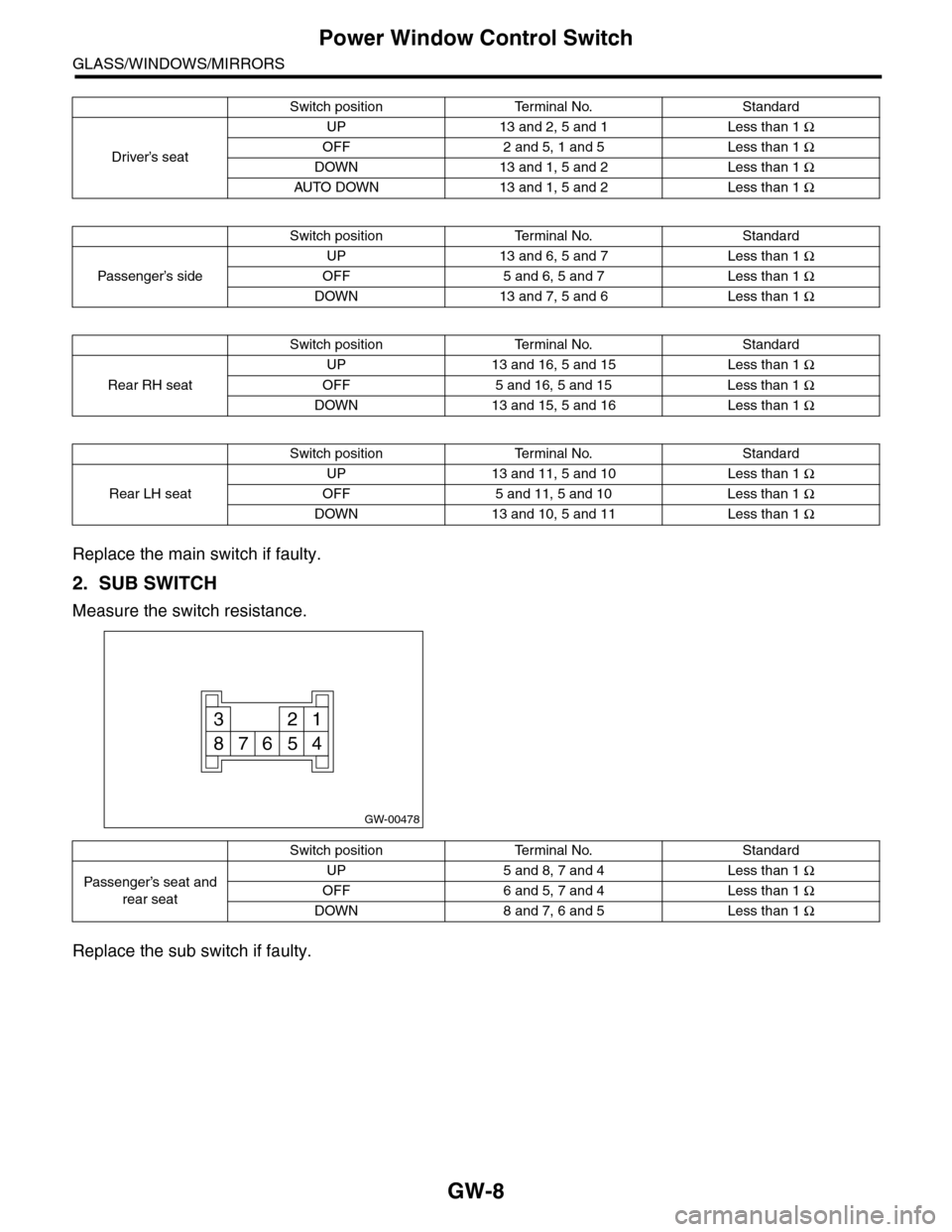

Page 303 of 2453

GW-8
Power Window Control Switch
GLASS/WINDOWS/MIRRORS
Replace the main switch if faulty.
2. SUB SWITCH
Measure the switch resistance.
Replace the sub switch if faulty.
Switch positionTerminal No.Standard
Driver’s seat
UP 13 and 2, 5 and 1 Less than 1 Ω
OFF 2 and 5, 1 and 5 Less than 1 Ω
DOWN 13 and 1, 5 and 2 Less than 1 Ω
AUTO DOWN 13 and 1, 5 and 2 Less than 1 Ω
Switch positionTerminal No.Standard
Passenger’s side
UP 13 and 6, 5 and 7 Less than 1 Ω
OFF 5 and 6, 5 and 7 Less than 1 Ω
DOWN 13 and 7, 5 and 6 Less than 1 Ω
Switch positionTerminal No.Standard
Rear RH seat
UP 13 and 16, 5 and 15 Less than 1 Ω
OFF 5 and 16, 5 and 15 Less than 1 Ω
DOWN 13 and 15, 5 and 16 Less than 1 Ω
Switch positionTerminal No.Standard
Rear LH seat
UP 13 and 11, 5 and 10 Less than 1 Ω
OFF 5 and 11, 5 and 10 Less than 1 Ω
DOWN 13 and 10, 5 and 11 Less than 1 Ω
GW-00478
123
45678
Switch positionTerminal No.Standard
Passenger’s seat and
rear seat
UP 5 and 8, 7 and 4 Less than 1 Ω
OFF 6 and 5, 7 and 4 Less than 1 Ω
DOWN 8 and 7, 6 and 5 Less than 1 Ω

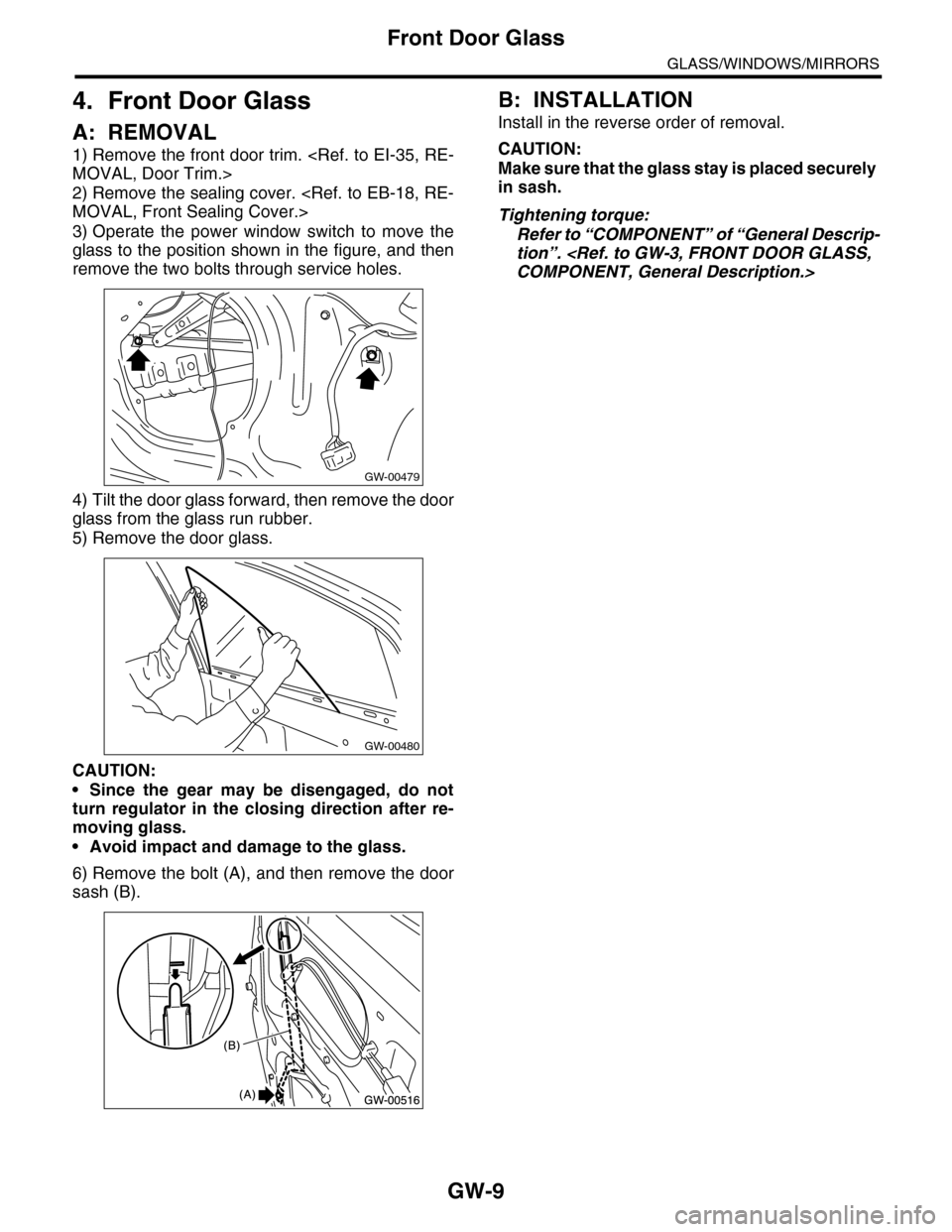

Page 304 of 2453
GW-9
Front Door Glass
GLASS/WINDOWS/MIRRORS
4. Front Door Glass
A: REMOVAL
1) Remove the front door trim.
MOVAL, Door Trim.>
2) Remove the sealing cover.
MOVAL, Front Sealing Cover.>
3) Operate the power window switch to move the
glass to the position shown in the figure, and then
remove the two bolts through service holes.
4) Tilt the door glass forward, then remove the door
glass from the glass run rubber.
5) Remove the door glass.
CAUTION:
•Since the gear may be disengaged, do not
turn regulator in the closing direction after re-
moving glass.
•Avoid impact and damage to the glass.
6) Remove the bolt (A), and then remove the door
sash (B).
B: INSTALLATION
Install in the reverse order of removal.
CAUTION:
Make sure that the glass stay is placed securely
in sash.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
COMPONENT, General Description.>
GW-00479
GW-00480
