Page 545 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-12 Headlight Assembly LIGHTING SYSTEM 3) Turn the headlights on and then adjust the low beam pattern. NOTE: Adjust the headlight beam level by turning the ad- justing screw. The adjusting s

Page 546 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-13 Headlight Bulb LIGHTING SYSTEM 11.Headlight Bulb A: REMOVAL 1. HIGH BEAM AND LOW BEAM CAUTION: •Because the halogen bulb operates at a high temperature, dirt and oil on the bulb surface re- du

Page 547 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-14 Front Turn Signal Light Bulb LIGHTING SYSTEM 12.Front Turn Signal Light Bulb A: REMOVAL 1) Open the front hood. 2) Turn the socket (A) and remove the front turn signal light bulb. B: INS

Page 548 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-15 Parking Light Bulb LIGHTING SYSTEM 13.Parking Light Bulb A: SPECIFICATION The parking light bulb is integrated into the front turn signal light bulb as a unit; therefore, refer

Page 549 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-16 Front Side Marker Light Bulb LIGHTING SYSTEM 14.Front Side Marker Light Bulb A: REMOVAL 1) Open the front hood. 2) Turn the socket (A) and remove the front turn signal light bulb. B: INS

Page 550 of 2453

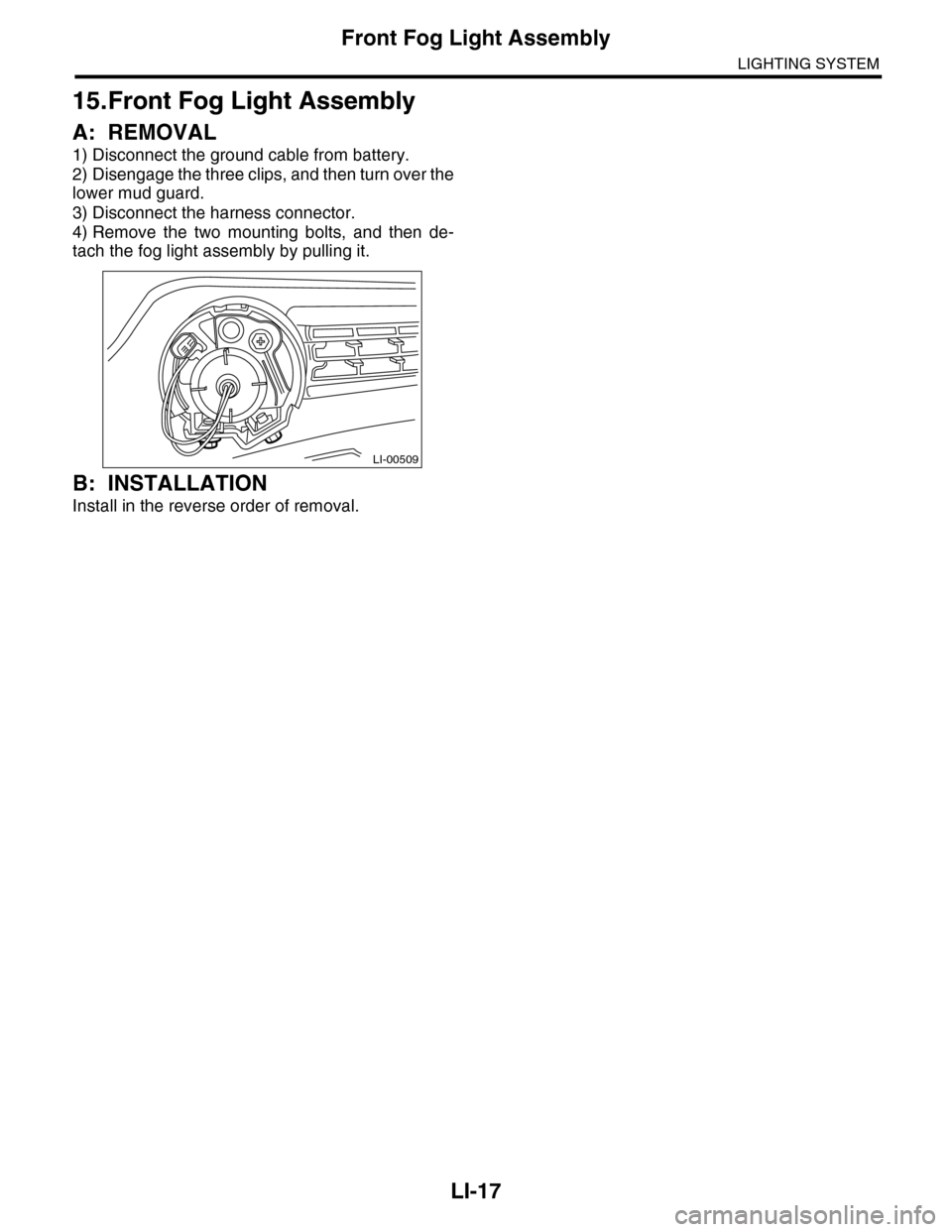

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-17 Front Fog Light Assembly LIGHTING SYSTEM 15.Front Fog Light Assembly A: REMOVAL 1) Disconnect the ground cable from battery. 2) Disengage the three clips, and then turn over the lower mud guard.

Page 551 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-18 Front Fog Light Bulb LIGHTING SYSTEM 16.Front Fog Light Bulb A: REMOVAL 1) Disconnect the ground cable from battery. 2) Disengage the three clips, and then turn over the lower mud guard. 3) Disc

Page 552 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual LI-19 Side Turn Signal Light Assembly LIGHTING SYSTEM 17.Side Turn Signal Light As- sembly A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the mirror. <Ref. to GW-14, REPLACE- MENT,
