Page 1809 of 2453

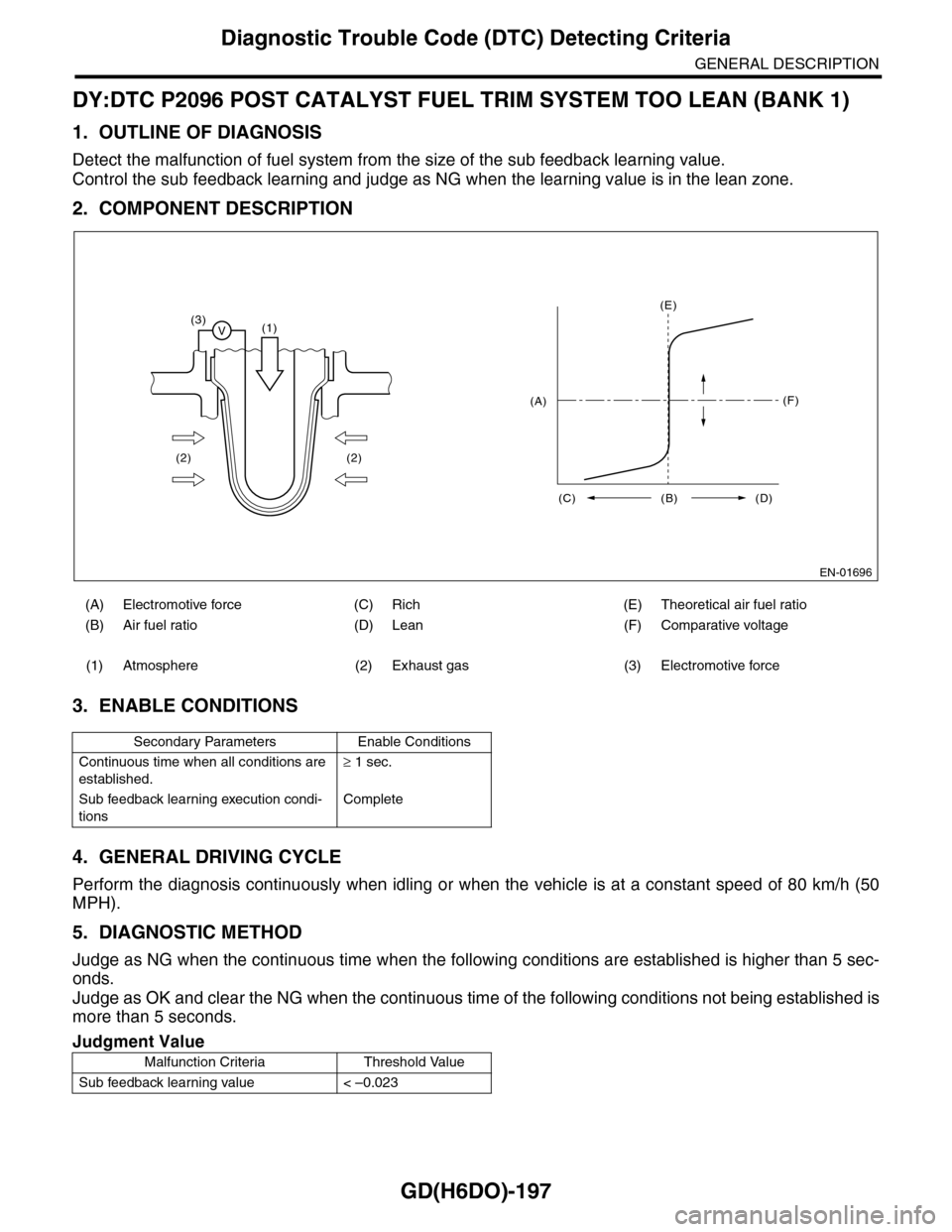

SUBARU TRIBECA 2009 1.G Service Workshop Manual GD(H6DO)-197 Diagnostic Trouble Code (DTC) Detecting Criteria GENERAL DESCRIPTION DY:DTC P2096 POST CATALYST FUEL TRIM SYSTEM TOO LEAN (BANK 1) 1. OUTLINE OF DIAGNOSIS Detect the malfunction of fuel s

Page 1810 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GD(H6DO)-198 Diagnostic Trouble Code (DTC) Detecting Criteria GENERAL DESCRIPTION Time Needed for Diagnosis: 5 seconds Malfunction Indicator Light Illumination: Illuminates when malfunctions occur in

Page 1811 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GD(H6DO)-199 Diagnostic Trouble Code (DTC) Detecting Criteria GENERAL DESCRIPTION DZ:DTC P2097 POST CATALYST FUEL TRIM SYSTEM TOO RICH (BANK 1) 1. OUTLINE OF DIAGNOSIS Detect the malfunction of fuel s

Page 1812 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GD(H6DO)-200 Diagnostic Trouble Code (DTC) Detecting Criteria GENERAL DESCRIPTION Time Needed for Diagnosis: 5 seconds Malfunction Indicator Light Illumination: Illuminates when malfunctions occur in

Page 1813 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GD(H6DO)-201 Diagnostic Trouble Code (DTC) Detecting Criteria GENERAL DESCRIPTION EC:DTC P2101 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT RANGE/ PERFORMANCE 1. OUTLINE OF DIAGNOSIS Judge as NG when the m

Page 1814 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GD(H6DO)-202 Diagnostic Trouble Code (DTC) Detecting Criteria GENERAL DESCRIPTION Time Needed for Diagnosis: •500 milliseconds (For NG) •2000 milliseconds (For OK) Malfunction Indicator Light: Il

Page 1815 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GD(H6DO)-203 Diagnostic Trouble Code (DTC) Detecting Criteria GENERAL DESCRIPTION ED:DTC P2102 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT LOW 1. OUTLINE OF DIAGNOSIS Judge as NG when the electronic throt

Page 1816 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GD(H6DO)-204 Diagnostic Trouble Code (DTC) Detecting Criteria GENERAL DESCRIPTION 6. DTC CLEAR CONDITION •When the OK idling cycle is completed 40 times in a row •When “Clear Memory” is perfor
