SUBARU TRIBECA 2009 1.G Service Workshop Manual EC(H6DO)-5 Canister EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) 4. Canister A: REMOVAL 1) Disconnect the ground cable from battery. 2) Lift-up the vehicle. 3) Remove the clip holding the harness.

Page 1154 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EC(H6DO)-6 Purge Control Solenoid Valve EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) 5. Purge Control Solenoid Valve A: REMOVAL 1) Remove the collector cover. 2) Disconnect the ground cable from b

Page 1155 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EC(H6DO)-7 Fuel Level Sensor EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) 6. Fuel Level Sensor A: REMOVAL For removal procedure, refer to “FU(H6DO)” sec- tion. <Ref. to FU(H6DO)-45, REMO

Page 1156 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EC(H6DO)-8 Fuel Temperature Sensor EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) 7. Fuel Temperature Sensor A: REMOVAL The fuel temperature sensor and fuel level sensor are integrated into one unit

Page 1157 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EC(H6DO)-9 Fuel Sub Level Sensor EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) 8. Fuel Sub Level Sensor A: REMOVAL For removal procedure, refer to “FU(H6DO)” sec- tion. <Ref. to FU(H6DO)-

Page 1158 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EC(H6DO)-10 Fuel Tank Pressure Sensor EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) 9. Fuel Tank Pressure Sensor A: REMOVAL 1) Set the vehicle on a lift. 2) Disconnect the ground cable from battery

Page 1159 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EC(H6DO)-11 Drain Filter EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) 10.Drain Filter A: SPECIFICATION Canister is a non-disassembled part, so do not re- move the drain filter from canister. Refer

Page 1160 of 2453

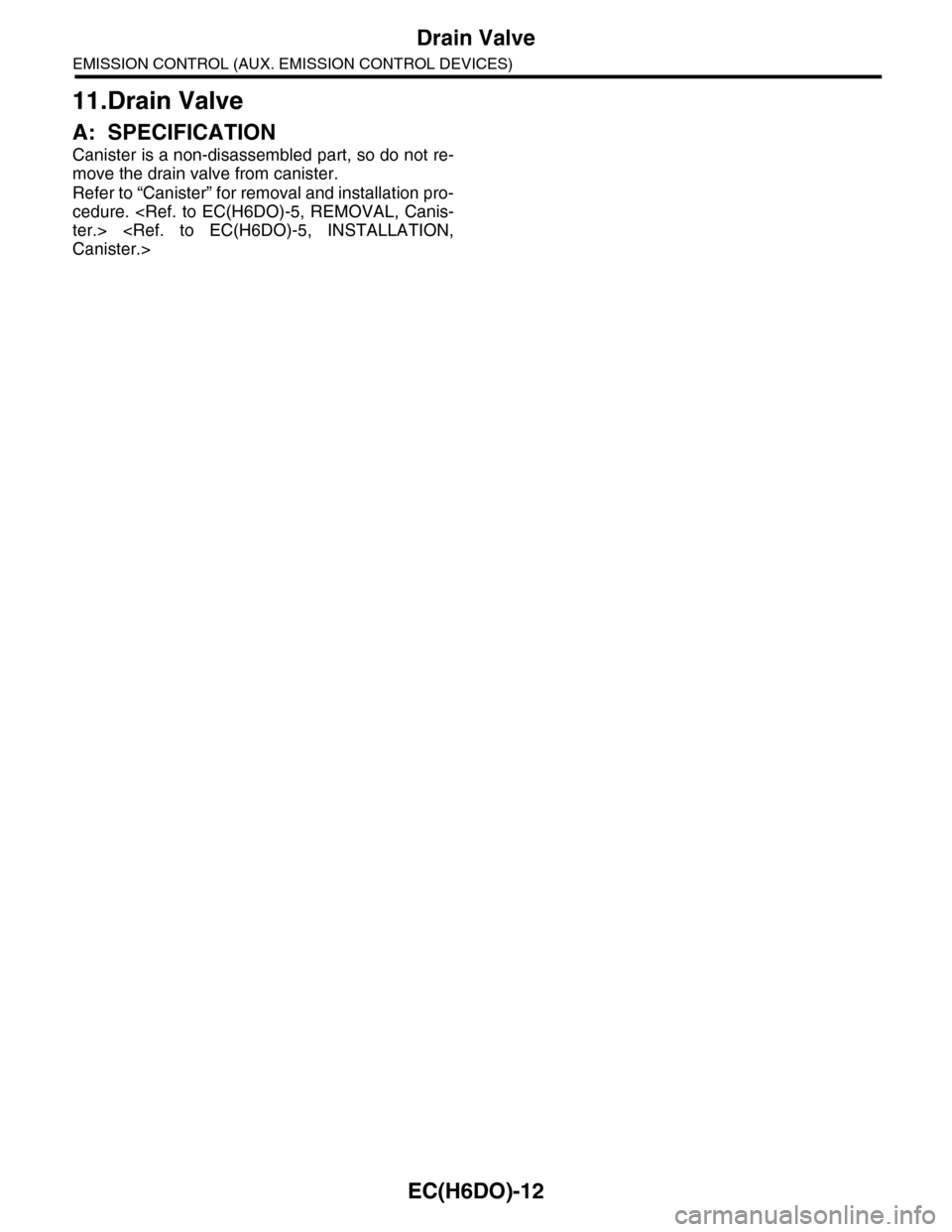

SUBARU TRIBECA 2009 1.G Service Workshop Manual EC(H6DO)-12 Drain Valve EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) 11.Drain Valve A: SPECIFICATION Canister is a non-disassembled part, so do not re- move the drain valve from canister. Refer to
