Page 622 of 2453

SE-12
Second-row Seats
SEATS
3. Second-row Seats
A: REMOVAL
1. LH&CTR SEAT
1) Tilt the backrest forward, and move the seat for-
ward.
2) Remove the slide rail cover at the seat rear side,
and remove the two bolts.
3) Move the seat to the rear end.
4) Remove the slide rail cover at the seat front side,
and remove the two bolts.
5) Remove the seat from vehicle.
2. RH SEAT
1) Tilt the backrest forward, and move the seat for-
ward.
2) Remove the slide rail cover at the seat rear side,
and remove the two bolts.
3) Move the seat to the rear end.
4) Remove the slide rail cover at the seat front side,
and remove the two bolts.
5) Remove the seat from vehicle.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
Description.>
NOTE:
Tighten the slide rail bolts diagonally in two or three
steps by gradually increasing the torque, until they
reach the specified torque.
C: DISASSEMBLY
1. LH SEAT
1) Remove the seat from vehicle.
LH&CTR SEAT, REMOVAL, Second-row Seats.>
2) Remove the headrest.
3) Remove the hinge outer cover.
4) Remove the two reclining hinge bolts of 2nd seat
CTR, then remove the seat back.
5) Remove the two reclining hinge bolts of 2nd seat
LH on each of the left and right sides, then remove
the seat back.
SE-00596
SE-00597
SE-00598
SE-00599
SE-00600

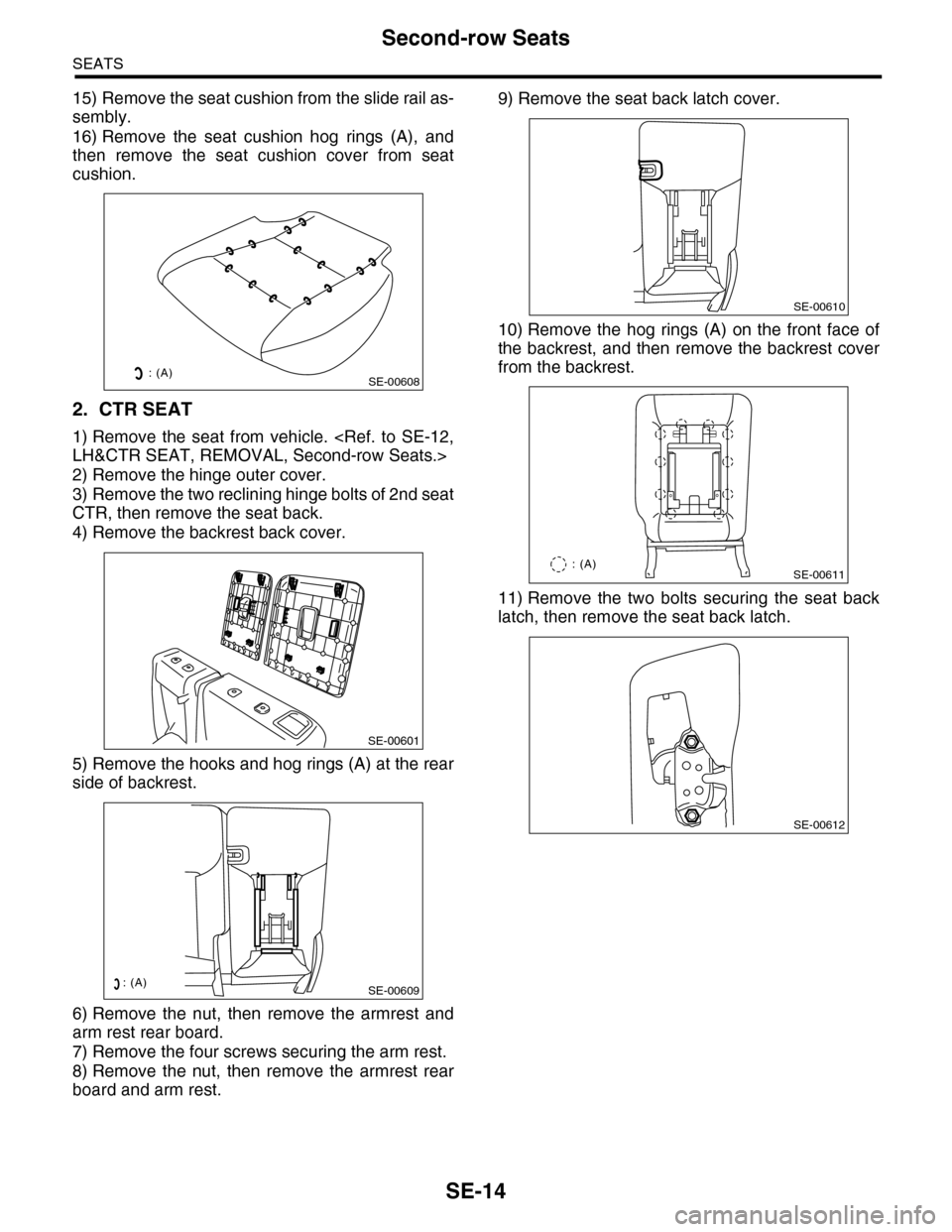

Page 624 of 2453

SE-14
Second-row Seats
SEATS
15) Remove the seat cushion from the slide rail as-
sembly.
16) Remove the seat cushion hog rings (A), and
then remove the seat cushion cover from seat
cushion.
2. CTR SEAT
1) Remove the seat from vehicle.
LH&CTR SEAT, REMOVAL, Second-row Seats.>
2) Remove the hinge outer cover.
3) Remove the two reclining hinge bolts of 2nd seat
CTR, then remove the seat back.
4) Remove the backrest back cover.
5) Remove the hooks and hog rings (A) at the rear
side of backrest.
6) Remove the nut, then remove the armrest and
arm rest rear board.
7) Remove the four screws securing the arm rest.
8) Remove the nut, then remove the armrest rear
board and arm rest.
9) Remove the seat back latch cover.
10) Remove the hog rings (A) on the front face of
the backrest, and then remove the backrest cover
from the backrest.
11) Remove the two bolts securing the seat back
latch, then remove the seat back latch.
SE-00608: (A)
SE-00601
SE-00609: (A)
SE-00610
SE-00611: (A)
SE-00612
Page 625 of 2453
SE-15
Second-row Seats
SEATS
3. RH SEAT
1) Remove the seat from vehicle.
RH SEAT, REMOVAL, Second-row Seats.>
2) Remove the headrest.
3) Remove the hinge outer cover.
4) Remove the backrest back cover.
5) Remove the hog rings (A) and hooks at the rear
face of the backrest.
6) Remove the two screws securing the holder.
7) Disconnect the wire connected to the holder,
then remove the holder.
8) Disconnect the wire connected to the reclining
hinge.
9) Remove the four reclining hinge bolts of 2nd
seat RH, then remove the seat back.
10) Remove the two screws securing the reclining
lever cover.
11) Remove the reclining lever cover.
12) Remove the headrest lock bushing.
NOTE:
Push outward from inside of the seat to remove.
13) Pull out the frame from the backrest.
: (A)SE-00613
SE-00614
SE-00615
SE-00616
SE-00617
SE-00618
