Page 129 of 2453

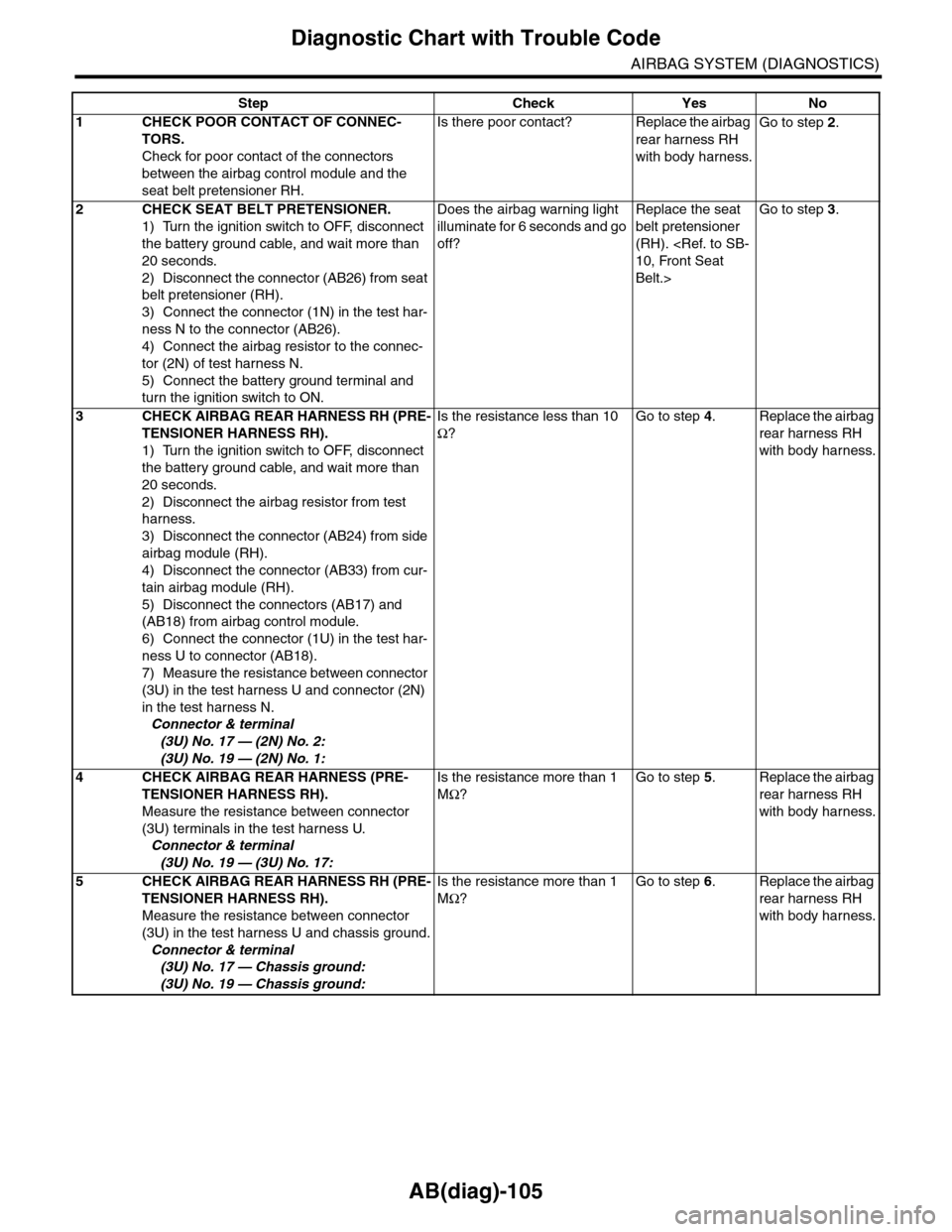

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-105
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control

AB(diag)-105
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module and the
seat belt pretensioner RH.
Is there poor contact? Replace the airbag
rear harness RH
with body harness.
Go to step 2.
2CHECK SEAT BELT PRETENSIONER.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB26) from seat
belt pretensioner (RH).
3) Connect the connector (1N) in the test har-
ness N to the connector (AB26).
4) Connect the airbag resistor to the connec-
tor (2N) of test harness N.
5) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the seat
belt pretensioner
(RH). 10, Front Seat
Belt.>
Go to step 3.
3CHECK AIRBAG REAR HARNESS RH (PRE-
TENSIONER HARNESS RH).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the airbag resistor from test
harness.
3) Disconnect the connector (AB24) from side
airbag module (RH).
4) Disconnect the connector (AB33) from cur-
tain airbag module (RH).
5) Disconnect the connectors (AB17) and
(AB18) from airbag control module.
6) Connect the connector (1U) in the test har-
ness U to connector (AB18).
7) Measure the resistance between connector
(3U) in the test harness U and connector (2N)
in the test harness N.
Connector & terminal
(3U) No. 17 — (2N) No. 2:
(3U) No. 19 — (2N) No. 1:
Is the resistance less than 10
Ω?
Go to step 4.Replace the airbag
rear harness RH
with body harness.
4CHECK AIRBAG REAR HARNESS (PRE-
TENSIONER HARNESS RH).
Measure the resistance between connector
(3U) terminals in the test harness U.
Connector & terminal
(3U) No. 19 — (3U) No. 17:
Is the resistance more than 1
MΩ?
Go to step 5.Replace the airbag
rear harness RH
with body harness.
5CHECK AIRBAG REAR HARNESS RH (PRE-
TENSIONER HARNESS RH).
Measure the resistance between connector
(3U) in the test harness U and chassis ground.
Connector & terminal
(3U) No. 17 — Chassis ground:
(3U) No. 19 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 6.Replace the airbag
rear harness RH
with body harness.

Page 130 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-106
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
6CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read th

Page 131 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-107
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AL:DTC 62 BELT PRETENSIONER LH FAILURE
DTC DETECTING CONDITION:
•Seat belt pretensioner (LH) circuit is open, shorted or s

Page 132 of 2453

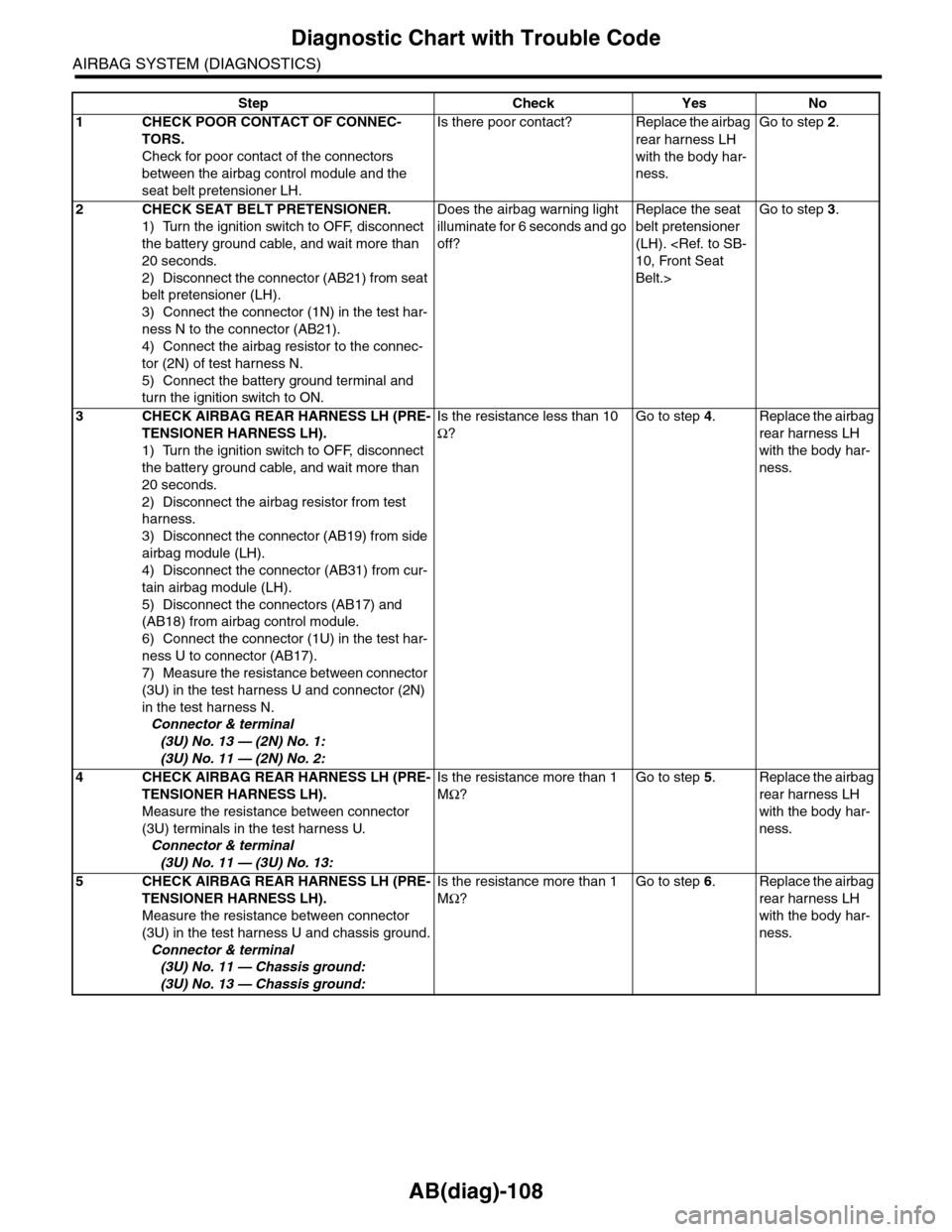

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-108
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control

AB(diag)-108
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module and the
seat belt pretensioner LH.
Is there poor contact? Replace the airbag
rear harness LH
with the body har-
ness.
Go to step 2.
2CHECK SEAT BELT PRETENSIONER.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB21) from seat
belt pretensioner (LH).
3) Connect the connector (1N) in the test har-
ness N to the connector (AB21).
4) Connect the airbag resistor to the connec-
tor (2N) of test harness N.
5) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the seat
belt pretensioner
(LH). 10, Front Seat
Belt.>
Go to step 3.
3CHECK AIRBAG REAR HARNESS LH (PRE-
TENSIONER HARNESS LH).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the airbag resistor from test
harness.
3) Disconnect the connector (AB19) from side
airbag module (LH).
4) Disconnect the connector (AB31) from cur-
tain airbag module (LH).
5) Disconnect the connectors (AB17) and
(AB18) from airbag control module.
6) Connect the connector (1U) in the test har-
ness U to connector (AB17).
7) Measure the resistance between connector
(3U) in the test harness U and connector (2N)
in the test harness N.
Connector & terminal
(3U) No. 13 — (2N) No. 1:
(3U) No. 11 — (2N) No. 2:
Is the resistance less than 10
Ω?
Go to step 4.Replace the airbag
rear harness LH
with the body har-
ness.
4CHECK AIRBAG REAR HARNESS LH (PRE-
TENSIONER HARNESS LH).
Measure the resistance between connector
(3U) terminals in the test harness U.
Connector & terminal
(3U) No. 11 — (3U) No. 13:
Is the resistance more than 1
MΩ?
Go to step 5.Replace the airbag
rear harness LH
with the body har-
ness.
5CHECK AIRBAG REAR HARNESS LH (PRE-
TENSIONER HARNESS LH).
Measure the resistance between connector
(3U) in the test harness U and chassis ground.
Connector & terminal
(3U) No. 11 — Chassis ground:
(3U) No. 13 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 6.Replace the airbag
rear harness LH
with the body har-
ness.

Page 133 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-109
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
6CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read th

Page 134 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-110
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AM:DTC 65 BELT PRETENSIONER RH FAILURE
DTC DETECTING CONDITION:
•Seat belt pretensioner (RH) circuit is shorted to power s

Page 135 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-111
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control

AB(diag)-111
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module and the
seat belt pretensioner RH.
Is there poor contact? Replace the airbag
rear harness RH
with body harness.
Go to step 2.
2CHECK SEAT BELT PRETENSIONER.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB26) from seat
belt pretensioner (RH).
3) Connect the connector (1N) in the test har-
ness N to the connector (AB26).
4) Connect the airbag resistor to the connec-
tor (2N) of test harness N.
5) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the seat
belt pretensioner
(RH). 10, Front Seat
Belt.>
Go to step 3.
3CHECK AIRBAG REAR HARNESS RH (PRE-
TENSIONER HARNESS RH).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the airbag resistor from test
harness.
3) Disconnect the connector (AB24) from side
airbag module (RH).
4) Disconnect the connector (AB33) from cur-
tain airbag module (RH).
5) Disconnect the connectors (AB17) and
(AB18) from airbag control module.
6) Connect the connector (1U) in the test har-
ness U to connector (AB18).
7) Connect the battery ground terminal and
turn the ignition switch to ON.
8) Measure the voltage between connector
(3U) in the test harness U and chassis ground.
Connector & terminal
(3U) No. 17 (+) — Chassis ground (–):
(3U) No. 19 (+) — Chassis ground (–):
Is the voltage less than 1 V? Go to step 4.Replace the airbag
rear harness RH
with body harness.
4CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read the DTC.
Is the same DTC displayed? Replace the airbag
control module.
Airbag Control
Module.>
Go to step 5.
5CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check DTC using
“List of Diagnostic
Tr o u b l e C o d e
(DTC)”. AB(diag)-45, List
of Diagnostic Trou-
ble Code (DTC).>
Finish the diagno-
sis.

Page 136 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-112
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AN:DTC 66 BELT PRETENSIONER LH FAILURE
DTC DETECTING CONDITION:
•Seat belt pretensioner (LH) circuit is shorted to power s
