SUBARU TRIBECA 2009 1.G Service Workshop Manual GW-26
Rear Window Defogger
GLASS/WINDOWS/MIRRORS
5) Connect the tester probe of positive lead of volt-
meter to positive terminal of heat wire and move
tester probe of negative lead along the

Page 322 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GW-27
Rear Quarter Glass
GLASS/WINDOWS/MIRRORS
18.Rear Quarter Glass
A: REMOVAL
Remove the glass in the same procedure as for
windshield glass. <Ref. to GW-18, REMOVAL,
Windshield Glass.>

Page 323 of 2453

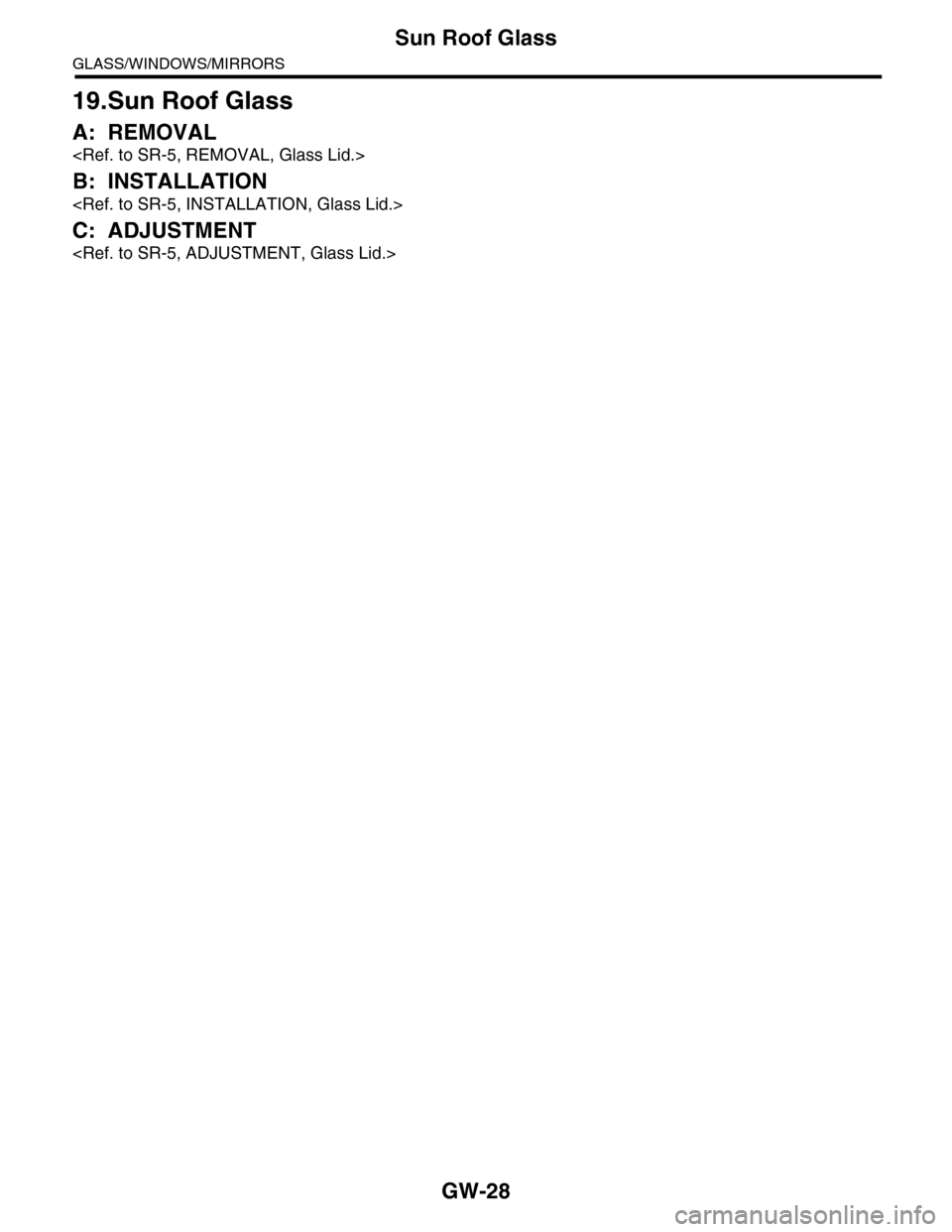

SUBARU TRIBECA 2009 1.G Service Workshop Manual GW-28
Sun Roof Glass
GLASS/WINDOWS/MIRRORS
19.Sun Roof Glass
A: REMOVAL
<Ref. to SR-5, REMOVAL, Glass Lid.>
B: INSTALLATION
<Ref. to SR-5, INSTALLATION, Glass Lid.>
C: ADJUSTMENT
<Ref. to SR-5, ADJUST

Page 324 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GW-29
Rearview Mirror
GLASS/WINDOWS/MIRRORS
20.Rearview Mirror
A: REMOVAL
1) Remove the TORX® screw (1).
2) Slide the rearview mirror (2) to the upper side (A)
of windshield glass (3), and remove the

Page 325 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GW-30
Wiper Deicer System
GLASS/WINDOWS/MIRRORS
21.Wiper Deicer System
A: WIRING DIAGRAM
<Ref. to WI-107, Wiper Deicer System.>
B: INSPECTION
Refer to “Rear Window Defogger” for inspection.
<Ref.

Page 326 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual GW-31
Wiper Deicer Switch
GLASS/WINDOWS/MIRRORS
22.Wiper Deicer Switch
A: REMOVAL
1) Remove the instrument panel lower cover. <Ref.
to EI-36, REMOVAL, Instrument Panel Lower Cov-
er.>
2) Disconnect t

Page 327 of 2453

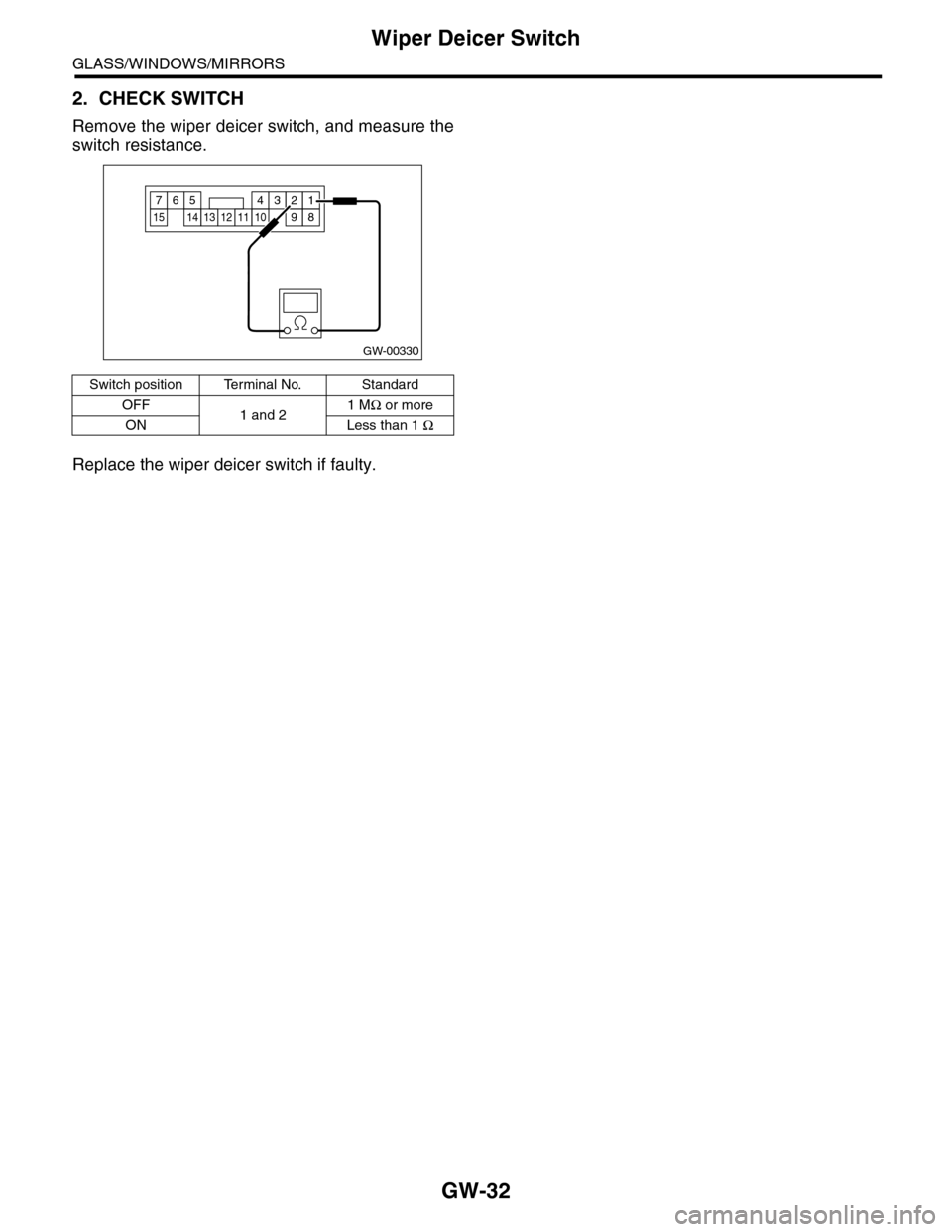

SUBARU TRIBECA 2009 1.G Service Workshop Manual GW-32
Wiper Deicer Switch
GLASS/WINDOWS/MIRRORS
2. CHECK SWITCH
Remove the wiper deicer switch, and measure the
switch resistance.
Replace the wiper deicer switch if faulty.
Switch position Terminal N

Page 328 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AC-2
General Description
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
1. General Description
A: SPECIFICATION
1. HEATER SYSTEM
2. A/C SYSTEM
•Single A/C model (front only)
Item Specification Condition
H

AC-2
General Description
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
1. General Description
A: SPECIFICATION
1. HEATER SYSTEM
2. A/C SYSTEM
•Single A/C model (front only)
Item Specification Condition
Heating capacity5.2 kW (4,471 kcal/h, 17,743
BTU/h) or more
•Mode selector switch: HEAT
•Temperature control switch: FULL HOT
•Temperature difference between hot water and inlet
air: 65°C (149°F)
•Hot water flow rate: 360 2 (95.1 US gal, 79.2 Imp
gal)/h
Air flow rate340 m3 (11,301 cu ft)/hHeat mode (FRESH), FULL HOT at 12.5 V
Max air flow rate550 m3 (16,245 cu ft)/h
•Temperature control switch: FULL COLD
•Blower fan speed:
6th position
•Mode selector lever: RECIRC
Heater core size
(height × length × width)
264 × 110 × 27 mm
(10.4 × 4.33 × 1.06 in)—
Blower Motor
Ty p e B r u s h m o t o r 2 2 0 W o r l e s s 1 2 V
Fa n t y pe an d si ze
(diameter × width)
Sirocco fan type
165 ×75 mm (6.51 × 2.95 in)—
Item Specification
Ty p e o f a i r c o n d i t i o n e r R e h e a t a i r - m i x t y p e
Cooling capacity6.2 kW
(5,331 kcal/h, 21,154 BTU/h)
RefrigerantHFC-134a (CH2FCF3)
[0.87±0.03 kg (1.92±0.07 lb)]
Compressor
Ty p eInclined plate (SWASH PLATE), fixed capacity
(10SR17), Temperature fuse
Exhaust 177 cc (10.80 cu in)/rev
Max. permissible speed 6,000 rpm
Magnet clutch
Ty p e D r y, s i n g l e - d i s c t y p e
Powe r c on su mp t i on 35 W
Ty p e o f b e l t V- b e l t 6 P K
Pulley dia. (effective dia.) 115 mm (4.53 in)
Pulley ratio 1.16
Condenser
Ty p e C o r r u g a t e d f i n ( S u b c o o l t y p e )
Core face area0.29 m2 (3.122 sq ft)
Core thickness 16 mm (0.63 in)
Radiation area7.65 m2 (82.35 sq ft)
Receiver drier Effective inner capacity190 cm3 (11.6 cu in)
Expansion valve Type Box time (external pressure equalizing type)
Evaporator
Ty p e S i n g l e t a n k
Dimensions (W × H × T)293.1 × 211 × 38 mm
(11.54 × 8.31 × 1.50 in)
Blower fan
Fan t yp e S i r oc co fa n
Outer diameter× width 165 ×75 mm (6.50 × 2.95 in)
Powe r c on su mp t i on 2 60 W
