SUBARU TRIBECA 2009 1.G Service Workshop Manual IG(H6DO)-6 Spark Plug IGNITION 2) Carbon fouled: Dry fluffy carbon deposits on insulator and elec- trode are mostly caused by slow speed driving in the city, weak ignition, too rich fue

Page 1842 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual IG(H6DO)-7 Ignition Coil & Ignitor Assembly IGNITION 3. Ignition Coil & Ignitor Assem- bly A: REMOVAL Direct ignition type has been adopted. Refer to “Spark Plug” for removal procedure.

Page 1843 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual IG(H6DO)-8 Ignition Coil & Ignitor Assembly IGNITION

Page 1844 of 2453

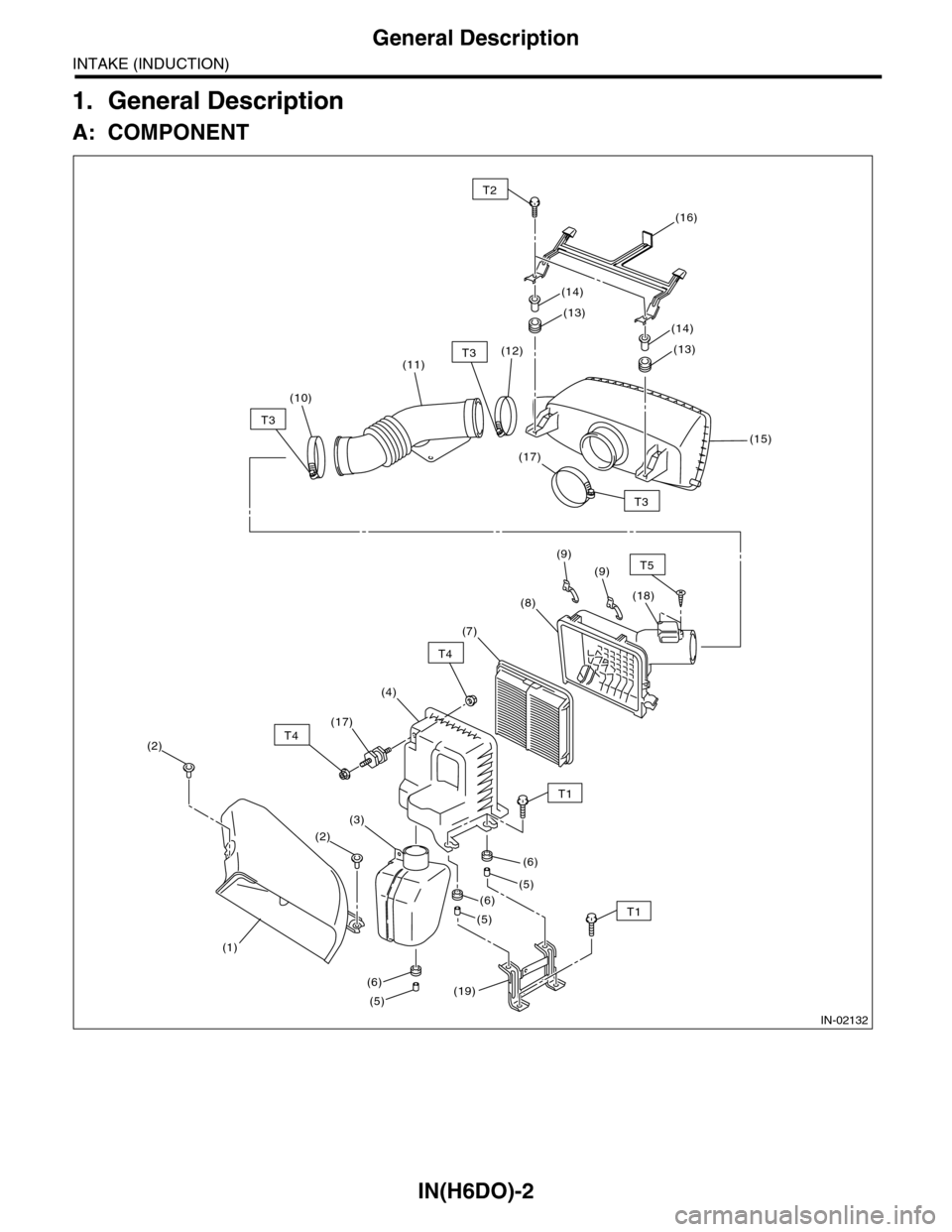

SUBARU TRIBECA 2009 1.G Service Workshop Manual IN(H6DO)-2 General Description INTAKE (INDUCTION) 1. General Description A: COMPONENT (12) (17) (16) (15) (11) T1 (6) (6) (5) (5) (9) (9) (8)(18) (7) (4) (17) (19) (3) (1) (2) (6) (5) T3 T3 (13) T2 (1

Page 1845 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual IN(H6DO)-3 General Description INTAKE (INDUCTION) B: CAUTION •Wear work clothing, including a cap, protective goggles and protective shoes during operation. •Remove contamination including dirt an

Page 1846 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual IN(H6DO)-4 Air Cleaner Element INTAKE (INDUCTION) 2. Air Cleaner Element A: REMOVAL 1) Disconnect the ground cable from battery. 2) Disconnect the connector from mass air flow and intake air temperatu

Page 1847 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual IN(H6DO)-5 Air Cleaner Case INTAKE (INDUCTION) 3. Air Cleaner Case A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the air intake duct. <Ref. to IN(H6DO)- 7, REMOVAL, Air Intake Duct

Page 1848 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual IN(H6DO)-6 Air Intake Chamber INTAKE (INDUCTION) 4. Air Intake Chamber A: REMOVAL 1) Remove the collector cover. 2) Loosen the clamp (A) which connects air intake chamber to throttle body. 3) Loosen
