Page 625 of 2453
SE-15
Second-row Seats
SEATS
3. RH SEAT
1) Remove the seat from vehicle.
RH SEAT, REMOVAL, Second-row Seats.>
2) Remove the headrest.
3) Remove the hinge outer cover.
4) Remove the backrest back cover.
5) Remove the hog rings (A) and hooks at the rear
face of the backrest.
6) Remove the two screws securing the holder.
7) Disconnect the wire connected to the holder,
then remove the holder.
8) Disconnect the wire connected to the reclining
hinge.
9) Remove the four reclining hinge bolts of 2nd
seat RH, then remove the seat back.
10) Remove the two screws securing the reclining
lever cover.
11) Remove the reclining lever cover.
12) Remove the headrest lock bushing.
NOTE:
Push outward from inside of the seat to remove.
13) Pull out the frame from the backrest.
: (A)SE-00613
SE-00614
SE-00615
SE-00616
SE-00617
SE-00618

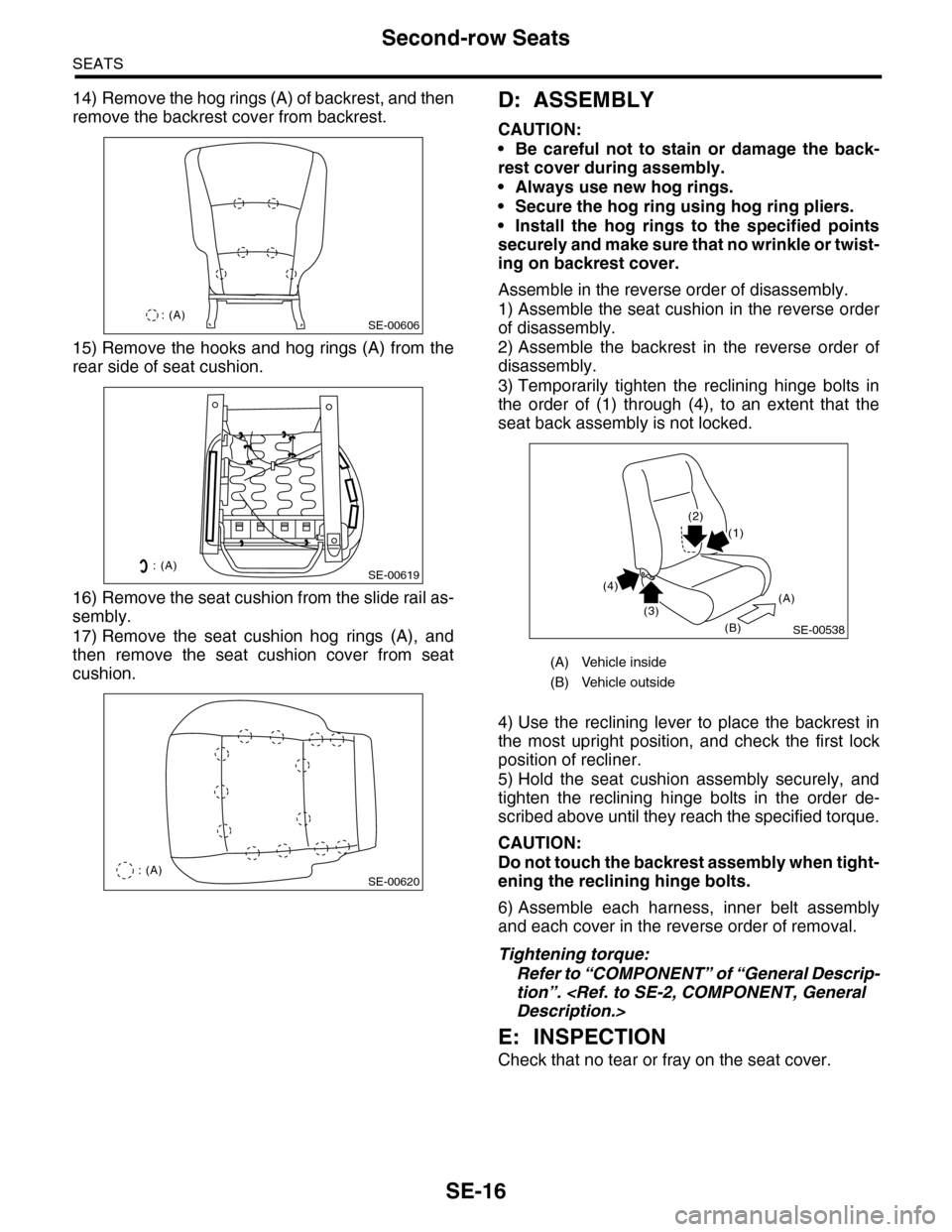

Page 626 of 2453

SE-16
Second-row Seats
SEATS
14) Remove the hog rings (A) of backrest, and then
remove the backrest cover from backrest.
15) Remove the hooks and hog rings (A) from the
rear side of seat cushion.
16) Remove the seat cushion from the slide rail as-
sembly.
17) Remove the seat cushion hog rings (A), and
then remove the seat cushion cover from seat
cushion.
D: ASSEMBLY
CAUTION:
•Be careful not to stain or damage the back-
rest cover during assembly.
•Always use new hog rings.
•Secure the hog ring using hog ring pliers.
•Install the hog rings to the specified points
securely and make sure that no wrinkle or twist-
ing on backrest cover.
Assemble in the reverse order of disassembly.
1) Assemble the seat cushion in the reverse order
of disassembly.
2) Assemble the backrest in the reverse order of
disassembly.
3) Temporarily tighten the reclining hinge bolts in
the order of (1) through (4), to an extent that the
seat back assembly is not locked.
4) Use the reclining lever to place the backrest in
the most upright position, and check the first lock
position of recliner.
5) Hold the seat cushion assembly securely, and
tighten the reclining hinge bolts in the order de-
scribed above until they reach the specified torque.
CAUTION:
Do not touch the backrest assembly when tight-
ening the reclining hinge bolts.
6) Assemble each harness, inner belt assembly
and each cover in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
Description.>
E: INSPECTION
Check that no tear or fray on the seat cover.
SE-00606: (A)
SE-00619: (A)
SE-00620: (A)
(A) Vehicle inside
(B) Vehicle outside
(A)
(B)
(2)
(4)
(3)
(1)
SE-00538
Page 627 of 2453
SE-17
Third-row Seats
SEATS
4. Third-row Seats
A: REMOVAL
1) Lift up the front side of the 3rd seat cushion and
then remove the hooks.
2) Lift up the 3rd seat cushion and remove the seat
cushion by pushing it backward to detach the hook.
3) Remove the eight bolts securing the 3rd seat
back.
4) Remove the 3rd seat.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
Description.>
C: DISASSEMBLY
1) Remove the 3rd seat.
AL, Third-row Seats.>
2) Remove the headrest.
3) Pull out the seat belt tray.
4) Remove the hog rings (A) on the rear side of
seat cushion.
5) Remove the hog rings (A) on the front side of
seat cushion.
6) Remove the two screws securing the hinge lever
assembly.
7) Disconnect the wire connected to the hinge lever
assembly.
8) Remove the seat back cover.
SE-00621
SE-00622
SE-00623: (A)
SE-00624: (A)
SE-00625
SE-00626

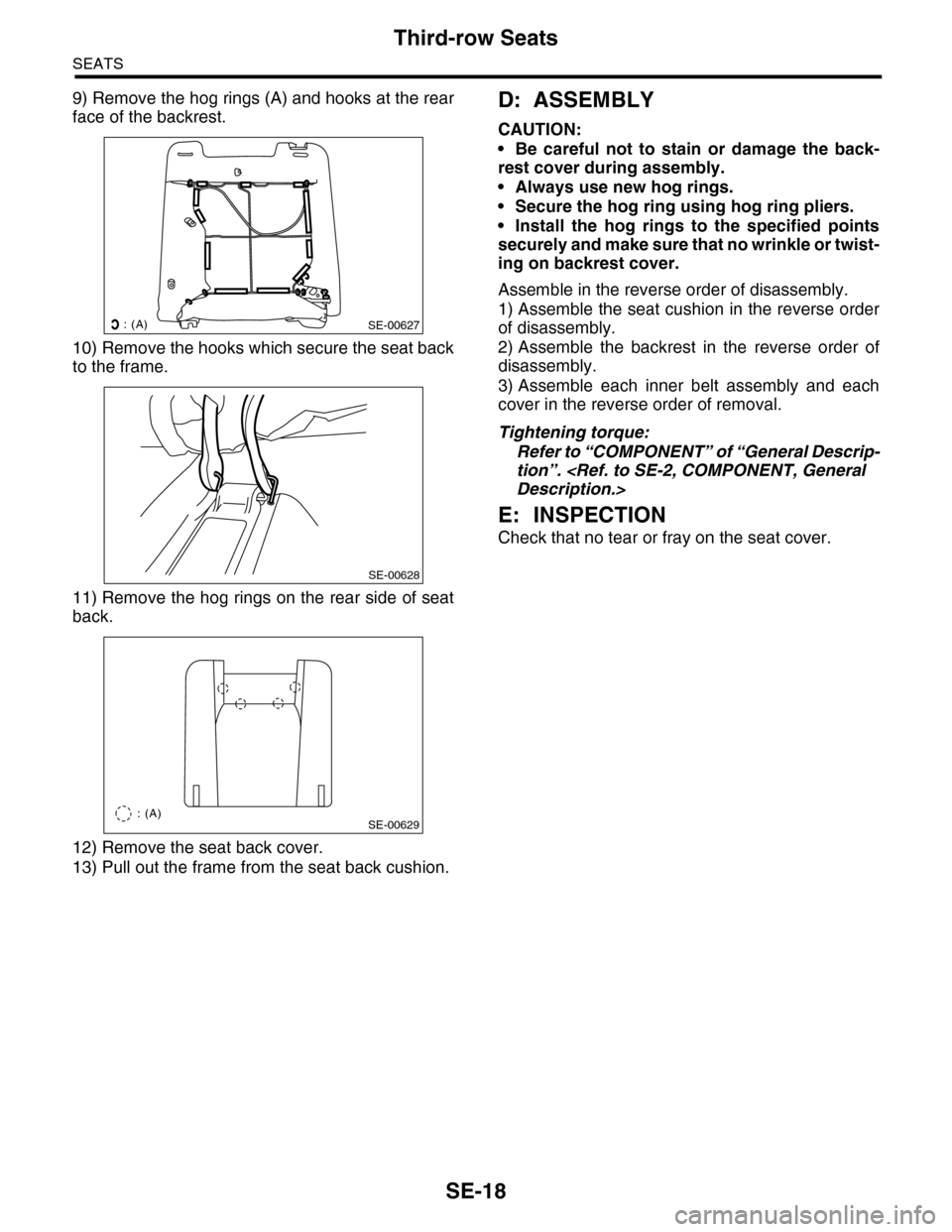

Page 628 of 2453

SE-18
Third-row Seats
SEATS
9) Remove the hog rings (A) and hooks at the rear
face of the backrest.
10) Remove the hooks which secure the seat back
to the frame.
11) Remove the hog rings on the rear side of seat
back.
12) Remove the seat back cover.
13) Pull out the frame from the seat back cushion.
D: ASSEMBLY
CAUTION:
•Be careful not to stain or damage the back-
rest cover during assembly.
•Always use new hog rings.
•Secure the hog ring using hog ring pliers.
•Install the hog rings to the specified points
securely and make sure that no wrinkle or twist-
ing on backrest cover.
Assemble in the reverse order of disassembly.
1) Assemble the seat cushion in the reverse order
of disassembly.
2) Assemble the backrest in the reverse order of
disassembly.
3) Assemble each inner belt assembly and each
cover in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
Description.>
E: INSPECTION
Check that no tear or fray on the seat cover.
: (A)SE-00627
SE-00628
SE-00629: (A)

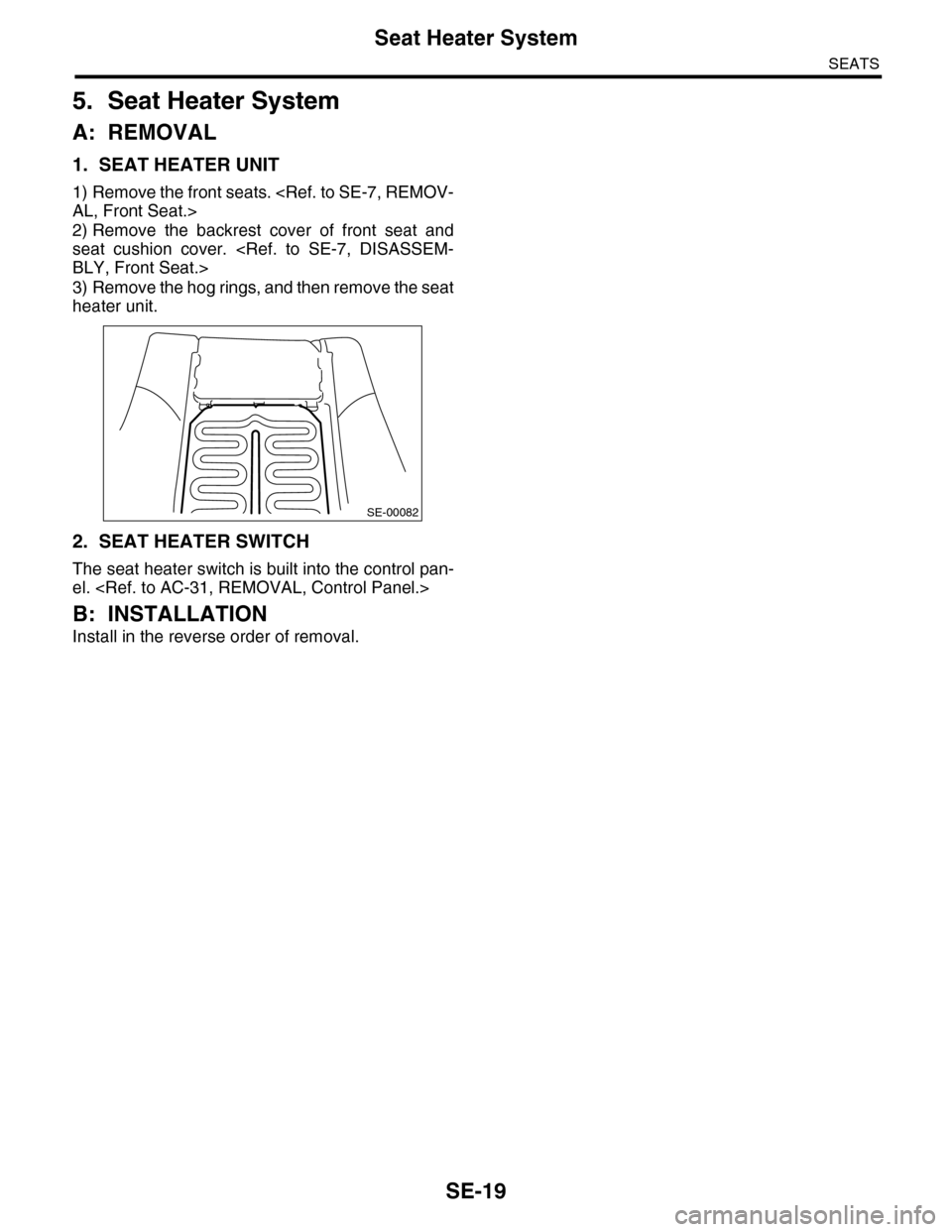

Page 629 of 2453
SE-19
Seat Heater System
SEATS
5. Seat Heater System
A: REMOVAL
1. SEAT HEATER UNIT
1) Remove the front seats.
AL, Front Seat.>
2) Remove the backrest cover of front seat and
seat cushion cover.
BLY, Front Seat.>
3) Remove the hog rings, and then remove the seat
heater unit.
2. SEAT HEATER SWITCH
The seat heater switch is built into the control pan-
el.
B: INSTALLATION
Install in the reverse order of removal.
SE-00082

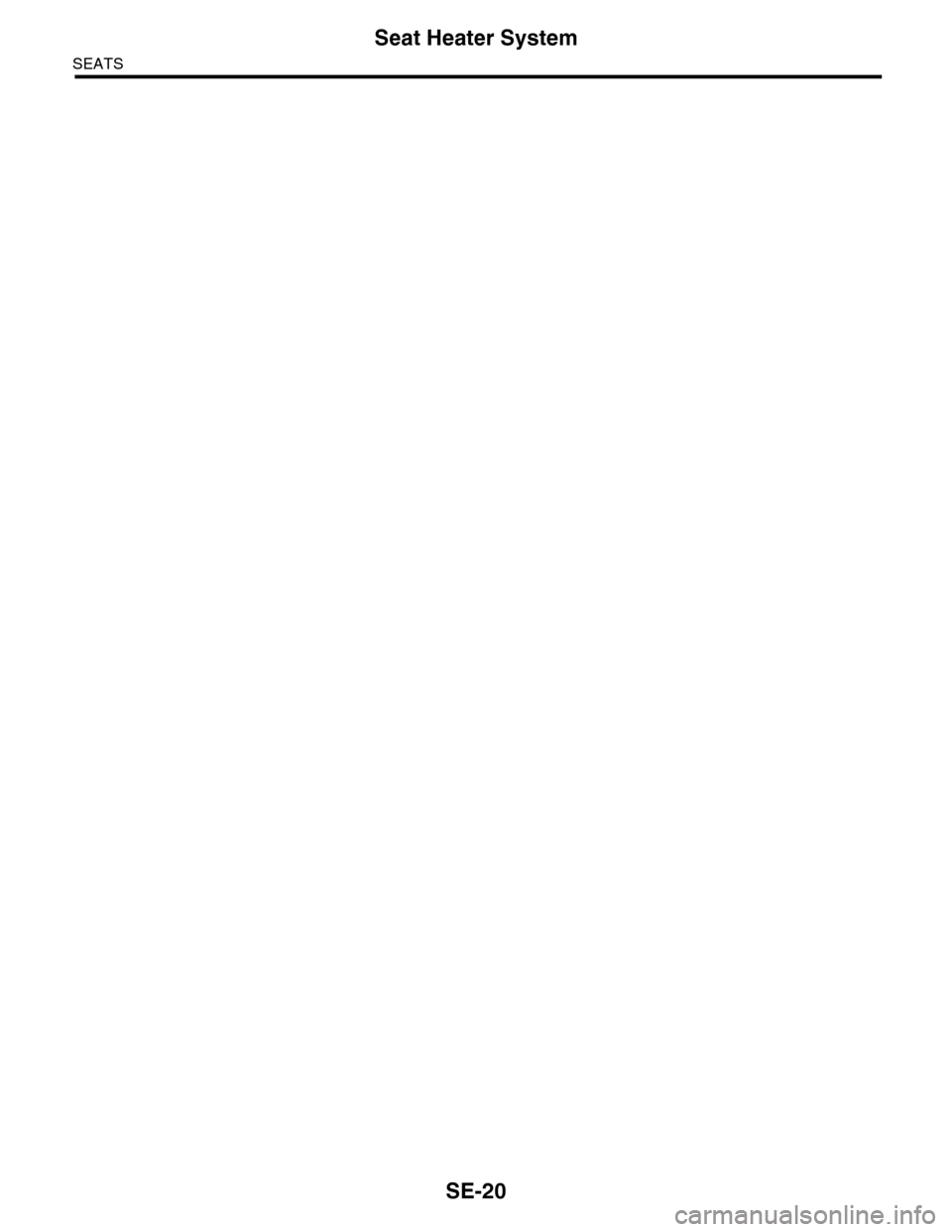

Page 630 of 2453
SE-20
Seat Heater System
SEATS
Page 631 of 2453
SL-2
General Description
SECURITY AND LOCKS
1. General Description
A: COMPONENT
1. DOOR LOCK ASSEMBLY
(A) Front (B) Rear
(1) Inner remote ASSY (6) Rear door latch and door lock
actuator ASSY
Tightening torque: N·m (kgf-m, ft-lb)
(2) Front door latch and door lock
actuator ASSY
T1: 6.5 (0.66, 4.8)
(7) Door outer handle coverT2: 7.5 (0.76, 5.5)
(3) Door outer handle (8) Door outer handle spacerT3: 18 (1.8, 13.3)
(4) Key cylinder (switch) (9) Door outer handle frame ASSY
(5) Striker
SL-00436
(9)
T1
(B)
(A)
T3
(5)
(9)
(2)
(1)
(1)
T3
(5)
(6)
T2
T1
(3)
(7)(4)
(8)
T2
(3)
(7)
T2
T2
(8)T2
T2
Page 632 of 2453
SL-3
General Description
SECURITY AND LOCKS
2. REAR GATE LOCK
(1) Rear gate actuator Tightening torque: N·m (kgf-m, ft-lb)
(2) Rear gate latch T1: 18 (1.8, 13.3)
(3) Striker T2: 25 (2.5, 18.4)
SL-00437
T2
(1)
(2)
(3)
T1
