SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-28
Security System
SECURITY AND LOCKS
CAUTION:
•Security alarm ON/OFF setting
At the time of shipment from the factory, the security alarm is set to “ON”. However, when {Security
setting init

SL-28
Security System
SECURITY AND LOCKS
CAUTION:
•Security alarm ON/OFF setting
At the time of shipment from the factory, the security alarm is set to “ON”. However, when {Security
setting initialization} is performed with the Subaru Select Monitor, the security alarm automatically is
set to “OFF”. When security initialization has been performed, always return the ON/OFF setting for
the security alarm to “ON”.
•Siren YES/NO setting
The {Siren YES/NO} setting of the item {Unit customization} of the Subaru Select Monitor always
shall be set to “NO”. If it is set to “YES”, the horn of the security alarm will not sound.
7CHECK SECURITY ALARM OPERATION.
1) Unlock all doors using the door lock switch
on driver’s door.
2) Open any door or rear gate.
Does the security alarm oper-
ate when opening any door or
rear gate?
Go to step 8.•Check the door
switch. SL-30, CHECK
DOOR SWITCH,
INSPECTION,
Security System.>
•Check the rear
gate latch switch.
CHECK REAR
GATE LATCH
SWITCH.,
INSPECTION,
Security System.>
8CHECK SECURITY ALARM OPERATION.
Check the security alarm operation.
Does all of the following secu-
rity alarm operate? •Horn
sounds •Hazard light blinks
•Security indicator light blinks
Go to step 9.•Check horn.
CHECK HORN,
INSPECTION,
Security System.>
•Check the haz-
ard light. SL-33, CHECK
HAZARD LIGHT
OPERATION,
INSPECTION,
Security System.>
9CHECK SECURITY ALARM CANCEL OPER-
ATION.
Press any button of transmitter while operating
security alarm. Or turn the ignition switch
OFF→ON three times.
Does all of the following secu-
rity alarm stop? •Horn •Hazard
light
Go to step 10.Check the ignition
switch circuit.
CHECK IGNI-
TION SWITCH
CIRCUIT,
INSPECTION,
Security System.>
10 CHECK SECURITY SYSTEM CONDITION
MEMORY.
Check that the system function properly when
the battery is not connected temporally. to SL-29, CHECK SECURITY SYSTEM CON-
DITION MEMORY, INSPECTION, Security
System.>
Does the system function prop-
erly when the battery is not
connected temporally?
Go to step 11.Replace the body
integrated unit.
Body Integrated
Unit.>
11 CHECK IMPACT SENSOR.
Check the sensibility of impact sensor. SL-49, CHECK IMPACT SENSOR, ADJUST-
MENT, Impact Sensor.>
Is the sensibility set properly? Press the
UNLOCK button of
keyless transmit-
ter, and finish the
diagnosis.
Adjust the sensibil-
ity. IMPACT SENSI-
TIVITY ADJUST-
MENT,
ADJUSTMENT,
Impact Sensor.>
Step Check Yes No

Page 658 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-29
Security System
SECURITY AND LOCKS
NOTE:
Check the function setting of body integrated unit if any of the following symptoms appear. <Ref. to LAN(di-
ag)-2, Basic Diagnostic Procedure.>
•The h

Page 659 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-30
Security System
SECURITY AND LOCKS
4. CHECK DOOR SWITCH
Step Check Yes No
1CHECK INPUT FROM EACH DOOR SWITCH.
1) Connect the Subaru Select Monitor to data
link connector.
2) Turn the ignition s

SL-30
Security System
SECURITY AND LOCKS
4. CHECK DOOR SWITCH
Step Check Yes No
1CHECK INPUT FROM EACH DOOR SWITCH.
1) Connect the Subaru Select Monitor to data
link connector.
2) Turn the ignition switch to ON.
3) Select {Integ. unit} from main menu.
4) Select the {Current Data Display & Save}.
5) Check the door switch input to the body
integrated unit when opening the each door
(front RH and LH, rear RH and LH).
Is the input signal detected
when opening the each door
(front RH and LH, rear RH and
LH)?
The door switch
circuit is OK.
When the input
signal cannot be
detected in some
door switch, Go to
step 2.
2CHECK THE DOOR SWITCH CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the harness connector of body
integrated unit.
3) Disconnect the harness connector of faulty
door switch.
4) Measure the resistance between harness
connector terminals.
Connector & terminal
(i84) No. 19 — (R12) No. 1: (front door
LH)
(i84) No. 32 — (R9) No. 1: (front door RH)
(i84) No. 31 — (R22) No. 1: (rear door LH)
(i84) No. 18 — (R16) No. 1: (rear door RH)
Is the resistance less than 10
Ω?
Go to step 3.Repair the har-
ness.
3CHECK THE GROUND CIRCUIT OF DOOR
SWITCH.
1) Disconnect the harness connector of faulty
door switch.
2) Measure the resistance of harness connec-
tor and chassis ground.
Connector & terminal
(R9) No. 3 — Chassis ground: (front door
LH)
(R12) No. 3 — Chassis ground: (front
door RH)
(R22) No. 3 — Chassis ground: (rear
door LH)
(R16) No. 3 — Chassis ground: (rear
door RH)
Is the resistance less than 10
Ω?
Go to step 4.Repair the har-
ness.
4CHECK DOOR SWITCH.
1) Disconnect the harness connector of faulty
door switch.
2) Measure the resistance between door
switch terminals.
Te r m i n a l s
No. 1 — No. 3:
Is the resistance more than 1
MΩ when door switch is
pushed?
Go to step 5.Replace the door
switch.
5CHECK DOOR SWITCH.
Measure the resistance between door switch
terminals.
Te r m i n a l s
No. 1 — No. 3:
Is the resistance less than 1 Ω
when door switch is released?
Check the body
integrated unit.
LAN(diag)-2, Basic
Diagnostic Proce-
dure.>
Replace the door
switch.

Page 660 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-31
Security System
SECURITY AND LOCKS
5. CHECK REAR GATE LATCH SWITCH.
Step Check Yes No
1CHECK THE INPUT FROM REAR GATE
LATCH SWITCH.
1) Connect the Subaru Select Monitor to data
link connector.

Page 661 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-32
Security System
SECURITY AND LOCKS
6. CHECK SECURITY INDICATOR LIGHT CIRCUIT.
7. CHECK HORN
Step Check Yes No
1CHECK SECURITY INDICATOR LIGHT.
1) Turn the ignition switch to OFF.
2) Disconnect t

SL-32
Security System
SECURITY AND LOCKS
6. CHECK SECURITY INDICATOR LIGHT CIRCUIT.
7. CHECK HORN
Step Check Yes No
1CHECK SECURITY INDICATOR LIGHT.
1) Turn the ignition switch to OFF.
2) Disconnect the harness connector of body
integrated unit.
3) Connect the resistor (100 Ω) between the
body integrated unit harness connector termi-
nal (i84) No. 33 and chassis ground.
Connector & terminal
(i84) No. 33 — Chassis ground:
Does the security indicator
light illuminate?
Check the body
integrated unit.
LAN(diag)-2, Basic
Diagnostic Proce-
dure.>
Go to step 2.
2CHECK POWER SUPPLY FOR SECURITY
INDICATOR LIGHT.
1) Disconnect the connector from warning
box.
2) Measure the voltage between warning box
harness connector terminal and chassis
ground.
Connector & terminal
(i116) No. 1 (+) — Chassis ground (–):
Is the voltage more than 10 V? Go to step 3.Check the harness
for open or shor t
circuits between
warning box and
fuse.
3CHECK SECURITY INDICATOR LIGHT CIR-
CUIT.
Measure the resistance between the warning
box harness connector terminal and security
control unit harness connector terminal.
Connector & terminal
(i116) No. 2 — (i84) No. 33:
Is the resistance less than 10
Ω?
Replace the warn-
ing box. IDI-17, Warning
Box.>
Check the harness
for open or shor t
circuits between
warning box and
body integrated
unit.
Step Check Yes No
1CHECK HORN OPERATION.
Check the horn sounds when the horn switch
is pushed.
Does the horn sound? Go to step 2.Check the horn cir-
cuit.
2CHECK OUTPUT TO HORN RELAY.
1) Connect the Subaru Select Monitor to data
link connector.
2) Turn the ignition switch to ON.
3) Select {Integ. unit} from main menu.
4) Select {Function Check}.
5) Select {Horn Output} and execute
Does the horn sound? Horn circuit is OK. Go to step 3.
3CHECK HORN RELAY CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the harness connector of body
integrated unit.
3) Disconnect the main fuse box harness con-
nector (B186).
4) Measure the resistance between harness
connector terminals.
Connector & terminal
(B280) No. 11 — (B186) No. 1:
Is the resistance less than 10
Ω?
Check the body
integrated unit.
LAN(diag)-2, Basic
Diagnostic Proce-
dure.>
Repair the har-
ness.

Page 662 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-33
Security System
SECURITY AND LOCKS
8. CHECK HAZARD LIGHT OPERATION
9. CHECK IGNITION SWITCH CIRCUIT
Step Check Yes No
1CHECK HAZARD LIGHT OPERATION.
Make sure the hazard light blinks when hazard

SL-33
Security System
SECURITY AND LOCKS
8. CHECK HAZARD LIGHT OPERATION
9. CHECK IGNITION SWITCH CIRCUIT
Step Check Yes No
1CHECK HAZARD LIGHT OPERATION.
Make sure the hazard light blinks when hazard
switch is turned to ON.
Does the hazard light blink? Go to step 2.Check the hazard
light circuit.
2CHECK OUTPUT TO HAZARD LIGHT.
1) Turn the ignition switch to OFF.
2) Disconnect the key warning switch harness
connector.
3) Connect the Subaru Select Monitor to data
link connector.
4) Turn the ignition switch to ON.
5) Select {Integ. unit} from main menu.
6) Select {ECM customizing}.
7) Check the {Hazard answer-back setup},
and then switch to ON setting.
8) Select the {Current Data Display & Save}.
9) Check the hazard output signal of body
integrated unit when operating the LOCK/
UNLOCK button of transmitter.
Is output signal is present
when operating the transmitter
LOCK/UNLOCK button?
Go to step 3.Check the body
integrated unit.
LAN(diag)-2, Basic
Diagnostic Proce-
dure.>
3CHECK CIRCUIT OF HAZARD LIGHT.
1) Turn the ignition switch to OFF.
2) Disconnect the harness connector of body
integrated unit.
3) Disconnect the turn signal & hazard unit
harness connector.
4) Measure the resistance between harness
connector terminals.
Connector & terminal
(B280) No. 12 — (B32) No. 8:
Is the resistance less than 10
Ω?
Check the body
integrated unit.
LAN(diag)-2, Basic
Diagnostic Proce-
dure.>
Repair the har-
ness.
Step Check Yes No
1CHECK IGNITION SWITCH VOLTAGE.
1) Connect the Subaru Select Monitor to data
link connector.
2) Turn the ignition switch to ON.
3) Select {Integ. unit} from main menu.
4) Select the {Current Data Display & Save}.
5) Check the {BATT voltage} and {IG power
supply}.
Is the {IG power supply} within
±1 V against {BATT voltage}?
The ignition switch
input circuit is OK.
Go to step 2.
2 CHECK IGNITION SWITCH CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the harness connector of body
integrated unit.
3) Turn the ignition switch to ON.
4) Measure the voltage between harness con-
nector terminal and chassis ground.
Connector & terminal
(i84) No. 1 (+) — Chassis ground (–):
Is the voltage more than 10 V? Check the body
integrated unit.
LAN(diag)-2, Basic
Diagnostic Proce-
dure.>
Check the harness
for an open or
short circuit
between the body
integrated unit and
fuse.

Page 663 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-34

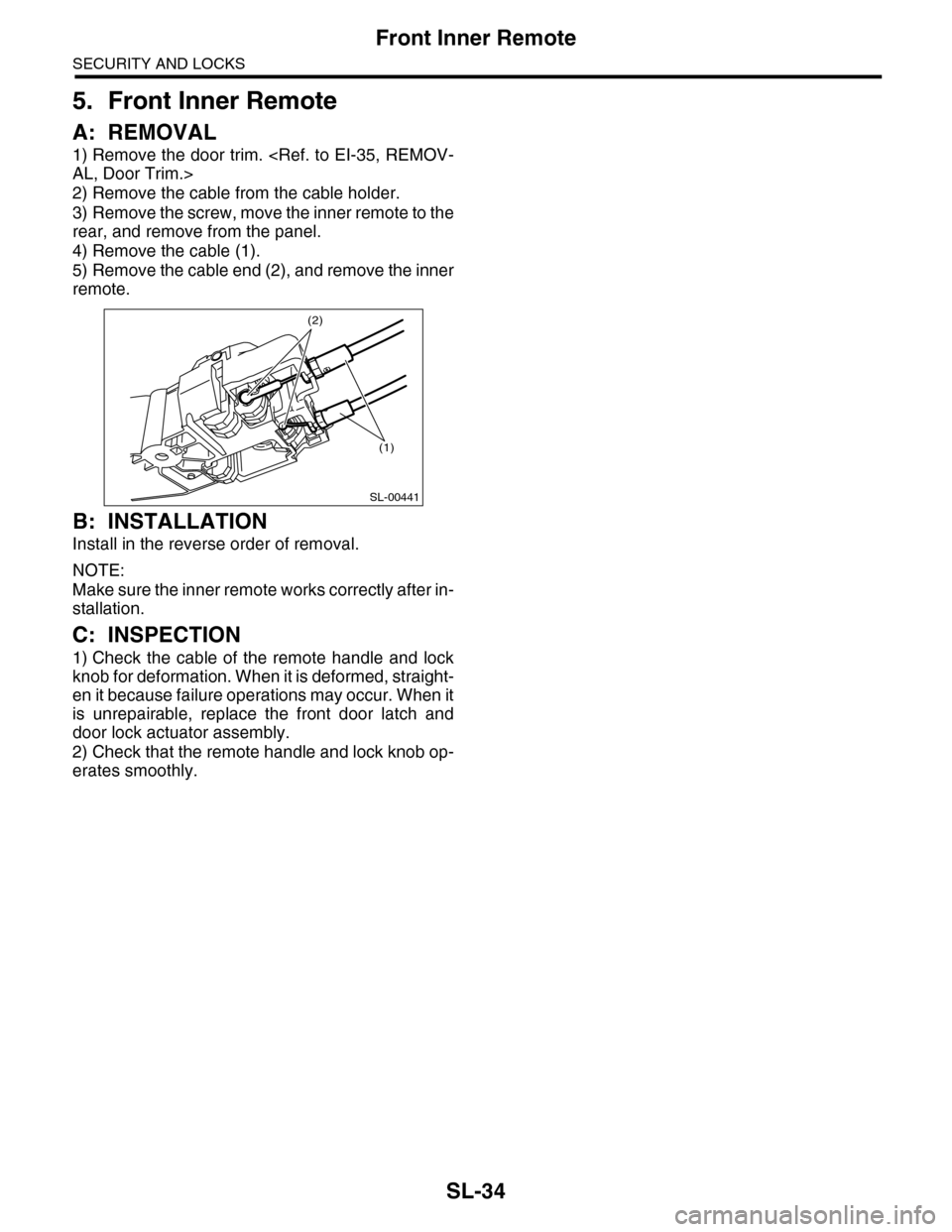

Front Inner Remote
SECURITY AND LOCKS
5. Front Inner Remote
A: REMOVAL
1) Remove the door trim. <Ref. to EI-35, REMOV-
AL, Door Trim.>
2) Remove the cable from the cable holder.
3) Remove the sc

Page 664 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual SL-35
Front Outer Handle
SECURITY AND LOCKS
6. Front Outer Handle
A: REMOVAL
1) Raise the front door glass to the top position.
2) Remove the door trim. <Ref. to EI-35, REMOV-
AL, Door Trim.>
3) Remo

Load next 8 pages

Page: < prev 1-10 ... 625-632 633-640 641-648 649-656 657-664 665-672 673-680 681-688 689-696 ... 2456 next >

maintenance reset turn signal bulb reset sun roof towing capacity lumbar support wiper size
