Page 137 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-113
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control

AB(diag)-113
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module and the
seat belt pretensioner LH.
Is there poor contact? Replace the airbag
rear harness LH
with the body har-
ness.
Go to step 2.
2CHECK SEAT BELT PRETENSIONER.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB21) from seat
belt pretensioner (LH).
3) Connect the connector (1N) in the test har-
ness N to the connector (AB21).
4) Connect the airbag resistor to the connec-
tor (2N) of test harness N.
5) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the seat
belt pretensioner
(LH). 10, Front Seat
Belt.>
Go to step 3.
3CHECK AIRBAG REAR HARNESS LH (PRE-
TENSIONER HARNESS LH).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the airbag resistor from test
harness.
3) Disconnect the connector (AB19) from side
airbag module (LH).
4) Disconnect the connector (AB31) from cur-
tain airbag module (LH).
5) Disconnect the connectors (AB17) and
(AB18) from airbag control module.
6) Connect the connector (1U) in the test har-
ness U to connector (AB17).
7) Connect the battery ground terminal and
turn the ignition switch to ON.
8) Measure the voltage between connector
(3U) in the test harness U and chassis ground.
Connector & terminal
(3U) No. 11 (+) — Chassis ground (–):
(3U) No. 13 (+) — Chassis ground (–):
Is the voltage less than 1 V? Go to step 4.Replace the airbag
rear harness LH
with the body har-
ness.
4CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read the DTC.
Is the same DTC displayed? Replace the airbag
control module.
Airbag Control
Module.>
Go to step 5.
5CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Check DTC using
“List of Diagnostic
Tr o u b l e C o d e
(DTC)”. AB(diag)-45, List
of Diagnostic Trou-
ble Code (DTC).>
Finish the diagno-
sis.

Page 138 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-114
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AO:DTC 71 DRIVERS AIRBAG FAILURE
DTC DETECTING CONDITION:
•Airbag main harness circuit is open, shorted or shorted to gro

Page 139 of 2453

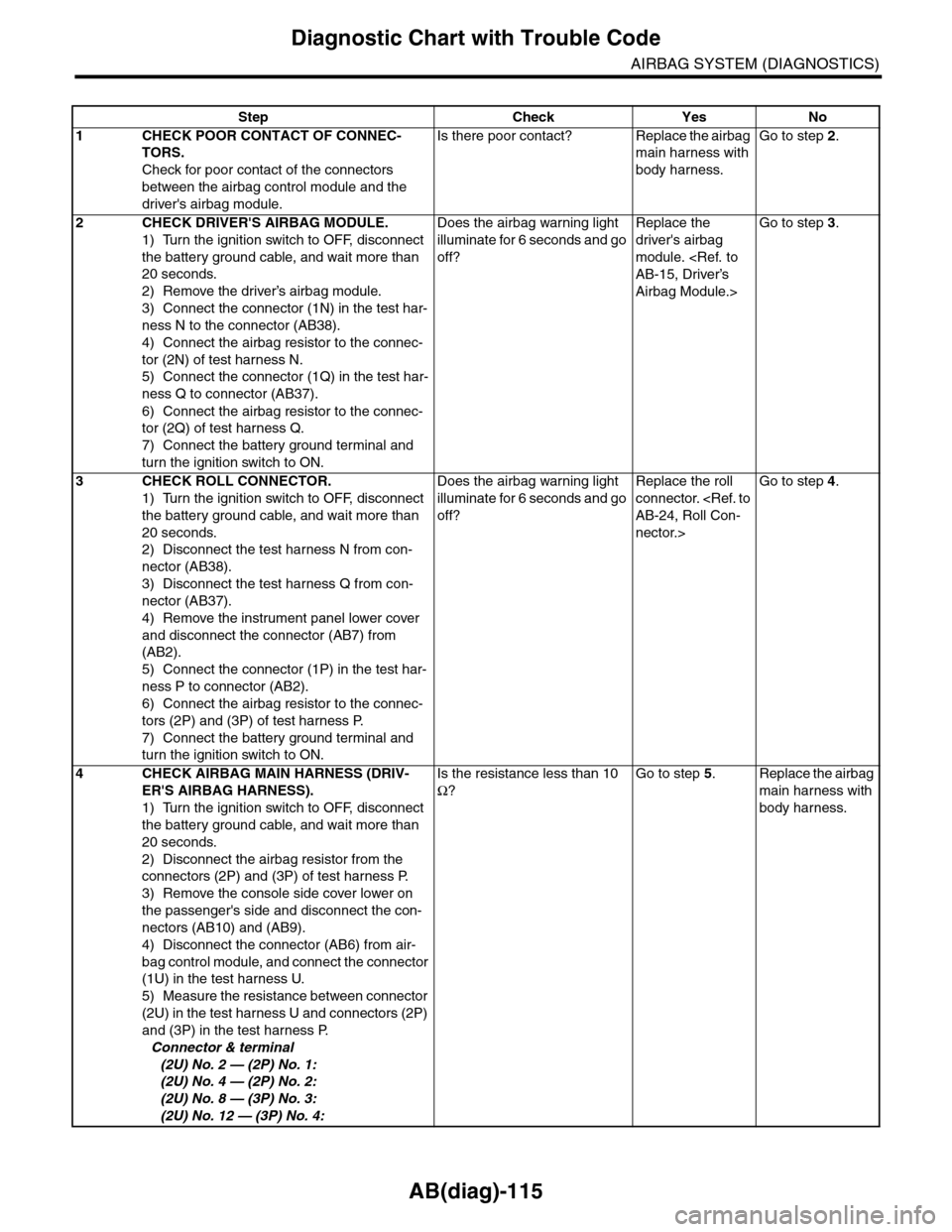

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-115
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control

AB(diag)-115
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module and the
driver's airbag module.
Is there poor contact? Replace the airbag
main harness with
body harness.
Go to step 2.
2CHECK DRIVER'S AIRBAG MODULE.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Remove the driver’s airbag module.
3) Connect the connector (1N) in the test har-
ness N to the connector (AB38).
4) Connect the airbag resistor to the connec-
tor (2N) of test harness N.
5) Connect the connector (1Q) in the test har-
ness Q to connector (AB37).
6) Connect the airbag resistor to the connec-
tor (2Q) of test harness Q.
7) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the
driver's airbag
module. AB-15, Driver’s
Airbag Module.>
Go to step 3.
3CHECK ROLL CONNECTOR.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the test harness N from con-
nector (AB38).
3) Disconnect the test harness Q from con-
nector (AB37).
4) Remove the instrument panel lower cover
and disconnect the connector (AB7) from
(AB2).
5) Connect the connector (1P) in the test har-
ness P to connector (AB2).
6) Connect the airbag resistor to the connec-
tors (2P) and (3P) of test harness P.
7) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the roll
connector. AB-24, Roll Con-
nector.>
Go to step 4.
4CHECK AIRBAG MAIN HARNESS (DRIV-
ER'S AIRBAG HARNESS).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the airbag resistor from the
connectors (2P) and (3P) of test harness P.
3) Remove the console side cover lower on
the passenger's side and disconnect the con-
nectors (AB10) and (AB9).
4) Disconnect the connector (AB6) from air-
bag control module, and connect the connector
(1U) in the test harness U.
5) Measure the resistance between connector
(2U) in the test harness U and connectors (2P)
and (3P) in the test harness P.
Connector & terminal
(2U) No. 2 — (2P) No. 1:
(2U) No. 4 — (2P) No. 2:
(2U) No. 8 — (3P) No. 3:
(2U) No. 12 — (3P) No. 4:
Is the resistance less than 10
Ω?
Go to step 5.Replace the airbag
main harness with
body harness.

Page 140 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-116
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
5CHECK AIRBAG MAIN HARNESS (DRIV-
ERS AIRBAG HARNESS).
Measure the resistance between connectors
(2U) in the test harness

Page 141 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-117
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AP:DTC 72 PASSENGERS AIRBAG FAILURE
DTC DETECTING CONDITION:
•Airbag main harness circuit is open, shorted or shorted to

Page 142 of 2453

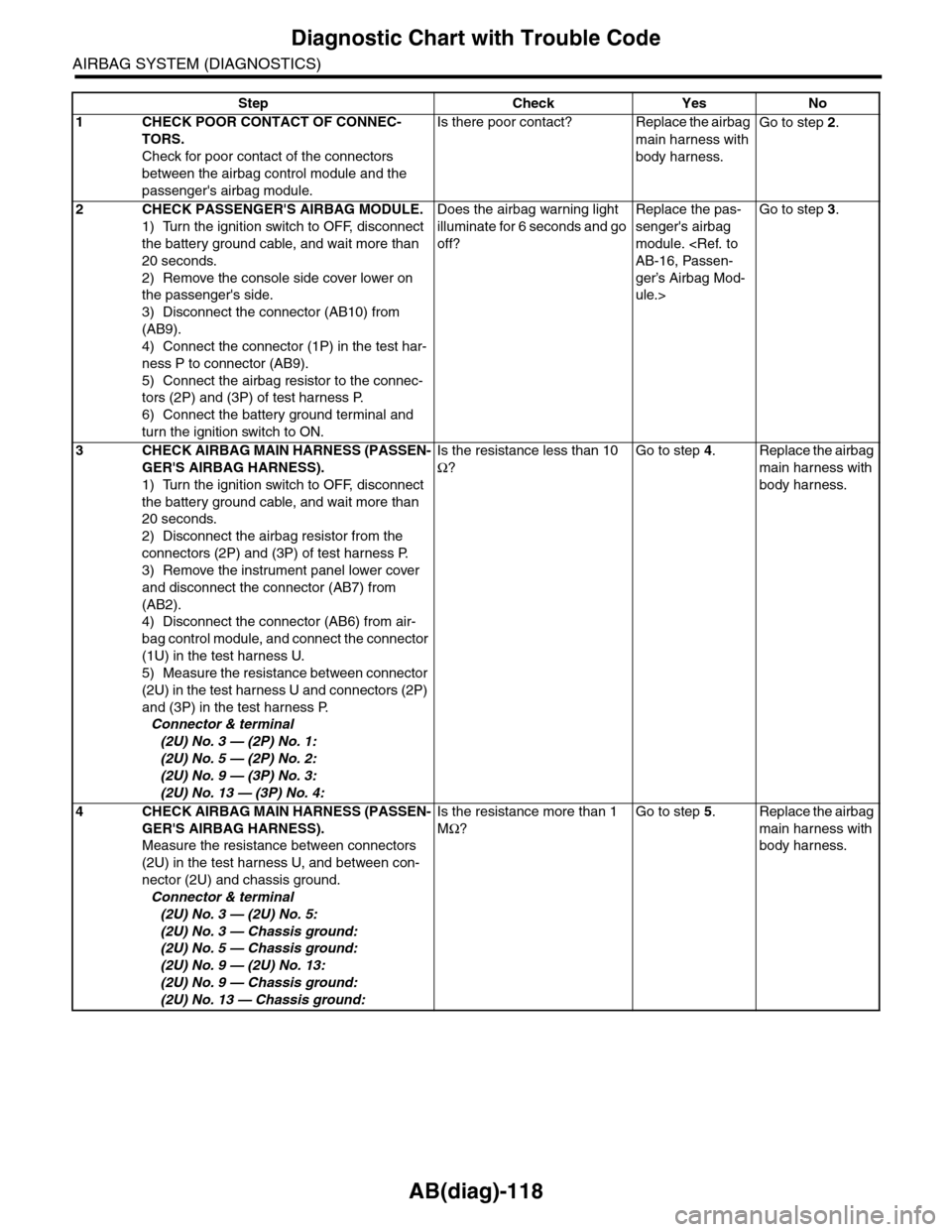

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-118
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control

AB(diag)-118
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
Step Check Yes No
1CHECK POOR CONTACT OF CONNEC-
TORS.
Check for poor contact of the connectors
between the airbag control module and the
passenger's airbag module.
Is there poor contact? Replace the airbag
main harness with
body harness.
Go to step 2.
2CHECK PASSENGER'S AIRBAG MODULE.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Remove the console side cover lower on
the passenger's side.
3) Disconnect the connector (AB10) from
(AB9).
4) Connect the connector (1P) in the test har-
ness P to connector (AB9).
5) Connect the airbag resistor to the connec-
tors (2P) and (3P) of test harness P.
6) Connect the battery ground terminal and
turn the ignition switch to ON.
Does the airbag warning light
illuminate for 6 seconds and go
off?
Replace the pas-
senger's airbag
module. AB-16, Passen-
ger’s Airbag Mod-
ule.>
Go to step 3.
3CHECK AIRBAG MAIN HARNESS (PASSEN-
GER'S AIRBAG HARNESS).
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the airbag resistor from the
connectors (2P) and (3P) of test harness P.
3) Remove the instrument panel lower cover
and disconnect the connector (AB7) from
(AB2).
4) Disconnect the connector (AB6) from air-
bag control module, and connect the connector
(1U) in the test harness U.
5) Measure the resistance between connector
(2U) in the test harness U and connectors (2P)
and (3P) in the test harness P.
Connector & terminal
(2U) No. 3 — (2P) No. 1:
(2U) No. 5 — (2P) No. 2:
(2U) No. 9 — (3P) No. 3:
(2U) No. 13 — (3P) No. 4:
Is the resistance less than 10
Ω?
Go to step 4.Replace the airbag
main harness with
body harness.
4CHECK AIRBAG MAIN HARNESS (PASSEN-
GER'S AIRBAG HARNESS).
Measure the resistance between connectors
(2U) in the test harness U, and between con-
nector (2U) and chassis ground.
Connector & terminal
(2U) No. 3 — (2U) No. 5:
(2U) No. 3 — Chassis ground:
(2U) No. 5 — Chassis ground:
(2U) No. 9 — (2U) No. 13:
(2U) No. 9 — Chassis ground:
(2U) No. 13 — Chassis ground:
Is the resistance more than 1
MΩ?
Go to step 5.Replace the airbag
main harness with
body harness.

Page 143 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-119
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
5CHECK AIRBAG CONTROL MODULE.
1) Connect all the connectors.
2) Erase the memory.
3) Perform the inspection mode.
4) Read th

Page 144 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual AB(diag)-120
Diagnostic Chart with Trouble Code
AIRBAG SYSTEM (DIAGNOSTICS)
AQ:DTC 75 DRIVERS AIRBAG FAILURE
DTC DETECTING CONDITION:
•Airbag main harness circuit (Drivers side) is shorted to powe
