Page 881 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual PB-10

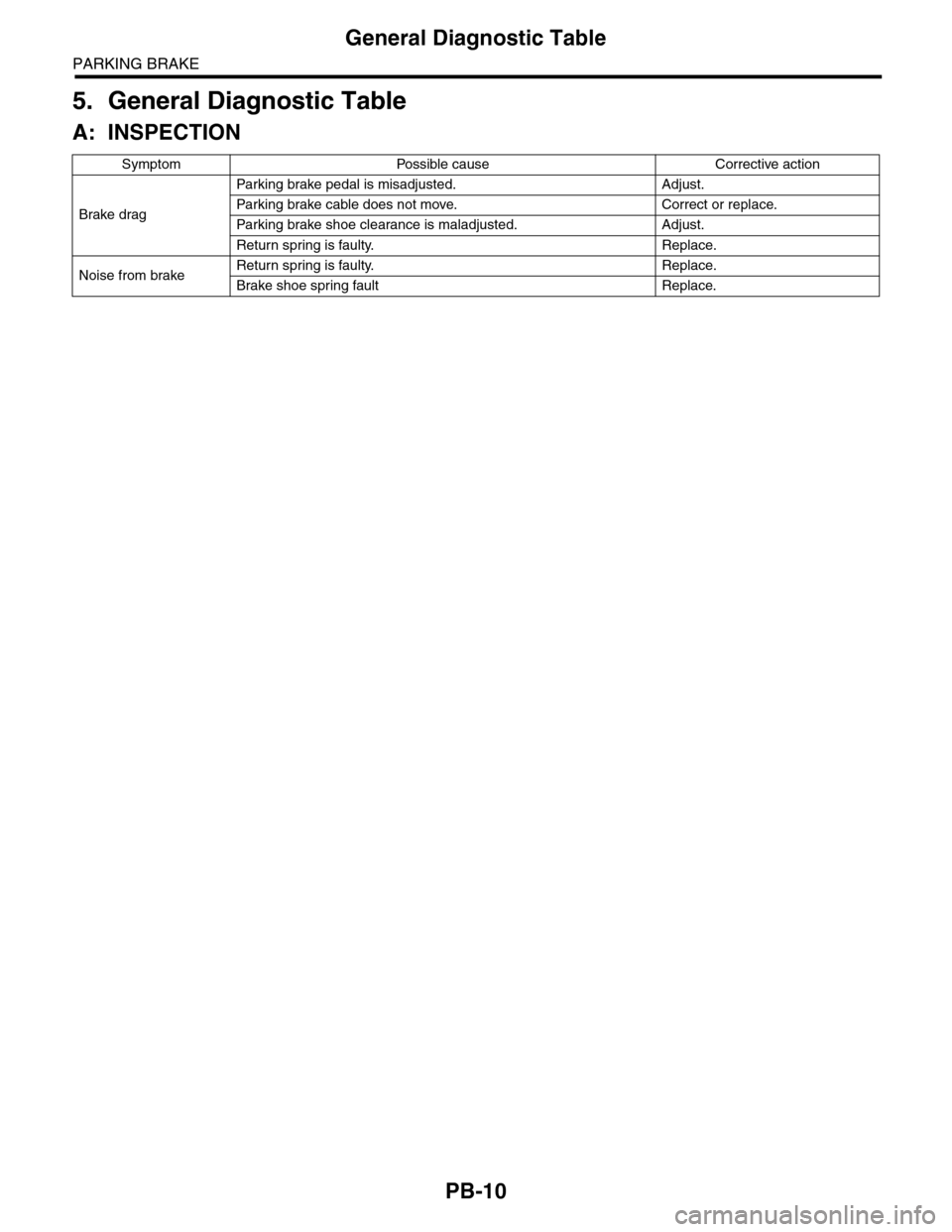

General Diagnostic Table
PARKING BRAKE
5. General Diagnostic Table
A: INSPECTION
Symptom Possible cause Corrective action
Brake drag
Par king brake pedal is misadjusted. Adjust.
Par king brake c

Page 882 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual PS-2
General Description
POWER ASSISTED SYSTEM (POWER STEERING)
1. General Description
A: SPECIFICATION
Whole system
Minimum turning radius m (ft) 5.7 (18.7)
Steering angleInner wheel 37.0°±1.5°
Ou

PS-2
General Description
POWER ASSISTED SYSTEM (POWER STEERING)
1. General Description
A: SPECIFICATION
Whole system
Minimum turning radius m (ft) 5.7 (18.7)
Steering angleInner wheel 37.0°±1.5°
Outer wheel 32.0°±1.5
Steering wheel diameter mm (in) 375 (14.76)
Lock to lock turn 3.44
Gearbox
Ty p e R a c k a n d P i n i o n , I n t e g r a l
Backlash 0 (Automatic adjusting)
Va l ve ( Po w e r s t e e r i n g s y s t e m ) R o t a r y va l ve
Pump
(Power steering
system)
Ty p e Va n e p u m p
Oil tank Installed on body
Specific outputcm3 (cu in)/rev.9.6 (0.586)
Relief pressurekPa (kg/cm2, psi)8,800 — 9,400 (90 — 96, 1,276 — 1,363)
Hydraulic fluid control Engine RPM sensitive
Hydraulic fluid2(US qt, Imp qt)1,000 rpm: 7.0 (7.4, 6.2)
3,000 rpm: 6.0 (6.3, 5.3)
RPM Range rpm 500 — 8,600
Direction of rotation Clockwise
Hydraulic oil
(Power steering
system)
Description ATF DEXRON III or equivalent
Capacity
2(US qt, Imp qt)
Oil tank 0.2 (0.2, 0.2)
Whole system 0.9 (1.0, 0.8)
Steering wheel Free play mm (in) 17 (0.67)
Steering shaftClearance between the steering wheel and
column covermm (in) 3.0 (0.12)
Steering gear-
box
(Power steering
system)
Sliding resistance N (kgf, lb)
400 (41, 90) or less
Difference between right and left sliding resistance:
Less than 20%
Rack shaft play in
the radial direction
Right–turn steering mm (in) 0.19 (0.0075) or less
Left–turn steering mm (in)Horizontal movement: 0.6 (0.024) or less
Ve r t i c a l m o v e m e n t : 0 . 4 ( 0 . 0 1 6 ) o r l e s s
Input shaft playIn radial direction mm (in) 0.18 (0.0071) or less
In axial direction mm (in) 0.27 (0.0106) or less
Rotation resistance N (kgf, lb)
Maximum allowable value: 10.5 (1.07, 2.36) or less
Difference between right and left sliding resistance:
Less than 20%
Oil Pump
(Power steering
system)
Pulley shaftRadial play mm (in) 0.2 (0.008) or less
Axial play mm (in) 0.6 (0.024) or less
PulleyDitch deflection mm (in) 1.0 (0.039) or less
Rotation resistance N (kgf, lb) 9.22 (0.94, 2.07) or less
Regular pressure (Unloaded)kPa (kg/cm2, psi)981 (10, 142) or less
Steering wheel
effort (Power
steering sys-
tem)
At standstill with engine idling on paved road N (kgf, lb) 29.4 (3.0, 6.6) or less
At standstill with engine stalled on paved
roadN (kgf, lb) 294.2 (30, 66.2) or less

Page 883 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual PS-3
General Description
POWER ASSISTED SYSTEM (POWER STEERING)
B: COMPONENT
1. STEERING WHEEL AND COLUMN
Recommended power steering fluid Manufacturer
AT F D E X R O N I I I o r e q u i v a l

Page 884 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual PS-4
General Description
POWER ASSISTED SYSTEM (POWER STEERING)
2. POWER ASSISTED SYSTEM
•Hose and tank
(1) Oil cooler pipe (8) Eye bolt gasketTightening torque: N·m (kgf-m, ft-lb)
(2) Suction hose

Page 885 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual PS-5
General Description
POWER ASSISTED SYSTEM (POWER STEERING)
•Gearbox
(1) Pipe C (20) Adapter (39) O–ring
(2) Pipe D (21) Clamp (40) Bracket
(3) Clamp plate (22) Cotter pin (41) Bushing
(4) Uni

Page 886 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual PS-6
General Description
POWER ASSISTED SYSTEM (POWER STEERING)

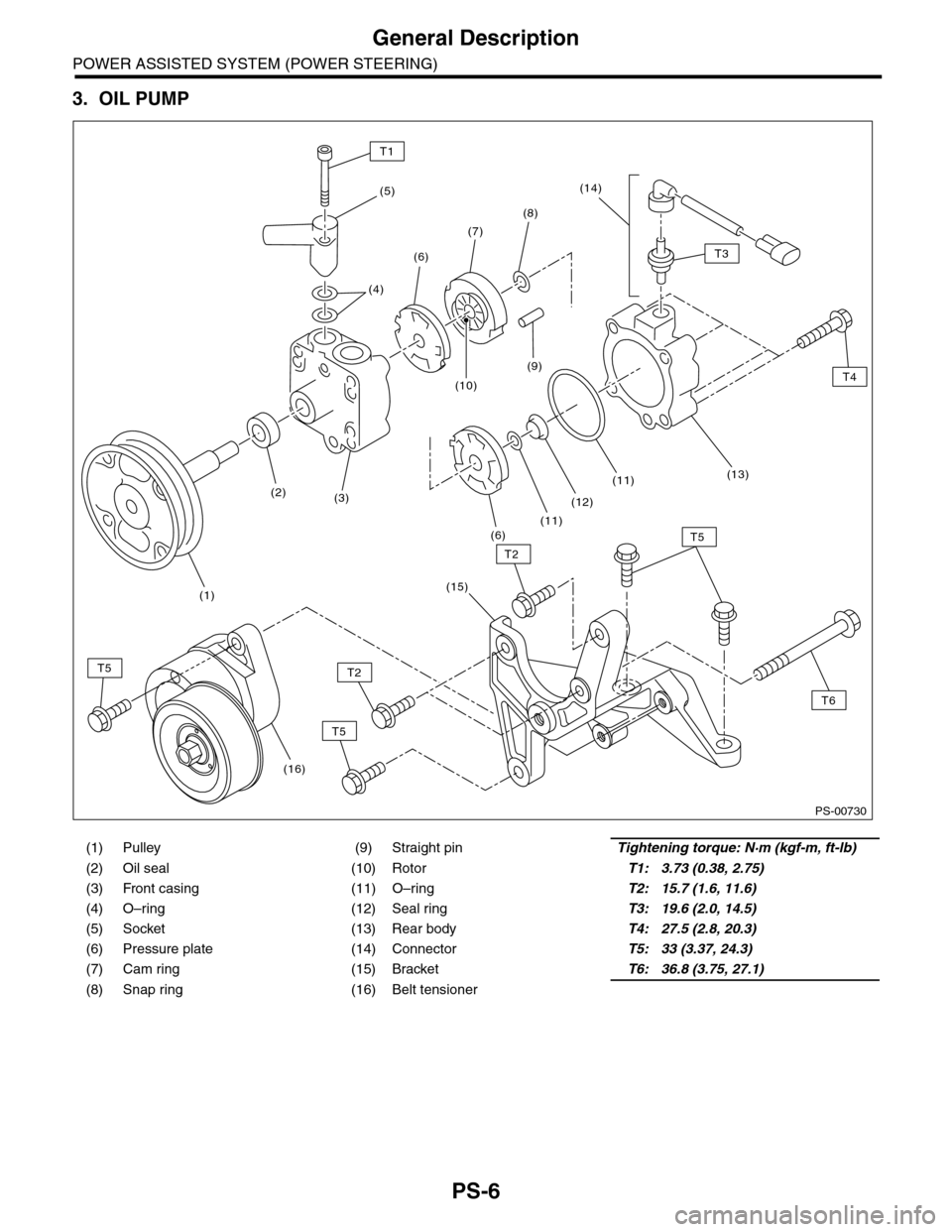

3. OIL PUMP
(1) Pulley (9) Straight pinTightening torque: N·m (kgf-m, ft-lb)
(2) Oil seal (10) RotorT1: 3.73 (0.38, 2.75)
(3) Front cas

Page 887 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual PS-7
General Description
POWER ASSISTED SYSTEM (POWER STEERING)
C: CAUTION
Please clearly understand and adhere to the following general precautions. They must be strictly followed to
avoid any injury

Page 888 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual PS-8
General Description
POWER ASSISTED SYSTEM (POWER STEERING)
34099AC010 ADAPTER HOSE A Used with PRESSURE GAUGE (925711000).
34099AC020 ADAPTER HOSE B Used with PRESSURE GAUGE (925711000).
92623000

Load next 8 pages
