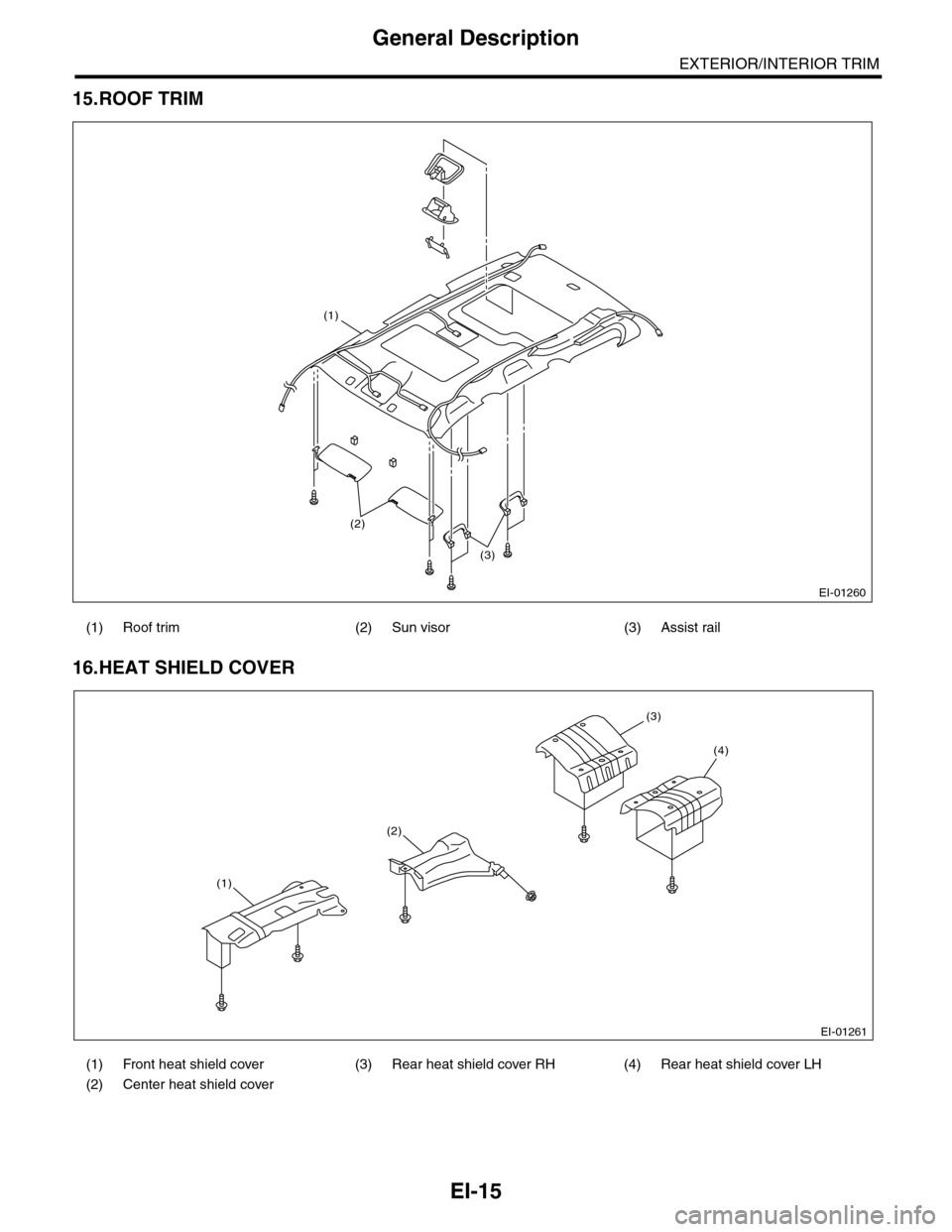

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-15 General Description EXTERIOR/INTERIOR TRIM 15.ROOF TRIM 16.HEAT SHIELD COVER (1) Roof trim (2) Sun visor (3) Assist rail (1) Front heat shield cover (3) Rear heat shield cover RH (4) Rear heat s

Page 258 of 2453

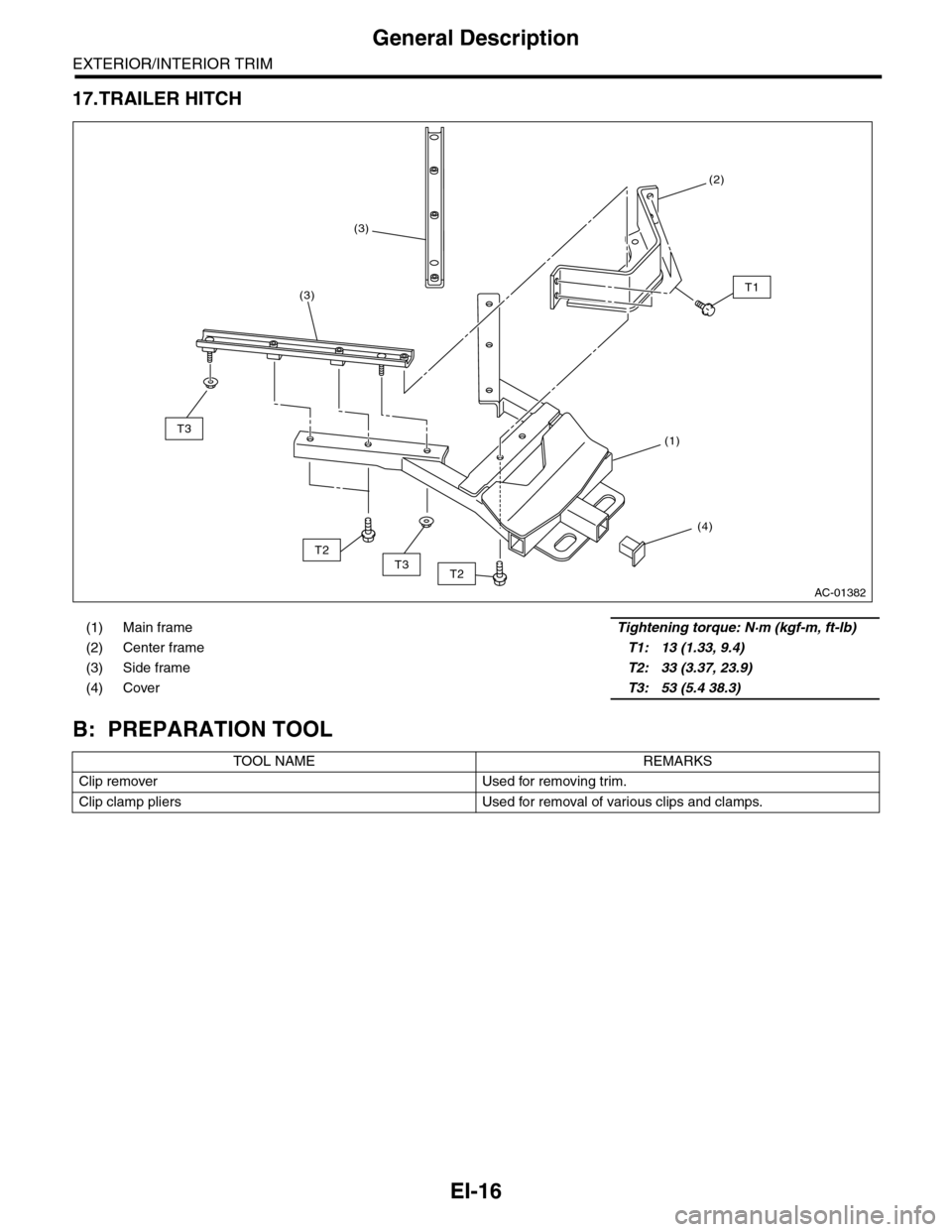

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-16 General Description EXTERIOR/INTERIOR TRIM 17.TRAILER HITCH B: PREPARATION TOOL (1) Main frameTightening torque: N·m (kgf-m, ft-lb) (2) Center frameT1: 13 (1.33, 9.4) (3) Side frame T2: 33 (

Page 259 of 2453

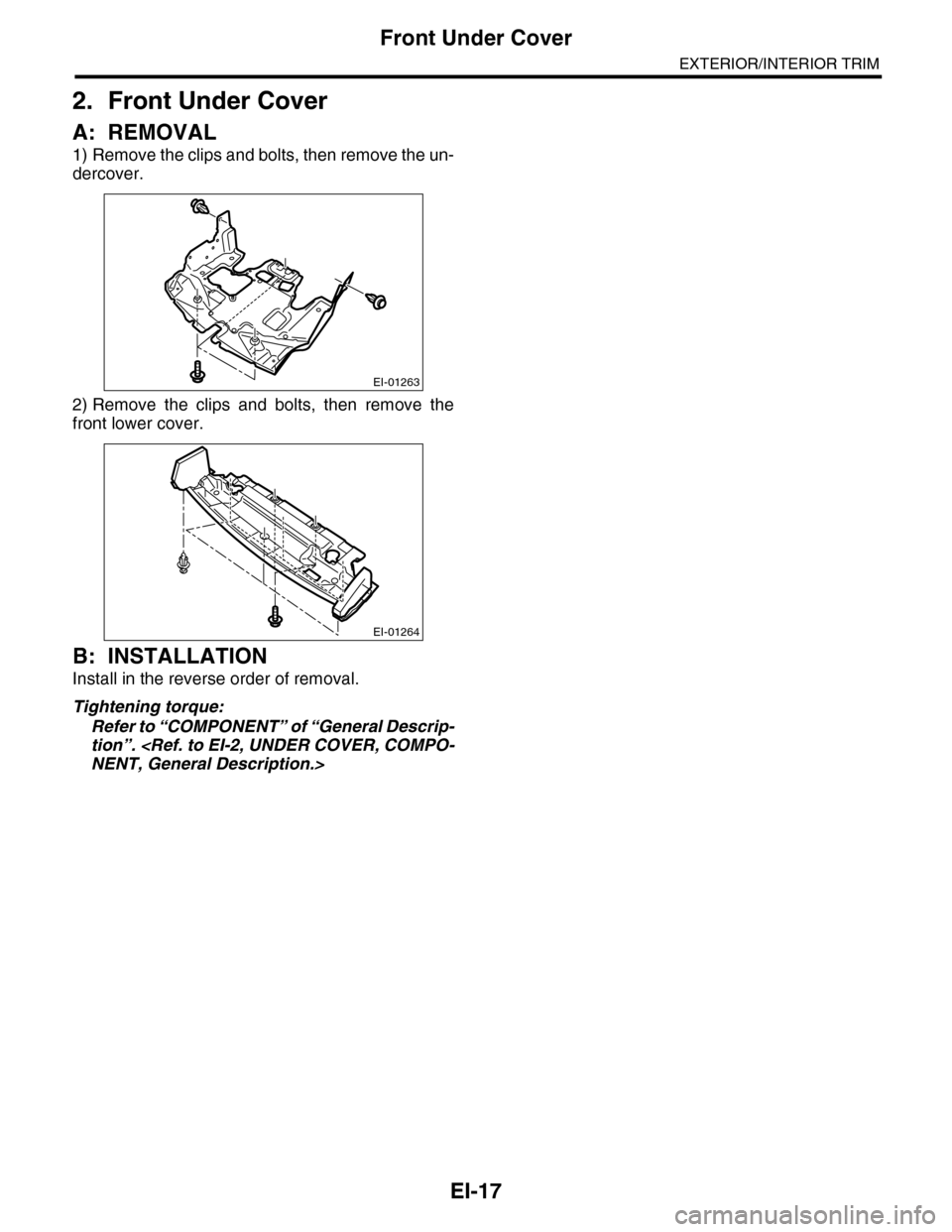

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-17 Front Under Cover EXTERIOR/INTERIOR TRIM 2. Front Under Cover A: REMOVAL 1) Remove the clips and bolts, then remove the un- dercover. 2) Remove the clips and bolts, then remove the front

Page 260 of 2453

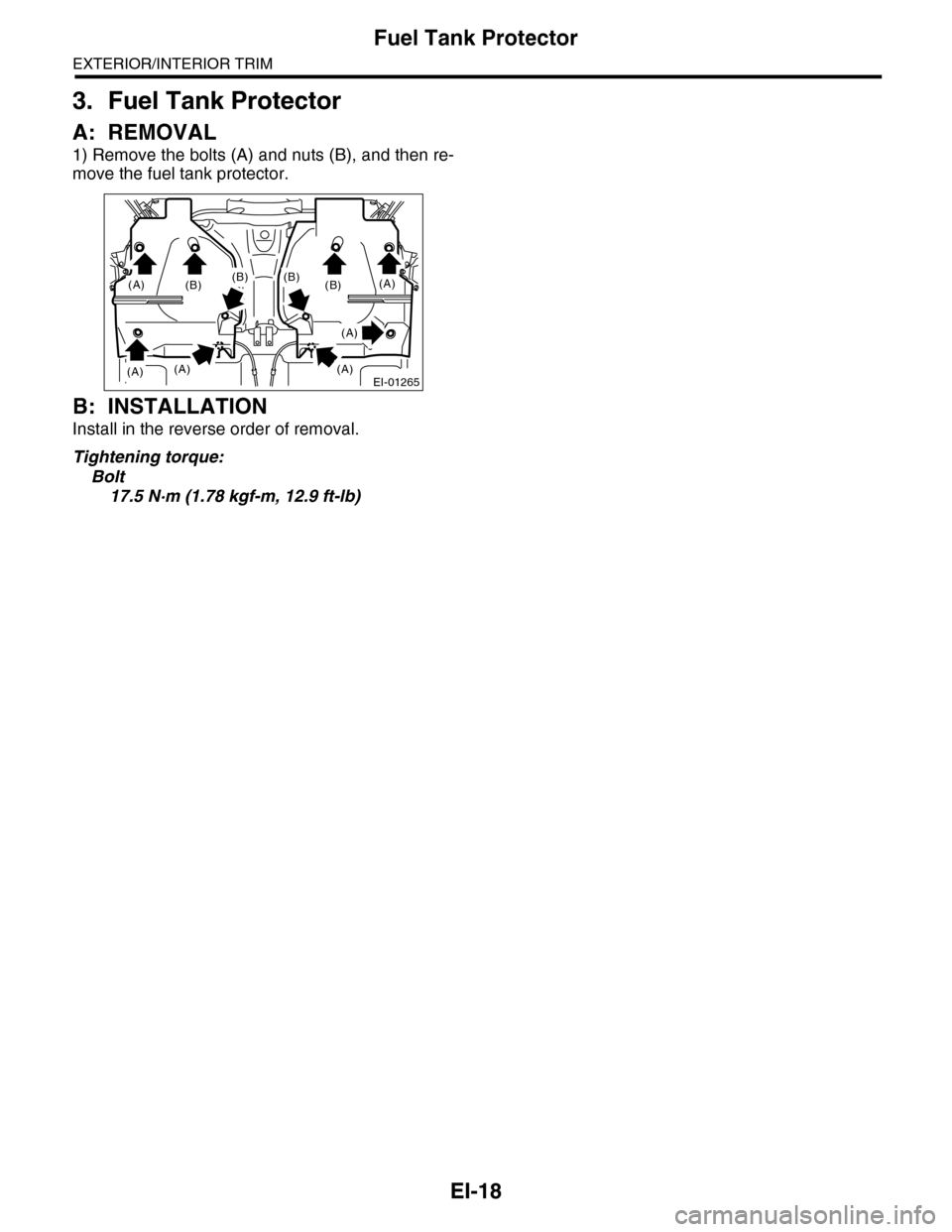

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-18 Fuel Tank Protector EXTERIOR/INTERIOR TRIM 3. Fuel Tank Protector A: REMOVAL 1) Remove the bolts (A) and nuts (B), and then re- move the fuel tank protector. B: INSTALLATION Install in the rever

Page 261 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-19 Mud Guard EXTERIOR/INTERIOR TRIM 4. Mud Guard A: REMOVAL 1) Remove the wheels. 2) Loosen the screws and clips to remove mud guard. •Front mud guard •Rear mud guard B: INSTALLATION Ins

Page 262 of 2453

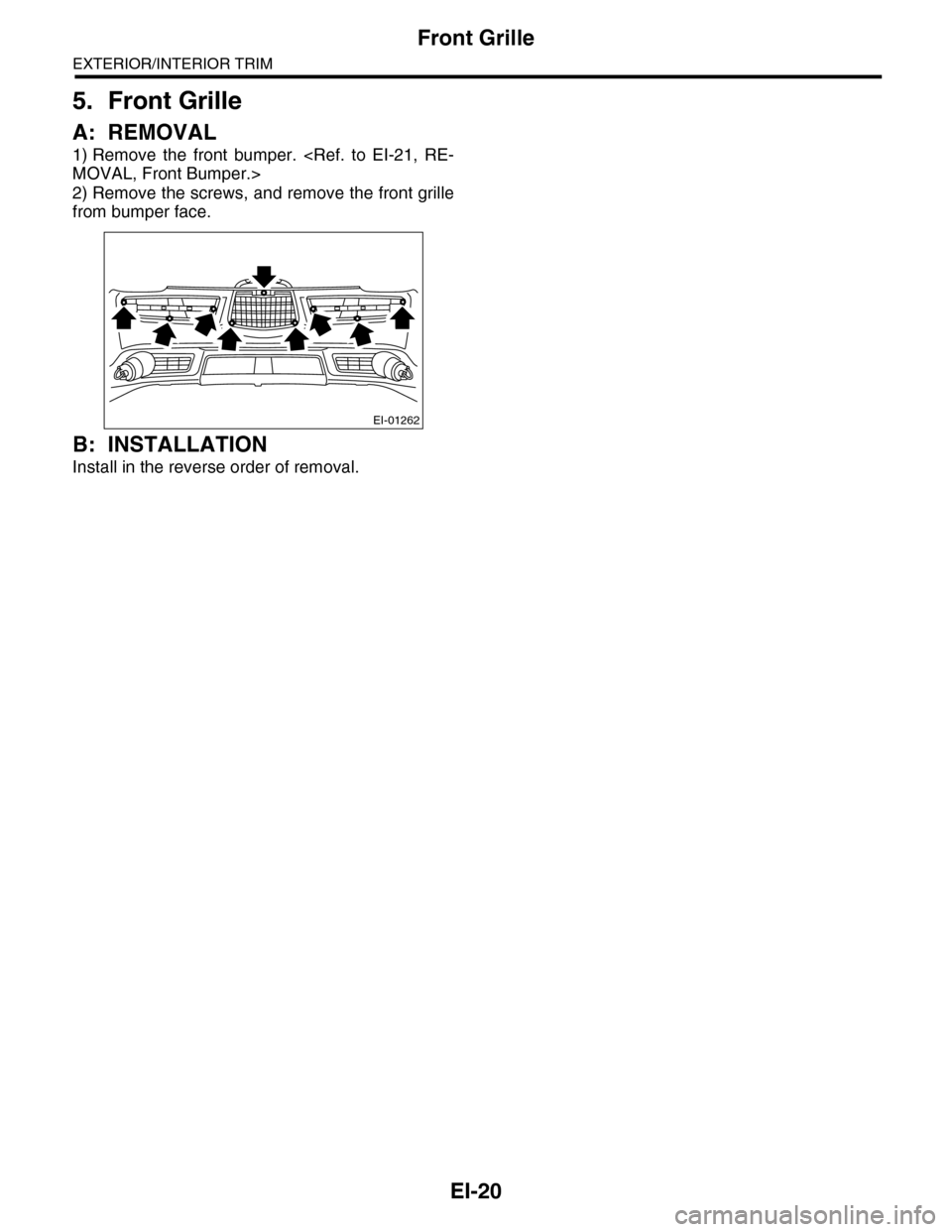

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-20 Front Grille EXTERIOR/INTERIOR TRIM 5. Front Grille A: REMOVAL 1) Remove the front bumper. <Ref. to EI-21, RE- MOVAL, Front Bumper.> 2) Remove the screws, and remove the front grille from

Page 263 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-21 Front Bumper EXTERIOR/INTERIOR TRIM 6. Front Bumper A: REMOVAL 1. FRONT BUMPER FACE 1) Remove the front upper cover. 2) Turn over the front mud guard, and remove the clips connecting the fender

Page 264 of 2453

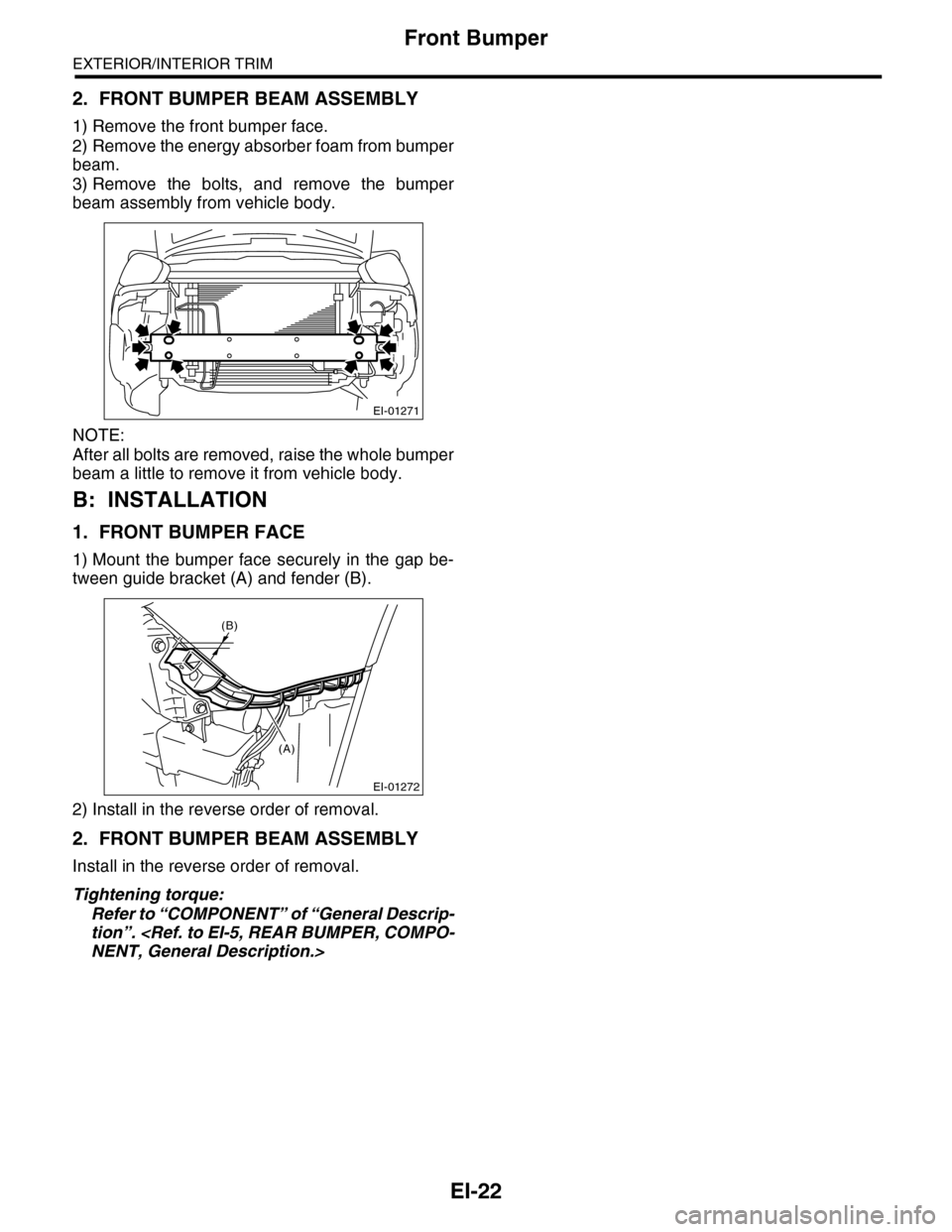

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-22 Front Bumper EXTERIOR/INTERIOR TRIM 2. FRONT BUMPER BEAM ASSEMBLY 1) Remove the front bumper face. 2) Remove the energy absorber foam from bumper beam. 3) Remove the bolts, and remove the
