Electrical Component Location
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
4. Electrical Component Location
A: LOCATION

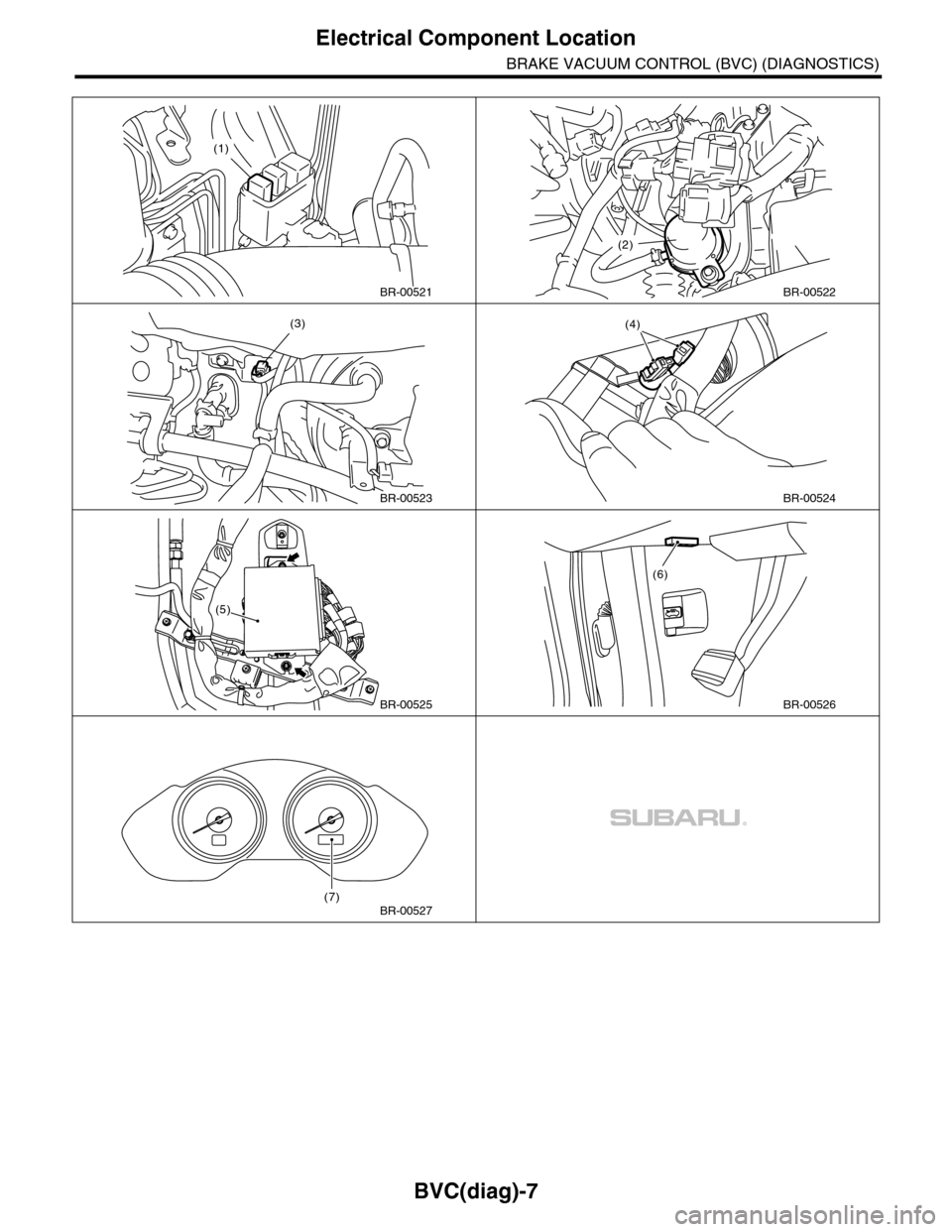

(1) Brake vacuum pump relay (4) Test mode connector (6) Data link connector
(2) Brake vacuum pump (5) Engine control module (ECM) (7) Odo/trip meter
(3) Brake vacuum sensor
BR-00520
(1)
(2)(3)
(7)
(4)
(5)
(6)
Page 762 of 2453
BVC(diag)-7
Electrical Component Location
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
BR-00521
(1)
BR-00522
(2)
BR-00523
(3)
BR-00524
(4)
BR-00525
(5)
BR-00526
(6)
BR-00527(7)
Page 763 of 2453

BVC(diag)-8
Engine Control Module (ECM) I/O Signal
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
5. Engine Control Module (ECM) I/O Signal
A: ELECTRICAL SPECIFICATION
DescriptionConnector
No.
Te r m i n a l
No.
Signal (V)
NOTEIgnition SW ON
(engine OFF)
Engine ON
(idling)
Brake vacuum
sensor
Signal B134 27 1 — 3.8 1 — 3.8 —
Pow er s up pl y B 1 35 2 2 5 5 —
Ground B135 30 0 0 —
Self-shutoff control B136 23 0 0 —
Brake vacuum
pump
Relay drive B136 8
10 — 13
(When the pump is OFF)
12 — 14
(When the pump is ON)—
0 (When the pump is ON) 0 (When the pump is ON)
Electric load B135 25
0 (When the pump is OFF) 0 (When the pump is OFF)
—10 — 13
(When the pump is ON)
12 — 14
(When the pump is ON)
SSM communication line B136 16 1 or less ←→ 4 or more 1 or less ←→ 4 or more —
EN-01812
B134
5678219431024 2223251112131415262728
1617181920213334 2932 3031
B136
5678219431024 2223251112131415262728
16171819202133342932303135
B135
5678219431024 2223251112131415262728
16171819202129303132333435
B137
5678219431022231112131415242526
1617181920212728293031
ToToToTo
Page 764 of 2453

BVC(diag)-9
Subaru Select Monitor
BRAKE VACUUM CONTROL (BVC) (DIAGNOSTICS)
6. Subaru Select Monitor
A: OPERATION
1. READ DIAGNOSTIC TROUBLE CODE
(DTC)
1) Prepare the Subaru Select Monitor kit.
BVC(diag)-5, SPECIAL TOOL, PREPARATION
TOOL, General Description.>
2) Connect the diagnosis cable to Subaru Select
Monitor.
3) Insert the cartridge to the Subaru Select Monitor.
RATION TOOL, General Description.>
4) Connect the Subaru Select Monitor to data link
connector.
(1) Data link connector is located in the lower
portion of instrument panel (on the driver’s
side).
(2) Connect the diagnosis cable to data link
connector.
CAUTION:
Do not connect the scan tools except for Suba-
ru Select Monitor.
5) Turn the ignition switch to ON (engine OFF) and
turn the Subaru Select Monitor switch to ON.
6) On the «Main Menu» display screen, select the
{Each System Check} and press the [YES] key.
7) On the «System Selection Menu» display
screen, select the {Brake Negative Pressure Pump
System} and press the [YES] key.
8) Press the [YES] key after the {3.0 DOHC} is dis-
played.
9) On the «Negative Pressure Pump Diagnosis
Menu» display screen, select the {Diagnostic
Code(s) Display} and press the [YES] key.
NOTE:
•For details concerning operation procedure, re-
fer to the “SUBARU SELECT MONITOR OPERA-
TION MANUAL”.
•For details concerning DTCs, refer to “List of Di-
agnostic Trouble Code (DTC)”.
14, List of Diagnostic Trouble Code (DTC).>
ABS00111
ABS00112
EN-03693
(A) Power switch
(A)
EN-00040
