SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-149
Harness Components Location
WIRING SYSTEM
54.Harness Components Location
A: LOCATION
(1) Front wiring harness (6) Rear door cord RH (10) Rear door cord LH
(2) Engine wiring harness (7) Rear wir

Page 2434 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-150
Front Wiring Harness
WIRING SYSTEM
55.Front Wiring Harness
A: LOCATION
Connector Connecting to
No. Pole Color Area No. Description
F5 1 Black B-1 Horn
F6 2 Gray C-1 Front fog light RH
F7 8 Gray

Page 2435 of 2453

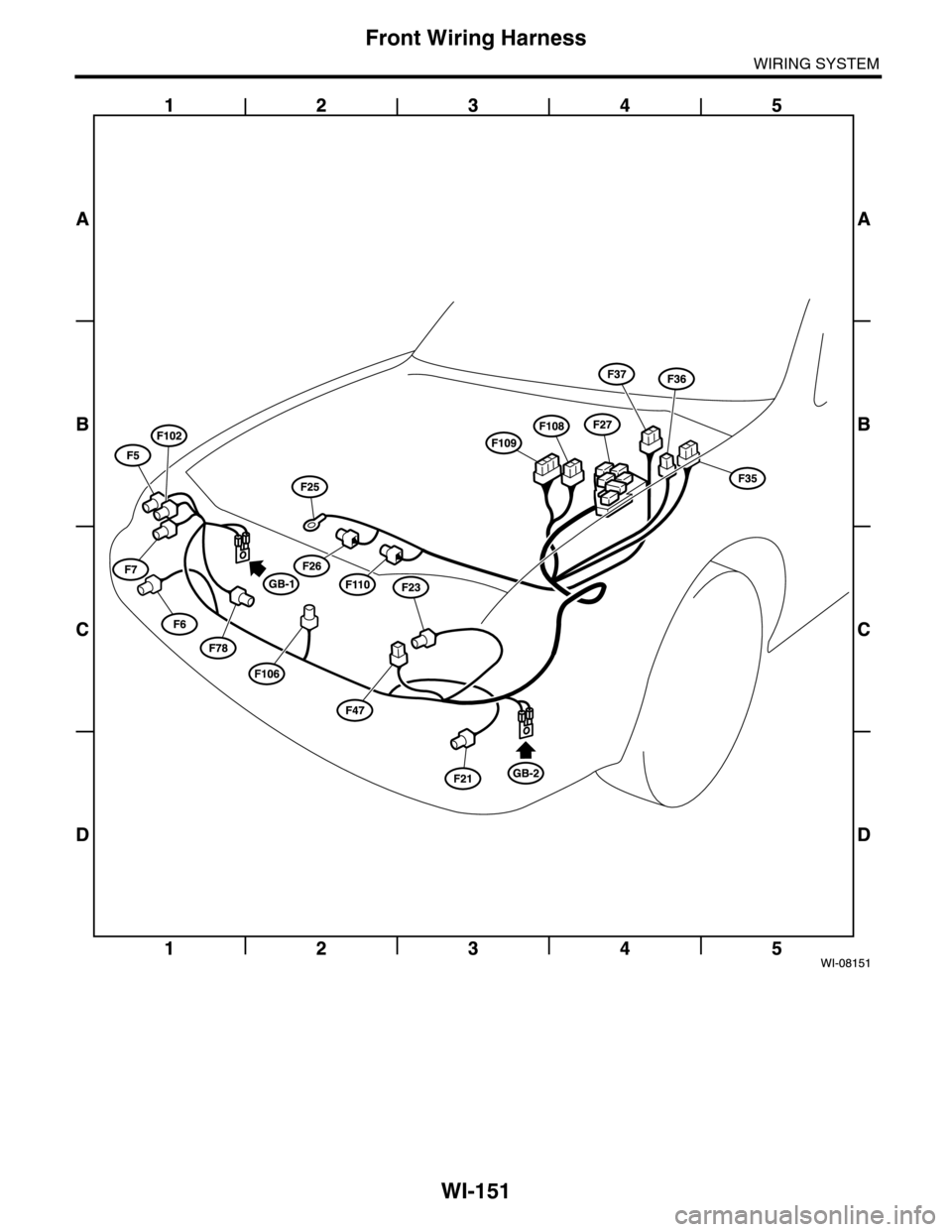

SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-151
Front Wiring Harness
WIRING SYSTEM

Page 2436 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-152
Bulkhead Wiring Harness (In Engine Compartment)
WIRING SYSTEM
56.Bulkhead Wiring Harness (In Engine Compartment)
A: LOCATION
Connector Connecting to
No. Pole Color Area No. Description
B3 5 Bla

Page 2437 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-153
Bulkhead Wiring Harness (In Engine Compartment)
WIRING SYSTEM

Page 2438 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-154
Bulkhead Wiring Harness (In Compartment)
WIRING SYSTEM
57.Bulkhead Wiring Harness (In Compartment)
A: LOCATION
Connector Connecting to
No. Pole Color Area No. Description
B31 12 Yellow C-1 AB1

WI-154
Bulkhead Wiring Harness (In Compartment)
WIRING SYSTEM
57.Bulkhead Wiring Harness (In Compartment)
A: LOCATION
Connector Connecting to
No. Pole Color Area No. Description
B31 12 Yellow C-1 AB1 Airbag wiring harness
B32 8 C-2Tu r n s i g n a l & h a z a r d
unit
B36 28 Blue B-2 i1Instrument panel wir-
ing harnessB38 20 B-5 i3
B41 2 C-2Powe r w in d ow ci r cu i t
breaker
B47 6 Brown B-5 Main relay
B52 24 B-2 Fuse & relay box (F/B)
B54 24 C-2TCMB55 24 Gray C-3
B65 4 Black B-3Stop light and brake
switch
B68 8 B-3 Roll connector
B69 4 B-3 Parking light switch
B70 18 B-3
Combination switch
(Wiper & washer
switch)
B71 17 B-3
Combination switch
(Front fog light switch)
(Lighting switch)
B72 6 B-3 Ignition switch
B77 7 Green B-4 Mode actuator
B86 5 B-4 Blower fan controller
B87 2 C-5 Blower fan motor
B88 2 B-4Evaporation thermo
switch
B90 12 B-4 R50 Roof cord
B91 7 Green B-4FRESH/RECIRC actu-
ator
B96 8 Black B-2Daytime running light
control module
B97 20 C-1 R1Rear wiring harnessB98 24 Black B-5 R2
B116 12 C-4 AT select lever
B122 8 D-5 Joint connector
B134 34 C-4
ECMB135 35 C-4
B136 35 C-4
B137 31 D-5
B152 10 Gray B-2
Fuse & relay box (F/B)B158 8 B-2
B159 9 Brown B-2
B177 2 B-4 Wiper deicer
B225 40 Black C-2
Seat heater relay
Starter relay
Pow er w i n dow r el ay
Fuse (Relay block)
Blower fan relay
Fr o nt fog li g ht r el ay
Mirror heater relay
Rear fog light relay
Wiper deicer relay
B228 15 B-2 OP connector
B231 4 B-3 Steering angle sensor
B235 7 Green B-4Passenger’s side air
mix actuator
B242 10 B-2Daytime running light
control module
B280 30 C-3Body integrated unitB281 28 C-3
B282 16 C-5Auto A/C control mod-
ule
B283 26 C-5
Auto A/C control mod-
ule (Rear defogger
switch)
B315 6 Black B-4Accelerator pedal
position sensor
B327 6 Brown B-5Rear oxygen sensor
relay
B350 4 B-3Key war ning switch &
key lock solenoid
B351 2 Black B-4 Antenna
B352 8 C-3CAN joint connectorB355 8 B-3
B356 4 Black C-3 Back-up light relay
B357 4 Black C-3 P-VIGN relay
B359 5 Black D-4 Yaw rate sensor
B362 8 Black B-5 Relay holder
B370 2 Black B-4 Diode
B373 2 B-1 Fuse box
B390 7 Green B-4Driver’s side air mix
actuator
B402 16 Black B-2 Data link connector
B403 25 B-2 i2Instrument panel wir-
ing harness
B404 1 Black B-2 Parking brake switch
B405 4 Brown B-2Diode (Daytime run-
ning light & parking)
B413 2 B-3In vehicle tempera-
ture sensor
B414 2 B-4 Key illumination
Connector Connecting to
No. Pole Color Area No. Description

Page 2439 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-155
Bulkhead Wiring Harness (In Compartment)
WIRING SYSTEM
B416 8 D-4 CAN joint connector
B418 2 B-4Foot light (Passen-
ger’s side)
B419 7 B-4 Blower fan relay
B420 2 Green C-4Te s t m o d e

Page 2440 of 2453

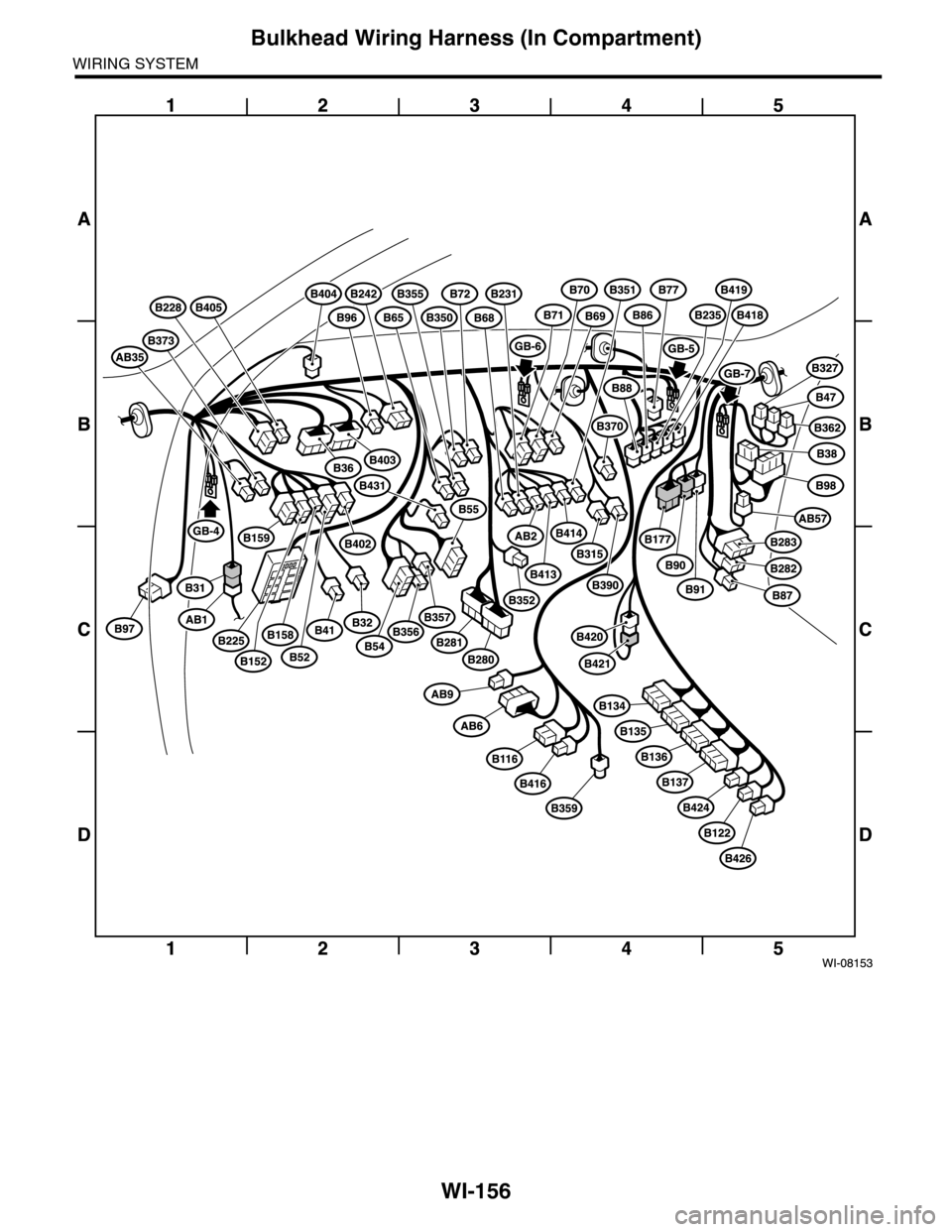

SUBARU TRIBECA 2009 1.G Service Workshop Manual WI-156
Bulkhead Wiring Harness (In Compartment)
WIRING SYSTEM
