Page 2025 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-9 General Description AUTOMATIC TRANSMISSION 6. CONTROL VALVE & TRANSMISSION HARNESS (1) Transmission harness ASSY (4) ClipTightening torque: N·m (kgf-m, ft-lb) (3) Harness bracket (5) Control va

Page 2026 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-10 General Description AUTOMATIC TRANSMISSION 7. DIFFERENTIAL GEAR (1) Retainer plate RH (6) Hypoid driven gear (11) Differential case LH (2) Differential side retainer RH (7) Drive pinion shaft (

Page 2027 of 2453

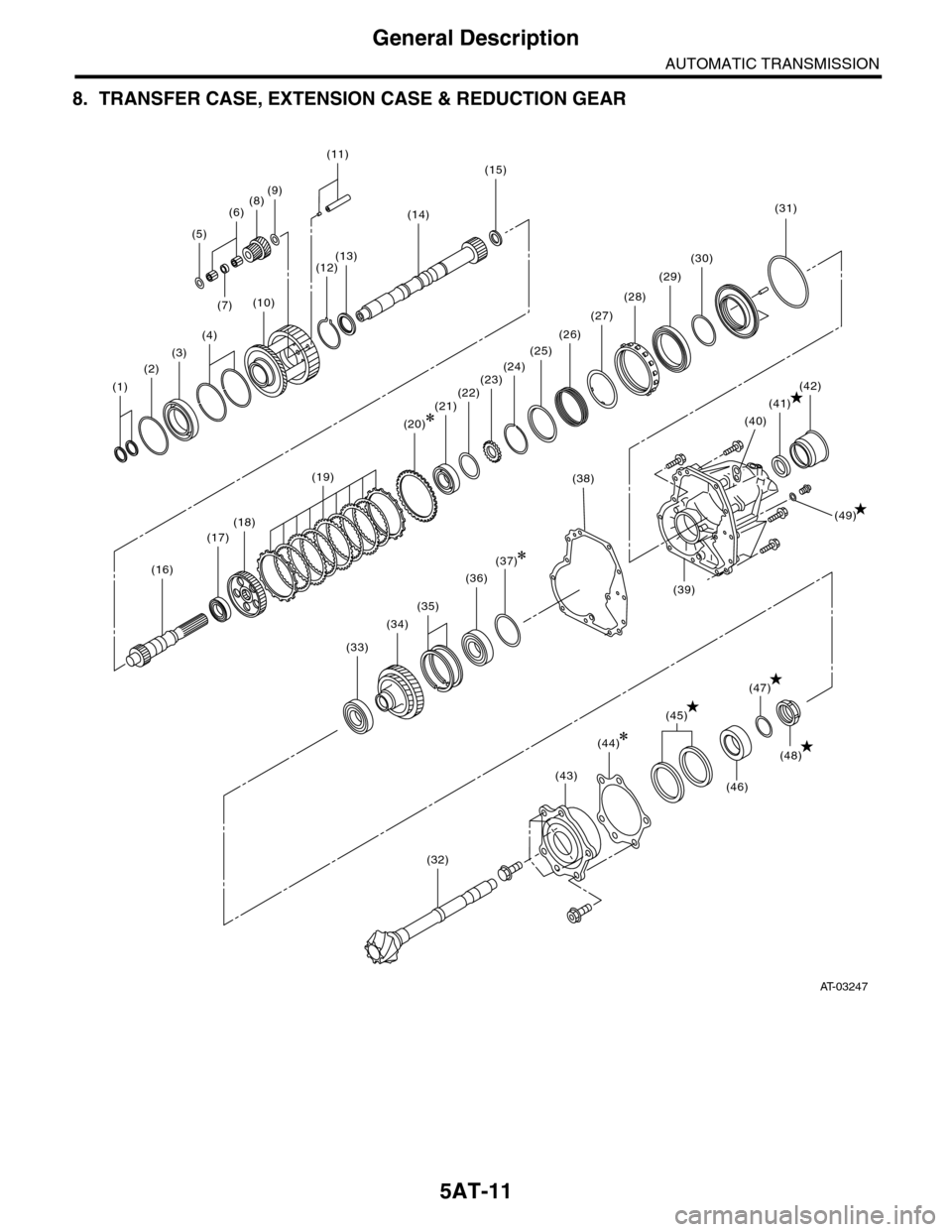

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-11 General Description AUTOMATIC TRANSMISSION 8. TRANSFER CASE, EXTENSION CASE & REDUCTION GEAR AT-03247 (45) (47) (48) (46)(43) (44) (10) (12)(13) (15) (14) (4) (3) (6) (5) (7) (8)(9) (11) (2) (1

Page 2028 of 2453

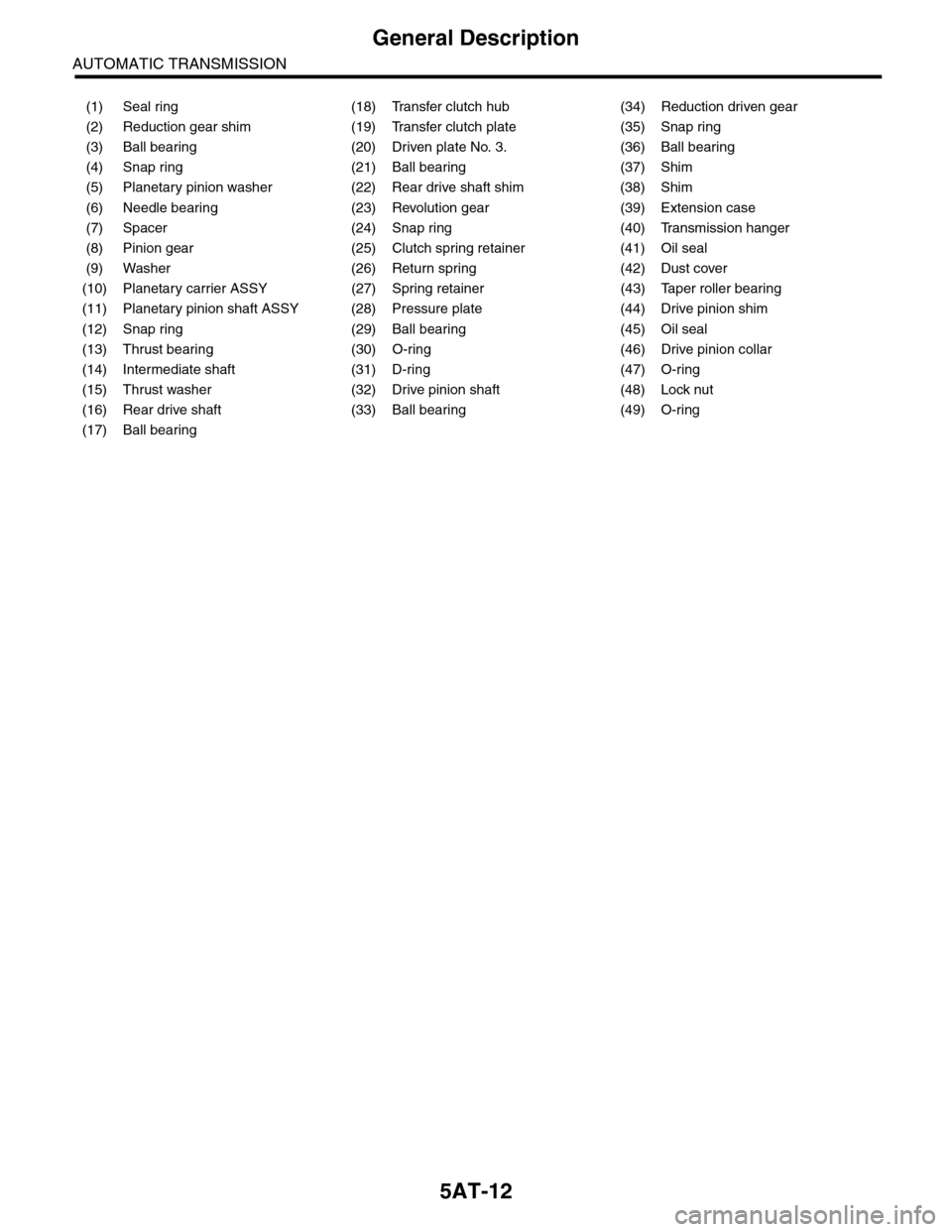

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-12 General Description AUTOMATIC TRANSMISSION (1) Seal ring (18) Transfer clutch hub (34) Reduction driven gear (2) Reduction gear shim (19) Transfer clutch plate (35) Snap ring (3) Ball bearing (

Page 2029 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-13 General Description AUTOMATIC TRANSMISSION 9. TRANSMISSION CONTROL MODULE (1) Transmission control module (TCM) (2) RelayTightening torque: N·m (kgf-m, ft-lb) T1: 7.5 (0.76, 5.5) (2) (1) T

Page 2030 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-14 General Description AUTOMATIC TRANSMISSION 10.TRANSMISSION CONTROL DEVICE & PARKING SUPPORT (1) Bracket (9) Parking support actuator (16) Reduction driven gear (2) Floating bracket (10) Parking

Page 2031 of 2453

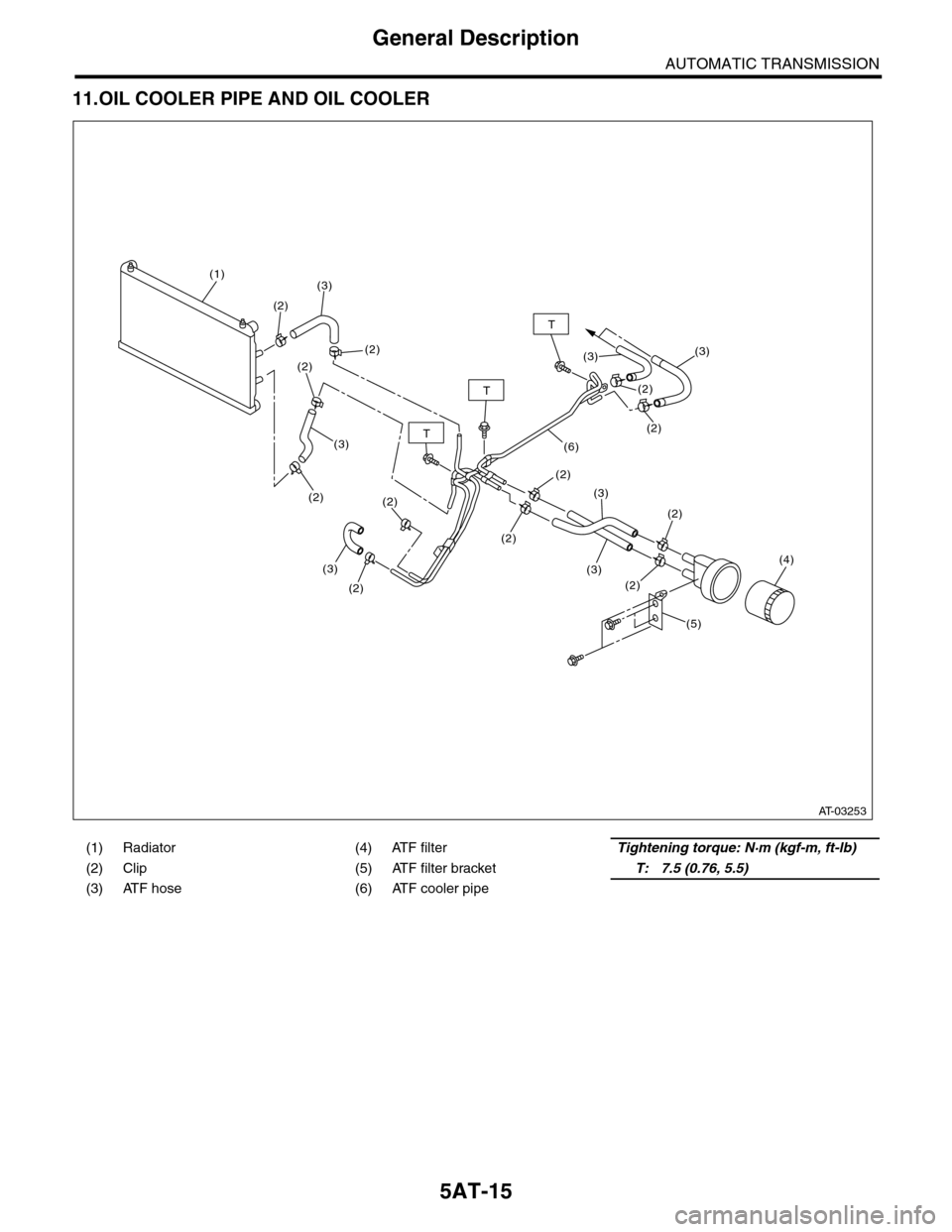

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-15 General Description AUTOMATIC TRANSMISSION 11.OIL COOLER PIPE AND OIL COOLER (1) Radiator (4) ATF filterTightening torque: N·m (kgf-m, ft-lb) (2) Clip (5) ATF filter bracketT: 7.5 (0.76, 5.5)

Page 2032 of 2453

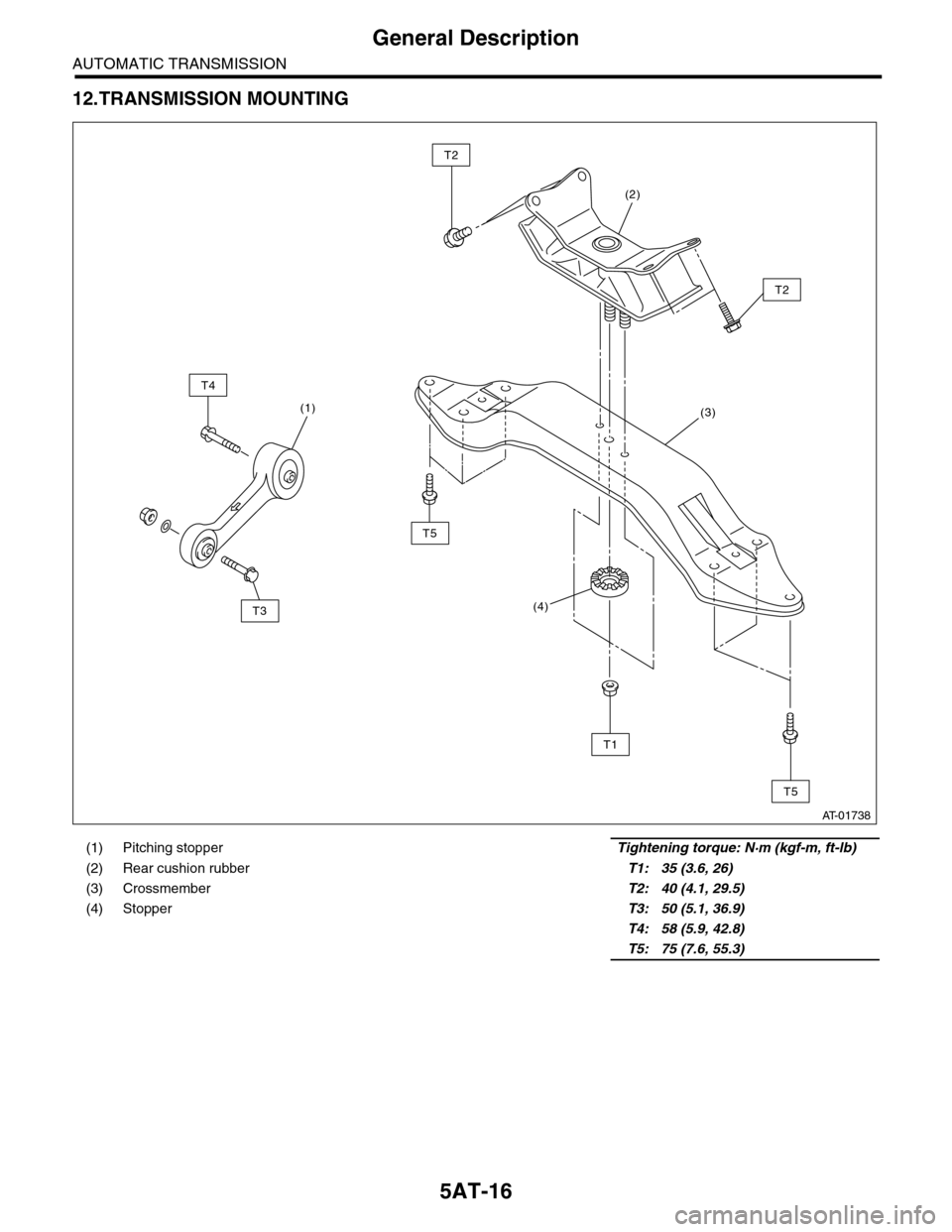

SUBARU TRIBECA 2009 1.G Service Workshop Manual 5AT-16 General Description AUTOMATIC TRANSMISSION 12.TRANSMISSION MOUNTING (1) Pitching stopperTightening torque: N·m (kgf-m, ft-lb) (2) Rear cushion rubberT1: 35 (3.6, 26) (3) CrossmemberT2: 40 (4.1
