2009 SUBARU TRIBECA lock

AB-9
Airbag Connector
AIRBAG SYSTEM
2. Airbag Connector
A: PROCEDURE
1. POWER SUPPLY, BUCKLE SWITCH
1) How to disconnect:
(1) Move the slide lock (A) in the direction of ar-
row.
(2) While holding the slide lock (A) in that posi-
tion, separate the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector (A), and push it in carefully
until a clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
2. DRIVER’S AIRBAG MODULE AND PRE-
TENSIONER
1) How to disconnect:
(1) Using a flat tip screwdriver, pry the push lock
upward to unlock.
(2) Pull and disconnect the connector from the
driver’s airbag module assembly or retractor as-
sembly.
2) How to connect:
Connect the connector in the reverse order of dis-
connecting. At this time, be sure to insert the push
lock until a clicking sound is heard.
CAUTION:
•Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
•Be sure to push the push lock in securely.
NOTE:
The connector can not be connected when the
push lock is in the lock position. To connect the
connector, set the push lock to unlock position.
AB-00721
(A)
AB-00016
AB-00478
AB-00479
AB-00480

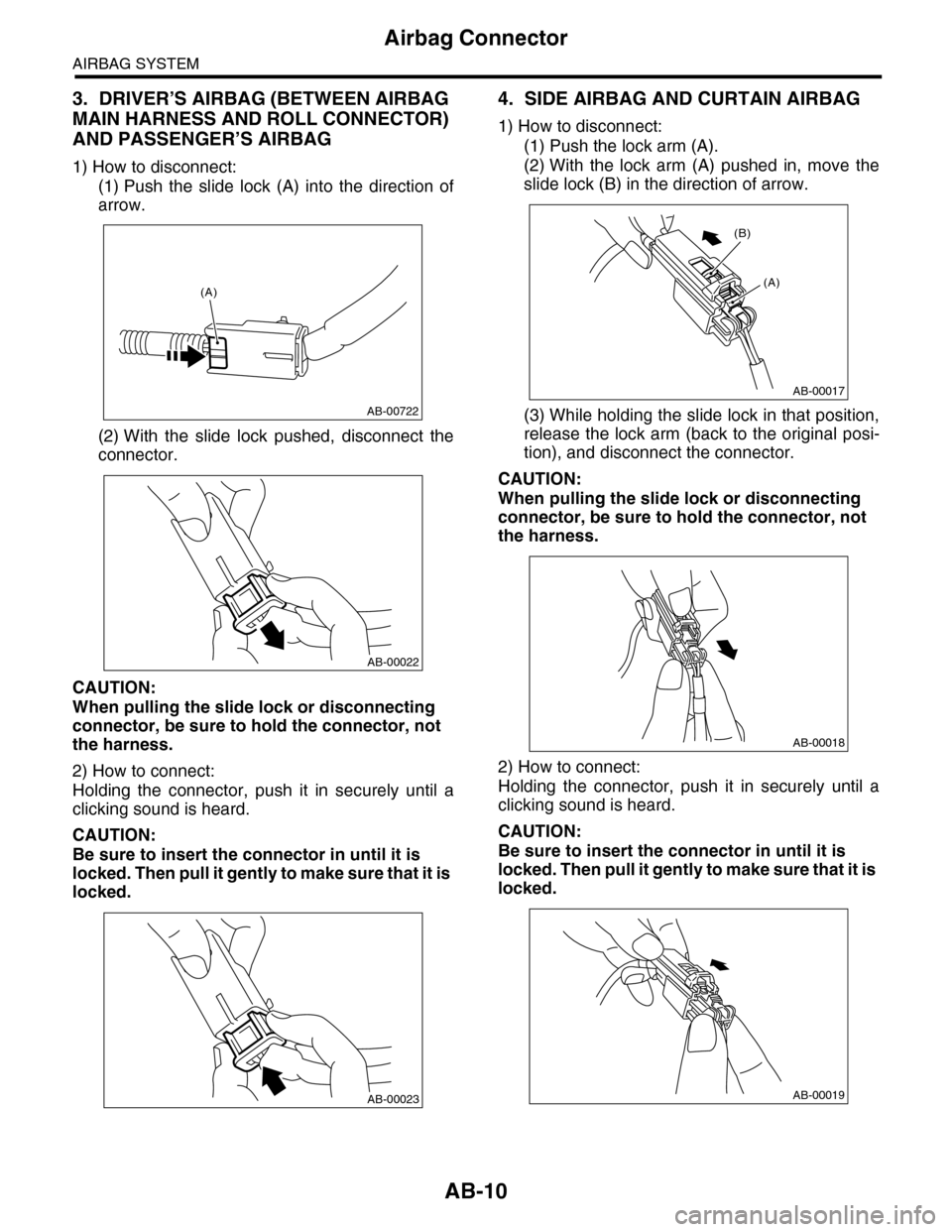

AB-10
Airbag Connector
AIRBAG SYSTEM
3. DRIVER’S AIRBAG (BETWEEN AIRBAG
MAIN HARNESS AND ROLL CONNECTOR)
AND PASSENGER’S AIRBAG
1) How to disconnect:
(1) Push the slide lock (A) into the direction of
arrow.
(2) With the slide lock pushed, disconnect the
connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
4. SIDE AIRBAG AND CURTAIN AIRBAG
1) How to disconnect:
(1) Push the lock arm (A).
(2) With the lock arm (A) pushed in, move the
slide lock (B) in the direction of arrow.
(3) While holding the slide lock in that position,
release the lock arm (back to the original posi-
tion), and disconnect the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
AB-00722
(A)
AB-00022
AB-00023
AB-00017
(A)
(B)
AB-00018
AB-00019

AB-11
Airbag Connector
AIRBAG SYSTEM
5. FRONT SUB SENSOR, SIDE AIRBAG
SENSOR, CURTAIN AIRBAG SENSOR AND
SEAT POSITION SENSOR
1) How to disconnect:
Holding outer part (A), pull it in the direction of ar-
row.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
•Outer side (A) move back, and so do not put
your hand on the outer part.
•Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
6. PASSENGER DETECTION SYSTEM (BE-
TWEEN AIR BAG REAR HARNESS AND
SEAT HARNESS) AND BELT TENSION
SENSOR
1) How to disconnect:
Push lock arm (A), then disconnect the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
AB-00024
AB-00025

AB-24
Roll Connector
AIRBAG SYSTEM
11.Roll Connector
A: REMOVAL
1) Turn the ignition switch to OFF.
2) Disconnect the ground cable from battery and
wait for at least 20 seconds before starting work.
3) Remove the driver’s airbag module. 15, REMOVAL, Driver’s Airbag Module.>
4) Remove the steering wheel. MOVAL, Steering Wheel.>
5) Remove the steering column cover.
6) Remove the screws, and then remove the roll
connector.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Before installing steering wheel, be sure to ad-
just the direction of roll connector with steering.

C: INSPECTION
Check for the following, and replace the damaged
parts with new parts.
•Combination switch and roll connector are
cracked or deformed.
D: ADJUSTMENT
1) Check that front wheels are positioned in straight
ahead direction.
2) Turn the roll connector pin (A) clockwise until it
stops.
3) Turn the roll connector pins (A) approx. 3.25
turns until “ ” marks are aligned.
AB-01273
AB-00594
(A)

AB(diag)-26
Airbag Connector
AIRBAG SYSTEM (DIAGNOSTICS)
5. Airbag Connector
A: PROCEDURE
1. BUCKLE SWITCH
1) How to disconnect:
(1) Move the slide lock (A) in the direction of ar-
row.
(2) While holding the slide lock (A) in moved po-
sition, disconnect the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector (A), and push it in carefully
until a clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
2. DRIVER’S AIRBAG MODULE AND PRE-
TENSIONER
1) How to disconnect:
(1) Using a flat tip screwdriver, pry the push lock
upward to unlock.
(2) Pull and disconnect the connector from the
driver’s airbag module assembly or retractor as-
sembly.
2) How to connect:
Connect the connector in the reverse order of dis-
connecting. At this time, be sure to insert the push
lock until a clicking sound is heard.
CAUTION:
•Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
•Be sure to push the push lock in securely.
NOTE:
The connector cannot be connected when the push
lock is in lock position. To connect the connector,
set the push lock to unlock position.
AB-00721
(A)
AB-00016
AB-00478
AB-00479
AB-00480

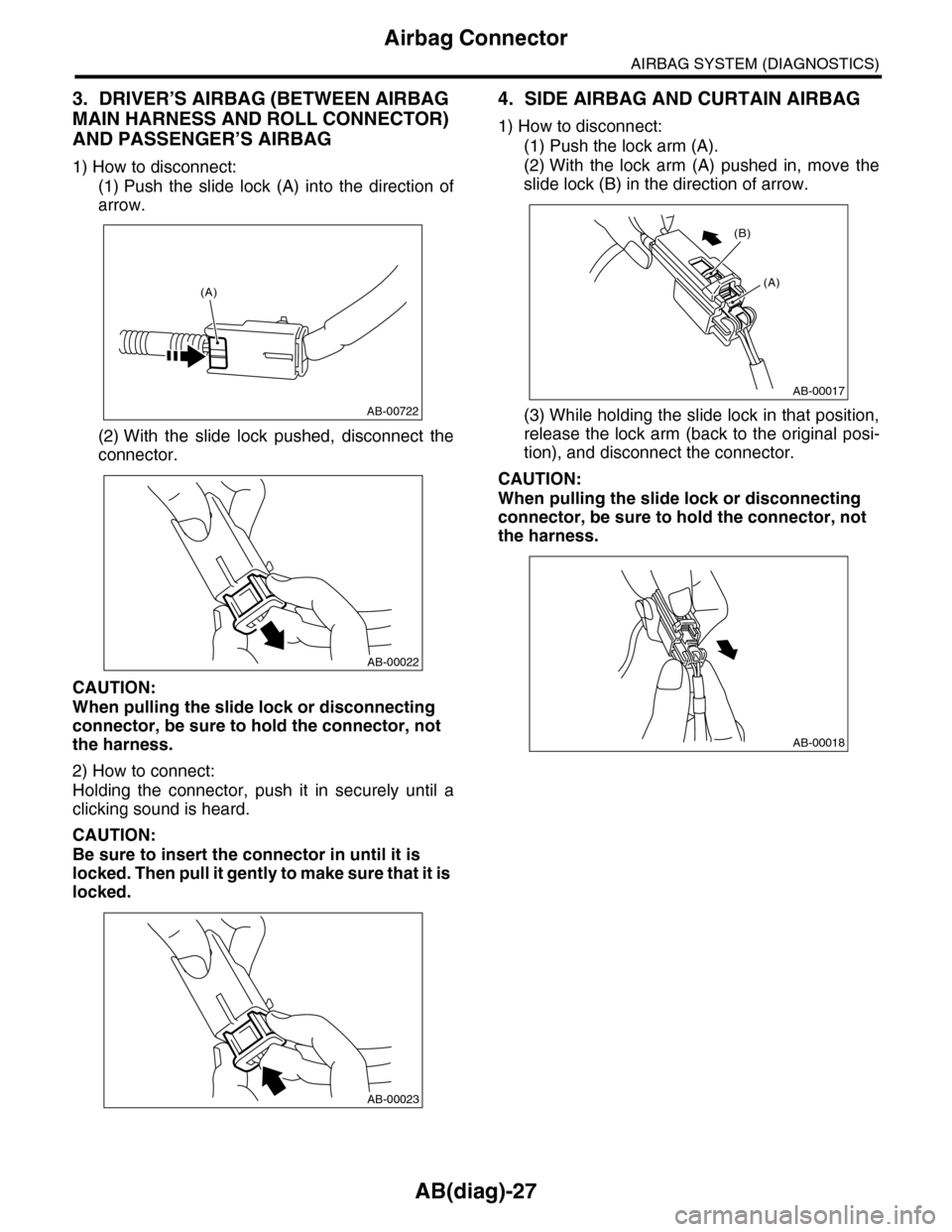

AB(diag)-27
Airbag Connector
AIRBAG SYSTEM (DIAGNOSTICS)
3. DRIVER’S AIRBAG (BETWEEN AIRBAG
MAIN HARNESS AND ROLL CONNECTOR)
AND PASSENGER’S AIRBAG
1) How to disconnect:
(1) Push the slide lock (A) into the direction of
arrow.
(2) With the slide lock pushed, disconnect the
connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
4. SIDE AIRBAG AND CURTAIN AIRBAG
1) How to disconnect:
(1) Push the lock arm (A).
(2) With the lock arm (A) pushed in, move the
slide lock (B) in the direction of arrow.
(3) While holding the slide lock in that position,
release the lock arm (back to the original posi-
tion), and disconnect the connector.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
AB-00722
(A)
AB-00022
AB-00023
AB-00017
(A)
(B)
AB-00018

AB(diag)-28
Airbag Connector
AIRBAG SYSTEM (DIAGNOSTICS)
5. FRONT SUB SENSOR, SIDE AIRBAG
SENSOR, CURTAIN AIRBAG SENSOR AND
SEAT POSITION SENSOR LH
1) How to disconnect:
Holding outer part (A), pull it in the direction of ar-
row.
CAUTION:
When pulling the slide lock or disconnecting
connector, be sure to hold the connector, not
the harness.
2) How to connect:
Holding the connector, push it in securely until a
clicking sound is heard.
CAUTION:
•Outer side (A) move back, and so do not put
your hand on the outer part.
•Be sure to insert the connector in until it is
locked. Then pull it gently to make sure that it is
locked.
AB-00024
AB-00025

ET-30
Front Accessory Power Supply Socket
ENTERTAINMENT
25.Front Accessory Power Sup-
ply Socket
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console box. MOVAL, Center Console.>
3) Disconnect the harness connector, and remove
the accessory power supply socket.
NOTE:
The socket can be pulled out by unlocking the ac-
cessory socket lock in 2 locations and turning the
socket to the left.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Confirm that the accessory socket is locked and
can not be pulled out.
ET-00191
(A)
