Page 217 of 2453
ET-32
Steering Satellite Switch
ENTERTAINMENT

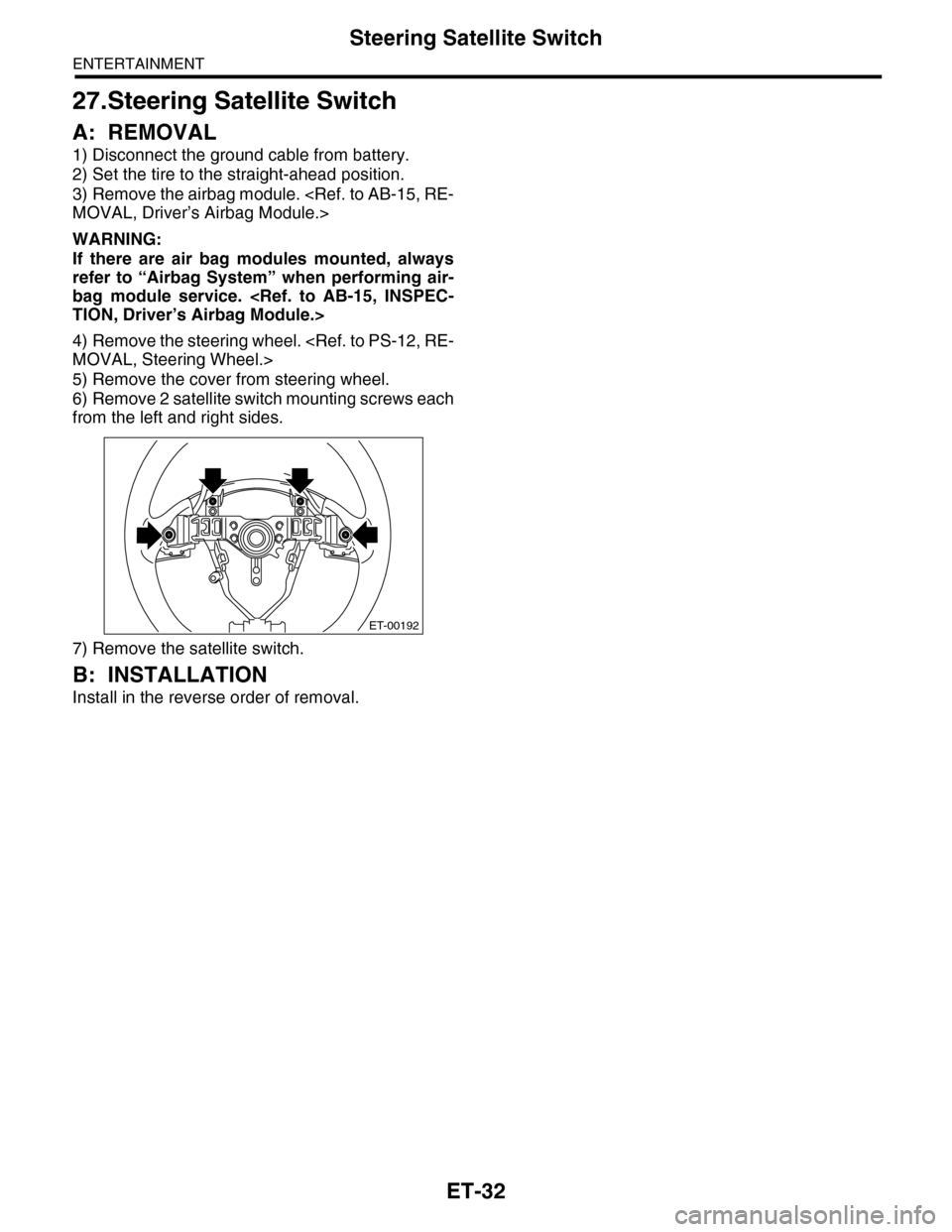

27.Steering Satellite Switch
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Set the tire to the straight-ahead position.
3) Remove the airbag module.
MOVAL, Driver’s Airbag Module.>
WARNING:
If there are air bag modules mounted, always
refer to “Airbag System” when performing air-
bag module service.
TION, Driver’s Airbag Module.>
4) Remove the steering wheel.
MOVAL, Steering Wheel.>
5) Remove the cover from steering wheel.
6) Remove 2 satellite switch mounting screws each
from the left and right sides.
7) Remove the satellite switch.
B: INSTALLATION
Install in the reverse order of removal.
ET-00192
Page 218 of 2453

ET-33
Steering Satellite Switch
ENTERTAINMENT
C: INSPECTION
ET-00193
12345
Step Check Yes No
1MUTE SWITCH CONTINUITY CHECK.
1) Press the mute switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance approx. 22 Ω?Go to step 2.Replace the satel-
lite switch.
2VOLUME SWITCH CONTINUITY CHECK.
1) Press the volume switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2: Volume up
No. 1 — No. 2: Volume down
Is the resistance approx. 90 Ω?
(Volume up) And is the resis-
tance approx. 190 Ω? (Volume
down)
Go to step 3.Replace the satel-
lite switch.
3MODE SWITCH CONTINUITY CHECK.
1) Press the MODE switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance approx. 330
Ω?
Go to step 4.Replace the satel-
lite switch.
4SEEK SWITCH CONTINUITY CHECK.
1) Press the seek switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2: Seek up
No. 1 — No. 2: Seek down
Is the resistance approx. 600
Ω? (Seek up) And is the resis-
tance approx. 1.1 kΩ? (Seek
down)
Go to step 5.Replace the satel-
lite switch.
5CHECK SATELLITE SWITCH INSULATION.
1) Not to operate the satellite switch.
2) Measure the resistance between satellite
switch connector terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance approx. 4.7
kΩ?
Satellite switch is
normal.
Replace the satel-
lite switch.
Page 219 of 2453
ET-34
Steering Satellite Switch
ENTERTAINMENT
Page 220 of 2453
ET-16
Tweeter
ENTERTAINMENT
11.Tweeter
A: REMOVAL
1. FRONT
1) Disconnect the ground cable from battery.
2) Remove the front door trim.
MOVAL, Door Trim.>
3) Remove the side deflector duct.
4) Remove the tweeter mounting screws.
5) Remove the tweeter.
2. REAR
1) Disconnect the ground cable from battery.
2) Remove the rear quarter trim.
REMOVAL, Rear Quarter Trim.>
3) Disconnect the connector, and then remove the
tweeter mounting screws.
4) Remove the tweeter.
B: INSTALLATION
Install in the reverse order of removal.
ET-00176
ET-00177
Page 221 of 2453
EB-2
General Description
EXTERIOR BODY PANELS
1. General Description
A: SPECIFICATION
1. FRONT
(1) Front bumper (3) Headlight (5) Front pillar
(2) Front hood panel (4) Front fender panel
Section Part Specification
(A) Front hood panel to Front bumper 4.9±1.0 mm (0.19±0.04 in)
(B) Front hood panel to Headlight 3.5±1.0 mm (0.14±0.04 in)
(C) Headlight to Front bumper 3.0±1.0 mm (0.12±0.04 in)
(D) Headlight to Front fender panel 1.5±0.7 mm (0.06±0.03 in)
(E) Front bumper to Front fender panelE1: 0.7±0.5 mm (0.03±0.02 in)
E2: 0.3 — 0.4 mm (0.012 — 0.016 in)
(F) Front fender panel to Front pillar 2.0±1.0 mm (0.08±0.04 in)
(G) Front hood panel to Front bumper 3.5±1.0 mm (0.14±0.04 in)
EB-00271
(A)
(B)
(E) (G)
(D) (F)
(2)
(2)
(4)
(1)
(2)
(4)
(4)
(2)
(5)
(3)
(3)
(1)
(3)
B1
E2
E1
B2
(F)(G)
(D)
(E)
(C)
(A)
(B)
(1)
(C)
Page 222 of 2453
EB-3
General Description
EXTERIOR BODY PANELS
2. SIDE
EB-00270
(A) (B)
(E)(D)
(1)
(2)(3)
(6)
(7)
(8)(8)
(8)
(9)
B1B2C2
C1
(C)
(I)
(C)
(E)
(C)
(A)
(B)(F)
(D)(D)
(H)
(G)
Page 223 of 2453

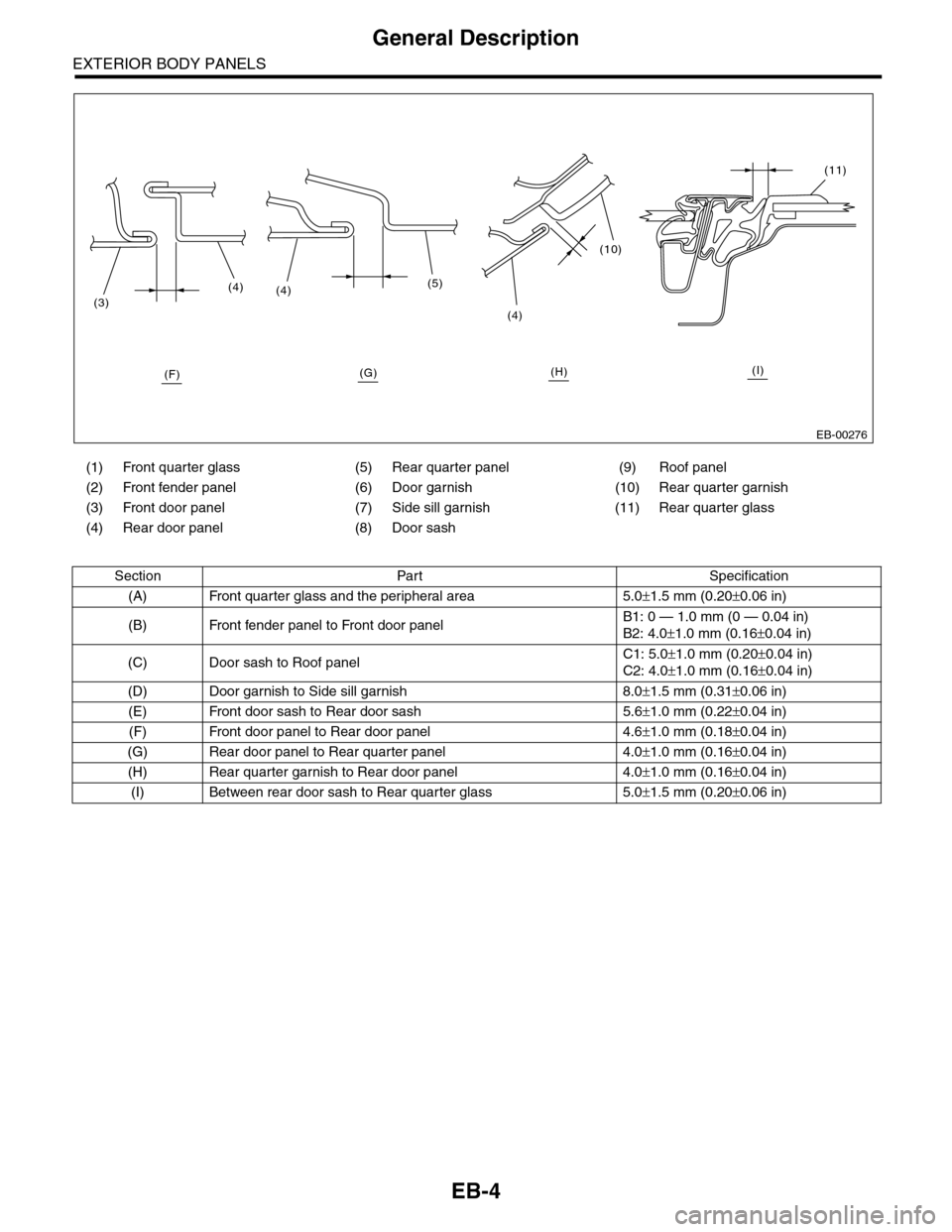

EB-4
General Description
EXTERIOR BODY PANELS
(1) Front quarter glass (5) Rear quarter panel (9) Roof panel
(2) Front fender panel (6) Door garnish (10) Rear quarter garnish
(3) Front door panel (7) Side sill garnish (11) Rear quarter glass
(4) Rear door panel (8) Door sash
Section Part Specification
(A) Front quarter glass and the peripheral area 5.0±1.5 mm (0.20±0.06 in)
(B) Front fender panel to Front door panelB1: 0 — 1.0 mm (0 — 0.04 in)
B2: 4.0±1.0 mm (0.16±0.04 in)
(C) Door sash to Roof panelC1: 5.0±1.0 mm (0.20±0.04 in)
C2: 4.0±1.0 mm (0.16±0.04 in)
(D) Door garnish to Side sill garnish 8.0±1.5 mm (0.31±0.06 in)
(E) Front door sash to Rear door sash 5.6±1.0 mm (0.22±0.04 in)
(F) Front door panel to Rear door panel 4.6±1.0 mm (0.18±0.04 in)
(G) Rear door panel to Rear quarter panel 4.0±1.0 mm (0.16±0.04 in)
(H) Rear quarter garnish to Rear door panel 4.0±1.0 mm (0.16±0.04 in)
(I) Between rear door sash to Rear quarter glass 5.0±1.5 mm (0.20±0.06 in)
EB-00276
(3)
(4)(4)(5)
(4)
(10)
(11)
(F)(G)(H)(I)
Page 224 of 2453
EB-5
General Description
EXTERIOR BODY PANELS
3. REAR
EB-00272
(A)
(B)
(E)(D)
(4)(9)
(5)
(3)(7)
(10)
(3)
(7)
(1)
(7)
(A)
(B)
(E)
(D)
(J)
(C)
(I)(H)
(F)
(G)
(C)
