Page 705 of 2453

WW-10
Wiper Blade
WIPER AND WASHER SYSTEMS
4. Wiper Blade
A: REMOVAL
CAUTION:
When replacing the wiper blade, if standing up
the wiper arm, be sure to stand up the driver’s
side wiper arm first, and then passenger’s side
wiper arm next. Also, when putting the wiper
arms back, be sure to start with passenger’s
side first, then driver’s side next. Doing this in
the reverse order may result in the driver’s side
wiper blade hitting the passenger’s side wiper
arm and causing damage.
1. FRONT
While pushing the locking clip to the direction of the
arrow, pull out and remove the blade from the arm.
2. REAR
Turn the blade in the direction of arrow (A) and re-
move it from arm.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Confirm that the clip is locked securely.
C: DISASSEMBLY
1. FRONT
Pull side (A) of the wiper rubber stopper and re-
move the rubber from the blade assembly.
2. REAR
Pull the wiper rubber top slightly from stopper (A)
and pull out completely.
WW-00354
(A) Turn the wiper blade.
(1) Wiper arm
(2) Wiper blade
(3) Wiper blade attachment section
(1)
(2)
(3)(A)WW-00207
WW-00009
WW-00143
(A)

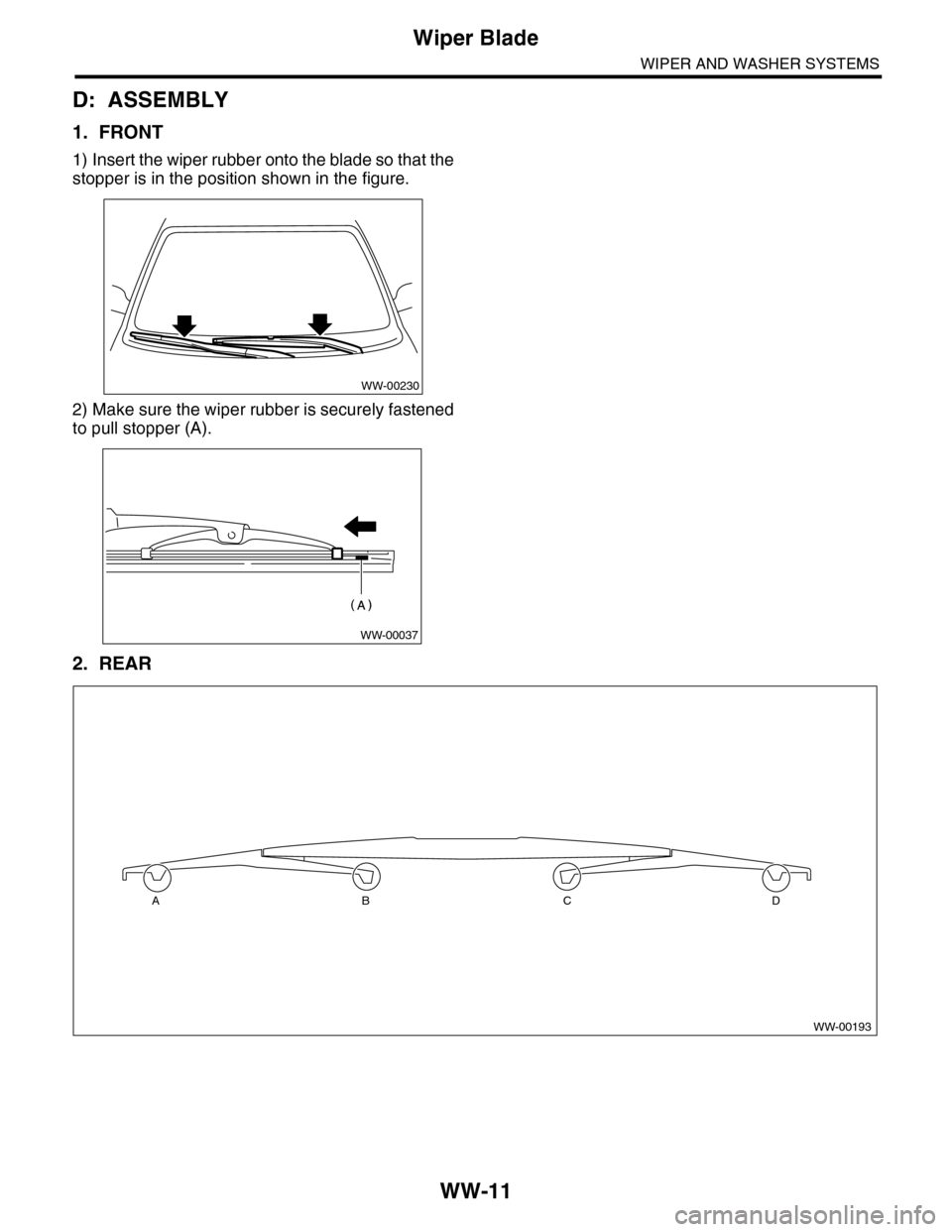

Page 706 of 2453
WW-11
Wiper Blade
WIPER AND WASHER SYSTEMS
D: ASSEMBLY
1. FRONT
1) Insert the wiper rubber onto the blade so that the
stopper is in the position shown in the figure.
2) Make sure the wiper rubber is securely fastened
to pull stopper (A).
2. REAR
WW-00230
WW-00037
WW-00193
ABCD

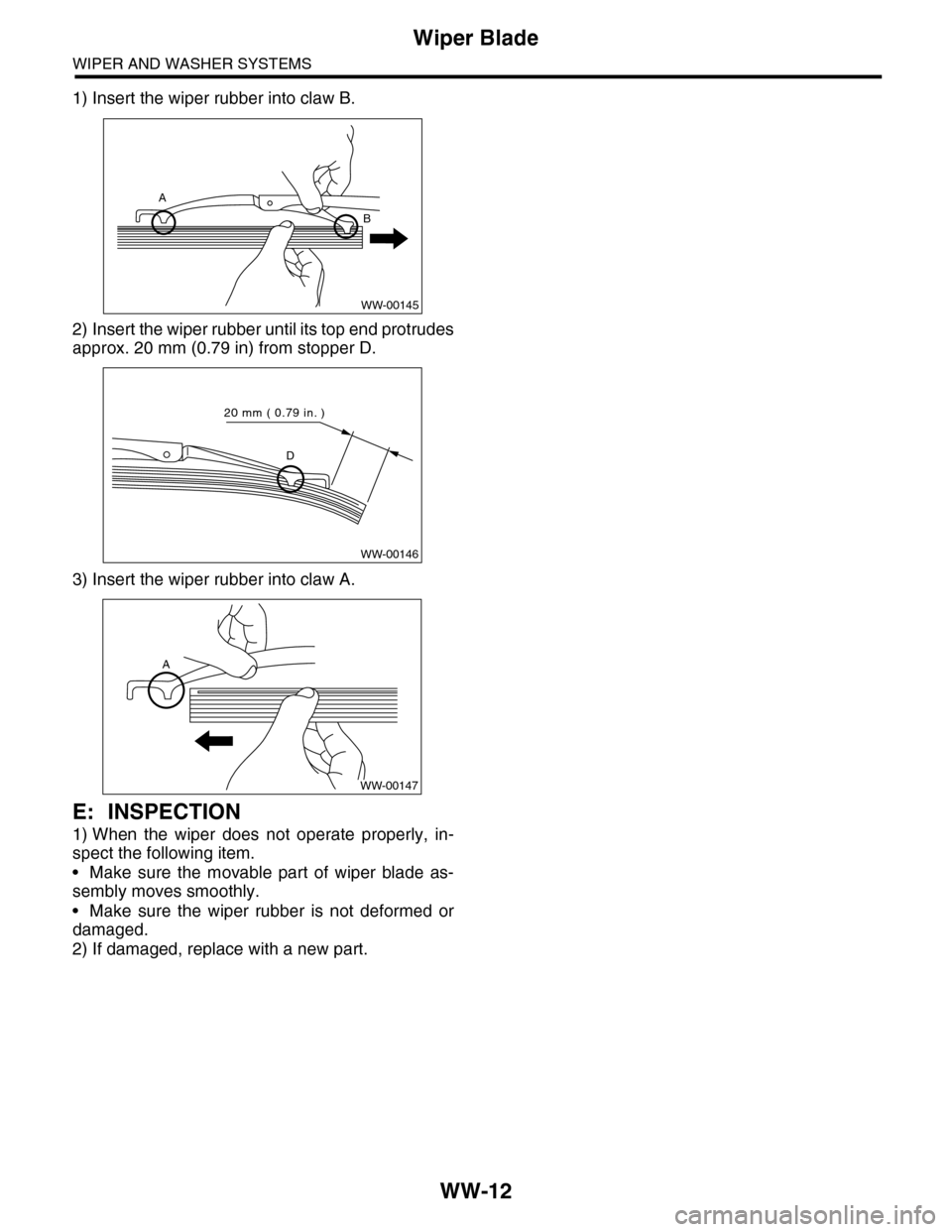

Page 707 of 2453
WW-12
Wiper Blade
WIPER AND WASHER SYSTEMS
1) Insert the wiper rubber into claw B.
2) Insert the wiper rubber until its top end protrudes
approx. 20 mm (0.79 in) from stopper D.
3) Insert the wiper rubber into claw A.
E: INSPECTION
1) When the wiper does not operate properly, in-
spect the following item.
•Make sure the movable part of wiper blade as-
sembly moves smoothly.
•Make sure the wiper rubber is not deformed or
damaged.
2) If damaged, replace with a new part.
WW-00145
A
B
WW-00146
D
20 mm ( 0.79 in. )
A
WW-00147

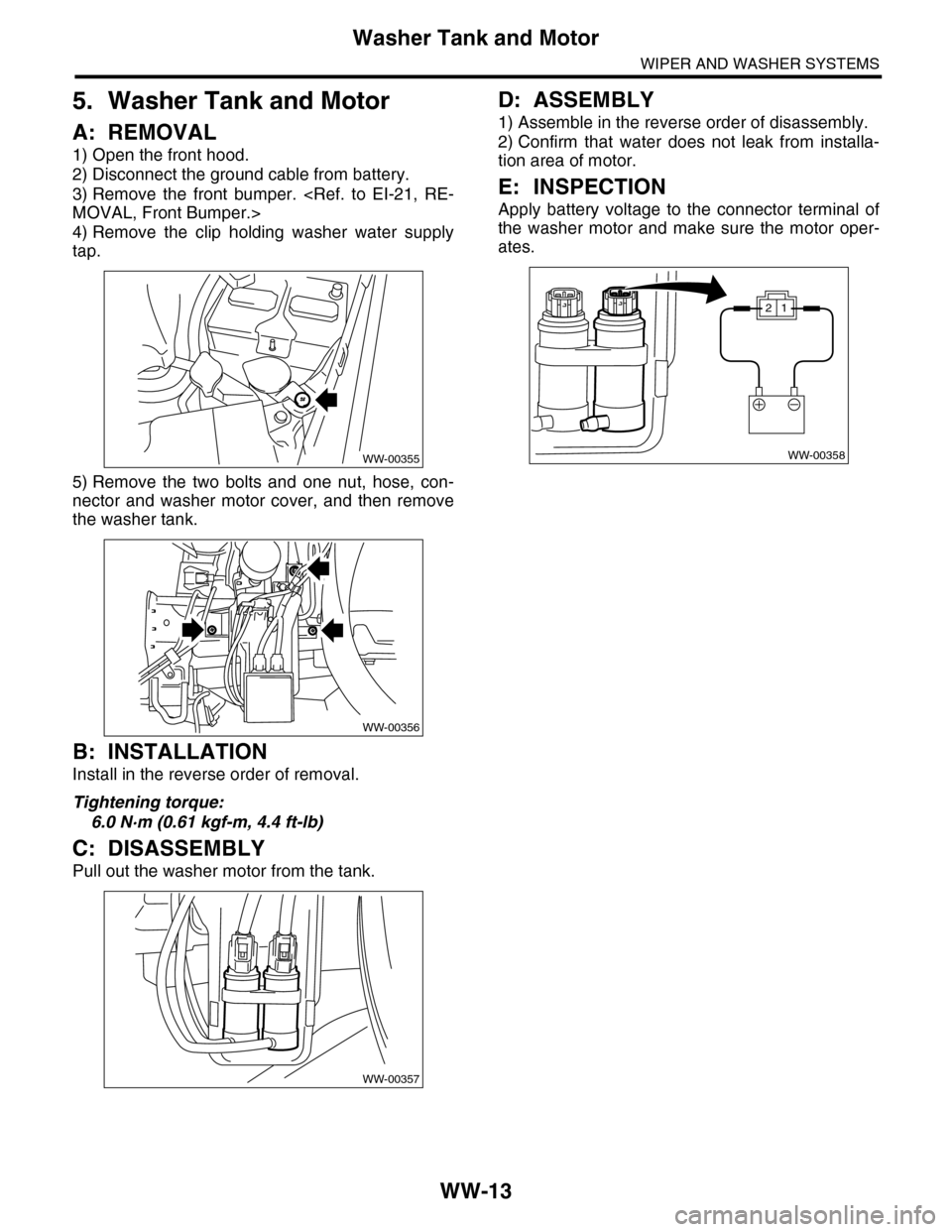

Page 708 of 2453
WW-13
Washer Tank and Motor
WIPER AND WASHER SYSTEMS
5. Washer Tank and Motor
A: REMOVAL
1) Open the front hood.
2) Disconnect the ground cable from battery.
3) Remove the front bumper.
MOVAL, Front Bumper.>
4) Remove the clip holding washer water supply
tap.
5) Remove the two bolts and one nut, hose, con-
nector and washer motor cover, and then remove
the washer tank.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
6.0 N·m (0.61 kgf-m, 4.4 ft-lb)
C: DISASSEMBLY
Pull out the washer motor from the tank.
D: ASSEMBLY
1) Assemble in the reverse order of disassembly.
2) Confirm that water does not leak from installa-
tion area of motor.
E: INSPECTION
Apply battery voltage to the connector terminal of
the washer motor and make sure the motor oper-
ates.
WW-00355
WW-00356
WW-00357
WW-00358
12
Page 709 of 2453

WW-14
Wiper Relay Unit
WIPER AND WASHER SYSTEMS
6. Wiper Relay Unit
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the wiper arm.
MOVAL, Front Wiper Arm.>
3) Remove the cowl panel.
MOVAL, Cowl Panel.>
4) Disconnect connector (A) of the wiper motor as-
sembly.
5) Remove bolt (B) and clip (C).
6) Disconnect connector (D) of the wiper relay unit.
NOTE:
Unit body, bracket, and rubber mount is an assem-
bly component and cannot be disassembled.
B: INSTALLATION
Install in the reverse order of removal.
CAUTION:
•Do not reuse the clips. Always replace them
with new ones.
•Make sure the connector connection and clip
insertion is secure, and confirm the contact
C: INSPECTION
1) Inspect the continuity of 4 pole connector.
2) Connect the battery to the 3 pole connector and
measure the continuity of 4 pole connector.
3) When measurement value is different from the
specification, replace the wiper relay unit.
Te r m i n a l N o . S p e c i f i c a t i o n
1 and 2 Less than 1 Ω
Te r m i n a l N o .Specification3 pole connector 4 pole connector
2 and 3 1 and 4 Less than 1 Ω
1 and 2 3 and 4 Less than 1 Ω
Page 710 of 2453
WW-15
Front Wiper Arm
WIPER AND WASHER SYSTEMS
7. Front Wiper Arm
A: REMOVAL
CAUTION:
When standing up the wiper arm, be sure to
stand up the driver’s side wiper arm first, and
then passenger’s side wiper arm next. Also,
when putting the wiper arms back, be sure to
start with passenger’s side first, then driver’s
side next. Doing this in the reverse order may
cause the driver’s side wiper blade to hit the
passenger’s side wiper arm and cause damage.
1) Remove the cap.
2) Remove the nut and remove the wiper arm.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Operate the wiper once.
3) Align the wiper blade to ceramic print point mark
(A) of front window panel.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
NENT, General Description.>
C: ADJUSTMENT
Operate the wiper once. Align the wiper blade to
ceramic print point mark (A) of front window panel.
WW-00232
WW-00359
(A)
WW-00359
(A)
Page 711 of 2453

WW-16
Front Wiper Motor and Link
WIPER AND WASHER SYSTEMS
8. Front Wiper Motor and Link
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the cowl panel.
MOVAL, Cowl Panel.>
3) Disconnect the connector of wiper motor assem-
bly.
4) Remove the bolt, and then remove the wiper as-
sembly.
NOTE:
The wiper motor and wiper link is an assembly part
and is not to be disassembled.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”.
NENT, General Description.>
C: INSPECTION
1) When the battery is connected to the terminal of
connectors, confirm that the wiper motor operates
at low speed.
2) When the battery is connected to the terminal of
connectors, confirm that the wiper motor operates
at high speed.
3) Connect the battery to the terminals to the con-
nector, then run the wiper motor at low speed and
disconnect the terminal in mid motion.
4) Connect the battery and confirm that the wiper
motor stops at the automatic stop position after the
wiper motor operates at low speed again.
WW-00360
WW-00218
32541
32541
WW-00219
WW-00220
32541
WW-00221
32541
Page 712 of 2453

WW-17
Front Washer Nozzle
WIPER AND WASHER SYSTEMS
9. Front Washer Nozzle
A: REMOVAL
1) Remove the front hood insulator.
13, FRONT HOOD INSULATOR, REMOVAL,
Front Hood.>
2) Hold the claw (A) of the washer nozzle towards
the direction of the arrow, and remove the washer
nozzle.
3) Remove the washer hose from the washer noz-
zle.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Adjust the washer nozzle position.
17, ADJUSTMENT, Front Washer Nozzle.>
C: INSPECTION
•Make sure the nozzle and hose are not clogged.
•Make sure the hose is not bent.
D: ADJUSTMENT
CAUTION:
Do not move the spray nozzle area directly to
adjust. Doing so will damage the slit and cause
improper spray.
1) Turn the wiper switch to OFF position.
2) While the vehicle is at a standstill, adjust the
washer injection position as shown in the figure.
Spray position:
A: 250 mm (9.84 in)
B: 433 mm (17.05 in)
3) Spray angle should be adjusted by rotating ad-
justing dial (A) with a flat tip screwdriver.
NOTE:
Adjusting dial will return to the original spray angle
with 1 rotation.
(1) Nozzle
(2) Spray center aiming position
(3) Spray area (shaded area)
