Page 225 of 2453

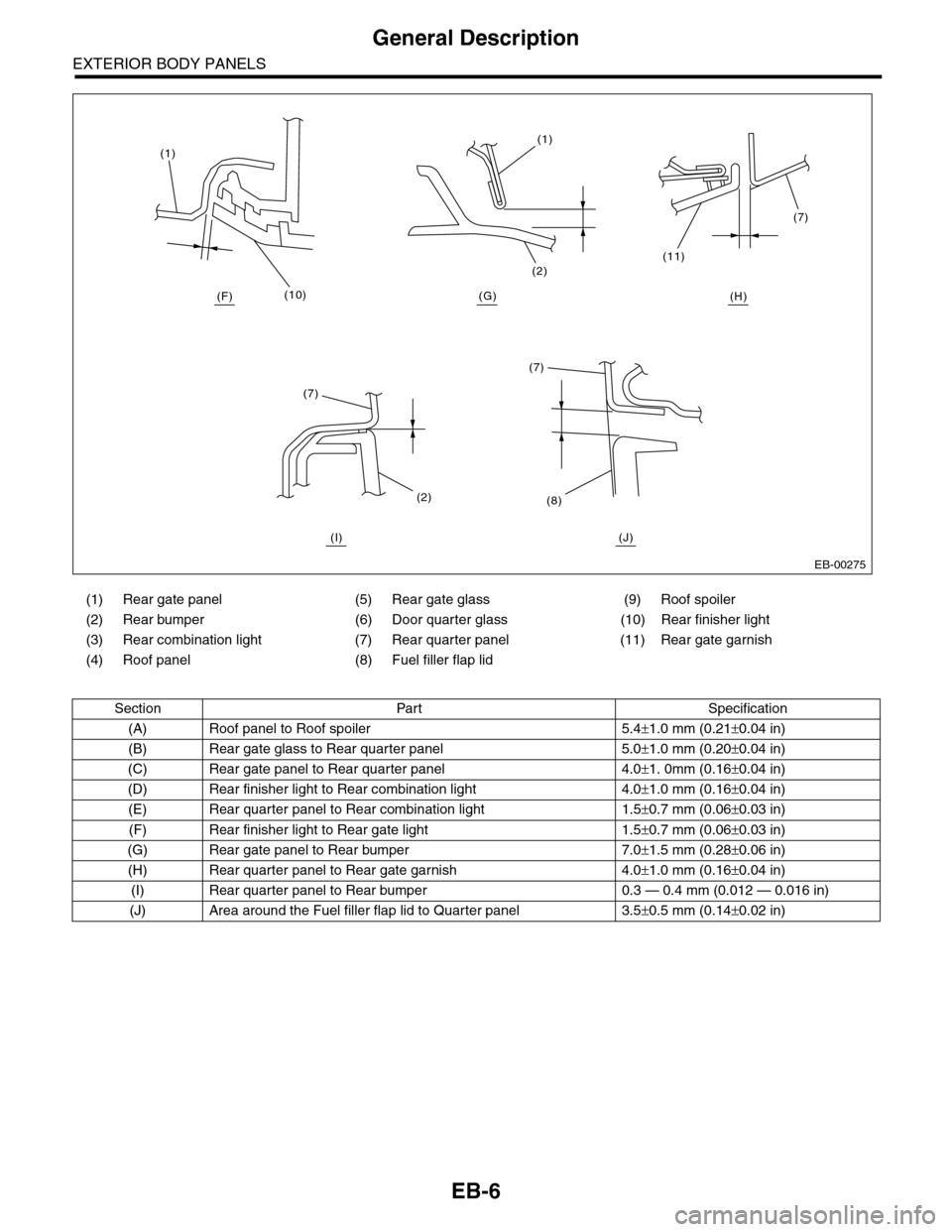

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-6 General Description EXTERIOR BODY PANELS (1) Rear gate panel (5) Rear gate glass (9) Roof spoiler (2) Rear bumper (6) Door quarter glass (10) Rear finisher light (3) Rear combination light (7) Re

Page 226 of 2453

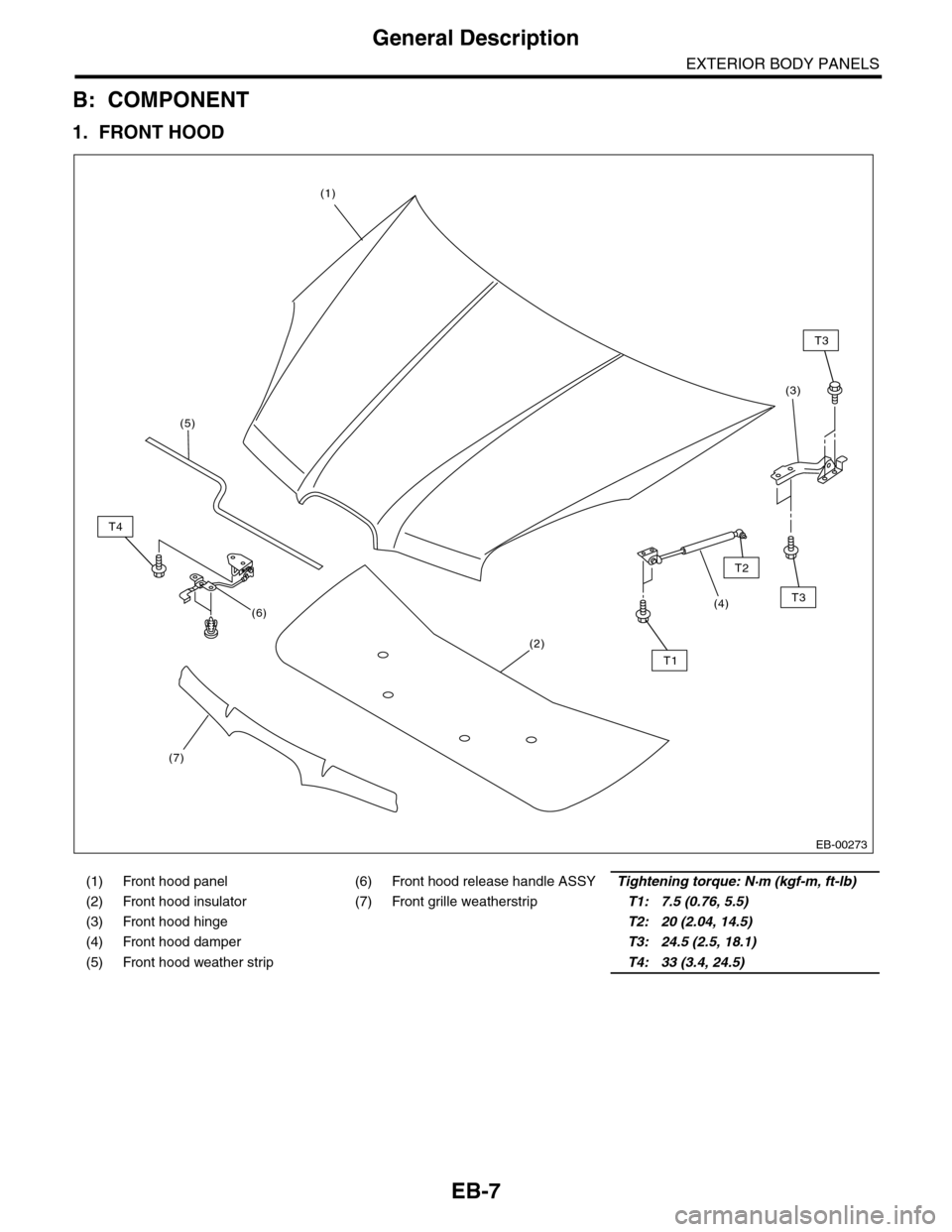

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-7 General Description EXTERIOR BODY PANELS B: COMPONENT 1. FRONT HOOD (1) Front hood panel (6) Front hood release handle ASSYTightening torque: N·m (kgf-m, ft-lb) (2) Front hood insulator (7) Fron

Page 227 of 2453

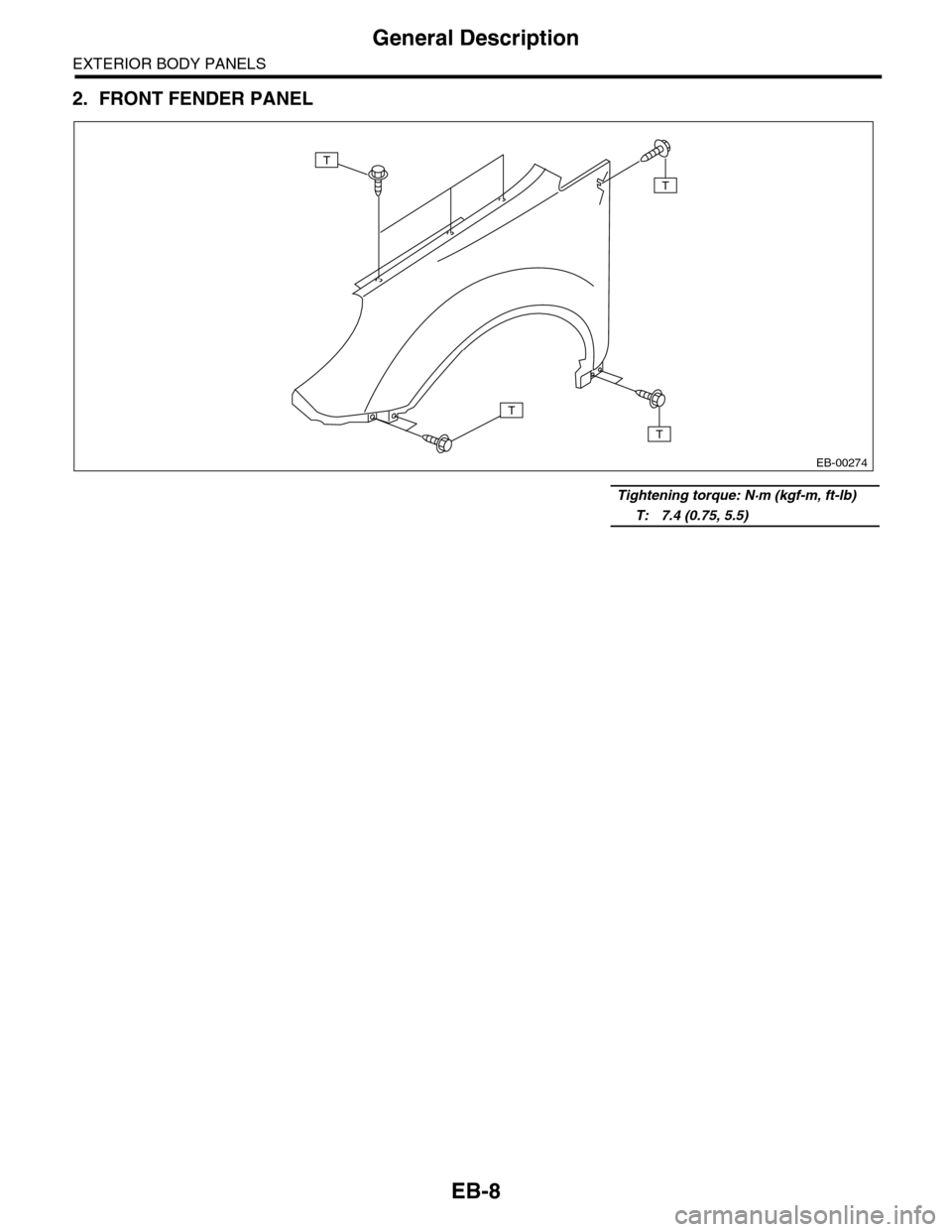

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-8 General Description EXTERIOR BODY PANELS 2. FRONT FENDER PANEL Tightening torque: N·m (kgf-m, ft-lb) T: 7.4 (0.75, 5.5) EB-00274 T T T T

Page 228 of 2453

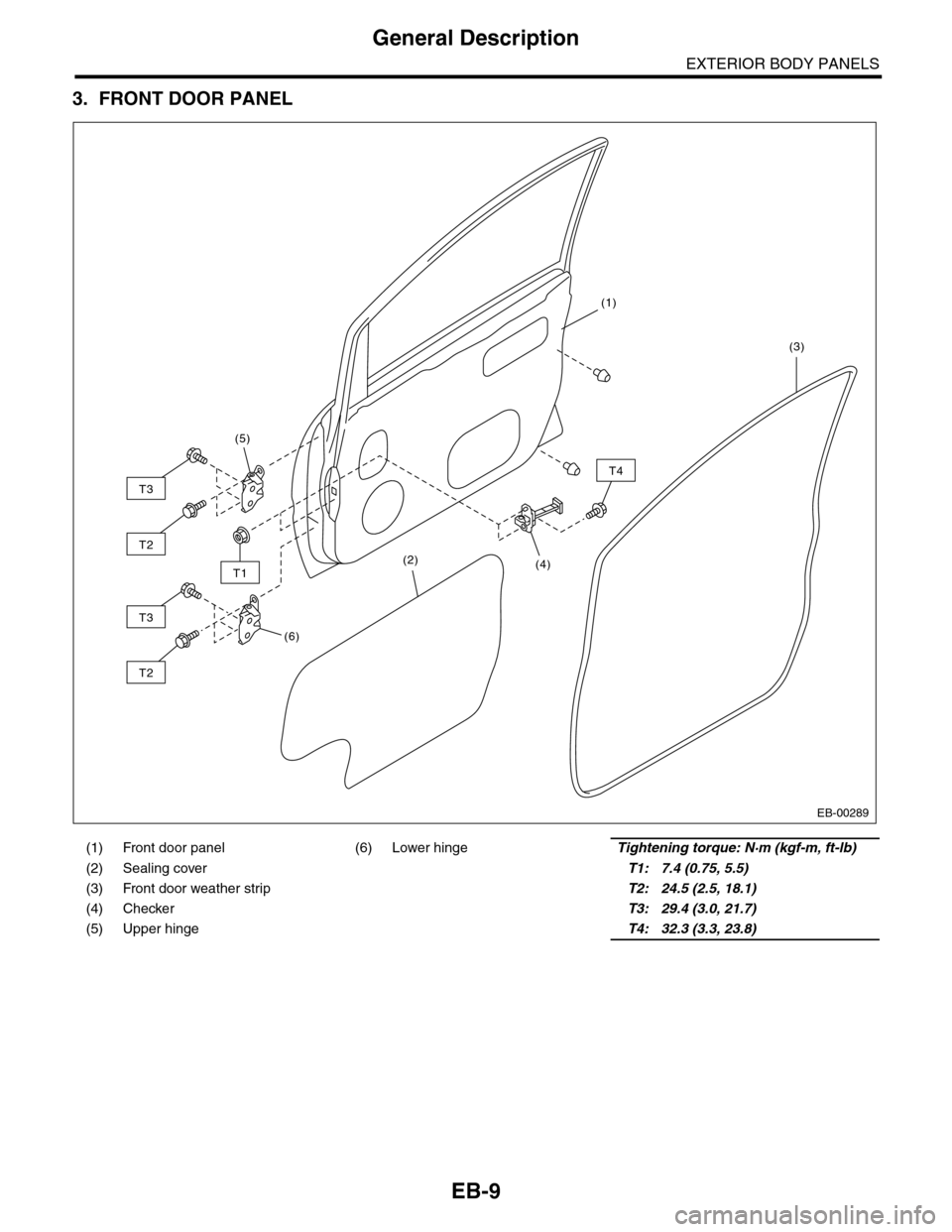

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-9 General Description EXTERIOR BODY PANELS 3. FRONT DOOR PANEL (1) Front door panel (6) Lower hingeTightening torque: N·m (kgf-m, ft-lb) (2) Sealing cover T1: 7.4 (0.75, 5.5) (3) Front door wea

Page 229 of 2453

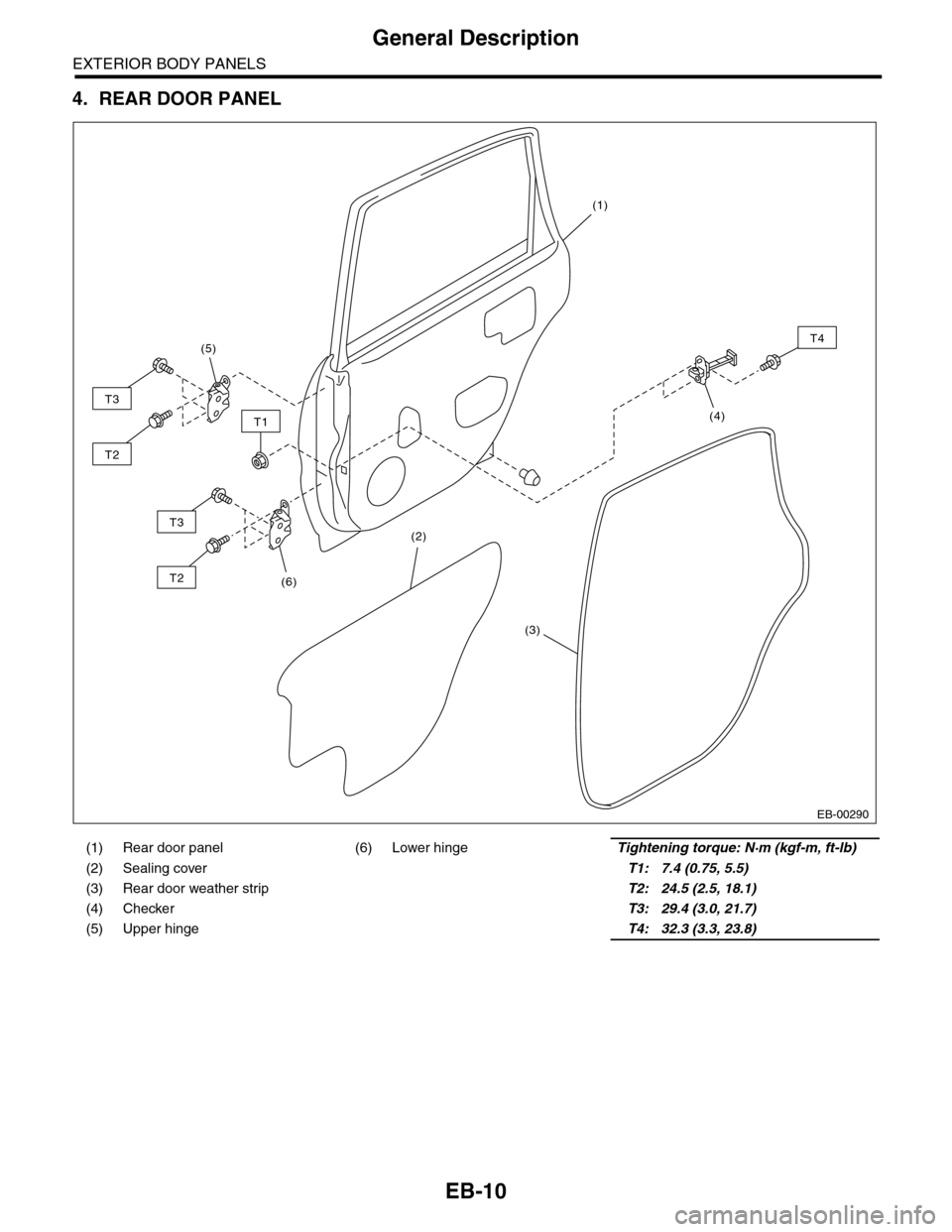

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-10 General Description EXTERIOR BODY PANELS 4. REAR DOOR PANEL (1) Rear door panel (6) Lower hingeTightening torque: N·m (kgf-m, ft-lb) (2) Sealing cover T1: 7.4 (0.75, 5.5) (3) Rear door weath

Page 230 of 2453

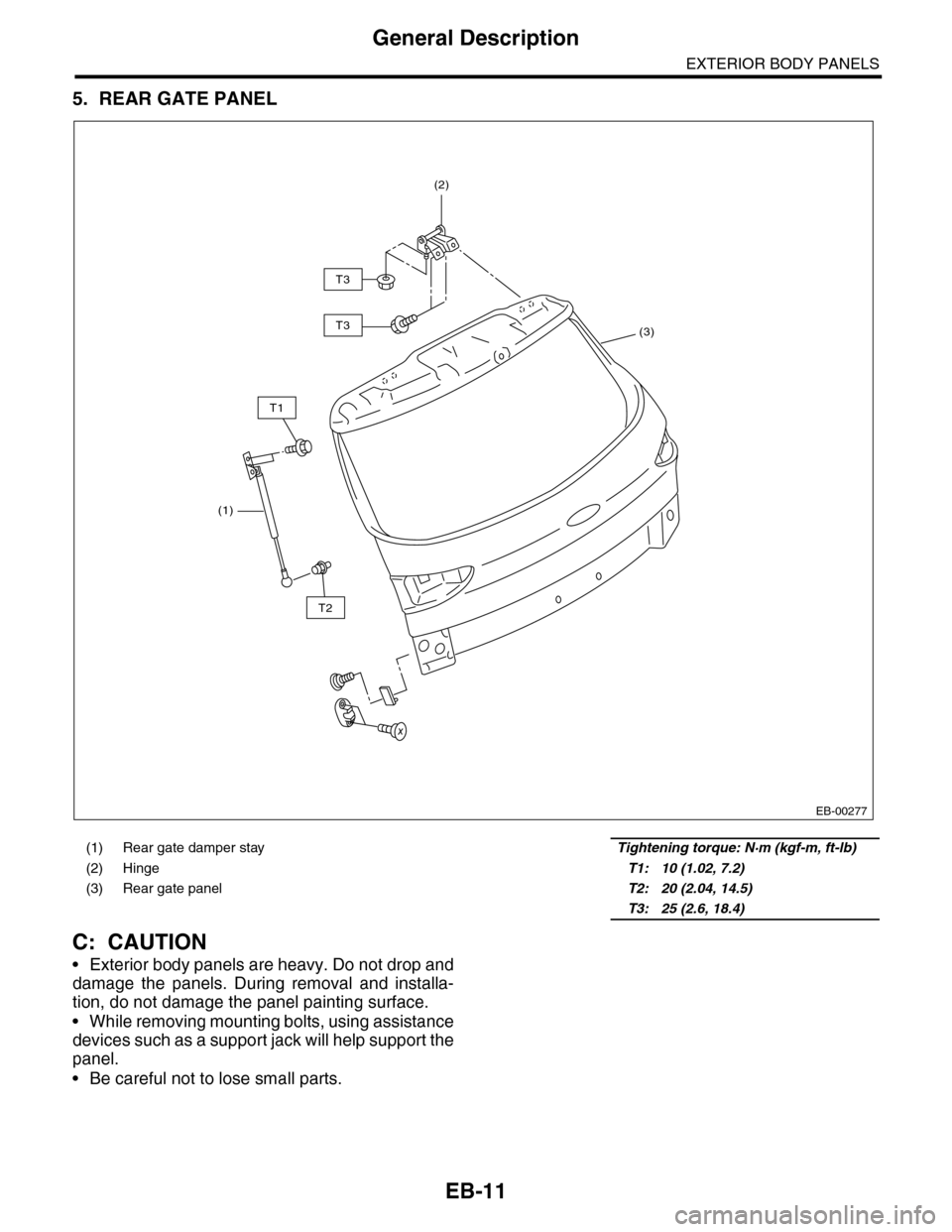

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-11 General Description EXTERIOR BODY PANELS 5. REAR GATE PANEL C: CAUTION •Exterior body panels are heavy. Do not drop and damage the panels. During removal and installa- tion, do not damag

Page 231 of 2453

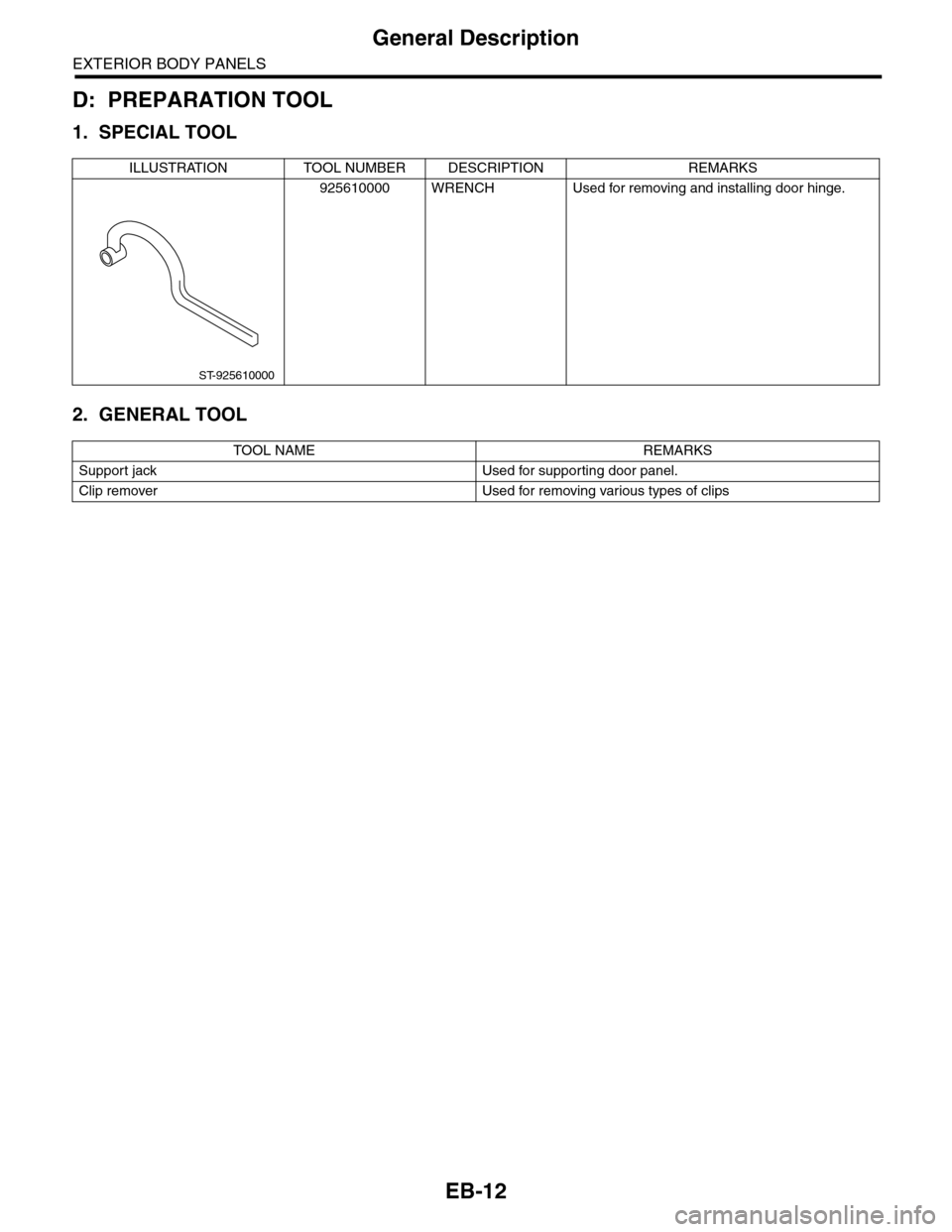

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-12 General Description EXTERIOR BODY PANELS D: PREPARATION TOOL 1. SPECIAL TOOL 2. GENERAL TOOL ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 925610000 WRENCH Used for removing and installing door h

Page 232 of 2453

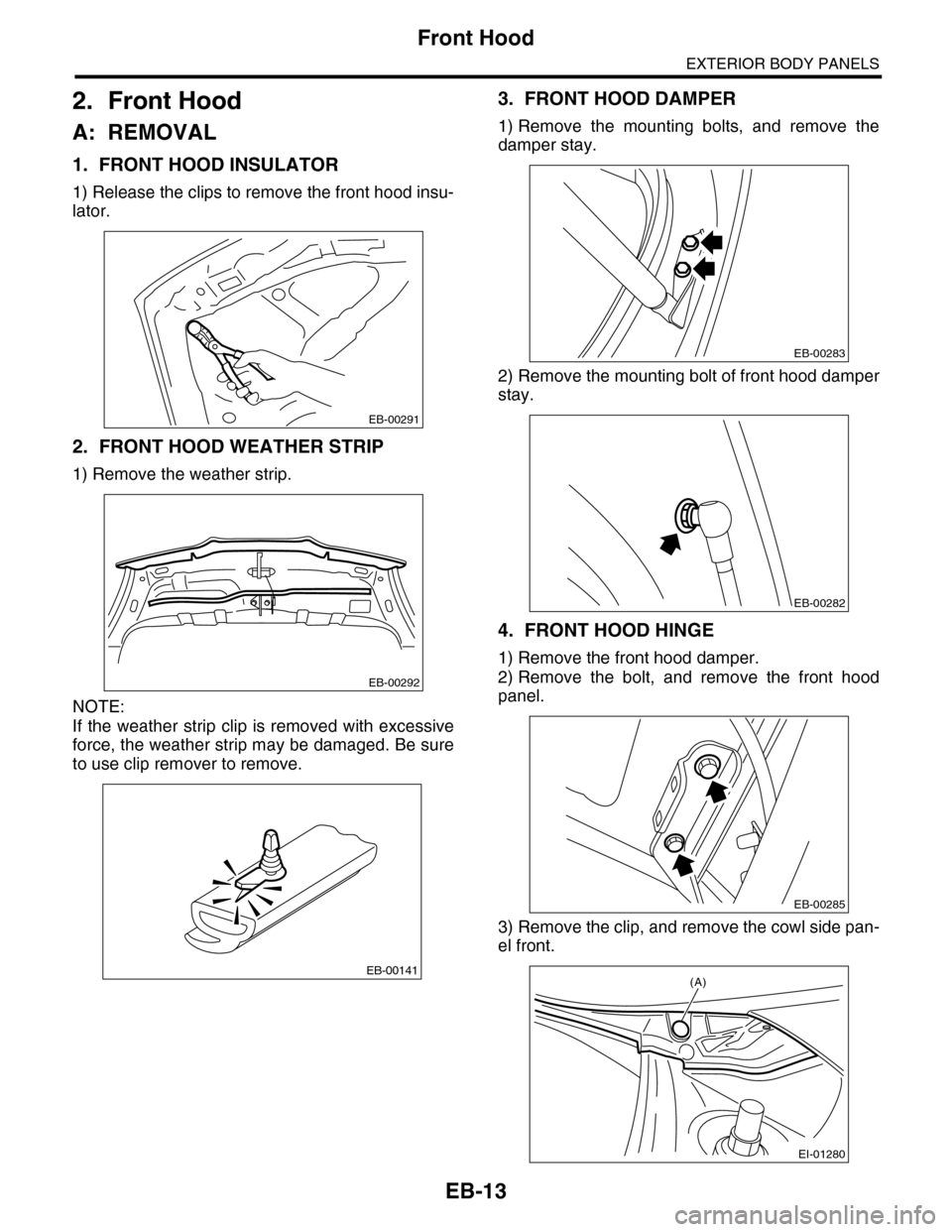

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-13 Front Hood EXTERIOR BODY PANELS 2. Front Hood A: REMOVAL 1. FRONT HOOD INSULATOR 1) Release the clips to remove the front hood insu- lator. 2. FRONT HOOD WEATHER STRIP 1) Remove the weather stri
