Page 209 of 2453
ET-24
Navigation Switch
ENTERTAINMENT
19.Navigation Switch
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the control panel.
MOVAL, Control Panel.>
3) Remove the screws and then remove the navi-
gation switch.
B: INSTALLATION
Install in the reverse order of removal.
ET-00186
Page 210 of 2453
ET-25
GPS Antenna
ENTERTAINMENT
20.GPS Antenna
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the combination meter.
REMOVAL, Combination Meter.>
3) Remove the audio.
Audio.>
4) Remove the navigation display.
REMOVAL, Navigation Display.>
5) Remove the screw to remove the GPS bracket.
6) Remove the GPS antenna cord connector from
the steering support beam stay (on the driver’s
side).
B: INSTALLATION
Install in the reverse order of removal.
ET-00187
Page 211 of 2453
ET-26
Multi Function Display (MFD)
ENTERTAINMENT
21.Multi Function Display (MFD)
A: REMOVAL
B: INSTALLATION
Install in the reverse order of removal.
Page 212 of 2453
ET-27
Multi Function Switch
ENTERTAINMENT
22.Multi Function Switch
A: REMOVAL
B: INSTALLATION
Install in the reverse order of removal.
Page 213 of 2453

ET-28
Rear Entertainment
ENTERTAINMENT
23.Rear Entertainment
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Insert a flat tip screw driver in the section, and
remove the room lamp lens.
3) Remove the bolts, and then remove the monitor
cover.
4) Remove the 4 mounting bolts.
5) Remove the temporary screws and remove the
monitor body.
NOTE:
Always support with one hand to prevent the unit
from falling.
6) Remove the temporary clips from the roof brace.
B: INSTALLATION
1) Attach the temporary clip and temporary screw
to the rear entertainment system body.
NOTE:
When installing a new rear entertainment system, a
clip is supplied on the unit, and this step can be
omitted.
2) Place the hook of the rear entertainment unit on
the roof brace section.
3) Affix the temporary fixture clips on the roof
brace.
4) Tighten the 4 attachment bolts, and connect the
connector.
5) Connect the room lamp connector, attach the
cover and affix with the bolts.
6) Attach the room lamp lens from the outside of
the vehicle and snap into place.
Install in the reverse order of removal.
(A) Cutout
(A) Clip
ET-00188
(A)
ET-00189
(A)
ET-00199
ET-00190
Page 214 of 2453

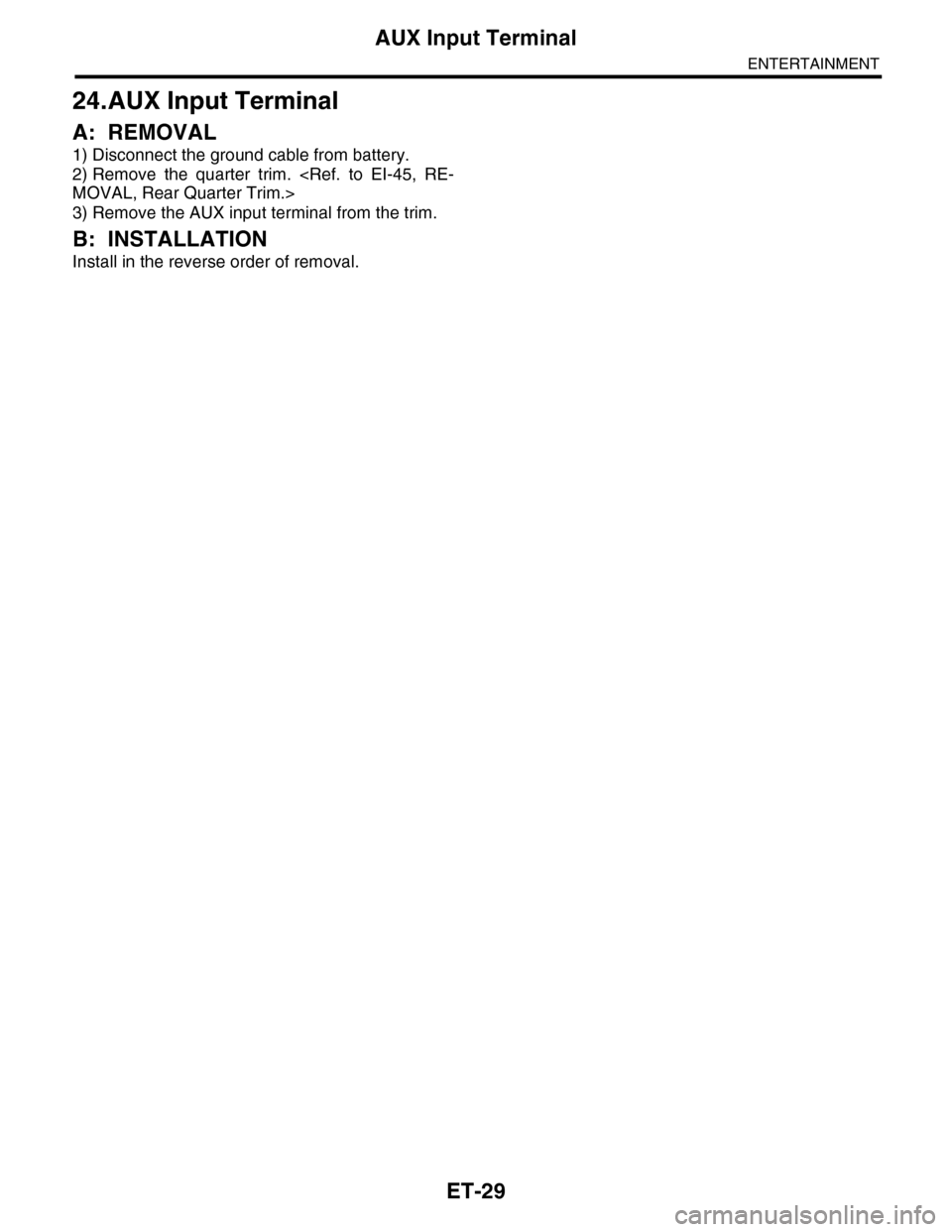

ET-29
AUX Input Terminal
ENTERTAINMENT
24.AUX Input Terminal
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the quarter trim.
MOVAL, Rear Quarter Trim.>
3) Remove the AUX input terminal from the trim.
B: INSTALLATION
Install in the reverse order of removal.
Page 215 of 2453

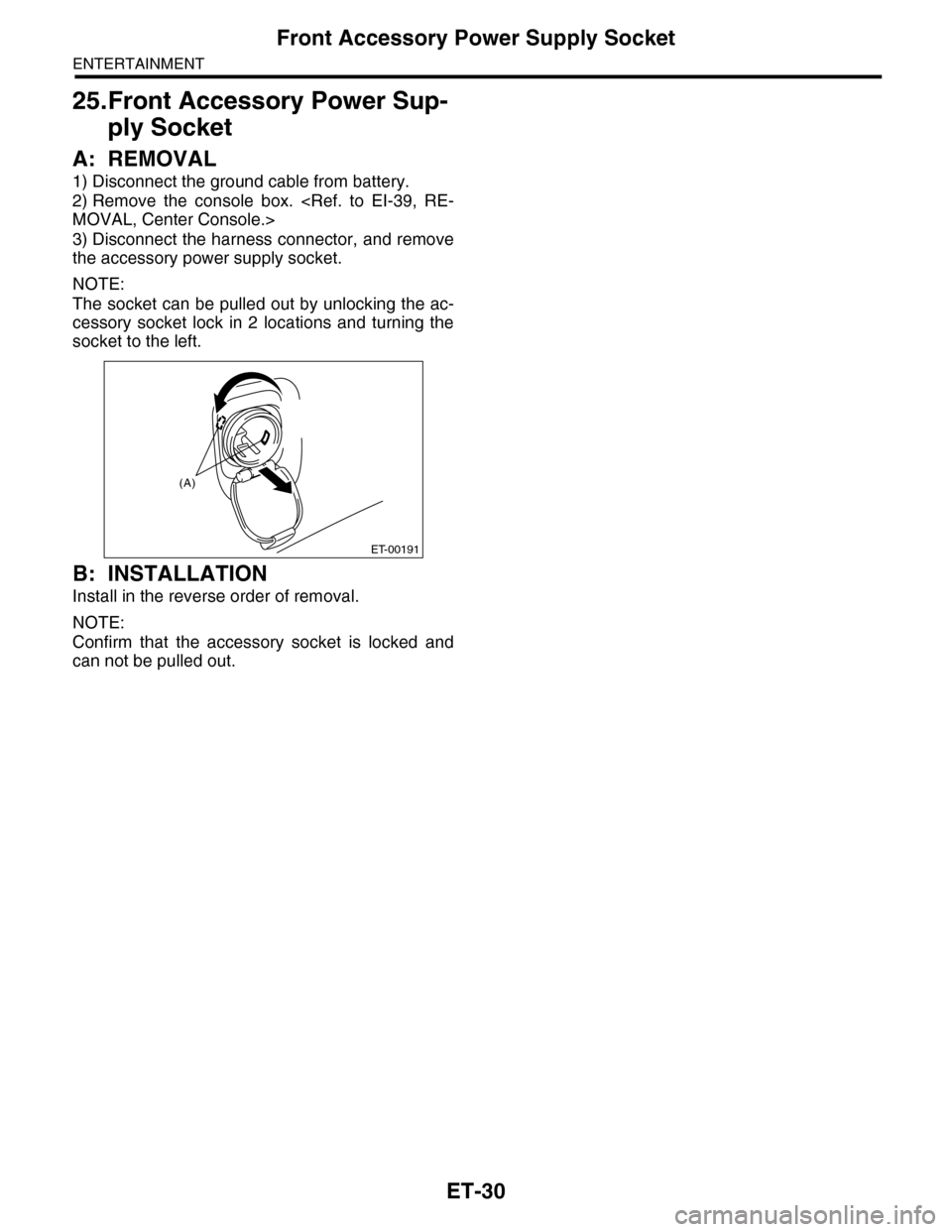

ET-30
Front Accessory Power Supply Socket
ENTERTAINMENT
25.Front Accessory Power Sup-
ply Socket
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console box.
MOVAL, Center Console.>
3) Disconnect the harness connector, and remove
the accessory power supply socket.
NOTE:
The socket can be pulled out by unlocking the ac-
cessory socket lock in 2 locations and turning the
socket to the left.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Confirm that the accessory socket is locked and
can not be pulled out.
ET-00191
(A)
Page 216 of 2453
ET-31
Rear Accessory Power Supply Socket
ENTERTAINMENT
26.Rear Accessory Power Sup-
ply Socket
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console box.
MOVAL, Center Console.>
3) Disconnect the harness connector, and remove
the accessory power supply socket.
NOTE:
The socket can be pulled out by unlocking the ac-
cessory socket lock in 2 locations and turning the
socket to the left.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Confirm that the accessory socket is locked and
can not be pulled out.
ET-00191
(A)
