SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-22 Rear Gate EXTERIOR BODY PANELS 8. Rear Gate A: REMOVAL 1. REAR GATE PANEL 1) Remove the weather strip clip, and remove the rear gate panel weather strip. NOTE: If the weather strip clip

Page 242 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-23 Rear Gate EXTERIOR BODY PANELS 14) Remove the rear gate hinge bolt, and remove the rear gate panel. 15) Remove the rear gate hinge from the vehicle. 2. REAR GATE DAMPER STAY CAUTION: •D

Page 243 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EB-24 Rear Gate EXTERIOR BODY PANELS C: DISPOSAL 1. REAR GATE DAMPER STAY CAUTION: Gas is colorless, odorless, and harmless. How- ever, gas pressure may spray cutting powder or oil. Be sure to wear d

Page 244 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-2 General Description EXTERIOR/INTERIOR TRIM 1. General Description A: COMPONENT 1. UNDER COVER (1) Front lower coverTightening torque: N·m (kgf-m, ft-lb) (2) Under cover T1: 7.5 (0.76, 5.4)

Page 245 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-3 General Description EXTERIOR/INTERIOR TRIM 2. UNDER PROTECTOR (1) Fuel tank protector RHTightening torque: N·m (kgf-m, ft-lb) (2) Fuel tank protector LH T: 17.5 (1.78, 12.9) EI-01249 T T T (2

Page 246 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-4 General Description EXTERIOR/INTERIOR TRIM 3. FRONT BUMPER (1) Bumper face (4) Bumper beam reinforcementTightening torque: N·m (kgf-m, ft-lb) (2) Front upper cover (5) Fog light coverT: 33 (3.4,

Page 247 of 2453

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-5 General Description EXTERIOR/INTERIOR TRIM 4. REAR BUMPER (1) Bumper face (3) Bumper beam reinforcementTightening torque: N·m (kgf-m, ft-lb) (2) Energy absorber foam T: 33 (3.4, 24) EI-01250 T

Page 248 of 2453

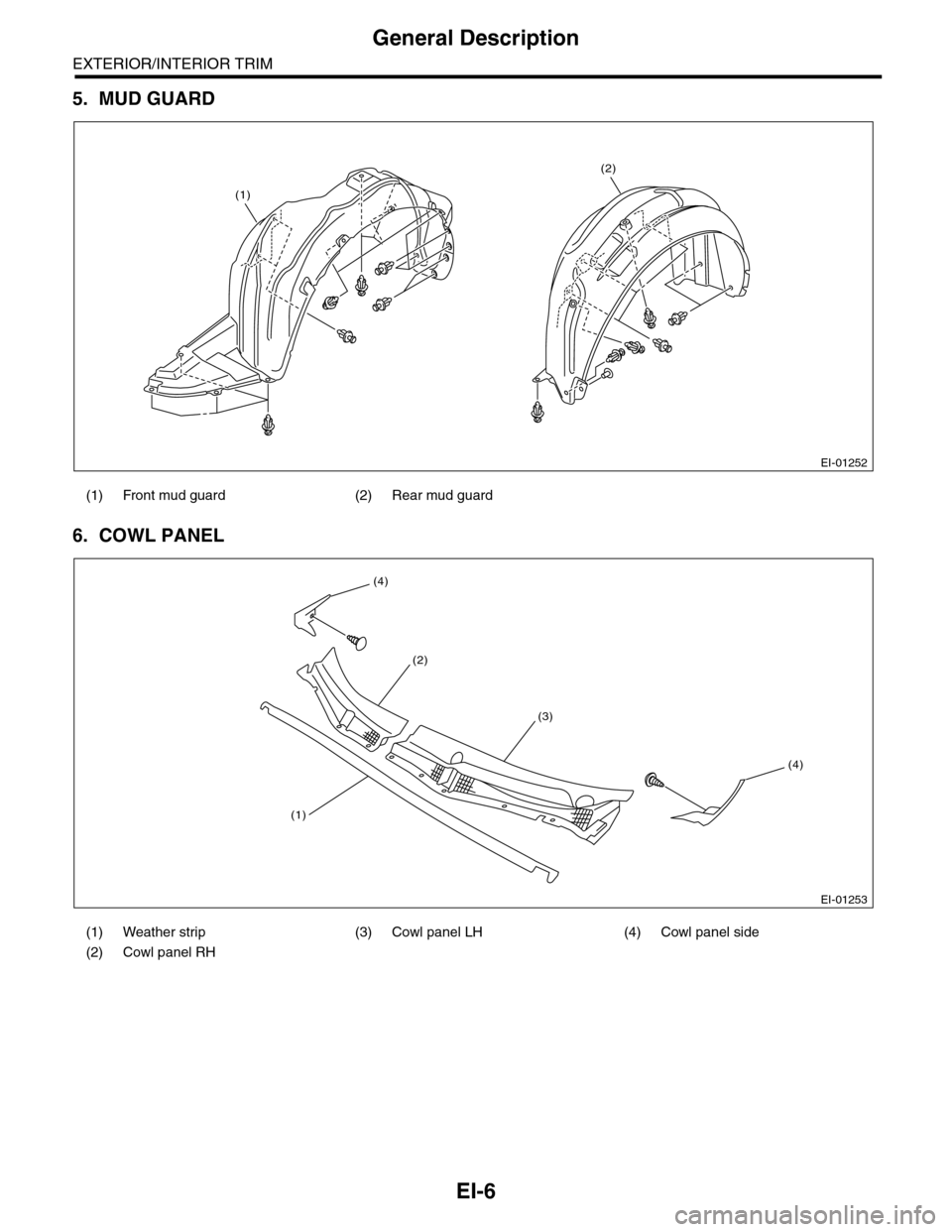

SUBARU TRIBECA 2009 1.G Service Workshop Manual EI-6 General Description EXTERIOR/INTERIOR TRIM 5. MUD GUARD 6. COWL PANEL (1) Front mud guard (2) Rear mud guard (1) Weather strip (3) Cowl panel LH (4) Cowl panel side (2) Cowl panel RH
