Page 1569 of 2453
FU(H6DO)-8
General Description
FUEL INJECTION (FUEL SYSTEMS)
(1) Fuel tank (11) Fuel tank protector LH (Rear) (20) Heat shield cover
(2) Fuel tank band RH (12) Clip (21) Fuel tank protector RH (Front)
(3) Fuel tank band LH (13) Evaporation hose (22) Fuel tank protector LH (Front)
(4) Delivery tube (14) Clamp
(5) Jet pump tube (15) Fuel filler hoseTightening torque: N·m (kgf-m, ft-lb)
(6) Retainer (16) Fuel pump upper plateT1: 4.4 (0.45, 3.2)
(7) Fuel sub level sensor gasket (17) Fuel pump ASSYT2: 9 (0.9, 6.6)
(8) Fuel sub level sensor (18) Fuel level sensorT3: 17.5 (1.78, 12.9)
(9) Fuel sub level sensor upper plate (19) Fuel pump gasketT4: 33 (3.4, 25)
(10) Bracket
Page 1570 of 2453
FU(H6DO)-9
General Description
FUEL INJECTION (FUEL SYSTEMS)
6. FUEL LINE
(1) Clamp (8) Fuel pipe ASSY (15) Ring
(2) Evaporation hose A (9) Grommet (16) Fuel filler cap
(3) Fuel delivery hose A (10) Drain valve (17) Fuel tank pressure sensor
(4) Fuel pipe ASSY (11) Canister
(5) Evaporation hose B (12) ClampTightening torque: N·m (kgf-m, ft-lb)
(6) Fuel delivery hose B (13) Fuel filler pipeT1: 7.5 (0.76, 5.5)
(7) Clamp (14) Packing
C
C
A
AB
B
(15)
(13)(17)
(16)
(14)
T1
T2
(5)
(6)
(4)
(7)(7)
(8)
(9)
(11)
(12)
(12)
(10)
(2)
(3)(1)
FU-02678
Page 1571 of 2453

FU(H6DO)-10
General Description
FUEL INJECTION (FUEL SYSTEMS)
C: CAUTION
•Wear work clothing, including a cap, protective goggles and protective shoes during operation.
•Remove contamination including dirt and corrosion before removal, installation or disassembly.
•Keep the disassembled parts in order and protect them from dust and dirt.
•Before removal, installation or disassembly, be sure to clarify the failure. Avoid unnecessary removal, in-
stallation, disassembly and replacement.
•Be careful not to burn yourself, because each part on the vehicle is hot after running.
•Be sure to tighten fasteners including bolts and nuts to the specified torque.
•Place shop jacks or rigid racks at the specified points.
•Before disconnecting connectors of sensors or units, be sure to disconnect the ground cable from the bat-
tery.
•Place “NO FIRE” signs near the working area.
•Be careful not to spill fuel on the floor.
D: PREPARATION TOOL
ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
18482AA010 CARTRIDGE Troubleshooting the electrical system.
22771AA030 SUBARU SELECT
MONITOR KIT
Tr o u b l e s h o o t i n g t h e e l e c t r i c a l s y s t e m .
42099AE000 CONNECTOR
REMOVER
Used for disconnecting quick connector of the
engine compartment.
ST18482AA010
ST22771AA030
ST42099AE000
Page 1572 of 2453
FU(H6DO)-11
Throttle Body
FUEL INJECTION (FUEL SYSTEMS)
2. Throttle Body
A: REMOVAL
1) Remove the collector cover.
2) Disconnect the ground cable from battery.
3) Remove the air intake chamber.
IN(H6DO)-6, REMOVAL, Air Intake Chamber.>
4) Disconnect the connectors from the throttle posi-
tion sensor.
5) Disconnect the engine coolant hoses (A) from
throttle body.
6) Remove the bolts (B) which secure throttle body
to intake manifold.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Use new O-rings.
Tightening torque:
8 N·m (0.8 kgf-m, 5.9 ft-lb)
FU-02111
FU-02112
(A)(B)
(B)
(A)
Page 1573 of 2453

FU(H6DO)-12
Intake Manifold
FUEL INJECTION (FUEL SYSTEMS)
3. Intake Manifold
A: REMOVAL
1) Remove the collector cover.
2) Release the fuel pressure.
37, RELEASING OF FUEL PRESSURE, PROCE-
DURE, Fuel.>
3) Disconnect the ground cable from battery.
4) Open the fuel filler flap lid, and remove the fuel
filler cap.
5) Remove the air cleaner case and air intake
chamber.
Cleaner Case.>
Air Intake Chamber.>
6) Remove the generator.
REMOVAL, Generator.>
7) Disconnect the connector from throttle body.
8) Disconnect the engine coolant hoses from throt-
tle body.
9) Disconnect the PCV hose.
10) Disconnect the brake booster hose.
11) Disconnect the fuel hoses from fuel pipe.
(1) Disconnect the connector of fuel pipe by
pushing the ST in the direction of arrow.
ST 42099AE000 CONNECTOR REMOVER
(2) Remove the clip, and disconnect the evapo-
ration hose from the pipe.
WARNING:
•Be careful not to spill fuel.
•Catch the fuel from hoses using a container
or cloth.
12) Remove the fuel pipe protector LH.
13) Remove the engine harness from fuel injector
pipe LH.
FU-02487
FU-02114
EC-02133
ME-02655
FU-02117
Page 1574 of 2453

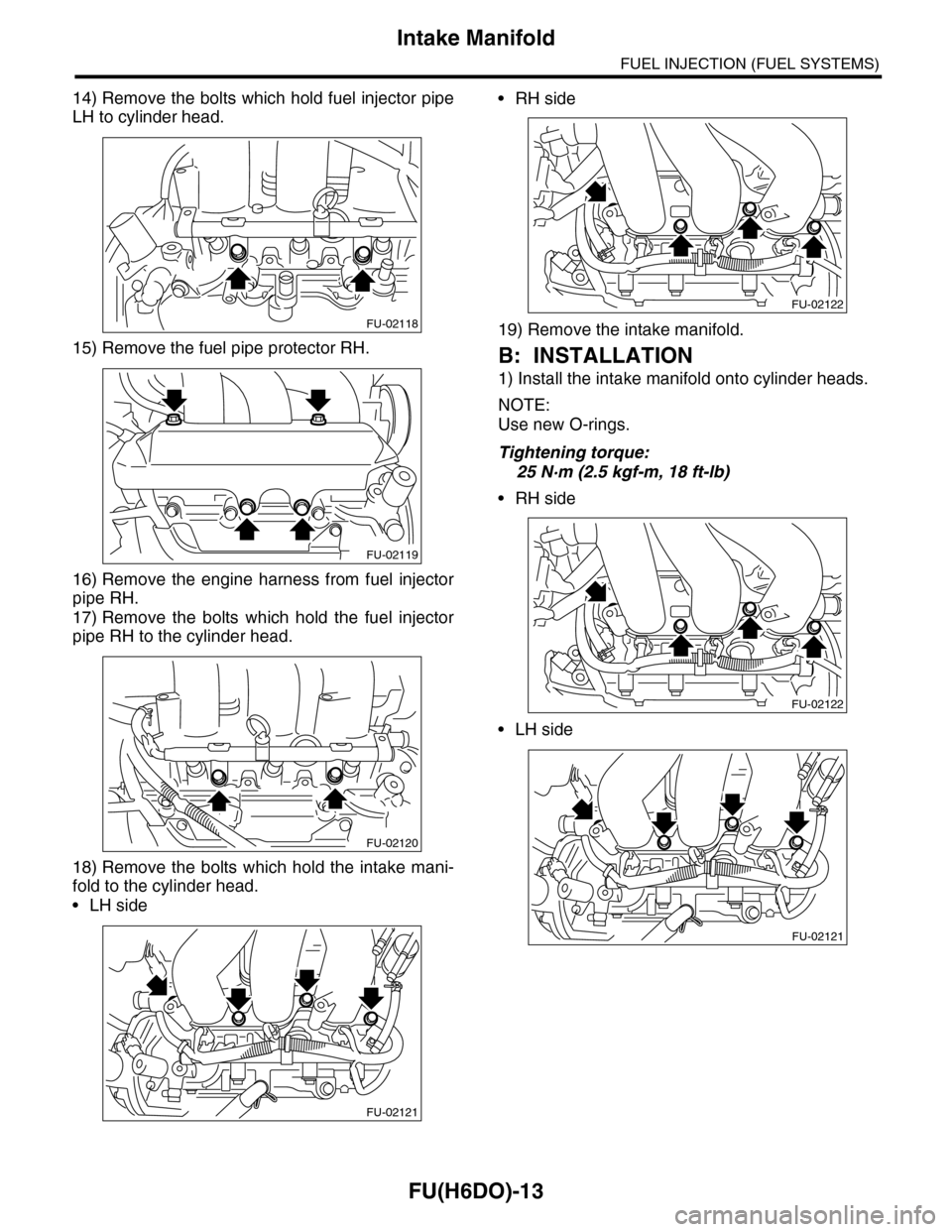

FU(H6DO)-13
Intake Manifold
FUEL INJECTION (FUEL SYSTEMS)
14) Remove the bolts which hold fuel injector pipe
LH to cylinder head.
15) Remove the fuel pipe protector RH.
16) Remove the engine harness from fuel injector
pipe RH.
17) Remove the bolts which hold the fuel injector
pipe RH to the cylinder head.
18) Remove the bolts which hold the intake mani-
fold to the cylinder head.
•LH side
•RH side
19) Remove the intake manifold.
B: INSTALLATION
1) Install the intake manifold onto cylinder heads.
NOTE:
Use new O-rings.
Tightening torque:
25 N·m (2.5 kgf-m, 18 ft-lb)
•RH side
•LH side
FU-02118
FU-02119
FU-02120
FU-02121
FU-02122
FU-02122
FU-02121
Page 1575 of 2453

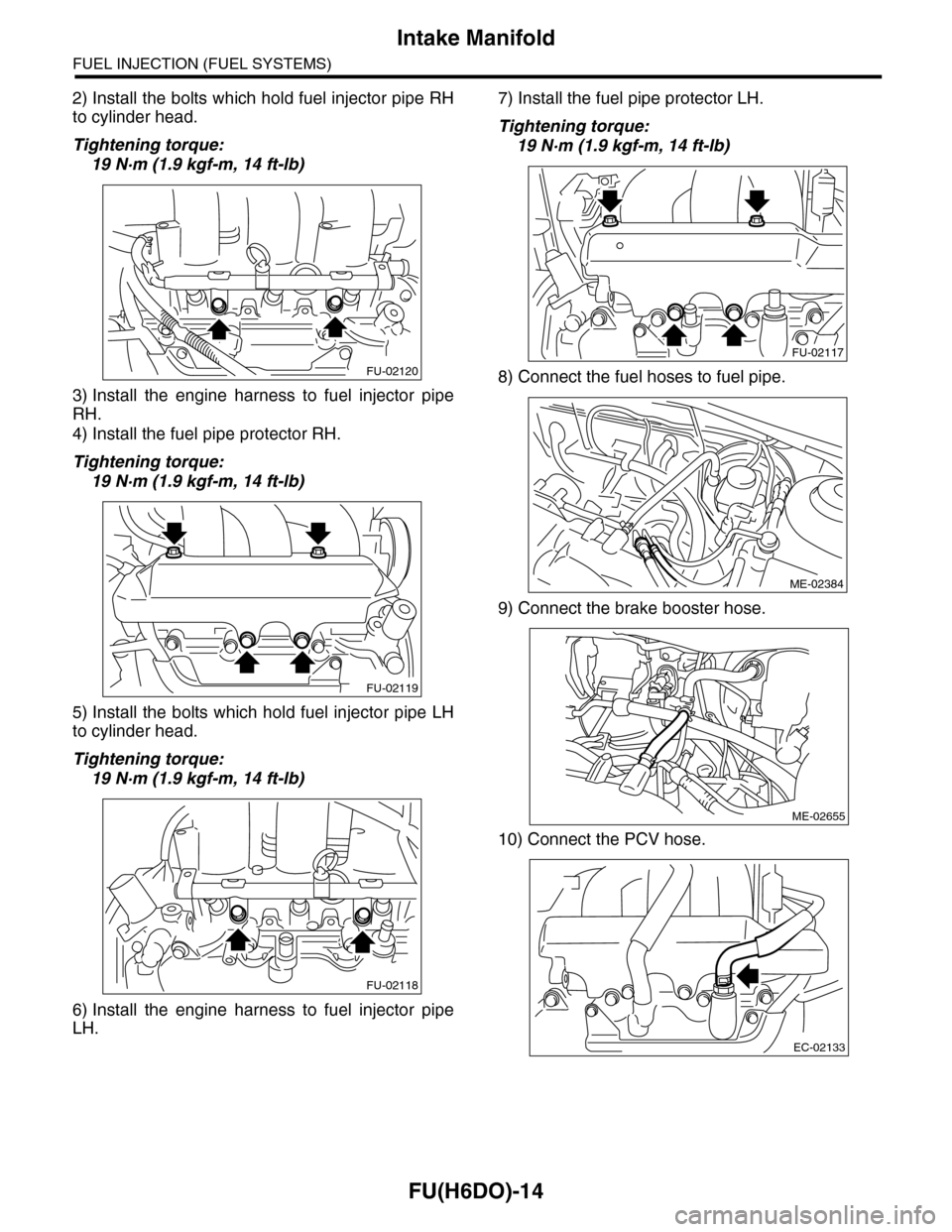

FU(H6DO)-14
Intake Manifold
FUEL INJECTION (FUEL SYSTEMS)
2) Install the bolts which hold fuel injector pipe RH
to cylinder head.
Tightening torque:
19 N·m (1.9 kgf-m, 14 ft-lb)
3) Install the engine harness to fuel injector pipe
RH.
4) Install the fuel pipe protector RH.
Tightening torque:
19 N·m (1.9 kgf-m, 14 ft-lb)
5) Install the bolts which hold fuel injector pipe LH
to cylinder head.
Tightening torque:
19 N·m (1.9 kgf-m, 14 ft-lb)
6) Install the engine harness to fuel injector pipe
LH.
7) Install the fuel pipe protector LH.
Tightening torque:
19 N·m (1.9 kgf-m, 14 ft-lb)
8) Connect the fuel hoses to fuel pipe.
9) Connect the brake booster hose.
10) Connect the PCV hose.
FU-02120
FU-02119
FU-02118
FU-02117
ME-02384
ME-02655
EC-02133
Page 1576 of 2453
FU(H6DO)-15
Intake Manifold
FUEL INJECTION (FUEL SYSTEMS)
11) Connect the engine coolant hoses to throttle
body.
12) Connect the connector to throttle body.
13) Install the generator.
INSTALLATION, Generator.>
14) Install the air cleaner case and air intake cham-
ber.
Cleaner Case.>
TION, Air Intake Chamber.>
15) Install the fuse of fuel pump to main fuse box.
16) Connect the ground cable to the battery.
17) Install the collector cover.
C: DISASSEMBLY
1) Remove the engine harness from intake mani-
fold.
2) Remove the throttle body.
11, REMOVAL, Throttle Body.>
3) Remove the manifold absolute pressure sensor.
solute Pressure Sensor.>
4) Remove the purge control solenoid valve.
to EC(H6DO)-6, REMOVAL, Purge Control Sole-
noid Valve.>
5) Loosen the clamp which holds fuel injector pipe
to fuel hose, and then disconnect the pipe from fuel
hose.
6) Remove the bolts which install fuel pipes on in-
take manifold.
FU-02114
FU-02487FU-02124
FU-02125
FU-02126
